最近我開始使用 matplotlib。你能幫助我如何在奧茲周圍旋轉（旋轉）影片圓環嗎？我嘗試在更新函式中更改 x,y,z 的值，但這會更改環面的位置，而不是其旋轉。
import matplotlib.pyplot as plt
import matplotlib.animation as animation
t = np.linspace(0, 2 * np.pi, 50)
th, ph = np.meshgrid(t, t)
r = 0.4
x, y, z = 1.5*r * np.sin(ph), (2 r * np.cos(ph)) * np.sin(th), (2 r * np.cos(ph)) * np.cos(th)
Steps = 1001
fig = plt.figure()
ax = fig.add_subplot(projection='3d')
plot=[ax.plot_surface(x, y, z 2,rstride=2,cstride=1,color='green',alpha=.5)]
ax.set(xlim=[-4, 4], ylim=[-4, 4], zlim=[0, 4])
u = np.linspace(0, 2 * np.pi, 100)
v = np.linspace(0, np.pi, 100)
a = 0.5 * np.outer(np.cos(u), np.sin(v))
b = 0.5 * np.outer(np.sin(u), np.sin(v))
c = 0.4 * np.outer(np.ones(np.size(u)), np.cos(v))
elev = 10.0
rot = 80.0 / 180 * np.pi
ax.plot_surface(a, b, c 4, rstride=4, cstride=4, color='b', linewidth=0)
theta = np.linspace(0, 20 * np.pi,1001)
ax.view_init(elev = elev, azim = 0)
def update(num):
plot[0].remove()
x, y, z = 1.5 * r * np.sin(ph), (2 r * np.cos(ph)) * np.sin(th), (2 r * np.cos(ph)) * np.cos(th)
plot[0] = ax.plot_surface(1.5 * r * np.sin(ph),(2 r*np.cos(ph)) * np.sin(th),(z 2),rstride=2,cstride=1,color='green',alpha=.5)
ani = animation.FuncAnimation(fig, update, 100,interval=40)
ax.elev = 60
plt.show() ```
uj5u.com熱心網友回復：
一種方法是只更改函式中函式azim引數的值。例如，您可以添加 line 。這樣，視點在每一幀都圍繞 z 軸旋轉。請參閱下面的完整代碼：ax.view_initupdateax.view_init(azim=360*num/100, elev=10)
import matplotlib.pyplot as plt
import matplotlib.animation as animation
import numpy as np
t = np.linspace(0, 2 * np.pi, 50)
th, ph = np.meshgrid(t, t)
r = 0.4
x, y, z = 1.5*r * np.sin(ph), (2 r * np.cos(ph)) * np.sin(th), (2 r * np.cos(ph)) * np.cos(th)
Steps = 1001
fig = plt.figure()
ax = fig.add_subplot(projection='3d')
plot=[ax.plot_surface(x, y, z 2,rstride=2,cstride=1,color='green',alpha=.5)]
ax.set(xlim=[-4, 4], ylim=[-4, 4], zlim=[0, 4])
u = np.linspace(0, 2 * np.pi, 100)
v = np.linspace(0, np.pi, 100)
a = 0.5 * np.outer(np.cos(u), np.sin(v))
b = 0.5 * np.outer(np.sin(u), np.sin(v))
c = 0.4 * np.outer(np.ones(np.size(u)), np.cos(v))
elev = 10.0
rot = 80.0 / 180 * np.pi
ax.plot_surface(a, b, c 4, rstride=4, cstride=4, color='b', linewidth=0)
theta = np.linspace(0, 20 * np.pi,1001)
ax.view_init(elev = elev, azim = 0)
def update(num):
plot[0].remove()
x, y, z = 1.5 * r * np.sin(ph), (2 r * np.cos(ph)) * np.sin(th), (2 r * np.cos(ph)) * np.cos(th)
plot[0] = ax.plot_surface(1.5 * r * np.sin(ph),(2 r*np.cos(ph)) * np.sin(th),(z 2),rstride=2,cstride=1,color='green',alpha=.5)
ax.view_init(azim=360*num/100, elev=10)
ani = animation.FuncAnimation(fig, update, 100,interval=40)
plt.show()

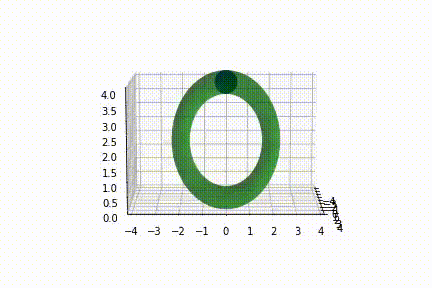

這就是輸出在 30fps 時的樣子：
