微信小程式訂閱訊息開發指南(java)

第一步準備階段

1、你得有一個小程式，并且認證了，個人的也行

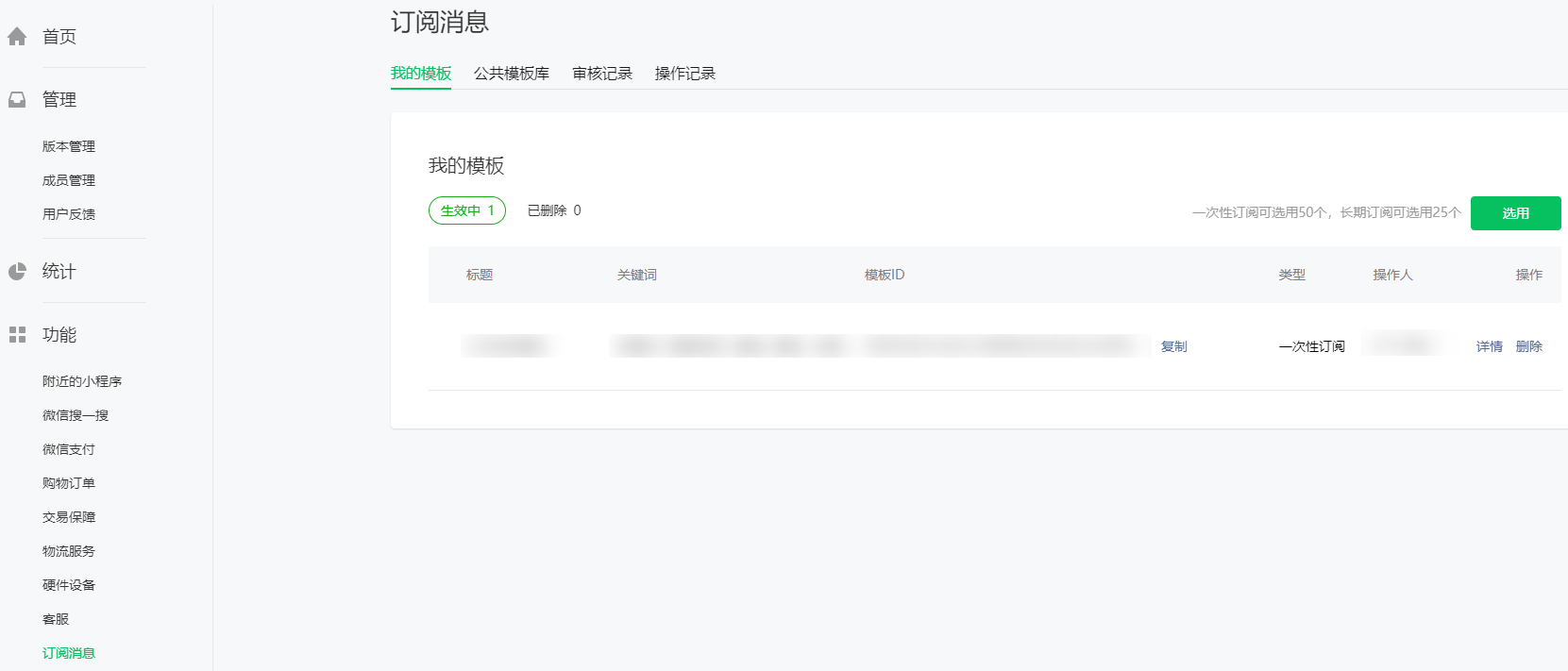

2、開通訂閱訊息

小程式后臺->功能->訂閱訊息

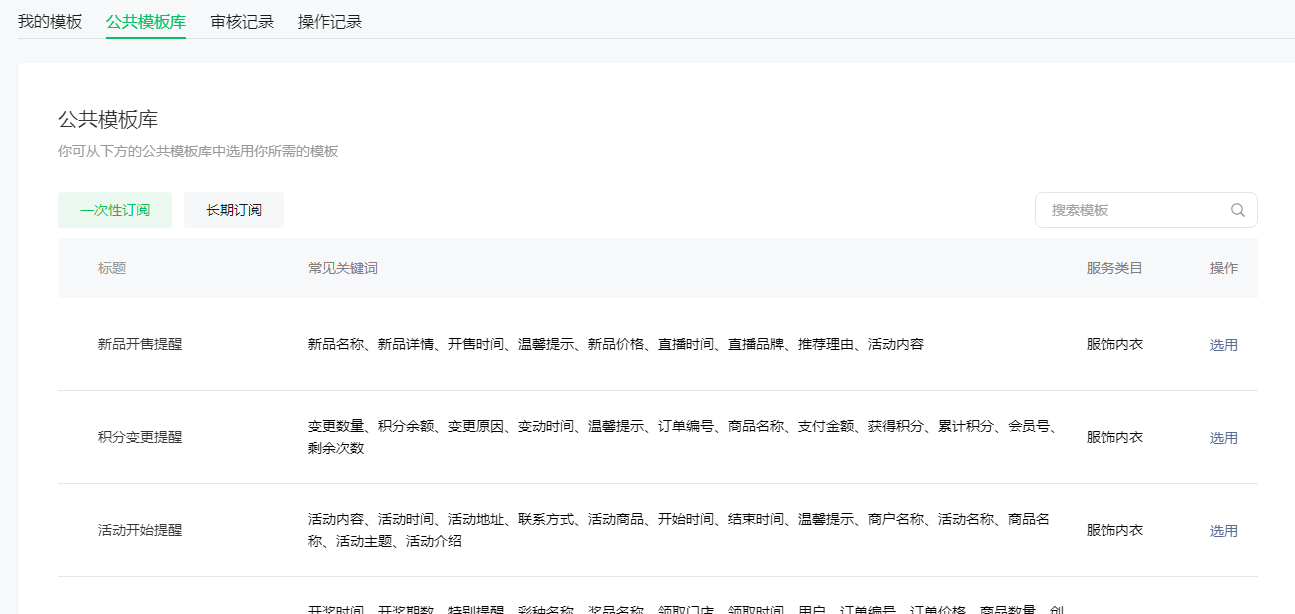

3、公共模板庫選擇一個模板

選擇的時候，選擇你需要的欄位，因為欄位有限制

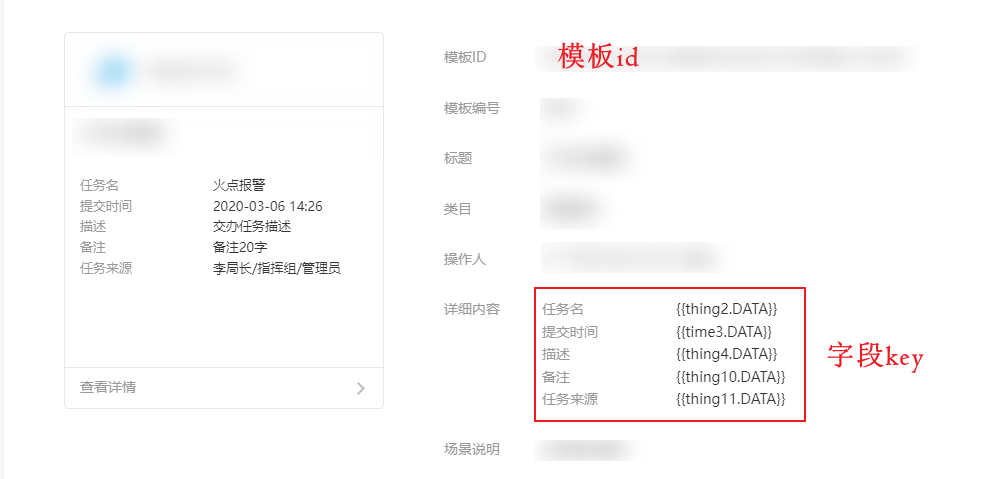

4、我的模板點擊詳情

詳情內容，模板 id 都是需要提供個服務端開發人員的

第二步編碼階段

小程式端

小程式訊息訂閱，需要用戶確認

1、首先小程式授權登陸獲取 code

官網示例：https://developers.weixin.qq.com/miniprogram/dev/api/open-api/login/wx.login.html

wx.login({
  success (res) {
    if (res.code) {
      //發起網路請求
      wx.request({
        url: 'https://example.com/onLogin',
        data: {
          code: res.code
        }
      })
    } else {
      console.log('登錄失敗！' + res.errMsg)
    }
  }
})
// 結果 {errMsg: "login:ok", code: "0a3kK4Ga10Gk3F0oBAHa1mGyRl3kK4Gd"}

uni-App 示例：https://uniapp.dcloud.net.cn/api/plugins/login.html#login

uni.login({
    provider: 'weixin', //使用微信登錄
    success: function (loginRes) {
        console.log(loginRes)
    }
});
// 結果 {errMsg: "login:ok", code: "0a3kK4Ga10Gk3F0oBAHa1mGyRl3kK4Gd"}

2、將 code 傳給服務端獲取用戶唯一標識 openId

3、通過代碼起小程式訊息訂閱界面、用戶點擊確定ok，小程式作業結束

官方示例：https://developers.weixin.qq.com/miniprogram/dev/api/open-api/subscribe-message/wx.requestSubscribeMessage.html

tmplIds 填寫模板 id 即可，最多三個

wx.requestSubscribeMessage({
  tmplIds: [''],
  success (res) {
      console.log(res)
  }
})

4、注意事項：

避免重復拉起用戶訂閱通知，可以通過微信提供的 getSetting 判斷用戶是否訂閱了，如果沒有就拉起，

注意下面是用uniapp寫的，方法前綴是uni 如果你小程式代碼記得修改 wx 以及提示組件

到此小程式作業結束

getSetting() {
    uni.getSetting({
        withSubscriptions: true, // 獲取用戶訂閱狀態
        success(res) {
            // false 表示用戶未訂閱改訊息
            if (!res.subscriptionsSetting.mainSwitch) {
                this.subscribeMessage();
            } else {
                uni.showToast({
                    title: '已訂閱',
                    icon: 'none'
                })
            }
        }
    })
},
subscribeMessage() {
    uni.requestSubscribeMessage({
        tmplIds: ['模板id'],
        success(res) {
            if (res.errMsg === 'requestSubscribeMessage:ok') {
                uni.showToast({
                    title: '訂閱成功',
                    icon: 'none'
                })
            }
        }
    })
}

服務端

微信小程式的 appid 和 secret 小程式后臺->開發->開發管理->開發設定->開發者 ID

注意事項：

http 請求這里使用 apache 的工具類，你也可以使用別的
微信訊息模板欄位 thing 欄位有長度限制20，超過會失敗
以下演示代碼，生產環境還需進行優化

1、通過 code 獲取用戶 open id 官網檔案

 public String getOpenId(String code) throws IOException {
        CloseableHttpClient httpClient = HttpClientBuilder.create().build();
        Map<String, Object> params = new HashMap<>();
        params.put("appid", Constants.APPLET_APP_ID);
        params.put("secret", Constants.APPLET_SECRET);
        params.put("js_code", code);
        params.put("grant_type", "authorization_code");

        String url = handleParams("https://api.weixin.qq.com/sns/jscode2session", params);
        HttpGet httpGet = new HttpGet(url);

        CloseableHttpResponse response = httpClient.execute(httpGet);
        HttpEntity entity = response.getEntity(); // 回應結果
        return EntityUtils.toString(entity, CharSetType.UTF8.getType());
}

public static void main(String[] args) throws IOException {
        HttpUtils httpUtils = new HttpUtils();
        String token = httpUtils.getToken();
        System.out.println(token);
}

回應結果：

{"access_token":"67_u22CQaWq22222222Q4griDE6kiT5hwg7jVxedn8J9te17Az1oWGGxPgB22222229Y4Wm6h_Yzci7-FSDjeH8YG6DsCOYrQXJCWsPXhT6nWbKIWCXfABACID","expires_in":7200}

2、通過 appid 和 secret 獲取 token 超時 7200 秒可 redis 快取官方檔案

public String getToken() throws IOException {
        CloseableHttpClient httpClient = HttpClientBuilder.create().build();
        Map<String, Object> params = new HashMap<>();
        params.put("appid", Constants.APPLET_APP_ID);
        params.put("secret", Constants.APPLET_SECRET);
        params.put("grant_type", "client_credential");

        String url = handleParams("https://api.weixin.qq.com/cgi-bin/token", params);
        HttpGet httpGet = new HttpGet(url);

        CloseableHttpResponse response = httpClient.execute(httpGet);
        HttpEntity entity = response.getEntity(); // 回應結果

        return EntityUtils.toString(entity, CharSetType.UTF8.getType());
}

3、指定用戶推送訊息結束官方檔案

public String pushMsg(String token) throws IOException {

        CloseableHttpClient httpClient = HttpClientBuilder.create().build();
        Map<String, Object> params = new HashMap<>();

        // 處理微信推送資料結構
        JSONObject mapData = https://www.cnblogs.com/bxmm/archive/2023/04/03/new JSONObject();
        Map map1 = new HashMap<>();
        map1.put("value", "任務名稱");
        mapData.put("thing2", map1);

        Map<String, Object> map2 = new HashMap<>();
        map2.put("value", "2022-04-03 10:00:00");
        mapData.put("time3", map2);

        Map<String, Object> map3 = new HashMap<>();
        map3.put("value", "描述資訊");
        mapData.put("thing4", map3);

        Map<String, Object> map4 = new HashMap<>();
        map4.put("value", "備注資訊");
        mapData.put("thing10", map4);

        Map<String, Object> map5 = new HashMap<>();
        map5.put("value", "任務來源");
        mapData.put("thing11", map5);

        params.put("template_id", "templateId");// 模板 id
        params.put("touser", "openId"); // open id
        params.put("data", mapData); // 資料
        params.put("page", "page"); // 點擊模板卡片后的跳轉頁面，僅限本小程式內的頁面，支持帶引數,（示例index?foo=bar），該欄位不填則模板無跳轉
        params.put("miniprogram_state", "trial"); //developer為開發版；trial為體驗版；formal為正式版；默認為正式版
        params.put("lang", "zh_CN"); //

        HttpPost httpPost = new HttpPost("https://api.weixin.qq.com/cgi-bin/message/subscribe/send?access_token=" + token);
        httpPost.addHeader("ContentTyp", "application/json");

        // 引數轉 JSON 格式
        String json = objToStr(params);
        StringEntity stringEntity = new StringEntity(json, CharSetType.UTF8.getType());
        stringEntity.setContentEncoding(CharSetType.UTF8.getType());
        httpPost.setEntity(stringEntity);

        CloseableHttpResponse response = httpClient.execute(httpPost);
        HttpEntity entity = response.getEntity(); // 回應結果
        return EntityUtils.toString(entity, CharSetType.UTF8.getType());
    }

4、完整代碼

import com.alibaba.fastjson.JSONObject;
import com.fasterxml.jackson.core.JsonProcessingException;
import com.fasterxml.jackson.databind.ObjectMapper;
import com.github.chenlijia1111.utils.core.enums.CharSetType;
import org.apache.http.HttpEntity;
import org.apache.http.client.methods.CloseableHttpResponse;
import org.apache.http.client.methods.HttpGet;
import org.apache.http.client.methods.HttpPost;
import org.apache.http.entity.StringEntity;
import org.apache.http.impl.client.CloseableHttpClient;
import org.apache.http.impl.client.HttpClientBuilder;
import org.apache.http.util.EntityUtils;
import org.jeecg.modules.video.utitls.Constants;

import java.io.IOException;
import java.io.UnsupportedEncodingException;
import java.net.URLEncoder;
import java.util.HashMap;
import java.util.Map;
import java.util.Objects;
import java.util.Set;
import java.util.stream.Collectors;

/**
 * @description:
 * @author: Mr.Fang
 * @create: 2023-04-03 17:06
 **/

public class HttpUtils {

    /**
     * description: 獲取token，回傳結果為 JSON 自行轉 map
     * create by: Mr.Fang
     *
     * @return: java.lang.String
     * @date: 2023/4/3 17:46
     */
    public String getToken() throws IOException {
        CloseableHttpClient httpClient = HttpClientBuilder.create().build();
        Map<String, Object> params = new HashMap<>();
        params.put("appid", Constants.APPLET_APP_ID);
        params.put("secret", Constants.APPLET_SECRET);
        params.put("grant_type", "client_credential");

        String url = handleParams("https://api.weixin.qq.com/cgi-bin/token", params);
        HttpGet httpGet = new HttpGet(url);

        CloseableHttpResponse response = httpClient.execute(httpGet);
        HttpEntity entity = response.getEntity(); // 回應結果

        return EntityUtils.toString(entity, CharSetType.UTF8.getType());
    }

    /**
     * description: 獲取 open id，回傳結果為 JSON 自行轉 map
     * create by: Mr.Fang
     *
     * @param: [code]
     * @return: java.lang.String
     * @date: 2023/4/3 17:46
     */
    public String getOpenId(String code) throws IOException {
        CloseableHttpClient httpClient = HttpClientBuilder.create().build();
        Map<String, Object> params = new HashMap<>();
        params.put("appid", Constants.APPLET_APP_ID);
        params.put("secret", Constants.APPLET_SECRET);
        params.put("js_code", code);
        params.put("grant_type", "authorization_code");

        String url = handleParams("https://api.weixin.qq.com/sns/jscode2session", params);
        HttpGet httpGet = new HttpGet(url);

        CloseableHttpResponse response = httpClient.execute(httpGet);
        HttpEntity entity = response.getEntity(); // 回應結果
        return EntityUtils.toString(entity, CharSetType.UTF8.getType());
    }

    /**
     * description: 訊息推送 回傳結果為 JSON 自行轉 map；token 呼叫 getToken獲取
     * create by: Mr.Fang
     *
     * @param: [token]
     * @return: java.lang.String
     * @date: 2023/4/3 17:46
     */
    public String pushMsg(String token) throws IOException {

        CloseableHttpClient httpClient = HttpClientBuilder.create().build();
        Map<String, Object> params = new HashMap<>();

        // 處理微信推送資料結構
        JSONObject mapData = https://www.cnblogs.com/bxmm/archive/2023/04/03/new JSONObject();
        Map map1 = new HashMap<>();
        map1.put("value", "任務名稱");
        mapData.put("thing2", map1);

        Map<String, Object> map2 = new HashMap<>();
        map2.put("value", "2023-04-03 12:00:00");
        mapData.put("time3", map2);

        Map<String, Object> map3 = new HashMap<>();
        map3.put("value", "描述資訊");
        mapData.put("thing4", map3);

        Map<String, Object> map4 = new HashMap<>();
        map4.put("value", "備注系資訊");
        mapData.put("thing10", map4);

        Map<String, Object> map5 = new HashMap<>();
        map5.put("value", "抖音");
        mapData.put("thing11", map5);

        params.put("template_id", "templateId");// 模板 id
        params.put("touser", "openId"); // open id
        params.put("data", mapData); // 資料
        params.put("page", "page"); // 點擊模板卡片后的跳轉頁面，僅限本小程式內的頁面，支持帶引數,（示例index?foo=bar），該欄位不填則模板無跳轉
        params.put("miniprogram_state", "trial"); //developer為開發版；trial為體驗版；formal為正式版；默認為正式版
        params.put("lang", "zh_CN"); //

        HttpPost httpPost = new HttpPost("https://api.weixin.qq.com/cgi-bin/message/subscribe/send?access_token=" + token);
        httpPost.addHeader("ContentTyp", "application/json");

        // 引數轉 JSON 格式
        String json = objToStr(params);
        StringEntity stringEntity = new StringEntity(json, CharSetType.UTF8.getType());
        stringEntity.setContentEncoding(CharSetType.UTF8.getType());
        httpPost.setEntity(stringEntity);

        CloseableHttpResponse response = httpClient.execute(httpPost);
        HttpEntity entity = response.getEntity(); // 回應結果
        return EntityUtils.toString(entity, CharSetType.UTF8.getType());
    }


    /**
     * description: 物件轉 字串
     * create by: Mr.Fang
     *
     * @param: [obj]
     * @return: java.lang.String
     * @date: 2023/4/3 17:45
     */
    public static String objToStr(Object obj) {

        ObjectMapper objectMapper = new ObjectMapper();
        if (Objects.nonNull(obj)) {
            try {
                String jsonStr = objectMapper.writeValueAsString(obj);
                return jsonStr;
            } catch (JsonProcessingException var2) {
                var2.printStackTrace();
            }
        }

        return null;
    }

    /**
     * description: map 轉 URL 地址拼接
     * create by: Mr.Fang
     *
     * @param: [url, params]
     * @return: java.lang.String
     * @date: 2023/4/3 17:45
     */
    public String handleParams(String url, Map<String, Object> params) {
        if (params.size() != 0) {
            Set<Map.Entry<String, Object>> entries = params.entrySet();
            String paramsString = entries.stream().map((e) -> {
                try {
                    StringBuilder sb = new StringBuilder();
                    sb.append(URLEncoder.encode(e.getKey(), CharSetType.UTF8.getType()));
                    sb.append("=");
                    if (Objects.nonNull(e.getValue())) {
                        sb.append(URLEncoder.encode(e.getValue().toString(), CharSetType.UTF8.getType()));
                    }

                    return sb.toString();
                } catch (UnsupportedEncodingException var2) {
                    var2.printStackTrace();
                    return null;
                }
            }).collect(Collectors.joining("&"));
            return url + "?" + paramsString;
        }
        return url;
    }


}

本文來自博客園，作者：天葬，轉載請注明原文鏈接：https://www.cnblogs.com/bxmm/p/17283908.html

轉載請註明出處，本文鏈接：https://www.uj5u.com/houduan/549015.html
