圖紙管理系統

一、初步構建后端專案

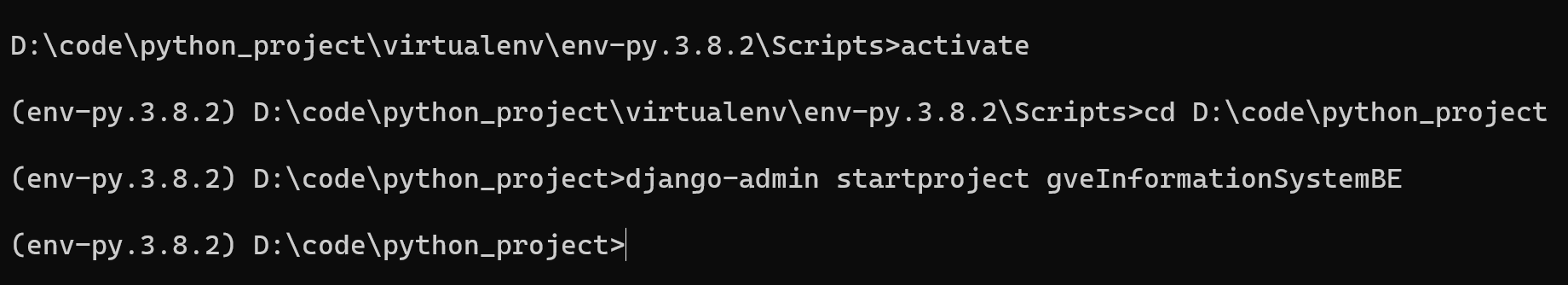

1、打開已經創建好的虛擬環境:激活activate（推薦使用虛擬環境）并創建專案

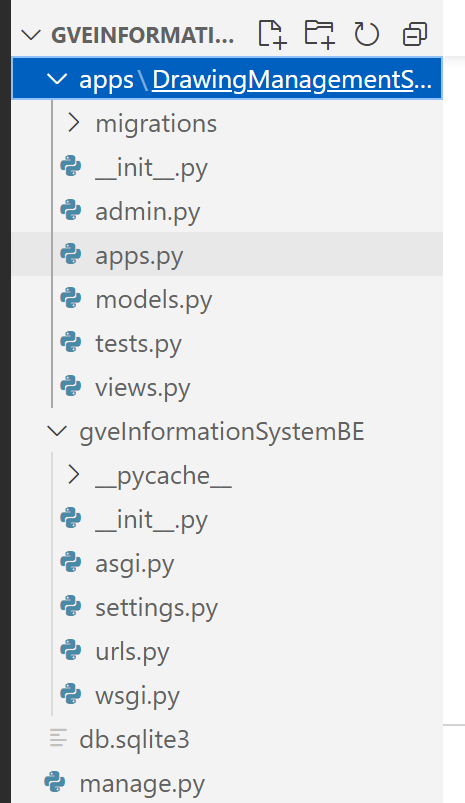

2、匯入vs code中，專案環境大致如下：

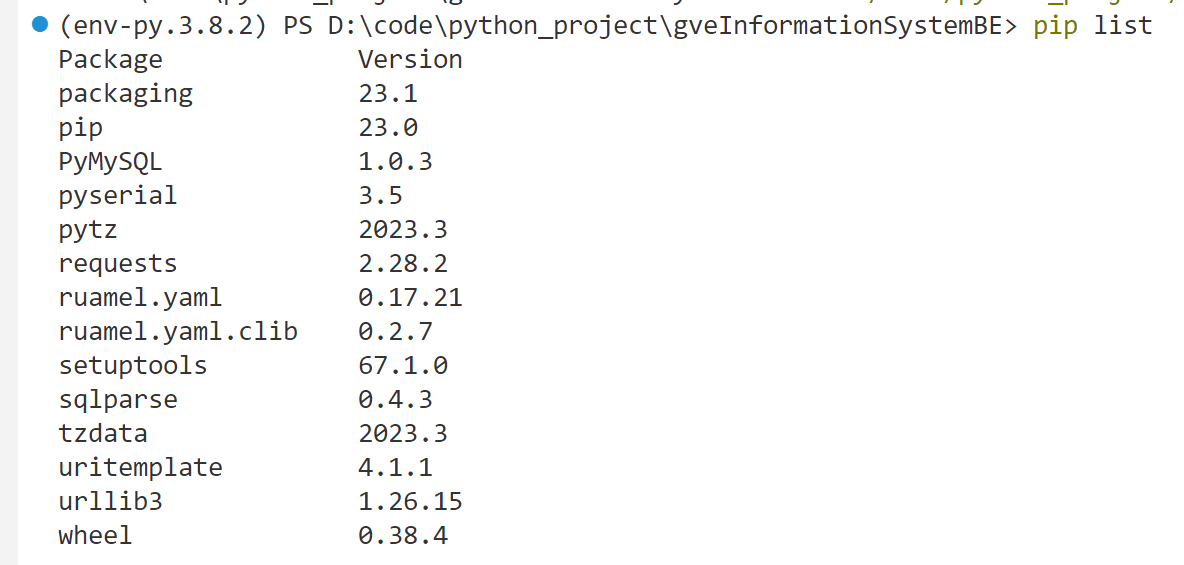

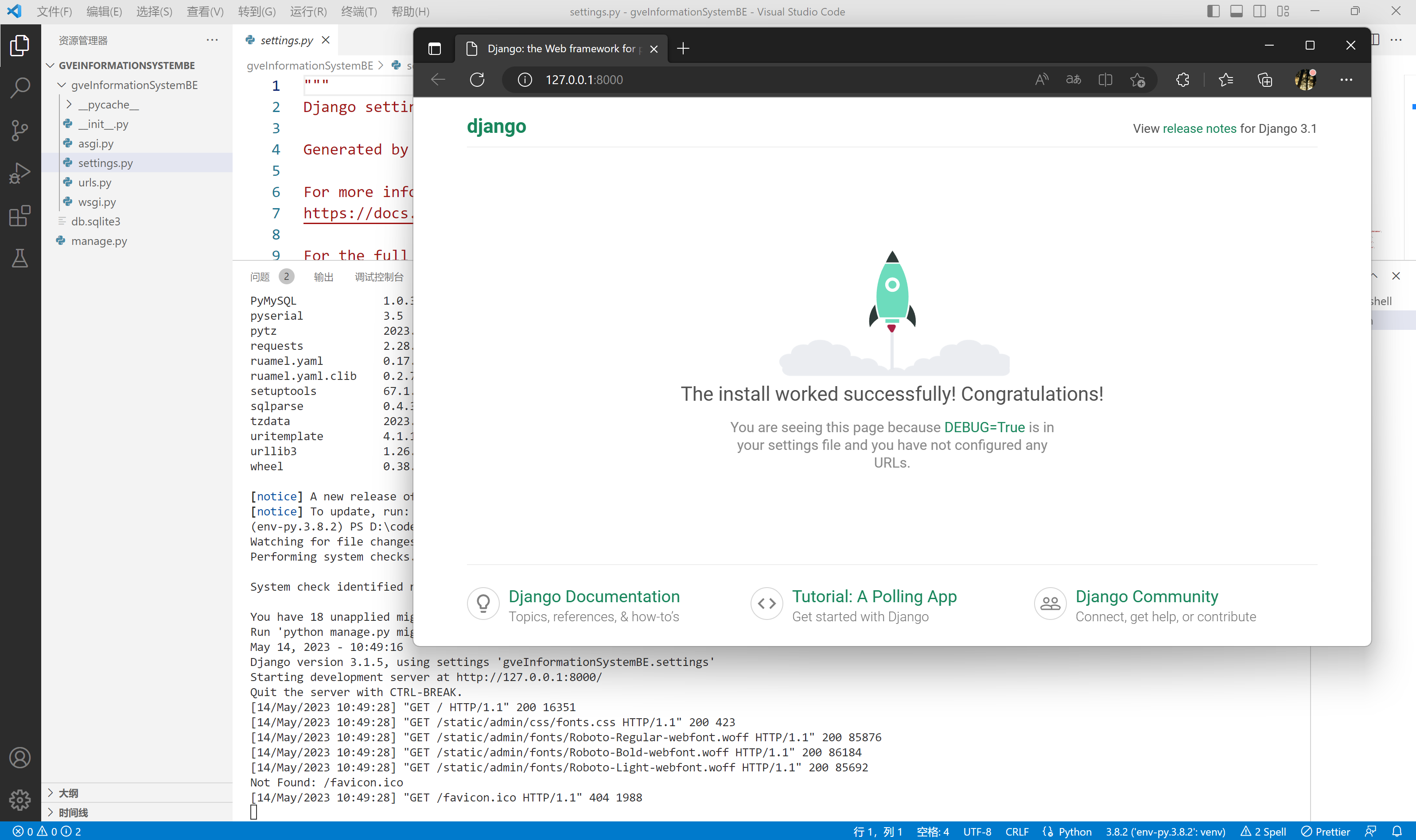

需要將終端改成虛擬環境的解釋器后，簡單試運行：

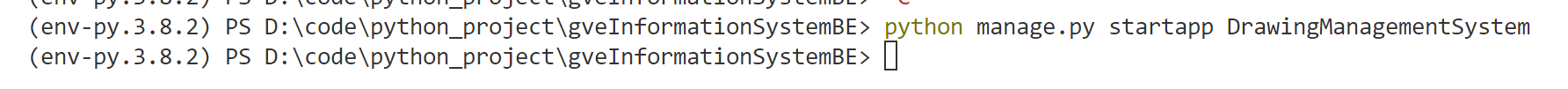

3、創建子app（圖紙管理系統模塊）

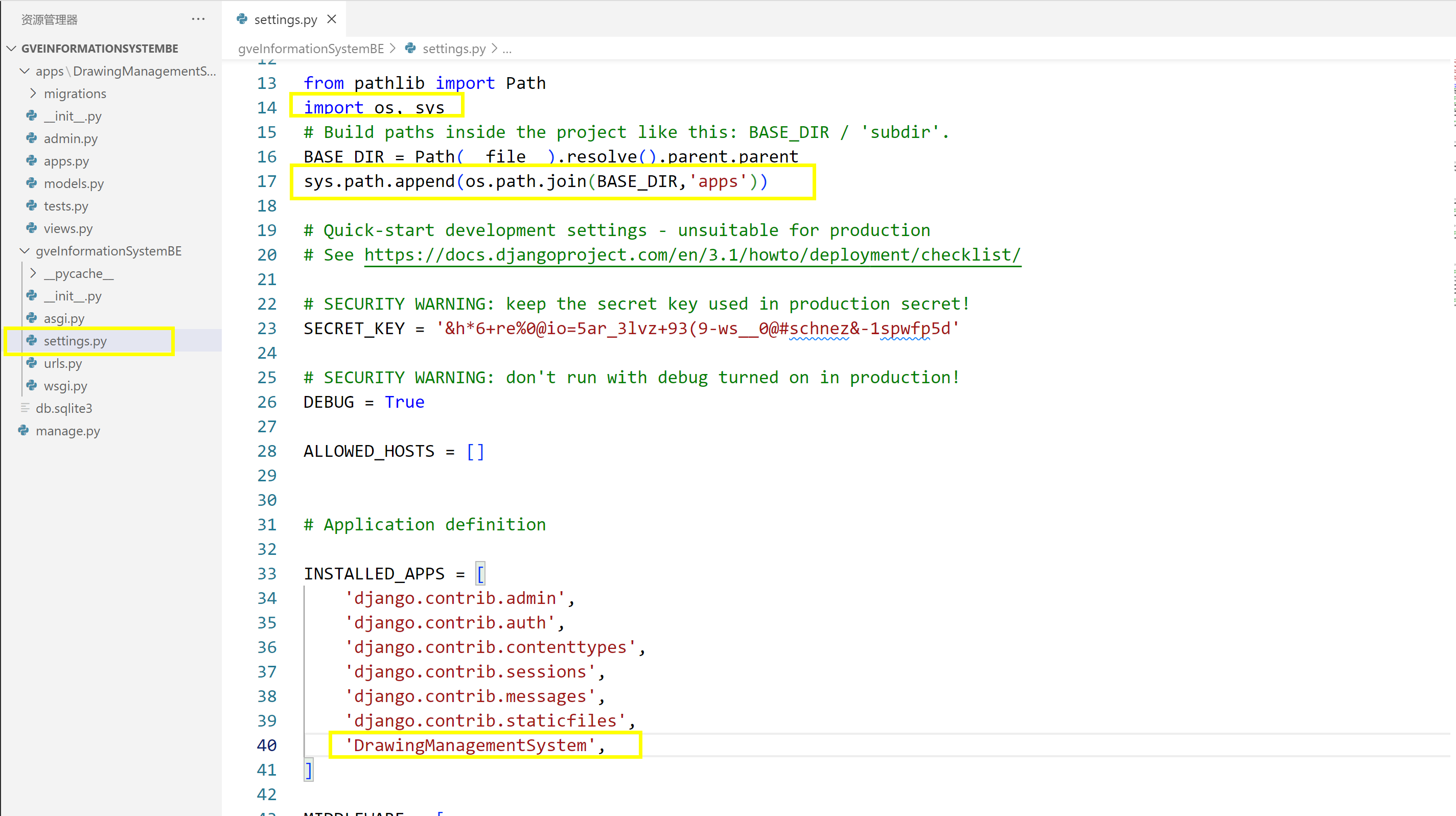

由于我們把子專案都放在apps里面了（方便統一管理）所以注冊要加入一段配置

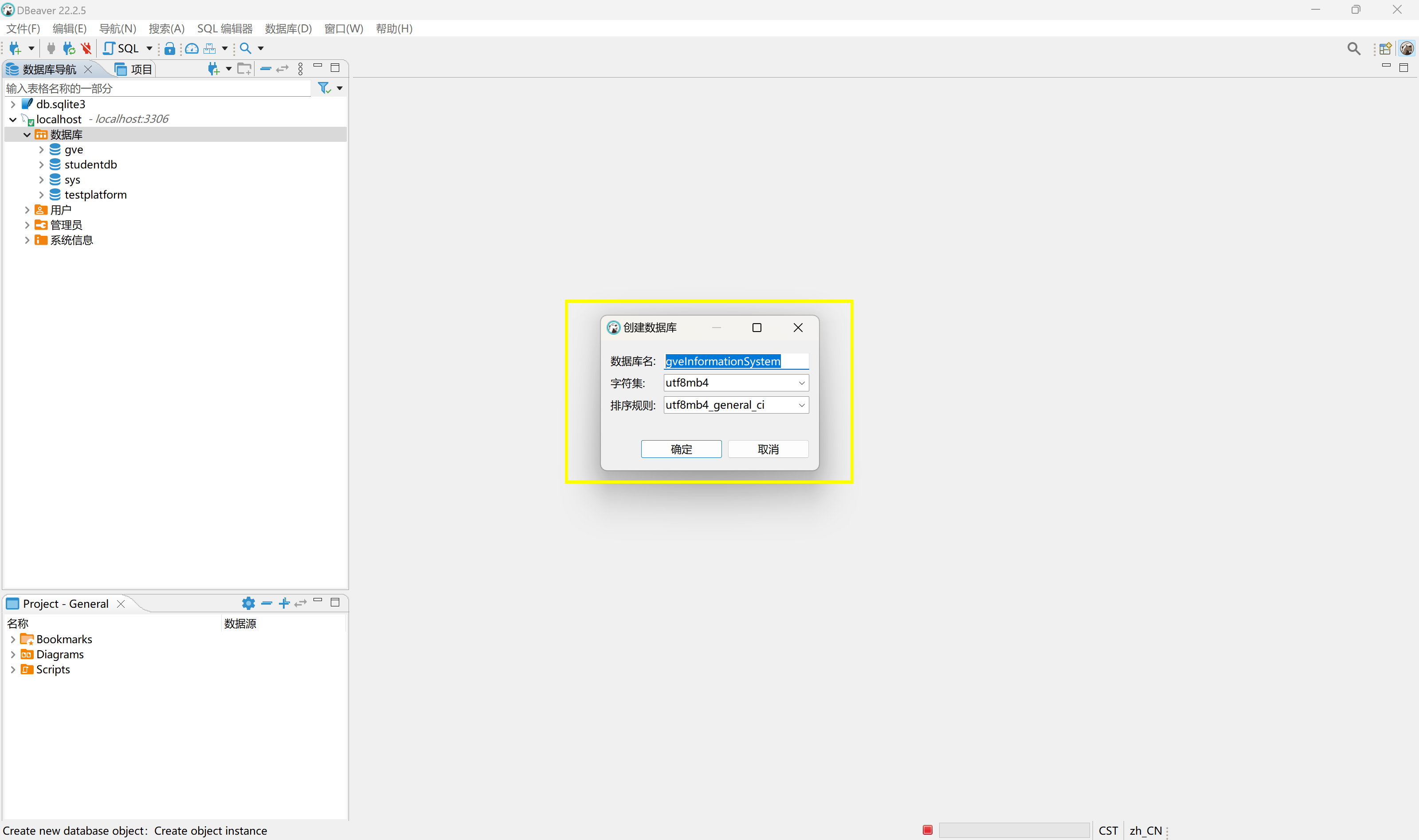

4、創建資料庫

一定要注意格式

5、設定Django連接資料庫

（1）安裝pymysql

pip install pymysql

（2）gveInformationSystem/settings中進行相關配置

DATABASES = {
    'default': {
        'ENGINE': 'django.db.backends.mysql',
        'NAME': 'StudentDB',
        'USER': 'root',
        'PASSWORD': '123456',
        'HOST': 'localhost',
        'PORT': '3306',
    }
}

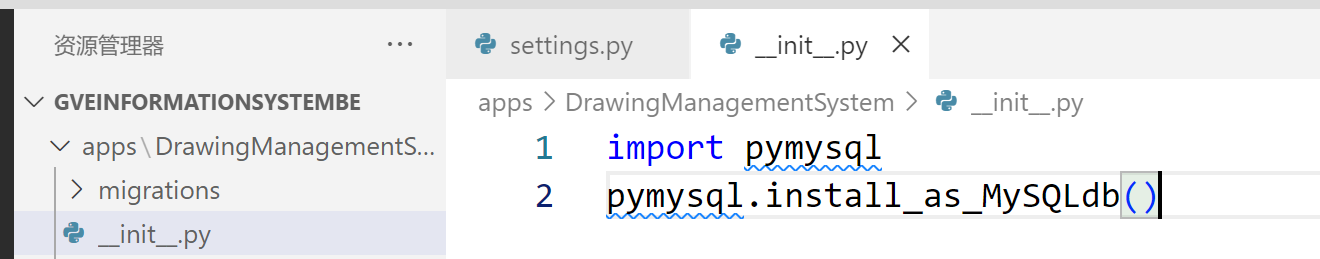

（3）需要在init.py匯入pymysql

6、創建資料庫表內容

（在：apps/DrawingManagementSystem/models.py）

from django.db import models


# Create your models here.
# === 圖紙管理系統 models
# 傳感器分類--sensor， 專案--project， 資料-data， 圖紙資訊-drawing

# 公有創建時間和修改時間
class TimestampMode(models.Model):
    """
    An abstract base class model that provides selfupdating ``created`` and ``modified`` fields.
    """
    created = models.DateTimeField(auto_now_add=True)
    modified = models.DateTimeField(auto_now=True)

    class Meta:
        abstract = True  # it's very important to add this line


# === 傳感器類 --- Sensor：Id,name,created,modified
class Sensor(TimestampMode):
    sensor_name = models.CharField(verbose_name="傳感器名稱", max_length=50, unique=True, null=False, blank=False)

    # create_time = models.DateTimeField(default=timezone.now().replace(microsecond=0))

    class Meta:
        db_table = "Draw_Sensor"
        managed = True
        app_label = "DrawingManagementSystem"

    def __str__(self):
        return "%s" % (self.sensor_name)


# === 專案類 --- project：Id,name,created,modified
class Project(TimestampMode):
    project_name = models.CharField(verbose_name="專案名稱", max_length=50, unique=True, null=False, blank=False)
    sensor = models.ForeignKey(verbose_name="所屬傳感器", to=Sensor, on_delete=models.PROTECT)

    class Meta:
        db_table = "Draw_Project"
        managed = True
        app_label = "DrawingManagementSystem"

    def __str__(self):
        return "%s" % (self.project_name)


# === 資料類 --- data:ID,name,created,modified
class Data(TimestampMode):
    data_name = models.CharField(verbose_name="資料名稱", max_length=50, unique=True, null=False, blank=False)
    sensor = models.ForeignKey(verbose_name="所屬傳感器", to=Sensor, on_delete=models.PROTECT)
    project = models.ForeignKey(verbose_name="所屬專案", to=Project, on_delete=models.PROTECT)

    class Meta:
        db_table = "Draw_Data"
        managed = True
        app_label = "DrawingManagementSystem"

    def __str__(self):
        return "%s" % (self.data_name)


# === 圖紙資訊 --- drawing:ID(Material_code),drawing_name,created,modified,drawing_spec,drawing_page,drawing_client_id,drawing_remark,drawing_version
class Drawing(TimestampMode):
    material_code = models.CharField(verbose_name="物料編號", max_length=50, blank=False)
    sensor = models.ForeignKey(verbose_name="所屬傳感器", to=Sensor, on_delete=models.PROTECT)
    project = models.ForeignKey(verbose_name="所屬專案", to=Project, on_delete=models.PROTECT)
    data = https://www.cnblogs.com/lightwower/archive/2023/05/24/models.ForeignKey(verbose_name="所屬資料", to=Data, on_delete=models.PROTECT)
    drawing_name = models.CharField(verbose_name="材料名稱", max_length=50, blank=False)
    drawing_spec = models.CharField(verbose_name="規格/圖紙號", max_length=50, blank=False)
    drawing_page = models.CharField(verbose_name="圖紙頁數", max_length=50, blank=False)
    drawing_client_id = models.CharField(verbose_name="客戶編號", max_length=50)
    drawing_version = models.CharField(verbose_name="版本號", max_length=50, blank=False)
    drawing_remark = models.CharField(verbose_name="備注", max_length=100)
    drawing_url = models.CharField(verbose_name="地址", max_length=100)
    is_deleted = models.IntegerField(verbose_name="邏輯洗掉0否1是", max_length=10, blank=False, default=0)

    class Meta:
        db_table = "Draw_Drawing"
        managed = True
        app_label = "DrawingManagementSystem"

    def __str__(self):
        return "%s" % (self.drawing_name)

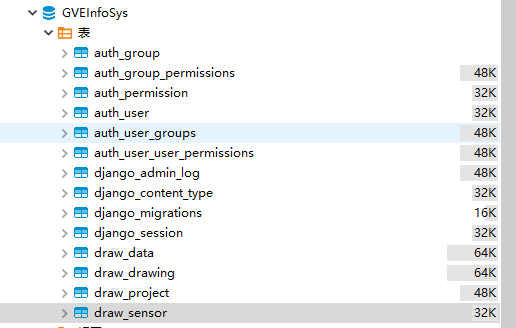

（1）用指令生成資料庫

python manage.py makemigrations
python manage.py migrate

完成后代碼如下：

7、DRF介面（初步）

（1）DRF的安裝和快速實作

安裝DjangoRestFramework包

pip install djangorestframework==3.13.0

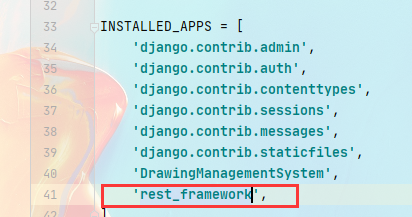

在settings中匯入

序列化:負責物件和json格式的相互轉換

? a獲取資料：物件-->Json回傳給前端

? b添加、修改：json-->物件 存盤在資料庫中

視圖：實作后臺功能的核心

? 早期：視圖是基于函式--FBV

? DRF：視圖基于類--CBV

路由：路由的匹配

（2）序列化

創建DrawingManagementSystem\serializer.py檔案

from rest_framework import serializers
from DrawingManagementSystem.models import Sensor, Project, Data, Drawing


# ----Sensor序列化類----
class SensorSerialzer(serializers.ModelSerializer):
    class Meta:
        model = Sensor
        fields = "__all__"

# ____Project序列化類____
class ProjectSerialzer(serializers.ModelSerializer):
    class Meta:
        model = Project
        fields = "__all__"

# ____Data序列化類____
class DataSerialzer(serializers.ModelSerializer):
    class Meta:
        model = Data
        fields = "__all__"

# ____Drawing序列化類____
class DrawingSerialzer(serializers.ModelSerializer):
    class Meta:
        model = Drawing
        fields = "__all__"

（3）撰寫view.py代碼（apps\DrawingManagementSystem\views.py）

# ====== 匯入模塊 ======
from rest_framework.viewsets import ModelViewSet  # 封裝完成的ModelViewset視圖集
from DrawingManagementSystem.models import Sensor, Project, Data, Drawing  # 具體的類
from DrawingManagementSystem.serializer import SensorSerialzer, ProjectSerialzer, DataSerialzer, DrawingSerialzer # 序列化類

# ---Sensor視圖---
class SensorViewSet(ModelViewSet):
    queryset = Sensor.objects.all()
    serializer_class = SensorSerialzer

# ---Project---
class ProjectViewSet(ModelViewSet):
    queryset = Project.objects.all()
    serializer_class = ProjectSerialzer

# ---Data視圖---
class DataViewSet(ModelViewSet):
    queryset = Data.objects.all()
    serializer_class = DataSerialzer

# ---Sensor視圖---
class DrawingViewSet(ModelViewSet):
    queryset = Drawing.objects.all()
    serializer_class = DrawingSerialzer

（4）撰寫urls.py代碼（apps\DrawingManagementSystem\urls.py）

# ======匯入模塊======
from django.urls import path
from rest_framework.routers import DefaultRouter
from DrawingManagementSystem.views import SensorViewSet, ProjectViewSet, DataViewSet, DrawingViewSet

# ====1.實體化一個 DefaultRouter====
router = DefaultRouter()

# ====2.注冊相應的url====
# 注冊Sensor物件
router.register('Sensors', SensorViewSet, basename='Sensors') # http://127.0.0.1:8080/DrawingApi/v1/Sensors/
# 注冊Sensor物件
router.register('Projects', ProjectViewSet, basename='Projects') # http://127.0.0.1:8080/DrawingApi/v1/Projects/
# 注冊Sensor物件
router.register('Datas', DataViewSet, basename='Datas') # http://127.0.0.1:8080/DrawingApi/v1/Datas/
# 注冊Sensor物件
router.register('Drawings', DrawingViewSet, basename='Drawings') # http://127.0.0.1:8080/DrawingApi/v1/Drawings/

urlpatterns = [

]

# ====3.附加到urlpatterns集合中====
urlpatterns += router.urls

撰寫總urls.py代碼（gveInformationSystemBE\urls.py）

from django.contrib import admin
from django.urls import path,include

urlpatterns = [
    path('admin/', admin.site.urls),
    path('DrawingApi/v1/',include('DrawingManagementSystem.urls')),
]

撰寫后運行django專案

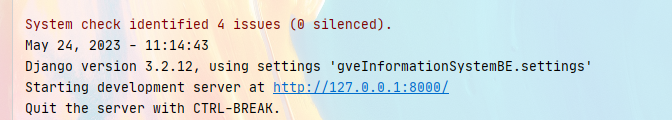

python manage.py runserver

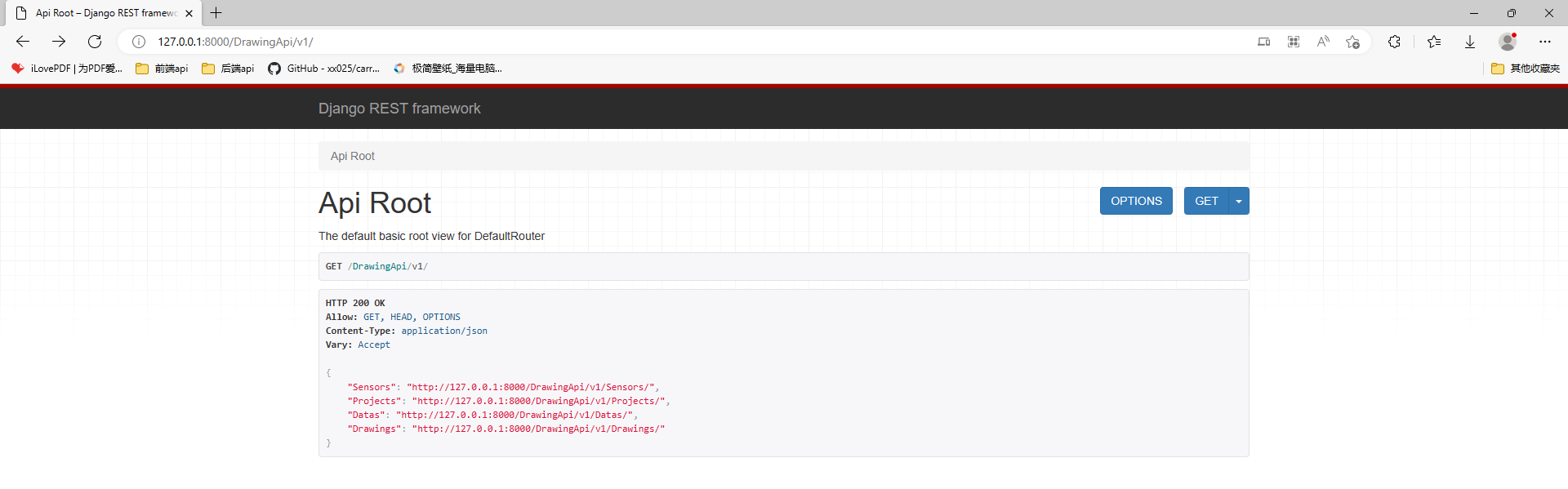

瀏覽器輸入：http://127.0.0.1:8000/DrawingApi/v1/

可以看到界面如下：

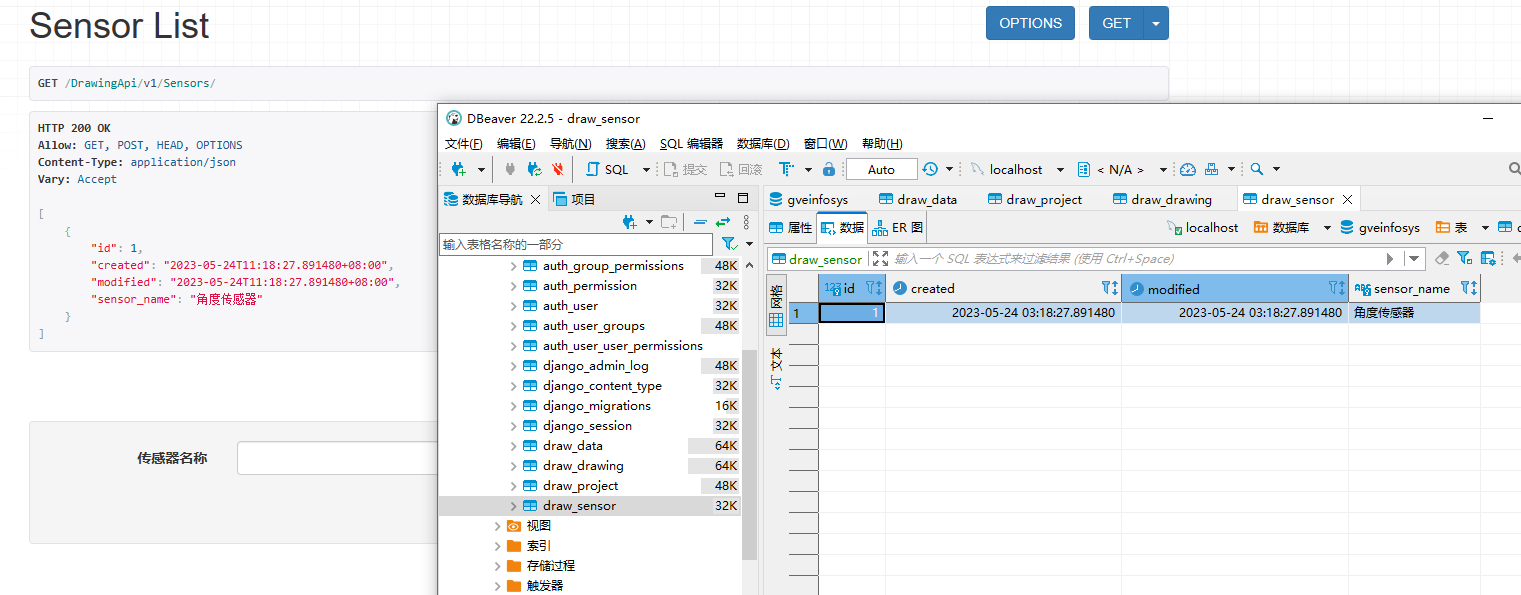

說明簡單后端介面已經完成，可以簡單測驗下：

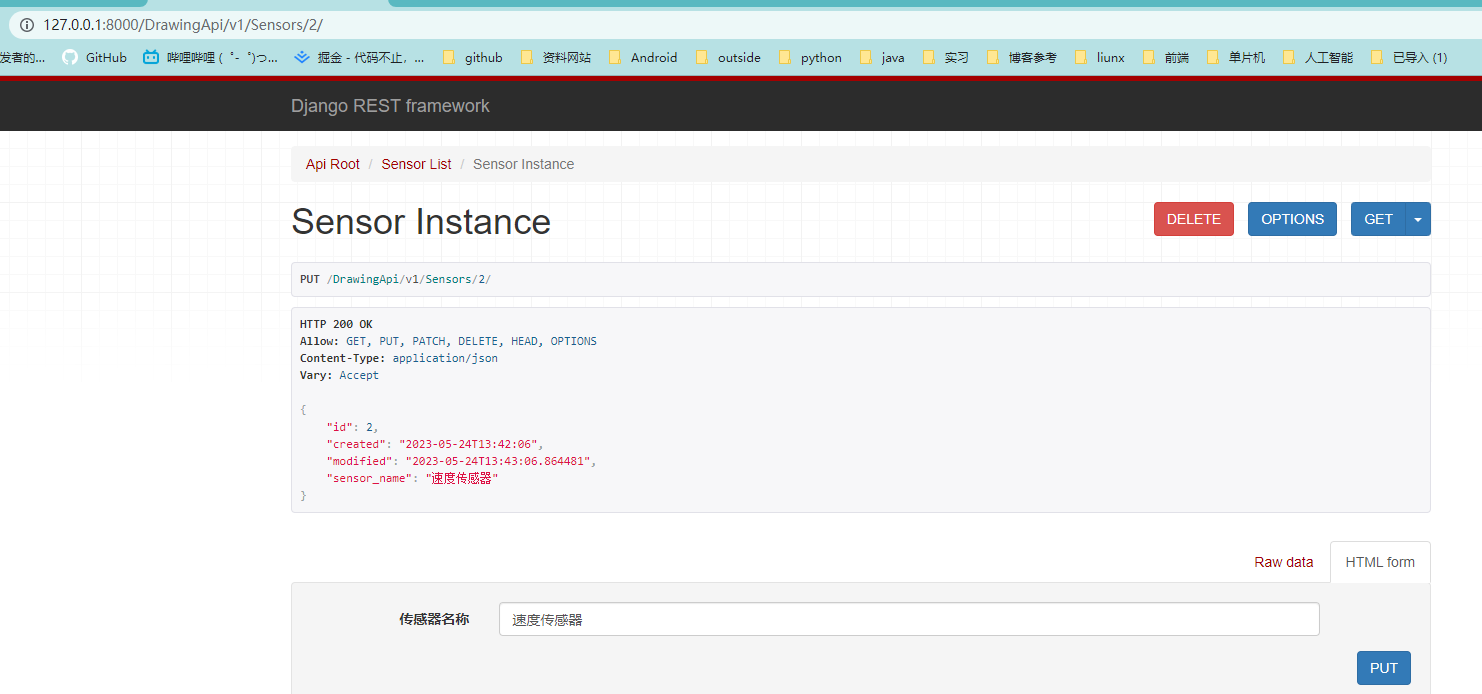

發現存入的時間是北美市區，將gveInformationSystemBE\settings.py中的USE_TZ = True改為：USE_TZ = False

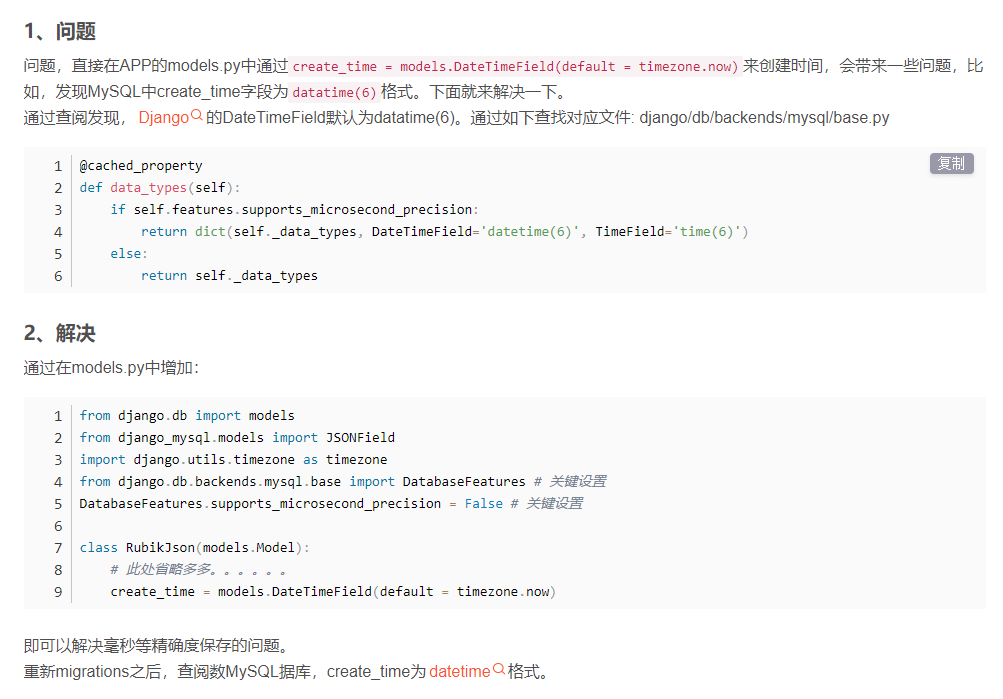

發現存入的時間是帶毫秒：參考解決方法為

或者直接在資料庫軟體中

可以避免存入毫秒的問題

8、DRF進階（增刪改介面、篩選、搜索、分頁）

其實在網址后面加上id，就可以進行資料的洗掉修改

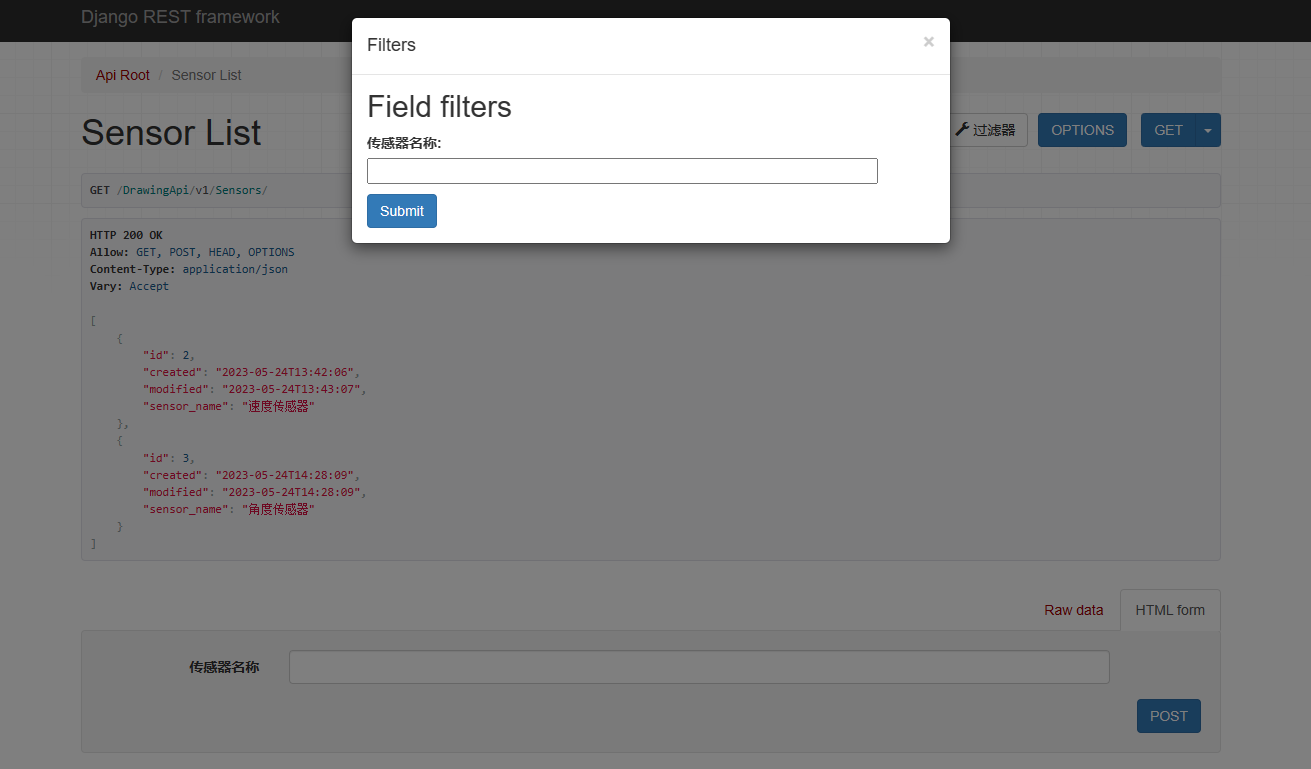

（1）DRF的篩選

步驟為：

安裝：pip install django-filter

pip install django-filter==21.1

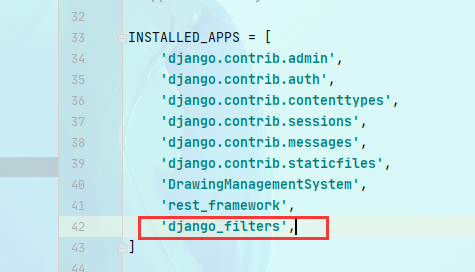

注冊到installed_apps中

完成filter的篩選類

在apps\DrawingManagementSystem新建filter.py

# =====匯入模塊=====
from django_filters import FilterSet
from DrawingManagementSystem.models import Sensor, Project, Data, Drawing


# ---Sensor的Filter類---
class SensorFilter(FilterSet):
    class Meta:
        model = Sensor
        fields = ('sensor_name',) # 傳感器名稱


# ---Project的Filter類---
class ProjectFilter(FilterSet):
    class Meta:
        model = Project
        fields = ('project_name', 'sensor') # 專案名稱 所屬傳感器


# ---Data的Filter類---
class DataFilter(FilterSet):
    class Meta:
        model = Data
        fields = ('data_name', 'sensor', 'project') # 資料名稱 所屬傳感器 所屬專案


# ---Drawing的Filter類---
class DrawingFilter(FilterSet):
    class Meta:
        model = Drawing
        fields = ('drawing_name', 'material_code', 'drawing_spec', 'drawing_client_id')  # 材料名稱、物料編號、規格/圖紙號、客戶編號

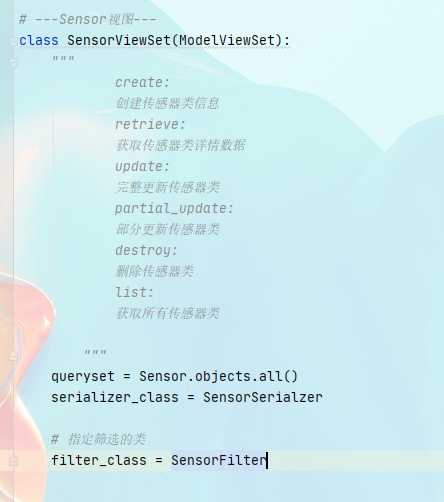

在viewset中添加篩選類

# ====== 匯入模塊 ======
from rest_framework.viewsets import ModelViewSet  # 封裝完成的ModelViewset視圖集
from DrawingManagementSystem.models import Sensor, Project, Data, Drawing  # 具體的類
from DrawingManagementSystem.serializer import SensorSerialzer, ProjectSerialzer, DataSerialzer, \
    DrawingSerialzer  # 序列化類
from django_filters.rest_framework import DjangoFilterBackend  # 實作篩選的后臺模塊
from DrawingManagementSystem.filter import SensorFilter, ProjectFilter, DataFilter, DrawingFilter


# ---Sensor視圖---
class SensorViewSet(ModelViewSet):
    queryset = Sensor.objects.all()
    serializer_class = SensorSerialzer
    # 設定篩選的后臺
    filter_backends = (DjangoFilterBackend,)
    # 指定篩選的類
    filter_class = SensorFilter

# ---Project---
class ProjectViewSet(ModelViewSet):
    queryset = Project.objects.all()
    serializer_class = ProjectSerialzer
    # 設定篩選的后臺
    filter_backends = (DjangoFilterBackend,)
    # 指定篩選的類
    filter_class = ProjectFilter


# ---Data視圖---
class DataViewSet(ModelViewSet):
    queryset = Data.objects.all()
    serializer_class = DataSerialzer
    # 設定篩選的后臺
    filter_backends = (DjangoFilterBackend,)
    # 指定篩選的類
    filter_class = DataFilter


# ---Sensor視圖---
class DrawingViewSet(ModelViewSet):
    queryset = Drawing.objects.all()
    serializer_class = DrawingSerialzer
    # 設定篩選的后臺
    filter_backends = (DjangoFilterBackend,)
    # 指定篩選的類
    filter_class = DrawingFilter

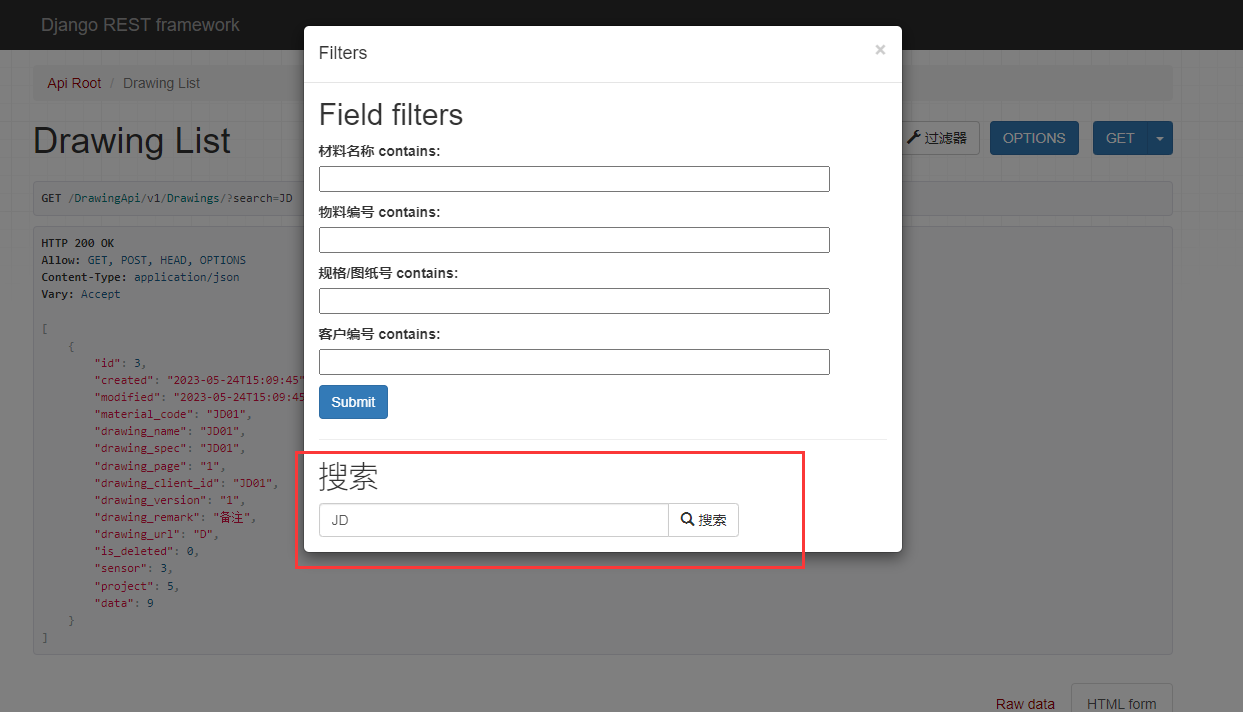

效果如下：

（2）篩選優化——模糊匹配

# =====匯入模塊=====
from django_filters import FilterSet,filters
from DrawingManagementSystem.models import Sensor, Project, Data, Drawing


# ---Sensor的Filter類---
class SensorFilter(FilterSet):
    # 重新需要支持模糊匹配的欄位
    sensor_name = filters.CharFilter(field_name='sensor_name',lookup_expr="icontains")
    class Meta:
        model = Sensor
        fields = ('sensor_name',) # 傳感器名稱


# ---Project的Filter類---
class ProjectFilter(FilterSet):
    # 重新需要支持模糊匹配的欄位
    project_name = filters.CharFilter(field_name='project_name', lookup_expr="icontains")
    class Meta:
        model = Project
        fields = ('project_name', 'sensor') # 專案名稱 所屬傳感器


# ---Data的Filter類---
class DataFilter(FilterSet):
    # 重新需要支持模糊匹配的欄位
    data_name = filters.CharFilter(field_name='data_name', lookup_expr="icontains")
    class Meta:
        model = Data
        fields = ('data_name', 'sensor', 'project') # 資料名稱 所屬傳感器 所屬專案


# ---Drawing的Filter類---
class DrawingFilter(FilterSet):
    # 重新需要支持模糊匹配的欄位
    drawing_name = filters.CharFilter(field_name='drawing_name', lookup_expr="icontains")
    material_code = filters.CharFilter(field_name='material_code', lookup_expr="icontains")
    drawing_spec = filters.CharFilter(field_name='drawing_spec', lookup_expr="icontains")
    drawing_client_id = filters.CharFilter(field_name='drawing_client_id', lookup_expr="icontains")
    class Meta:
        model = Drawing
        fields = ('drawing_name', 'material_code', 'drawing_spec', 'drawing_client_id')  # 材料名稱、物料編號、規格/圖紙號、客戶編號

（3）全域加入篩選后臺

在gveInformationSystemBE\settings.py中加入

# ======= REST Framework全域設定 ===========
REST_FRAMEWORK = {

    # ==== 設定全域的Filter_Backends ====
    'DEFAULT_FILTER_BACKENDS': [
        'django_filters.rest_framework.DjangoFilterBackend',
    ],


}

這樣views.py中就不需要加入

# 設定篩選的后臺
    filter_backends = (DjangoFilterBackend,)

修改后代碼如下：

# ====== 匯入模塊 ======
from rest_framework.viewsets import ModelViewSet  # 封裝完成的ModelViewset視圖集
from DrawingManagementSystem.models import Sensor, Project, Data, Drawing  # 具體的類
from DrawingManagementSystem.serializer import SensorSerialzer, ProjectSerialzer, DataSerialzer, \
    DrawingSerialzer  # 序列化類
from DrawingManagementSystem.filter import SensorFilter, ProjectFilter, DataFilter, DrawingFilter


# ---Sensor視圖---
class SensorViewSet(ModelViewSet):
    queryset = Sensor.objects.all()
    serializer_class = SensorSerialzer

    # 指定篩選的類
    filter_class = SensorFilter

# ---Project---
class ProjectViewSet(ModelViewSet):
    queryset = Project.objects.all()
    serializer_class = ProjectSerialzer

    # 指定篩選的類
    filter_class = ProjectFilter


# ---Data視圖---
class DataViewSet(ModelViewSet):
    queryset = Data.objects.all()
    serializer_class = DataSerialzer

    # 指定篩選的類
    filter_class = DataFilter


# ---Sensor視圖---
class DrawingViewSet(ModelViewSet):
    queryset = Drawing.objects.all()
    serializer_class = DrawingSerialzer

    # 指定篩選的類
    filter_class = DrawingFilter

（4）加入搜索

篩選【filter】：一個值只能對應一個欄位，需要django-filter

搜索【search】；一個值能對應多個欄位，DRF自帶

在gveInformationSystemBE\settings.py中加入'rest_framework.filters.SearchFilter',

# ======= REST Framework全域設定 ===========
REST_FRAMEWORK = {

    # ==== 設定全域的Filter_Backends ====
    'DEFAULT_FILTER_BACKENDS': [
        'django_filters.rest_framework.DjangoFilterBackend',
        'rest_framework.filters.SearchFilter',

    ],


}

在apps\DrawingManagementSystem\views.py中加入需要搜索匹配的欄位

# ---Sensor視圖---
class DrawingViewSet(ModelViewSet):
    queryset = Drawing.objects.all()
    serializer_class = DrawingSerialzer

    # 指定篩選的類
    filter_class = DrawingFilter
    # 指定查找匹配的欄位
    search_fields = ('drawing_name', 'material_code', 'drawing_spec', 'drawing_client_id')

結果如下：

（5）加入分頁

有2種，一種為全域

即在在gveInformationSystemBE\settings.py中加入

# ======= REST Framework全域設定 ===========
REST_FRAMEWORK = {

    # ==== 設定全域的Filter_Backends ====
    'DEFAULT_FILTER_BACKENDS': [
        'django_filters.rest_framework.DjangoFilterBackend',
        'rest_framework.filters.SearchFilter',

    ],
    # ===== 設定分頁 ===============
    'DEFAULT_PAGINATION_CLASS': 'rest_framework.pagination.PageNumberPagination',
    'PAGE_SIZE': 10


}

還有一種為：按需分頁

apps\DrawingManagementSystem下新建paginations.py

代碼如下：

# ========== 匯入 ===========
from rest_framework.pagination import PageNumberPagination


class MyPageNumberPagination(PageNumberPagination):
    page_size = 5
    page_query_param = "page"
    page_size_query_param = 'size'
    max_page_size = 50

在apps\DrawingManagementSystem\views.py中加入：

from DrawingManagementSystem.paginations import MyPageNumberPagination
###
###
###
# ---Sensor視圖---
class DrawingViewSet(ModelViewSet):
    queryset = Drawing.objects.all()
    serializer_class = DrawingSerialzer
    pagination_class = MyPageNumberPagination

    # 指定篩選的類
    filter_class = DrawingFilter
    # 指定查找匹配的欄位
    search_fields = ('drawing_name', 'material_code', 'drawing_spec', 'drawing_client_id')

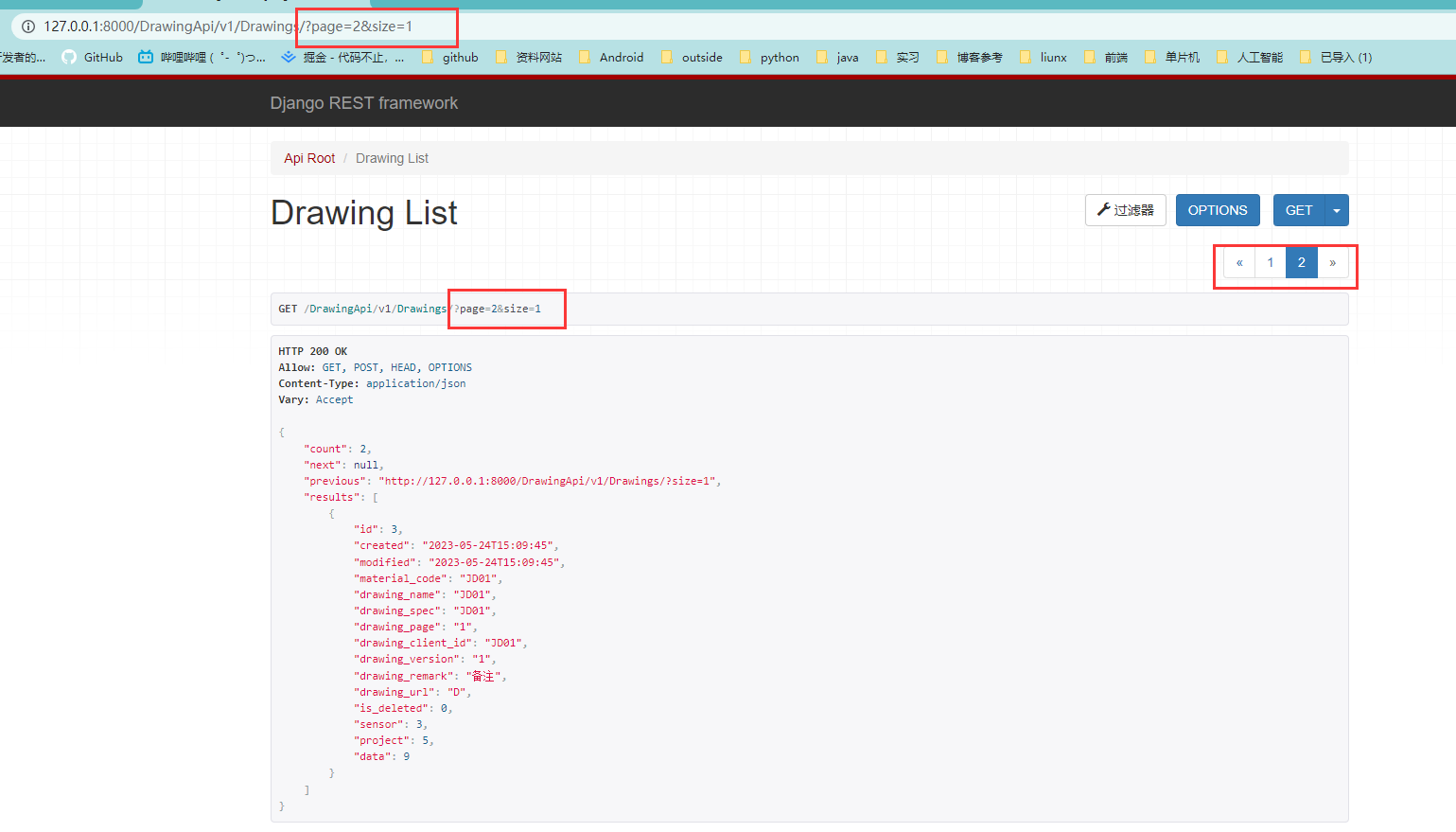

效果如下：

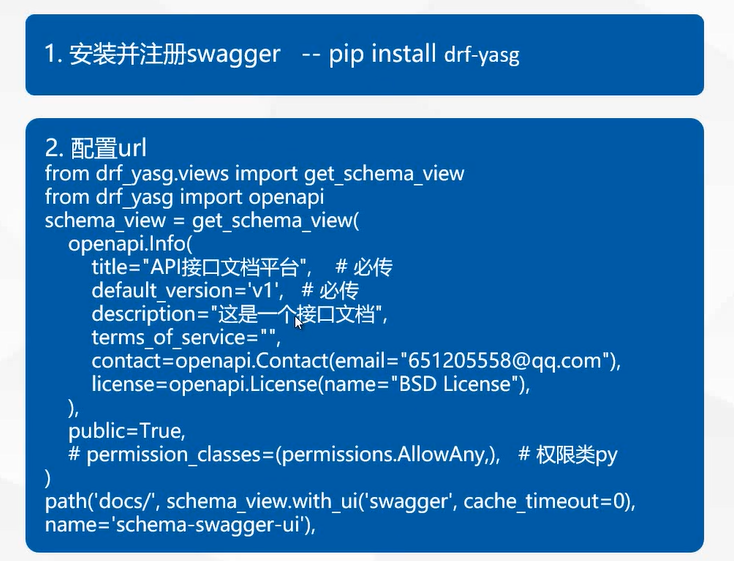

9、添加Swagger檔案

記得在setting中注冊

INSTALLED_APPS = [
    'django.contrib.admin',
    'django.contrib.auth',
    'django.contrib.contenttypes',
    'django.contrib.sessions',
    'django.contrib.messages',
    'django.contrib.staticfiles',
    'DrawingManagementSystem',
    'rest_framework',
    'django_filters',
    'drf_yasg',
]

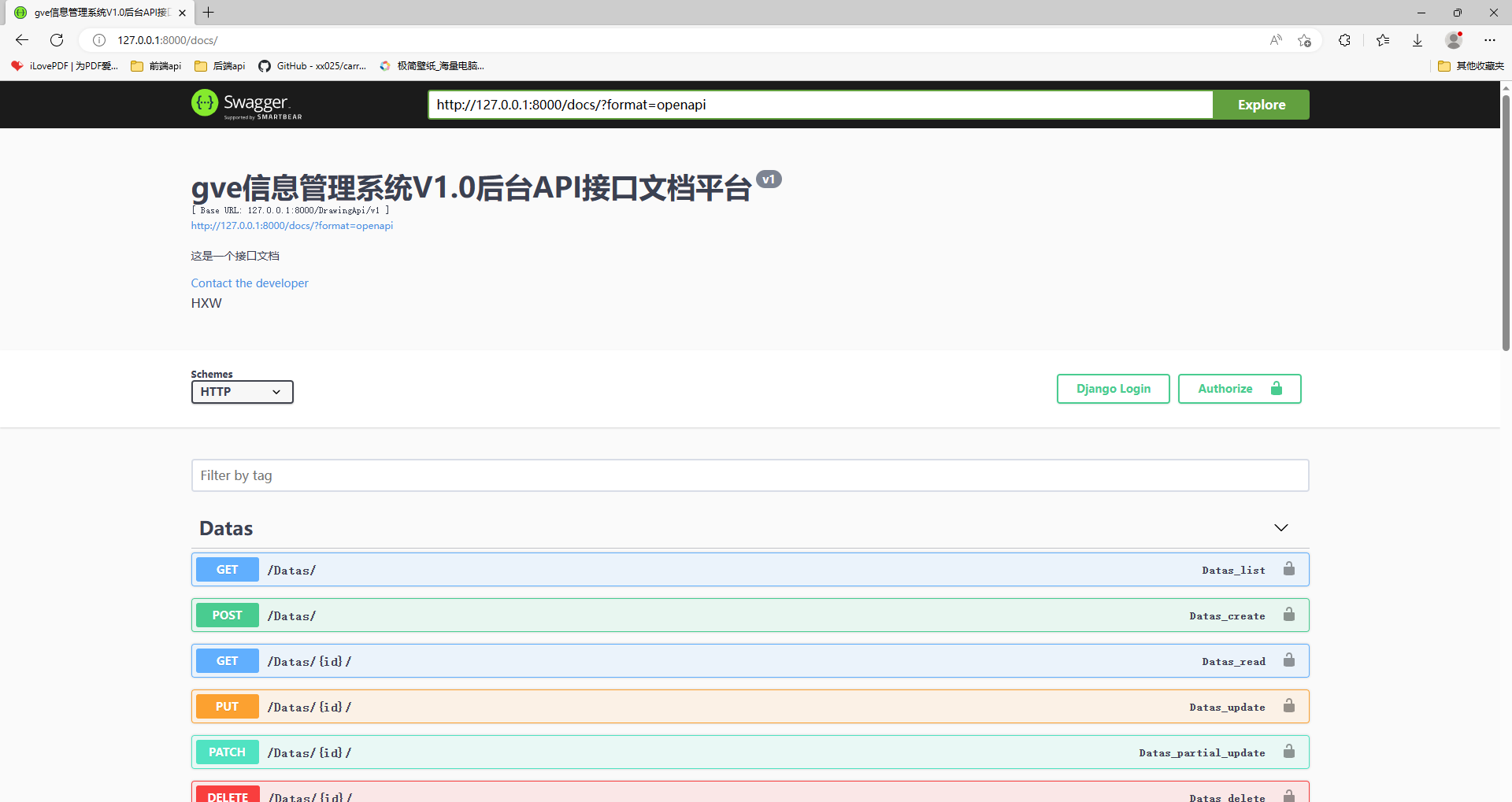

效果如下：

想要中文注釋

效果如下：

標籤：其他

上一篇：Python檔案讀寫、StringIO和BytesIO

下一篇：返回列表
