參考文章

ASP.NET Core Web API 開發-RESTful API實作

理解HTTP冪等性

某站微軟Mvp楊旭的Asp.NetCore WebApi的視頻

REST概述

REST : 具象狀態傳輸(Representational State Transfer,簡稱REST),是Roy Thomas Fielding博士于2000年在他的博士論文 "Architectural Styles and the Design of Network-based Software Architectures" 中提出來的一種萬維網軟體架構風格，
目前在三種主流的Web服務實作方案中，因為REST模式與復雜的SOAP和XML-RPC相比更加簡潔，越來越多的web服務開始采用REST風格設計和實作，例如，Amazon.com提供接近REST風格的Web服務執行圖書查詢；

符合REST設計風格的Web API稱為RESTful API，它從以下三個方面資源進行定義：

直觀簡短的資源地址：URI，比如：http://example.com/resources/ .
傳輸的資源：Web服務接受與回傳的互聯網媒體型別，比如：JSON，XML，YAML等...
對資源的操作：Web服務在該資源上所支持的一系列請求方法（比如：POST，GET，PUT或DELETE）.

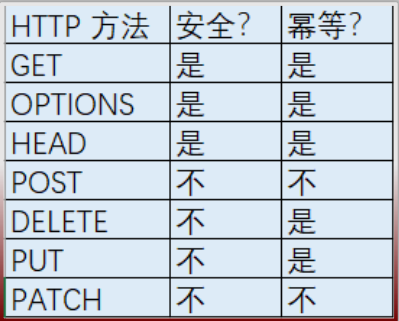

PUT和DELETE方法是冪等方法.GET方法是安全方法（不會對服務器端有修改，因此當然也是冪等的）.

ps 關于冪等方法 :
看這篇理解HTTP冪等性.
簡單說,客戶端多次請求服務端回傳的結果都相同,那么就說這個操作是冪等的.(個人理解,詳細的看上面給的文章)

不像基于SOAP的Web服務，RESTful Web服務并沒有“正式”的標準，這是因為REST是一種架構，而SOAP只是一個協議，雖然REST不是一個標準，但大部分RESTful Web服務實作會使用HTTP、URI、JSON和XML等各種標準，

常用http動詞

括號中是相應的SQL命令.

GET(SELECT) : 從服務器取出資源(一項或多項).
POST(CREATE) : 在服務器新建一個資源.
PUT(UPDATE) : 在服務器更新資源(客戶端提供改變后的完整資源).
PATCH(UPDATE) : 在服務器更新資源(客戶端提供改變的屬性).
DELETE(DELETE) : 在服務器洗掉資源.

WebApi 在 Asp.NetCore 中的實作

這里以用戶增刪改查為例.

創建WebApi專案.

參考ASP.NET Core WebAPI 開發-新建WebAPI專案.

注意,本文建立的Asp.NetCore WebApi專案選擇.net core版本是2.2,不建議使用其他版本,2.1版本下會遇到依賴檔案沖突問題!所以一定要選擇2.2版本的.net core.

集成Entity Framework Core操作Mysql

安裝相關的包(為Xxxx.Infrastructure專案安裝)

Microsoft.EntityFrameworkCore.Design
Pomelo.EntityFrameworkCore.MySql

這里注意一下,Mysql官方的包是 MySql.Data.EntityFrameworkCore,但是這個包有bug,我在github上看到有人說有替代方案 - Pomelo.EntityFrameworkCore.MySql,經過嘗試,后者比前者好用.所有這里就選擇后者了.使用前者的話可能會導致資料庫遷移失敗(Update的時候).

PS: Mysql檔案原文:

Install the MySql.Data.EntityFrameworkCore NuGet package.
For EF Core 1.1 only: If you plan to scaffold a database, install the MySql.Data.EntityFrameworkCore.Design NuGet package as well.

EFCore - MySql檔案
Mysql版本要求:
Mysql版本要高于5.7
使用最新版本的Mysql Connector(2019 6/27 目前是8.x).

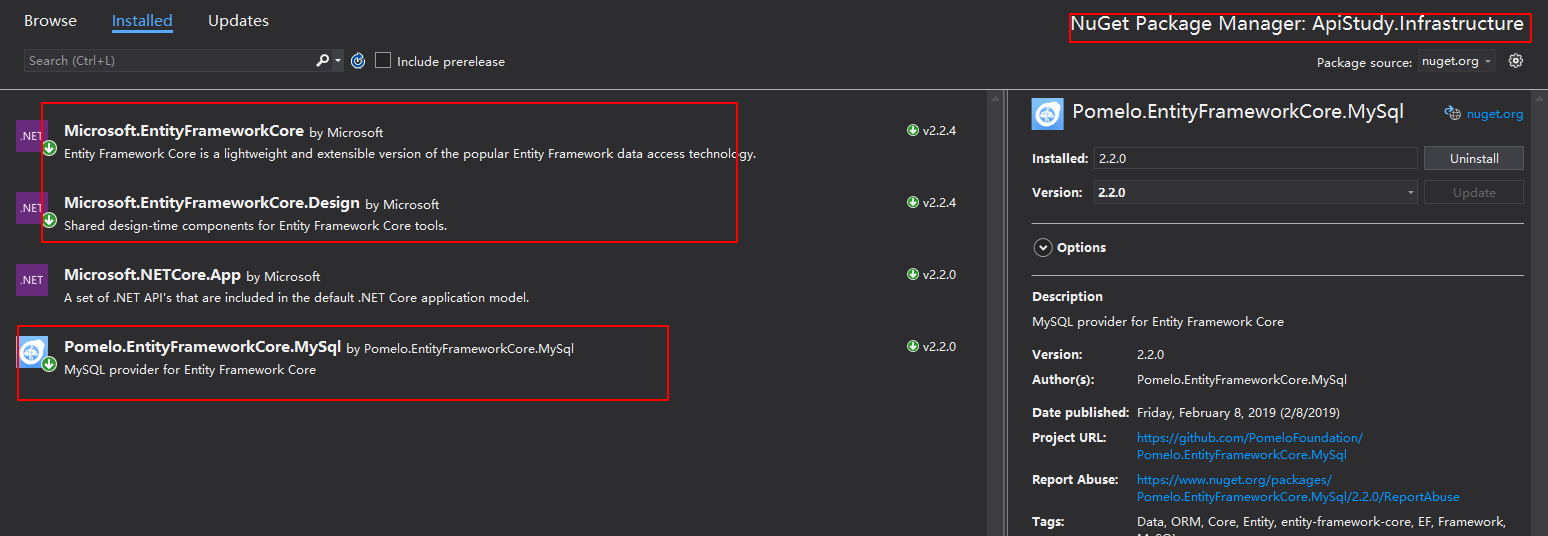

為Xxxx.Infrastructure專案安裝EFCore相關的包:

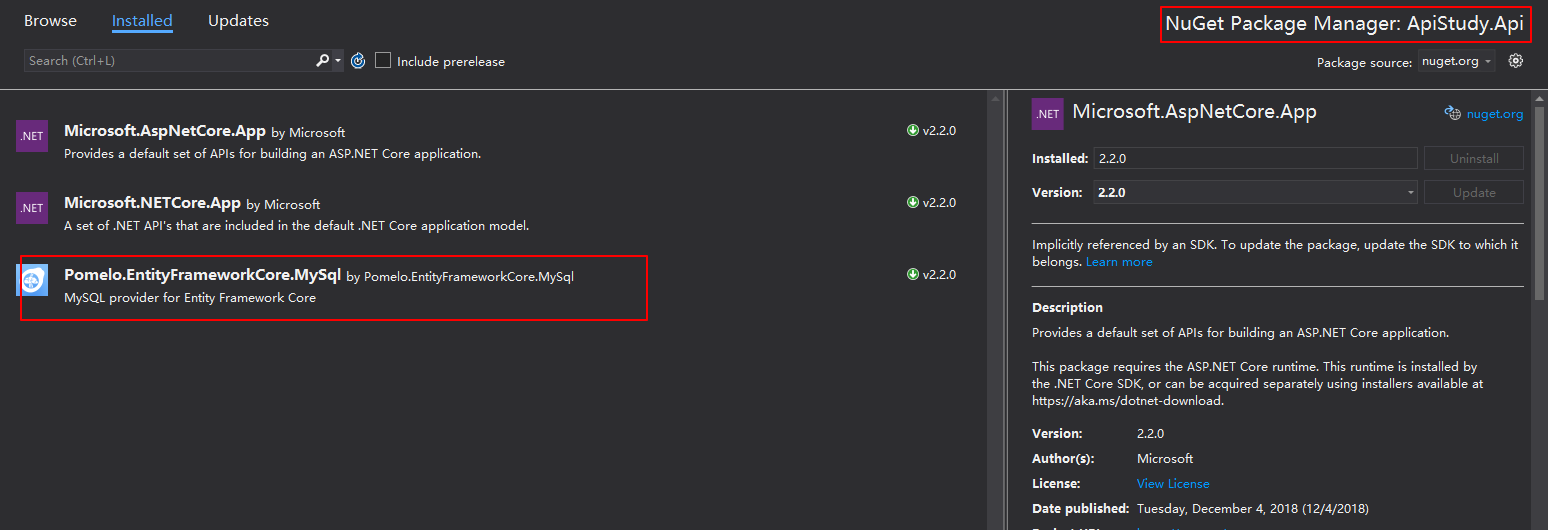

為Xxxx.Api專案安裝 Pomelo.EntityFrameworkCore.MySql

建立Entity和Context

ApiUser

namespace ApiStudy.Core.Entities
{
    using System;

    public class ApiUser
    {
        public Guid Guid { get; set; }
        public string Name { get; set; }
        public string Passwd { get; set; }
        public DateTime RegistrationDate { get; set; }
        public DateTime Birth { get; set; }
        public string ProfilePhotoUrl { get; set; }
        public string PhoneNumber { get; set; }
        public string Email { get; set; }
    }
}

UserContext

namespace ApiStudy.Infrastructure.Database
{
    using ApiStudy.Core.Entities;
    using Microsoft.EntityFrameworkCore;

    public class UserContext:DbContext
    {
        public UserContext(DbContextOptions<UserContext> options): base(options)
        {
        }

        protected override void OnModelCreating(ModelBuilder modelBuilder)
        {
            modelBuilder.Entity<ApiUser>().HasKey(u => u.Guid);

            base.OnModelCreating(modelBuilder);
        }

        public DbSet<ApiUser> ApiUsers { get; set; }
    }
}

ConfigureService中注入EF服務

services.AddDbContext<UserContext>(options =>
            {
                string connString = "Server=Xxx:xxx:xxx:xxx;Database=Xxxx;Uid=root;Pwd=Xxxxx; ";
                options.UseMySQL(connString);
            });

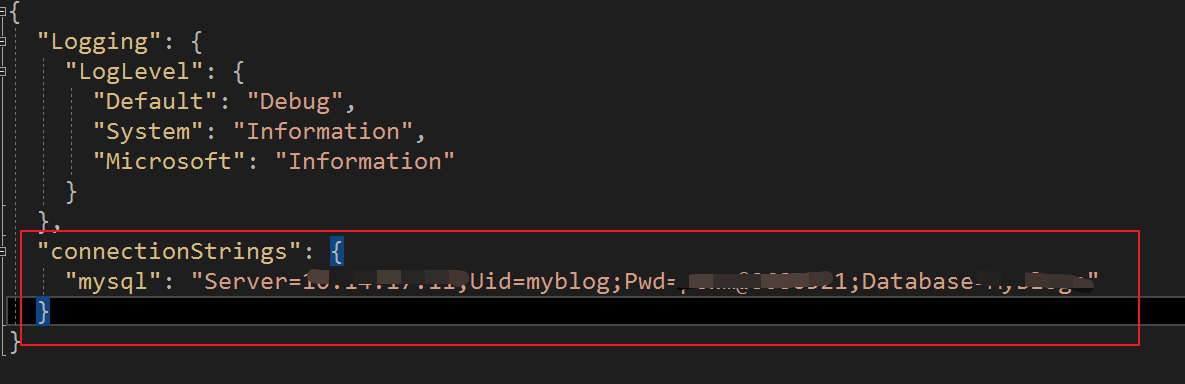

資料庫連接字串也可以在appSettings.json中配置

然后通過 Configuration.GetConnectionString("mysql") 來獲得連接字串.

遷移資料庫

在Tools > NuGet Package Manager > Package Manager Console輸入命令.
Add-Migration Xxx 添加遷移.
PS : 如果遷移不想要,使用 Remove-Migration 命令洗掉遷移.
Update-Database 更新到資料庫.

遷移資料庫失敗, 提示 `Unable to create an object of type '<Xxxx>Context'. For the different patterns supported at design time, see https://go.microsoft.com/fwlink/?linkid=851728`

原因應該是EfCore遷移工具不知道如何創建 DbContext 導致的.

解決方案

在DbContext所在的專案下新建一個類:

/// <summary>
/// 設計時DbContext的創建, 告訴EF Core遷移工具如何創建DbContext
/// </summary>
public class <Xxxx>ContextFactory : IDesignTimeDbContextFactory<<Xxxx>Context>
{
    public <Xxxx>Context CreateDbContext(string[] args)
    {
        var optionsBuilder = new DbContextOptionsBuilder<<Xxxx>Context>();
        optionsBuilder.UseMySql(
            @"Server=[服務器ip];Database=[資料庫]];Uid=[用戶名];Pwd=[密碼];");

        return new <Xxxx>Context(optionsBuilder.Options);
    }
}

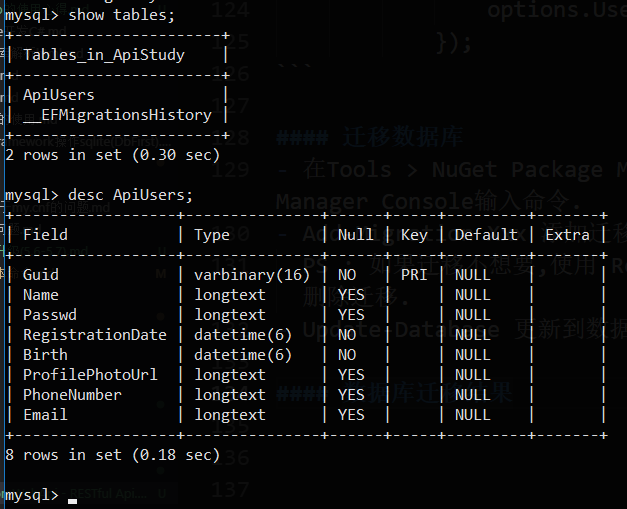

資料庫遷移結果

為資料庫創建種子資料

寫一個創建種子資料的類

UserContextSeed

namespace ApiStudy.Infrastructure.Database
{
    using ApiStudy.Core.Entities;
    using Microsoft.Extensions.Logging;
    using System;
    using System.Linq;
    using System.Threading.Tasks;

    public class UserContextSeed
    {
        public static async Task SeedAsync(UserContext context,ILoggerFactory loggerFactory)
        {
            try
            {
                if (!context.ApiUsers.Any())
                {
                    context.ApiUsers.AddRange(
                        new ApiUser
                        {
                            Guid = Guid.NewGuid(),
                            Name = "la",
                            Birth = new DateTime(1998, 11, 29),
                            RegistrationDate = new DateTime(2019, 6, 28),
                            Passwd = "123587",
                            ProfilePhotoUrl = "https://www.laggage.top/",
                            PhoneNumber = "10086",
                            Email = "[email protected]"
                        },
                        new ApiUser
                        {
                            Guid = Guid.NewGuid(),
                            Name = "David",
                            Birth = new DateTime(1995, 8, 29),
                            RegistrationDate = new DateTime(2019, 3, 28),
                            Passwd = "awt87495987",
                            ProfilePhotoUrl = "https://www.laggage.top/",
                            PhoneNumber = "1008611",
                            Email = "[email protected]"
                        },
                        new ApiUser
                        {
                            Guid = Guid.NewGuid(),
                            Name = "David",
                            Birth = new DateTime(2001, 8, 19),
                            RegistrationDate = new DateTime(2019, 4, 25),
                            Passwd = "awt87495987",
                            ProfilePhotoUrl = "https://www.laggage.top/",
                            PhoneNumber = "1008611",
                            Email = "[email protected]"
                        },
                        new ApiUser
                        {
                            Guid = Guid.NewGuid(),
                            Name = "Linus",
                            Birth = new DateTime(1999, 10, 26),
                            RegistrationDate = new DateTime(2018, 2, 8),
                            Passwd = "awt87495987",
                            ProfilePhotoUrl = "https://www.laggage.top/",
                            PhoneNumber = "17084759987",
                            Email = "[email protected]"
                        },
                        new ApiUser
                        {
                            Guid = Guid.NewGuid(),
                            Name = "YouYou",
                            Birth = new DateTime(1992, 1, 26),
                            RegistrationDate = new DateTime(2015, 7, 8),
                            Passwd = "grwe874864987",
                            ProfilePhotoUrl = "https://www.laggage.top/",
                            PhoneNumber = "17084759987",
                            Email = "[email protected]"
                        },
                        new ApiUser
                        {
                            Guid = Guid.NewGuid(),
                            Name = "小白",
                            Birth = new DateTime(1997, 9, 30),
                            RegistrationDate = new DateTime(2018, 11, 28),
                            Passwd = "gewa749864",
                            ProfilePhotoUrl = "https://www.laggage.top/",
                            PhoneNumber = "17084759987",
                            Email = "[email protected]"
                        });

                    await context.SaveChangesAsync();
                }
            }
            catch(Exception ex)
            {
                ILogger logger = loggerFactory.CreateLogger<UserContextSeed>();
                logger.LogError(ex, "Error occurred while seeding database");
            }
        }
    }
}

修改Program.Main方法

Program.Main

IWebHost host = CreateWebHostBuilder(args).Build();

using (IServiceScope scope = host.Services.CreateScope())
{
    IServiceProvider provider = scope.ServiceProvider;
    UserContext userContext = provider.GetService<UserContext>();
    ILoggerFactory loggerFactory = provider.GetService<ILoggerFactory>();
    UserContextSeed.SeedAsync(userContext, loggerFactory).Wait();
}

host.Run();

這個時候運行程式會出現例外,打斷點看一下例外資訊:Data too long for column 'Guid' at row 1

可以猜到,Mysql的varbinary(16)放不下C# Guid.NewGuid()方法生成的Guid,所以配置一下資料庫Guid欄位型別為varchar(256)可以解決問題.

解決方案:
修改 UserContext.OnModelCreating 方法
配置一下 ApiUser.Guid 屬性到Mysql資料庫的映射:

protected override void OnModelCreating(ModelBuilder modelBuilder)
{
    modelBuilder.Entity<ApiUser>().Property(p => p.Guid)
        .HasColumnType("nvarchar(256)");
    modelBuilder.Entity<ApiUser>().HasKey(u => u.Guid);

    base.OnModelCreating(modelBuilder);
}

支持https

將所有http請求全部映射到https

Startup中:
ConfigureServices方法注冊,并配置埠和狀態碼等:
services.AddHttpsRedirection(…)

services.AddHttpsRedirection(options =>
                {
                    options.RedirectStatusCode = StatusCodes.Status307TemporaryRedirect;
                    options.HttpsPort = 5001;
                });

Configure方法使用該中間件:

app.UseHttpsRedirection()

支持HSTS

ConfigureServices方法注冊
看官方檔案

services.AddHsts(options =>
{
    options.Preload = true;
    options.IncludeSubDomains = true;
    options.MaxAge = TimeSpan.FromDays(60);
    options.ExcludedHosts.Add("example.com");
    options.ExcludedHosts.Add("www.example.com");
});

Configure方法配置中間件管道

app.UseHsts();

注意 app.UseHsts() 方法最好放在 app.UseHttps() 方法之后.

使用SerilLog

有關日志的微軟官方檔案

SerilLog github倉庫
該github倉庫上有詳細的使用說明.

使用方法:

安裝nuget包

Serilog.AspNetCore
Serilog.Sinks.Console

添加代碼

Program.Main方法中:

Log.Logger = new LoggerConfiguration()
            .MinimumLevel.Debug()
            .MinimumLevel.Override("Microsoft", LogEventLevel.Information)
            .Enrich.FromLogContext()
            .WriteTo.Console()
            .CreateLogger();

修改Program.CreateWebHostBuilder(...)

 public static IWebHostBuilder CreateWebHostBuilder(string[] args) =>
            WebHost.CreateDefaultBuilder(args)
                .UseStartup<Startup>()
                .UseSerilog(); // <-- Add this line;
 }

自行測驗

Asp.NetCore組態檔

默認組態檔

默認 appsettings.json
ConfigurationBuilder().AddJsonFile("appsettings.json").Build()-->IConfigurationRoot(IConfiguration)

獲得配置

IConfiguration[“Key:ChildKey”]
針對”ConnectionStrings:xxx”,可以使用IConfiguration.GetConnectionString(“xxx”)

private static IConfiguration Configuration { get; set; }

public StartupDevelopment(IConfiguration config)
{
    Configuration = config;
}

...

Configuration[“Key:ChildKey”]

全域例外處理

例外處理官方檔案

下面按照我的想法實作一個全域例外處理,

namespace ApiStudy.Api.Extensions
{
    using Microsoft.AspNetCore.Builder;
    using Microsoft.AspNetCore.Http;
    using Microsoft.Extensions.Logging;
    using System;

    public static class ExceptionHandlingExtensions
    {
        public static void UseCustomExceptionHandler(this IApplicationBuilder app,ILoggerFactory loggerFactory)
        {
            app.UseExceptionHandler(
                builder => builder.Run(async context =>
                {
                    context.Response.StatusCode = StatusCodes.Status500InternalServerError;
                    context.Response.ContentType = "text/plain";

                    Exception ex = context.Features.Get<IExceptionHandlerFeature>().Error;
                    if (!(ex is null))
                    {Errors
                        ILogger logger = loggerFactory.CreateLogger("ApiStudy.Api.Extensions.ExceptionHandlingExtensions");
                        logger.LogError(
                            $"Encounter error while handling request. ExceptionMsgs: {exMsgs}");
                    }
                    await context.Response.WriteAsync(ex?.Message ?? "Error occurred, but cannot get exception message.For more detail, go to see the log.");
                }));
        }

        private static Task<string> FlattenExceptionMsgAsync(Exception ex)
        {
            return Task.Run(() =>
            {
                var sb = new StringBuilder();
                Exception t = ex;
                while(!(t is null))
                {
                    sb.AppendLine($"ExceptoinType-{ex.GetType().Name}: {ex.Message}");
                    t = ex.InnerException;
                };
                return sb.ToString();
            });
        }
    }
}

再Startup.Configure中使用這個例外處理程式

public void Configure(IApplicationBuilder app, ILoggerFactory loggerFactory, IWebHostEnviroment env)
{
    if (env.IsDevelopment())
    {
        app.UseCustomExceptionHandler(loggerFactory);  //modified code
    }

    //app.UseDeveloperExceptionPage();
    app.UseHsts();
    app.UseHttpsRedirection();

    app.UseMvc(); //使用默認路由
}

實作資料介面類(Resource),使用AutoMapper在Resource和Entity中映射

為Entity類創建對應的Resource類

ApiUserResource

namespace ApiStudy.Infrastructure.Resources
{
    using System;

    public class ApiUserResource
    {
        public Guid Guid { get; set; }
        public string Name { get; set; }
        //public string Passwd { get; set; }
        public DateTime RegistrationDate { get; set; }
        public DateTime Birth { get; set; }
        public string ProfilePhotoUrl { get; set; }
        public string PhoneNumber { get; set; }
        public string Email { get; set; }
    }
}

使用 AutoMapper

添加nuget包
AutoMapper
AutoMapper.Extensions.Microsoft.DependencyInjection

配置映射
可以創建Profile
CreateMap<TSource,TDestination>()

MappingProfile

namespace ApiStudy.Api.Extensions
{
    using ApiStudy.Core.Entities;
    using ApiStudy.Infrastructure.Resources;
    using AutoMapper;
    using System;
    using System.Text;

    public class MappingProfile : Profile
    {
        public MappingProfile()
        {
            CreateMap<ApiUser, ApiUserResource>()
                .ForMember(
                d => d.Passwd,
                opt => opt.AddTransform(s => Convert.ToBase64String(Encoding.Default.GetBytes(s))));

            CreateMap<ApiUserResource, ApiUser>()
                .ForMember(
                d => d.Passwd,
                opt => opt.AddTransform(s => Encoding.Default.GetString(Convert.FromBase64String(s))));
        }
    }
}

注入服務 -> services.AddAutoMapper()

使用FluentValidation

FluentValidation官網

安裝Nuget包

FluentValidation
FluentValidation.AspNetCore

為每一個Resource配置驗證器

繼承于AbstractValidator

ApiUserResourceValidator

namespace ApiStudy.Infrastructure.Resources
{
    using FluentValidation;

    public class ApiUserResourceValidator : AbstractValidator<ApiUserResource>
    {
        public ApiUserResourceValidator()
        {
            RuleFor(s => s.Name)
                .MaximumLength(80)
                .WithName("用戶名")
                .WithMessage("{PropertyName}的最大長度為80")
                .NotEmpty()
                .WithMessage("{PropertyName}不能為空!");
        }
    }
}

注冊到容器:services.AddTransient<>()
services.AddTransient<IValidator<ApiUserResource>, ApiUserResourceValidator>();

實作Http Get(翻頁,過濾,排序)

基本的Get實作

[HttpGet]
public async Task<IActionResult> Get()
{
    IEnumerable<ApiUser> apiUsers = await _apiUserRepository.GetAllApiUsersAsync();

    IEnumerable<ApiUserResource> apiUserResources =
        _mapper.Map<IEnumerable<ApiUser>,IEnumerable<ApiUserResource>>(apiUsers);

    return Ok(apiUserResources);
}

[HttpGet("{guid}")]
public async Task<IActionResult> Get(string guid)
{
    ApiUser apiUser = await _apiUserRepository.GetApiUserByGuidAsync(Guid.Parse(guid));

    if (apiUser is null) return NotFound();

    ApiUserResource apiUserResource = _mapper.Map<ApiUser,ApiUserResource>(apiUser);

    return Ok(apiUserResource);
}

資源命名

資源應該使用名詞,例

api/getusers就是不正確的.
GET　api/users就是正確的

資源命名層次結構

例如api/department/{departmentId}/emoloyees, 這就表示了 department (部門)和員工
(employee)之前是主從關系.
而api/department/{departmentId}/emoloyees/{employeeId},就表示了該部門下的某個員
工.

內容協商

ASP.NET Core支持輸出和輸入兩種格式化器.

用于輸出的media type放在Accept Header里,表示客戶端接受這種格式的輸出.
用于輸入的media type放Content-Type Header里,表示客戶端傳進來的資料是這種格式.
ReturnHttpNotAcceptable設為true,如果客戶端請求不支持的資料格式,就會回傳406.
```
services.AddMvc(options =>
{
    options.ReturnHttpNotAcceptable = true;
});
```
支持輸出XML格式:options.OutputFormatters.Add(newXmlDataContractSerializerOutputFormatter());

翻頁

構造翻頁請求引數類

QueryParameters

namespace ApiStudy.Core.Entities
{
    using System.Collections.Generic;
    using System.ComponentModel;
    using System.Runtime.CompilerServices;

    public abstract class QueryParameters : INotifyPropertyChanged
    {
        public event PropertyChangedEventHandler PropertyChanged;

        private const int DefaultPageSize = 10;
        private const int DefaultMaxPageSize = 100;

        private int _pageIndex = 1;
        public virtual int PageIndex
        {
            get => _pageIndex;
            set => SetField(ref _pageIndex, value);
        }

        private int _pageSize = DefaultPageSize;
        public virtual int PageSize
        {
            get => _pageSize;
            set => SetField(ref _pageSize, value);
        }

        private int _maxPageSize = DefaultMaxPageSize;
        public virtual int MaxPageSize
        {
            get => _maxPageSize;
            set => SetField(ref _maxPageSize, value);
        }

        public string OrderBy { get; set; }
        public string Fields { get; set; }

        protected void SetField<TField>(
            ref TField field,in TField newValue,[CallerMemberName] string propertyName = null)
        {
            if (EqualityComparer<TField>.Default.Equals(field, newValue))
                return;
            field = newValue;
            if (propertyName == nameof(PageSize) || propertyName == nameof(MaxPageSize)) SetPageSize();

            PropertyChanged?.Invoke(this, new PropertyChangedEventArgs(propertyName));

        }

        private void SetPageSize()
        {
            if (_maxPageSize <= 0) _maxPageSize = DefaultMaxPageSize;
            if (_pageSize <= 0) _pageSize = DefaultPageSize;
            _pageSize = _pageSize > _maxPageSize ? _maxPageSize : _pageSize;
        }
    }
}

ApiUserParameters

namespace ApiStudy.Core.Entities
{
    public class ApiUserParameters:QueryParameters
    {
        public string UserName { get; set; }
    }
}

Repository實作支持翻頁請求引數的方法

Repository相關代碼

/*----- ApiUserRepository -----*/
public PaginatedList<ApiUser> GetAllApiUsers(ApiUserParameters parameters)
{
    return new PaginatedList<ApiUser>(
        parameters.PageIndex,
        parameters.PageSize,
        _context.ApiUsers.Count(),
        _context.ApiUsers.Skip(parameters.PageIndex * parameters.PageSize)
        .Take(parameters.PageSize));
}

public Task<PaginatedList<ApiUser>> GetAllApiUsersAsync(ApiUserParameters parameters)
{
    return Task.Run(() => GetAllApiUsers(parameters));
}

/*----- IApiUserRepository -----*/
PaginatedList<ApiUser> GetAllApiUsers(ApiUserParameters parameters);
Task<PaginatedList<ApiUser>> GetAllApiUsersAsync(ApiUserParameters parameters);

UserController部分代碼

...

[HttpGet(Name = "GetAllApiUsers")]
public async Task<IActionResult> GetAllApiUsers(ApiUserParameters parameters)
{
    PaginatedList<ApiUser> apiUsers = await _apiUserRepository.GetAllApiUsersAsync(parameters);

    IEnumerable<ApiUserResource> apiUserResources =
        _mapper.Map<IEnumerable<ApiUser>,IEnumerable<ApiUserResource>>(apiUsers);

    var meta = new
    {
        PageIndex = apiUsers.PageIndex,
        PageSize = apiUsers.PageSize,
        PageCount = apiUsers.PageCount,
        TotalItemsCount = apiUsers.TotalItemsCount,
        NextPageUrl = CreateApiUserUrl(parameters, ResourceUriType.NextPage),
        PreviousPageUrl = CreateApiUserUrl(parameters, ResourceUriType.PreviousPage)
    };
    Response.Headers.Add(
        "X-Pagination",
        JsonConvert.SerializeObject(
            meta,
            new JsonSerializerSettings
            { ContractResolver = new CamelCasePropertyNamesContractResolver() }));
    return Ok(apiUserResources);
}

...

private string CreateApiUserUrl(ApiUserParameters parameters,ResourceUriType uriType)
{
    var param = new ApiUserParameters
    {
        PageIndex = parameters.PageIndex,
        PageSize = parameters.PageSize
    };
    switch (uriType)
    {
        case ResourceUriType.PreviousPage:
            param.PageIndex--;
            break;
        case ResourceUriType.NextPage:
            param.PageIndex++;
            break;
        case ResourceUriType.CurrentPage:
            break;
        default:break;
    }
    return Url.Link("GetAllApiUsers", parameters);
}

PS注意,為HttpGet方法添加引數的話,在.net core2.2版本下,去掉那個ApiUserController上的 [ApiController());] 特性,否則引數傳不進來..net core3.0中據說已經修復這個問題.

搜索(過濾)

修改Repository代碼:

 public PaginatedList<ApiUser> GetAllApiUsers(ApiUserParameters parameters)
{
    IQueryable<ApiUser> query = _context.ApiUsers.AsQueryable();
    query = query.Skip(parameters.PageIndex * parameters.PageSize)
            .Take(parameters.PageSize);

    if (!string.IsNullOrEmpty(parameters.UserName))
        query = _context.ApiUsers.Where(
            x => StringComparer.OrdinalIgnoreCase.Compare(x.Name, parameters.UserName) == 0);

    return new PaginatedList<ApiUser>(
        parameters.PageIndex,
        parameters.PageSize,
        query.Count(),
        query);
}

排序

排序思路

需要安裝System.Linq.Dynamic.Core

思路:

PropertyMappingContainer
- PropertyMapping(ApiUserPropertyMapping)
  - MappedProperty

MappedProperty

namespace ApiStudy.Infrastructure.Services
{
    public struct MappedProperty
    {
        public MappedProperty(string name, bool revert = false)
        {
            Name = name;
            Revert = revert;
        }

        public string Name { get; set; }
        public bool Revert { get; set; }
    }
}

IPropertyMapping

namespace ApiStudy.Infrastructure.Services
{
    using System.Collections.Generic;

    public interface IPropertyMapping
    {
        Dictionary<string, List<MappedProperty>> MappingDictionary { get; }
    }
}

PropertyMapping

namespace ApiStudy.Infrastructure.Services
{
    using System.Collections.Generic;

    public abstract class PropertyMapping<TSource,TDestination> : IPropertyMapping
    {
        public Dictionary<string, List<MappedProperty>> MappingDictionary { get; }

        public PropertyMapping(Dictionary<string, List<MappedProperty>> MappingDict)
        {
            MappingDictionary = MappingDict;
        }
    }
}

IPropertyMappingContainer

namespace ApiStudy.Infrastructure.Services
{
    public interface IPropertyMappingContainer
    {
        void Register<T>() where T : IPropertyMapping, new();
        IPropertyMapping Resolve<TSource, TDestination>();
        bool ValidateMappingExistsFor<TSource, TDestination>(string fields);
    }
}

PropertyMappingContainer

namespace ApiStudy.Infrastructure.Services
{
    using System;
    using System.Linq;
    using System.Collections.Generic;

    public class PropertyMappingContainer : IPropertyMappingContainer
    {
        protected internal readonly IList<IPropertyMapping> PropertyMappings = new List<IPropertyMapping>();

        public void Register<T>() where T : IPropertyMapping, new()
        {
            if (PropertyMappings.Any(x => x.GetType() == typeof(T))) return;
            PropertyMappings.Add(new T());
        }

        public IPropertyMapping Resolve<TSource,TDestination>()
        {
            IEnumerable<PropertyMapping<TSource, TDestination>> result = PropertyMappings.OfType<PropertyMapping<TSource,TDestination>>();
            if (result.Count() > 0)
                return result.First();
            throw new InvalidCastException(
               string.Format( "Cannot find property mapping instance for {0}, {1}", typeof(TSource), typeof(TDestination)));
        }

        public bool ValidateMappingExistsFor<TSource, TDestination>(string fields)
        {
            if (string.IsNullOrEmpty(fields)) return true;

            IPropertyMapping propertyMapping = Resolve<TSource, TDestination>();

            string[] splitFields = fields.Split(',');

            foreach(string property in splitFields)
            {
                string trimmedProperty = property.Trim();
                int indexOfFirstWhiteSpace = trimmedProperty.IndexOf(' ');
                string propertyName = indexOfFirstWhiteSpace <= 0 ? trimmedProperty : trimmedProperty.Remove(indexOfFirstWhiteSpace);

                if (!propertyMapping.MappingDictionary.Keys.Any(x => string.Equals(propertyName,x,StringComparison.OrdinalIgnoreCase))) return false;
            }
            return true;
        }
    }
}

QueryExtensions

namespace ApiStudy.Infrastructure.Extensions
{
    using ApiStudy.Infrastructure.Services;
    using System;
    using System.Collections.Generic;
    using System.Linq;
    using System.Linq.Dynamic.Core;

    public static class QueryExtensions
    {
        public static IQueryable<T> ApplySort<T>(
           this IQueryable<T> data,in string orderBy,in IPropertyMapping propertyMapping)
        {
            if (data =https://www.cnblogs.com/Laggage/p/= null) throw new ArgumentNullException(nameof(data));
            if (string.IsNullOrEmpty(orderBy)) return data;

            string[] splitOrderBy = orderBy.Split(',');
            foreach(string property in splitOrderBy)
            {
                string trimmedProperty = property.Trim();
                int indexOfFirstSpace = trimmedProperty.IndexOf(' ');
                bool desc = trimmedProperty.EndsWith(" desc");
                string propertyName = indexOfFirstSpace > 0 ? trimmedProperty.Remove(indexOfFirstSpace) : trimmedProperty;
                propertyName = propertyMapping.MappingDictionary.Keys.FirstOrDefault(
                    x => string.Equals(x, propertyName, StringComparison.OrdinalIgnoreCase)); //ignore case of sort property

                if (!propertyMapping.MappingDictionary.TryGetValue(
                    propertyName, out List<MappedProperty> mappedProperties))
                    throw new InvalidCastException($"key mapping for {propertyName} is missing");

                mappedProperties.Reverse();
                foreach(MappedProperty mappedProperty in mappedProperties)
                {
                    if (mappedProperty.Revert) desc = !desc;
                    data = https://www.cnblogs.com/Laggage/p/data.OrderBy($"{mappedProperty.Name} {(desc ? "descending" : "ascending")} ");
                }
            }
            return data;
        }
    }
}

UserController 部分代碼

[HttpGet(Name = "GetAllApiUsers")]
public async Task<IActionResult> GetAllApiUsers(ApiUserParameters parameters)
{
    if (!_propertyMappingContainer.ValidateMappingExistsFor<ApiUserResource, ApiUser>(parameters.OrderBy))
        return BadRequest("can't find fields for sorting.");

    PaginatedList<ApiUser> apiUsers = await _apiUserRepository.GetAllApiUsersAsync(parameters);

    IEnumerable<ApiUserResource> apiUserResources =
        _mapper.Map<IEnumerable<ApiUser>, IEnumerable<ApiUserResource>>(apiUsers);

    IEnumerable<ApiUserResource> sortedApiUserResources =
        apiUserResources.AsQueryable().ApplySort(
            parameters.OrderBy, _propertyMappingContainer.Resolve<ApiUserResource, ApiUser>());

    var meta = new
    {
        apiUsers.PageIndex,
        apiUsers.PageSize,
        apiUsers.PageCount,
        apiUsers.TotalItemsCount,
        PreviousPageUrl = apiUsers.HasPreviousPage ? CreateApiUserUrl(parameters, ResourceUriType.PreviousPage) : string.Empty,
        NextPageUrl = apiUsers.HasNextPage ? CreateApiUserUrl(parameters, ResourceUriType.NextPage) : string.Empty,
    };
    Response.Headers.Add(
        "X-Pagination",
        JsonConvert.SerializeObject(
            meta,
            new JsonSerializerSettings
            { ContractResolver = new CamelCasePropertyNamesContractResolver() }));
    return Ok(sortedApiUserResources);
}

private string CreateApiUserUrl(ApiUserParameters parameters, ResourceUriType uriType)
{
    var param = new {
        parameters.PageIndex,
        parameters.PageSize
    };
    switch (uriType)
    {
        case ResourceUriType.PreviousPage:
            param = new
            {
                PageIndex = parameters.PageIndex - 1,
                parameters.PageSize
            };
            break;
        case ResourceUriType.NextPage:
            param = new
            {
                PageIndex = parameters.PageIndex + 1,
                parameters.PageSize
            };
            break;
        case ResourceUriType.CurrentPage:
            break;
        default: break;
    }
    return Url.Link("GetAllApiUsers", param);
}

資源塑形(Resource shaping)

回傳資源的指定欄位

ApiStudy.Infrastructure.Extensions.TypeExtensions

namespace ApiStudy.Infrastructure.Extensions
{
    using System;
    using System.Collections.Generic;
    using System.Reflection;

    public static class TypeExtensions
    {
        public static IEnumerable<PropertyInfo> GetProeprties(this Type source, string fields = null)
        {
            List<PropertyInfo> propertyInfoList = new List<PropertyInfo>();
            if (string.IsNullOrEmpty(fields))
            {
                propertyInfoList.AddRange(source.GetProperties(BindingFlags.Public | BindingFlags.Instance));
            }
            else
            {
                string[] properties = fields.Trim().Split(',');
                foreach (string propertyName in properties)
                {
                    propertyInfoList.Add(
                        source.GetProperty(
                        propertyName.Trim(),
                        BindingFlags.Public | BindingFlags.Instance | BindingFlags.IgnoreCase));
                }
            }
            return propertyInfoList;
        }
    }
}

ApiStudy.Infrastructure.Extensions.ObjectExtensions

namespace ApiStudy.Infrastructure.Extensions
{
    using System.Collections.Generic;
    using System.Dynamic;
    using System.Linq;
    using System.Reflection;

    public static class ObjectExtensions
    {
        public static ExpandoObject ToDynamicObject(this object source, in string fields = null)
        {
            List<PropertyInfo> propertyInfoList = source.GetType().GetProeprties(fields).ToList();

            ExpandoObject expandoObject = new ExpandoObject();
            foreach (PropertyInfo propertyInfo in propertyInfoList)
            {
                try
                {
                    (expandoObject as IDictionary<string, object>).Add(
                    propertyInfo.Name, propertyInfo.GetValue(source));
                }
                catch { continue; }
            }
            return expandoObject;
        }

        internal static ExpandoObject ToDynamicObject(this object source, in IEnumerable<PropertyInfo> propertyInfos, in string fields = null)
        {
            ExpandoObject expandoObject = new ExpandoObject();
            foreach (PropertyInfo propertyInfo in propertyInfos)
            {
                try
                {
                    (expandoObject as IDictionary<string, object>).Add(
                    propertyInfo.Name, propertyInfo.GetValue(source));
                }
                catch { continue; }
            }
            return expandoObject;
        }
    }
}

ApiStudy.Infrastructure.Extensions.IEnumerableExtensions

namespace ApiStudy.Infrastructure.Extensions
{
    using System;
    using System.Collections.Generic;
    using System.Dynamic;
    using System.Linq;
    using System.Reflection;

    public static class IEnumerableExtensions
    {
        public static IEnumerable<ExpandoObject> ToDynamicObject<T>(
            this IEnumerable<T> source,in string fields = null)
        {
            if (source == null) throw new ArgumentNullException(nameof(source));

            List<ExpandoObject> expandoObejctList = new List<ExpandoObject>();
            List<PropertyInfo> propertyInfoList = typeof(T).GetProeprties(fields).ToList();
            foreach(T x in source)
            {
                expandoObejctList.Add(x.ToDynamicObject(propertyInfoList, fields));
            }
            return expandoObejctList;
        }
    }
}

ApiStudy.Infrastructure.Services.TypeHelperServices

namespace ApiStudy.Infrastructure.Services
{
    using System.Reflection;

    public class TypeHelperServices : ITypeHelperServices
    {
        public bool HasProperties<T>(string fields)
        {
            if (string.IsNullOrEmpty(fields)) return true;

            string[] splitFields = fields.Split(',');
            foreach(string splitField in splitFields)
            {
                string proeprtyName = splitField.Trim();
                PropertyInfo propertyInfo = typeof(T).GetProperty(
                    proeprtyName, BindingFlags.Public | BindingFlags.Instance | BindingFlags.IgnoreCase);
                if (propertyInfo == null) return false;
            }
            return true;
        }
    }
}

UserContext.GetAllApiUsers(), UserContext.Get()

[HttpGet(Name = "GetAllApiUsers")]
public async Task<IActionResult> GetAllApiUsers(ApiUserParameters parameters)
{
    //added code
    if (!_typeHelper.HasProperties<ApiUserResource>(parameters.Fields))
        return BadRequest("fields not exist.");

    if (!_propertyMappingContainer.ValidateMappingExistsFor<ApiUserResource, ApiUser>(parameters.OrderBy))
        return BadRequest("can't find fields for sorting.");

    PaginatedList<ApiUser> apiUsers = await _apiUserRepository.GetAllApiUsersAsync(parameters);

    IEnumerable<ApiUserResource> apiUserResources =
        _mapper.Map<IEnumerable<ApiUser>, IEnumerable<ApiUserResource>>(apiUsers);

    IEnumerable<ApiUserResource> sortedApiUserResources =
        apiUserResources.AsQueryable().ApplySort(
            parameters.OrderBy, _propertyMappingContainer.Resolve<ApiUserResource, ApiUser>());

    //modified code
    IEnumerable<ExpandoObject> sharpedApiUserResources =
        sortedApiUserResources.ToDynamicObject(parameters.Fields);

    var meta = new
    {
        apiUsers.PageIndex,
        apiUsers.PageSize,
        apiUsers.PageCount,
        apiUsers.TotalItemsCount,
        PreviousPageUrl = apiUsers.HasPreviousPage ? CreateApiUserUrl(parameters, ResourceUriType.PreviousPage) : string.Empty,
        NextPageUrl = apiUsers.HasNextPage ? CreateApiUserUrl(parameters, ResourceUriType.NextPage) : string.Empty,
    };
    Response.Headers.Add(
        "X-Pagination",
        JsonConvert.SerializeObject(
            meta,
            new JsonSerializerSettings
            { ContractResolver = new CamelCasePropertyNamesContractResolver() }));
    //modified code
    return Ok(sharpedApiUserResources);
}

配置回傳的json名稱風格為CamelCase

StartupDevelopment.ConfigureServices

services.AddMvc(options =>
    {
        options.ReturnHttpNotAcceptable = true;
        options.OutputFormatters.Add(new XmlDataContractSerializerOutputFormatter());
    })
        .AddJsonOptions(options =>
        {
            //added code
            options.SerializerSettings.ContractResolver = new CamelCasePropertyNamesContractResolver();
        });

HATEOAS

REST里最復雜的約束,構建成熟RESTAPI的核心

可進化性,自我描述
超媒體(Hypermedia,例如超鏈接)驅動如何消
費和使用API

UserContext

private IEnumerable<LinkResource> CreateLinksForApiUser(string guid,string fields = null)
{
    List<LinkResource> linkResources = new List<LinkResource>();
    if (string.IsNullOrEmpty(fields))
    {
        linkResources.Add(
            new LinkResource(Url.Link("GetApiUser", new { guid }), "self", "get"));
    }
    else
    {
        linkResources.Add(
            new LinkResource(Url.Link("GetApiUser", new { guid, fields }), "self", "get"));
    }

    linkResources.Add(
            new LinkResource(Url.Link("DeleteApiUser", new { guid }), "self", "Get"));
    return linkResources;
}

private IEnumerable<LinkResource> CreateLinksForApiUsers(ApiUserParameters parameters,bool hasPrevious,bool hasNext)
{
    List<LinkResource> resources = new List<LinkResource>();

    resources.Add(
            new LinkResource(
                CreateApiUserUrl(parameters,ResourceUriType.CurrentPage),
                "current_page", "get"));
    if (hasPrevious)
        resources.Add(
            new LinkResource(
                CreateApiUserUrl(parameters, ResourceUriType.PreviousPage),
                "previous_page", "get"));
    if (hasNext)
        resources.Add(
            new LinkResource(
                CreateApiUserUrl(parameters, ResourceUriType.NextPage),
                "next_page", "get"));

    return resources;
}

[HttpGet(Name = "GetAllApiUsers")]
public async Task<IActionResult> GetAllApiUsers(ApiUserParameters parameters)
{
    if (!_typeHelper.HasProperties<ApiUserResource>(parameters.Fields))
        return BadRequest("fields not exist.");

    if (!_propertyMappingContainer.ValidateMappingExistsFor<ApiUserResource, ApiUser>(parameters.OrderBy))
        return BadRequest("can't find fields for sorting.");

    PaginatedList<ApiUser> apiUsers = await _apiUserRepository.GetAllApiUsersAsync(parameters);

    IEnumerable<ApiUserResource> apiUserResources =
        _mapper.Map<IEnumerable<ApiUser>, IEnumerable<ApiUserResource>>(apiUsers);

    IEnumerable<ApiUserResource> sortedApiUserResources =
        apiUserResources.AsQueryable().ApplySort(
            parameters.OrderBy, _propertyMappingContainer.Resolve<ApiUserResource, ApiUser>());

    IEnumerable<ExpandoObject> shapedApiUserResources =
        sortedApiUserResources.ToDynamicObject(parameters.Fields);

    IEnumerable<ExpandoObject> shapedApiUserResourcesWithLinks = shapedApiUserResources.Select(
        x =>
        {
            IDictionary<string, object> dict = x as IDictionary<string, object>;
            if(dict.Keys.Contains("guid"))
                dict.Add("links", CreateLinksForApiUser(dict["guid"] as string));
            return dict as ExpandoObject;
        });

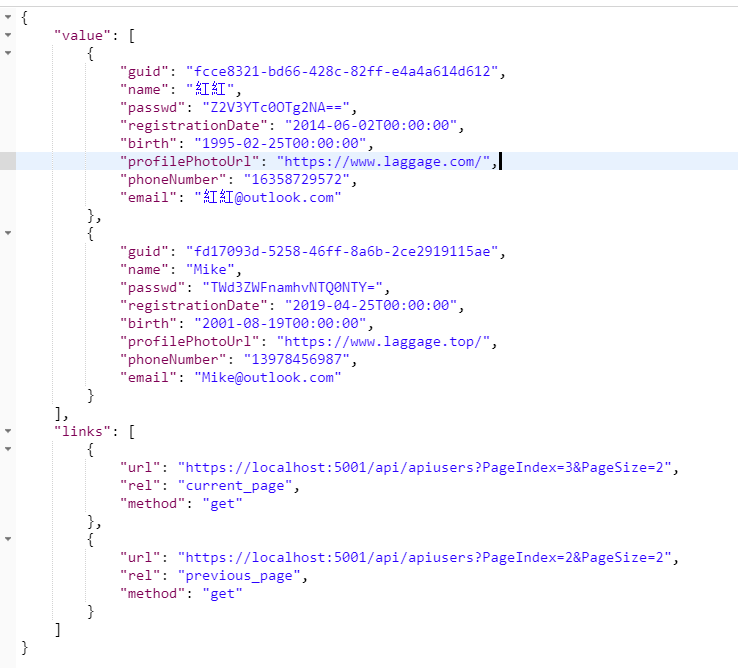

    var result = new
    {
        value = https://www.cnblogs.com/Laggage/p/shapedApiUserResourcesWithLinks,
        links = CreateLinksForApiUsers(parameters, apiUsers.HasPreviousPage, apiUsers.HasNextPage)
    };

    var meta = new
    {
        apiUsers.PageIndex,
        apiUsers.PageSize,
        apiUsers.PageCount,
        apiUsers.TotalItemsCount,
        //PreviousPageUrl = apiUsers.HasPreviousPage ? CreateApiUserUrl(parameters, ResourceUriType.PreviousPage) : string.Empty,
        //NextPageUrl = apiUsers.HasNextPage ? CreateApiUserUrl(parameters, ResourceUriType.NextPage) : string.Empty,
    };
    Response.Headers.Add("X-Pagination",
        JsonConvert.SerializeObject(
            meta,
            new JsonSerializerSettings
            { ContractResolver = new CamelCasePropertyNamesContractResolver() }));
    return Ok(result);
}

創建供應商特定媒體型別

application/vnd.mycompany.hateoas+json
- vnd是vendor的縮寫，這一條是mime type的原則，表示這個媒體型別是供應商特定的
- 自定義的標識，也可能還包括額外的值，這里我是用的是公司名，隨后是hateoas表示回傳的回應里面要
  包含鏈接
- “+json”
在Startup里注冊.

判斷Media Type型別

[FromHeader(Name = "Accept")] stringmediaType

//Startup.ConfigureServices 中注冊媒體型別
services.AddMvc(options =>
    {
        options.ReturnHttpNotAcceptable = true;
        //options.OutputFormatters.Add(new XmlDataContractSerializerOutputFormatter());
        JsonOutputFormatter formatter = options.OutputFormatters.OfType<JsonOutputFormatter>().FirstOrDefault();
        formatter.SupportedMediaTypes.Add("application/vnd.laggage.hateoas+json");
    })

// get方法中判斷媒體型別
if (mediaType == "application/json")
    return Ok(shapedApiUserResources);
else if (mediaType == "application/vnd.laggage.hateoas+json")
{
    ...
    return;
}

注意,要是的 Action 認識 application/vnd.laggage.hateoss+json ,需要在Startup.ConfigureServices中注冊這個媒體型別,上面的代碼給出了具體操作.

UserContext

[HttpGet(Name = "GetAllApiUsers")]
public async Task<IActionResult> GetAllApiUsers(ApiUserParameters parameters,[FromHeader(Name = "Accept")] string mediaType)
{
    if (!_typeHelper.HasProperties<ApiUserResource>(parameters.Fields))
        return BadRequest("fields not exist.");

    if (!_propertyMappingContainer.ValidateMappingExistsFor<ApiUserResource, ApiUser>(parameters.OrderBy))
        return BadRequest("can't find fields for sorting.");

    PaginatedList<ApiUser> apiUsers = await _apiUserRepository.GetAllApiUsersAsync(parameters);

    IEnumerable<ApiUserResource> apiUserResources =
        _mapper.Map<IEnumerable<ApiUser>, IEnumerable<ApiUserResource>>(apiUsers);

    IEnumerable<ApiUserResource> sortedApiUserResources =
        apiUserResources.AsQueryable().ApplySort(
            parameters.OrderBy, _propertyMappingContainer.Resolve<ApiUserResource, ApiUser>());

    IEnumerable<ExpandoObject> shapedApiUserResources =
        sortedApiUserResources.ToDynamicObject(parameters.Fields);

    if (mediaType == "application/json") return Ok(shapedApiUserResources);
    else if (mediaType == "application/vnd.laggage.hateoas+json")
    {
        IEnumerable<ExpandoObject> shapedApiUserResourcesWithLinks = shapedApiUserResources.Select(
            x =>
            {
                IDictionary<string, object> dict = x as IDictionary<string, object>;
                if (dict.Keys.Contains("guid"))
                    dict.Add("links", CreateLinksForApiUser(
                                dict.FirstOrDefault(
                                    a => string.Equals(
                                        a.Key,"guid",StringComparison.OrdinalIgnoreCase))
                                .Value.ToString()));
                return dict as ExpandoObject;
            });

        var result = new
        {
            value = https://www.cnblogs.com/Laggage/p/shapedApiUserResourcesWithLinks,
            links = CreateLinksForApiUsers(parameters, apiUsers.HasPreviousPage, apiUsers.HasNextPage)
        };

        var meta = new
        {
            apiUsers.PageIndex,
            apiUsers.PageSize,
            apiUsers.PageCount,
            apiUsers.TotalItemsCount,
        };
        Response.Headers.Add("X-Pagination",
            JsonConvert.SerializeObject(
                meta,
                new JsonSerializerSettings
                { ContractResolver = new CamelCasePropertyNamesContractResolver() }));
        return Ok(result);
    }
    return NotFound($"Can't find resources for the given media type: [{mediaType}].");
}

[HttpGet("{guid}",Name = "GetApiUser")]
public async Task<IActionResult> Get(string guid, [FromHeader(Name = "Accept")] string mediaType , string fields = null)
{
    if (!_typeHelper.HasProperties<ApiUserResource>(fields))
        return BadRequest("fields not exist.");

    ApiUser apiUser = await _apiUserRepository.GetApiUserByGuidAsync(Guid.Parse(guid));

    if (apiUser is null) return NotFound();
    ApiUserResource apiUserResource = _mapper.Map<ApiUser, ApiUserResource>(apiUser);

    ExpandoObject shapedApiUserResource = apiUserResource.ToDynamicObject(fields);
    if (mediaType == "application/json") return Ok(shapedApiUserResource);

    else if(mediaType == "application/vnd.laggage.hateoas+json")
    {


    IDictionary<string, object> shapedApiUserResourceWithLink = shapedApiUserResource as IDictionary<string, object>;
    shapedApiUserResourceWithLink.Add("links", CreateLinksForApiUser(guid, fields));

    return Ok(shapedApiUserResourceWithLink);
    }
    return NotFound(@"Can't find resource for the given media type: [{mediaType}].");
}

自定義Action約束.

RequestHeaderMatchingMediaTypeAttribute

[AttributeUsage(AttributeTargets.All, Inherited = true, AllowMultiple = true)]
public class RequestHeaderMatchingMediaTypeAttribute : Attribute, IActionConstraint
{
    private readonly string _requestHeaderToMatch;
    private readonly string[] _mediaTypes;

    public RequestHeaderMatchingMediaTypeAttribute(string requestHeaderToMatch, string[] mediaTypes)
    {
        _requestHeaderToMatch = requestHeaderToMatch;
        _mediaTypes = mediaTypes;
    }

    public bool Accept(ActionConstraintContext context)
    {
        var requestHeaders = context.RouteContext.HttpContext.Request.Headers;
        if (!requestHeaders.ContainsKey(_requestHeaderToMatch))
        {
            return false;
        }

        foreach (var mediaType in _mediaTypes)
        {
            var mediaTypeMatches = string.Equals(requestHeaders[_requestHeaderToMatch].ToString(),
                mediaType, StringComparison.OrdinalIgnoreCase);
            if (mediaTypeMatches)
            {
                return true;
            }
        }

        return false;
    }

    public int Order { get; } = 0;
}

UserContext

[HttpGet(Name = "GetAllApiUsers")]
[RequestHeaderMatchingMediaType("Accept",new string[] { "application/vnd.laggage.hateoas+json" })]
public async Task<IActionResult> GetHateoas(ApiUserParameters parameters)
{
    if (!_typeHelper.HasProperties<ApiUserResource>(parameters.Fields))
        return BadRequest("fields not exist.");

    if (!_propertyMappingContainer.ValidateMappingExistsFor<ApiUserResource, ApiUser>(parameters.OrderBy))
        return BadRequest("can't find fields for sorting.");

    PaginatedList<ApiUser> apiUsers = await _apiUserRepository.GetAllApiUsersAsync(parameters);

    IEnumerable<ApiUserResource> apiUserResources =
        _mapper.Map<IEnumerable<ApiUser>, IEnumerable<ApiUserResource>>(apiUsers);

    IEnumerable<ApiUserResource> sortedApiUserResources =
        apiUserResources.AsQueryable().ApplySort(
            parameters.OrderBy, _propertyMappingContainer.Resolve<ApiUserResource, ApiUser>());

    IEnumerable<ExpandoObject> shapedApiUserResources =
        sortedApiUserResources.ToDynamicObject(parameters.Fields);

    IEnumerable<ExpandoObject> shapedApiUserResourcesWithLinks = shapedApiUserResources.Select(
            x =>
            {
                IDictionary<string, object> dict = x as IDictionary<string, object>;
                if (dict.Keys.Contains("guid"))
                    dict.Add("links", CreateLinksForApiUser(
                                dict.FirstOrDefault(
                                    a => string.Equals(
                                        a.Key,"guid",StringComparison.OrdinalIgnoreCase))
                                .Value.ToString()));
                return dict as ExpandoObject;
            });

    var result = new
    {
        value = https://www.cnblogs.com/Laggage/p/shapedApiUserResourcesWithLinks,
        links = CreateLinksForApiUsers(parameters, apiUsers.HasPreviousPage, apiUsers.HasNextPage)
    };

    var meta = new
    {
        apiUsers.PageIndex,
        apiUsers.PageSize,
        apiUsers.PageCount,
        apiUsers.TotalItemsCount,
    };
    Response.Headers.Add("X-Pagination",
        JsonConvert.SerializeObject(
            meta,
            new JsonSerializerSettings
            { ContractResolver = new CamelCasePropertyNamesContractResolver() }));
    return Ok(result);
}

[HttpGet(Name = "GetAllApiUsers")]
[RequestHeaderMatchingMediaType("Accept",new string[] { "application/json" })]
public async Task<IActionResult> Get(ApiUserParameters parameters)
{
    if (!_typeHelper.HasProperties<ApiUserResource>(parameters.Fields))
        return BadRequest("fields not exist.");

    if (!_propertyMappingContainer.ValidateMappingExistsFor<ApiUserResource, ApiUser>(parameters.OrderBy))
        return BadRequest("can't find fields for sorting.");

    PaginatedList<ApiUser> apiUsers = await _apiUserRepository.GetAllApiUsersAsync(parameters);

    IEnumerable<ApiUserResource> apiUserResources =
        _mapper.Map<IEnumerable<ApiUser>, IEnumerable<ApiUserResource>>(apiUsers);

    IEnumerable<ApiUserResource> sortedApiUserResources =
        apiUserResources.AsQueryable().ApplySort(
            parameters.OrderBy, _propertyMappingContainer.Resolve<ApiUserResource, ApiUser>());

    IEnumerable<ExpandoObject> shapedApiUserResources =
        sortedApiUserResources.ToDynamicObject(parameters.Fields);

    return Ok(shapedApiUserResources);
}

[HttpGet("{guid}", Name = "GetApiUser")]
[RequestHeaderMatchingMediaType("Accept", new string[] { "application/vnd.laggage.hateoas+json" })]
public async Task<IActionResult> GetHateoas(string guid, string fields = null)
{
    if (!_typeHelper.HasProperties<ApiUserResource>(fields))
        return BadRequest("fields not exist.");

    ApiUser apiUser = await _apiUserRepository.GetApiUserByGuidAsync(Guid.Parse(guid));

    if (apiUser is null) return NotFound();
    ApiUserResource apiUserResource = _mapper.Map<ApiUser, ApiUserResource>(apiUser);

    ExpandoObject shapedApiUserResource = apiUserResource.ToDynamicObject(fields);

    IDictionary<string, object> shapedApiUserResourceWithLink = shapedApiUserResource as IDictionary<string, object>;
    shapedApiUserResourceWithLink.Add("links", CreateLinksForApiUser(guid, fields));

    return Ok(shapedApiUserResourceWithLink);
}

[HttpGet("{guid}", Name = "GetApiUser")]
[RequestHeaderMatchingMediaType("Accept", new string[] { "application/json" })]
public async Task<IActionResult> Get(string guid,  string fields = null)
{
    if (!_typeHelper.HasProperties<ApiUserResource>(fields))
        return BadRequest("fields not exist.");

    ApiUser apiUser = await _apiUserRepository.GetApiUserByGuidAsync(Guid.Parse(guid));

    if (apiUser is null) return NotFound();
    ApiUserResource apiUserResource = _mapper.Map<ApiUser, ApiUserResource>(apiUser);

    ExpandoObject shapedApiUserResource = apiUserResource.ToDynamicObject(fields);

    return Ok(shapedApiUserResource);
}

Post添加資源

Post - 不安全,非冪等
要回傳添加好的資源,并且回傳頭中有獲得新創建資源的連接.

安全性和冪等性

安全性是指方法執行后并不會改變資源的表述
冪等性是指方法無論執行多少次都會得到同樣
的結果

代碼實作

StartUp中注冊Fluent,用于驗證

services.AddMvc(...)
        .AddFluentValidation();

services.AddTransient<IValidator<ApiUserAddResource>, ApiUserAddResourceValidator>();

ApiStudy.Infrastructure.Resources.ApiUserAddResourceValidator

namespace ApiStudy.Infrastructure.Resources
{
    using FluentValidation;

    public class ApiUserAddResourceValidator : AbstractValidator<ApiUserAddResource>
    {
        public ApiUserAddResourceValidator()
        {
            RuleFor(x => x.Name)
                .MaximumLength(20)
                .WithName("用戶名")
                .WithMessage("{PropertyName}的最大長度為20!")
                .NotNull()
                .WithMessage("{PropertyName}是必填的!")
                .NotEmpty()
                .WithMessage("{PropertyName}不能為空!");
            RuleFor(x => x.Passwd)
                .NotNull()
                .WithName("密碼")
                .WithMessage("{PropertyName}是必填的!")
                .MinimumLength(6)
                .WithMessage("{PropertyName}的最小長度是6")
                .MaximumLength(16)
                .WithMessage("{PropertyName}的最大長度是16");
            RuleFor(x => x.PhoneNumber)
                .NotNull()
                .WithName("電話")
                .WithMessage("{PropertyName}是必填的!")
                .NotEmpty()
                .WithMessage("{PropertyName}不能為空!");
        }
    }
}

UserContext.AddApiUser()

[HttpPost(Name = "CreateApiUser")]
[RequestHeaderMatchingMediaType("Content-Type",new string[] { "application/vnd.laggage.create.apiuser+json" })]
[RequestHeaderMatchingMediaType("Accept",new string[] { "application/vnd.laggage.hateoas+json" })]
public async Task<IActionResult> AddUser([FromBody] ApiUserAddResource apiUser)
{
    if (!ModelState.IsValid)
        return UnprocessableEntity(ModelState);

    ApiUser newUser = _mapper.Map<ApiUser>(apiUser);
    newUser.Guid = Guid.NewGuid();
    newUser.ProfilePhotoUrl = $"www.eample.com/photo/{newUser.Guid}";
    newUser.RegistrationDate = DateTime.Now;

    await _apiUserRepository.AddApiUserAsync(newUser);
    if (!await _unitOfWork.SaveChangesAsync())
        throw new Exception("Failed to save changes");

    IDictionary<string, object> shapedUserResource =
        _mapper.Map<ApiUserResource>(newUser)
        .ToDynamicObject() as IDictionary<string, object>;
    IEnumerable<LinkResource> links = CreateLinksForApiUser(newUser.Guid.ToString());
    shapedUserResource.Add("links", links);
    return CreatedAtRoute("GetApiUser",new { newUser.Guid }, shapedUserResource);
}

Delete

引數 : ID
冪等的
- 多次請求的副作用和單次請求的副作用是一樣的.每次發送了DELETE請求之后，服務器的狀態都是一樣的.
不安全

ApiStudy.Api.Controllers.UserController

[HttpDelete("{guid}",Name = "DeleteApiUser")]
public async Task<IActionResult> DeleteApiUser(string guid)
{
    ApiUser userToDelete = await _apiUserRepository.GetApiUserByGuidAsync(new Guid(guid));

    if (userToDelete == null) return NotFound();

    await _apiUserRepository.DeleteApiUserAsync(userToDelete);
    if (!await _unitOfWork.SaveChangesAsync())
        throw new Exception("Failed to delete apiUser");

    return NoContent();
}

PUT & PATCH

相關類:

ApiStudy.Infrastructure.Resources.ApiUserAddOrUpdateResource

namespace ApiStudy.Infrastructure.Resources
{
    using System;

    public abstract class ApiUserAddOrUpdateResource
    {
        public string Name { get; set; }
        public string Passwd { get; set; }
        public DateTime Birth { get; set; }
        public string PhoneNumber { get; set; }
        public string Email { get; set; }
    }
}

ApiStudy.Infrastructure.Resources.ApiUserAddResource

namespace ApiStudy.Infrastructure.Resources
{
    public class ApiUserAddResource:ApiUserAddOrUpdateResource
    {
    }
}

ApiStudy.Infrastructure.Resources.ApiUserUpdateResource

namespace ApiStudy.Infrastructure.Resources
{
    public class ApiUserUpdateResource : ApiUserAddOrUpdateResource
    {
    }
}

ApiStudy.Infrastructure.Resources.ApiUserAddOrUpdateResourceValidator

namespace ApiStudy.Infrastructure.Resources
{
    using FluentValidation;

    public class ApiUserAddOrUpdateResourceValidator<T> : AbstractValidator<T> where T: ApiUserAddOrUpdateResource
    {
        public ApiUserAddOrUpdateResourceValidator()
        {
            RuleFor(x => x.Name)
                .MaximumLength(20)
                .WithName("用戶名")
                .WithMessage("{PropertyName}的最大長度為20!")
                .NotNull()
                .WithMessage("{PropertyName}是必填的!")
                .NotEmpty()
                .WithMessage("{PropertyName}不能為空!");
            RuleFor(x => x.Passwd)
                .NotNull()
                .WithName("密碼")
                .WithMessage("{PropertyName}是必填的!")
                .MinimumLength(6)
                .WithMessage("{PropertyName}的最小長度是6")
                .MaximumLength(16)
                .WithMessage("{PropertyName}的最大長度是16");
            RuleFor(x => x.PhoneNumber)
                .NotNull()
                .WithName("電話")
                .WithMessage("{PropertyName}是必填的!")
                .NotEmpty()
                .WithMessage("{PropertyName}不能為空!");
        }
    }
}

PUT 整體更新

回傳204
引數
- ID,
- [FromBody]XxxxUpdateResource

ApiStudy.Api.Controllers.UpdateApiUser

[HttpPut("{guid}",Name = "PutApiUser")]
public async Task<IActionResult> UpdateApiUser(string guid,[FromBody] ApiUserUpdateResource apiUserUpdateResource)
{
    if (!ModelState.IsValid) return BadRequest(ModelState);

    ApiUser userToUpdate = await _apiUserRepository.GetApiUserByGuidAsync(new Guid(guid));
    if (userToUpdate == null) return NotFound();

    _mapper.Map(apiUserUpdateResource, userToUpdate);

    if (!await _unitOfWork.SaveChangesAsync())
        throw new Exception("Failed to update Entity of ApiUser");
    return NoContent();
}

PATCH

Content-Type
- application/json-patch+json
回傳204
引數
- ID
- [FromBody] JsonPatchDocument
op操作
- 添加：{“op”: "add", "path": "/xxx", "value": "xxx"}，如果該屬性不存，那么就添加該屬性，如
  果屬性存在，就改變屬性的值，這個對靜態型別不適用，
- 洗掉：{“op”: "remove", "path": "/xxx"}，洗掉某個屬性，或把它設為默認值（例如空值），
- 替換：{“op”: "replace", "path": "/xxx", "value": "xxx"}，改變屬性的值，也可以理解為先執行
  了洗掉，然后進行添加，
- 復制：{“op”: "copy", "from": "/xxx", "path": "/yyy"}，把某個屬性的值賦給目標屬性，
- 移動：{“op”: "move", "from": "/xxx", "path": "/yyy"}，把源屬性的值賦值給目標屬性，并把源
  屬性洗掉或設成默認值，
- 測驗：{“op”: "test", "path": "/xxx", "value": "xxx"}，測驗目標屬性的值和指定的值是一樣的，
path,資源的屬性名
- 可以有層級結構
value 更新的值

[
    {
        "op":"replace",
        "path":"/name",
        "value":"阿黃"
    },
    {
        "op":"remove",
        "path":"/email"
    }
]

ApiStudy.Api.Controllers.UserContext.UpdateApiUser

[HttpPatch("{guid}",Name = "PatchApiUser")]
[RequestHeaderMatchingMediaType("Content-Type",new string[] { "application/vnd.laggage.patch.apiuser+json" })]
public async Task<IActionResult> UpdateApiUser(
    string guid,[FromBody] JsonPatchDocument<ApiUserUpdateResource> userUpdateDoc)
{
    if (userUpdateDoc == null) return BadRequest();

    ApiUser userToUpdate = await _apiUserRepository.GetApiUserByGuidAsync(new Guid(guid));
    if (userToUpdate is null) return NotFound();

    ApiUserUpdateResource userToUpdateResource = _mapper.Map<ApiUserUpdateResource>(userToUpdate);
    userUpdateDoc.ApplyTo(userToUpdateResource);

    _mapper.Map(userToUpdateResource, userToUpdate);
    if (!await _unitOfWork.SaveChangesAsync()) throw new Exception("Failed to update Entity of ApiUser");

    return NoContent();
}

Http常用方法總結

GET(獲取資源)：
- GET api/countries，回傳200，集合資料；找不到資料回傳404，
- GET api/countries/{id},回傳200，單個資料；找不到回傳404.
DELETE(洗掉資源)
- DELETE api/countries/{id}，成功204；沒找到資源404，
- DELETE api/countries，很少用，也是204或者404.
POST (創建資源)：
- POST api/countries,成功回傳201和單個資料；如果資源沒有創建則回傳404
- POST api/countries/{id}，肯定不會成功，回傳404或409.
- POST api/countrycollections，成功回傳201和集合；沒創建資源則回傳404
PUT (整體更新)：
- PUT api/countries/{id},成功可以回傳200，204；沒找到資源則回傳404
- PUT api/countries，集合操作很少見，回傳200，204或404
PATCH(區域更新):
- PATCHapi/countries/{id}，200單個資料，204或者404
- PATCHapi/countries,集合操作很少見，回傳200集合，204或404.

轉載請註明出處，本文鏈接：https://www.uj5u.com/net/105808.html

標籤：.NET Core

上一篇：觸摸陽光隊作品簡介

下一篇：abp(net core)+easyui+efcore實作倉儲管理系統——EasyUI之貨物管理四 (二十二)

Asp.NetCoreWebApi - RESTful Api

參考文章

REST概述

常用http動詞

WebApi 在 Asp.NetCore 中的實作

創建WebApi專案.

集成Entity Framework Core操作Mysql

安裝相關的包(為Xxxx.Infrastructure專案安裝)

建立Entity和Context

ConfigureService中注入EF服務

遷移資料庫

遷移資料庫失敗, 提示 Unable to create an object of type '<Xxxx>Context'. For the different patterns supported at design time, see https://go.microsoft.com/fwlink/?linkid=851728

資料庫遷移結果

為資料庫創建種子資料

支持https

支持HSTS

使用SerilLog

安裝nuget包

添加代碼

自行測驗

Asp.NetCore組態檔

默認組態檔

獲得配置

全域例外處理

實作資料介面類(Resource),使用AutoMapper在Resource和Entity中映射

為Entity類創建對應的Resource類

使用 AutoMapper

使用FluentValidation

安裝Nuget包

為每一個Resource配置驗證器

實作Http Get(翻頁,過濾,排序)

資源命名

資源應該使用名詞,例

資源命名層次結構

內容協商

翻頁

構造翻頁請求引數類

Repository實作支持翻頁請求引數的方法

搜索(過濾)

排序

排序思路

資源塑形(Resource shaping)

HATEOAS

創建供應商特定媒體型別

判斷Media Type型別

Post添加資源

安全性和冪等性

代碼實作

Delete

PUT & PATCH

PUT 整體更新

PATCH

Http常用方法總結

遷移資料庫失敗, 提示 `Unable to create an object of type '<Xxxx>Context'. For the different patterns supported at design time, see https://go.microsoft.com/fwlink/?linkid=851728`
