本文是對c#中Dictionary內部實作原理進行簡單的剖析，如有表述錯誤，歡迎指正，
主要對照原始碼來決議，目前對照原始碼的版本是.Net Framwork 4.8，原始碼地址，
1. 關鍵的欄位和Entry結構
struct Entry { public int hashCode; // key的hashCode & 0x7FFFFFFF public int next; // 指向鏈表下一個元素的地址（實際就是entries的索引），最后一個元素為-1 public TKey key; public TValue value; } Entry[] entries; //存放鍵值 int[] buckets; //存盤entries最新元素的索引,其存盤位置由取模結果決定，例：假設鍵值存盤在entries的第1元素的位置上，且hashCode和長度的取模結果為2，那么buckets[2] = 1 int count = 0; //已存盤鍵值的個數 int version; //記錄版本，防止迭代程序中集合被更改 IEqualityComparer<TKey> _comparer; int freeList; //entries中最新空元素的索引 int freeCount; //entries中空元素的個數
2. 添加鍵值（Add）
public void Add(TKey key, TValue value) { Insert(key, value, true); } private void Insert(TKey key, TValue value, bool add) { if( key == null ) { ThrowHelper.ThrowArgumentNullException(ExceptionArgument.key); } if (buckets == null) Initialize(0); int hashCode = comparer.GetHashCode(key) & 0x7FFFFFFF; //取模 int targetBucket = hashCode % buckets.Length; #if FEATURE_RANDOMIZED_STRING_HASHING int collisionCount = 0; #endif for (int i = buckets[targetBucket]; i >= 0; i = entries[i].next) { if (entries[i].hashCode == hashCode && comparer.Equals(entries[i].key, key)) { if (add) { ThrowHelper.ThrowArgumentException(ExceptionResource.Argument_AddingDuplicate); } //對于已存在的Key重新賦值 entries[i].value =https://www.cnblogs.com/hbatjzyb/p/ value; version++; return; } #if FEATURE_RANDOMIZED_STRING_HASHING collisionCount++; #endif } int index; if (freeCount > 0) { //存在entries中存在空元素 index = freeList; freeList = entries[index].next; freeCount--; } else { if (count == entries.Length) { //擴容：取大于count * 2的最小素數作為entries和bucket的新容量（即陣列長度.Length） Resize(); targetBucket = hashCode % buckets.Length; } index = count; count++; } entries[index].hashCode = hashCode; entries[index].next = buckets[targetBucket]; entries[index].key = key; entries[index].value = value; //存取鏈表的頭元素的索引（即entries最后存入的元素的在enties中的索引） //便于取Key的時每次從鏈表的頭元素開始遍歷，詳細見FindEntry(TKey key)函式 buckets[targetBucket] = index; version++; #if FEATURE_RANDOMIZED_STRING_HASHING #if FEATURE_CORECLR // In case we hit the collision threshold we'll need to switch to the comparer which is using randomized string hashing // in this case will be EqualityComparer<string>.Default. // Note, randomized string hashing is turned on by default on coreclr so EqualityComparer<string>.Default will // be using randomized string hashing if (collisionCount > HashHelpers.HashCollisionThreshold && comparer == NonRandomizedStringEqualityComparer.Default) { comparer = (IEqualityComparer<TKey>) EqualityComparer<string>.Default; Resize(entries.Length, true); } #else if(collisionCount > HashHelpers.HashCollisionThreshold && HashHelpers.IsWellKnownEqualityComparer(comparer)) { //如果碰撞次數（單鏈表長度）大于設定的最大碰撞閾值，需要擴容 comparer = (IEqualityComparer<TKey>) HashHelpers.GetRandomizedEqualityComparer(comparer); Resize(entries.Length, true); } #endif // FEATURE_CORECLR #endif } ****************************************************************************************************************************************** static void Foo() { var dicData = https://www.cnblogs.com/hbatjzyb/p/new Dictionary<int, int>(); //添加鍵值 new List<int> { 1, 2, 4 }.ForEach(item => Add(item, dicData)); new List<int> { 22, 29, 36, 20 }.ForEach(item => Add(item, dicData)); } static void Add(int key, Dictionary<int, int> dicData) { dicData.Add(key, key); }
2.1 陣列entries和buckets初始化
private void Initialize(int capacity) { //取大于capacity的最小質數（素數） int size = HashHelpers.GetPrime(capacity); buckets = new int[size]; for (int i = 0; i < buckets.Length; i++) buckets[i] = -1; entries = new Entry[size]; freeList = -1; } **************************************************** internal static class HashHelpers { ...... public const int HashCollisionThreshold = 100; //碰撞閾值 ...... public static readonly int[] primes = { 3, 7, 11, 17, 23, 29, 37, 47, 59, 71, 89, 107, 131, 163, 197, 239, 293, 353, 431, 521, 631, 761, 919, 1103, 1327, 1597, 1931, 2333, 2801, 3371, 4049, 4861, 5839, 7013, 8419, 10103, 12143, 14591, 17519, 21023, 25229, 30293, 36353, 43627, 52361, 62851, 75431, 90523, 108631, 130363, 156437, 187751, 225307, 270371, 324449, 389357, 467237, 560689, 672827, 807403, 968897, 1162687, 1395263, 1674319, 2009191, 2411033, 2893249, 3471899, 4166287, 4999559, 5999471, 7199369}; //質數（素數）組 ...... public static int GetPrime(int min) { if (min < 0) throw new ArgumentException(Environment.GetResourceString("Arg_HTCapacityOverflow")); Contract.EndContractBlock(); //查找primes是否有滿足的質數（素數） for (int i = 0; i < primes.Length; i++) { int prime = primes[i]; if (prime >= min) return prime; } //outside of our predefined table. //compute the hard way. //primes沒有查找到滿足的質數（素數），自行計算 for (int i = (min | 1); i < Int32.MaxValue;i+=2) { if (IsPrime(i) && ((i - 1) % Hashtable.HashPrime != 0)) return i; } return min; } }
2.2 添加鍵值{1，1}，則
hashCode = 1;
targetBucket = hasCode % buckets.Length; //targetBucket = 1
next = buckets[targetBucket]; //next = -1
buckets[targetBucket] = index; //buckets[1] = 0
2.3 添加鍵值{2，2}，則
hashCode = 2;
targetBucket = hasCode % buckets.Length; //targetBucket = 2
next = buckets[targetBucket]; //next = -1
buckets[targetBucket] = index; //buckets[2] = 1
2.4 添加鍵值{4，4}，則
hashCode = 4;
targetBucket = hasCode % buckets.Length; //targetBucket = 1
next = buckets[targetBucket]; //next = 0
buckets[targetBucket] = index; //buckets[1] = 2
接下來將entries陣列以單鏈表的形式呈現(即enteries陣列橫向)；
2.5 在繼續添加鍵值之前，需要擴容操作，因為entries陣列長度為3且都已有元素，擴容后需要對buckets和entries每個元素的Next需要重新賦值；
private void Resize() { //擴容的大小：取大于（當前容量*2）的最小素數 //例： Resize(HashHelpers.ExpandPrime(count), false); } private void Resize(int newSize, bool forceNewHashCodes) { Contract.Assert(newSize >= entries.Length); //實體化buckets，并將每個元素置為-1 int[] newBuckets = new int[newSize]; for (int i = 0; i < newBuckets.Length; i++) newBuckets[i] = -1; Entry[] newEntries = new Entry[newSize]; Array.Copy(entries, 0, newEntries, 0, count); //如果是Hash碰撞擴容，使用新HashCode函式重新計算Hash值 if(forceNewHashCodes) { for (int i = 0; i < count; i++) { if(newEntries[i].hashCode != -1) { newEntries[i].hashCode = (comparer.GetHashCode(newEntries[i].key) & 0x7FFFFFFF); } } } //重建單鏈表 for (int i = 0; i < count; i++) { if (newEntries[i].hashCode >= 0) { //取模重新設定next值和buckets int bucket = newEntries[i].hashCode % newSize; newEntries[i].next = newBuckets[bucket]; newBuckets[bucket] = i; } } buckets = newBuckets; entries = newEntries; } ******************************************************************* internal static class HashHelpers { ...... public static readonly int[] primes = { 3, 7, 11, 17, 23, 29, 37, 47, 59, 71, 89, 107, 131, 163, 197, 239, 293, 353, 431, 521, 631, 761, 919, 1103, 1327, 1597, 1931, 2333, 2801, 3371, 4049, 4861, 5839, 7013, 8419, 10103, 12143, 14591, 17519, 21023, 25229, 30293, 36353, 43627, 52361, 62851, 75431, 90523, 108631, 130363, 156437, 187751, 225307, 270371, 324449, 389357, 467237, 560689, 672827, 807403, 968897, 1162687, 1395263, 1674319, 2009191, 2411033, 2893249, 3471899, 4166287, 4999559, 5999471, 7199369}; //質數（素數）組 ...... // This is the maximum prime smaller than Array.MaxArrayLength public const int MaxPrimeArrayLength = 0x7FEFFFFD; //陣列最大長度的最小質數 public static int ExpandPrime(int oldSize) { //翻倍 int newSize = 2 * oldSize; // Allow the hashtables to grow to maximum possible size (~2G elements) before encoutering capacity overflow. // Note that this check works even when _items.Length overflowed thanks to the (uint) cast //翻倍的大小不能超過【陣列最大長度的最小質數】 if ((uint)newSize > MaxPrimeArrayLength && MaxPrimeArrayLength > oldSize) { Contract.Assert( MaxPrimeArrayLength == GetPrime(MaxPrimeArrayLength), "Invalid MaxPrimeArrayLength"); return MaxPrimeArrayLength; } //取最小的質數（素數） return GetPrime(newSize); } public static int GetPrime(int min) { if (min < 0) throw new ArgumentException(Environment.GetResourceString("Arg_HTCapacityOverflow")); Contract.EndContractBlock(); //查找primes是否有滿足的質數（素數） for (int i = 0; i < primes.Length; i++) { int prime = primes[i]; if (prime >= min) return prime; } //outside of our predefined table. //compute the hard way. //primes沒有查找到滿足的質數（素數），自行計算 for (int i = (min | 1); i < Int32.MaxValue;i+=2) { if (IsPrime(i) && ((i - 1) % Hashtable.HashPrime != 0)) return i; } return min; } }
2.6 繼續添加鍵值{22，22}，{29，29}，{36，36}，{40，40}，添加完后其內部存盤結果如下
3. 取鍵值（Find）

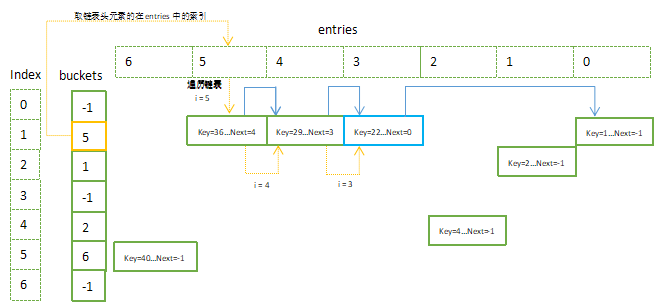

public TValue this[TKey key] { get { //取Key對應值在entries的索引 int i = FindEntry(key); if (i >= 0) return entries[i].value; ThrowHelper.ThrowKeyNotFoundException(); return default(TValue); } set { //更新Key對應的值 Insert(key, value, false); } } private int FindEntry(TKey key) { if( key == null) { ThrowHelper.ThrowArgumentNullException(ExceptionArgument.key); } if (buckets != null) { int hashCode = comparer.GetHashCode(key) & 0x7FFFFFFF; //遍歷單鏈表 for (int i = buckets[hashCode % buckets.Length]; i >= 0; i = entries[i].next) { if (entries[i].hashCode == hashCode && comparer.Equals(entries[i].key, key)) return i; } } return -1; } ********************************************************************************************* static void Foo() { ...... //取Key=22 var val =dicData[22];
}
簡化取Key對應值的代碼
var hashCode =comparer.GetHashCode(key) & 0x7FFFFFFF; // 22 var targetBuget = hashCode % buckets.Length; //取模運算 1 var i = bucket[targetBuget]; //鏈表頭元素的索引 bucket[1] = 5 //遍歷單鏈表 for (; i >= 0; i = entries[i].next) { if (entries[i].hashCode == hashCode && comparer.Equals(entries[i].key, key)) return i; }
4. 移除鍵值（Remove）
public bool Remove(TKey key) { if(key == null) { ThrowHelper.ThrowArgumentNullException(ExceptionArgument.key); } if (buckets != null) { int hashCode = comparer.GetHashCode(key) & 0x7FFFFFFF; int bucket = hashCode % buckets.Length; int last = -1; //其原理先取出鍵值，然后記錄entries空閑的索引（freeList）和空閑個數（freeCount） for (int i = buckets[bucket]; i >= 0; last = i, i = entries[i].next) { if (entries[i].hashCode == hashCode && comparer.Equals(entries[i].key, key)) { if (last < 0) { buckets[bucket] = entries[i].next; } else { entries[last].next = entries[i].next; } entries[i].hashCode = -1; //建立空閑鏈表 entries[i].next = freeList; entries[i].key = default(TKey); entries[i].value = default(TValue); //保存entryies中空元素的索引 //便于插入新鍵值時，放在當前索引的位置，減少entryies空間上的浪費 freeList = i; //空元素的個數加1 freeCount++; version++; return true; } } } return false; } ******************************************************************* static void Foo() { ...... //移除 new List<int> { 22, 29 }.ForEach(item => dicData.Remove(item)); }

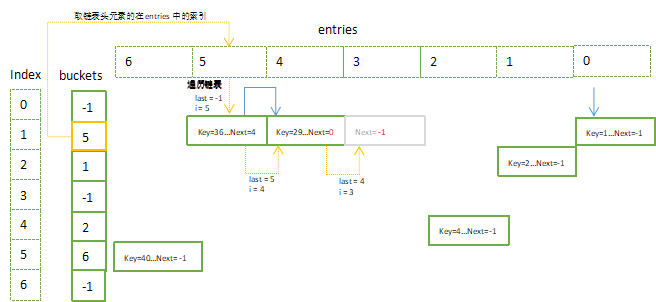

4.1 移除Key=22后，freeList = 3, freeCount = 1,
4.2 移除Key=36后，freeList = 5, freeCount = 2,
5. 再插入鍵值
如上圖，當移除掉{36，36}后，會發現又誕生一個含有兩個元素的“新鏈表”（上圖灰色框），這個作用就是為了插入新鍵值時，按照“新鏈表”記錄的索引順序插入到entries陣列中， 例：添加鍵值{22，22}，{25，25}，此時freeList = 5，freeCount = 2;- 給entries[5]賦值，freeList = 3, freeCount = 1；
- 給entries[3]賦值，freeList = -1, freeCount = 0；
希望此文能夠讓你對于Dictionary內部實作有所認識，
