內容目錄
- 實作效果
- 業務場景
- 編碼實作
- 本文參考
- 原始碼下載
1.實作效果

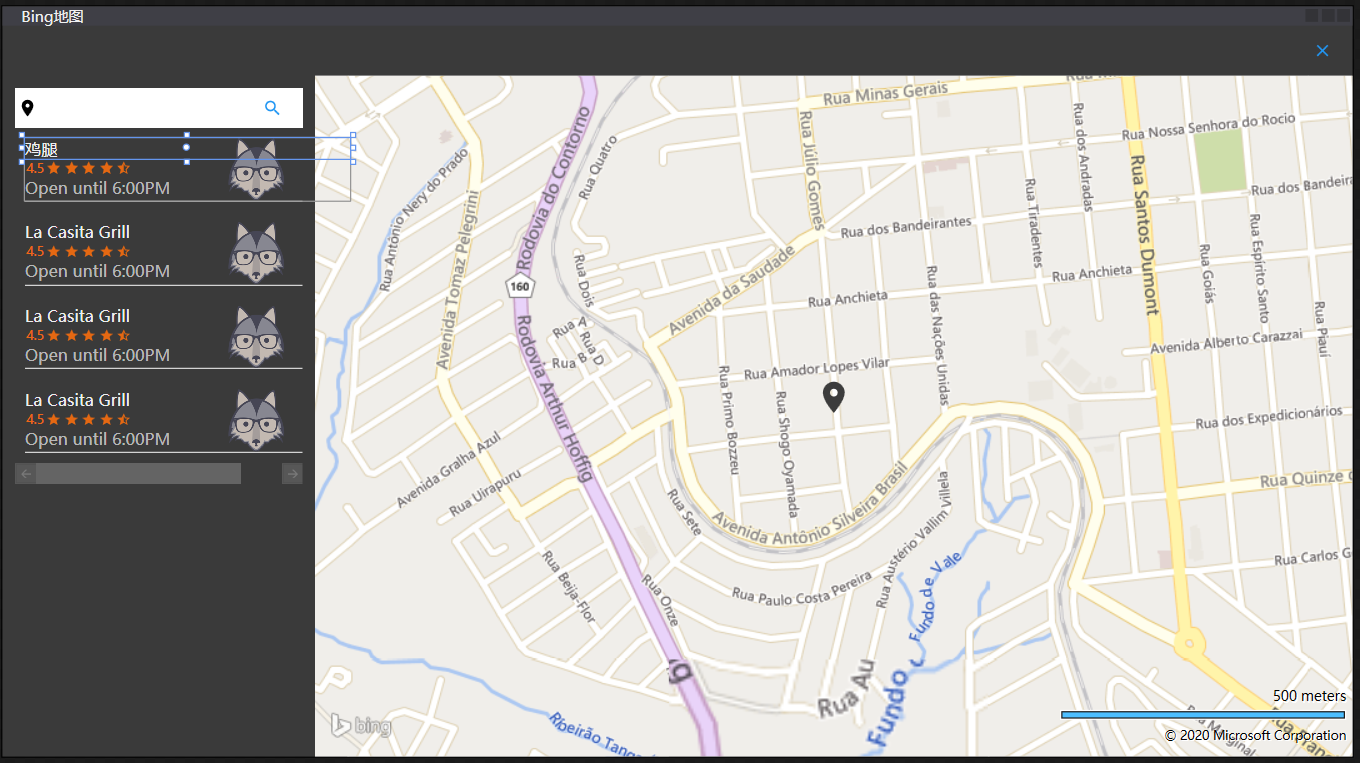

Bing地圖展示界面
2.業務場景
Bing地圖控制元件的使用
3.編碼實作
3.1 添加Nuget庫
站長使用 .Net Core 3.1 創建的WPF工程，創建“BingMap”解決方案后，需要添加三個Nuget庫：MaterialDesignThemes、MaterialDesignColors和Bing WPF地圖控制元件Microsoft.Maps.MapControl.WPF，其中Bing地圖控制元件是.net framework 4.6.1版本，所以專案使用framework版本要好點，其實影響也不大，

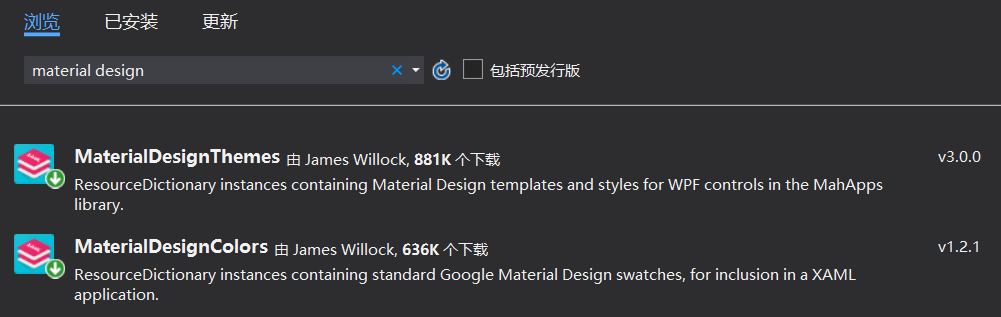

MaterialDesign控制元件庫
Bing WPF地圖控制元件Microsoft.Maps.MapControl.WPF
注意

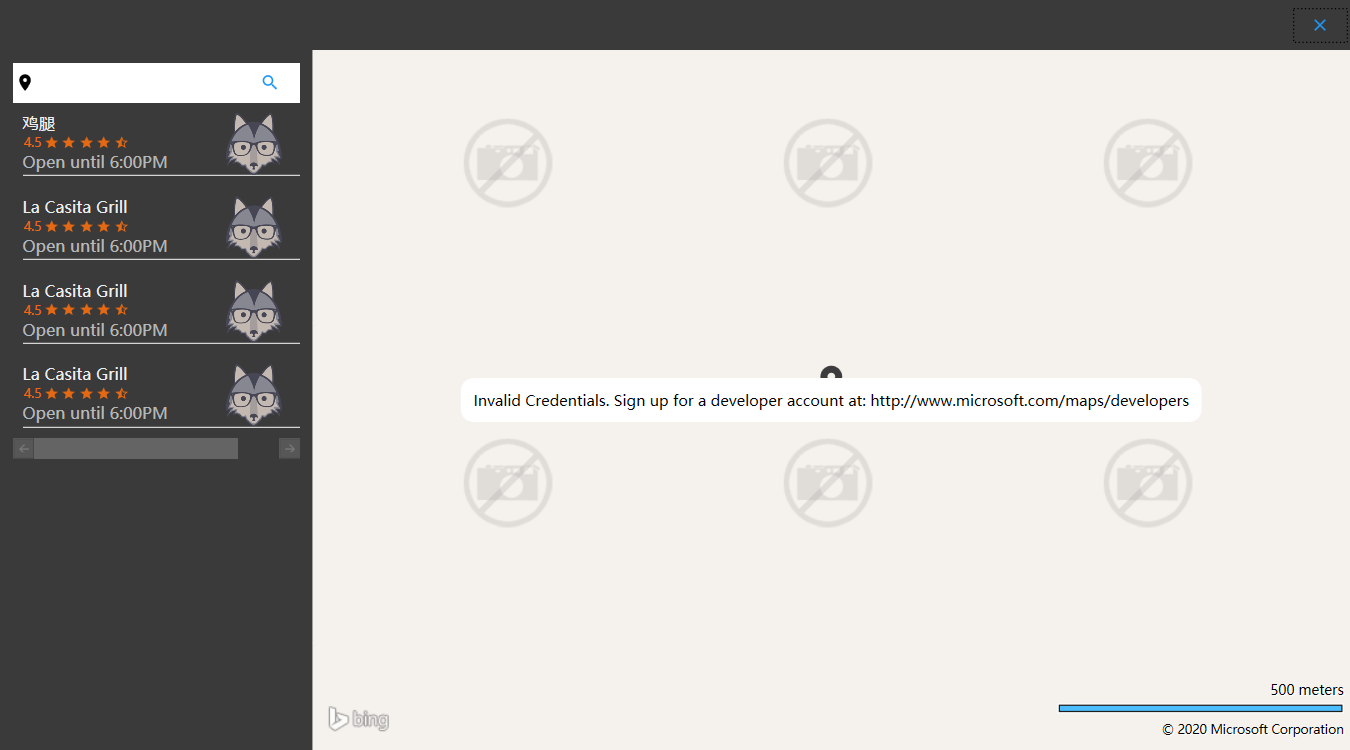

使用bing map地圖控制元件需要注冊開發者賬號，站長只是按視頻教程敲的代碼，VS 2019設計器能正常加載地圖，但運行時會有提示請注冊開發者賬號，否則地圖無法正常顯示
需要注冊Bing地圖開發者賬號
3.2 工程結構
不需要截圖，只修改了兩個檔案，App.xaml添加MD控制元件樣式，MainWindow主視窗實作效果，
3.3 App.xaml引入MD控制元件樣式
<Application x:Class="BingMap.App"
xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
xmlns:local="clr-namespace:BingMap"
StartupUri="MainWindow.xaml">
<Application.Resources>
<ResourceDictionary>
<ResourceDictionary.MergedDictionaries>
<ResourceDictionary Source="pack://application:,,,/MaterialDesignThemes.Wpf;component/Themes/MaterialDesignTheme.Dark.xaml"/>
<ResourceDictionary Source="pack://application:,,,/MaterialDesignThemes.Wpf;component/Themes/MaterialDesignTheme.Defaults.xaml"/>
<ResourceDictionary Source="pack://application:,,,/MaterialDesignColors;component/Themes/Recommended/Primary/MaterialDesignColor.Blue.xaml"/>
<ResourceDictionary Source="pack://application:,,,/MaterialDesignColors;component/Themes/Recommended/Accent/MaterialDesignColor.LightBlue.xaml"/>
</ResourceDictionary.MergedDictionaries>
</ResourceDictionary>
</Application.Resources>
</Application>
3.4 主表單 MainWindow.xaml
加載Bing地圖控制元件，設定地圖屬性等：
<Window x:Class="BingMap.MainWindow"
xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
xmlns:local="clr-namespace:BingMap"
mc:Ignorable="d"
xmlns:materialDesign="http://materialdesigninxaml.net/winfx/xaml/themes"
xmlns:m="clr-namespace:Microsoft.Maps.MapControl.WPF;assembly=Microsoft.Maps.MapControl.WPF"
Title="Bing地圖" Height="600" Width="1080" WindowStyle="None" ResizeMode="NoResize"
WindowStartupLocation="CenterScreen" Background="#FF3A3A3A">
<Grid>
<Grid.RowDefinitions>
<RowDefinition Height="40"/>
<RowDefinition Height="*"/>
</Grid.RowDefinitions>
<Grid.ColumnDefinitions>
<ColumnDefinition Width="250"/>
<ColumnDefinition Width="*"/>
</Grid.ColumnDefinitions>
<StackPanel Grid.Row="1" Margin="10">
<Grid>
<TextBox Background="White" Padding="10 0 25 0"/>
<materialDesign:PackIcon Kind="MapMarker" VerticalAlignment="Center" Margin="2"/>
<Button HorizontalAlignment="Right" Style="{StaticResource MaterialDesignFlatButton}">
<materialDesign:PackIcon Kind="Search"/>
</Button>
</Grid>
<ListView>
<ListViewItem>
<Border BorderBrush="LightGray" BorderThickness="0 0 0 1" Width="260">
<Grid>
<StackPanel Height="50">
<TextBlock Text="雞腿"/>
<StackPanel Orientation="Horizontal">
<TextBlock Text="4.5" Foreground="#DDFF6F0B" Margin="1" FontSize="10"/>
<materialDesign:PackIcon Kind="Star" Foreground="#DDFF6F0B" Margin="1" VerticalAlignment="Center" Width="12" Height="12"/>
<materialDesign:PackIcon Kind="Star" Foreground="#DDFF6F0B" Margin="1" VerticalAlignment="Center" Width="12" Height="12"/>
<materialDesign:PackIcon Kind="Star" Foreground="#DDFF6F0B" Margin="1" VerticalAlignment="Center" Width="12" Height="12"/>
<materialDesign:PackIcon Kind="Star" Foreground="#DDFF6F0B" Margin="1" VerticalAlignment="Center" Width="12" Height="12"/>
<materialDesign:PackIcon Kind="StarHalf" Foreground="#DDFF6F0B" Margin="1" VerticalAlignment="Center" Width="12" Height="12"/>
</StackPanel>
<TextBlock Text="Open until 6:00PM" Opacity="0.7"/>
</StackPanel>
<Image HorizontalAlignment="Right" Margin="0 0 50 0" Width="50" Height="50" Source="https://img.dotnet9.com/logo.png"/>
</Grid>
</Border>
</ListViewItem>
<ListViewItem>
<Border BorderBrush="LightGray" BorderThickness="0 0 0 1" Width="260">
<Grid>
<StackPanel Height="50">
<TextBlock Text="La Casita Grill"/>
<StackPanel Orientation="Horizontal">
<TextBlock Text="4.5" Foreground="#DDFF6F0B" Margin="1" FontSize="10"/>
<materialDesign:PackIcon Kind="Star" Foreground="#DDFF6F0B" Margin="1" VerticalAlignment="Center" Width="12" Height="12"/>
<materialDesign:PackIcon Kind="Star" Foreground="#DDFF6F0B" Margin="1" VerticalAlignment="Center" Width="12" Height="12"/>
<materialDesign:PackIcon Kind="Star" Foreground="#DDFF6F0B" Margin="1" VerticalAlignment="Center" Width="12" Height="12"/>
<materialDesign:PackIcon Kind="Star" Foreground="#DDFF6F0B" Margin="1" VerticalAlignment="Center" Width="12" Height="12"/>
<materialDesign:PackIcon Kind="StarHalf" Foreground="#DDFF6F0B" Margin="1" VerticalAlignment="Center" Width="12" Height="12"/>
</StackPanel>
<TextBlock Text="Open until 6:00PM" Opacity="0.7"/>
</StackPanel>
<Image HorizontalAlignment="Right" Margin="0 0 50 0" Width="50" Height="50" Source="https://img.dotnet9.com/logo.png"/>
</Grid>
</Border>
</ListViewItem>
<ListViewItem>
<Border BorderBrush="LightGray" BorderThickness="0 0 0 1" Width="260">
<Grid>
<StackPanel Height="50">
<TextBlock Text="La Casita Grill"/>
<StackPanel Orientation="Horizontal">
<TextBlock Text="4.5" Foreground="#DDFF6F0B" Margin="1" FontSize="10"/>
<materialDesign:PackIcon Kind="Star" Foreground="#DDFF6F0B" Margin="1" VerticalAlignment="Center" Width="12" Height="12"/>
<materialDesign:PackIcon Kind="Star" Foreground="#DDFF6F0B" Margin="1" VerticalAlignment="Center" Width="12" Height="12"/>
<materialDesign:PackIcon Kind="Star" Foreground="#DDFF6F0B" Margin="1" VerticalAlignment="Center" Width="12" Height="12"/>
<materialDesign:PackIcon Kind="Star" Foreground="#DDFF6F0B" Margin="1" VerticalAlignment="Center" Width="12" Height="12"/>
<materialDesign:PackIcon Kind="StarHalf" Foreground="#DDFF6F0B" Margin="1" VerticalAlignment="Center" Width="12" Height="12"/>
</StackPanel>
<TextBlock Text="Open until 6:00PM" Opacity="0.7"/>
</StackPanel>
<Image HorizontalAlignment="Right" Margin="0 0 50 0" Width="50" Height="50" Source="https://img.dotnet9.com/logo.png"/>
</Grid>
</Border>
</ListViewItem>
<ListViewItem>
<Border BorderBrush="LightGray" BorderThickness="0 0 0 1" Width="260">
<Grid>
<StackPanel Height="50">
<TextBlock Text="La Casita Grill"/>
<StackPanel Orientation="Horizontal">
<TextBlock Text="4.5" Foreground="#DDFF6F0B" Margin="1" FontSize="10"/>
<materialDesign:PackIcon Kind="Star" Foreground="#DDFF6F0B" Margin="1" VerticalAlignment="Center" Width="12" Height="12"/>
<materialDesign:PackIcon Kind="Star" Foreground="#DDFF6F0B" Margin="1" VerticalAlignment="Center" Width="12" Height="12"/>
<materialDesign:PackIcon Kind="Star" Foreground="#DDFF6F0B" Margin="1" VerticalAlignment="Center" Width="12" Height="12"/>
<materialDesign:PackIcon Kind="Star" Foreground="#DDFF6F0B" Margin="1" VerticalAlignment="Center" Width="12" Height="12"/>
<materialDesign:PackIcon Kind="StarHalf" Foreground="#DDFF6F0B" Margin="1" VerticalAlignment="Center" Width="12" Height="12"/>
</StackPanel>
<TextBlock Text="Open until 6:00PM" Opacity="0.7"/>
</StackPanel>
<Image HorizontalAlignment="Right" Margin="0 0 50 0" Width="50" Height="50" Source="https://img.dotnet9.com/logo.png"/>
</Grid>
</Border>
</ListViewItem>
</ListView>
</StackPanel>
<Button Grid.Column="1" HorizontalAlignment="Right" Style="{StaticResource MaterialDesignFlatButton}">
<materialDesign:PackIcon Kind="Close"/>
</Button>
<m:Map Mode="Road" Grid.Column="1" Grid.Row="1" ZoomLevel="16" Center="-23.1870304,-50.6606103">
<Canvas
m:MapLayer.Position="-23.1870304,-50.6606103"
m:MapLayer.PositionOrigin="BottomCenter" Width="30" Height="30">
<materialDesign:PackIcon Kind="MapMarker" Width="30" Height="30" Foreground="#FF3C3C3C"/>
</Canvas>
</m:Map>
</Grid>
</Window>
4.本文參考
Design com WPF 大神的學習視頻：Bing Maps
開源控制元件庫：MaterialDesignInXamlToolkit
本站對MD開源控制元件庫的介紹：控制元件介紹
5.代碼下載
文中代碼已經全部給出，
