Consul是一個用來實作分布式系統服務發現與配置的開源工具，它內置了服務注冊與發現框架、分布一致性協議實作、健康檢查、Key/Value存盤、多資料中心方案，不再需要依賴其他工具，使用起來也較為簡單，

Consul官網：https://www.consul.io
開源地址：https://github.com/hashicorp/consul、https://github.com/G-Research/consuldotnet

安裝

Consul支持各種平臺的安裝，安裝檔案：https://www.consul.io/downloads，為了快速使用，我這里選擇用docker方式安裝，

version: "3"

services:
  service_1:
    image: consul
    command: agent -server -client=0.0.0.0 -bootstrap-expect=3 -node=service_1
    volumes:
      - /usr/local/docker/consul/data/service_1:/data
  service_2:
    image: consul
    command: agent -server -client=0.0.0.0 -retry-join=service_1 -node=service_2
    volumes:
      - /usr/local/docker/consul/data/service_2:/data
    depends_on:
      - service_1
  service_3:
    image: consul
    command: agent -server -client=0.0.0.0 -retry-join=service_1 -node=service_3
    volumes:
      - /usr/local/docker/consul/data/service_3:/data
    depends_on:
      - service_1
  client_1:
    image: consul
    command: agent -client=0.0.0.0 -retry-join=service_1 -ui -node=client_1
    ports:
      - 8500:8500
    volumes:
      - /usr/local/docker/consul/data/client_1:/data
    depends_on:
      - service_2
      - service_3

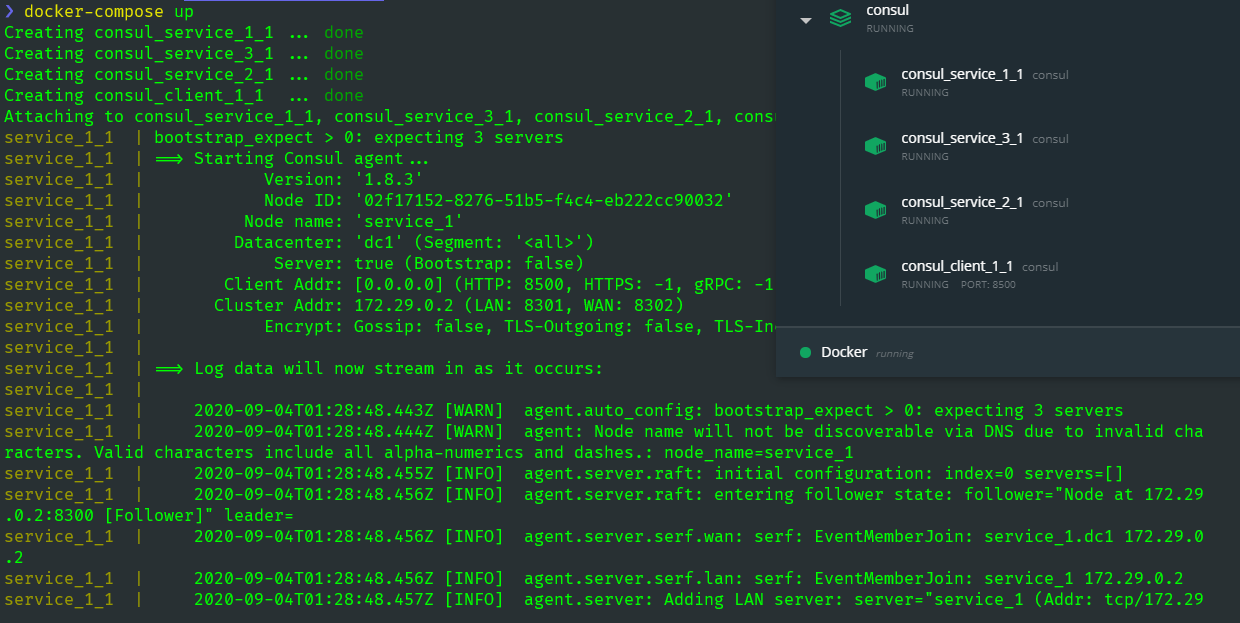

提供一個docker-compose.yaml，使用docker-compose up編排腳本啟動Consul，如果你不熟悉，可以選擇其它方式能運行Consul即可，

這里使用 Docker 搭建 3個 server 節點 + 1 個 client 節點，API 服務通過 client 節點進行服務注冊和發現，

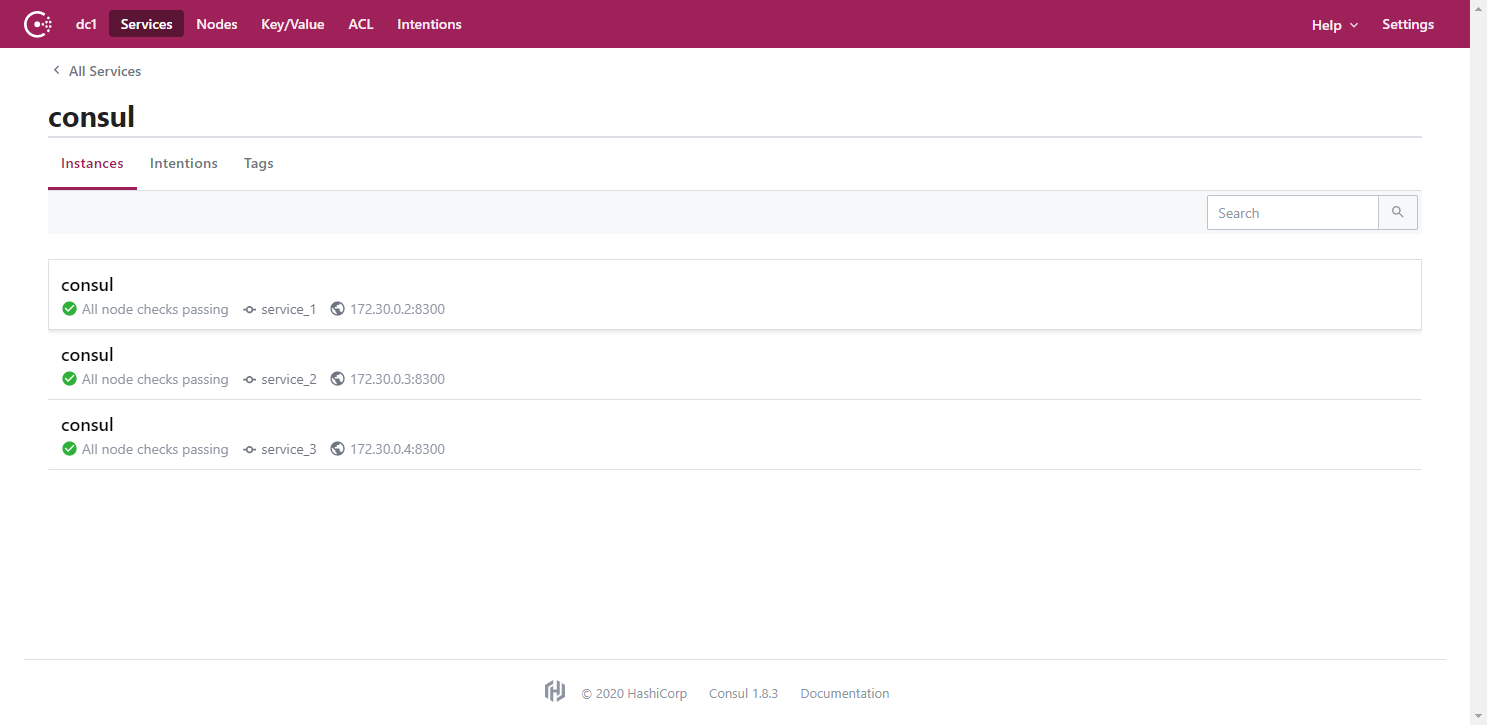

安裝完成啟動Consul，打開默認地址 http://localhost:8500 可以看到Consului界面，

快速使用

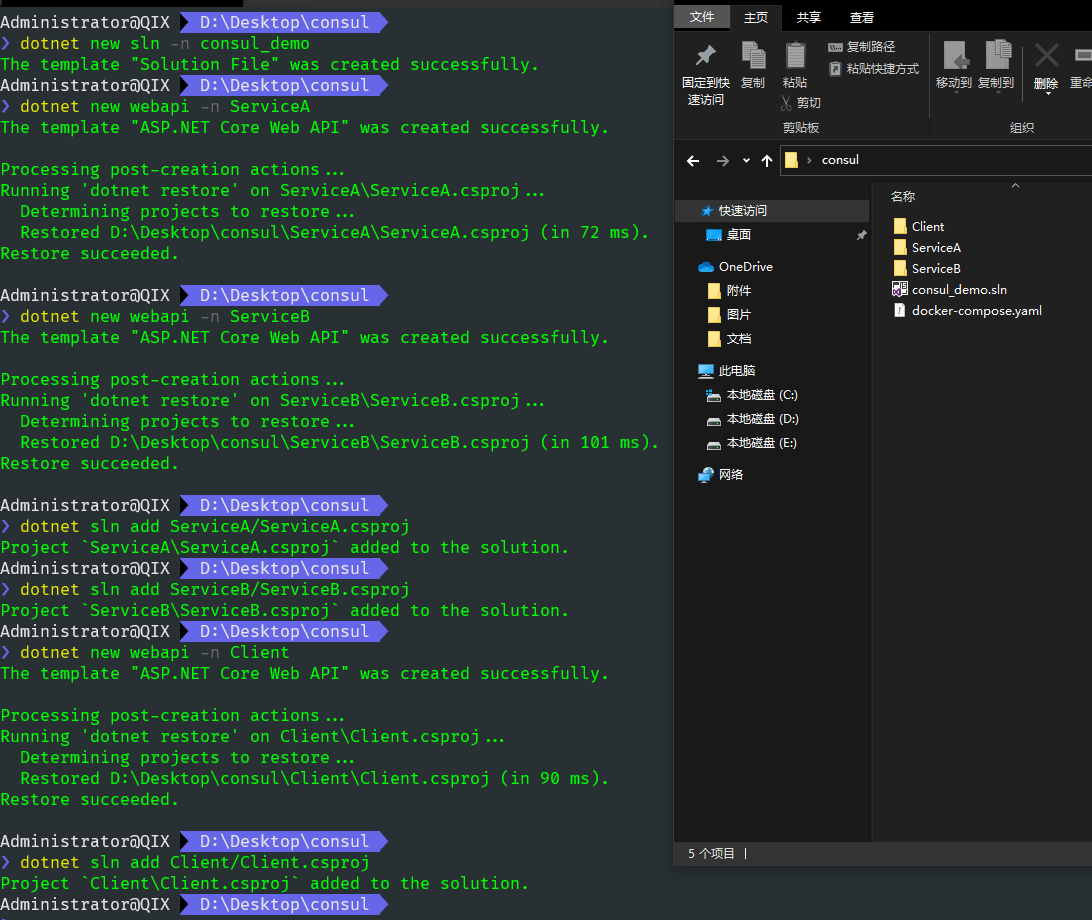

添加兩個webapi服務，ServiceA和ServiceB，一個webapi客戶端Client來呼叫服務，

dotnet new sln -n consul_demo

dotnet new webapi -n ServiceA
dotnet sln add ServiceA/ServiceA.csproj

dotnet new webapi -n ServiceB
dotnet sln add ServiceB/ServiceB.csproj

dotnet new webapi -n Client
dotnet sln add Client/Client.csproj

在專案中添加Consul組件包

Install-Package Consul

服務注冊

接下來在兩個服務中添加必要的代碼來實作將服務注冊到Consul中，

首先將Consul配置資訊添加到appsettings.json

{
    "Consul": {
        "Address": "http://host.docker.internal:8500",
        "HealthCheck": "/healthcheck",
        "Name": "ServiceA",
        "Ip": "host.docker.internal"
    }
}

因為我們要將專案都運行在docker中，所以這里的地址要用 host.docker.internal 代替，使用 localhost 無法正常啟動，如果不在 docker 中運行，這里就配置層 localhost，

添加一個擴展方法UseConul(this IApplicationBuilder app, IConfiguration configuration, IHostApplicationLifetime lifetime)，

using System;
using Consul;
using Microsoft.AspNetCore.Builder;
using Microsoft.Extensions.Configuration;
using Microsoft.Extensions.Hosting;

namespace ServiceA
{
    public static class Extensions
    {
        public static IApplicationBuilder UseConul(this IApplicationBuilder app, IConfiguration configuration, IHostApplicationLifetime lifetime)
        {
            var client = new ConsulClient(options =>
            {
                options.Address = new Uri(configuration["Consul:Address"]); // Consul客戶端地址
            });

            var registration = new AgentServiceRegistration
            {
                ID = Guid.NewGuid().ToString(), // 唯一Id
                Name = configuration["Consul:Name"], // 服務名
                Address = configuration["Consul:Ip"], // 服務系結IP
                Port = Convert.ToInt32(configuration["Consul:Port"]), // 服務系結埠
                Check = new AgentServiceCheck
                {
                    DeregisterCriticalServiceAfter = TimeSpan.FromSeconds(5), // 服務啟動多久后注冊
                    Interval = TimeSpan.FromSeconds(10), // 健康檢查時間間隔
                    HTTP = $"http://{configuration["Consul:Ip"]}:{configuration["Consul:Port"]}{configuration["Consul:HealthCheck"]}", // 健康檢查地址
                    Timeout = TimeSpan.FromSeconds(5) // 超時時間
                }
            };

            // 注冊服務
            client.Agent.ServiceRegister(registration).Wait();

            // 應用程式終止時，取消服務注冊
            lifetime.ApplicationStopping.Register(() =>
            {
                client.Agent.ServiceDeregister(registration.ID).Wait();
            });

            return app;
        }
    }
}

然后在Startup.cs中使用擴展方法即可，

public void Configure(IApplicationBuilder app, IWebHostEnvironment env, IHostApplicationLifetime lifetime)
{
    ...
    app.UseConul(Configuration, lifetime);
}

注意，這里將IConfiguration和IHostApplicationLifetime作為引數傳進來的，根據實際開發做對應的修改就可以了，

分別在ServiceA和ServiceB都完成一遍上述操作，因為不是實際專案，這里就產生的許多重復代碼，在真正的專案開發程序中可以考慮放在一個單獨的專案中，ServiceA和ServiceB分別參考，呼叫，

接著去實作健康檢查介面，

// ServiceA
using Microsoft.AspNetCore.Mvc;

namespace ServiceA.Controllers
{
    [Route("[controller]")]
    [ApiController]
    public class HealthCheckController : ControllerBase
    {
        /// <summary>
        /// 健康檢查
        /// </summary>
        /// <returns></returns>
        [HttpGet]
        public IActionResult api()
        {
            return Ok();
        }
    }
}

// ServiceB
using Microsoft.AspNetCore.Mvc;

namespace ServiceB.Controllers
{
    [Route("[controller]")]
    [ApiController]
    public class HealthCheckController : ControllerBase
    {
        /// <summary>
        /// 健康檢查
        /// </summary>
        /// <returns></returns>
        [HttpGet]
        public IActionResult Get()
        {
            return Ok();
        }
    }
}

最后在ServiceA和ServiceB中都添加一個介面，

// ServiceA
using System;
using Microsoft.AspNetCore.Mvc;
using Microsoft.Extensions.Configuration;

namespace ServiceA.Controllers
{
    [Route("api/[controller]")]
    [ApiController]
    public class ServiceAController : ControllerBase
    {
        [HttpGet]
        public IActionResult Get([FromServices] IConfiguration configuration)
        {
            var result = new
            {
                msg = $"我是{nameof(ServiceA)}，當前時間：{DateTime.Now:G}",
                ip = Request.HttpContext.Connection.LocalIpAddress.ToString(),
                port = configuration["Consul:Port"]
            };

            return Ok(result);
        }
    }
}

// ServiceB
using System;
using Microsoft.AspNetCore.Mvc;
using Microsoft.Extensions.Configuration;

namespace ServiceB.Controllers
{
    [Route("api/[controller]")]
    [ApiController]
    public class ServiceBController : ControllerBase
    {
        [HttpGet]
        public IActionResult Get([FromServices] IConfiguration configuration)
        {
            var result = new
            {
                msg = $"我是{nameof(ServiceB)}，當前時間：{DateTime.Now:G}",
                ip = Request.HttpContext.Connection.LocalIpAddress.ToString(),
                port = configuration["Consul:Port"]
            };

            return Ok(result);
        }
    }
}

這樣我們寫了兩個服務，ServiceA和ServiceB，都添加了健康檢查介面和一個自己的服務介面，回傳一段json，

我們現在來運行看看效果，可以使用任何方式，只要能啟動即可，我這里選擇在docker中運行，直接在 Visual Studio中對著兩個解決方案右鍵添加，選擇Docker支持，默認會幫我們自動創建好Dockfile，非常方便，

生成的Dockfile檔案內容如下：

# ServiceA
FROM mcr.microsoft.com/dotnet/core/aspnet:3.1-buster-slim AS base
WORKDIR /app
EXPOSE 80
EXPOSE 443

FROM mcr.microsoft.com/dotnet/core/sdk:3.1-buster AS build
WORKDIR /src
COPY ["ServiceA/ServiceA.csproj", "ServiceA/"]
RUN dotnet restore "ServiceA/ServiceA.csproj"
COPY . .
WORKDIR "/src/ServiceA"
RUN dotnet build "ServiceA.csproj" -c Release -o /app/build

FROM build AS publish
RUN dotnet publish "ServiceA.csproj" -c Release -o /app/publish

FROM base AS final
WORKDIR /app
COPY --from=publish /app/publish .
ENTRYPOINT ["dotnet", "ServiceA.dll"]

# ServiceB
FROM mcr.microsoft.com/dotnet/core/aspnet:3.1-buster-slim AS base
WORKDIR /app
EXPOSE 80
EXPOSE 443

FROM mcr.microsoft.com/dotnet/core/sdk:3.1-buster AS build
WORKDIR /src
COPY ["ServiceB/ServiceB.csproj", "ServiceB/"]
RUN dotnet restore "ServiceB/ServiceB.csproj"
COPY . .
WORKDIR "/src/ServiceB"
RUN dotnet build "ServiceB.csproj" -c Release -o /app/build

FROM build AS publish
RUN dotnet publish "ServiceB.csproj" -c Release -o /app/publish

FROM base AS final
WORKDIR /app
COPY --from=publish /app/publish .
ENTRYPOINT ["dotnet", "ServiceB.dll"]

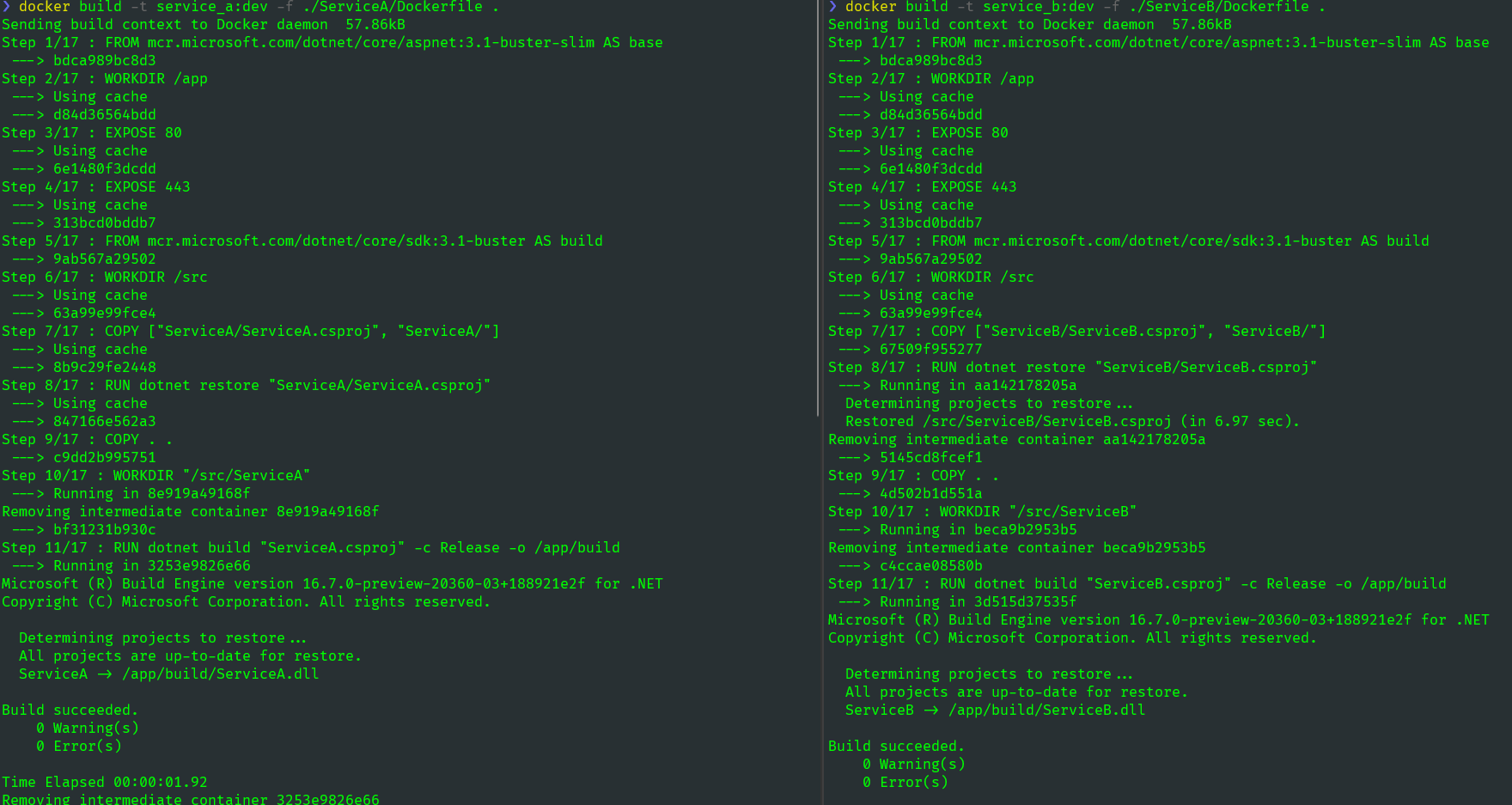

然后定位到專案根目錄，使用命令去編譯兩個鏡像，service_a和service_b

docker build -t service_a:dev -f ./ServiceA/Dockerfile .

docker build -t service_b:dev -f ./ServiceB/Dockerfile .

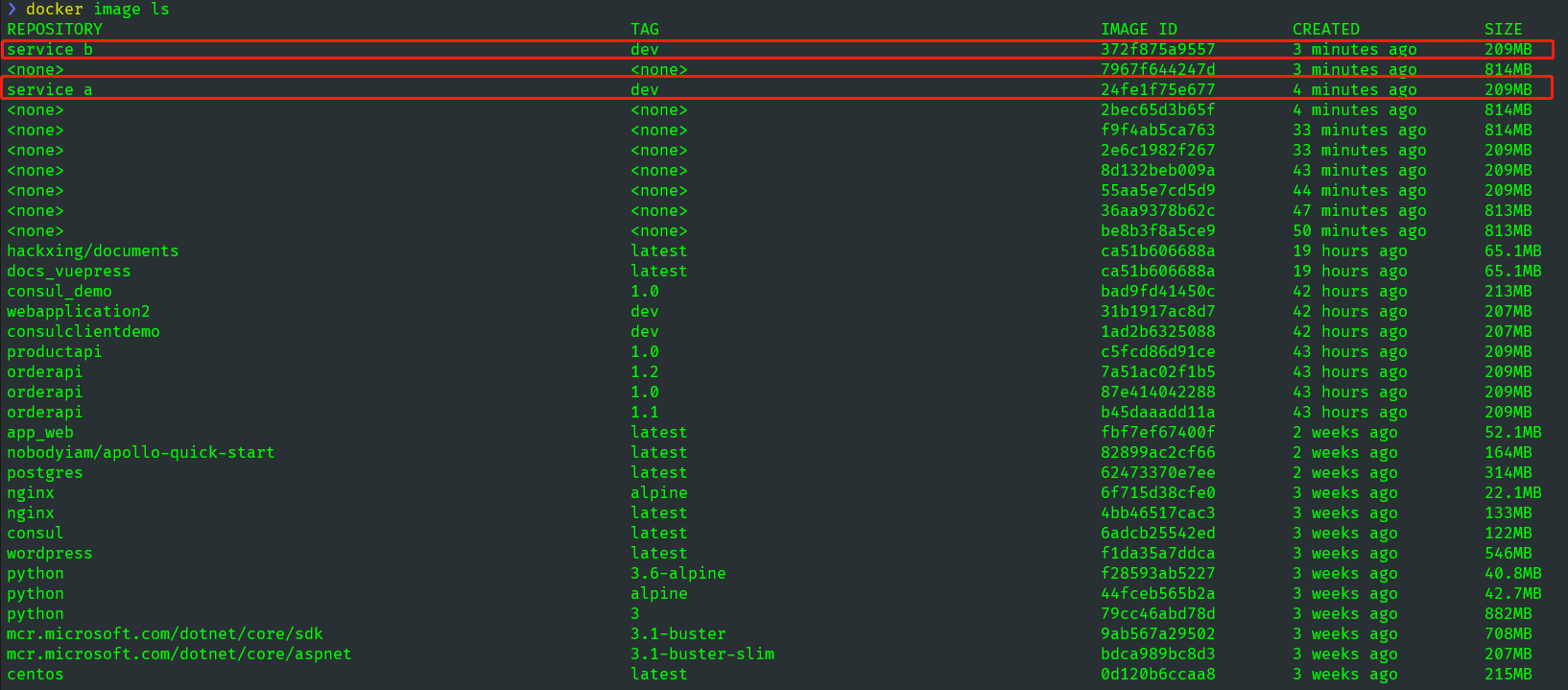

看到 Successfully 就成功了，通過docker image ls可以看到我們打包的兩個鏡像，

這里順便提一句，已經可以看到我們編譯的鏡像，service_a和service_b了，但是還有許多名稱為<none>的鏡像，這些鏡像可以不用管它，這種叫做虛懸鏡像，既沒有倉庫名，也沒有標簽，是因為docker build導致的這種現象，由于新舊鏡像同名，舊鏡像名稱被取消，從而出現倉庫名、標簽均為 <none> 的鏡像，

一般來說，虛懸鏡像已經失去了存在的價值，是可以隨意洗掉的，可以docker image prune命令洗掉，這樣鏡像串列就干凈多了，

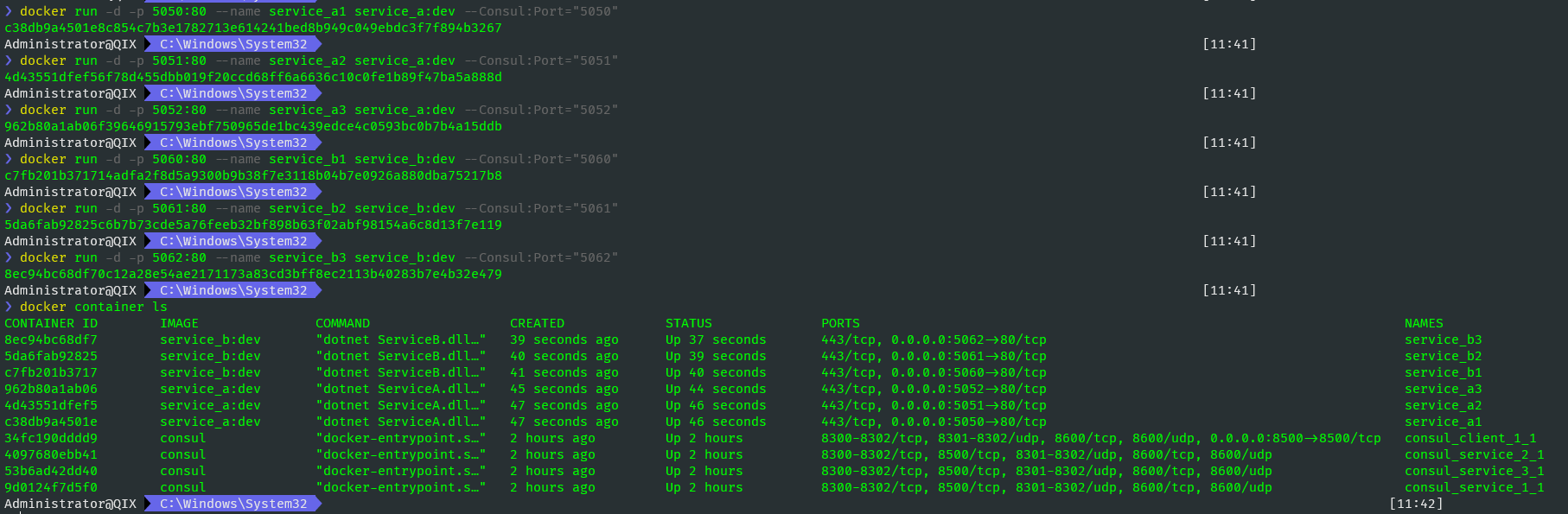

最后將兩個鏡像service_a和service_b，分別運行三個實體，

docker run -d -p 5050:80 --name service_a1 service_a:dev --Consul:Port="5050"
docker run -d -p 5051:80 --name service_a2 service_a:dev --Consul:Port="5051"
docker run -d -p 5052:80 --name service_a3 service_a:dev --Consul:Port="5052"

docker run -d -p 5060:80 --name service_b1 service_b:dev --Consul:Port="5060"
docker run -d -p 5061:80 --name service_b2 service_b:dev --Consul:Port="5061"
docker run -d -p 5062:80 --name service_b3 service_b:dev --Consul:Port="5062"

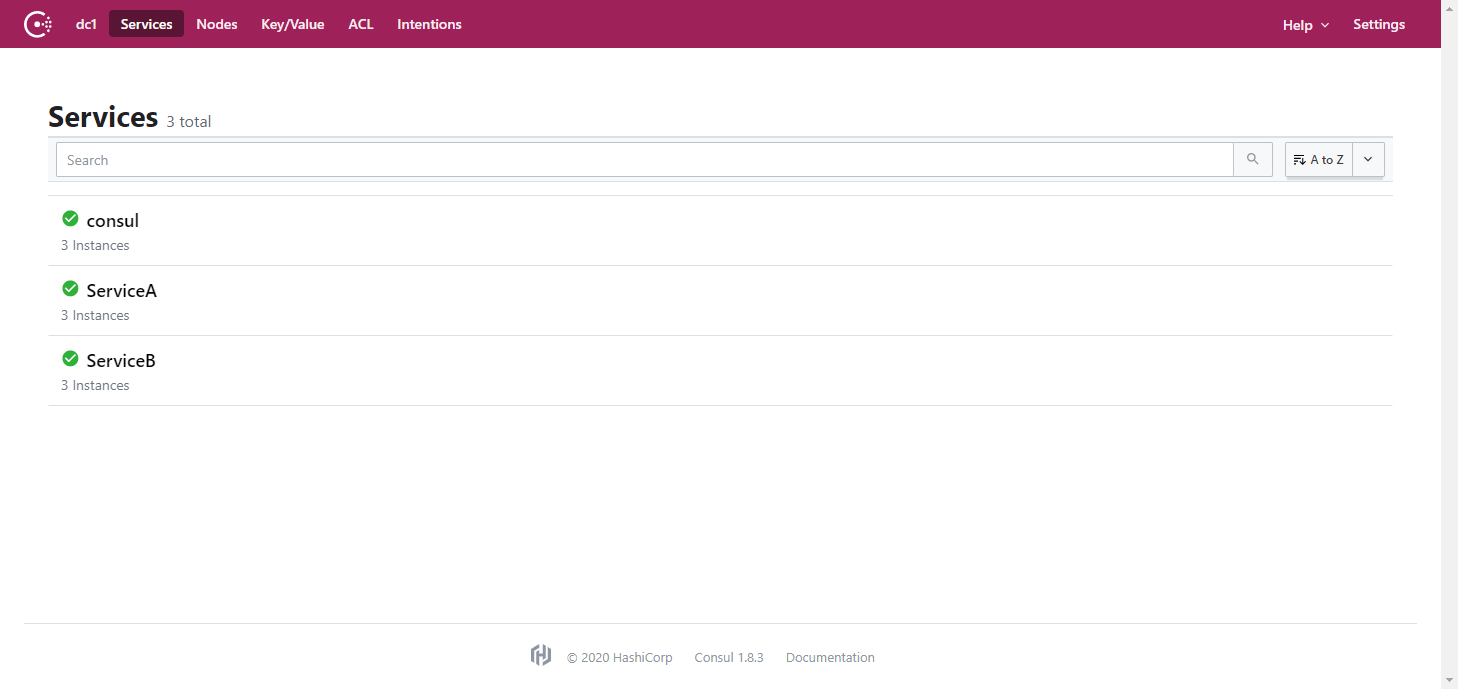

運行成功，接下來就是見證奇跡的時刻，去到Consul看看，

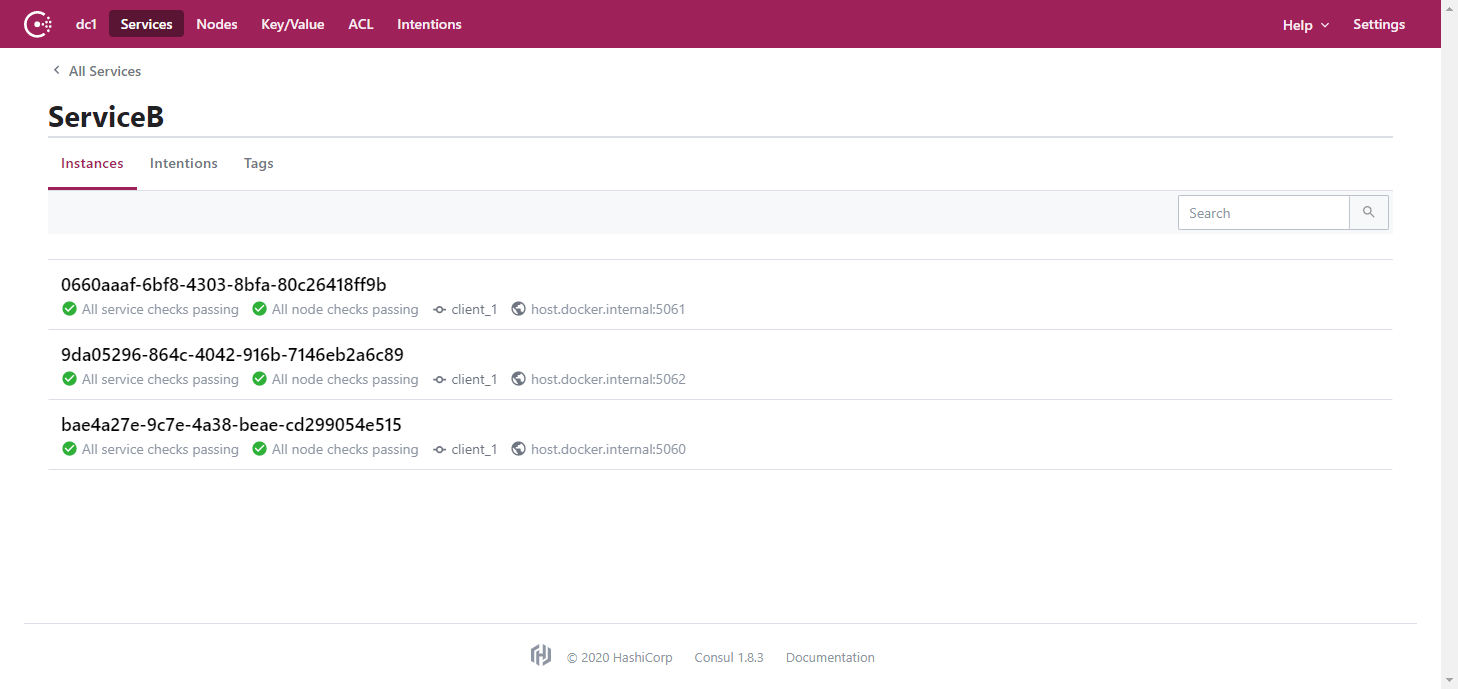

成功將兩個服務注冊到Consul，并且每個服務都有多個實體，

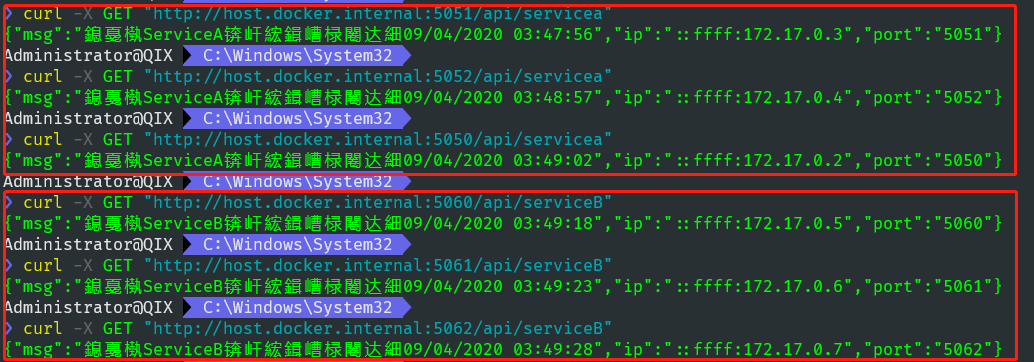

訪問一下介面試試吧，看看能不能成功出現結果，

因為終端編碼問題，導致顯示亂碼，這個不影響，ok，至此服務注冊大功告成，

服務發現

搞定了服務注冊，接下來演示一下如何服務發現，在Client專案中先將Consul地址配置到appsettings.json中，

{
    "Consul": {
        "Address": "http://host.docker.internal:8500"
    }
}

然后添加一個介面，IService.cs，添加三個方法，分別獲取兩個服務的回傳結果以及初始化服務的方法，

using System.Threading.Tasks;

namespace Client
{
    public interface IService
    {
        /// <summary>
        /// 獲取 ServiceA 回傳資料
        /// </summary>
        /// <returns></returns>
        Task<string> GetServiceA();

        /// <summary>
        /// 獲取 ServiceB 回傳資料
        /// </summary>
        /// <returns></returns>
        Task<string> GetServiceB();

        /// <summary>
        /// 初始化服務
        /// </summary>
        void InitServices();
    }
}

實作類：Service.cs

using System;
using System.Collections.Concurrent;
using System.Linq;
using System.Net.Http;
using System.Threading.Tasks;
using Consul;
using Microsoft.Extensions.Configuration;

namespace Client
{
    public class Service : IService
    {
        private readonly IConfiguration _configuration;
        private readonly ConsulClient _consulClient;

        private ConcurrentBag<string> _serviceAUrls;
        private ConcurrentBag<string> _serviceBUrls;

        private IHttpClientFactory _httpClient;

        public Service(IConfiguration configuration, IHttpClientFactory httpClient)
        {
            _configuration = configuration;

            _consulClient = new ConsulClient(options =>
            {
                options.Address = new Uri(_configuration["Consul:Address"]);
            });

            _httpClient = httpClient;
        }

        public async Task<string> GetServiceA()
        {
            if (_serviceAUrls == null)
                return await Task.FromResult("ServiceA正在初始化...");

            using var httpClient = _httpClient.CreateClient();

            var serviceUrl = _serviceAUrls.ElementAt(new Random().Next(_serviceAUrls.Count()));

            Console.WriteLine("ServiceA：" + serviceUrl);

            var result = await httpClient.GetStringAsync($"{serviceUrl}/api/servicea");

            return result;
        }

        public async Task<string> GetServiceB()
        {
            if (_serviceBUrls == null)
                return await Task.FromResult("ServiceB正在初始化...");

            using var httpClient = _httpClient.CreateClient();

            var serviceUrl = _serviceBUrls.ElementAt(new Random().Next(_serviceBUrls.Count()));

            Console.WriteLine("ServiceB：" + serviceUrl);

            var result = await httpClient.GetStringAsync($"{serviceUrl}/api/serviceb");

            return result;
        }

        public void InitServices()
        {
            var serviceNames = new string[] { "ServiceA", "ServiceB" };

            foreach (var item in serviceNames)
            {
                Task.Run(async () =>
                {
                    var queryOptions = new QueryOptions
                    {
                        WaitTime = TimeSpan.FromMinutes(5)
                    };
                    while (true)
                    {
                        await InitServicesAsync(queryOptions, item);
                    }
                });
            }

            async Task InitServicesAsync(QueryOptions queryOptions, string serviceName)
            {
                var result = await _consulClient.Health.Service(serviceName, null, true, queryOptions);

                if (queryOptions.WaitIndex != result.LastIndex)
                {
                    queryOptions.WaitIndex = result.LastIndex;

                    var services = result.Response.Select(x => $"http://{x.Service.Address}:{x.Service.Port}");

                    if (serviceName == "ServiceA")
                    {
                        _serviceAUrls = new ConcurrentBag<string>(services);
                    }
                    else if (serviceName == "ServiceB")
                    {
                        _serviceBUrls = new ConcurrentBag<string>(services);
                    }
                }
            }
        }
    }
}

代碼就不解釋了，相信都可以看懂，使用了Random類隨機獲取一個服務，關于這點可以選擇更合適的負載均衡方式，

在Startup.cs中添加介面依賴注入、使用初始化服務等代碼，

using Microsoft.AspNetCore.Builder;
using Microsoft.AspNetCore.Hosting;
using Microsoft.Extensions.Configuration;
using Microsoft.Extensions.DependencyInjection;
using Microsoft.Extensions.Hosting;

namespace Client
{
    public class Startup
    {
        public Startup(IConfiguration configuration)
        {
            Configuration = configuration;
        }

        public IConfiguration Configuration { get; }

        public void ConfigureServices(IServiceCollection services)
        {

            services.AddControllers();

            services.AddHttpClient();

            services.AddSingleton<IService, Service>();
        }

        public void Configure(IApplicationBuilder app, IWebHostEnvironment env, IService service)
        {
            if (env.IsDevelopment())
            {
                app.UseDeveloperExceptionPage();
            }

            app.UseHttpsRedirection();

            app.UseRouting();

            app.UseAuthorization();

            app.UseEndpoints(endpoints =>
            {
                endpoints.MapControllers();
            });

            service.InitServices();
        }
    }
}

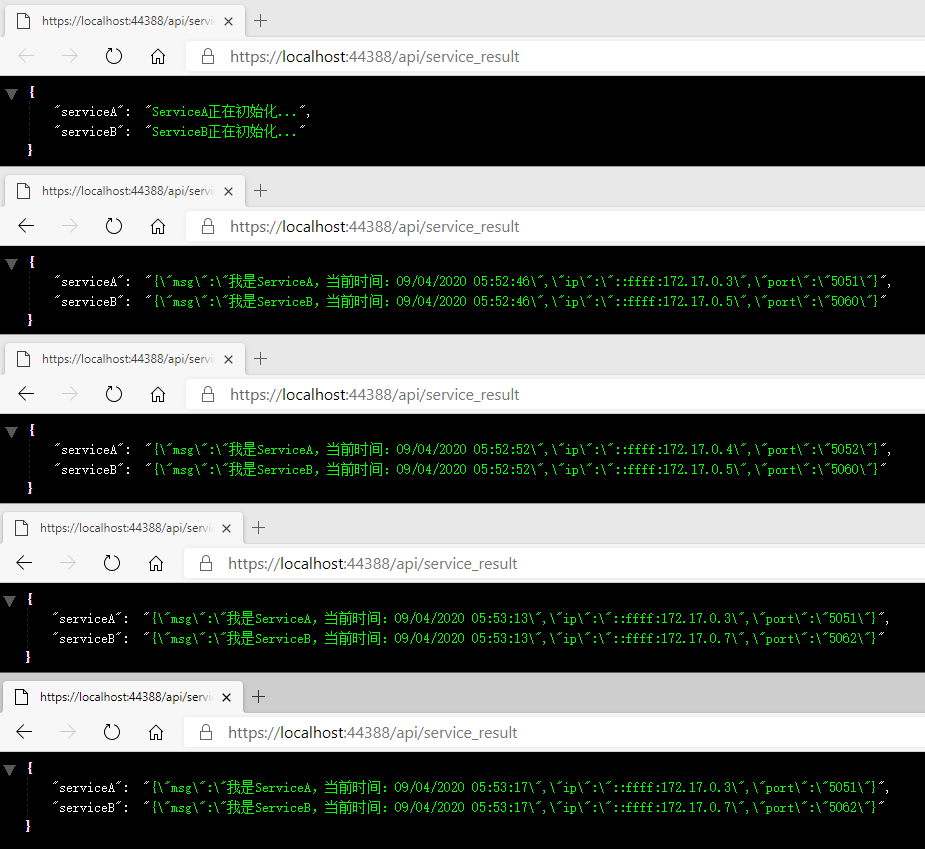

一切就緒，添加api訪問我們的兩個服務，

using System.Threading.Tasks;
using Microsoft.AspNetCore.Mvc;

namespace Client.Controllers
{
    [Route("api")]
    [ApiController]
    public class HomeController : ControllerBase
    {
        [HttpGet]
        [Route("service_result")]
        public async Task<IActionResult> GetService([FromServices] IService service)
        {
            return Ok(new
            {
                serviceA = await service.GetServiceA(),
                serviceB = await service.GetServiceB()
            });
        }
    }
}

直接在Visual Studio中運行Client專案，在瀏覽器訪問api，

大功告成，服務注冊與發現，現在就算之中的某個節點掛掉，服務也可以照常運行，

轉載請註明出處，本文鏈接：https://www.uj5u.com/net/134788.html

標籤：.NET技术

上一篇：C#方法

下一篇：一文了解.Net Core 3.1 Web API基礎知識
