abp(net core)+easyui+efcore實作倉儲管理系統——出庫管理之一(四十九)

abp(net core)+easyui+efcore實作倉儲管理系統目錄

abp(net core)+easyui+efcore實作倉儲管理系統——EasyUI前端頁面框架 (十八)

一.前言

        出庫單的功能，能學習了出庫單管理之后，WMS的 最基本的功能算是完成了，當然一個成熟的WMS還包括了盤點，報表，策略規則，移庫功能及與其他系統（ERP、TMS等）的介面，實作無縫集成，打破資訊孤島，讓資料實時、準確和同步，

二、出庫單的流程

    1.一般情況下會有一個前置的OMS系統——即訂單管理系統，主要功能之一是由客戶填寫訂單，

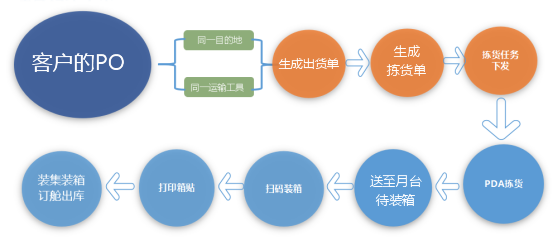

      2.客戶把訂單下第三方物流公司時，第三方物流公司會生成出貨單推送到倉庫時，系統會自動生成揀貨單，理貨員根據揀貨單揀貨，并制作出庫單，然后列印標簽，粘貼條碼標簽，分配托盤，核驗條碼標簽，貨物裝箱，訂艙出庫，并在系統中對出庫單進行審核通過，整個流程如下圖，

     當然我們接下來要實作的出庫單功能，沒有這么復雜，

三、創建出庫單物體

    1. 做為一個出庫單，在資料庫中一般存在兩張表，表頭OutStockOrder,表體OutStockDetail

    2.在Visual Studio 2017的“解決方案資源管理器”中，右鍵單擊“ABP.TPLMS.Core”專案的“Entitys”檔案夾，在彈出選單中選擇“添加” >

 > “類”， 將類命名為 OutStockOrder，然后選擇“添加”，

    3.創建OutStockOrder類繼承自Entity<int>，通過實作審計模塊中的IHasCreationTime來實作保存創建時間，代碼如下：

using Abp.Domain.Entities;
using Abp.Domain.Entities.Auditing;

using System;
using System.Collections.Generic;
using System.ComponentModel.DataAnnotations;
using System.Text;

 namespace ABP.TPLMS.Entitys
{

    public class OutStockOrder: Entity<int>, IHasCreationTime
    {


        public const int MaxLength = 255;
        public OutStockOrder()
        {

            No = string.Empty;
            CustomerCode = string.Empty;
            CustomerName = string.Empty;
            WarehouseNo = string.Empty;


            DeliveryNo = string.Empty;
            TallyClerk = string.Empty;
            TallyTime = string.Empty;
            CreationTime = DateTime.Now;
            Oper = string.Empty;
            Checker = string.Empty;
            CheckTime = string.Empty;
            Gwt = 0;
            Nwt = 0;
            PackageQty = 0;
            OwnerCode = string.Empty;
            OwnerName = string.Empty;
            Remark = string.Empty;
            Status = 0;
            PreOutStockTime = string.Empty;
        }



        [StringLength(50)]
        [Required]
        public string No { get; set; }
        /// <summary>
        /// 客戶名稱
        /// </summary>
        [StringLength(MaxLength)]
        [Required]
        public string CustomerName { get; set; }

        /// <summary>
        /// 車牌號
        /// </summary>
        public string VehicleNo { get; set; }
        /// <summary>
        /// 客戶代碼
        /// </summary>
        [StringLength(50)]
        [Required]
        public string CustomerCode { get; set; }

        /// <summary>
        /// 識訓人代碼
        /// </summary>
        public string ConsigneeCode { get; set; }

        /// <summary>
        /// 識訓人
        /// </summary>
        public string Consignee{get ;set;}

        /// <summary>
        /// 識訓人社會信用代碼
        /// </summary>
        public string ConsigneeSCCD { get; set; }

        /// <summary>
        /// 托運人，發貨人
        /// </summary>
        public string Shipper { get; set; }


        /// <summary>
        /// 托運人，發貨人代碼
        /// </summary>
        public string ShipperCode { get; set; }



        /// <summary>
        /// 托運人，發貨人社會信用代碼
        /// </summary>
        public string ShipperSCCD { get; set; }

        /// <summary>
        /// 通知人
        /// </summary>
        public string Notify { get; set; }

        /// <summary>
        /// 通知人代碼
        /// </summary>
        public string NotifyCode { get; set; }

        /// <summary>
        /// 通知人社會信用代碼
        /// </summary>
        public string NotifySCCD { get; set; }

        /// <summary>
        /// 出貨單號
        /// </summary>
        public string DeliveryNo { get; set; }

        /// <summary>
        /// 倉庫號
        /// </summary>
        public string WarehouseNo { get; set; }

        /// <summary>
        /// 貨主
        /// </summary>
        [StringLength(MaxLength)]
        [Required]

        public string OwnerName { get; set; }


        public decimal Gwt { get; set; }
        public decimal Nwt { get; set; }
        public int PackageQty { get; set; }
        /// <summary>
        /// 理貨時間
        /// </summary>
        [StringLength(20)]

        public string TallyTime { get; set; }

        /// <summary>
        /// 理貨員
        /// </summary>
        [StringLength(50)]
        public string TallyClerk { get; set; }

        [StringLength(50)]

        public string Oper { get; set; }
        public int Status { get; set; }

        [StringLength(50)]

        public string OwnerCode { get; set; }
        /// <summary>
        /// 預計出庫時間
        /// </summary>
        [StringLength(20)]

        public string PreOutStockTime { get; set; }

        /// <summary>
        /// 審核人
        /// </summary>
        [StringLength(50)]

        public string Checker { get; set; }
        [StringLength(20)]

        public string CheckTime { get; set; }
        [StringLength(1000)]

        public string Remark { get; set; }
        public DateTime CreationTime { get; set; }

        [StringLength(20)]
        public string LastUpdateTime { get; set; }
        [StringLength(50)]
        public string LastOper { get; set; }

    }
}



using Abp.Domain.Entities;
using Abp.Domain.Entities.Auditing;
using System;
using System.Collections.Generic;
using System.ComponentModel.DataAnnotations;
using System.ComponentModel.DataAnnotations.Schema;
using System.Text;


namespace ABP.TPLMS.Entitys
{

    public class OutStockOrderDetail : Entity<int>, IHasCreationTime
    {

        public const int MaxLength = 255;
        public OutStockOrderDetail()
        {

            this.Qty = 0;
            this.CargoCode = string.Empty;
            this.CargoName = string.Empty;
            this.Brand = string.Empty;

            this.Country = string.Empty;
            this.CreationTime = DateTime.Now;
            this.Curr = string.Empty;

            this.GrossWt = 0;
            this.Height = 0;
            this.HSCode = string.Empty;

            this.Length = 0;
            this.SecdLawfQty = 0;
            this.LawfQty = 0;

            this.NetWt = 0;

            this.Package = string.Empty;
            this.Price = 0;

            this.Spcf = string.Empty;

            this.Unit = string.Empty;
            this.InStockNo = string.Empty;
            this.LawfUnit = string.Empty;
            this.Vol = 0;
            this.Width = 0;

            this.LawfUnit = string.Empty;
            this.SecdLawfUnit = string.Empty;


            this.Batch = string.Empty;

            this.InStockOrderDetailId = 0;

        }



        public int SupplierId { get; set; }

        [MaxLength(50)]
        public string CargoCode { get; set; }

        [MaxLength(10)]
        public string HSCode { get; set; }

        [MaxLength(MaxLength)]
        public string CargoName { get; set; }

        [MaxLength(MaxLength)]
        public string Spcf { get; set; }

        [MaxLength(20)]
        public string Unit { get; set; }

        /// <summary>
        /// 目的國
        /// </summary>
        [MaxLength(20)]
        public string DestCountry { get; set; }

        /// <summary>
        /// 原產國
        /// </summary>

        [MaxLength(20)]
        public string Country { get; set; }

        [MaxLength(50)]

        public string Brand { get; set; }
        [MaxLength(20)]
        public string Curr { get; set; }
        [MaxLength(20)]

        public string Package { get; set; }
        public decimal Length { get; set; }
        public decimal Width { get; set; }
        public decimal Height { get; set; }
        public decimal Vol { get; set; }

        public decimal Price { get; set; }
        public decimal TotalAmt { get; set; }
        public decimal GrossWt { get; set; }

        public decimal NetWt { get; set; }



        public DateTime CreationTime { get; set; }
        [MaxLength(20)]
        public string InStockNo { get; set; }
        public int InStockOrderDetailId { get; set; }

        public decimal Qty { get; set; }
        public decimal LawfQty { get; set; }
        public decimal SecdLawfQty { get; set; }
        [MaxLength(20)]

        public string LawfUnit { get; set; }
        [MaxLength(20)]
        public string SecdLawfUnit { get; set; }

        [MaxLength(20)]

        public string Batch { get; set; }
        public string  Loc { get; set; }
    }

}

5.定義入庫單的物體之后，我們去“ABP.TPLMS.EntityFrameworkCore”專案中的“TPLMSDbContext”類中定義物體對應的DbSet，以應用Code First 資料遷移，添加以下代碼

using Microsoft.EntityFrameworkCore;
using Abp.Zero.EntityFrameworkCore;
using ABP.TPLMS.Authorization.Roles;
using ABP.TPLMS.Authorization.Users;
using ABP.TPLMS.MultiTenancy;
using ABP.TPLMS.Entitys;


namespace ABP.TPLMS.EntityFrameworkCore
{
    public class TPLMSDbContext : AbpZeroDbContext<Tenant, Role, User, TPLMSDbContext>
    {

        /* Define a DbSet for each entity of the application */


        public TPLMSDbContext(DbContextOptions<TPLMSDbContext> options)
            : base(options)
        {

        }

        public DbSet<Module> Modules { get; set; }
        public DbSet<Supplier> Suppliers { get; set; }
        public DbSet<Cargo> Cargos { get; set; }
        public DbSet<Org> Orgs { get; set; }

        public virtual DbSet<InStockOrder> InStockOrder { get; set; }
        public virtual DbSet<InStockOrderDetail> InStockOrderDetail { get; set; }

        public virtual DbSet<InStockOrderDetailLoc> InStockOrderDetailLoc { get; set; }


        public virtual DbSet<OutStockOrder> OutStockOrder { get; set; }
        public virtual DbSet<OutStockOrderDetail> OutStockOrderDetail { get; set; }

    }

}

     6.從選單中選擇“工具->NuGet包管理器器—>程式包管理器控制臺”選單，

    7. 在PMC中，默認專案選擇EntityframeworkCore對應的專案后，輸入以下命令：Add-Migration AddEntityOutStock，創建遷移，如下圖，

    8. 在上面的命令執行完畢之后，創建成功后，會在Migrations檔案夾下創建時間_AddEntityOutStock格式的類檔案，這些代碼是基于DbContext指定的模型，如下圖，

    9.在程式包管理器控制臺，輸入Update-Database，回車執行遷移，執行成功后，如下圖，

    10. 在SQL Server Management Studio中查看資料庫，OutStockOrder、OutStockOrderDetail兩張表創建成功，
