動手寫一個簡版 asp.net core

Intro

之前看到過蔣金楠老師的一篇 200 行代碼帶你了解 asp.net core 框架，最近參考蔣老師和 Edison 的文章和代碼，結合自己對 asp.net core 的理解，最近自己寫了一個 MiniAspNetCore ，寫篇文章總結一下，

HttpContext

HttpContext 可能是最為常用的一個類了，HttpContext 是請求背景關系，包含了所有的請求資訊以及回應資訊，以及一些自定義的用于在不同中間件中傳輸資料的資訊

來看一下 HttpContext 的定義:

public class HttpContext
{
    public IServiceProvider RequestServices { get; set; }

    public HttpRequest Request { get; set; }

    public HttpResponse Response { get; set; }

    public IFeatureCollection Features { get; set; }

    public HttpContext(IFeatureCollection featureCollection)
    {
        Features = featureCollection;
        Request = new HttpRequest(featureCollection);
        Response = new HttpResponse(featureCollection);
    }
}

HttpRequest 即為請求資訊物件，包含了所有請求相關的資訊，

HttpResponse 為回應資訊物件，包含了請求對應的回應資訊

RequestServices 為 asp.net core 里的RequestServices，代表當前請求的服務提供者，可以使用它來獲取具體的服務實體

Features 為 asp.net core 里引入的物件，可以用來在不同中間件中傳遞資訊和用來解耦合

，下面我們就來看下 HttpRequest 和 HttpResponse 是怎么實作的

HttpRequest:

public class HttpRequest
{
    private readonly IRequestFeature _requestFeature;

    public HttpRequest(IFeatureCollection featureCollection)
    {
        _requestFeature = featureCollection.Get<IRequestFeature>();
    }

    public Uri Url => _requestFeature.Url;

    public NameValueCollection Headers => _requestFeature.Headers;

    public string Method => _requestFeature.Method;

    public string Host => _requestFeature.Url.Host;

    public Stream Body => _requestFeature.Body;
}

HttpResponse:

public class HttpResponse
{
    private readonly IResponseFeature _responseFeature;

    public HttpResponse(IFeatureCollection featureCollection)
    {
        _responseFeature = featureCollection.Get<IResponseFeature>();
    }

    public bool ResponseStarted => _responseFeature.Body.Length > 0;

    public int StatusCode
    {
        get => _responseFeature.StatusCode;
        set => _responseFeature.StatusCode = value;
    }

    public async Task WriteAsync(byte[] responseBytes)
    {
        if (_responseFeature.StatusCode <= 0)
        {
            _responseFeature.StatusCode = 200;
        }
        if (responseBytes != null && responseBytes.Length > 0)
        {
            await _responseFeature.Body.WriteAsync(responseBytes);
        }
    }
}

Features

上面我們提到我們可以使用 Features 在不同中間件中傳遞資訊和解耦合

由上面 HttpRequest/HttpResponse 的代碼我們可以看出來，HttpRequest 和 HttpResponse 其實就是在 IRequestFeature 和 IResponseFeature 的基礎上封裝了一層，真正的核心其實是 IRequestFeature/IResponseFeature ，而這里使用介面就很好的實作了解耦，可以根據不同的 WebServer 使用不同的 RequestFeature/ResponseFeature，來看下 IRequestFeature/IResponseFeature 的實作

public interface IRequestFeature
{
    Uri Url { get; }

    string Method { get; }

    NameValueCollection Headers { get; }

    Stream Body { get; }
}

public interface IResponseFeature
{
    public int StatusCode { get; set; }

    NameValueCollection Headers { get; set; }

    public Stream Body { get; }
}

這里的實作和 asp.net core 的實際的實作方式應該不同，asp.net core 里 Headers 同一個 Header 允許有多個值，asp.net core 里是 StringValues 來實作的，這里簡單處理了，使用了一個 NameValueCollection 物件

上面提到的 Features 是一個 IFeatureCollection 物件，相當于是一系列的 Feature 物件組成的，來看下 FeatureCollection 的定義：

public interface IFeatureCollection : IDictionary<Type, object> { }

public class FeatureCollection : Dictionary<Type, object>, IFeatureCollection
{
}

這里 IFeatureCollection 直接實作 IDictionary<Type, object> ，通過一個字典 Feature 型別為 Key，Feature 物件為 Value 的字典來保存

為了方便使用，可以定義兩個擴展方法來方便的Get/Set

public static class FeatureExtensions
{
    public static IFeatureCollection Set<TFeature>(this IFeatureCollection featureCollection, TFeature feature)
    {
        featureCollection[typeof(TFeature)] = feature;
        return featureCollection;
    }

    public static TFeature Get<TFeature>(this IFeatureCollection featureCollection)
    {
        var featureType = typeof(TFeature);
        return featureCollection.ContainsKey(featureType) ? (TFeature)featureCollection[featureType] : default(TFeature);
    }
}

Web服務器

上面我們已經提到了 Web 服務器通過 IRequestFeature/IResponseFeature 來實作不同 web 服務器和應用程式的解耦，web 服務器只需要提供自己的 RequestFeature/ResponseFeature 即可

為了抽象不同的 Web 服務器，我們需要定義一個 IServer 的抽象介面，定義如下：

public interface IServer
{
    Task StartAsync(Func<HttpContext, Task> requestHandler, CancellationToken cancellationToken = default);
}

IServer 定義了一個 StartAsync 方法，用來啟動 Web服務器，

StartAsync 方法有兩個引數，一個是 requestHandler，是一個用來處理請求的委托，另一個是取消令牌用來停止 web 服務器

示例使用了 HttpListener 來實作了一個簡單 Web 服務器，HttpListenerServer 定義如下：

public class HttpListenerServer : IServer
{
    private readonly HttpListener _listener;
    private readonly IServiceProvider _serviceProvider;

    public HttpListenerServer(IServiceProvider serviceProvider, IConfiguration configuration)
    {
        _listener = new HttpListener();
        var urls = configuration.GetAppSetting("ASPNETCORE_URLS")?.Split(';');
        if (urls != null && urls.Length > 0)
        {
            foreach (var url in urls
                     .Where(u => u.IsNotNullOrEmpty())
                     .Select(u => u.Trim())
                     .Distinct()
                    )
            {
                // Prefixes must end in a forward slash ("/")
                // https://stackoverflow.com/questions/26157475/use-of-httplistener
                _listener.Prefixes.Add(url.EndsWith("/") ? url : $"{url}/");
            }
        }
        else
        {
            _listener.Prefixes.Add("http://localhost:5100/");
        }

        _serviceProvider = serviceProvider;
    }

    public async Task StartAsync(Func<HttpContext, Task> requestHandler, CancellationToken cancellationToken = default)
    {
        _listener.Start();
        if (_listener.IsListening)
        {
            Console.WriteLine("the server is listening on ");
            Console.WriteLine(_listener.Prefixes.StringJoin(","));
        }
        while (!cancellationToken.IsCancellationRequested)
        {
            var listenerContext = await _listener.GetContextAsync();

            var featureCollection = new FeatureCollection();
            featureCollection.Set(listenerContext.GetRequestFeature());
            featureCollection.Set(listenerContext.GetResponseFeature());

            using (var scope = _serviceProvider.CreateScope())
            {
                var httpContext = new HttpContext(featureCollection)
                {
                    RequestServices = scope.ServiceProvider,
                };

                await requestHandler(httpContext);
            }
            listenerContext.Response.Close();
        }
        _listener.Stop();
    }
}

HttpListenerServer 實作的 RequestFeature/ResponseFeatue

public class HttpListenerRequestFeature : IRequestFeature
{
    private readonly HttpListenerRequest _request;

    public HttpListenerRequestFeature(HttpListenerContext listenerContext)
    {
        _request = listenerContext.Request;
    }

    public Uri Url => _request.Url;
    public string Method => _request.HttpMethod;
    public NameValueCollection Headers => _request.Headers;
    public Stream Body => _request.InputStream;
}

public class HttpListenerResponseFeature : IResponseFeature
{
    private readonly HttpListenerResponse _response;

    public HttpListenerResponseFeature(HttpListenerContext httpListenerContext)
    {
        _response = httpListenerContext.Response;
    }

    public int StatusCode { get => _response.StatusCode; set => _response.StatusCode = value; }

    public NameValueCollection Headers
    {
        get => _response.Headers;
        set
        {
            _response.Headers = new WebHeaderCollection();
            foreach (var key in value.AllKeys)
                _response.Headers.Add(key, value[key]);
        }
    }

    public Stream Body => _response.OutputStream;
}

為了方便使用，為 HttpListenerContext 定義了兩個擴展方法，就是上面 HttpListenerServer 中的 GetRequestFeature/GetResponseFeature：

public static class HttpListenerContextExtensions
{
    public static IRequestFeature GetRequestFeature(this HttpListenerContext context)
    {
        return new HttpListenerRequestFeature(context);
    }

    public static IResponseFeature GetResponseFeature(this HttpListenerContext context)
    {
        return new HttpListenerResponseFeature(context);
    }
}

RequestDelegate

在上面的 IServer 定義里有一個 requestHandler 的物件，在 asp.net core 里是一個名稱為 RequestDelegate 的物件，而用來構建這個委托的在 asp.net core 里是 IApplicationBuilder，這些在蔣老師和 Edison 的文章和代碼里都可以看到，這里我們只是簡單介紹下，我在 MiniAspNetCore 的示例中沒有使用這些物件，而是使用了自己抽象的 PipelineBuilder 和原始委托實作的

asp.net core 里 RequestDelegate 定義：

public delegate Task RequestDelegate(HttpContext context);

其實和我們上面定義用的 Func<HttpContext, Task> 是等價的

IApplicationBuilder 定義：

/// <summary>
/// Defines a class that provides the mechanisms to configure an application's request pipeline.
/// </summary>
public interface IApplicationBuilder
{
    /// <summary>
    /// Gets or sets the <see cref="T:System.IServiceProvider" /> that provides access to the application's service container.
    /// </summary>
    IServiceProvider ApplicationServices { get; set; }

    /// <summary>
    /// Gets the set of HTTP features the application's server provides.
    /// </summary>
    IFeatureCollection ServerFeatures { get; }

    /// <summary>
    /// Gets a key/value collection that can be used to share data between middleware.
    /// </summary>
    IDictionary<string, object> Properties { get; }

    /// <summary>
    /// Adds a middleware delegate to the application's request pipeline.
    /// </summary>
    /// <param name="middleware">The middleware delegate.</param>
    /// <returns>The <see cref="T:Microsoft.AspNetCore.Builder.IApplicationBuilder" />.</returns>
    IApplicationBuilder Use(Func<RequestDelegate, RequestDelegate> middleware);

    /// <summary>
    /// Creates a new <see cref="T:Microsoft.AspNetCore.Builder.IApplicationBuilder" /> that shares the <see cref="P:Microsoft.AspNetCore.Builder.IApplicationBuilder.Properties" /> of this
    /// <see cref="T:Microsoft.AspNetCore.Builder.IApplicationBuilder" />.
    /// </summary>
    /// <returns>The new <see cref="T:Microsoft.AspNetCore.Builder.IApplicationBuilder" />.</returns>
    IApplicationBuilder New();

    /// <summary>
    /// Builds the delegate used by this application to process HTTP requests.
    /// </summary>
    /// <returns>The request handling delegate.</returns>
    RequestDelegate Build();
}

我們這里沒有定義 IApplicationBuilder，使用了簡化抽象的 IAsyncPipelineBuilder，定義如下：

public interface IAsyncPipelineBuilder<TContext>
{
    IAsyncPipelineBuilder<TContext> Use(Func<Func<TContext, Task>, Func<TContext, Task>> middleware);

    Func<TContext, Task> Build();

    IAsyncPipelineBuilder<TContext> New();
}

對于 asp.net core 的中間件來說，上面的 TContext 就是 HttpContext，替換之后也就是下面這樣的：

public interface IAsyncPipelineBuilder<HttpContext>
{
    IAsyncPipelineBuilder<HttpContext> Use(Func<Func<HttpContext, Task>, Func<HttpContext, Task>> middleware);

    Func<HttpContext, Task> Build();

    IAsyncPipelineBuilder<HttpContext> New();
}

是不是和 IApplicationBuilder 很像，如果不像可以進一步把 Func<HttpContext, Task> 使用 RequestDelegate 替換

public interface IAsyncPipelineBuilder<HttpContext>
{
    IAsyncPipelineBuilder<HttpContext> Use(Func<RequestDelegate, RequestDelegate> middleware);

    RequestDelegate Build();

    IAsyncPipelineBuilder<HttpContext> New();
}

最后再將介面名稱替換一下：

public interface IApplicationBuilder1
{
    IApplicationBuilder1 Use(Func<RequestDelegate, RequestDelegate> middleware);

    RequestDelegate Build();

    IApplicationBuilder1 New();
}

至此，就完全可以看出來了，這 IAsyncPipelineBuilder<HttpContext> 就是一個簡版的 IApplicationBuilder

IAsyncPipelineBuilder 和 IApplicationBuilder 的作用是將注冊的多個中間件構建成一個請求處理的委托

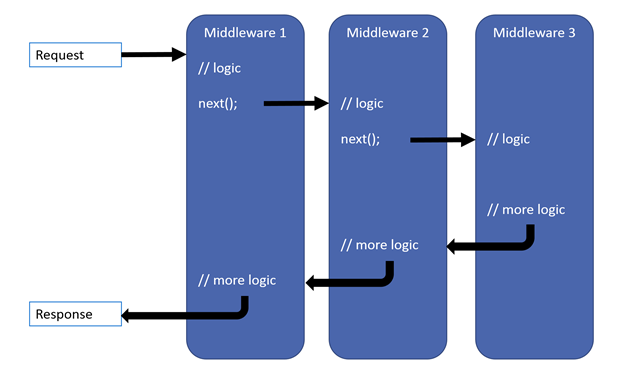

中間件處理流程：

更多關于 PipelineBuilder 構建中間件的資訊可以查看讓 .NET 輕松構建中間件模式代碼了解更多

WebHost

通過除了 Web 服務器之外，還有一個 Web Host 的概念，可以簡單的這樣理解，一個 Web 服務器上可以有多個 Web Host，就像 IIS/nginx (Web Server) 可以 host 多個站點

可以說 WebHost 離我們的應用更近，所以我們還需要 IHost 來托管應用

public interface IHost
{
    Task RunAsync(CancellationToken cancellationToken = default);
}

WebHost 定義：

public class WebHost : IHost
{
    private readonly Func<HttpContext, Task> _requestDelegate;
    private readonly IServer _server;

    public WebHost(IServiceProvider serviceProvider, Func<HttpContext, Task> requestDelegate)
    {
        _requestDelegate = requestDelegate;
        _server = serviceProvider.GetRequiredService<IServer>();
    }

    public async Task RunAsync(CancellationToken cancellationToken = default)
    {
        await _server.StartAsync(_requestDelegate, cancellationToken).ConfigureAwait(false);
    }
}

為了方便的構建 Host物件，引入了 HostBuilder 來方便的構建一個 Host，定義如下：

public interface IHostBuilder
{
    IHostBuilder ConfigureConfiguration(Action<IConfigurationBuilder> configAction);

    IHostBuilder ConfigureServices(Action<IConfiguration, IServiceCollection> configureAction);

    IHostBuilder Initialize(Action<IConfiguration, IServiceProvider> initAction);

    IHostBuilder ConfigureApplication(Action<IConfiguration, IAsyncPipelineBuilder<HttpContext>> configureAction);

    IHost Build();
}

WebHostBuilder：

public class WebHostBuilder : IHostBuilder
{
    private readonly IConfigurationBuilder _configurationBuilder = new ConfigurationBuilder();
    private readonly IServiceCollection _serviceCollection = new ServiceCollection();

    private Action<IConfiguration, IServiceProvider> _initAction = null;

    private readonly IAsyncPipelineBuilder<HttpContext> _requestPipeline = PipelineBuilder.CreateAsync<HttpContext>(context =>
    {
        context.Response.StatusCode = 404;
        return Task.CompletedTask;
    });

    public IHostBuilder ConfigureConfiguration(Action<IConfigurationBuilder> configAction)
    {
        configAction?.Invoke(_configurationBuilder);
        return this;
    }

    public IHostBuilder ConfigureServices(Action<IConfiguration, IServiceCollection> configureAction)
    {
        if (null != configureAction)
        {
            var configuration = _configurationBuilder.Build();
            configureAction.Invoke(configuration, _serviceCollection);
        }

        return this;
    }

    public IHostBuilder ConfigureApplication(Action<IConfiguration, IAsyncPipelineBuilder<HttpContext>> configureAction)
    {
        if (null != configureAction)
        {
            var configuration = _configurationBuilder.Build();
            configureAction.Invoke(configuration, _requestPipeline);
        }
        return this;
    }

    public IHostBuilder Initialize(Action<IConfiguration, IServiceProvider> initAction)
    {
        if (null != initAction)
        {
            _initAction = initAction;
        }

        return this;
    }

    public IHost Build()
    {
        var configuration = _configurationBuilder.Build();
        _serviceCollection.AddSingleton<IConfiguration>(configuration);
        var serviceProvider = _serviceCollection.BuildServiceProvider();

        _initAction?.Invoke(configuration, serviceProvider);

        return new WebHost(serviceProvider, _requestPipeline.Build());
    }

    public static WebHostBuilder CreateDefault(string[] args)
    {
        var webHostBuilder = new WebHostBuilder();
        webHostBuilder
            .ConfigureConfiguration(builder => builder.AddJsonFile("appsettings.json", true, true))
            .UseHttpListenerServer()
            ;

        return webHostBuilder;
    }
}

這里的示例我在 IHostBuilder 里增加了一個 Initialize 的方法來做一些初始化的操作，我覺得有些資料初始化配置初始化等操作應該在這里操作，而不應該在 Startup 的 Configure 方法里處理，這樣 Configure 方法可以更純粹一些，只配置 asp.net core 的請求管道，這純屬個人意見，沒有對錯之分

這里 Host 的實作和 asp.net core 的實作不同，有需要的可以深究原始碼，在 asp.net core 2.x 的版本里是有一個 IWebHost 的，在 asp.net core 3.x 以及 .net 5 里是沒有 IWebHost 的取而代之的是通用主機 IHost，通過實作了一個 IHostedService 來實作 WebHost 的

Run

運行示例代碼：

public class Program
{
    private static readonly CancellationTokenSource Cts = new CancellationTokenSource();

    public static async Task Main(string[] args)
    {
        Console.CancelKeyPress += OnExit;

        var host = WebHostBuilder.CreateDefault(args)
            .ConfigureServices((configuration, services) =>
            {
            })
            .ConfigureApplication((configuration, app) =>
            {
                app.When(context => context.Request.Url.PathAndQuery.StartsWith("/favicon.ico"), pipeline => { });

                app.When(context => context.Request.Url.PathAndQuery.Contains("test"),
                    p => { p.Run(context => context.Response.WriteAsync("test")); });
                app
                    .Use(async (context, next) =>
                    {
                        await context.Response.WriteLineAsync($"middleware1, requestPath:{context.Request.Url.AbsolutePath}");
                        await next();
                    })
                    .Use(async (context, next) =>
                    {
                        await context.Response.WriteLineAsync($"middleware2, requestPath:{context.Request.Url.AbsolutePath}");
                        await next();
                    })
                    .Use(async (context, next) =>
                    {
                        await context.Response.WriteLineAsync($"middleware3, requestPath:{context.Request.Url.AbsolutePath}");
                        await next();
                    })
                    ;
                app.Run(context => context.Response.WriteAsync("Hello Mini Asp.Net Core"));
            })
            .Initialize((configuration, services) =>
            {
            })
            .Build();
        await host.RunAsync(Cts.Token);
    }

    private static void OnExit(object sender, EventArgs e)
    {
        Console.WriteLine("exiting ...");
        Cts.Cancel();
    }
}

在示例專案目錄下執行 dotnet run，并訪問 http://localhost:5100/:

仔細觀察瀏覽器 console 或 network 的話，會發現還有一個請求，瀏覽器會默認請求 /favicon.ico 獲取網站的圖示

因為我們針對這個請求沒有任何中間件的處理，所以直接回傳了 404

在訪問 /test，可以看到和剛才的輸出完全不同，因為這個請求走了另外一個分支，相當于 asp.net core 里 Map/MapWhen 的效果，另外 Run 代表里中間件的中斷，不會執行后續的中間件

上面的實作只是我在嘗試寫一個簡版的 asp.net core 框架時的實作，和 asp.net core 的實作并不完全一樣，如果需要請參考原始碼，上面的實作僅供參考，上面實作的原始碼可以在 Github 上獲取 https://github.com/WeihanLi/SamplesInPractice/tree/master/MiniAspNetCore

asp.net core 原始碼：https://github.com/dotnet/aspnetcore

Reference

https://www.cnblogs.com/artech/p/inside-asp-net-core-framework.html
https://www.cnblogs.com/artech/p/mini-asp-net-core-3x.html
https://www.cnblogs.com/edisonchou/p/aspnet_core_mini_implemention_introduction.html
https://www.cnblogs.com/weihanli/p/12700006.html
https://www.cnblogs.com/weihanli/p/12709603.html
https://github.com/WeihanLi/SamplesInPractice/tree/master/MiniAspNetCore

轉載請註明出處，本文鏈接：https://www.uj5u.com/net/24061.html

標籤：.NET Core

上一篇：15分鐘為自己架設優雅如Github的代碼倉庫

下一篇：在Linux上搭建基于開源技術的nuget私人保密倉庫

動手寫一個簡版 asp.net core

動手寫一個簡版 asp.net core

Intro

HttpContext

Features

Web服務器

RequestDelegate

WebHost

Run

More

Reference
