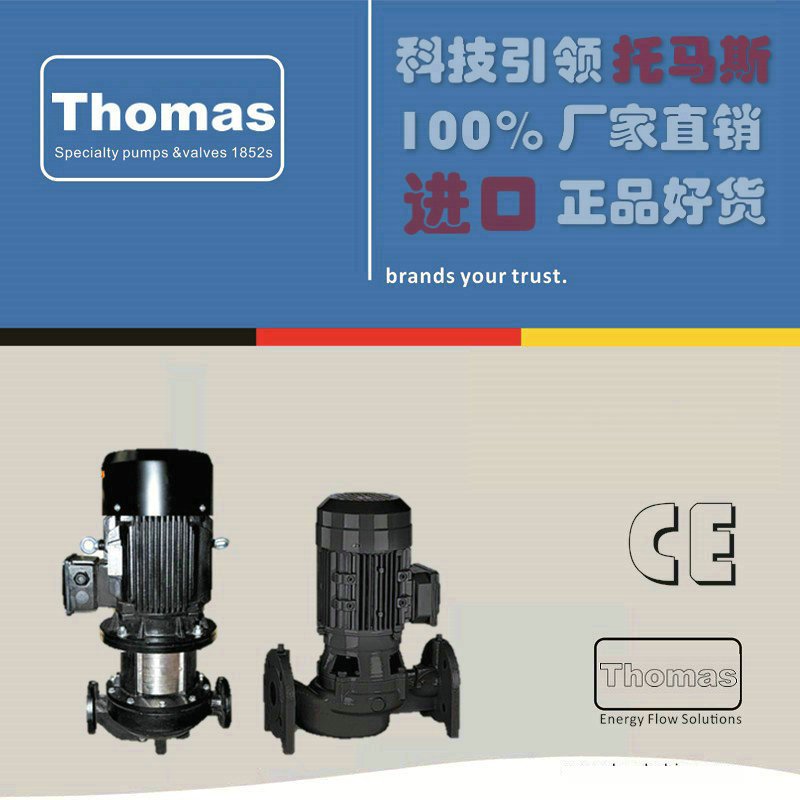

進口管道排污泵原理特點及品牌（圖）

作者：托馬斯·貝爾森·伍德發布時間：2021-01-16 13:04:52點擊：201

進口管道排污泵原理特點

進口管道排污泵安裝方便，用途廣泛既可作一般管道泵為高層建筑加壓送水之用，又可輸送含有顆粒纖維污水，除適用輸送污水外，還適用于作疏水泵，過濾沖洗冷凝回圈泵等，德國托馬斯(Thomas)管道排污泵采用獨特葉輪結構和新型機械密封，能有效地輸送含有固體物和長纖維，葉輪與傳統葉輪相比，該泵葉輪采用單流道或雙流道形式，它類似于一截面大小相同的彎管，具有非常好的過流性，配以合理的蝸室，使得該泵具有效率高、葉輪經動靜平衡試驗，使泵在運行中無振動，適用范圍進口管道排污泵適用于工廠商業嚴重污染廢水的排放、主宅區的污水排污站、城市污水處理廠派水系統、人防系統排水站、自來水廠的給水設備、醫院、賓館的污水排放、市政工程建筑工地、礦山配套附機、農村沼氣池、農田灌溉等行業，輸送帶顆粒的污水，污物，也可用于清水及帶弱腐蝕性介質，使用條件 1、使用環境溫度≤40℃，濕度≤95%；海拔高度≤1000米， 2、介質溫度不超過60℃，介質重度為1～1.3kg/dm3， 3、鑄鐵材質的使用范圍這PH5～9， 4、不銹鋼材質可使用一般腐蝕性介質， 5、使用環境海拔高度不超過1000米，產品特點 1、泵與電機直聯同軸，屬機電一體化產品，結構緊湊，性能穩定， 2、大流道抗堵塞水力部件設計，大大提高污物通過能力，能有效通過泵口徑的5倍纖維物質和直徑為泵口徑約50%的固體顆粒， 3、設計合理，配套電機合理，效率高，噪音低，節能效果顯著， 4、機械密封采用硬質耐磨碳化鎢，具有耐用、耐磨等特點，可以使泵安全連續運行8000小時以上， 5、泵為立式結構，進出口中心線在同一水平線上，且進出口法蘭規格相同，安裝拆卸十分方便， 6、占地面積小，無需建機房，可節省大量基建費用；在電機風葉端加上防護罩，整機可置于室外作業， Pipeline sewage pump is easy to install, widely used for general pipeline pump for high-rise building pressurized water supply, but also transport containing granular fiber sewage, in addition to transport sewage, but also for drainage pumps, filter flushing condensate pump The Germany Thomas pipeline sewage pump with a unique impeller structure and a new mechanical seal, can effectively transport containing solid and long fiber. Impeller Compared with traditional impeller, the pump impeller with a single channel or double channel form, it is similar to a cross-section of the same size of the elbow, with a very good overcurrent, coupled with a reasonable spiral chamber, making the pump with efficiency High, impeller by static and static test, so that the pump in the run without vibration. The scope of application Import pipeline sewage pump for the factory business serious pollution of wastewater discharge, the main residential sewage sewage station, urban sewage treatment plant water system, air defense system drainage station, water plant water supply equipment, hospitals, hotels, sewage discharge, municipal works Construction sites, mining supporting machine, rural biogas digesters, farmland irrigation and other industries, conveyor belt particles of sewage, dirt, can also be used for water and with weak corrosive media. Conditions of Use 1, the use of ambient temperature ≤ 40 ℃, humidity ≤ 95%; altitude ≤ 1000 meters. 2, the medium temperature does not exceed 60 ℃, medium heavyness of 1 ~ 1.3kg / dm3. 3, the use of cast iron material PH5 ~ 9. 4, stainless steel material can use the general corrosive media. 5, the use of environmental altitude of not more than 1000 meters. Features 1, pump and motor direct coaxial, mechanical and electrical integration products, compact structure, stable performance. 2, large flowway anti-blocking hydraulic components designed to greatly improve the dirt through the ability to effectively pass the pump diameter of 5 times the fiber material and diameter of about 50% of the diameter of the pump particles. 3, the design is reasonable, supporting the motor is reasonable, high efficiency, low noise, energy saving effect is remarkable. 4, mechanical seal with hard wear-resistant tungsten carbide, with durable, wear and other characteristics, can make the pump safe continuous operation for more than 8000 hours. 5, the pump for the vertical structure, import and export center line in the same level, and import and export flange specifications the same, installation and removal is very convenient.

6, covers an area of small, no need to build the engine room, can save a lot of infrastructure costs; in the fan side with a protective cover, the machine can be placed in outdoor work.

進口管道排污泵品牌

德國托馬斯閥門集團于1933年創建于德國魯爾工業區，也是世界最重要的工業區，位于德國西部、萊茵河下游支流魯爾河與利珀河之間的地區，德國托馬斯閥門集團是以生產高品質、先進的閥門、測量及控制系統而享譽全球的跨國性生產企業，采用世界先進的設備及生產工藝，所有產品都在嚴格的質量體系監控下完成作業，并在各大洲幾十個國家擁有子公司及分支機構，上一篇：進口立式排污泵原理特點及品牌（圖）下一篇：進口無堵塞排污泵原理特點及品牌（圖）相關產品
