進口潛水電泵原理特點及品牌（圖）
作者：托馬斯·貝爾森·伍德 發布時間：2021-01-16 13:06:34點擊：201
進口潛水電泵原理特點
進口潛水電泵由水泵、密封和電動機三部分組成，電動機位于電泵上部，為單相或三相異步電動機；水泵位于電泵下部，為雙流道葉輪、蝸殼式結構；水泵與電動機之間采用硬質機械密封，各固定止口處采用“O”形耐油橡膠密封圈作靜密封， 產品特點 1、電泵轉軸經鍍硬鉻處理，可有效提高軸的耐磨性和耐腐蝕性，同時有利于葉輪的維修拆卸; 2、可靠的電纜防水入口即使電纜破損或線頭浸入水中，水也不會進入電機，更不會因環境潮濕，水氣通過電纜銅絲間隙吸入電機，造成絕緣下降; 3、11KW及以下電泵為直接啟動，電泵內配有熱保護器，能在電泵缺相、過載、電機過熱等情況下自行切斷電源保護電機;15KW及以上電泵滿足星三角啟動方式，電泵線圈內埋有熱敏開關，可以連接到外置的電機保護裝置，18.5KW及以上電泵可根據用戶需要配備密封漏探頭; 4、電機絕緣等級為B級，設計的輸出功率有充足的余量，全系列電泵均可全揚程運行， 產品用途 1、工廠、商場、醫院、賓館的廢水排放 2、住宅區、停車場、市政工程的生活污水、雨水排放 3、污水處理廠、畜牧養殖場的污水排放 4、建筑工地、礦山的泥水、灰水抽送 5、農業、水產養殖的清水抽送 6、其他場合之供排水 使用條件 1、水溫0~40℃ 2、水源的酸堿度PH值為6~10 3、介質密度不超過1.05×103kg/m34、電源電壓：單相為220V,三相為380V，頻率50HZ，電壓波動范圍為額定值的0.9-1.1倍
Submersible pump is composed of three parts: pump, seal and motor. The motor is located in the upper part of the electric pump. It is a single-phase or three-phase asynchronous motor. The pump is located in the lower part of the pump. It is a double-flow impeller and a volute structure. Hard mechanical seal, the fixed stop at the "O" -shaped oil-resistant rubber seal for static seal. Features 1, the pump shaft by hard chrome plating treatment, which can effectively improve the wear resistance and corrosion of the shaft, while the maintenance of the impeller maintenance; 2, a reliable cable waterproof entrance even if the cable damage or thread immersed in water, the water will not enter the motor. Not because of the environment is humid, water vapor through the cable copper wire gap inhalation motor, resulting in insulation decline; 3,11KW and below the pump is a direct start, the pump is equipped with a thermal protector, in the pump phase, overload, motor overheating, etc. to cut off their own power supply protection motor; 15KW and above the pump to meet the star delta start mode The The pump coil is embedded with a thermal switch that can be connected to an external motor protection device. 18.5KW and above the pump can be equipped with a sealed drain probe according to user needs; 4, the motor insulation class for the B level, the design of the output power has sufficient margin, the whole series of pumps can be the whole lift. Product Usage 1, factories, shopping malls, hospitals, hotels, wastewater discharge 2, residential areas, parking, municipal works of domestic sewage, rainwater discharge 3, sewage treatment plants, livestock farms sewage discharge 4, construction site, mine mud, gray water pumping 5, agriculture, aquaculture water pumping 6, other occasions for the drainage Conditions of Use 1, water temperature 0 ~ 40 ℃ 2, the pH value of the water source is 6 ~ 10 3, the medium density does not exceed 1.05 × 103kg / m34, the power supply voltage: single-phase 220V, three-phase 380V, frequency 50HZ, voltage fluctuation range of 0.9-1.1 times the rated value
進口潛水電泵品牌
德國托馬斯閥門集團于1933年創建于德國魯爾工業區，也是世界最重要的工業區，位于德國西部、萊茵河下游支流魯爾河與利珀河之間的地區，德國托馬斯閥門集團是以生產高品質、先進的閥門、測量及控制系統而享譽全球的跨國性生產企業，采用世界先進的設備及生產工藝，所有產品都在嚴格的質量體系監控下完成作業，并在各大洲幾十個國家擁有子公司及分支機構，
上一篇：進口潛污泵原理特點及品牌（圖）下一篇：進口潛水攪拌機原理特點及品牌（圖）
相關產品

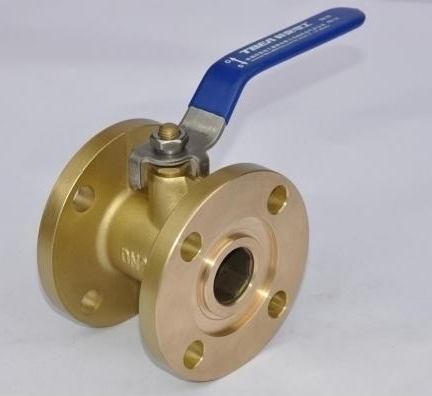

進口銅球閥

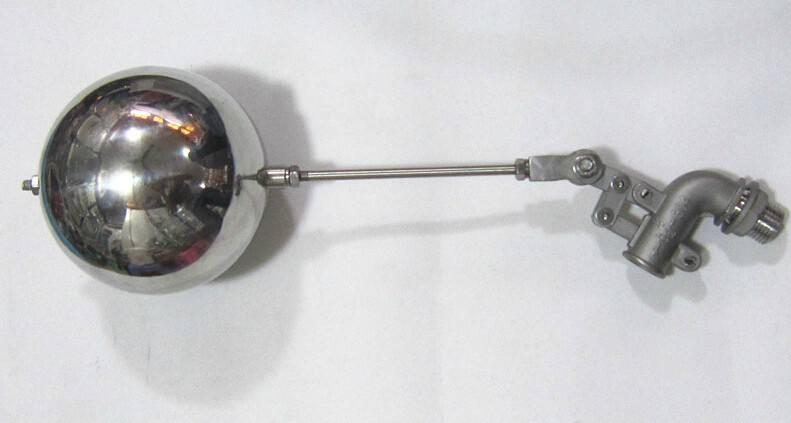

進口浮球閥
