一、簡介

目前市面上直播推流的軟體有很多，拉流也很常見，近期因為業務需要，需要搭建一整套服務端推流，客戶端拉流的程式，隨即進行了展開研究，花了一個小時做了個基于winfrom桌面版的推拉流軟體，另外稍微啰嗦兩句，主要怕你們翻不到最下面，目前軟體還是一個簡化版的，但已足夠日常使用，比如搭建一套餐館的監控，據我了解，小餐館裝個監控一般3000—5000，如果自己稍微懂點軟體知識，幾百元買幾個攝像頭+一臺電腦，搭建的監控不足千元，甚至一兩百元足夠搞定了，這是我研究這套軟體的另外一個想法，

二、使用的技術堆疊:

1、nginx

2、ffmpeg

3、asp.net framework4.5 winfrom

4、開發工具vs2019

5、開發語言c#

關于以上技術大體做下說明，使用nginx做為代理節點服務器，基于ffmpeg做推流，asp.net framework4.5 winfrom 做為桌面應用，很多人比較陌生的可能是ffmpeg,把它理解為視頻處理最常用的開源軟體，關于它的更多詳細文章可以去看阮一峰對它的介紹，“FFmpeg 視頻處理入門教程”，

5.1啟動nginx的核心代碼

using MnNiuVideoApp.Common;
using System;
using System.Diagnostics;
using System.IO;
using System.Windows.Forms;

namespace MnNiuVideoApp
{
    public class NginxProcess
    {
        //nginx的行程名
        public string _nginxFileName = "nginx";
        public string _stop = "stop.bat";
        public string _start = "start.bat";
        //nginx的檔案路徑名
        public string _nginxFilePath = string.Empty;
        //nginx的啟動引數
        public string _arguments = string.Empty;
        //nginx的作業目錄
        public string _workingDirectory = string.Empty;
        public int _processId = 0;
        public NginxProcess()
        {
            string basePath = FileHelper.LoadNginxPath();
            string nginxPath = $@"{basePath}\nginx.exe";
            _nginxFilePath = Path.GetFullPath(nginxPath);
            _workingDirectory = Path.GetDirectoryName(_nginxFilePath);
            _arguments = @" -c \conf\nginx-win.conf";
        }
        //關掉所有nginx的行程,格式必須這樣，有空格存在  taskkill /IM  nginx.exe  /F

        /// <summary>
        /// 啟動服務
        /// </summary>
        /// <returns></returns>
        public void StartService()
        {
            try
            {
                if (ProcessesHelper.IsCheckProcesses(_nginxFileName))
                {
                    LogHelper.WriteLog("nginx行程已經啟動過了");
                }
                else
                {
                    var sinfo = new ProcessStartInfo
                    {
                        FileName = _nginxFilePath,
                        Verb = "runas",
                        WorkingDirectory = _workingDirectory,
                        Arguments = _arguments
                    };
#if DEBUG
                    sinfo.UseShellExecute = true;
                    sinfo.CreateNoWindow = false;
#else
                sinfo.UseShellExecute = false;
#endif
                    using (var process = Process.Start(sinfo))
                    {
                        //process?.WaitForExit();
                        _processId = process.Id;
                    }
                }
            }
            catch (Exception e)
            {
                LogHelper.WriteLog(e.Message);
                MessageBox.Show(e.Message);
            }

        }

        /// <summary>
        /// 關閉nginx所有行程
        /// </summary>
        /// <returns></returns>
        public void StopService()
        {
            ProcessesHelper.KillProcesses(_nginxFileName);
        }



        /// <summary>
        /// 需要以管理員身份呼叫才能起作用
        /// </summary>
        public void KillAll()
        {
            try
            {
                ProcessStartInfo sinfo = new ProcessStartInfo();
#if DEBUG
                sinfo.UseShellExecute = true;
                // sinfo.CreateNoWindow = true;
#else
                sinfo.UseShellExecute = false;
#endif
                sinfo.FileName = _nginxFilePath;
                sinfo.Verb = "runas";
                sinfo.WorkingDirectory = _workingDirectory;
                sinfo.Arguments = $@"{_workingDirectory}\taskkill /IM  nginx.exe  /F ";
                using (Process _process = Process.Start(sinfo))
                {
                    _processId = _process.Id;
                }
            }
            catch (Exception ex)
            {
                MessageBox.Show(ex.Message);
            }
        }
    }
}

View Code

5.2啟動ffmpeg行程的核心代碼

using MnNiuVideoApp.Common;
using System;
using System.Collections.Generic;
using System.Diagnostics;
using System.Text;

namespace MnNiuVideoApp
{
    public class VideoProcess
    {
        private static string _ffmpegPath = string.Empty;
        static VideoProcess()
        {
            _ffmpegPath = FileHelper.LoadFfmpegPath();
        }
        /// <summary>
        /// 呼叫ffmpeg.exe 執行命令
        /// </summary>
        /// <param name="Parameters">命令引數</param>
        /// <returns>回傳執行結果</returns>
        public static void Run(string parameters)
        {

            // 設定啟動引數
            ProcessStartInfo startInfo = new ProcessStartInfo();

            startInfo.Verb = "runas";
            startInfo.FileName = _ffmpegPath;
            startInfo.Arguments = parameters;
#if DEBUG
            startInfo.CreateNoWindow = false;
            startInfo.UseShellExecute = true;
            //將輸出資訊重定向
            //startInfo.RedirectStandardOutput = true;
#else

            //設定不在新視窗中啟動新的行程
            startInfo.CreateNoWindow = true;
            //不使用作業系統使用的shell啟動行程
            startInfo.UseShellExecute = false;
#endif
            using (var proc = Process.Start(startInfo))
            {
                proc?.WaitForExit(3000);
            }
            //finally
            //{
            //    if (proc != null && !proc.HasExited)
            //    {
            //        //"即將殺掉視頻錄制行程,Pid:{0}", proc.Id));
            //        proc.Kill();
            //        proc.Dispose();
            //    }
            //}
        }
    }
}

View Code

5.3 表單里面事件的核心代碼

using MnNiuVideoApp;
using MnNiuVideoApp.Common;
using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.IO;
using System.Linq;
using System.Text;
using System.Threading;
using System.Threading.Tasks;
using System.Windows.Forms;

namespace MnNiuVideo
{
    public partial class PlayerForm : Form
    {
        public PlayerForm()
        {
            InitializeComponent();
            new NginxProcess().StopService();
            //獲取本機所有相機
            var cameras = CameraUtils.ListCameras();
            if (toolStripComboBox1.ComboBox != null)
            {
                var list = new List<string>() { "--請選擇相機--" };
                foreach (var item in cameras)
                {
                    list.Add(item.FriendlyName);
                }
                toolStripComboBox1.ComboBox.DataSource = list;
            }
        }
        TstRtmp rtmp = new TstRtmp();
        Thread thPlayer;
        private void StartPlayStripMenuItem_Click(object sender, EventArgs e)
        {
            StartPlayStripMenuItem.Enabled = false;
            TaskScheduler uiContext = TaskScheduler.FromCurrentSynchronizationContext();
            Task t = Task.Factory.StartNew(() =>
            {
                if (thPlayer != null)
                {
                    rtmp.Stop();
                    thPlayer = null;
                }
                else
                {
                    string path = FileHelper.GetLoadPath();
                    pic.Image = Image.FromFile(path);
                    thPlayer = new Thread(DeCoding)
                    {
                        IsBackground = true
                    };
                    thPlayer.Start();

                    StartPlayStripMenuItem.Text = "停止播放";
                    //StartPlayStripMenuItem.Enabled = true;
                }
            }).ContinueWith(m =>
            {
                StartPlayStripMenuItem.Enabled = true;
                Console.WriteLine("任務結束");
            }, uiContext);

        }

        /// <summary>
        /// 播放執行緒執行方法
        /// </summary>
        private unsafe void DeCoding()
        {
            try
            {
                Console.WriteLine("DeCoding run...");
                Bitmap oldBmp = null;
                // 更新圖片顯示
                TstRtmp.ShowBitmap show = (bmp) =>
                {
                    this.Invoke(new MethodInvoker(() =>
                    {
                        if (this.pic.Image != null)
                        {
                            this.pic.Image = null;
                        }

                        if (bmp != null)
                        {
                            this.pic.Image = bmp;
                        }
                        if (oldBmp != null)
                        {
                            oldBmp.Dispose();
                        }
                        oldBmp = bmp;
                    }));
                };
                //執行緒間操作無效
                var url = string.Empty;
                this.Invoke(new Action(() =>
                {
                    url = PlayAddressComboBox.Text.Trim();
                }));

                if (string.IsNullOrEmpty(url))
                {
                    MessageBox.Show("播放地址為空!");
                    return;
                }
                rtmp.Start(show, url);
            }
            catch (Exception ex)
            {
                Console.WriteLine(ex);
            }
            finally
            {
                Console.WriteLine("DeCoding exit");
                rtmp?.Stop();
                thPlayer = null;
                this.Invoke(new MethodInvoker(() =>
                {
                    StartPlayStripMenuItem.Text = "開始播放";
                    StartPlayStripMenuItem.Enabled = true;
                }));
            }
        }




        private void DesktopRecordStripMenuItem_Click(object sender, EventArgs e)
        {
            var path = FileHelper.VideoRecordPath();
            if (string.IsNullOrEmpty(path))
            {
                MessageBox.Show("視頻存放檔案路徑為空");
            }
            string args = $"ffmpeg -f gdigrab -r 24 -offset_x 0 -offset_y 0 -video_size 1920x1080 -i desktop -f dshow -list_devices 0 -i video=\"Integrated Webcam\":audio=\"麥克風(Realtek Audio)\" -filter_complex \"[0:v] scale = 1920x1080[desktop];[1:v] scale = 192x108[webcam];[desktop][webcam] overlay = x = W - w - 50:y = H - h - 50\" -f flv \"rtmp://127.0.0.1:20050/myapp/test\" -map 0 {path}";
            VideoProcess.Run(args);
            StartLiveToolStripMenuItem.Text = "正在直播";
        }

        private void LiveRecordStripMenuItem_Click(object sender, EventArgs e)
        {
            var path = FileHelper.VideoRecordPath();
            if (string.IsNullOrEmpty(path))
            {
                MessageBox.Show("視頻存放檔案路徑為空");
            }
            var args = $" -f dshow -re -i  video=\"Integrated Webcam\" -tune zerolatency -vcodec libx264 -preset ultrafast -b:v 400k -s 704x576 -r 25 -acodec aac -b:a 64k -f flv \"rtmp://127.0.0.1:20050/myapp/test\" -map 0 {path}";
            VideoProcess.Run(args);
            StartLiveToolStripMenuItem.Text = "正在直播";
        }
        /// <summary>
        /// 開始直播（服務端開始推流）
        /// </summary>
        /// <param name="sender"></param>
        /// <param name="e"></param>
        private void StartLiveToolStripMenuItem_Click(object sender, EventArgs e)
        {
            try
            {

                if (toolStripComboBox1.ComboBox != null)
                {
                    string camera = toolStripComboBox1.ComboBox.SelectedText;
                    if (string.IsNullOrEmpty(camera))
                    {
                        MessageBox.Show("請選擇要使用的相機");
                        return;
                    }
                    var path = Path.Combine(AppDomain.CurrentDomain.BaseDirectory, "Icon");
                    var imgPath = Path.Combine(path + "\\", "stop.jpg");
                    StartLiveToolStripMenuItem.Enabled = false;

                    StartLiveToolStripMenuItem.Image = Image.FromFile(imgPath);
                    string args = $" -f dshow -re -i  video=\"{camera}\" -tune zerolatency -vcodec libx264 -preset ultrafast -b:v 400k -s 704x576 -r 25 -acodec aac -b:a 64k -f flv \"rtmp://127.0.0.1:20050/myapp/test\"";
                    VideoProcess.Run(args);
                }

                StartLiveToolStripMenuItem.Text = "正在直播";
            }
            catch (Exception ex)
            {
                MessageBox.Show(ex.Message);
            }
        }

        private void PlayerForm_Load(object sender, EventArgs e)
        {
            // if (toolStripComboBox1.ComboBox != null) toolStripComboBox1.ComboBox.SelectedIndex = 0;
        }

        private void PlayerForm_FormClosed(object sender, FormClosedEventArgs e)
        {
            this.Dispose();
            this.Close();
        }

        private void PlayerForm_FormClosing(object sender, FormClosingEventArgs e)
        {
            DialogResult dr = MessageBox.Show("您是否退出?", "提示:", MessageBoxButtons.OKCancel, MessageBoxIcon.Information);

            if (dr != DialogResult.OK)
            {
                if (dr == DialogResult.Cancel)
                {
                    e.Cancel = true; //不執行操作
                }
            }
            else
            {
                new NginxProcess().StopService();
                Application.Exit();
                e.Cancel = false; //關閉表單
            }
        }
    }
}

View Code

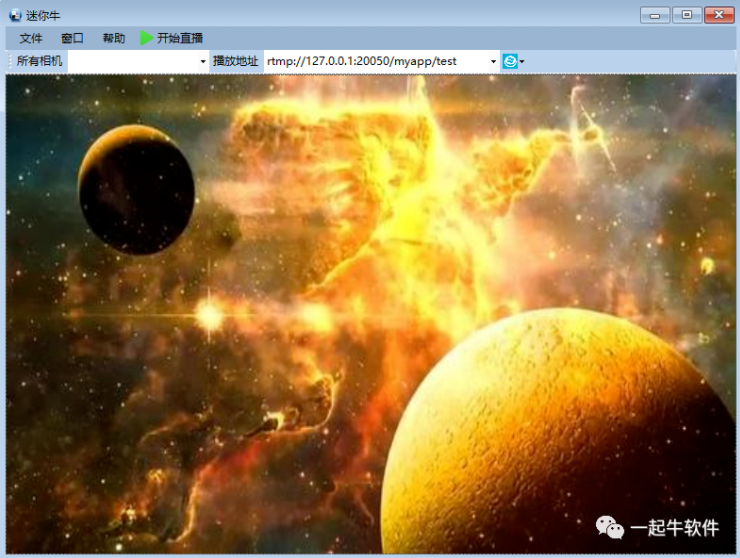

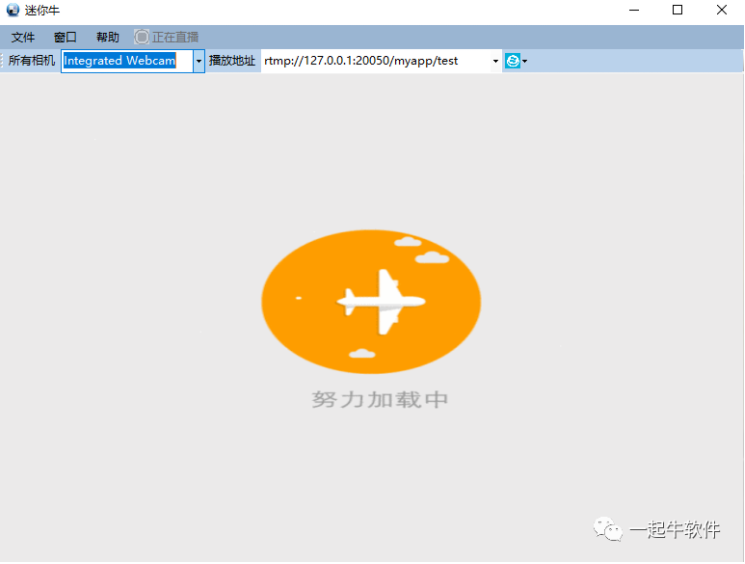

6、界面展示：

三、目前實作的功能

winfrom桌面播放（拉流）
推流(直播)
(直播)推流錄屏
....想到再加上去

四、如何使用

克隆或下載程式后可以使用vs打開解決方案、然后選擇debug或relase方式進行編譯，建議relase,編譯后的軟體在Bin\debug|relase目錄下，
雙擊Bin\debug|relase目錄下 MnNiuVideo.exe 即可運行起來，
軟體打開后，選擇本機相機（如果本機有多個相機任意選一個）、點擊開始直播(推流)，然后點擊開始播放(拉流)，
關于其他問題或者詳細介紹建議直接看原始碼，

五、最后

可能一眼看去UI比較丑，多年沒有使用過winfrom,其實winform本身控制元件開發的界面就比較丑，界面這塊不屬于核心，也可以使用web端拉流，手機端拉流，都是可行的，所用技術略有差別，另外，代碼這塊目前也談不上多么規范，請輕拍，后期抽時間部分代碼都會進行整合調整，后面想到的功能會定期更新，長期維護，軟體純綠色版，基于MIT協議開源，也可自行修改，

原始碼地址:

碼云:https://gitee.com/shenniu_code_group/mn-niu-video

github:https://github.com/realyrare/MnNiuVideo
