一、準備作業
1、下載虹軟人臉識別增值版SDK 4.0
1）注冊并登錄開發者中心
訪問https://www.arcsoft.com.cn/登錄后創建新應用并添加SDK
2）下載虹軟人臉識別SDK

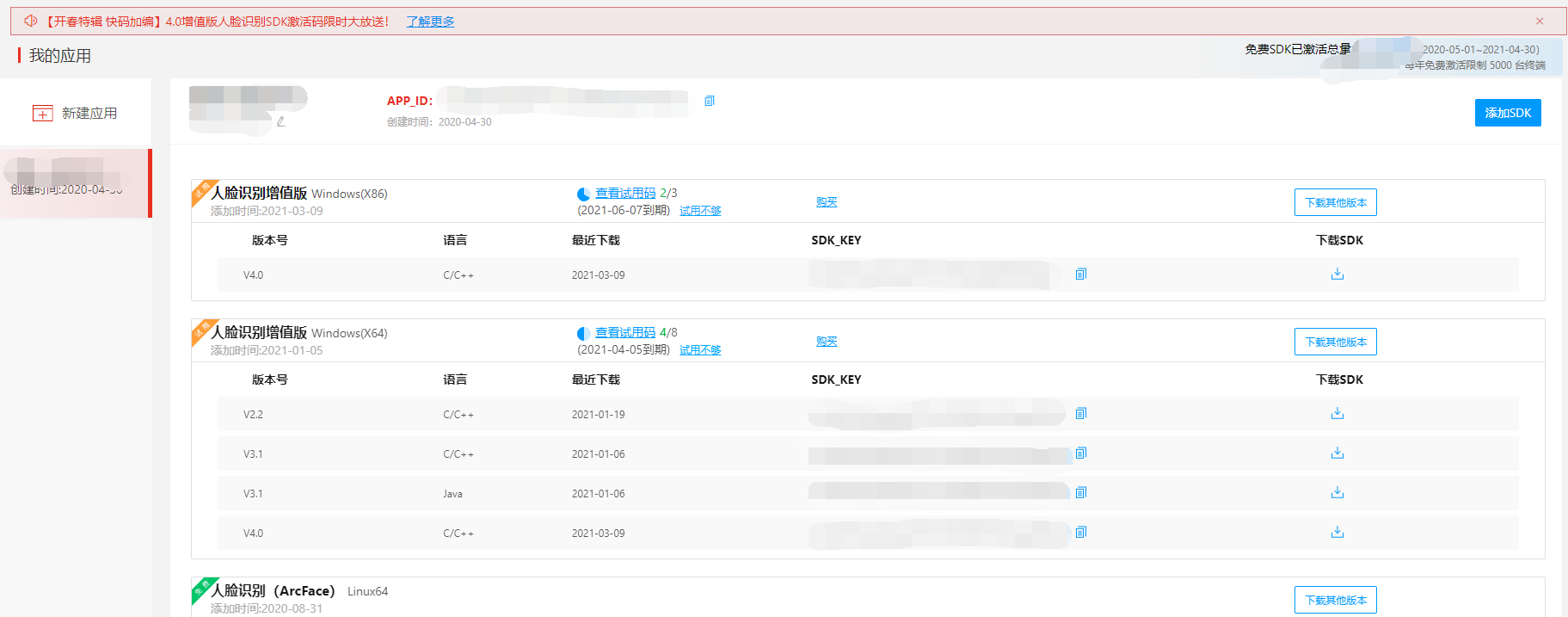

點擊上圖中V4.0版本的下載箭頭可以下載SDK
2、安裝Unity3D及Visual Studio 2019開發環境
1）安裝Unity Hub
訪問https://unity.cn/并下載安裝Unity Hub
2）安裝Unity 2020.3.1f1c1

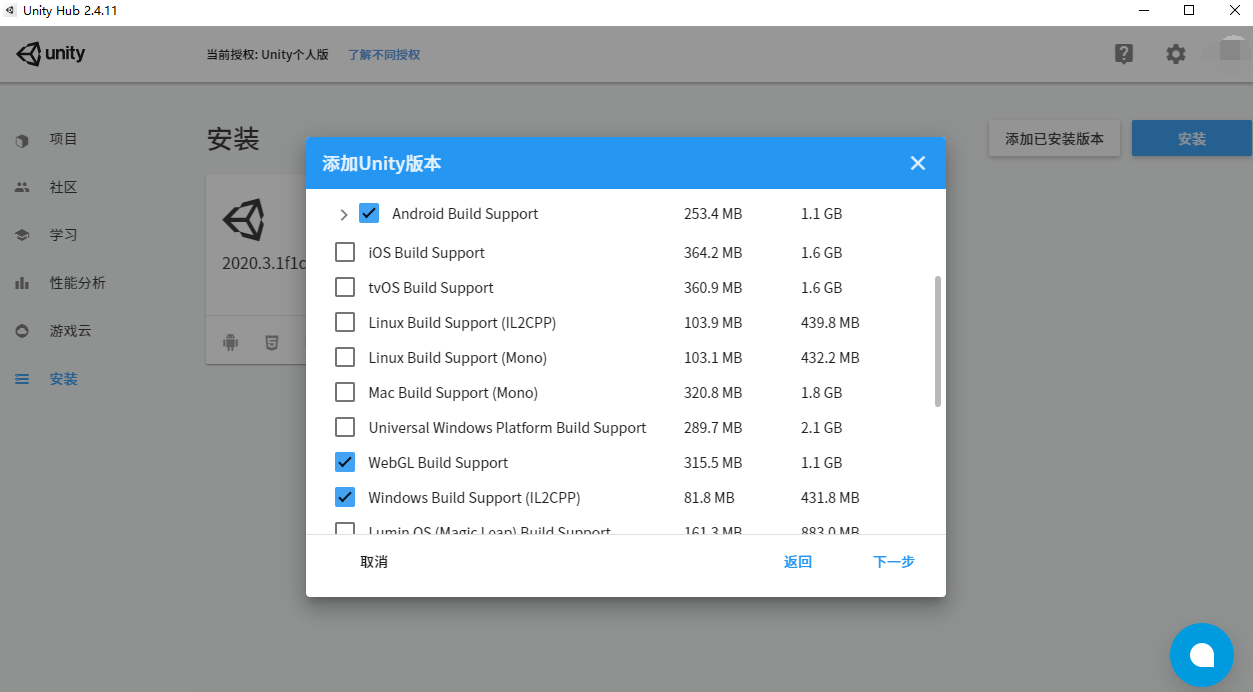

Unity Hub安裝完成后打開，依據下圖內容安裝Unity 2020.3.1f1c1，注意：勾選Visual Studio可以下載VS開發環境！
二、創建DEMO工程
1、創建Unity工程

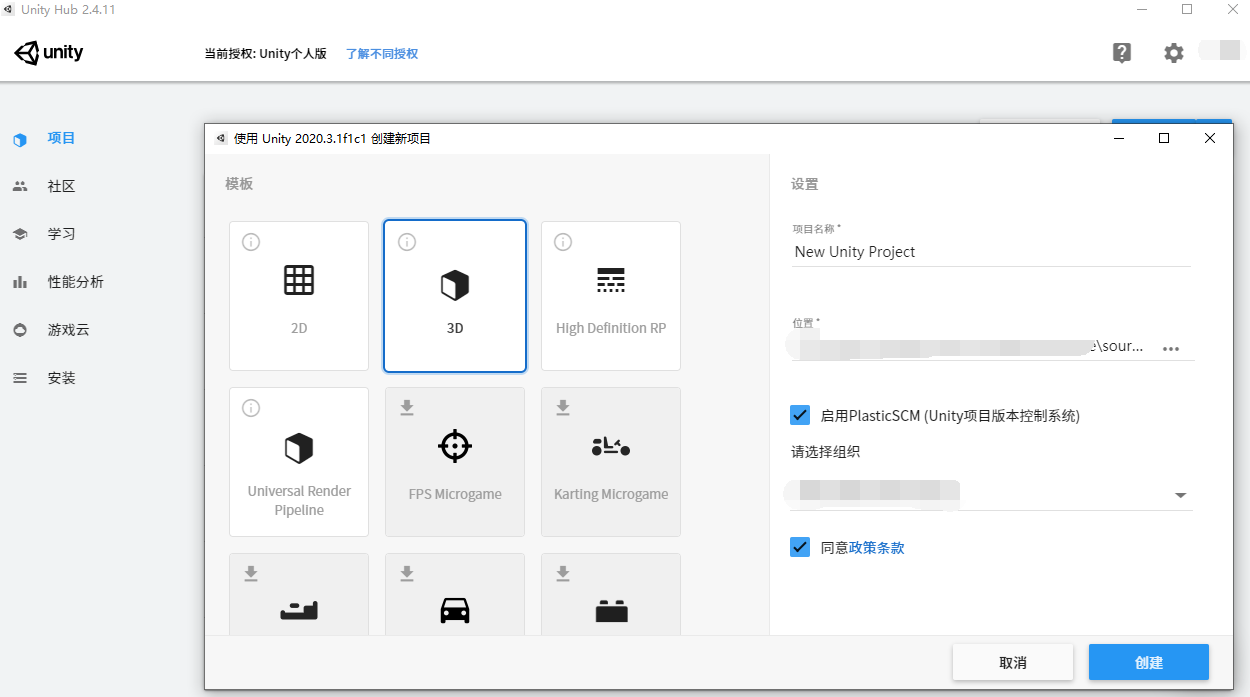

Unity Hub-》專案-》新建-》創建即可完成unity工程的創建
2、引入虹軟人臉識別SDK

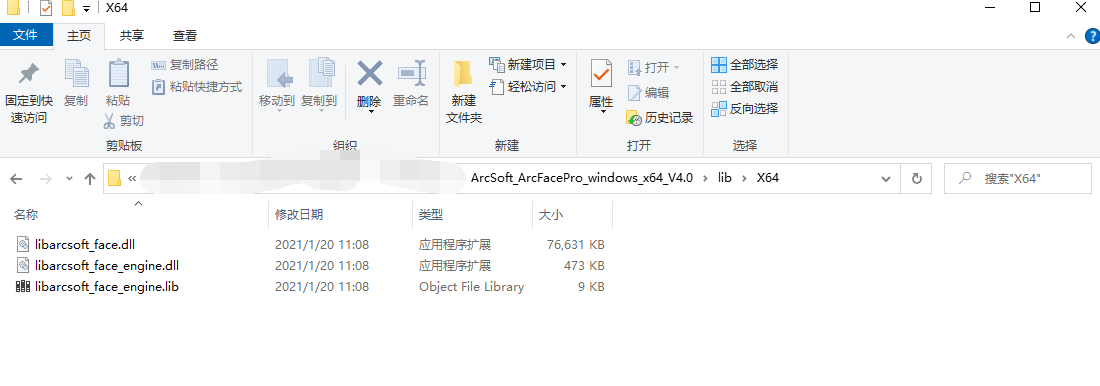

下載完成虹軟人臉識別SDK后解壓-》lib-》X64即可看到libarcsoft_face.dll和libarcsoft_face_engine.dll兩個動態庫檔案

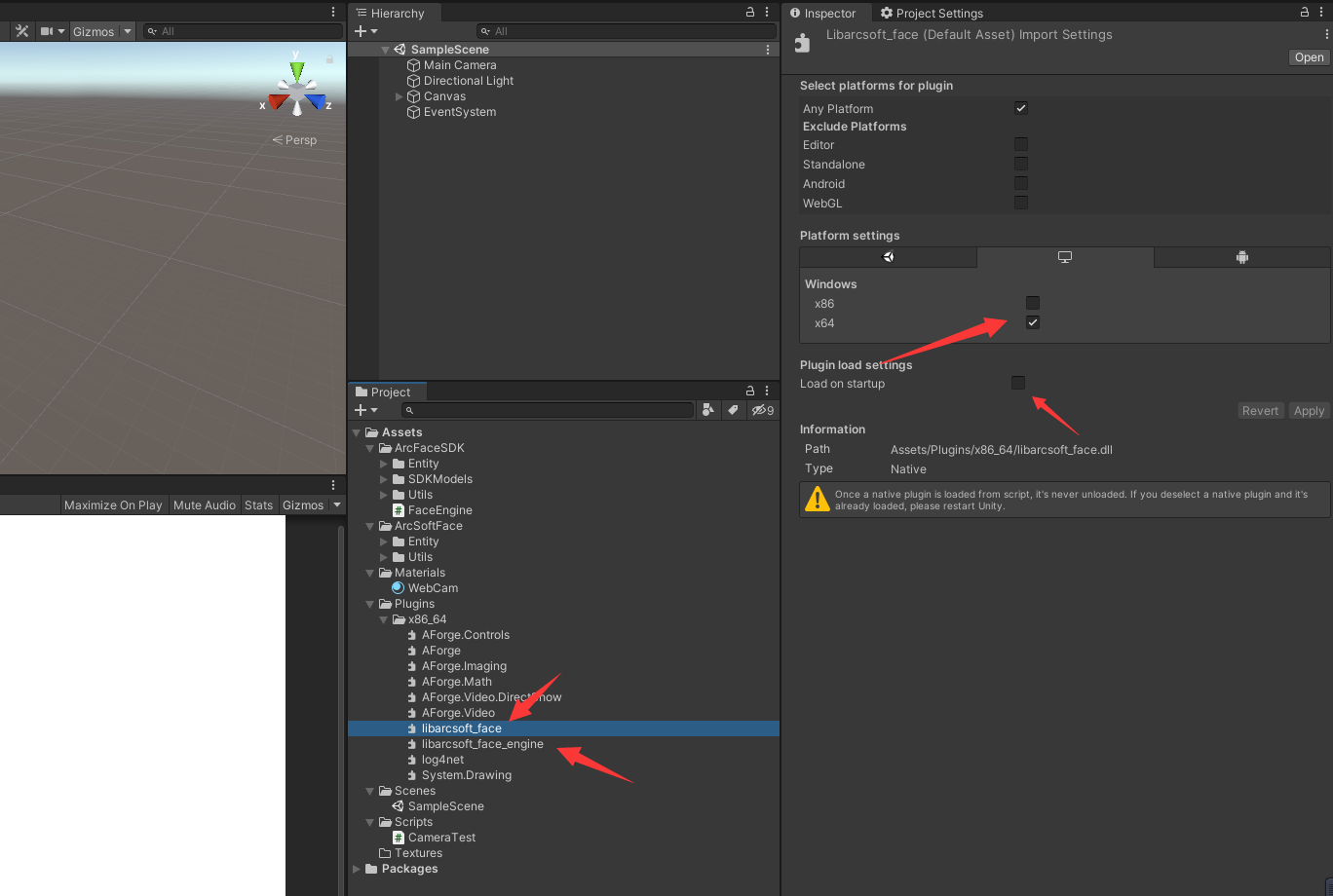

注意：在unity工程的下圖中紅色箭頭標注，32位和64位的Arcface SDK需要分別勾選x86和x64，libarcsoft_face.dll和libarcsoft_face_engine.dll兩個檔案都需要此操作！
3、專案工程目錄說明

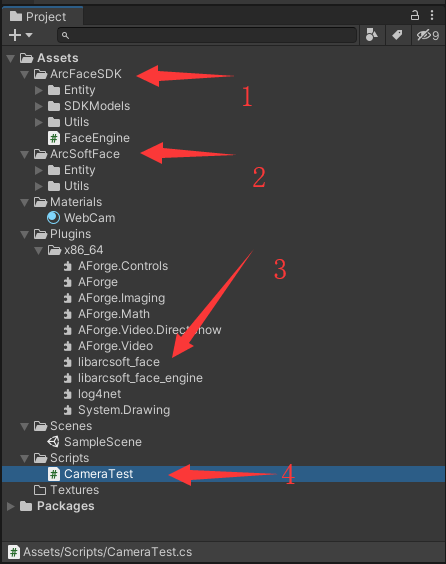

下圖中1、2部分取自官網的VS表單Demo，3部分取自虹軟人臉識別SDK，4部分是在VS表單Demo的基礎上進行修改的類，
三、運行除錯程式
1、虹軟人臉識別SDK在線激活

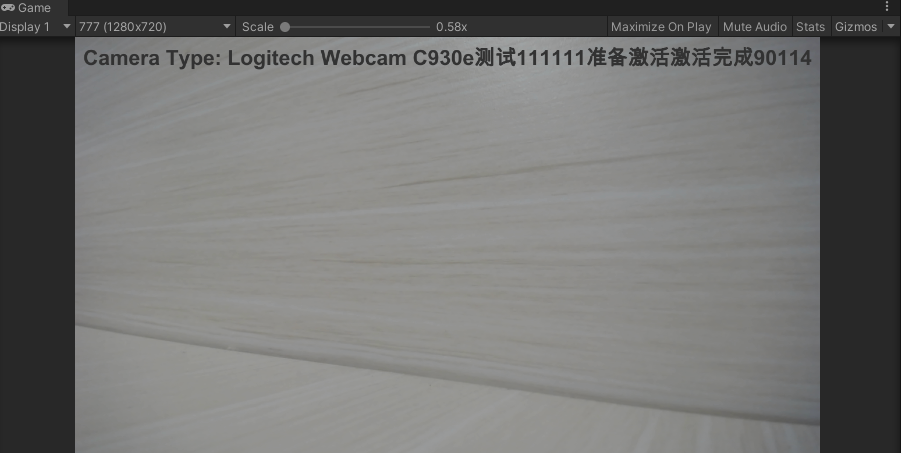

2、可以進行人臉識別
四、核心代碼說明
1、關于System.Drawing.dll缺失的問題說明
注意：如果代碼中只引入libarcsoft_face.dll和libarcsoft_face_engine.dll會報錯System.Drawing.dll檔案丟失
可以在unity的安裝目錄~\2020.3.1f1c1\Editor\Data\MonoBleedingEdge\lib\mono\4.7.1-api\下找到該檔案并復制進入工程內
2、關于Unity中使用選擇.NET版本的說明

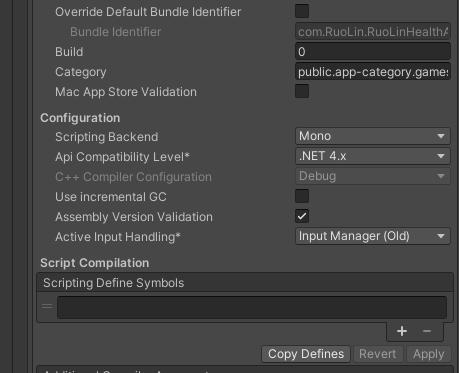

在unity工程的player設定中選擇Scripting Backend位Mono，Api Compatibility Level*為.NET 4.x
3、人臉識別核心代碼分析
1）攝像頭初始化 WebCamTexture.devices
1 public RawImage rawimage; 2 WebCamTexture webCamTexture; 3 4 public Text webCamDisplayText; 5 6 void Start() 7 { 8 WebCamDevice[] cam_devices = WebCamTexture.devices; 9 // for debugging purposes, prints available devices to the console 10 for (int i = 0; i < cam_devices.Length; i++) 11 { 12 print("Webcam available: " + cam_devices[i].name); 13 } 14 15 GoWebCam01(); 16 17 InitEngines(); 18 19 btnStartVideo_Click(new object(), new EventArgs()); 20 } 21 22 //CAMERA 01 SELECT 23 public void GoWebCam01() 24 { 25 WebCamDevice[] cam_devices = WebCamTexture.devices; 26 // for debugging purposes, prints available devices to the console 27 for (int i = 0; i < cam_devices.Length; i++) 28 { 29 print("Webcam available: " + cam_devices[i].name); 30 } 31 32 webCamTexture = new WebCamTexture(cam_devices[0].name, 1280, 720, 30); 33 rawimage.texture = webCamTexture; 34 if (webCamTexture != null) 35 { 36 //webCamTexture.Play(); 37 Debug.Log("Web Cam Connected : " + webCamTexture.deviceName + "\n"); 38 } 39 webCamDisplayText.text = "Camera Type: " + cam_devices[0].name.ToString(); 40 }
2）圖片格式轉換 Texture2D to Image
1 public static Image Texture2Image(Texture2D texture) 2 { 3 if (texture == null) 4 { 5 return null; 6 } 7 //Save the texture to the stream. 8 byte[] bytes = texture.EncodeToPNG(); 9 10 //Memory stream to store the bitmap data. 11 MemoryStream ms = new MemoryStream(bytes); 12 13 //Seek the beginning of the stream. 14 ms.Seek(0, SeekOrigin.Begin); 15 16 //Create an image from a stream. 17 Image bmp2 = Bitmap.FromStream(ms); 18 19 //Close the stream, we nolonger need it. 20 ms.Close(); 21 ms = null; 22 23 return bmp2; 24 }
3）初始化人臉識別庫
注意：此代碼片段中appId sdkKey64 sdkKey32 activeKey64 activeKey32的值需要根據虹軟開發者中心的實際數值進行填寫
1 private void InitEngines() 2 { 3 try 4 { 5 webCamDisplayText.text += "測驗"; 6 7 //讀取組態檔 8 //AppSettingsReader reader = new AppSettingsReader(); 9 //rgbCameraIndex = (int)reader.GetValue("RGB_CAMERA_INDEX", typeof(int)); 10 //irCameraIndex = (int)reader.GetValue("IR_CAMERA_INDEX", typeof(int)); 11 //frMatchTime = (int)reader.GetValue("FR_MATCH_TIME", typeof(int)); 12 //liveMatchTime = (int)reader.GetValue("LIVENESS_MATCH_TIME", typeof(int)); 13 14 AppSettingsReader reader = new AppSettingsReader(); 15 rgbCameraIndex = 0; 16 irCameraIndex = 1; 17 frMatchTime = 20; 18 liveMatchTime = 20; 19 20 int retCode = 0; 21 bool isOnlineActive = true;//true(在線激活) or false(離線激活) 22 try 23 { 24 if (isOnlineActive) 25 { 26 #region 讀取在線激活配置資訊 27 //string appId = (string)reader.GetValue("APPID", typeof(string)); 28 //string sdkKey64 = (string)reader.GetValue("SDKKEY64", typeof(string)); 29 //string sdkKey32 = (string)reader.GetValue("SDKKEY32", typeof(string)); 30 //string activeKey64 = (string)reader.GetValue("ACTIVEKEY64", typeof(string)); 31 //string activeKey32 = (string)reader.GetValue("ACTIVEKEY32", typeof(string)); 32 33 string appId = ""; 34 string sdkKey64 = ""; 35 string sdkKey32 = ""; 36 string activeKey64 = ""; 37 string activeKey32 = ""; 38 39 webCamDisplayText.text += "111111"; 40 41 //判斷CPU位數 42 var is64CPU = Environment.Is64BitProcess; 43 if (string.IsNullOrWhiteSpace(appId) || string.IsNullOrWhiteSpace(is64CPU ? sdkKey64 : sdkKey32) || string.IsNullOrWhiteSpace(is64CPU ? activeKey64 : activeKey32)) 44 { 45 Debug.LogError(string.Format("請在App.config組態檔中先配置APP_ID和SDKKEY{0}、ACTIVEKEY{0}!", is64CPU ? "64" : "32")); 46 //MessageBox.Show(string.Format("請在App.config組態檔中先配置APP_ID和SDKKEY{0}、ACTIVEKEY{0}!", is64CPU ? "64" : "32")); 47 48 //System.Environment.Exit(0); 49 Quit(); 50 } 51 #endregion 52 53 webCamDisplayText.text += "準備激活"; 54 55 //在線激活引擎 如出現錯誤，1.請先確認從官網下載的sdk庫已放到對應的bin中，2.當前選擇的CPU為x86或者x64 56 retCode = imageEngine.ASFOnlineActivation(appId, is64CPU ? sdkKey64 : sdkKey32, is64CPU ? activeKey64 : activeKey32); 57 58 webCamDisplayText.text += "激活完成"; 59 } 60 else 61 { 62 #region 讀取離線激活配置資訊 63 string offlineActiveFilePath = (string)reader.GetValue("OfflineActiveFilePath", typeof(string)); 64 if (string.IsNullOrWhiteSpace(offlineActiveFilePath) || !File.Exists(offlineActiveFilePath)) 65 { 66 string deviceInfo; 67 retCode = imageEngine.ASFGetActiveDeviceInfo(out deviceInfo); 68 if (retCode != 0) 69 { 70 Debug.LogError("獲取設備資訊失敗，錯誤碼:" + retCode); 71 //MessageBox.Show("獲取設備資訊失敗，錯誤碼:" + retCode); 72 } 73 else 74 { 75 File.WriteAllText("ActiveDeviceInfo.txt", deviceInfo); 76 Debug.LogError("獲取設備資訊成功，已保存到運行根目錄ActiveDeviceInfo.txt檔案，請在官網執行離線激活操作，將生成的離線授權檔案路徑在App.config里配置后再重新運行"); 77 //MessageBox.Show("獲取設備資訊成功，已保存到運行根目錄ActiveDeviceInfo.txt檔案，請在官網執行離線激活操作，將生成的離線授權檔案路徑在App.config里配置后再重新運行"); 78 } 79 //System.Environment.Exit(0); 80 Quit(); 81 } 82 #endregion 83 //離線激活 84 retCode = imageEngine.ASFOfflineActivation(offlineActiveFilePath); 85 } 86 if (retCode != 0 && retCode != 90114) 87 { 88 Debug.LogError("激活SDK失敗,錯誤碼:" + retCode); 89 //MessageBox.Show("激活SDK失敗,錯誤碼:" + retCode); 90 //System.Environment.Exit(0); 91 Quit(); 92 } 93 94 webCamDisplayText.text += retCode.ToString(); 95 } 96 catch (Exception ex) 97 { 98 if (ex.Message.Contains("無法加載 DLL")) 99 { 100 Debug.LogError("請將SDK相關DLL放入bin對應的x86或x64下的檔案夾中!"); 101 //MessageBox.Show("請將SDK相關DLL放入bin對應的x86或x64下的檔案夾中!"); 102 } 103 else 104 { 105 Debug.LogError("激活SDK失敗,請先檢查依賴環境及SDK的平臺、版本是否正確!"); 106 //MessageBox.Show("激活SDK失敗,請先檢查依賴環境及SDK的平臺、版本是否正確!"); 107 } 108 //System.Environment.Exit(0); 109 Quit(); 110 } 111 112 //初始化引擎 113 DetectionMode detectMode = DetectionMode.ASF_DETECT_MODE_IMAGE; 114 //Video模式下檢測臉部的角度優先值 115 ASF_OrientPriority videoDetectFaceOrientPriority = ASF_OrientPriority.ASF_OP_ALL_OUT; 116 //Image模式下檢測臉部的角度優先值 117 ASF_OrientPriority imageDetectFaceOrientPriority = ASF_OrientPriority.ASF_OP_ALL_OUT; 118 //最大需要檢測的人臉個數 119 int detectFaceMaxNum = 6; 120 //引擎初始化時需要初始化的檢測功能組合 121 int combinedMask = FaceEngineMask.ASF_FACE_DETECT | FaceEngineMask.ASF_FACERECOGNITION | FaceEngineMask.ASF_AGE | FaceEngineMask.ASF_GENDER | FaceEngineMask.ASF_FACE3DANGLE | FaceEngineMask.ASF_IMAGEQUALITY | FaceEngineMask.ASF_MASKDETECT; 122 //初始化引擎，正常值為0，其他回傳值請參考http://ai.arcsoft.com.cn/bbs/forum.php?mod=viewthread&tid=19&_dsign=dbad527e 123 retCode = imageEngine.ASFInitEngine(detectMode, imageDetectFaceOrientPriority, detectFaceMaxNum, combinedMask); 124 Console.WriteLine("InitEngine Result:" + retCode); 125 AppendText((retCode == 0) ? "圖片引擎初始化成功!" : string.Format("圖片引擎初始化失敗!錯誤碼為:{0}", retCode)); 126 if (retCode != 0) 127 { 128 //禁用相關功能按鈕 129 //ControlsEnable(false, chooseMultiImgBtn, matchBtn, btnClearFaceList, chooseImgBtn); 130 } 131 132 //初始化視頻模式下人臉檢測引擎 133 DetectionMode detectModeVideo = DetectionMode.ASF_DETECT_MODE_VIDEO; 134 int combinedMaskVideo = FaceEngineMask.ASF_FACE_DETECT | FaceEngineMask.ASF_FACERECOGNITION | FaceEngineMask.ASF_FACELANDMARK; 135 retCode = videoEngine.ASFInitEngine(detectModeVideo, videoDetectFaceOrientPriority, detectFaceMaxNum, combinedMaskVideo); 136 AppendText((retCode == 0) ? "視頻引擎初始化成功!" : string.Format("視頻引擎初始化失敗!錯誤碼為:{0}", retCode)); 137 if (retCode != 0) 138 { 139 //禁用相關功能按鈕 140 //ControlsEnable(false, chooseMultiImgBtn, matchBtn, btnClearFaceList, chooseImgBtn); 141 } 142 143 //RGB視頻專用FR引擎 144 combinedMask = FaceEngineMask.ASF_FACE_DETECT | FaceEngineMask.ASF_FACERECOGNITION | FaceEngineMask.ASF_LIVENESS | FaceEngineMask.ASF_MASKDETECT; 145 retCode = videoRGBImageEngine.ASFInitEngine(detectMode, videoDetectFaceOrientPriority, detectFaceMaxNum, combinedMask); 146 AppendText((retCode == 0) ? "RGB處理引擎初始化成功!" : string.Format("RGB處理引擎初始化失敗!錯誤碼為:{0}", retCode)); 147 if (retCode != 0) 148 { 149 //禁用相關功能按鈕 150 //ControlsEnable(false, chooseMultiImgBtn, matchBtn, btnClearFaceList, chooseImgBtn); 151 } 152 //設定活體閾值 153 videoRGBImageEngine.ASFSetLivenessParam(thresholdRgb); 154 155 //IR視頻專用FR引擎 156 combinedMask = FaceEngineMask.ASF_FACE_DETECT | FaceEngineMask.ASF_FACERECOGNITION | FaceEngineMask.ASF_IR_LIVENESS; 157 retCode = videoIRImageEngine.ASFInitEngine(detectModeVideo, videoDetectFaceOrientPriority, detectFaceMaxNum, combinedMask); 158 AppendText((retCode == 0) ? "IR處理引擎初始化成功!\r\n" : string.Format("IR處理引擎初始化失敗!錯誤碼為:{0}\r\n", retCode)); 159 if (retCode != 0) 160 { 161 //禁用相關功能按鈕 162 //ControlsEnable(false, chooseMultiImgBtn, matchBtn, btnClearFaceList, chooseImgBtn); 163 } 164 //設定活體閾值 165 videoIRImageEngine.ASFSetLivenessParam(thresholdRgb, thresholdIr); 166 167 initVideo(); 168 } 169 catch (Exception ex) 170 { 171 LogUtil.LogInfo(GetType(), ex); 172 Debug.LogError("程式初始化例外,請在App.config中修改日志配置,根據日志查找原因!"); 173 //MessageBox.Show("程式初始化例外,請在App.config中修改日志配置,根據日志查找原因!"); 174 175 Quit(); 176 //System.Environment.Exit(0); 177 } 178 }
五、DEMO原始碼下載
鏈接：https://pan.baidu.com/s/1FXs94jbAEseoERpVDzysFA
提取碼：iabc
復制這段內容后打開百度網盤手機App，操作更方便哦
注意：DEMO工程只是實作了攝像頭初始化、采集圖片格式轉換、虹軟人臉在線注冊和人臉特征值實時提取等功能，在使用圖片進行人臉注冊功能時會報錯，未解決！
提供思路：可以將人臉注冊的功能單獨提取并將特征值存入資料庫，然后從unity中讀取特征值進行人臉資料的比對，
