WPF加載高德地圖

2021-06-09 15:00:51 .NET開發

WPF開發者QQ群： 340500857



前言

有小伙伴問如何加載高德地圖，



歡迎轉發、分享、點贊，謝謝大家~，



原始碼中放了我的 BingMap Key 請大家不要濫用，謝謝，

也可以自行申請 BingMap Key

https://www.bingmapsportal.com/

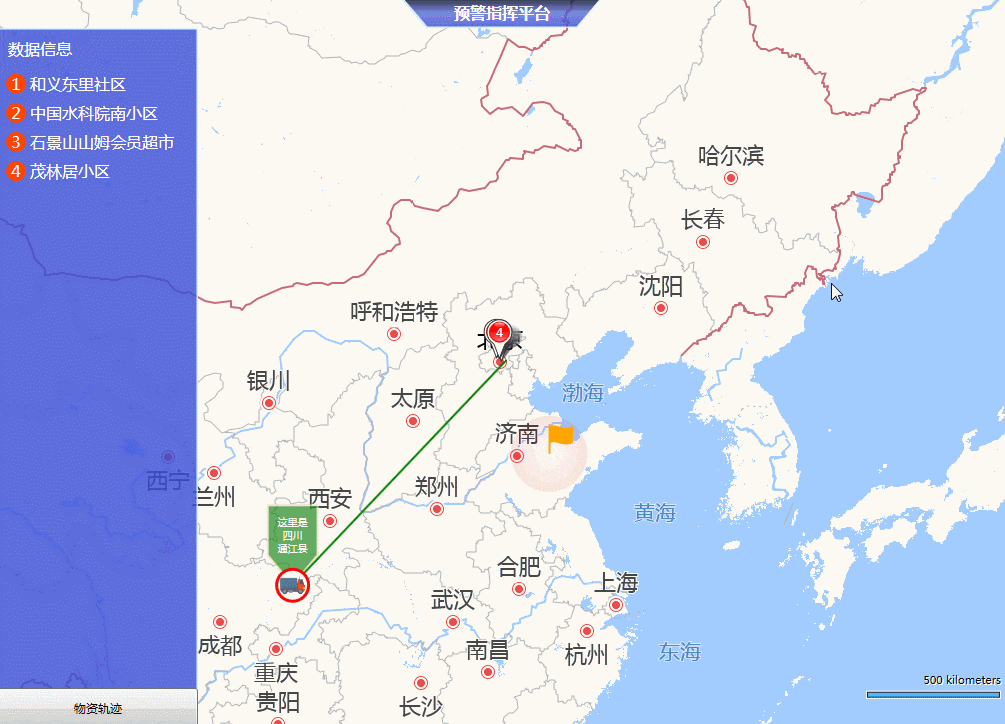

效果預覽（更多效果請下載原始碼體驗）：





一、MainWindow.xaml代碼如下：

<Window x:Class="WpfBingMap.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:map="clr-namespace:Microsoft.Maps.MapControl.WPF;assembly=Microsoft.Maps.MapControl.WPF"
        xmlns:mapOverlays="clr-namespace:Microsoft.Maps.MapControl.WPF.Overlays;assembly=Microsoft.Maps.MapControl.WPF"
        xmlns:PresentationOptions="http://schemas.microsoft.com/winfx/2006/xaml/presentation/options"
        xmlns:local="clr-namespace:WpfBingMap"
        mc:Ignorable="d"
        Title="地圖" Width="1024" Height="768">
    <Window.Resources>
        <LinearGradientBrush x:Key="MainColor" EndPoint="0.5,1" StartPoint="0.5,0">
            <GradientStop Color="#FF020621" Offset="0"/>
            <GradientStop Color="#FF364BD8" Offset="1"/>
            <GradientStop Color="#FF5A6BD8" Offset="0.499"/>
        </LinearGradientBrush>
        <ControlTemplate x:Key="CarTemplate" TargetType="map:Pushpin">
            <Grid ToolTip="物資車輛">
                <Ellipse Width="35" Height="35" Fill="White" StrokeThickness="3" Stroke="Red"/>
                <Image Source="Images/Car/Car2.png" Width="25" Height="25"/>
            </Grid>

        </ControlTemplate>

        <Geometry x:Key="PathFlag" PresentationOptions:Freeze="True">M687.5 125C500 125 375 13.7 187.5 62.5V31.3C187.5 31.3 187.5 0 156.3 0C125 0 125 31.3 125 31.3V1000H187.5V625C375 562.5 500 687.5 687.5 687.5C875 687.5 937.5 625 937.5 625V62.5C937.5 62.5 875 125 687.5 125Z</Geometry>
        <SineEase x:Key="SineOut" EasingMode="EaseOut" />

        <Storyboard x:Key="AnimateRound" RepeatBehavior="Forever">
            <DoubleAnimation Storyboard.TargetProperty="ScaleX" Storyboard.TargetName="Scale"
                             Duration="0:0:01" To="2"
                             EasingFunction="{StaticResource SineOut}" />
            <DoubleAnimation Storyboard.TargetProperty="ScaleY" Storyboard.TargetName="Scale"
                             Duration="0:0:01" To="2"
                             EasingFunction="{StaticResource SineOut}" />
            <DoubleAnimation Storyboard.TargetProperty="Opacity"
                             Duration="0:0:01" To="0"
                             EasingFunction="{StaticResource SineOut}" />
        </Storyboard>
        <Style x:Key="alarmStyle" TargetType="map:Pushpin">
            <Setter Property="PositionOrigin" Value=https://www.cnblogs.com/yanjinhua/p/"Center"/>
            <Setter Property="Width" Value=https://www.cnblogs.com/yanjinhua/p/"60"/>
            <Setter Property="Height" Value=https://www.cnblogs.com/yanjinhua/p/"60"/>
            <Setter Property="Template">
                <Setter.Value>
                    <ControlTemplate TargetType="map:Pushpin">
                        <Grid>
                            <Ellipse Height="40" Width="40" Fill="Red" RenderTransformOrigin="0.5,0.5">
                                <Ellipse.OpacityMask>
                                    <RadialGradientBrush>
                                        <GradientStop Offset="0" Color="Transparent" />
                                        <GradientStop Offset="1" Color="Black" />
                                    </RadialGradientBrush>
                                </Ellipse.OpacityMask>
                                <Ellipse.RenderTransform>
                                    <ScaleTransform x:Name="Scale"/>
                                </Ellipse.RenderTransform>
                                <Ellipse.Triggers>
                                    <EventTrigger RoutedEvent="Loaded">
                                        <BeginStoryboard Storyboard="{StaticResource AnimateRound}">
                                        </BeginStoryboard>
                                    </EventTrigger>
                                </Ellipse.Triggers>
                            </Ellipse>
                            <Viewbox Width="30" Height="30"
                                     VerticalAlignment="Top"
                                     HorizontalAlignment="Center"
                                     Margin="20,0,0,0">
                                <Path Data=https://www.cnblogs.com/yanjinhua/p/"{StaticResource PathFlag}" Fill="Orange"/>
                            </Viewbox>
                        </Grid>
                    </ControlTemplate>
                </Setter.Value>
            </Setter>
</Style>
    </Window.Resources>
    <Grid>
        <map:Map x:Name="map" ZoomLevel="5" Center="39.9132801985722,116.392009995601"
                  CredentialsProvider="AgXB7m7fVYxKpjEZV9rGdrRPvLgawYhi4Wvw99kk4RDspoalC3B_vQ8GKJAoxrve">
            <map:Map.Mode>
                <map:MercatorMode/>
            </map:Map.Mode>
            <!--<local:OpenstreetmapTileLayer UriFormat="https://tile.openstreetmap.org/{z}/{x}/{y}.png"/>-->
            <local:AMapTitleLayer/>
            <map:MapItemsControl ItemsSource="{Binding PushpinArray,RelativeSource={RelativeSource AncestorType=local:MainWindow}}">
                <map:MapItemsControl.ItemTemplate>
                    <DataTemplate>
                        <map:Pushpin Location="{Binding Location}" Cursor="Hand"
                                     MouseDown="Pushpin_MouseDown"
                                     ToolTip="{Binding Title}"
                                         Background="Red">
                            <TextBlock Text="{Binding ID}"/>
                        </map:Pushpin>
                    </DataTemplate>
                </map:MapItemsControl.ItemTemplate>
            </map:MapItemsControl>
            <map:Pushpin Location="36.6797276003243,118.495410536117" Style="{StaticResource alarmStyle}"/>
            <Canvas Width="50" Height="80"
              map:MapLayer.Position="31.9121578992881,107.233555852083"
              map:MapLayer.PositionOrigin="BottomCenter" Opacity="0.7">
                <Path Data=https://www.cnblogs.com/yanjinhua/p/"M 0,0 L 50,0 50,50 25,80 0,50 0,0" Fill="ForestGreen" Stroke="Wheat" StrokeThickness="2" />
                <TextBlock FontSize="10" Foreground="White" Padding="10" TextAlignment="Center">
                        這里是 <LineBreak />
                        四川 <LineBreak />
                        通江縣 <LineBreak />
                </TextBlock>
            </Canvas>
            <map:MapLayer x:Name="CarLayer"/>
        </map:Map>

        <DockPanel>
            <Grid DockPanel.Dock="Top">
                <!--<Rectangle Width="400" Height="60" RenderTransformOrigin="0.5,0.5">
                    <Rectangle.RenderTransform>
                        <SkewTransform AngleX="40"/>
                    </Rectangle.RenderTransform>

                    <Rectangle.Fill>
                        <LinearGradientBrush EndPoint="0.5,1" StartPoint="0.5,0">
                            <GradientStop Color="#FF020621" Offset="0"/>
                            <GradientStop Color="#FF364BD8" Offset="1"/>
                            <GradientStop Color="#FF5A6BD8" Offset="0.499"/>
                        </LinearGradientBrush>
                    </Rectangle.Fill>
                </Rectangle>-->
                <Path Data=https://www.cnblogs.com/yanjinhua/p/"M75.811064,0 L275.81107,0 275.81107,39.999999 267.12714,39.999999 267.12798,40.000499 67.127973,40.000499 0,0.00050140842 75.811064,0.00050140842 z"
              Width="200" Height="30" Stretch="Fill" Opacity=".8" Stroke="#FFCCFEFF" StrokeThickness="1.5" Fill="{StaticResource MainColor}">
                    <Path.RenderTransform>
                        <SkewTransform AngleX="-40"/>
                    </Path.RenderTransform>
                </Path>
                <TextBlock Text="預警指揮平臺" Foreground="White"
                           VerticalAlignment="Center" HorizontalAlignment="Center"
                           FontSize="16" FontWeight="Black"/>
            </Grid>
            <Grid DockPanel.Dock="Left" Width="200"
                  HorizontalAlignment="Left" >
                <Grid.RowDefinitions>
                    <RowDefinition Height="Auto"/>
                    <RowDefinition/>
                    <RowDefinition Height="Auto"/>
                </Grid.RowDefinitions>
                <Rectangle Grid.RowSpan="3" Fill="#FF364BD8" Opacity=".8" Stroke="#FFCCFEFF" StrokeThickness="1.5"/>
                <TextBlock Text="資料資訊" FontSize="16" Foreground="White" Margin="10,10,0,0"/>
                <ItemsControl ItemsSource="{Binding PushpinArray,RelativeSource={RelativeSource AncestorType=local:MainWindow}}"
                              Margin="4,10" Grid.Row="1">
                    <ItemsControl.ItemTemplate>
                        <DataTemplate>
                            <Grid Margin="4" x:Name="PART_Grid"
                                  MouseLeftButtonDown="PART_Grid_MouseLeftButtonDown"
                                  Tag="{Binding ID}">
                                <Grid.Resources>
                                    <Style TargetType="TextBlock">
                                        <Setter Property="Foreground" Value=https://www.cnblogs.com/yanjinhua/p/"White"/>
                                        <Setter Property="FontSize" Value=https://www.cnblogs.com/yanjinhua/p/"16"/>
</Style>
                                </Grid.Resources>
                                <Grid.ColumnDefinitions>
                                    <ColumnDefinition Width="Auto"/>
                                    <ColumnDefinition/>
                                </Grid.ColumnDefinitions>
                                <Ellipse Width="20" Height="20" Fill="OrangeRed"/>
                                <TextBlock Text="{Binding ID}" HorizontalAlignment="Center"/>
                                <TextBlock Margin="4,0" Grid.Column="1" Text="{Binding Title}"/>
                            </Grid>
                            <DataTemplate.Triggers>
                                <Trigger Property="IsMouseOver" Value=https://www.cnblogs.com/yanjinhua/p/"True">
                                    <Setter Property="Background" TargetName="PART_Grid" Value=https://www.cnblogs.com/yanjinhua/p/"#FF020621"/>
                                </Trigger>
                            </DataTemplate.Triggers>
                        </DataTemplate>
                    </ItemsControl.ItemTemplate>
                </ItemsControl>
                <Button Content="物資軌跡" Click="BtnCar_Click" Grid.Row="2" Height="40"/>
            </Grid>
        </DockPanel>
    </Grid>
</Window>

二、MainWindow.xaml.cs代碼如下：

/**
 * 作者閆驚鏵
 * https://github.com/yanjinhuagood/WPFDevelopers.git
 * **/

using Microsoft.Maps.MapControl.WPF;
using System;
using System.Collections;
using System.Collections.Generic;
using System.Collections.ObjectModel;
using System.IO;
using System.Linq;
using System.Text;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Data;
using System.Windows.Documents;
using System.Windows.Input;
using System.Windows.Media;
using System.Windows.Media.Animation;
using System.Windows.Media.Imaging;
using System.Windows.Navigation;
using System.Windows.Shapes;
using System.Windows.Threading;

/*
 *
 * 39.0654365763652,115.513103745601,0
38.5861378332358,114.897869370601,0
38.0690298850334,114.238689683101,0
37.4436424646135,113.491619370601,0
36.8833163124675,112.832439683101,0
36.6015984304246,112.480877183101,0
36.2125510101126,112.041424058101,0

35.6074752751952,111.426189683101,0

34.9977887035825,110.591228745601,0
34.456028305434,109.932049058101,0
33.9836399832877,109.580486558101,0
33.5086116028286,108.965252183101,0
33.1046158275268,108.525799058101,0

32.6617655474571,108.042400620601,0
32.179523137361,107.515056870601,0

 * **/

namespace WpfBingMap
{
    /// <summary>
    /// MainWindow.xaml 的互動邏輯
    /// </summary>
    public partial class MainWindow : Window
    {
        private LocationCollection _polyLocations;
        private MapPolyline mapPolyline;
        private Pushpin carPushpin;
        private DispatcherTimer dispatcherTimer;
        private List<Location> locations;

        public IEnumerable PushpinArray
        {
            get { return (IEnumerable)GetValue(PushpinArrayProperty); }
            set { SetValue(PushpinArrayProperty, value); }
        }

        public static readonly DependencyProperty PushpinArrayProperty =
            DependencyProperty.Register("PushpinArray", typeof(IEnumerable), typeof(MainWindow), new PropertyMetadata(null));


        public MainWindow()
        {
            InitializeComponent();
            //this.map.Mode = new MercatorMode();
            //this.map.Children.Add(new AMapTitleLayer());
            //this.map.MouseDown += Map_MouseDown;
            var pushpins = new List<PushpinModel>();
            pushpins.Add(new PushpinModel { ID=1, Location = new Location(39.8151940395589, 116.411970893135),Title="和義東里社區" });
            pushpins.Add(new PushpinModel { ID = 2, Location = new Location(39.9094878843105, 116.33299936282) ,Title="中國水科院南小區"});
            pushpins.Add(new PushpinModel { ID = 3, Location = new Location(39.9219204792284, 116.203500574855),Title="石景山山姆會員超市" });
            pushpins.Add(new PushpinModel { ID = 4, Location = new Location(39.9081417418219, 116.331244439925), Title = "茂林居小區" });
            PushpinArray = pushpins;

             _polyLocations = new LocationCollection();
            //_polyLocations.Add(new Location(39.9082973053021, 116.63105019548));
            //_polyLocations.Add(new Location(39.9155572462212, 116.192505993178));
            //_polyLocations.Add(new Location(39.8065773542251, 116.276113341099));
            _polyLocations.Add(new Location(39.9082973053021, 116.63105019548));
            _polyLocations.Add(new Location(31.9121578992881, 107.233555852083));

            mapPolyline = new MapPolyline
            {
                Stroke = Brushes.Green,
                StrokeThickness = 2,
                Locations = _polyLocations,
            };
            CarLayer.Children.Add(mapPolyline);

            carPushpin = new Pushpin
            {
                Template = this.Resources["CarTemplate"] as ControlTemplate,
                //Location = new Location(39.9082973053021, 116.63105019548),//_polyLocations[0],
                Location = new Location(31.9121578992881, 107.233555852083),
                PositionOrigin = PositionOrigin.Center,
            };

            CarLayer.Children.Add(carPushpin);

            dispatcherTimer = new DispatcherTimer();
            dispatcherTimer.Interval = TimeSpan.FromSeconds(1.5);
            dispatcherTimer.Tick += DispatcherTimer_Tick;

        }
        int index = 0;
        private void DispatcherTimer_Tick(object sender, EventArgs e)
        {
            //carPushpin.Location = carPushpin.Location
            //var currtLocation = carPushpin.Location;
            //if (currtLocation == _polyLocations[1])
            //{
            //    dispatcherTimer.Stop();
            //    return;
            //}

            //currtLocation.Longitude = currtLocation.Longitude - 0.233555852083;
            //currtLocation.Latitude = currtLocation.Latitude - 0.9121578992881;
            //map.Center = currtLocation;
            //map.ZoomLevel = 16;
            if (index < 0)
            {
                index = locations.Count - 1;
                dispatcherTimer.Stop();
                return;
            }
            carPushpin.Location = locations[index];
            index--;
            //map.Center = carPushpin.Location;
        }

        private void BtnCar_Click(object sender, RoutedEventArgs e)
        {
            locations = new List<Location>();
            locations.Add(new Location(39.9082973053021, 116.63105019548));
            locations.Add(new Location(39.0654365763652, 115.513103745601));
            locations.Add(new Location(38.5861378332358, 114.897869370601));
            locations.Add(new Location(38.0690298850334, 114.238689683101));
            locations.Add(new Location(37.4436424646135, 113.491619370601));
            locations.Add(new Location(36.8833163124675, 112.832439683101));
            locations.Add(new Location(36.6015984304246, 112.480877183101));
            locations.Add(new Location(36.2125510101126, 112.041424058101));
            locations.Add(new Location(35.6074752751952, 111.426189683101));
            locations.Add(new Location(34.9977887035825, 110.591228745601));
            locations.Add(new Location(34.456028305434, 109.932049058101));
            locations.Add(new Location(33.9836399832877, 109.580486558101));
            locations.Add(new Location(33.5086116028286, 108.965252183101));
            locations.Add(new Location(33.1046158275268, 108.525799058101));
            locations.Add(new Location(32.6617655474571, 108.042400620601));
            locations.Add(new Location(32.179523137361, 107.515056870601));
            locations.Add(new Location(31.9121578992881, 107.233555852083));
            index = locations.Count - 1;
            dispatcherTimer.Start();
            //var tt = Enumerable.Range((int)_polyLocations[1].Latitude, (int)_polyLocations[0].Latitude).ToList();
            //for (int i = 0; i < tt.Count(); i++)
            //{
            //    Console.WriteLine(tt[i]);
            //}

        }
        private void Map_MouseDown(object sender, MouseButtonEventArgs e)
        {
            Point mousePosition = e.GetPosition(this);
            Location pinLocation = this.map.ViewportPointToLocation(mousePosition);

            Console.WriteLine(pinLocation);

        }

        private void Pushpin_MouseDown(object sender, MouseButtonEventArgs e)
        {
            var model = sender as Pushpin;
            map.Center = model.Location;
            map.ZoomLevel = 16;
        }

        private void PART_Grid_MouseLeftButtonDown(object sender, MouseButtonEventArgs e)
        {
            var grid = sender as Grid;
            var model = PushpinArray.OfType<PushpinModel>().FirstOrDefault(x=>x.ID.Equals(grid.Tag));
            map.Center = model.Location;
            map.ZoomLevel = 16;
        }


    }
    public class PushpinModel
    {
        public Location Location { get; set; }
        public int ID { get; set; }
        public string Title { get; set; }
    }
    //public class OpenstreetmapTileSource: TileSource
    //{
    //    public override Uri GetUri(int x, int y, int zoomLevel)
    //    {
    //        //var url = string.Format("https://www.openstreetmap.org/#map={z}/{x}/{y}",zoomLevel,x,y);
    //        //return new Uri(url, UriKind.Absolute);
    //        var uri= new Uri(UriFormat.
    //                   Replace("{x}", x.ToString()).
    //                   Replace("{y}", y.ToString()).
    //                   Replace("{z}", zoomLevel.ToString()));
    //        Console.WriteLine(uri);
    //        return uri;
    //    }
    //}
    //public class OpenstreetmapTileLayer : MapTileLayer
    //{
    //    public OpenstreetmapTileLayer()
    //    {
    //        TileSource = new OpenstreetmapTileSource();
    //    }

    //    public string UriFormat
    //    {
    //        get { return TileSource.UriFormat; }
    //        set { TileSource.UriFormat = value; }
    //    }
    //}
    public class AMapTitleLayer : MapTileLayer
    {
        public AMapTitleLayer()
        {
            TileSource = new AMapTileSource();
        }

        public string UriFormat
        {
            get { return TileSource.UriFormat; }
            set { TileSource.UriFormat = value; }
        }
    }
    public class AMapTileSource: TileSource
    {
        public override Uri GetUri(int x, int y, int zoomLevel)
        {
            //string url = "https://webrd01.is.autonavi.com/appmaptile?lang=zh_cn&size=1&scale=1&style=8&x=" + x + "&y=" + y + "&z=" + zoomLevel;
            //https://www.amap.com/service/regeo?longitude=115.975052&latitude=39.778747
            //string url = "https://wprd01.is.autonavi.com/appmaptile?x=" + x + "&y=" + y + "&z=" + zoomLevel + "&lang=zh_cn&size=1&scale=1&style=8";
            string url = string.Format("http://wprd01.is.autonavi.com/appmaptile?x={0}&y={1}&z={2}&lang=zh_cn&size=1&scl=1&style=7",x,y,zoomLevel);
            return new Uri(url, UriKind.Absolute);
        }
    }


}

 更多教程歡迎關注微信公眾號：

WPF開發者QQ群： 340500857

blogs： https://www.cnblogs.com/yanjinhua/p/14345136.html

原始碼Github：https://github.com/yanjinhuagood/WPFDevelopers.git

作者：驚鏵

轉載請註明出處，本文鏈接：https://www.uj5u.com/net/285417.html

標籤：WPF

上一篇：WPF -- 應用啟動慢問題

下一篇：Win32Api -- 回到Windows桌面

標籤雲
其他(157675) Python(38076) JavaScript(25376) Java(17977) C(15215) 區塊鏈(8255) C＃(7972) AI(7469) 爪哇(7425) MySQL(7132) html(6777) 基礎類(6313) sql(6102) 熊猫(6058) PHP(5869) 数组(5741) R(5409) Linux(5327) 反应(5209) 腳本語言(PerlPython)(5129) 非技術區(4971) Android(4554) 数据框(4311) css(4259) 节点.js(4032) C語言(3288) json(3245) 列表(3129) 扑(3119) C++語言(3117) 安卓(2998) 打字稿(2995) VBA(2789) Java相關(2746) 疑難問題(2699) 细绳(2522) 單片機工控(2479) iOS(2429) ASP.NET(2402) MongoDB(2323) 麻木的(2285) 正则表达式(2254) 字典(2211) 循环(2198) 迅速(2185) 擅长(2169) 镖(2155) 功能(1967) .NET技术(1958) Web開發(1951) python-3.x(1918) HtmlCss(1915) 弹簧靴(1913) C++(1909) xml(1889) PostgreSQL(1872) .NETCore(1853) 谷歌表格(1846) Unity3D(1843) for循环(1842)

熱門瀏覽
  • WebAPI簡介

    Web體系結構： 有三個核心：資源(resource)，URL(統一資源識別符號)和表示 他們的關系是這樣的：一個資源由一個URL進行標識，HTTP客戶端使用URL定位資源，表示是從資源回傳資料，媒體型別是資源回傳的資料格式。 接下來我們說下HTTP. HTTP協議的系統是一種無狀態的方式，使用請求/ ......

    uj5u.com 2020-09-09 22:07:47 more
  • asp.net core 3.1 入口：Program.cs中的Main函式

    本文分析Program.cs 中Main()函式中代碼的運行順序分析asp.net core程式的啟動，重點不是剖析原始碼，而是理清程式開始時執行的順序。到呼叫了哪些實體，哪些法方。asp.net core 3.1 的程式入口在專案Program.cs檔案里，如下。ususing System; us ......

    uj5u.com 2020-09-09 22:07:49 more
  • asp.net網站作為websocket服務端的應用該如何寫

    最近被websocket的一個問題困擾了很久，有一個需求是在web網站中搭建websocket服務。客戶端通過網頁與服務器建立連接，然后服務器根據ip給客戶端網頁發送資訊。 其實，這個需求并不難，只是剛開始對websocket的內容不太了解。上網搜索了一下，有通過asp.net core 實作的、有 ......

    uj5u.com 2020-09-09 22:08:02 more
  • ASP.NET 開源匯入匯出庫Magicodes.IE Docker中使用

    Magicodes.IE在Docker中使用 更新歷史 2019.02.13 【Nuget】版本更新到2.0.2 【匯入】修復單列匯入的Bug，單元測驗“OneColumnImporter_Test”。問題見（https://github.com/dotnetcore/Magicodes.IE/is ......

    uj5u.com 2020-09-09 22:08:05 more
  • 在webform中使用ajax

    如果你用過Asp.net webform， 說明你也算是.NET 開發的老兵了。WEBform應該是2011 2013左右，當時還用visual studio 2005、 visual studio 2008。后來基本都用的是MVC。 如果是新開發的專案，估計沒人會用webform技術。但是有些舊版 ......

    uj5u.com 2020-09-09 22:08:50 more
  • iis添加asp.net網站，訪問提示：由于擴展配置問題而無法提供您請求的

    今天在iis服務器配置asp.net網站，遇到一個問題，記錄一下： 問題：由于擴展配置問題而無法提供您請求的頁面。如果該頁面是腳本，請添加處理程式。如果應下載檔案，請添加 MIME 映射。 WindowServer2012服務器，添加角色安裝完.netframework和iis之后，運行aspx頁面 ......

    uj5u.com 2020-09-09 22:10:00 more
  • WebAPI-處理架構

    帶著問題去思考，大家好！ 問題1：HTTP請求和回傳相應的HTTP回應資訊之間發生了什么？ 1：首先是最底層，托管層，位于WebAPI和底層HTTP堆疊之間 2：其次是 訊息處理程式管道層，這里比如日志和快取。OWIN的參考是將訊息處理程式管道的一些功能下移到堆疊下端的OWIN中間件了。 3：控制器處理 ......

    uj5u.com 2020-09-09 22:11:13 more
  • 微信門戶開發框架-使用指導說明書

    微信門戶應用管理系統，采用基于 MVC + Bootstrap + Ajax + Enterprise Library的技術路線，界面層采用Boostrap + Metronic組合的前端框架，資料訪問層支持Oracle、SQLServer、MySQL、PostgreSQL等資料庫。框架以MVC5，... ......

    uj5u.com 2020-09-09 22:15:18 more
  • WebAPI-HTTP編程模型

    帶著問題去思考，大家好！它是什么？它包含什么？它能干什么？ 訊息 HTTP編程模型的核心就是訊息抽象，表示為：HttPRequestMessage,HttpResponseMessage.用于客戶端和服務端之間交換請求和回應訊息。 HttpMethod類包含了一組靜態屬性： private stat ......

    uj5u.com 2020-09-09 22:15:23 more
  • 部署WebApi隨筆

    一、跨域 NuGet參考Microsoft.AspNet.WebApi.Cors WebApiConfig.cs中配置： // Web API 配置和服務 config.EnableCors(new EnableCorsAttribute("*", "*", "*")); 二、清除默認回傳XML格式 ......

    uj5u.com 2020-09-09 22:15:48 more
最新发布
  • C#多執行緒學習(二) 如何操縱一個執行緒

    <a href="https://www.cnblogs.com/x-zhi/" target="_blank"><img width="48" height="48" class="pfs" src="https://pic.cnblogs.com/face/2943582/20220801082530.png" alt="" /></...

    uj5u.com 2023-04-19 09:17:20 more
  • C#多執行緒學習(二) 如何操縱一個執行緒

    C#多執行緒學習(二) 如何操縱一個執行緒 執行緒學習第一篇：C#多執行緒學習(一) 多執行緒的相關概念 下面我們就動手來創建一個執行緒，使用Thread類創建執行緒時，只需提供執行緒入口即可。（執行緒入口使程式知道該讓這個執行緒干什么事） 在C#中，執行緒入口是通過ThreadStart代理（delegate）來提供的 ......

    uj5u.com 2023-04-19 09:16:49 more
  • 記一次 .NET某醫療器械清洗系統 卡死分析

    <a href="https://www.cnblogs.com/huangxincheng/" target="_blank"><img width="48" height="48" class="pfs" src="https://pic.cnblogs.com/face/214741/20200614104537.png" alt="" /&g...

    uj5u.com 2023-04-18 08:39:04 more
  • 記一次 .NET某醫療器械清洗系統 卡死分析

    一：背景 1. 講故事 前段時間協助訓練營里的一位朋友分析了一個程式卡死的問題，回過頭來看這個案例比較經典，這篇稍微整理一下供后來者少踩坑吧。 二：WinDbg 分析 1. 為什么會卡死 因為是表單程式，理所當然就是看主執行緒此時正在做什么? 可以用 ~0s ; k 看一下便知。 0:000> k # ......

    uj5u.com 2023-04-18 08:33:10 more
  • SignalR, No Connection with that ID，IIS

    <a href="https://www.cnblogs.com/smartstar/" target="_blank"><img width="48" height="48" class="pfs" src="https://pic.cnblogs.com/face/u36196.jpg" alt="" /></a>...

    uj5u.com 2023-03-30 17:21:52 more
  • 一次對pool的誤用導致的.net頻繁gc的診斷分析

    <a href="https://www.cnblogs.com/dotnet-diagnostic/" target="_blank"><img width="48" height="48" class="pfs" src="https://pic.cnblogs.com/face/3115652/20230225090434.png" alt=""...

    uj5u.com 2023-03-28 10:15:33 more
  • 一次對pool的誤用導致的.net頻繁gc的診斷分析

    <a href="https://www.cnblogs.com/dotnet-diagnostic/" target="_blank"><img width="48" height="48" class="pfs" src="https://pic.cnblogs.com/face/3115652/20230225090434.png" alt=""...

    uj5u.com 2023-03-28 10:13:31 more
  • C#遍歷指定檔案夾中所有檔案的3種方法

    <a href="https://www.cnblogs.com/xbhp/" target="_blank"><img width="48" height="48" class="pfs" src="https://pic.cnblogs.com/face/957602/20230310105611.png" alt="" /></a&...

    uj5u.com 2023-03-27 14:46:55 more
  • C#/VB.NET：如何將PDF轉為PDF/A

    <a href="https://www.cnblogs.com/Carina-baby/" target="_blank"><img width="48" height="48" class="pfs" src="https://pic.cnblogs.com/face/2859233/20220427162558.png" alt="" />...

    uj5u.com 2023-03-27 14:46:35 more
  • 武裝你的WEBAPI-OData聚合查詢

    <a href="https://www.cnblogs.com/podolski/" target="_blank"><img width="48" height="48" class="pfs" src="https://pic.cnblogs.com/face/616093/20140323000327.png" alt="" /><...

    uj5u.com 2023-03-27 14:46:16 more

Copyright © 2010-2020 有解無憂
