Dapr實戰（二） 服務呼叫

2021-09-23 16:06:32 .NET開發

服務呼叫是什么



在分布式應用程式中的服務之間進行呼叫會涉及到許多挑戰， 例如：

  • 維護其他服務的地址，
  • 如何安全地呼叫服務，
  • 在發生短暫的 暫時性錯誤 時如何處理重試，
  • 分布式應用程式呼叫鏈路追蹤，

服務呼叫構建塊通過使用 Dapr 挎斗作為服務的 反向代理 來解決這些難題，

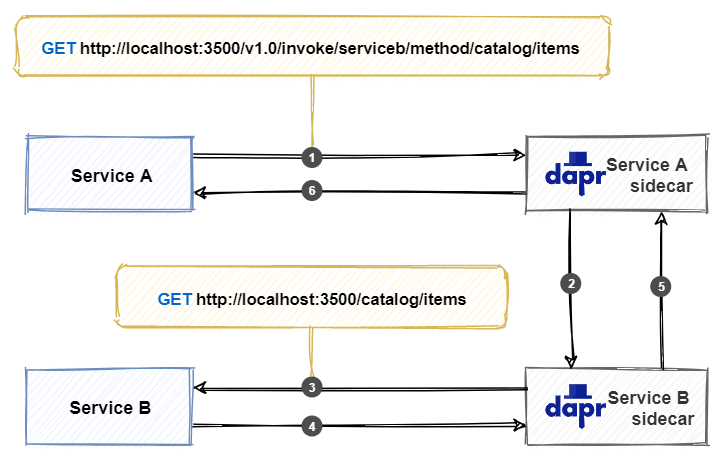

作業原理





由于呼叫經過Sidecar，Dapr 可以注入一些有其他行為：

  • 失敗時自動重試呼叫，
  • 通過相互 (mTLS) 身份驗證（包括自動證書滾動更新），在服務之間進行呼叫，
  • 使用訪問控制策略控制客戶端可以執行的操作，
  • 捕獲服務間所有呼叫的跟蹤和指標，以提供分布式呼叫鏈路追蹤與診斷，



任何應用程式都可以通過使用 Dapr 中內置的本機 Invoke API 來呼叫 Dapr Sidecar， 可以通過 HTTP 或 gRPC 呼叫 API， 使用以下 URL 呼叫 HTTP API：

http://localhost:<dapr-port>/v1.0/invoke/<application-id>/method/<method-name>
  • <dapr-port> Dapr 正在偵聽的 HTTP 埠，
  • <application-id> 要呼叫的服務的應用程式 ID，
  • <method-name> 要在遠程服務上呼叫的方法的名稱，

專案演示

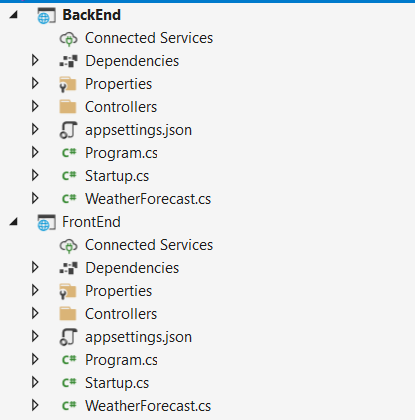

我們使用.NET5創建兩個WebAPI專案：BackEnd和FrontEnd，通過FrontEnd呼叫BackEnd





指定BackEnd默認啟動埠5000

        public static IHostBuilder CreateHostBuilder(string[] args) =>
            Host.CreateDefaultBuilder(args)
                .ConfigureWebHostDefaults(webBuilder =>
                {
                    webBuilder.UseStartup<Startup>().UseUrls("http://*:5000");
                });



通過Dapr CLI啟動BackEnd，指定sidecar埠為3511，默認為3500，指定app-port是5000，與BackEnd默認埠保持一致

dapr run --dapr-http-port 3511 --app-port 5000 --app-id backend dotnet  .\BackEnd\bin\Debug\net5.0\BackEnd.dll
C:\demo\test\DaprBackEnd>dapr run --dapr-http-port 3511 --app-port 5000 --app-id backend dotnet  .\BackEnd\bin\Debug\net5.0\BackEnd.dll
Starting Dapr with id backend. HTTP Port: 3511. gRPC Port: 30204
time="2021-09-23T14:14:08.3785429+08:00" level=info msg="starting Dapr Runtime -- version 1.4.0 -- commit ed969edc72b3934fffb481f079b736f3588e373a" app_id=backend instance=chesterchen-lap scope=dapr.runtime type=log ver=1.4.0
time="2021-09-23T14:14:08.3831089+08:00" level=info msg="log level set to: info" app_id=backend instance=chesterchen-lap scope=dapr.runtime type=log ver=1.4.0
time="2021-09-23T14:14:08.3831089+08:00" level=info msg="metrics server started on :30205/" app_id=backend instance=chesterchen-lap scope=dapr.metrics type=log ver=1.4.0
time="2021-09-23T14:14:08.3861203+08:00" level=info msg="standalone mode configured" app_id=backend instance=chesterchen-lap scope=dapr.runtime type=log ver=1.4.0
time="2021-09-23T14:14:08.3861203+08:00" level=info msg="app id: backend" app_id=backend instance=chesterchen-lap scope=dapr.runtime type=log ver=1.4.0
time="2021-09-23T14:14:08.3871107+08:00" level=info msg="mTLS is disabled. Skipping certificate request and tls validation" app_id=backend instance=chesterchen-lap scope=dapr.runtime type=log ver=1.4.0
time="2021-09-23T14:14:08.4115681+08:00" level=info msg="local service entry announced: backend -> 10.32.193.9:30209" app_id=backend instance=chesterchen-lap scope=dapr.contrib type=log ver=1.4.0
time="2021-09-23T14:14:08.4115681+08:00" level=info msg="Initialized name resolution to mdns" app_id=backend instance=chesterchen-lap scope=dapr.runtime type=log ver=1.4.0
time="2021-09-23T14:14:08.4127024+08:00" level=info msg="loading components" app_id=backend instance=chesterchen-lap scope=dapr.runtime type=log ver=1.4.0
time="2021-09-23T14:14:08.4160224+08:00" level=info msg="component loaded. name: pubsub, type: pubsub.redis/v1" app_id=backend instance=chesterchen-lap scope=dapr.runtime type=log ver=1.4.0
time="2021-09-23T14:14:08.4160224+08:00" level=info msg="waiting for all outstanding components to be processed" app_id=backend instance=chesterchen-lap scope=dapr.runtime type=log ver=1.4.0
time="2021-09-23T14:14:08.4187042+08:00" level=info msg="component loaded. name: statestore, type: state.redis/v1" app_id=backend instance=chesterchen-lap scope=dapr.runtime type=log ver=1.4.0
time="2021-09-23T14:14:08.4187042+08:00" level=info msg="all outstanding components processed" app_id=backend instance=chesterchen-lap scope=dapr.runtime type=log ver=1.4.0
time="2021-09-23T14:14:08.4192486+08:00" level=info msg="enabled gRPC tracing middleware" app_id=backend instance=chesterchen-lap scope=dapr.runtime.grpc.api type=log ver=1.4.0
time="2021-09-23T14:14:08.4192486+08:00" level=info msg="enabled gRPC metrics middleware" app_id=backend instance=chesterchen-lap scope=dapr.runtime.grpc.api type=log ver=1.4.0
time="2021-09-23T14:14:08.4192486+08:00" level=info msg="API gRPC server is running on port 30204" app_id=backend instance=chesterchen-lap scope=dapr.runtime type=log ver=1.4.0
time="2021-09-23T14:14:08.4197888+08:00" level=info msg="enabled metrics http middleware" app_id=backend instance=chesterchen-lap scope=dapr.runtime.http type=log ver=1.4.0
time="2021-09-23T14:14:08.4197888+08:00" level=info msg="enabled tracing http middleware" app_id=backend instance=chesterchen-lap scope=dapr.runtime.http type=log ver=1.4.0
time="2021-09-23T14:14:08.4202954+08:00" level=info msg="http server is running on port 3511" app_id=backend instance=chesterchen-lap scope=dapr.runtime type=log ver=1.4.0
time="2021-09-23T14:14:08.420335+08:00" level=info msg="The request body size parameter is: 4" app_id=backend instance=chesterchen-lap scope=dapr.runtime type=log ver=1.4.0
time="2021-09-23T14:14:08.420335+08:00" level=info msg="enabled gRPC tracing middleware" app_id=backend instance=chesterchen-lap scope=dapr.runtime.grpc.internal type=log ver=1.4.0
time="2021-09-23T14:14:08.4225403+08:00" level=info msg="enabled gRPC metrics middleware" app_id=backend instance=chesterchen-lap scope=dapr.runtime.grpc.internal type=log ver=1.4.0
time="2021-09-23T14:14:08.4230868+08:00" level=info msg="internal gRPC server is running on port 30209" app_id=backend instance=chesterchen-lap scope=dapr.runtime type=log ver=1.4.0
time="2021-09-23T14:14:08.4230868+08:00" level=info msg="application protocol: http. waiting on port 5000.  This will block until the app is listening on that port." app_id=backend instance=chesterchen-lap scope=dapr.runtime type=log ver=1.4.0
== APP == info: Microsoft.Hosting.Lifetime[0]
== APP ==       Now listening on: http://[::]:5000
== APP == info: Microsoft.Hosting.Lifetime[0]
== APP ==       Application started. Press Ctrl+C to shut down.
== APP == info: Microsoft.Hosting.Lifetime[0]
== APP ==       Hosting environment: Production
== APP == info: Microsoft.Hosting.Lifetime[0]
== APP ==       Content root path: C:\demo\test\DaprBackEnd
time="2021-09-23T14:14:08.7252681+08:00" level=info msg="application discovered on port 5000" app_id=backend instance=chesterchen-lap scope=dapr.runtime type=log ver=1.4.0
== APP == info: Microsoft.AspNetCore.Hosting.Diagnostics[1]
== APP ==       Request starting HTTP/1.1 GET http://127.0.0.1:5000/dapr/config application/json -
== APP == info: Microsoft.AspNetCore.Hosting.Diagnostics[2]
== APP ==       Request finished HTTP/1.1 GET http://127.0.0.1:5000/dapr/config application/json - - 404 0 - 17.3850ms
time="2021-09-23T14:14:08.7693649+08:00" level=info msg="application configuration loaded" app_id=backend instance=chesterchen-lap scope=dapr.runtime type=log ver=1.4.0
time="2021-09-23T14:14:08.7699003+08:00" level=info msg="actor runtime started. actor idle timeout: 1h0m0s. actor scan interval: 30s" app_id=backend instance=chesterchen-lap scope=dapr.runtime.actor type=log ver=1.4.0
== APP == info: Microsoft.AspNetCore.Hosting.Diagnostics[1]
== APP ==       Request starting HTTP/1.1 GET http://127.0.0.1:5000/dapr/subscribe application/json -
== APP == info: Microsoft.AspNetCore.Hosting.Diagnostics[2]
time="2021-09-23T14:14:08.7736383+08:00" level=info msg="dapr initialized. Status: Running. Init Elapsed 387.518ms" app_id=backend instance=chesterchen-lap scope=dapr.runtime type=log ver=1.4.0
== APP ==       Request finished HTTP/1.1 GET http://127.0.0.1:5000/dapr/subscribe application/json - - 404 0 - 0.1789ms
time="2021-09-23T14:14:08.7888444+08:00" level=info msg="placement tables updated, version: 0" app_id=backend instance=chesterchen-lap scope=dapr.runtime.actor.internal.placement type=log ver=1.4.0
Updating metadata for app command: dotnet .\BackEnd\bin\Debug\net5.0\BackEnd.dll
You're up and running! Both Dapr and your app logs will appear here.



現在修改FrontEnd里Demo，指定啟動埠5001

        public static IHostBuilder CreateHostBuilder(string[] args) =>
            Host.CreateDefaultBuilder(args)
                .ConfigureWebHostDefaults(webBuilder =>
                {
                    webBuilder.UseStartup<Startup>().UseUrls("http://*:5001");
                });



引入Nuget包 Dapr.Client，新建DaprController







1.使用 HttpClient呼叫HTTP服務

using Dapr.Client;

using Microsoft.AspNetCore.Mvc;
using Microsoft.Extensions.Logging;

using System.Collections.Generic;
using System.Net.Http;
using System.Threading.Tasks;

namespace FrontEnd.Controllers
{
    [ApiController]
    [Route("[controller]")]
    public class DaprController : ControllerBase
    {

        private readonly ILogger<DaprController> _logger;

        public DaprController(ILogger<DaprController> logger)
        {
            _logger = logger;
        }

        // 通過HttpClient呼叫BackEnd
        [HttpGet]
        public async Task<ActionResult> GetAsync()
        {
            using var httpClient = DaprClient.CreateInvokeHttpClient();
            var result = await httpClient.GetAsync("http://backend/WeatherForecast");
            var resultContent = string.Format("result is {0} {1}", result.StatusCode, await result.Content.ReadAsStringAsync());
            return Ok(resultContent);
        }
    }
}

GetAsync API中通過DaprClient.CreateInvokeHttpClient()新建了HttpClient,通過GetAsync方法呼叫了backend服務中的WeatherForecastAPI，

Sidecar使用可插接式名稱決議組件來決議服務BackEnd的地址，在自承載模式下，Dapr 使用 mdn 來查找它， 在 Kubernetes 模式下運行時，Kubernetes DNS 服務將確定地址，

2.使用 DaprClient呼叫HTTP服務

        // 通過DaprClient呼叫BackEnd
        [HttpGet("get2")]
        public async Task<ActionResult> Get2Async()
        {
            using var daprClient = new DaprClientBuilder().Build();
            var result = await daprClient.InvokeMethodAsync<IEnumerable<WeatherForecast>>(HttpMethod.Get, "backend", "WeatherForecast");
            return Ok(result);
        }

DaprController中新增API Get2Async

3.使用注入方式呼叫 DaprClient

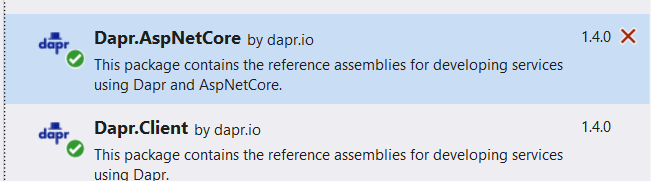

首先引入Nuget包Dapr.AspNetCore，然后在Startup.cs注入Dapr

        public void ConfigureServices(IServiceCollection services)
        {
            services.AddControllers().AddDapr();
        }

新建DaprDIController

using Dapr.Client;

using Microsoft.AspNetCore.Mvc;
using Microsoft.Extensions.Logging;

using System.Collections.Generic;
using System.Net.Http;
using System.Threading.Tasks;

namespace FrontEnd.Controllers
{
    [Route("[controller]")]
    [ApiController]
    public class DaprDIController : ControllerBase
    {
        private readonly ILogger<DaprDIController> _logger;
        private readonly DaprClient _daprClient;
        public DaprDIController(ILogger<DaprDIController> logger, DaprClient daprClient)
        {
            _logger = logger;
            _daprClient = daprClient;
        }

        [HttpGet()]
        public async Task<ActionResult> GetAsync()
        {
            var result = await _daprClient.InvokeMethodAsync<IEnumerable<WeatherForecast>>(HttpMethod.Get, "backend", "WeatherForecast");
            return Ok(result);
        }
    }
}

以上代碼通過注入方式注入DaprClient

4.使用DaprClient同樣可以呼叫GRPC

await daprClient.InvokeMethodGrpcAsync<Order, OrderConfirmation>("orderservice", "submitOrder", order);

與HTTP呼叫方式一致，不再為GRPC新建server



通過Dapr CLI啟動FrontEnd，指定sidecar埠為3501，默認為3500，指定app-port是5001，與FrontEnd默認埠保持一致

dapr run --dapr-http-port 3501 --app-port 5001  --app-id frontend dotnet  .\FrontEnd\bin\Debug\net5.0\FrontEnd.dll
C:\demo\test\DaprBackEnd>dapr run --dapr-http-port 3501 --app-port 5001  --app-id frontend dotnet  .\FrontEnd\bin\Debug\net5.0\FrontEnd.dll
Starting Dapr with id frontend. HTTP Port: 3501. gRPC Port: 1045
time="2021-09-23T14:15:24.5222236+08:00" level=info msg="starting Dapr Runtime -- version 1.4.0 -- commit ed969edc72b3934fffb481f079b736f3588e373a" app_id=frontend instance=chesterchen-lap scope=dapr.runtime type=log ver=1.4.0
time="2021-09-23T14:15:24.5269659+08:00" level=info msg="log level set to: info" app_id=frontend instance=chesterchen-lap scope=dapr.runtime type=log ver=1.4.0
time="2021-09-23T14:15:24.5269659+08:00" level=info msg="metrics server started on :1046/" app_id=frontend instance=chesterchen-lap scope=dapr.metrics type=log ver=1.4.0
time="2021-09-23T14:15:24.5302603+08:00" level=info msg="standalone mode configured" app_id=frontend instance=chesterchen-lap scope=dapr.runtime type=log ver=1.4.0
time="2021-09-23T14:15:24.5302904+08:00" level=info msg="app id: frontend" app_id=frontend instance=chesterchen-lap scope=dapr.runtime type=log ver=1.4.0
time="2021-09-23T14:15:24.5302904+08:00" level=info msg="mTLS is disabled. Skipping certificate request and tls validation" app_id=frontend instance=chesterchen-lap scope=dapr.runtime type=log ver=1.4.0
time="2021-09-23T14:15:24.559128+08:00" level=info msg="local service entry announced: frontend -> 10.32.193.9:1051" app_id=frontend instance=chesterchen-lap scope=dapr.contrib type=log ver=1.4.0
time="2021-09-23T14:15:24.559128+08:00" level=info msg="Initialized name resolution to mdns" app_id=frontend instance=chesterchen-lap scope=dapr.runtime type=log ver=1.4.0
time="2021-09-23T14:15:24.560108+08:00" level=info msg="loading components" app_id=frontend instance=chesterchen-lap scope=dapr.runtime type=log ver=1.4.0
time="2021-09-23T14:15:24.5641089+08:00" level=info msg="component loaded. name: pubsub, type: pubsub.redis/v1" app_id=frontend instance=chesterchen-lap scope=dapr.runtime type=log ver=1.4.0
time="2021-09-23T14:15:24.5641089+08:00" level=info msg="waiting for all outstanding components to be processed" app_id=frontend instance=chesterchen-lap scope=dapr.runtime type=log ver=1.4.0
time="2021-09-23T14:15:24.5671082+08:00" level=info msg="component loaded. name: statestore, type: state.redis/v1" app_id=frontend instance=chesterchen-lap scope=dapr.runtime type=log ver=1.4.0
time="2021-09-23T14:15:24.5671082+08:00" level=info msg="all outstanding components processed" app_id=frontend instance=chesterchen-lap scope=dapr.runtime type=log ver=1.4.0
time="2021-09-23T14:15:24.5671082+08:00" level=info msg="enabled gRPC tracing middleware" app_id=frontend instance=chesterchen-lap scope=dapr.runtime.grpc.api type=log ver=1.4.0
time="2021-09-23T14:15:24.5671082+08:00" level=info msg="enabled gRPC metrics middleware" app_id=frontend instance=chesterchen-lap scope=dapr.runtime.grpc.api type=log ver=1.4.0
time="2021-09-23T14:15:24.5671082+08:00" level=info msg="API gRPC server is running on port 1045" app_id=frontend instance=chesterchen-lap scope=dapr.runtime type=log ver=1.4.0
time="2021-09-23T14:15:24.5684039+08:00" level=info msg="enabled metrics http middleware" app_id=frontend instance=chesterchen-lap scope=dapr.runtime.http type=log ver=1.4.0
time="2021-09-23T14:15:24.5700491+08:00" level=info msg="enabled tracing http middleware" app_id=frontend instance=chesterchen-lap scope=dapr.runtime.http type=log ver=1.4.0
time="2021-09-23T14:15:24.5700491+08:00" level=info msg="http server is running on port 3501" app_id=frontend instance=chesterchen-lap scope=dapr.runtime type=log ver=1.4.0
time="2021-09-23T14:15:24.5705931+08:00" level=info msg="The request body size parameter is: 4" app_id=frontend instance=chesterchen-lap scope=dapr.runtime type=log ver=1.4.0
time="2021-09-23T14:15:24.5705931+08:00" level=info msg="enabled gRPC tracing middleware" app_id=frontend instance=chesterchen-lap scope=dapr.runtime.grpc.internal type=log ver=1.4.0
time="2021-09-23T14:15:24.5705931+08:00" level=info msg="enabled gRPC metrics middleware" app_id=frontend instance=chesterchen-lap scope=dapr.runtime.grpc.internal type=log ver=1.4.0
time="2021-09-23T14:15:24.5711294+08:00" level=info msg="internal gRPC server is running on port 1051" app_id=frontend instance=chesterchen-lap scope=dapr.runtime type=log ver=1.4.0
time="2021-09-23T14:15:24.5711294+08:00" level=info msg="application protocol: http. waiting on port 5001.  This will block until the app is listening on that port." app_id=frontend instance=chesterchen-lap scope=dapr.runtime type=log ver=1.4.0
== APP == info: Microsoft.Hosting.Lifetime[0]
== APP ==       Now listening on: http://[::]:5001
== APP == info: Microsoft.Hosting.Lifetime[0]
== APP ==       Application started. Press Ctrl+C to shut down.
== APP == info: Microsoft.Hosting.Lifetime[0]
== APP ==       Hosting environment: Production
== APP == info: Microsoft.Hosting.Lifetime[0]
== APP ==       Content root path: C:\demo\test\DaprBackEnd
time="2021-09-23T14:15:24.8729143+08:00" level=info msg="application discovered on port 5001" app_id=frontend instance=chesterchen-lap scope=dapr.runtime type=log ver=1.4.0
== APP == info: Microsoft.AspNetCore.Hosting.Diagnostics[1]
== APP ==       Request starting HTTP/1.1 GET http://127.0.0.1:5001/dapr/config application/json -
== APP == info: Microsoft.AspNetCore.Hosting.Diagnostics[2]
== APP ==       Request finished HTTP/1.1 GET http://127.0.0.1:5001/dapr/config application/json - - 404 0 - 19.0408ms
time="2021-09-23T14:15:24.9188354+08:00" level=info msg="application configuration loaded" app_id=frontend instance=chesterchen-lap scope=dapr.runtime type=log ver=1.4.0
time="2021-09-23T14:15:24.9193692+08:00" level=info msg="actor runtime started. actor idle timeout: 1h0m0s. actor scan interval: 30s" app_id=frontend instance=chesterchen-lap scope=dapr.runtime.actor type=log ver=1.4.0
== APP == info: Microsoft.AspNetCore.Hosting.Diagnostics[1]
== APP ==       Request starting HTTP/1.1 GET http://127.0.0.1:5001/dapr/subscribe application/json -
== APP == info: Microsoft.AspNetCore.Hosting.Diagnostics[2]
== APP ==       Request finished HTTP/1.1 GET http://127.0.0.1:5001/dapr/subscribe application/json - - 404 0 - 0.2000ms
time="2021-09-23T14:15:24.9236093+08:00" level=info msg="dapr initialized. Status: Running. Init Elapsed 393.349ms" app_id=frontend instance=chesterchen-lap scope=dapr.runtime type=log ver=1.4.0
time="2021-09-23T14:15:24.9393948+08:00" level=info msg="placement tables updated, version: 0" app_id=frontend instance=chesterchen-lap scope=dapr.runtime.actor.internal.placement type=log ver=1.4.0
Updating metadata for app command: dotnet .\FrontEnd\bin\Debug\net5.0\FrontEnd.dll
You're up and running! Both Dapr and your app logs will appear here.



測驗呼叫

1.瀏覽器地址欄輸入

http://localhost:3501/v1.0/invoke/frontend/method/dapr
http://localhost:3501/v1.0/invoke/frontend/method/dapr/get2
http://localhost:3501/v1.0/invoke/frontend/method/DaprDI

可以看到正常回應



 2.DaprCLI測驗呼叫

打開cmd輸入

dapr invoke --app-id frontend --verb "GET" --method dapr

也可以看到呼叫成功

C:\Users\chesterychen>dapr invoke --app-id frontend --verb "GET" --method dapr
result is OK [{"date":"2021-09-24T14:20:51.2386681+08:00","temperatureC":47,"temperatureF":116,"summary":"Mild"},{"date":"2021-09-25T14:20:51.2386705+08:00","temperatureC":50,"temperatureF":121,"summary":"Mild"},{"date":"2021-09-26T14:20:51.2386707+08:00","temperatureC":34,"temperatureF":93,"summary":"Hot"},{"date":"2021-09-27T14:20:51.2386708+08:00","temperatureC":42,"temperatureF":107,"summary":"Bracing"},{"date":"2021-09-28T14:20:51.2386709+08:00","temperatureC":-19,"temperatureF":-2,"summary":"Warm"}]
App invoked successfully

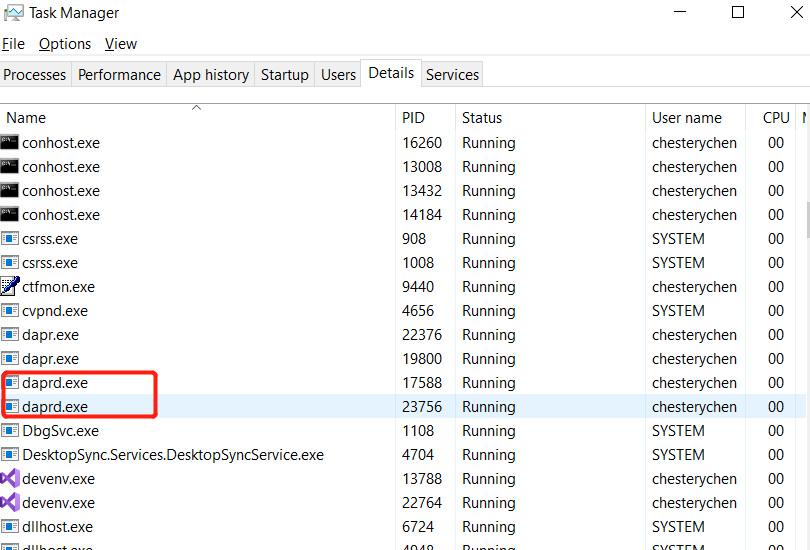

PS:單機運行的情況下，每個服務的sidecar是一個行程，名為daprd，下圖兩個分別是backend和frontend連個服務的

 鏈路追蹤

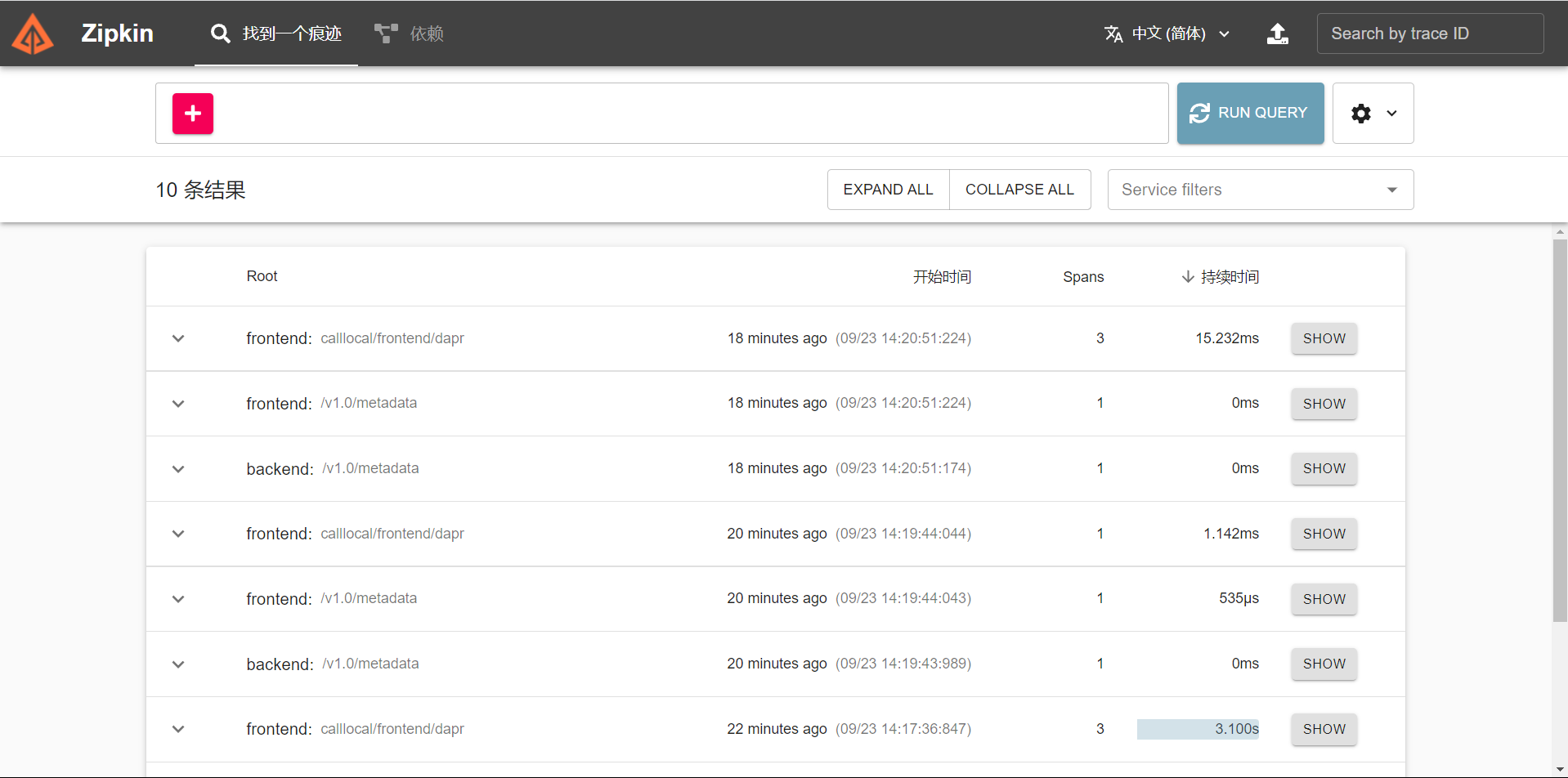

自承載的方式下，Dapr默認啟動了zipkin容器，可以通過以下鏈接查看

http://localhost:9411/zipkin/



轉載請註明出處，本文鏈接：https://www.uj5u.com/net/302330.html

標籤：.NET Core

上一篇：Roslyn（CSharpScript）.Net腳本編譯引擎使用程序記憶體增漲與穩定的方式

下一篇：Roslyn（CSharpScript）.Net腳本編譯引擎使用程序記憶體增漲與穩定的方式

標籤雲
其他(157675) Python(38076) JavaScript(25376) Java(17977) C(15215) 區塊鏈(8255) C＃(7972) AI(7469) 爪哇(7425) MySQL(7132) html(6777) 基礎類(6313) sql(6102) 熊猫(6058) PHP(5869) 数组(5741) R(5409) Linux(5327) 反应(5209) 腳本語言(PerlPython)(5129) 非技術區(4971) Android(4554) 数据框(4311) css(4259) 节点.js(4032) C語言(3288) json(3245) 列表(3129) 扑(3119) C++語言(3117) 安卓(2998) 打字稿(2995) VBA(2789) Java相關(2746) 疑難問題(2699) 细绳(2522) 單片機工控(2479) iOS(2429) ASP.NET(2402) MongoDB(2323) 麻木的(2285) 正则表达式(2254) 字典(2211) 循环(2198) 迅速(2185) 擅长(2169) 镖(2155) 功能(1967) .NET技术(1958) Web開發(1951) python-3.x(1918) HtmlCss(1915) 弹簧靴(1913) C++(1909) xml(1889) PostgreSQL(1872) .NETCore(1853) 谷歌表格(1846) Unity3D(1843) for循环(1842)

熱門瀏覽
  • WebAPI簡介

    Web體系結構： 有三個核心：資源(resource)，URL(統一資源識別符號)和表示 他們的關系是這樣的：一個資源由一個URL進行標識，HTTP客戶端使用URL定位資源，表示是從資源回傳資料，媒體型別是資源回傳的資料格式。 接下來我們說下HTTP. HTTP協議的系統是一種無狀態的方式，使用請求/ ......

    uj5u.com 2020-09-09 22:07:47 more
  • asp.net core 3.1 入口：Program.cs中的Main函式

    本文分析Program.cs 中Main()函式中代碼的運行順序分析asp.net core程式的啟動，重點不是剖析原始碼，而是理清程式開始時執行的順序。到呼叫了哪些實體，哪些法方。asp.net core 3.1 的程式入口在專案Program.cs檔案里，如下。ususing System; us ......

    uj5u.com 2020-09-09 22:07:49 more
  • asp.net網站作為websocket服務端的應用該如何寫

    最近被websocket的一個問題困擾了很久，有一個需求是在web網站中搭建websocket服務。客戶端通過網頁與服務器建立連接，然后服務器根據ip給客戶端網頁發送資訊。 其實，這個需求并不難，只是剛開始對websocket的內容不太了解。上網搜索了一下，有通過asp.net core 實作的、有 ......

    uj5u.com 2020-09-09 22:08:02 more
  • ASP.NET 開源匯入匯出庫Magicodes.IE Docker中使用

    Magicodes.IE在Docker中使用 更新歷史 2019.02.13 【Nuget】版本更新到2.0.2 【匯入】修復單列匯入的Bug，單元測驗“OneColumnImporter_Test”。問題見（https://github.com/dotnetcore/Magicodes.IE/is ......

    uj5u.com 2020-09-09 22:08:05 more
  • 在webform中使用ajax

    如果你用過Asp.net webform， 說明你也算是.NET 開發的老兵了。WEBform應該是2011 2013左右，當時還用visual studio 2005、 visual studio 2008。后來基本都用的是MVC。 如果是新開發的專案，估計沒人會用webform技術。但是有些舊版 ......

    uj5u.com 2020-09-09 22:08:50 more
  • iis添加asp.net網站，訪問提示：由于擴展配置問題而無法提供您請求的

    今天在iis服務器配置asp.net網站，遇到一個問題，記錄一下： 問題：由于擴展配置問題而無法提供您請求的頁面。如果該頁面是腳本，請添加處理程式。如果應下載檔案，請添加 MIME 映射。 WindowServer2012服務器，添加角色安裝完.netframework和iis之后，運行aspx頁面 ......

    uj5u.com 2020-09-09 22:10:00 more
  • WebAPI-處理架構

    帶著問題去思考，大家好！ 問題1：HTTP請求和回傳相應的HTTP回應資訊之間發生了什么？ 1：首先是最底層，托管層，位于WebAPI和底層HTTP堆疊之間 2：其次是 訊息處理程式管道層，這里比如日志和快取。OWIN的參考是將訊息處理程式管道的一些功能下移到堆疊下端的OWIN中間件了。 3：控制器處理 ......

    uj5u.com 2020-09-09 22:11:13 more
  • 微信門戶開發框架-使用指導說明書

    微信門戶應用管理系統，采用基于 MVC + Bootstrap + Ajax + Enterprise Library的技術路線，界面層采用Boostrap + Metronic組合的前端框架，資料訪問層支持Oracle、SQLServer、MySQL、PostgreSQL等資料庫。框架以MVC5，... ......

    uj5u.com 2020-09-09 22:15:18 more
  • WebAPI-HTTP編程模型

    帶著問題去思考，大家好！它是什么？它包含什么？它能干什么？ 訊息 HTTP編程模型的核心就是訊息抽象，表示為：HttPRequestMessage,HttpResponseMessage.用于客戶端和服務端之間交換請求和回應訊息。 HttpMethod類包含了一組靜態屬性： private stat ......

    uj5u.com 2020-09-09 22:15:23 more
  • 部署WebApi隨筆

    一、跨域 NuGet參考Microsoft.AspNet.WebApi.Cors WebApiConfig.cs中配置： // Web API 配置和服務 config.EnableCors(new EnableCorsAttribute("*", "*", "*")); 二、清除默認回傳XML格式 ......

    uj5u.com 2020-09-09 22:15:48 more
最新发布
  • C#多執行緒學習(二) 如何操縱一個執行緒

    <a href="https://www.cnblogs.com/x-zhi/" target="_blank"><img width="48" height="48" class="pfs" src="https://pic.cnblogs.com/face/2943582/20220801082530.png" alt="" /></...

    uj5u.com 2023-04-19 09:17:20 more
  • C#多執行緒學習(二) 如何操縱一個執行緒

    C#多執行緒學習(二) 如何操縱一個執行緒 執行緒學習第一篇：C#多執行緒學習(一) 多執行緒的相關概念 下面我們就動手來創建一個執行緒，使用Thread類創建執行緒時，只需提供執行緒入口即可。（執行緒入口使程式知道該讓這個執行緒干什么事） 在C#中，執行緒入口是通過ThreadStart代理（delegate）來提供的 ......

    uj5u.com 2023-04-19 09:16:49 more
  • 記一次 .NET某醫療器械清洗系統 卡死分析

    <a href="https://www.cnblogs.com/huangxincheng/" target="_blank"><img width="48" height="48" class="pfs" src="https://pic.cnblogs.com/face/214741/20200614104537.png" alt="" /&g...

    uj5u.com 2023-04-18 08:39:04 more
  • 記一次 .NET某醫療器械清洗系統 卡死分析

    一：背景 1. 講故事 前段時間協助訓練營里的一位朋友分析了一個程式卡死的問題，回過頭來看這個案例比較經典，這篇稍微整理一下供后來者少踩坑吧。 二：WinDbg 分析 1. 為什么會卡死 因為是表單程式，理所當然就是看主執行緒此時正在做什么? 可以用 ~0s ; k 看一下便知。 0:000> k # ......

    uj5u.com 2023-04-18 08:33:10 more
  • SignalR, No Connection with that ID，IIS

    <a href="https://www.cnblogs.com/smartstar/" target="_blank"><img width="48" height="48" class="pfs" src="https://pic.cnblogs.com/face/u36196.jpg" alt="" /></a>...

    uj5u.com 2023-03-30 17:21:52 more
  • 一次對pool的誤用導致的.net頻繁gc的診斷分析

    <a href="https://www.cnblogs.com/dotnet-diagnostic/" target="_blank"><img width="48" height="48" class="pfs" src="https://pic.cnblogs.com/face/3115652/20230225090434.png" alt=""...

    uj5u.com 2023-03-28 10:15:33 more
  • 一次對pool的誤用導致的.net頻繁gc的診斷分析

    <a href="https://www.cnblogs.com/dotnet-diagnostic/" target="_blank"><img width="48" height="48" class="pfs" src="https://pic.cnblogs.com/face/3115652/20230225090434.png" alt=""...

    uj5u.com 2023-03-28 10:13:31 more
  • C#遍歷指定檔案夾中所有檔案的3種方法

    <a href="https://www.cnblogs.com/xbhp/" target="_blank"><img width="48" height="48" class="pfs" src="https://pic.cnblogs.com/face/957602/20230310105611.png" alt="" /></a&...

    uj5u.com 2023-03-27 14:46:55 more
  • C#/VB.NET：如何將PDF轉為PDF/A

    <a href="https://www.cnblogs.com/Carina-baby/" target="_blank"><img width="48" height="48" class="pfs" src="https://pic.cnblogs.com/face/2859233/20220427162558.png" alt="" />...

    uj5u.com 2023-03-27 14:46:35 more
  • 武裝你的WEBAPI-OData聚合查詢

    <a href="https://www.cnblogs.com/podolski/" target="_blank"><img width="48" height="48" class="pfs" src="https://pic.cnblogs.com/face/616093/20140323000327.png" alt="" /><...

    uj5u.com 2023-03-27 14:46:16 more

Copyright © 2010-2020 有解無憂
