Quartz與Topshelf結合實作window定時服務-有解無憂

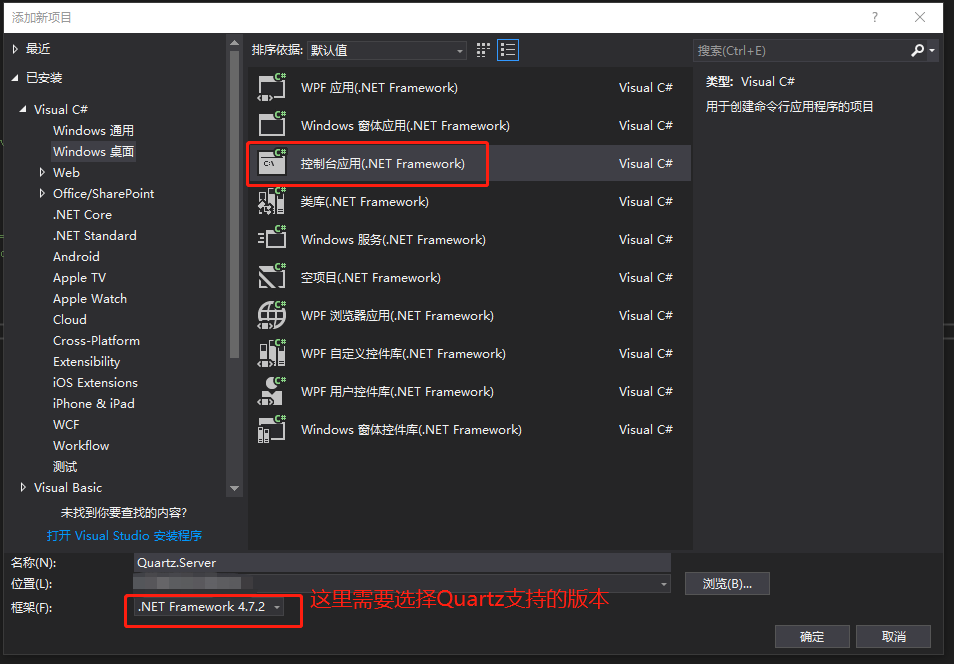

一，新建控制臺應用程式

二，選中專案，右鍵 — 管理 NuGet 程式包，添加四個：

Quartz

Quartz.Plugins

Topshelf

log4net

三，創建專案檔案

三個組態檔：必須放在專案根目錄下，

（1）log4net.config

<?xml version="1.0" encoding="utf-8" ?>
<configuration>
  <configSections>
    <section name="log4net" type="log4net.Config.Log4NetConfigurationSectionHandler, log4net"/>
  </configSections>

  <log4net>
    <appender name="RollingLogFileAppender" type="log4net.Appender.RollingFileAppender">
      <!--日志路徑-->
      <param name= "File" value= https://www.cnblogs.com/wsk198726/p/"Logs/"/>
      <!--是否是向檔案中追加日志-->
      <param name= "AppendToFile" value= https://www.cnblogs.com/wsk198726/p/"true"/>
      <!--log保留天數-->
      <param name= "MaxSizeRollBackups" value= https://www.cnblogs.com/wsk198726/p/"10"/>
      <!--日志檔案名是否是固定不變的-->
      <param name= "StaticLogFileName" value= https://www.cnblogs.com/wsk198726/p/"false"/>
      <!--日志檔案名格式為:yyyy-MM-dd.log-->
      <param name= "DatePattern" value= https://www.cnblogs.com/wsk198726/p/"yyyy-MM-dd&quot;.log&quot;"/>
      <!--日志根據日期滾動-->
      <param name= "RollingStyle" value= https://www.cnblogs.com/wsk198726/p/"Date"/>
      <layout type="log4net.Layout.PatternLayout">
        <param name="ConversionPattern" value=https://www.cnblogs.com/wsk198726/p/"[%d{yyyy-MM-dd HH:mm:ss,fff}] [%p] [%c] %m%n %n" />
      </layout>
    </appender>

    <!-- 控制臺前臺顯示日志 -->
    <appender name="ColoredConsoleAppender" type="log4net.Appender.ColoredConsoleAppender">
      <mapping>
        <level value=https://www.cnblogs.com/wsk198726/p/"ERROR" />
        <foreColor value=https://www.cnblogs.com/wsk198726/p/"Red, HighIntensity" />
      </mapping>
      <mapping>
        <level value=https://www.cnblogs.com/wsk198726/p/"Info" />
        <foreColor value=https://www.cnblogs.com/wsk198726/p/"Green" />
      </mapping>
      <layout type="log4net.Layout.PatternLayout">
        <conversionPattern value=https://www.cnblogs.com/wsk198726/p/"%n%date{HH:mm:ss,fff} [%-5level] %m" />
      </layout>

      <filter type="log4net.Filter.LevelRangeFilter">
        <param name="LevelMin" value=https://www.cnblogs.com/wsk198726/p/"Info" />
        <param name="LevelMax" value=https://www.cnblogs.com/wsk198726/p/"Fatal" />
      </filter>
    </appender>

    <root>
      <!--(高) OFF > FATAL > ERROR > WARN > INFO > DEBUG > ALL (低) -->
      <level value=https://www.cnblogs.com/wsk198726/p/"all" />
      <appender-ref ref="ColoredConsoleAppender"/>
      <appender-ref ref="RollingLogFileAppender"/>
    </root>
  </log4net>
</configuration>

View Code

（2）quartz.config

<?xml version="1.0" encoding="utf-8" ?>
<!-- This file contains job definitions in schema version 2.0 format -->

<job-scheduling-data xmlns="http://quartznet.sourceforge.net/JobSchedulingData" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" version="2.0">
  <processing-directives>
    <overwrite-existing-data>true</overwrite-existing-data>
  </processing-directives>

  <schedule>
    <job>
      <name>SampleJob</name>
      <group>SampleGroup</group>
      <description>Sample job for Quartz Server</description>
      <job-type>QuartzTopshelf.Jobs.SampleJob, QuartzTopshelf</job-type>
      <durable>true</durable>
      <recover>false</recover>
      <job-data-map>
        <entry>
          <key>key1</key>
          <value>value1</value>
        </entry>
        <entry>
          <key>key2</key>
          <value>value2</value>
        </entry>
      </job-data-map>
    </job>

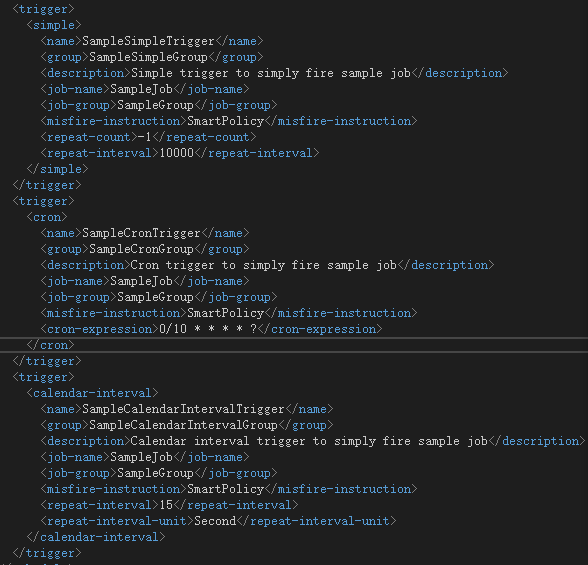

    <trigger>
      <simple>
        <name>SampleSimpleTrigger</name>
        <group>SampleSimpleGroup</group>
        <description>Simple trigger to simply fire sample job</description>
        <job-name>SampleJob</job-name>
        <job-group>SampleGroup</job-group>
        <misfire-instruction>SmartPolicy</misfire-instruction>
        <repeat-count>-1</repeat-count>
        <repeat-interval>10000</repeat-interval>
      </simple>
    </trigger>
    <trigger>
      <cron>
        <name>SampleCronTrigger</name>
        <group>SampleCronGroup</group>
        <description>Cron trigger to simply fire sample job</description>
        <job-name>SampleJob</job-name>
        <job-group>SampleGroup</job-group>
        <misfire-instruction>SmartPolicy</misfire-instruction>
        <cron-expression>0/10 * * * * ?</cron-expression>
      </cron>
    </trigger>
    <trigger>
      <calendar-interval>
        <name>SampleCalendarIntervalTrigger</name>
        <group>SampleCalendarIntervalGroup</group>
        <description>Calendar interval trigger to simply fire sample job</description>
        <job-name>SampleJob</job-name>
        <job-group>SampleGroup</job-group>
        <misfire-instruction>SmartPolicy</misfire-instruction>
        <repeat-interval>15</repeat-interval>
        <repeat-interval-unit>Second</repeat-interval-unit>
      </calendar-interval>
    </trigger>
  </schedule>
</job-scheduling-data>

View Code

也可以在專案組態檔App.config中配置，就不需要配置quartz.config

App.config

<?xml version="1.0" encoding="utf-8"?>
<configuration>
  <configSections>
    <section name="quartz" type="System.Configuration.NameValueSectionHandler, System, Version=1.0.5000.0,Culture=neutral, PublicKeyToken=b77a5c561934e089" />
  </configSections>

  <quartz>
    <add key="quartz.scheduler.instanceName" value=https://www.cnblogs.com/wsk198726/p/"ServerScheduler" />
    <add key="quartz.threadPool.type" value=https://www.cnblogs.com/wsk198726/p/"Quartz.Simpl.DefaultThreadPool, Quartz" />
    <add key="quartz.threadPool.maxConcurrency" value=https://www.cnblogs.com/wsk198726/p/"10" />

    <add key="quartz.plugin.xml.type" value=https://www.cnblogs.com/wsk198726/p/"Quartz.Plugin.Xml.XMLSchedulingDataProcessorPlugin, Quartz.Plugins" />
    <add key="quartz.plugin.xml.fileNames" value=https://www.cnblogs.com/wsk198726/p/"~/quartz_jobs.xml" />

    <add key="quartz.scheduler.exporter.type" value=https://www.cnblogs.com/wsk198726/p/"Quartz.Simpl.RemotingSchedulerExporter, Quartz" />
    <add key="quartz.scheduler.exporter.port" value=https://www.cnblogs.com/wsk198726/p/"555" />
    <add key="quartz.scheduler.exporter.bindName" value=https://www.cnblogs.com/wsk198726/p/"QuartzScheduler" />
    <add key="quartz.scheduler.exporter.channelType" value=https://www.cnblogs.com/wsk198726/p/"tcp" />
    <add key="quartz.scheduler.exporter.channelName" value=https://www.cnblogs.com/wsk198726/p/"httpQuartz" />
  </quartz>

  <startup>
    <supportedRuntime version="v4.0" sku=".NETFramework,Version=v4.7.2" />
  </startup>

  <runtime>
    <assemblyBinding xmlns="urn:schemas-microsoft-com:asm.v1">
      <dependentAssembly>
        <assemblyIdentity name="System.Memory" publicKeyToken="cc7b13ffcd2ddd51" culture="neutral" />
        <bindingRedirect oldVersion="0.0.0.0-4.0.1.1" newVersion="4.0.1.1" />
      </dependentAssembly>
    </assemblyBinding>
  </runtime>
</configuration>

View Code

（3）quartz_jobs.xml 具體我就不解釋了，不懂的可以去查下Quartz.NET

<?xml version="1.0" encoding="utf-8" ?>
<!-- This file contains job definitions in schema version 2.0 format -->

<job-scheduling-data xmlns="http://quartznet.sourceforge.net/JobSchedulingData" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" version="2.0">
  <processing-directives>
    <overwrite-existing-data>true</overwrite-existing-data>
  </processing-directives>

  <schedule>
    <job>
      <name>SampleJob</name>
      <group>SampleGroup</group>
      <description>Sample job for Quartz Server</description>
      <job-type>Quartz.Server.Jobs.SampleJob, Quartz.Server</job-type>
      <durable>true</durable>
      <recover>false</recover>
      <job-data-map>
        <entry>
          <key>key1</key>
          <value>value1</value>
        </entry>
        <entry>
          <key>key2</key>
          <value>value2</value>
        </entry>
      </job-data-map>
    </job>

    <trigger>
      <simple>
        <name>SampleSimpleTrigger</name>
        <group>SampleSimpleGroup</group>
        <description>Simple trigger to simply fire sample job</description>
        <job-name>SampleJob</job-name>
        <job-group>SampleGroup</job-group>
        <misfire-instruction>SmartPolicy</misfire-instruction>
        <repeat-count>-1</repeat-count>
        <repeat-interval>10000</repeat-interval>
      </simple>
    </trigger>
    <trigger>
      <cron>
        <name>SampleCronTrigger</name>
        <group>SampleCronGroup</group>
        <description>Cron trigger to simply fire sample job</description>
        <job-name>SampleJob</job-name>
        <job-group>SampleGroup</job-group>
        <misfire-instruction>SmartPolicy</misfire-instruction>
        <cron-expression>0/10 * * * * ?</cron-expression>
      </cron>
    </trigger>
    <trigger>
      <calendar-interval>
        <name>SampleCalendarIntervalTrigger</name>
        <group>SampleCalendarIntervalGroup</group>
        <description>Calendar interval trigger to simply fire sample job</description>
        <job-name>SampleJob</job-name>
        <job-group>SampleGroup</job-group>
        <misfire-instruction>SmartPolicy</misfire-instruction>
        <repeat-interval>15</repeat-interval>
        <repeat-interval-unit>Second</repeat-interval-unit>
      </calendar-interval>
    </trigger>

  </schedule>
</job-scheduling-data>

View Code

三個類檔案：

（1）Configuration.cs 配置類

using System.Collections.Specialized;
using System.Configuration;

namespace QuartzTopshelf
{
    /// <summary>
    /// 定時服務的配置
    /// </summary>
    public class Configuration
    {
        private const string PrefixServerConfiguration = "quartz.server";
        private const string KeyServiceName = PrefixServerConfiguration + ".serviceName";
        private const string KeyServiceDisplayName = PrefixServerConfiguration + ".serviceDisplayName";
        private const string KeyServiceDescription = PrefixServerConfiguration + ".serviceDescription";
        private const string KeyServerImplementationType = PrefixServerConfiguration + ".type";

        private const string DefaultServiceName = "QuartzServer";
        private const string DefaultServiceDisplayName = "Quartz Server";
        private const string DefaultServiceDescription = "Quartz Job Scheduling Server";
        private static readonly string DefaultServerImplementationType = typeof(QuartzServer).AssemblyQualifiedName;

        private static readonly NameValueCollection configuration;

        /// <summary>
        /// 初始化 Configuration 類
        /// </summary>
        static Configuration()
        {
            configuration = (NameValueCollection)ConfigurationManager.GetSection("quartz");
        }

        /// <summary>
        /// 獲取服務的名稱
        /// </summary>
        /// <value>服務的名稱</value>
        public static string ServiceName
        {
            get { return GetConfigurationOrDefault(KeyServiceName, DefaultServiceName); }
        }

        /// <summary>
        /// 獲取服務的顯示名稱.
        /// </summary>
        /// <value>服務的顯示名稱</value>
        public static string ServiceDisplayName
        {
            get { return GetConfigurationOrDefault(KeyServiceDisplayName, DefaultServiceDisplayName); }
        }

        /// <summary>
        /// 獲取服務描述
        /// </summary>
        /// <value>服務描述</value>
        public static string ServiceDescription
        {
            get { return GetConfigurationOrDefault(KeyServiceDescription, DefaultServiceDescription); }
        }

        /// <summary>
        /// 獲取服務器實作的型別名稱
        /// </summary>
        /// <value>服務器實作的型別</value>
        public static string ServerImplementationType
        {
            get { return GetConfigurationOrDefault(KeyServerImplementationType, DefaultServerImplementationType); }
        }

        /// <summary>
        /// 回傳具有給定鍵的配置值，如果的配置不存在，則回傳默認值，
        /// </summary>
        /// <param name="configurationKey">用于讀取配置的鍵</param>
        /// <param name="defaultValue">未找到配置時回傳的默認值</param>
        /// <returns>配置值</returns>
        private static string GetConfigurationOrDefault(string configurationKey, string defaultValue)
        {
            string retValue = https://www.cnblogs.com/wsk198726/p/null;
            if (configuration != null)
            {
                retValue = configuration[configurationKey];
            }

            if (retValue =https://www.cnblogs.com/wsk198726/p/= null || retValue.Trim().Length == 0)
            {
                retValue = defaultValue;
            }
            return retValue;
        }
    }
}

View Code

（2）QuartzServer.cs 定時服務類

using System;
using System.Threading.Tasks;
using log4net;
using Quartz;
using Quartz.Impl;
using Topshelf;

namespace QuartzTopshelf
{
    /// <summary>
    /// Service interface for core Quartz.NET server.
    /// </summary>
    public interface IQuartzServer
    {
        /// <summary>
        /// Initializes the instance of <see cref="IQuartzServer"/>.
        /// Initialization will only be called once in server's lifetime.
        /// </summary>
        Task Initialize();

        /// <summary>
        /// Starts this instance.
        /// </summary>
        void Start();

        /// <summary>
        /// Stops this instance.
        /// </summary>
        void Stop();

        /// <summary>
        /// Pauses all activity in scheduler.
        /// </summary>
        void Pause();

        /// <summary>
        /// Resumes all activity in server.
        /// </summary>
        void Resume();
    }

    /// <summary>
    /// The main server logic.
    /// </summary>
    public class QuartzServer : ServiceControl, IQuartzServer
    {
        private readonly ILog logger;
        private ISchedulerFactory schedulerFactory;
        private IScheduler scheduler;

        /// <summary>
        /// Initializes a new instance of the <see cref="QuartzServer"/> class.
        /// </summary>
        public QuartzServer()
        {
            logger = LogManager.GetLogger(GetType());
        }

        /// <summary>
        /// Initializes the instance of the <see cref="QuartzServer"/> class.
        /// </summary>
        public virtual async Task Initialize()
        {
            try
            {
                schedulerFactory = CreateSchedulerFactory();
                scheduler = await GetScheduler().ConfigureAwait(false);
            }
            catch (Exception e)
            {
                logger.Error("Server initialization failed:" + e.Message, e);
            }
        }

        /// <summary>
        /// Gets the scheduler with which this server should operate with.
        /// </summary>
        /// <returns></returns>
        protected virtual Task<IScheduler> GetScheduler()
        {
            return schedulerFactory.GetScheduler();
        }

        /// <summary>
        /// Returns the current scheduler instance (usually created in <see cref="Initialize" />
        /// using the <see cref="GetScheduler" /> method).
        /// </summary>
        protected virtual IScheduler Scheduler => scheduler;

        /// <summary>
        /// Creates the scheduler factory that will be the factory
        /// for all schedulers on this instance.
        /// </summary>
        /// <returns></returns>
        protected virtual ISchedulerFactory CreateSchedulerFactory()
        {
            return new StdSchedulerFactory();
        }

        /// <summary>
        /// Starts this instance, delegates to scheduler.
        /// </summary>
        public virtual void Start()
        {
            try
            {
                scheduler.Start();
            }
            catch (Exception ex)
            {
                logger.Fatal(string.Format("Scheduler start failed: {0}", ex.Message), ex);
                throw;
            }
            //logger.Info("Scheduler started successfully");
        }

        /// <summary>
        /// Stops this instance, delegates to scheduler.
        /// </summary>
        public virtual void Stop()
        {
            try
            {
                scheduler.Shutdown(true);
            }
            catch (Exception ex)
            {
                logger.Error(string.Format("Scheduler stop failed: {0}", ex.Message), ex);
                throw;
            }

            //logger.Info("Scheduler shutdown complete");
        }

        /// <summary>
        /// Performs application-defined tasks associated with freeing, releasing, or resetting unmanaged resources.
        /// </summary>
        public virtual void Dispose()
        {
            // no-op for now
        }

        /// <summary>
        /// Pauses all activity in scheduler.
        /// </summary>
        public virtual void Pause()
        {
            scheduler.PauseAll();
        }

        /// <summary>
        /// Resumes all activity in server.
        /// </summary>
        public void Resume()
        {
            scheduler.ResumeAll();
        }

        /// <summary>
        /// TopShelf's method delegated to <see cref="Start()"/>.
        /// </summary>
        public bool Start(HostControl hostControl)
        {
            Start();
            return true;
        }

        /// <summary>
        /// TopShelf's method delegated to <see cref="Stop()"/>.
        /// </summary>
        public bool Stop(HostControl hostControl)
        {
            Stop();
            return true;
        }

        /// <summary>
        /// TopShelf's method delegated to <see cref="Pause()"/>.
        /// </summary>
        public bool Pause(HostControl hostControl)
        {
            Pause();
            return true;
        }

        /// <summary>
        /// TopShelf's method delegated to <see cref="Resume()"/>.
        /// </summary>
        public bool Continue(HostControl hostControl)
        {
            Resume();
            return true;
        }
    }
}

View Code

（3）QuartzServerFactory.cs 工廠類

using System;
using System.Reflection;
using log4net;

namespace QuartzTopshelf
{
    /// <summary>
    /// 用于創建Quartz服務實作的工廠類.
    /// </summary>
    public class QuartzServerFactory
    {
        private static readonly ILog logger = LogManager.GetLogger(MethodBase.GetCurrentMethod().DeclaringType);

        /// <summary>
        /// 創建Quartz.NET服務核心的新實體
        /// </summary>
        /// <returns></returns>
        public static QuartzServer CreateServer()
        {
            string typeName = Configuration.ServerImplementationType;

            Type t = Type.GetType(typeName, true);

            //logger.Debug("正在創建服務器型別的新實體'" + typeName + "'");
            QuartzServer retValue =https://www.cnblogs.com/wsk198726/p/ (QuartzServer)Activator.CreateInstance(t);
            //logger.Debug("已成功創建實體");
            return retValue;
        }
    }
}

View Code

服務啟動類：Program.cs

using System.IO;
using System.Reflection;
using Topshelf;

namespace QuartzTopshelf
{
    public static class Program
    {
        static void Main(string[] args)
        {
            // 從服務帳戶的目錄更改為更符合邏輯的目錄
            Directory.SetCurrentDirectory(System.AppDomain.CurrentDomain.BaseDirectory);

            var logRepository = log4net.LogManager.GetRepository(Assembly.GetEntryAssembly());
            log4net.Config.XmlConfigurator.Configure(logRepository, new FileInfo("log4net.config"));

            HostFactory.Run(x => {
                x.RunAsLocalSystem();

                x.SetDescription(Configuration.ServiceDescription);
                x.SetDisplayName(Configuration.ServiceDisplayName);
                x.SetServiceName(Configuration.ServiceName);

                x.Service(factory =>
                {
                    QuartzServer server = QuartzServerFactory.CreateServer();
                    server.Initialize().GetAwaiter().GetResult();
                    return server;
                });
            });
        }
    }
}

View Code

四，添加Job類，以及在quartz_jobs.xml 配置job作業觸發規則

SampleJob.cs

using System;
using System.Collections;
using System.Reflection;
using System.Threading.Tasks;
using log4net;
using Quartz;

namespace QuartzTopshelf.Jobs
{
    /// <summary>
    /// A sample job that just prints info on console for demostration purposes.
    /// </summary>
    public sealed class SampleJob : IJob
    {
        private static readonly ILog logger = LogManager.GetLogger(MethodBase.GetCurrentMethod().DeclaringType);

        /// <summary>
        /// Called by the <see cref="IScheduler" /> when a <see cref="ITrigger" />
        /// fires that is associated with the <see cref="IJob" />.
        /// </summary>
        /// <remarks>
        /// The implementation may wish to set a  result object on the
        /// JobExecutionContext before this method exits.  The result itself
        /// is meaningless to Quartz, but may be informative to
        /// <see cref="IJobListener" />s or
        /// <see cref="ITriggerListener" />s that are watching the job's
        /// execution.
        /// </remarks>
        /// <param name="context">The execution context.</param>
        public async Task Execute(IJobExecutionContext context)
        {
            //通過組態檔傳遞引數
            JobDataMap dataMap = context.JobDetail.JobDataMap;
            string key1 = dataMap.GetString("key1");
            logger.Info("key1 : " + key1);
            string key2 = dataMap.GetString("key2");
            logger.Info("key2 : " + key2);

            logger.Info("SampleJob running...");
            //Thread.Sleep(TimeSpan.FromSeconds(5));
            await Console.Out.WriteLineAsync("SampleJob is executing.");
            logger.Info("SampleJob run finished.");
        }
    }
}

View Code

作業觸發規則在上面quartz_jobs.xml檔案中配置

這里分析下特別提到下，job的trigger有以下幾種常用的方法：

SimpleTrigger：簡單的觸發器（重點）
CalendarIntervalTrigger：日歷觸發器（可自行研究）
CronTrigger：Cron運算式觸發器（重點）

專案結構圖：

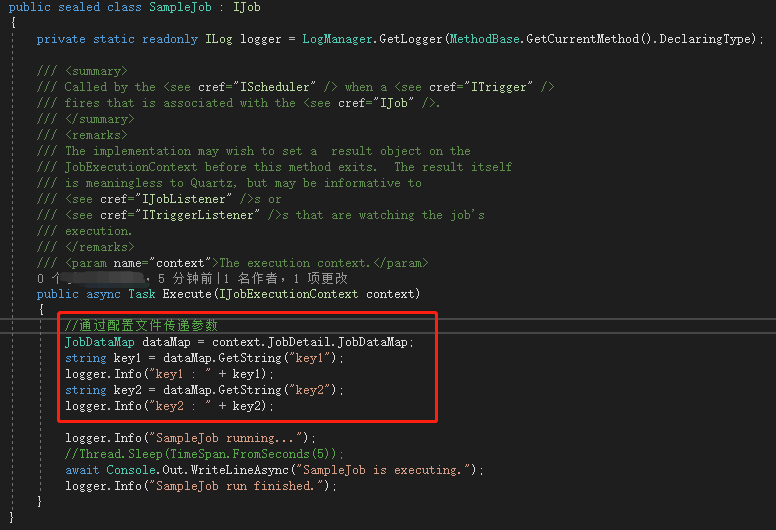

另外可以通過組態檔設定引數傳遞給作業：

相關源代碼地址：https://gitee.com/wyft/QuartzTopshelf

轉載請註明出處，本文鏈接：https://www.uj5u.com/net/308036.html

標籤：C#

上一篇：.NET C# 獲取免費代理IP

下一篇：C# 加載Word的3種方法
