什么是Secrets

應用程式通常會通過使用專用的存盤來存盤敏感資訊，如連接字串、密鑰等，

通常這需要建立一個密鑰存盤，如Azure Key Vault、Hashicorp等，并在那里存盤應用程式級別的密鑰，要訪問這些密鑰存盤，應用程式需要匯入密鑰存盤SDK，并使用它訪問這些密鑰，這可能需要相當數量的模板代碼，這些代碼與應用的實際業務領域無關，因此在多云場景中，可能會使用不同廠商特定的密鑰存盤，這就成為一個更大的挑戰，

讓開發人員在任何地方更容易訪問應用程式密鑰， Dapr 提供一個專用的密鑰構建塊，允許開發人員從一個存盤獲得密鑰，

使用 Dapr 的密鑰存盤構建塊通常涉及以下內容：

設定一個特定的密鑰存盤解決方案的組件，
在應用程式代碼中使用 Dapr Secrets API 獲取密鑰，
在Dapr的Component檔案中參考密鑰

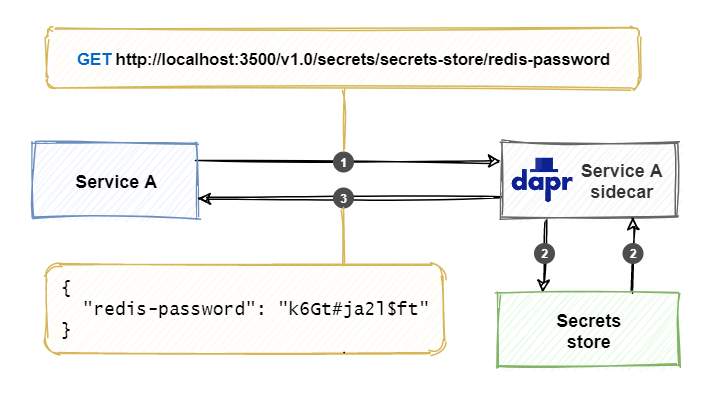

作業原理

服務A呼叫 Dapr Secrets API，提供要檢索的Serects的名稱和要查詢的項名字，
Dapr sidecar 從Secrets存盤中檢索指定的機密，
Dapr sidecar 將Secrets資訊回傳給服務，

Dapr目前支持的Secrets存盤請見存盤

使用Secrets時，應用程式與 Dapr sidecar 互動， sidecar 公開Secrets API，可以使用 HTTP 或 gRPC 呼叫 API，使用以下 URL 呼叫 HTTP API：

http://localhost:<dapr-port>/v1.0/secrets/<store-name>/<name>?<metadata>

URL 包含以下欄位：

<dapr-port> 指定 Dapr sidecar 偵聽的埠號，
<store-name> 指定 Dapr Secrets存盤的名稱，
<name> 指定要檢索的密鑰的名稱，
<metadata> 提供Secrets的其他資訊，此段是可選的，每個Secrets存盤的元資料屬性不同，有關元資料屬性詳細資訊

專案實戰

通過Dapr SDK獲取secrets

仍然使用FrontEnd專案，并使用本地檔案存盤Secrets，首先在默認component目錄C:\Users\<username>\.dapr\components中新建檔案secrets01.json，宣告密鑰內容

{
    "RabbitMQConnectStr": "amqp://admin:[email protected]:5672"
}

在此目錄新建secrets01.yaml定義store

apiVersion: dapr.io/v1alpha1
kind: Component
metadata:
  name: secrets01
spec:
  type: secretstores.local.file
  version: v1
  metadata:
  - name: secretsFile
    value: C:\Users\username\.dapr\components\secrets01.json
  - name: nestedSeparator
    value: ":"

定義介面獲取Secrets01的內容，新建SecretsController

using Dapr.Client;

using Microsoft.AspNetCore.Mvc;
using Microsoft.Extensions.Logging;

using System.Collections.Generic;
using System.Threading.Tasks;

namespace FrontEnd.Controllers
{
    [Route("[controller]")]
    [ApiController]
    public class SecretsController : ControllerBase
    {
        private readonly ILogger<SecretsController> _logger;
        private readonly DaprClient _daprClient;
        public SecretsController(ILogger<SecretsController> logger, DaprClient daprClient)
        {
            _logger = logger;
            _daprClient = daprClient;
        }

        [HttpGet]
        public async Task<ActionResult> GetAsync()
        {
            Dictionary<string, string> secrets = await _daprClient.GetSecretAsync("secrets01", "RabbitMQConnectStr");
            return Ok(secrets);
        }
    }
}

運行Frontend

dapr run --dapr-http-port 3501 --app-port 5001  --app-id frontend dotnet  .\FrontEnd\bin\Debug\net5.0\FrontEnd.dll

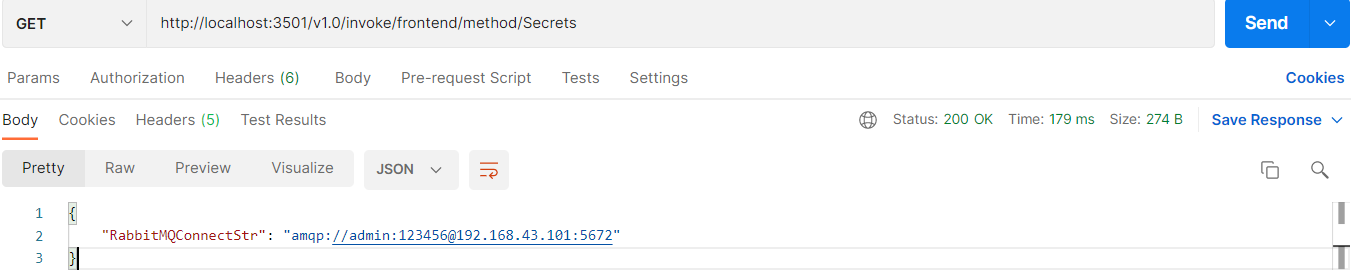

驗證此api，獲取成功

通過IConfiguration訪問Secrets

Dapr還提供了從IConfiguration中訪問Secrets的方法，首先引入nuget包Dapr.Extensions.Config

在Program.cs中修改注冊

        public static IHostBuilder CreateHostBuilder(string[] args) =>
            Host.CreateDefaultBuilder(args)
                .ConfigureAppConfiguration(config =>
                {
                    var daprClient = new DaprClientBuilder().Build();
                    var secretDescriptors = new List<DaprSecretDescriptor> { new DaprSecretDescriptor("RabbitMQConnectStr") };
                    config.AddDaprSecretStore("secrets01", secretDescriptors, daprClient);
                })
                .ConfigureWebHostDefaults(webBuilder =>
                {
                    webBuilder.UseStartup<Startup>().UseUrls("http://*:5001");
                });

在SecretsController注入IConfiguration

        private readonly ILogger<SecretsController> _logger;
        private readonly DaprClient _daprClient;
        private readonly IConfiguration _configuration;
        public SecretsController(ILogger<SecretsController> logger, DaprClient daprClient, IConfiguration configuration)
        {
            _logger = logger;
            _daprClient = daprClient;
            _configuration = configuration;
        }

在SecretsController中新增介面

        [HttpGet("get01")]
        public async Task<ActionResult> Get01Async()
        {
            return Ok(_configuration["RabbitMQConnectStr"]);
        }

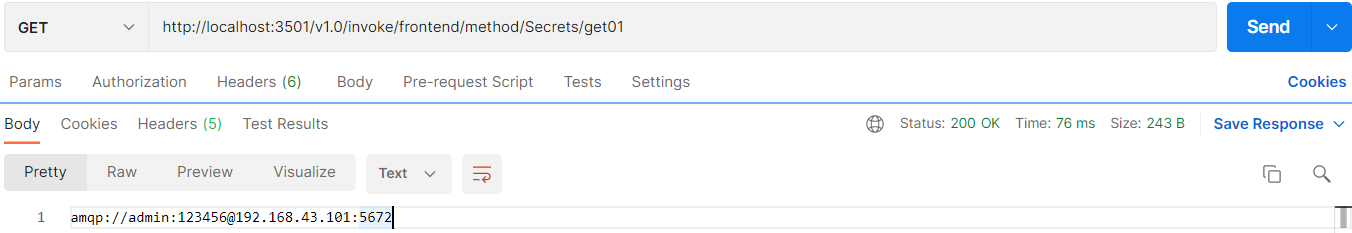

呼叫介面，獲取資料成功

其他組件參考Secrets

Dapr的其他組件，同樣可以參考Secrets，我們以上節RabbitMQBinding為例，修改rabbitbinding.yaml

apiVersion: dapr.io/v1alpha1
kind: Component
metadata:
  name: RabbitBinding
spec:
  type: bindings.rabbitmq
  version: v1
  metadata:
  - name: queueName
    value: queue1
  - name: host
    secretKeyRef:
      name: RabbitMQConnectStr
      key: RabbitMQConnectStr
  - name: durable
    value: true
  - name: deleteWhenUnused
    value: false
  - name: ttlInSeconds
    value: 60
  - name: prefetchCount
    value: 0
  - name: exclusive
    value: false
  - name: maxPriority
    value: 5
auth:
  secretStore: secrets01

secretKeyRef元素參考指定的密鑰，它將替換以前的明文值，在 auth 中找到對應的secretStore，

現在運行Frontend

dapr run --dapr-http-port 3501 --app-port 5001  --app-id frontend dotnet  .\FrontEnd\bin\Debug\net5.0\FrontEnd.dll

在RabbitMQ Management中發送訊息，消費成功

== APP == info: FrontEnd.Controllers.RabbitBindingController[0]
== APP ==       .............binding.............11122444

限制Secrets訪問權限

我們可以在Dapr的默認組態檔C:\Users\username\.dapr\config.yaml中設定Secrets的訪問權限，現在我們嘗試禁止secrets01的權限

apiVersion: dapr.io/v1alpha1
kind: Configuration
metadata:
  name: daprConfig
spec:
  tracing:
    samplingRate: "1"
    zipkin:
      endpointAddress: http://localhost:9411/api/v2/spans
  secrets:
    scopes:
      - storeName: secrets01
        defaultAccess: deny

設定之后，Frontend會啟動失敗，因為我們在Program.cs中設定了讀取secrets01，

== APP == Unhandled exception. Dapr.DaprException: Secret operation failed: the Dapr endpoint indicated a failure. See InnerException for details.
== APP ==  ---> Grpc.Core.RpcException: Status(StatusCode="PermissionDenied", Detail="access denied by policy to get "RabbitMQConnectStr" from "secrets01"")
== APP ==    at Dapr.Client.DaprClientGrpc.GetSecretAsync(String storeName, String key, IReadOnlyDictionary`2 metadata, CancellationToken cancellationToken)
== APP ==    --- End of inner exception stack trace ---
== APP ==    at Dapr.Client.DaprClientGrpc.GetSecretAsync(String storeName, String key, IReadOnlyDictionary`2 metadata, CancellationToken cancellationToken)
== APP ==    at Dapr.Extensions.Configuration.DaprSecretStore.DaprSecretStoreConfigurationProvider.LoadAsync()
== APP ==    at Dapr.Extensions.Configuration.DaprSecretStore.DaprSecretStoreConfigurationProvider.Load()
== APP ==    at Microsoft.Extensions.Configuration.ConfigurationRoot..ctor(IList`1 providers)
== APP ==    at Microsoft.Extensions.Configuration.ConfigurationBuilder.Build()
== APP ==    at Microsoft.Extensions.Hosting.HostBuilder.BuildAppConfiguration()
== APP ==    at Microsoft.Extensions.Hosting.HostBuilder.Build()
== APP ==    at FrontEnd.Program.Main(String[] args) in C:\demo\test\DaprBackEnd\FrontEnd\Program.cs:line 20

我們可以修改配置讓其允許

apiVersion: dapr.io/v1alpha1
kind: Configuration
metadata:
  name: daprConfig
spec:
  tracing:
    samplingRate: "1"
    zipkin:
      endpointAddress: http://localhost:9411/api/v2/spans
  secrets:
    scopes:
      - storeName: secrets01
        defaultAccess: deny
        allowedSecrets: ["RabbitMQConnectStr"]

重啟Frontend成功

以下表格列出了所有可能的訪問權限配置

Scenarios	defaultAccess	allowedSecrets	deniedSecrets	permission
1 - Only default access	deny/allow	empty	empty	deny/allow
2 - Default deny with allowed list	deny	[“s1”]	empty	only “s1” can be accessed
3 - Default allow with deneied list	allow	empty	[“s1”]	only “s1” cannot be accessed
4 - Default allow with allowed list	allow	[“s1”]	empty	only “s1” can be accessed
5 - Default deny with denied list	deny	empty	[“s1”]	deny
6 - Default deny/allow with both lists	deny/allow	[“s1”]	[“s2”]	only “s1” can be accessed
