C# 玩轉MongoDB（三）-有解無憂

前面兩篇文章，已經講解了C#對MongoDB的基本操作以及小檔案的讀寫存盤，那么對于大型（>=16M）檔案呢？具體又該如何操作呢，本文主要以一個簡單的小例子，簡述C#如何通過GridFS進行MongoDB的大檔案的操作，僅供學習分享使用，如有不足之處，還請指正，

什么是GridFS?

在實作GridFS方式前我先講講它的原理，為什么可以存大檔案，驅動首先會在當前資料庫創建兩個集合："fs.files"和"fs.chunks"集合，前者記錄了檔案名，檔案創建時間，檔案型別等基本資訊；后者分塊存盤了檔案的二進制資料（并支持加密這些二進制資料），分塊的意思是把檔案按照指定大小分割，然后存入多個檔案中，"fs.files"怎么知道它對應的檔案二進制資料在哪些塊呢？那是因為在"fs.chunks"中有個"files_id"鍵，它對應"fs.files"的"_id"，"fs.chunks"還有一個鍵(int型)"n"，它表明這些塊的先后順序，這兩個集合名中的"fs"也是可以通過引數自定義的，

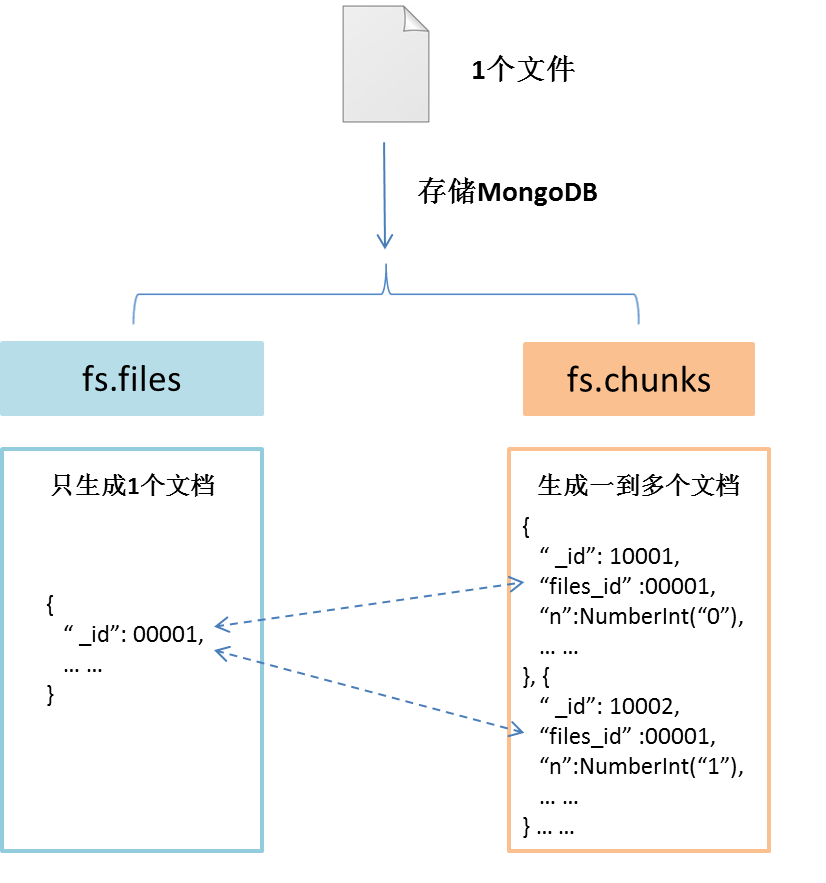

GridFS存盤原理

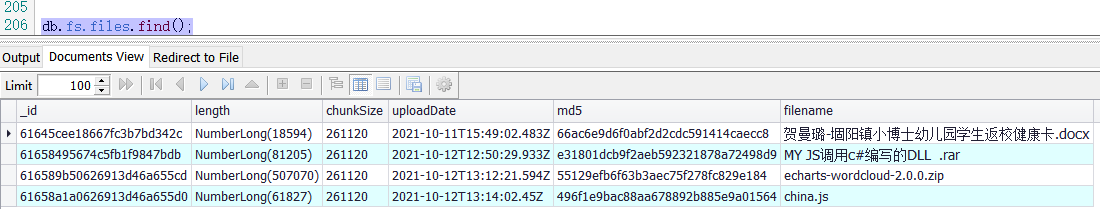

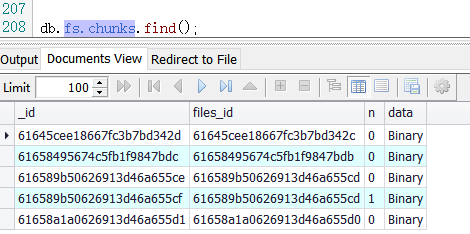

一個檔案存盤在兩個集合中，一個用于存盤元資料（檔案名稱，型別，大小等內容，可便于索引），一個用于存盤真實二進制資料（分塊存盤），如下所示：

GridFS安裝

如果需要存盤大型檔案，則需要安裝GridFS插件，如下所示：

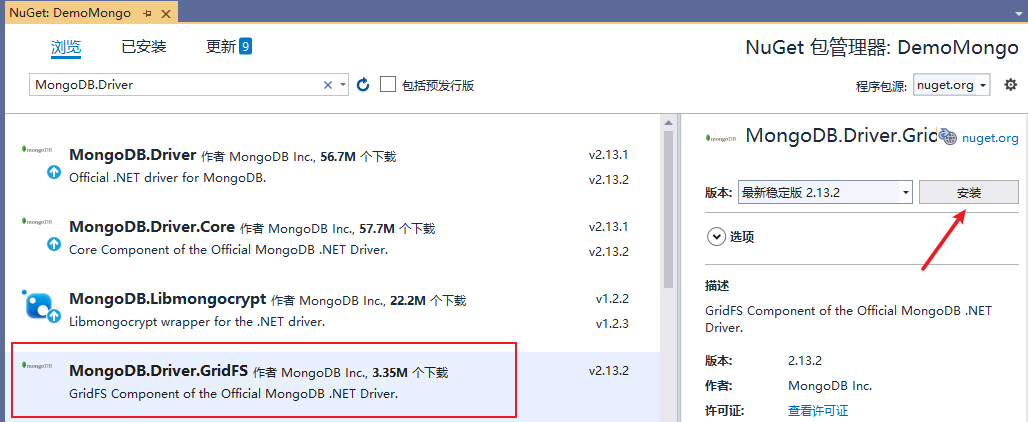

專案--右鍵--管理Nuget程式包--打卡Nuget包管理器--瀏覽搜索MongoDB.Driver.GridFS--安裝，如下所示：

示例截圖

首先是檔案的查詢，如下所示：

檔案的新增

核心代碼

本示例主要是在MongoDB中進行檔案的操作，所以之前的MongoHelper已不再適用，本例新增了檔案專用幫助類MongoFileHelper，如下所示：

  1 using MongoDB.Bson;
  2 using MongoDB.Driver;
  3 using MongoDB.Driver.GridFS;
  4 using System;
  5 using System.Collections.Generic;
  6 using System.IO;
  7 using System.Linq;
  8 using System.Text;
  9 using System.Threading.Tasks;
 10
 11 namespace DemoMongo.Common
 12 {
 13
 14     public class MongoFileHelper
 15     {
 16
 17         private string connStr = "mongodb://127.0.0.1:27017";//服務器網址
 18
 19         private string dbName = "hexdb";//資料庫名稱
 20
 21         private IMongoClient client;//連接客戶端
 22
 23         private IMongoDatabase db;//連接資料庫
 24
 25         private string collName;//集合名稱
 26
 27         public MongoFileHelper()
 28         {
 29
 30         }
 31
 32         public MongoFileHelper(string connStr, string dbName, string collName)
 33         {
 34             this.connStr = connStr;
 35             this.dbName = dbName;
 36             this.collName = collName;
 37             this.Init();
 38         }
 39
 40         /// <summary>
 41         /// 初始化連接客戶端
 42         /// </summary>
 43         private void Init()
 44         {
 45             if (client == null)
 46             {
 47                 client = new MongoClient(this.connStr);
 48             }
 49             if (db == null)
 50             {
 51                 db = client.GetDatabase(this.dbName);
 52             }
 53         }
 54
 55         /// <summary>
 56         /// 通過位元組方式上傳
 57         /// </summary>
 58         /// <param name="filePath"></param>
 59         public void UploadFile(string filePath)
 60         {
 61             IGridFSBucket bucket = new GridFSBucket(db);
 62             byte[] source = File.ReadAllBytes(filePath);
 63             string fileName = Path.GetFileName(filePath);
 64             var options = new GridFSUploadOptions
 65             {
 66                 ChunkSizeBytes = 64512, // 63KB
 67                 Metadata = https://www.cnblogs.com/hsiang/archive/2021/10/12/new BsonDocument
 68                 {
 69                     { "resolution", "1080P" },
 70                     { "copyrighted", true }
 71                 }
 72             };
 73             var id = bucket.UploadFromBytes(fileName, source);
 74             //回傳的ID，表示檔案的唯一ID
 75
 76
 77         }
 78
 79         /// <summary>
 80         /// 通過Stream方式上傳
 81         /// </summary>
 82         /// <param name="filePath"></param>
 83         public void UploadFile2(string filePath)
 84         {
 85             IGridFSBucket bucket = new GridFSBucket(db);
 86             var stream = new FileStream(filePath, FileMode.Open);
 87
 88             string fileName = Path.GetFileName(filePath);
 89             var options = new GridFSUploadOptions
 90             {
 91                 ChunkSizeBytes = 64512, // 63KB
 92                 Metadata = https://www.cnblogs.com/hsiang/archive/2021/10/12/new BsonDocument
 93                 {
 94                     { "resolution", "1080P" },
 95                     { "copyrighted", true }
 96                 }
 97             };
 98             var id = bucket.UploadFromStream(fileName, stream);
 99             //回傳的ID，表示檔案的唯一ID
100
101
102         }
103
104         /// <summary>
105         /// 通過位元組寫入到流
106         /// </summary>
107         /// <param name="filePath"></param>
108         public void UploadFile3(string filePath)
109         {
110             IGridFSBucket bucket = new GridFSBucket(db);
111             byte[] source = File.ReadAllBytes(filePath);
112             string fileName = Path.GetFileName(filePath);
113             var options = new GridFSUploadOptions
114             {
115                 ChunkSizeBytes = 64512, // 63KB
116                 Metadata = https://www.cnblogs.com/hsiang/archive/2021/10/12/new BsonDocument
117                 {
118                     { "resolution", "1080P" },
119                     { "copyrighted", true }
120                 }
121             };
122             using (var stream = bucket.OpenUploadStream(fileName, options))
123             {
124                 var id = stream.Id;
125                 stream.Write(source, 0, source.Length);
126                 stream.Close();
127             }
128         }
129
130         /// <summary>
131         /// 下載檔案
132         /// </summary>
133         /// <param name="id"></param>
134         public void DownloadFile(ObjectId id,string filePath)
135         {
136             IGridFSBucket bucket = new GridFSBucket(db);
137             byte[] source = bucket.DownloadAsBytes(id);
138             //回傳的位元組內容
139             //var bytes = await bucket.DownloadAsBytesAsync(id);
140             using (Stream stream = new FileStream(filePath, FileMode.OpenOrCreate)) {
141                 stream.Write(source, 0, source.Length);
142             }
143         }
144
145         public void DownloadFile2(ObjectId id)
146         {
147             IGridFSBucket bucket = new GridFSBucket(db);
148             Stream destination = null;
149             bucket.DownloadToStream(id, destination);
150             //回傳的位元組內容
151             //await bucket.DownloadToStreamAsync(id, destination);
152
153         }
154
155         public void DownloadFile3(ObjectId id)
156         {
157             IGridFSBucket bucket = new GridFSBucket(db);
158             Stream destination = null;
159             using (var stream = bucket.OpenDownloadStream(id))
160             {
161                 // read from stream until end of file is reached
162                 stream.Close();
163             }
164         }
165
166         public void DownloadFile4(string fileName)
167         {
168             IGridFSBucket bucket = new GridFSBucket(db);
169             var bytes = bucket.DownloadAsBytesByName(fileName);
170
171             // or
172
173             Stream destination = null;
174             bucket.DownloadToStreamByName(fileName, destination);
175
176             // or
177
178             using (var stream = bucket.OpenDownloadStreamByName(fileName))
179             {
180                 // read from stream until end of file is reached
181                 stream.Close();
182             }
183         }
184
185         public List<MongoFile> FindFiles()
186         {
187             IGridFSBucket bucket = new GridFSBucket(db);
188             var filter = Builders<GridFSFileInfo>.Filter.And(
189                 //Builders<GridFSFileInfo>.Filter.Eq(x => x.Filename, string.Empty),
190                 Builders<GridFSFileInfo>.Filter.Gte(x => x.UploadDateTime, new DateTime(2015, 1, 1, 0, 0, 0, DateTimeKind.Utc)),
191                 Builders<GridFSFileInfo>.Filter.Lt(x => x.UploadDateTime, new DateTime(2022, 2, 1, 0, 0, 0, DateTimeKind.Utc)));
192             var sort = Builders<GridFSFileInfo>.Sort.Descending(x => x.UploadDateTime);
193             var options = new GridFSFindOptions
194             {
195                 //Limit = 1,
196                 Sort = sort
197             };
198             List<MongoFile> lstFiles = new List<MongoFile>();
199             using (var cursor = bucket.Find(filter, options))
200             {
201                 var fileInfos = cursor.ToList();
202                 foreach (var fileInfo in fileInfos) {
203                     MongoFile f = new MongoFile()
204                     {
205                          Id=fileInfo.Id,
206                          name = fileInfo.Filename,
207                          suffix = Path.GetExtension(fileInfo.Filename),
208                         size = int.Parse(fileInfo.Length.ToString())
209                     };
210                     lstFiles.Add(f);
211                 }
212             }
213             return lstFiles;
214         }
215
216         public List<MongoFile> FindFileByName(string fileName)
217         {
218             IGridFSBucket bucket = new GridFSBucket(db);
219             var filter = Builders<GridFSFileInfo>.Filter.And(
220                 Builders<GridFSFileInfo>.Filter.Eq(x => x.Filename, fileName),
221                 Builders<GridFSFileInfo>.Filter.Gte(x => x.UploadDateTime, new DateTime(2015, 1, 1, 0, 0, 0, DateTimeKind.Utc)),
222                 Builders<GridFSFileInfo>.Filter.Lt(x => x.UploadDateTime, new DateTime(2015, 2, 1, 0, 0, 0, DateTimeKind.Utc)));
223             var sort = Builders<GridFSFileInfo>.Sort.Descending(x => x.UploadDateTime);
224             var options = new GridFSFindOptions
225             {
226                 //Limit = 1,
227                 Sort = sort
228             };
229             List<MongoFile> lstFiles = new List<MongoFile>();
230             using (var cursor = bucket.Find(filter, options))
231             {
232                 var fileInfos = cursor.ToList();
233                 foreach (var fileInfo in fileInfos)
234                 {
235                     MongoFile f = new MongoFile()
236                     {
237                         Id = fileInfo.Id,
238                         name = fileInfo.Filename,
239                         suffix = Path.GetExtension(fileInfo.Filename),
240                         size = int.Parse(fileInfo.Length.ToString())
241                     };
242                     lstFiles.Add(f);
243                 }
244             }
245             return lstFiles;
246         }
247     }
248 }

然后操作時，呼叫幫助類即可，如下所示：

查詢呼叫

 1        private void btnQuery_Click(object sender, EventArgs e)
 2         {
 3             string name = this.txtName.Text.Trim();
 4             List<MongoFile> fileInfos = new List<MongoFile>();
 5             if (string.IsNullOrEmpty(name))
 6             {
 7                 fileInfos = helper.FindFiles();
 8             }
 9             else {
10                 fileInfos = helper.FindFileByName(name);
11             }
12
13             this.dgView.AutoGenerateColumns = false;
14             this.bsView.DataSource = fileInfos;
15             this.dgView.DataSource = this.bsView;
16         }

下載呼叫

 1         private void dgView_CellContentClick(object sender, DataGridViewCellEventArgs e)
 2         {
 3             if (e.ColumnIndex == 3) {
 4                 //第3個是下載按鈕
 5                 SaveFileDialog sfd = new SaveFileDialog();
 6
 7                 var file = (MongoFile)(this.dgView.Rows[e.RowIndex].DataBoundItem);
 8                 sfd.FileName = file.name;
 9                 sfd.Title = "請保存檔案";
10                 if (DialogResult.OK == sfd.ShowDialog())
11                 {
12                     helper.DownloadFile(file.Id,sfd.FileName);
13                     MessageBox.Show("保存成功");
14
15                 }
16             }
17         }

保存呼叫

 1         private void btnSave_Click(object sender, EventArgs e)
 2         {
 3             string filePath = this.txtPath.Text;
 4             if (!string.IsNullOrEmpty(filePath))
 5             {
 6                 this.helper.UploadFile(filePath);
 7                 MessageBox.Show("保存成功");
 8             }
 9             else {
10                 MessageBox.Show("請先選擇檔案");
11             }
12
13         }
