沿自己的路徑移動點

我有一個連接點的串列。

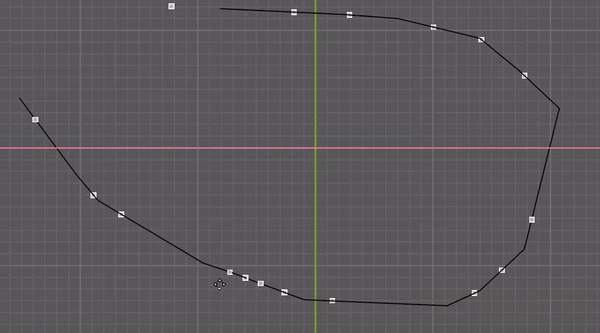

我想沿著自己的路徑移動點/白色方塊，如下所示：

我喜歡有一個 numpy 版本，但我不確定這是否可能。
所以python方法也可以。
最終結果應該是一個新點串列。

uj5u.com熱心網友回復：

這里有一些讓你思考的東西。我定義了一組點。我計算了線段的長度和角度（請注意，這對于垂直線段會失敗）。然后我開始繪制原始線段和當前點的 matplotlib 影片。這對你來說還不夠，因為我不是在拐角處。這些點只是在同一個方向上繼續。留給讀者的練習？

import math
import numpy as np
import matplotlib.pyplot as plt
from matplotlib.animation import FuncAnimation

# Define a set of points that make up a rough circle.

curve = np.array((
    ( 0, 0 ),
    ( 8, 2 ),
    ( 12, 7 ),
    ( 5, 11 ),
    ( -2, 13 ),
    ( -4, 8 ),
    ( -2, 4 ),
    ( 0, 0 )
))

# Cmpute angle and length of segment.

segments = []
for c in range(len(curve)-1):
    delta = curve[c 1]-curve[c]
    length = math.sqrt(delta[0]*delta[0] delta[1]*delta[1])
    angle = math.atan2(delta[1], delta[0])
    segments.append( (delta, length, angle) )

# Step 0.5 units per frame.

STEP = 0.5

def movePoint( pt, segment ):
    # Move pt down the line between prv and nxt.
    ptx = math.cos(segment[2]) * STEP
    pty = math.sin(segment[2]) * STEP
    return pt (ptx,pty)

def advance(points, curve):
    newpts = []
    for i in range(len(curve)-1):
        newpts.append( movePoint( points[i], segments[i]) )
    return np.array(newpts)

fig, ax = plt.subplots()
plt.plot( curve[:,0], curve[:,1] )

def init():
    global points
    global ln
    points = curve.copy()
    ln = plt.scatter( points[:,0], points[:,1] )
    return ln,

def update(frame):
    global points
    points = advance(points, curve)
    ln.set_offsets( points )
    return ln,

ani = FuncAnimation( fig, update, frames=12, init_func=init, blit=True )
plt.show()

uj5u.com熱心網友回復：

from typing import List

import numpy as np


class _LineSegment:
    def __init__(self, v1: np.ndarray, v2: np.ndarray) -> None:
        """Helper representation of a line segment. Makes use of PolygonialPath's
        data integrity (i.e. no further range checks) and implements handling
        of v1 == v2 case.
        """
        self.v1 = v1
        self.v2 = v2
        v_delta = v2 - v1
        self.length = np.linalg.norm(v_delta)
        self.direction = v_delta / self.length if self.length else v_delta


class PolygonalChain:
    def __init__(self, vertices: List[np.ndarray]) -> None:
        if len(vertices) < 2:
            raise ValueError("Trivial polygonial paths not supported!")
        v_shape = vertices[0].shape
        if len(v_shape) != 1:
            raise ValueError("Vertices have to be represented as vectors!")
        if any(v.shape != v_shape for v in vertices):
            raise ValueError("Vertices have to be of consistent length!")
        self._vertices = vertices
        self._vertices_arclen = [0]
        self._strict_vertices_arclen = [0]
        self._strict_segments = []
        v_prev = self._vertices[0]
        for v_next in vertices[1:]:
            segment = _LineSegment(v_prev, v_next)
            self._vertices_arclen.append(self._vertices_arclen[-1]   segment.length)
            if segment.length:
                self._strict_vertices_arclen.append(self._vertices_arclen[-1])
                self._strict_segments.append(segment)
            v_prev = v_next
        if not self._strict_segments:
            raise ValueError("Trivial polygonial paths not supported!")
        # for convenience in `point_at`, set last value to inf (to handle
        # extrapolation beyond last point)
        self._strict_vertices_arclen[-1] = np.inf

    def vertices_arclen(self) -> List[float]:
        """For each vertice, its arc-length along the path."""
        return self._vertices_arclen

    def point_at(self, arclen: float) -> np.ndarray:
        """Provide point corresponding to the arc-length. Extrapolation done by
        first and last segment.
        """
        # map to line segment (could be optimized by bi-section)
        segment_idx = 0
        while arclen > self._strict_vertices_arclen[segment_idx 1]:
            segment_idx  = 1

        # compute point
        segment = self._strict_segments[segment_idx]
        arclen_on_segment = arclen - self._strict_vertices_arclen[segment_idx]
        return segment.v1   arclen_on_segment * segment.direction


def example() -> None:
    from matplotlib import pyplot as plt
    # some data
    pts = [
        np.array((1, 2)),
        np.array((1, 2)),
        np.array((3, 5)),
        np.array((4, 7)),
        np.array((4, 8)),
        np.array((3, 6)),
    ]
    # polygonial chain representation
    chain = PolygonalChain(pts)
    pts_arclen = chain.vertices_arclen()

    # apply some step
    delta_arclen = -0.5

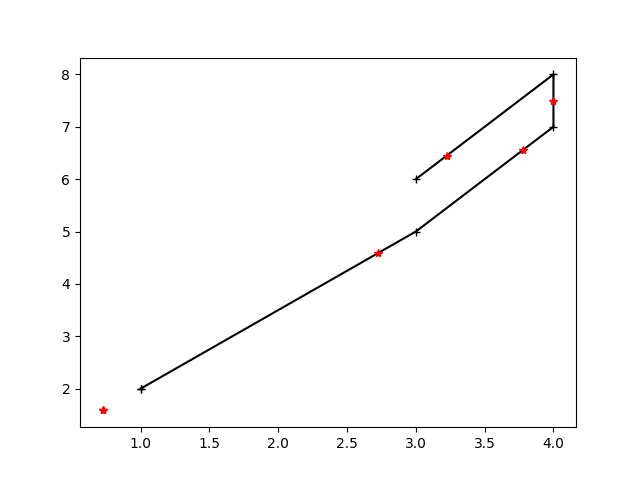

    pts_shifted = [chain.point_at(p_arclen   delta_arclen) for p_arclen in pts_arclen]

    # plot
    plt.plot([p[0] for p in pts], [p[1] for p in pts], "- k")
    plt.plot([p[0] for p in pts_shifted], [p[1] for p in pts_shifted], "r*")
    plt.show()


if __name__ == "__main__":
    example()
