WPF 寫一個提醒工具軟體(完整專案)-有解無憂

昨天整理硬碟時，偶然發現一個很久之前寫的小工具，一個提醒工具，
包含定時提醒，間隔提醒功能，
界面看起來也還湊合，還使用了HandyControl，有桌面托盤功能

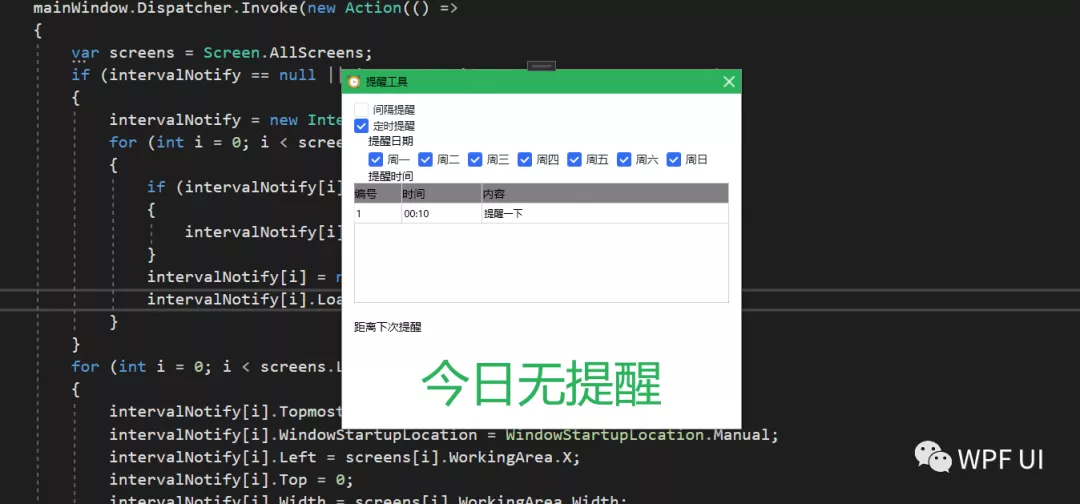

界面是下面這樣的

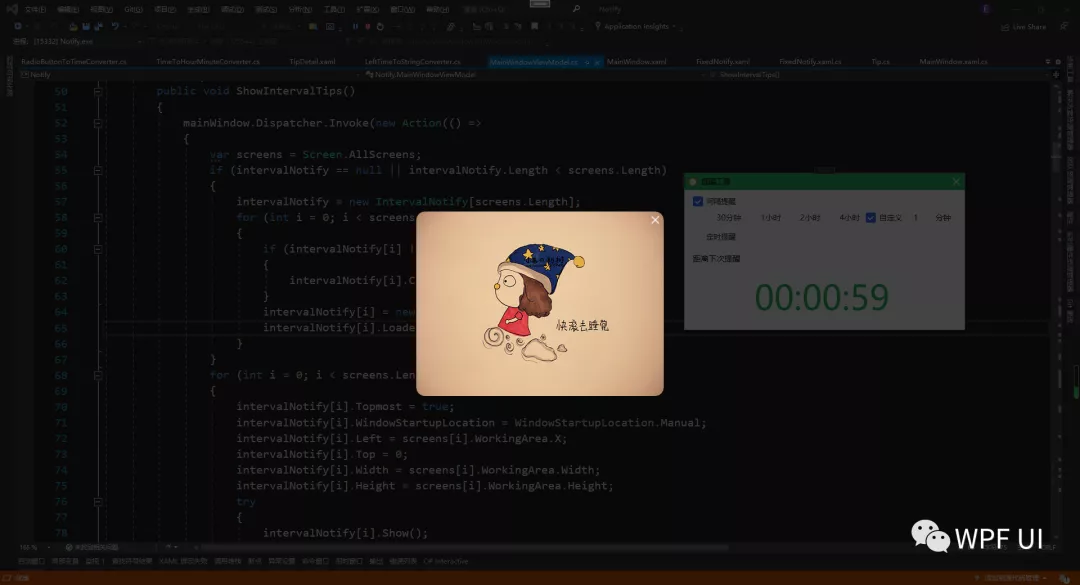

提醒視窗有兩種，分別是這樣的：
MainWindow.xaml代碼如下：
<Window x:
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:input="clr-namespace:System.Windows.Input;assembly=PresentationCore"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:local="clr-namespace:Notify"
        xmlns:i="http://schemas.microsoft.com/expression/2010/interactivity"
        mc:Ignorable="d"
        xmlns:hc="https://handyorg.github.io/handycontrol"
        WindowStartupLocation="CenterScreen"
        Title="定時提醒"
        AllowsTransparency="True"
        hc:WindowAttach.IgnoreAltF4="True"
        WindowStyle="None"
        Background="Transparent"
         Height="270"
        ShowInTaskbar="False"
        Icon="./Resources/Tip32.png"
        >
    <Window.Resources>
        <ResourceDictionary>
            <!--DataGrid樣式-->
            <Style TargetType="DataGrid">
                <!--網格線顏色-->
                <Setter Property="CanUserResizeColumns" Value="https://www.cnblogs.com/zls366/p/false"/>
                <Setter Property="Background" Value="https://www.cnblogs.com/zls366/p/White" />
                <Setter Property="BorderBrush" Value="https://www.cnblogs.com/zls366/p/Gray" />
                <Setter Property="BorderThickness" Value="https://www.cnblogs.com/zls366/p/0.6"/>
                <Setter Property="RowHeaderWidth" Value="https://www.cnblogs.com/zls366/p/0"/>
                <Setter Property="HorizontalGridLinesBrush">
                    <Setter.Value>
                        <SolidColorBrush Color="LightGray"/>
                    </Setter.Value>
                </Setter>
                <Setter Property="VerticalGridLinesBrush">
                    <Setter.Value>
                        <SolidColorBrush Color="LightGray"/>
                    </Setter.Value>
                </Setter>
</Style>
            <!--標題欄樣式-->
            <Style TargetType="DataGridColumnHeader">
                <Setter Property="SnapsToDevicePixels" Value="https://www.cnblogs.com/zls366/p/True" />
                <Setter Property="MinHeight" Value="https://www.cnblogs.com/zls366/p/25" />
                <Setter Property="FontSize" Value="https://www.cnblogs.com/zls366/p/14" />
                <Setter Property="Cursor" Value="https://www.cnblogs.com/zls366/p/Hand" />
                <Setter Property="Template">
                    <Setter.Value>
                        <ControlTemplate TargetType="DataGridColumnHeader">
                            <Border x:Name="BackgroundBorder"
                                    Background="Gray">
                                <Grid>
                                    <ContentPresenter  VerticalAlignment="Center" HorizontalAlignment="Left"/>
                                    <Rectangle  Fill="LightGray" HorizontalAlignment="Right" />
                                    <Rectangle Height="1" Fill="LightGray" VerticalAlignment="Bottom"/>
                                </Grid>
                            </Border>
                        </ControlTemplate>
                    </Setter.Value>
                </Setter>
                <Setter Property="Height" Value="https://www.cnblogs.com/zls366/p/25"/>
</Style>
            <!--行樣式觸發-->
            <!--背景色改變必須先設定cellStyle 因為cellStyle會覆寫rowStyle樣式-->
            <Style  TargetType="DataGridRow">
                <Setter Property="Height" Value="https://www.cnblogs.com/zls366/p/25"/>
                <Style.Triggers>
                    <Trigger Property="IsMouseOver" Value="https://www.cnblogs.com/zls366/p/True">
                        <Setter Property="Background" Value="https://www.cnblogs.com/zls366/p/#dddddd"/>
                    </Trigger>
                    <Trigger Property="IsSelected" Value="https://www.cnblogs.com/zls366/p/True">
                        <Setter Property="Background" Value="https://www.cnblogs.com/zls366/p/#dddddd"/>
                    </Trigger>
                </Style.Triggers>
</Style>

            <!--單元格樣式觸發-->
            <Style TargetType="DataGridCell">
                <Setter Property="Template">
                    <Setter.Value>
                        <ControlTemplate TargetType="DataGridCell">
                            <TextBlock TextAlignment="Left" VerticalAlignment="Center"  >
                                <ContentPresenter />
                            </TextBlock>
                        </ControlTemplate>
                    </Setter.Value>
                </Setter>
</Style>

        </ResourceDictionary>
    </Window.Resources>
    <Border BorderBrush="Gray" BorderThickness="0.8" Margin="10" Background="White">
        <Border.Effect>
            <DropShadowEffect BlurRadius="10" ShadowDepth="0" Color="Black" Opacity="0.5"/>
        </Border.Effect>
        <DockPanel>
            <!--Title Bar-->
            <Grid DockPanel.Dock="Top" Background="#2bb25c" Height="30" x:Name="TitleBar">
                <Grid.ColumnDefinitions>
                    <ColumnDefinition />
                    <ColumnDefinition />
                    <ColumnDefinition />
                    <ColumnDefinition />
                </Grid.ColumnDefinitions>
                <Image Grid.Column="0" RenderOptions.BitmapScalingMode="Fant" Source="./Resources/Tip32.png" Margin="6"/>
                <TextBlock Grid.Column="1" Text="提醒工具" TextAlignment="Center" VerticalAlignment="Center" FontSize="13"/>
                <Border Grid.Column="3">
                    <Border.Style>
                        <Style TargetType="Border">
                            <Style.Triggers>
                                <Trigger Property="IsMouseOver" Value="https://www.cnblogs.com/zls366/p/True">
                                    <Setter Property="Background" Value="https://www.cnblogs.com/zls366/p/#FF6A6A"/>
                                </Trigger>
                                <Trigger Property="IsMouseOver" Value="https://www.cnblogs.com/zls366/p/False">
                                    <Setter Property="Background" Value="https://www.cnblogs.com/zls366/p/Transparent"/>
                                </Trigger>
                            </Style.Triggers>
</Style>
                    </Border.Style>
                    <Button Command="{Binding CloseCommand}">
                        <Button.Template>
                            <ControlTemplate>
                                <Border Background="Transparent">
                                    <Image Source="./Resources/Close12.png" RenderOptions.BitmapScalingMode="Fant"  Margin="8"/>
                                </Border>
                            </ControlTemplate>
                        </Button.Template>
                    </Button>
                </Border>
            </Grid>
            <StackPanel Margin="15 10 15 10" >
                <CheckBox IsChecked="{Binding IntervalTipChecked}" HorizontalAlignment="Left" Content="間隔提醒" FontSize="13" Height="20"></CheckBox>
                <StackPanel Orientation="Horizontal" Margin="0 3 0 8" Visibility="{Binding IntervalTipChecked,Converter={local:BooleanToVisiblityConverter}}">
                    <RadioButton IsChecked="{Binding IntervalTime,Mode=TwoWay,Converter={local:RadioButtonToTimeConverter},ConverterParameter=30}" FontSize="14" Margin="18 0 10 0" Content="30分鐘" />
                    <RadioButton IsChecked="{Binding IntervalTime,Mode=TwoWay,Converter={local:RadioButtonToTimeConverter},ConverterParameter=60}" FontSize="14" Margin="0 0 10 0" Content="1小時" />
                    <RadioButton IsChecked="{Binding IntervalTime,Mode=TwoWay,Converter={local:RadioButtonToTimeConverter},ConverterParameter=120}" FontSize="14" Margin="0 0 10 0" Content="2小時" />
                    <RadioButton IsChecked="{Binding IntervalTime,Mode=TwoWay,Converter={local:RadioButtonToTimeConverter},ConverterParameter=240}" FontSize="14" Margin="0 0 10 0" Content="4小時" />
                    <CheckBox IsChecked="{Binding IntervalTime,Mode=TwoWay,Converter={local:RadioButtonToTimeConverter},ConverterParameter=0}" FontSize="14" Margin="0 0 10 0" Content="自定義" />
                    <TextBox x:Name="txtMinute" Text="{Binding CustomText,Mode=TwoWay,UpdateSourceTrigger=PropertyChanged}" GotFocus="CustomTextGotFocus" PreviewTextInput="MinutePreviewTextInput"  input:InputMethod.IsInputMethodEnabled="False" FontSize="14" ></TextBox>
                    <TextBlock FontSize="14" Margin="3 0 0 0" Text="分鐘" VerticalAlignment="Center"></TextBlock>
                </StackPanel>
                <TextBlock x:Name="tipText" Text="請輸入1到1440的整數" Margin="320 -8 0 -10" Visibility="Collapsed"
                               Foreground="IndianRed" FontSize="12" VerticalAlignment="Center"/>
                <CheckBox IsChecked="{Binding FixedTimeTipChecked}" HorizontalAlignment="Left" Content="定時提醒" FontSize="13" Height="20"></CheckBox>
                <StackPanel Visibility="{Binding FixedTimeTipChecked,Converter={local:BooleanToVisiblityConverter}}">
                    <TextBlock FontSize="14" Margin="18 0 0 0" Text="提醒日期"/>
                    <StackPanel Orientation="Horizontal">
                        <CheckBox IsChecked="{Binding FixedTipDays,Converter={local:DayCheckBoxConverter},ConverterParameter=1}" FontSize="14" Margin="18 5 10 0" Content="周一" />
                        <CheckBox IsChecked="{Binding FixedTipDays,Converter={local:DayCheckBoxConverter},ConverterParameter=2}" FontSize="14" Margin="0 5 10 0" Content="周二" />
                        <CheckBox IsChecked="{Binding FixedTipDays,Converter={local:DayCheckBoxConverter},ConverterParameter=4}" FontSize="14" Margin="0 5 10 0" Content="周三" />
                        <CheckBox IsChecked="{Binding FixedTipDays,Converter={local:DayCheckBoxConverter},ConverterParameter=8}" FontSize="14" Margin="0 5 10 0" Content="周四" />
                        <CheckBox IsChecked="{Binding FixedTipDays,Converter={local:DayCheckBoxConverter},ConverterParameter=16}" FontSize="14" Margin="0 5 10 0" Content="周五" />
                        <CheckBox IsChecked="{Binding FixedTipDays,Converter={local:DayCheckBoxConverter},ConverterParameter=32}" FontSize="14" Margin="0 5 10 0" Content="周六" />
                        <CheckBox IsChecked="{Binding FixedTipDays,Converter={local:DayCheckBoxConverter},ConverterParameter=64}" FontSize="14" Margin="0 5 10 0" Content="周日" />
                    </StackPanel>
                    <TextBlock FontSize="14" Margin="18 3 0 0" Text="提醒時間"/>
                    <DataGrid ItemsSource="{Binding Tips}"
                          LoadingRow="DataGrid_LoadingRow"
                          Height="150"
                          AutoGenerateColumns="False" CanUserAddRows="False" CanUserDeleteRows="False"
                          CanUserResizeRows="False" CanUserResizeColumns="False" CanUserSortColumns="False"
                          SelectionMode="Single" SelectedItem="{Binding SelectedItem}"
                          >
                        <i:Interaction.Triggers>
                            <i:EventTrigger EventName="MouseDoubleClick">
                                <i:InvokeCommandAction Command="{Binding MouseDoubleClickCommand}"/>
                            </i:EventTrigger>
                        </i:Interaction.Triggers>
                        <DataGrid.ContextMenu >
                            <ContextMenu StaysOpen="True">
                                <MenuItem Command="{Binding AddTipCommand}" Header="添加"/>
                                <MenuItem Command="{Binding EditTipCommand}" Header="修改"/>
                                <MenuItem Command="{Binding DeleteTipCommand}" Header="洗掉"/>
                                <MenuItem Command="{Binding ClearTipsCommand}" Header="清空"/>
                            </ContextMenu>
                        </DataGrid.ContextMenu>
                        <DataGrid.Columns>
                            <DataGridTextColumn IsReadOnly="True" Binding="{Binding Index}" Header="編號" />
                            <DataGridTextColumn IsReadOnly="True" Binding="{Binding Time,Converter={local:TimeToHourMinuteConverter}}" Header="時間" />
                            <DataGridTextColumn IsReadOnly="True" Binding="{Binding Content}" Header="內容" />
                        </DataGrid.Columns>
                    </DataGrid>
                </StackPanel>
                <TextBlock FontSize="14" Margin="0 20 0 10" Text="距離下次提醒"/>
                <Border Height="100" HorizontalAlignment="Center" >
                    <TextBlock Text="{Binding LeftTime,Converter={local:LeftTimeToStringConverter}}" FontSize="60" Foreground="#2bb25c" VerticalAlignment="Center"></TextBlock>
                </Border>
            </StackPanel>
            <hc:NotifyIcon Icon="/icon.ico"
                       Text="Notify"
                       Visibility="Visible">
                <hc:NotifyIcon.ContextMenu>
                    <ContextMenu>
                        <MenuItem Command="{Binding PushMainWindow2TopCommand}" Header="顯示"/>
                        <MenuItem Command="hc:ControlCommands.ShutdownApp" Header="退出"/>
                    </ContextMenu>
                </hc:NotifyIcon.ContextMenu>
                <hc:Interaction.Triggers>
                    <hc:EventTrigger EventName="MouseDoubleClick">
                        <hc:EventToCommand Command="{Binding PushMainWindow2TopCommand}"/>
                    </hc:EventTrigger>
                </hc:Interaction.Triggers>
            </hc:NotifyIcon>
        </DockPanel>
    </Border>
</Window>
代碼很多，粘不完，
需要完整專案的添加小編微信zls20210502獲取！
