我有一系列圖表，其中我手動為不同的條形著色。我想創建一個（理想情況下共享的）圖例，它指的是條形的顏色。條形顏色不是圖形美學的屬性，因此我不確定如何手動執行此操作。
下面是一些示例代碼
set.seed(1234)
id <- rep(1:50, each = 3)
stimuli <- rep(c("a", "b", "c"), each = 1, times = 50)
dv_1 <- rnorm(150, mean = 2, sd = 0.7)
dv_2 <- rnorm(150, mean = 4, sd = 1.5)
dv_3 <- rnorm(150, mean = 7.5, sd = 1)
simdat <- data.frame(id, stimuli, dv_1, dv_2, dv_3)
#Stimuli A
dat_stimuli_a <- subset(simdat, stimuli == "a")
melt_a <- melt(dat_stimuli_a, id.vars = "id", measure.vars = c("dv_1", "dv_2", "dv_3"))
pwc_a <- melt_a %>%
wilcox_test(value ~ variable, paired = TRUE, p.adjust.method = "holm", detailed = TRUE) %>%
slice(1:2)
pwc_a
gg_a <- ggplot(melt_a, aes(x = reorder(variable, value), y = value))
stat_summary(fun = mean, geom = "bar", width = 0.75, aes(fill = variable))
stat_summary(fun.data = mean_cl_boot, geom = "errorbar",
colour="black", position=position_dodge(1), width=.2)
stat_pvalue_manual(pwc_a, label = "p.adj.signif", tip.length = 0.02, step.increase = 0.05, hide.ns = TRUE, y.position = c(7, 8), label.size = 3)
ggtitle("Stimuli A")
theme(plot.title = element_text(size=10, hjust = 0.5, face = "bold"))
scale_y_continuous(breaks = seq(1,10,by = 1), labels = c("1", "2", "3", "4", "5", "6", "7", "8", "9", "10"), limits = c(-0, 10))
theme(axis.text = element_text(size=10))
theme(axis.title = element_text(size=10, face = "bold"))
theme(axis.text.x = element_text(angle = 90, hjust = 1, vjust = 0.25))
gg_a <- gg_a scale_fill_manual(values = c("#9E0142", "#FDAE61", "#FDAE61"))
theme(legend.position = "none")
#Stimuli B
dat_stimuli_b <- subset(simdat, stimuli == "b")
melt_b <- melt(dat_stimuli_b, id.vars = "id", measure.vars = c("dv_1", "dv_2", "dv_3"))
pwc_b <- melt_b %>%
wilcox_test(value ~ variable, paired = TRUE, p.adjust.method = "holm", detailed = TRUE) %>%
slice(1, 3)
pwc_b
gg_b <- ggplot(melt_b, aes(x = reorder(variable, value), y = value))
stat_summary(fun = mean, geom = "bar", width = 0.75, aes(fill = variable))
stat_summary(fun.data = mean_cl_boot, geom = "errorbar",
colour="black", position=position_dodge(1), width=.2)
stat_pvalue_manual(pwc_b, label = "p.adj.signif", tip.length = 0.02, step.increase = 0.05, hide.ns = TRUE, y.position = c(7, 8), label.size = 3)
ggtitle("Stimuli B")
theme(plot.title = element_text(size=10, hjust = 0.5, face = "bold"))
scale_y_continuous(breaks = seq(1,10,by = 1), labels = c("1", "2", "3", "4", "5", "6", "7", "8", "9", "10"), limits = c(-0, 10))
theme(axis.text = element_text(size=10))
theme(axis.title = element_text(size=10, face = "bold"))
theme(axis.text.x = element_text(angle = 90, hjust = 1, vjust = 0.25))
gg_b <- gg_b scale_fill_manual(values = c("#FDAE61", "#9E0142", "#FDAE61"))
theme(legend.position = "none")
#Stimuli C
dat_stimuli_c <- subset(simdat, stimuli == "c")
melt_c <- melt(dat_stimuli_c, id.vars = "id", measure.vars = c("dv_1", "dv_2", "dv_3"))
pwc_c <- melt_c %>%
wilcox_test(value ~ variable, paired = TRUE, p.adjust.method = "holm", detailed = TRUE) %>%
slice(2:3)
pwc_c
gg_c <- ggplot(melt_c, aes(x = reorder(variable, value), y = value))
stat_summary(fun = mean, geom = "bar", width = 0.75, aes(fill = variable))
stat_summary(fun.data = mean_cl_boot, geom = "errorbar",
colour="black", position=position_dodge(1), width=.2)
stat_pvalue_manual(pwc_c, label = "p.adj.signif", tip.length = 0.02, step.increase = 0.05, hide.ns = TRUE, y.position = c(8, 9), label.size = 3)
ggtitle("Stimuli C")
theme(plot.title = element_text(size=10, hjust = 0.5, face = "bold"))
scale_y_continuous(breaks = seq(1,10,by = 1), labels = c("1", "2", "3", "4", "5", "6", "7", "8", "9", "10"), limits = c(-0, 10))
theme(axis.text = element_text(size=10))
theme(axis.title = element_text(size=10, face = "bold"))
theme(axis.text.x = element_text(angle = 90, hjust = 1, vjust = 0.25))
gg_c <- gg_c scale_fill_manual(values = c("#FDAE61", "#FDAE61", "#9E0142"))
theme(legend.position = "none")

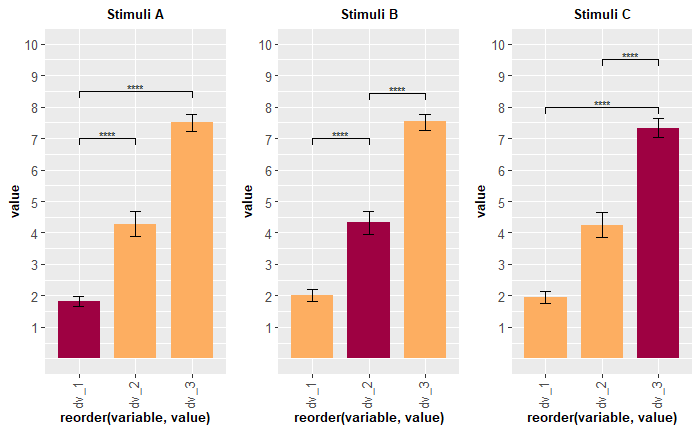

figure <- ggarrange(gg_a, gg_b, gg_c, ncol = 3, nrow = 1, align = "hv")
figure
我想添加一個圖例，它代表兩種顏色（紅色/橙色）及其標簽（例如紅色 =“標簽 1”，橙色 =“標簽 2”。我該怎么做？
uj5u.com熱心網友回復：
這遠不是很好，但是如果您希望填充獨立于dv_#值，則需要映射一個單獨的變數來填充。
根據需要調整標簽。
該程序將受益于函式的使用，因為有很多重復，但這確實是獨立的問題。
library(ggplot2)
library(reshape2) # melt
library(rstatix) # wilcox_test
library(ggpubr) # stat_pvalue_manual
library(dplyr) # slice
set.seed(1234)
id <- rep(1:50, each = 3)
stimuli <- rep(c("a", "b", "c"), each = 1, times = 50)
dv_1 <- rnorm(150, mean = 2, sd = 0.7)
dv_2 <- rnorm(150, mean = 4, sd = 1.5)
dv_3 <- rnorm(150, mean = 7.5, sd = 1)
simdat <- data.frame(id, stimuli, dv_1, dv_2, dv_3)
#Stimuli A
dat_stimuli_a <- subset(simdat, stimuli == "a")
melt_a <- melt(dat_stimuli_a, id.vars = "id", measure.vars = c("dv_1", "dv_2", "dv_3"))
pwc_a <- melt_a %>%
wilcox_test(value ~ variable, paired = TRUE, p.adjust.method = "holm", detailed = TRUE) %>%
slice(1:2)
# add label variable for simulation a
melt_a <-
melt_a %>%
mutate(label = if_else(variable == "dv_1", "label_1", "label_2"))
gg_a <- ggplot(melt_a, aes(x = reorder(variable, value), y = value))
stat_summary(fun = mean, geom = "bar", width = 0.75, aes(fill = label))
stat_summary(fun.data = mean_cl_boot, geom = "errorbar",
colour="black", position=position_dodge(1), width=.2)
stat_pvalue_manual(pwc_a, label = "p.adj.signif", tip.length = 0.02, step.increase = 0.05, hide.ns = TRUE, y.position = c(7, 8), label.size = 3)
ggtitle("Stimuli A")
theme(plot.title = element_text(size=10, hjust = 0.5, face = "bold"))
scale_y_continuous(breaks = seq(1,10,by = 1), labels = c("1", "2", "3", "4", "5", "6", "7", "8", "9", "10"), limits = c(-0, 10))
theme(axis.text = element_text(size=10))
theme(axis.title = element_text(size=10, face = "bold"))
theme(axis.text.x = element_text(angle = 90, hjust = 1, vjust = 0.25))
gg_a <- gg_a scale_fill_manual(values = c("label_1" = "#9E0142", "label_2" = "#FDAE61"))
theme(legend.position = "none")
#Stimuli B
dat_stimuli_b <- subset(simdat, stimuli == "b")
melt_b <- melt(dat_stimuli_b, id.vars = "id", measure.vars = c("dv_1", "dv_2", "dv_3"))
pwc_b <- melt_b %>%
wilcox_test(value ~ variable, paired = TRUE, p.adjust.method = "holm", detailed = TRUE) %>%
slice(1, 3)
# add label variable for simulation b
melt_b <-
melt_b %>%
mutate(label = if_else(variable == "dv_2", "label_1", "label_2"))
gg_b <- ggplot(melt_b, aes(x = reorder(variable, value), y = value))
stat_summary(fun = mean, geom = "bar", width = 0.75, aes(fill = label))
stat_summary(fun.data = mean_cl_boot, geom = "errorbar",
colour="black", position=position_dodge(1), width=.2)
stat_pvalue_manual(pwc_b, label = "p.adj.signif", tip.length = 0.02, step.increase = 0.05, hide.ns = TRUE, y.position = c(7, 8), label.size = 3)
ggtitle("Stimuli B")
theme(plot.title = element_text(size=10, hjust = 0.5, face = "bold"))
scale_y_continuous(breaks = seq(1,10,by = 1), labels = c("1", "2", "3", "4", "5", "6", "7", "8", "9", "10"), limits = c(-0, 10))
theme(axis.text = element_text(size=10))
theme(axis.title = element_text(size=10, face = "bold"))
theme(axis.text.x = element_text(angle = 90, hjust = 1, vjust = 0.25))
gg_b <- gg_b scale_fill_manual(values = c("label_1" = "#9E0142", "label_2" = "#FDAE61"))
theme(legend.position = "none")
ggarrange(gg_a, gg_b, ncol = 2, nrow = 1, align = "hv",
common.legend = TRUE,
legend = "bottom")
#> Warning: Removed 1 rows containing non-finite values (stat_summary).
#> Warning: Removed 1 rows containing non-finite values (stat_summary).
#> Warning: Removed 1 rows containing non-finite values (stat_summary).
#> Warning: Removed 1 rows containing non-finite values (stat_summary).
由reprex 包(v2.0.1)于 2021 年 11 月 25 日創建
