如何使JFramecontentPane透明但JFrame可見？

我想知道如何使 JFrame 的 contentPane 透明但 JFrame 可見。我看到了很多頁面，但都展示了如何使 JFrame 邊框可見但 contentPane 可見。

我嘗試使用，setOpacity()但這需要 JFrame 為undecorated.

有什么方法可以實作這一目標嗎？

uj5u.com熱心網友回復：

Swing 并不是為在透明背景下繪畫而設計的。您不能創建透明的 contentPane。但是，您可以偽造透明背景。

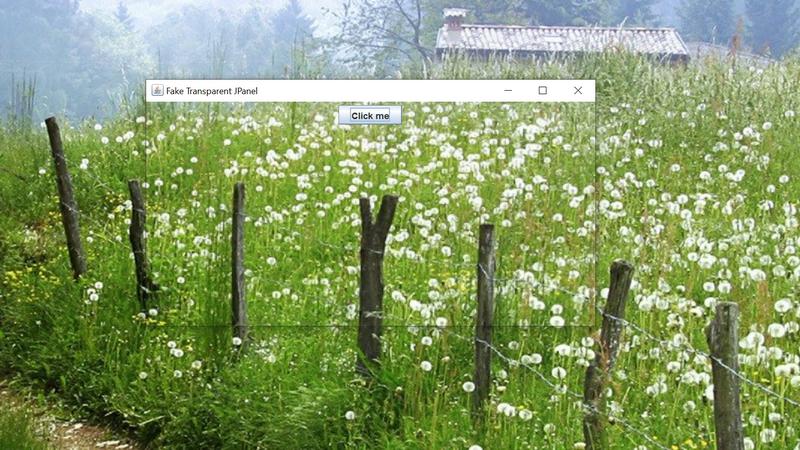

這是顯示假透明背景的螢屏截圖。我將影像裁剪并縮小了 50% 以使其顯示在此答案中。

那么，我是怎么做到的呢？

我拍了一張背景的快照，并在JPanel.

如果這種方法只適用不改變背景，而你顯示你的JFrame。如果您通過打開或關閉任何其他應用程式來更改背景，則此偽造將不起作用。

你可以四處JFrame走動。不要將 JFrame 靠近螢屏邊緣，否則會破壞這種錯覺。

將JFrame作品圖示化和去圖示化，但幻覺變得明顯。

您可以調整大小、最大化和恢復JFrame.

它需要大量的代碼才能使這個假作業正常作業。

這是完整的可運行代碼。我制作了所有附加類的內部類，以便我可以將此代碼作為一個塊發布。

import java.awt.AWTException;
import java.awt.BorderLayout;
import java.awt.Dimension;
import java.awt.FlowLayout;
import java.awt.Graphics;
import java.awt.Image;
import java.awt.Point;
import java.awt.Rectangle;
import java.awt.Robot;
import java.awt.Toolkit;
import java.awt.event.ComponentAdapter;
import java.awt.event.ComponentEvent;
import java.awt.event.WindowAdapter;
import java.awt.event.WindowEvent;
import java.awt.image.BufferedImage;

import javax.swing.JButton;
import javax.swing.JFrame;
import javax.swing.JPanel;
import javax.swing.SwingUtilities;

public class TransparentJPanelView implements Runnable {

    public static void main(String[] args) {
        SwingUtilities.invokeLater(new TransparentJPanelView());
    }

    private DrawingPanel drawingPanel;

    private JFrame frame;

    private TransparentJPanelModel model;

    public TransparentJPanelView() {
        this.model = new TransparentJPanelModel();
        this.drawingPanel = new DrawingPanel(model);
    }

    @Override
    public void run() {
        this.frame = new JFrame("Fake Transparent JPanel");
        frame.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);

        frame.addComponentListener(new FrameComponentListener(this, model));
        FrameListener listener = new FrameListener(this, model);
        frame.addWindowListener(listener);
        frame.addWindowFocusListener(listener);
        frame.addWindowStateListener(listener);

        frame.add(drawingPanel, BorderLayout.CENTER);

        frame.pack();
        frame.setLocationByPlatform(true);
        frame.setVisible(true);
    }

    public void repaint() {
        drawingPanel.repaint();
    }

    public JFrame getFrame() {
        return frame;
    }

    public class DrawingPanel extends JPanel {

        private static final long serialVersionUID = 1L;

        private TransparentJPanelModel model;

        public DrawingPanel(TransparentJPanelModel model) {
            this.model = model;
            this.setLayout(new FlowLayout());
            this.setPreferredSize(new Dimension(600, 300));

            JButton button = new JButton("Click me");
            this.add(button);
        }

        @Override
        protected void paintComponent(Graphics g) {
            super.paintComponent(g);

            Point point = new Point(this.getLocation());
            SwingUtilities.convertPointToScreen(point, this);

            Image image = model.getSubImage(point.x, point.y, getWidth(), getHeight());
            g.drawImage(image, 0, 0, this);
        }

    }

    public class FrameComponentListener extends ComponentAdapter {

        private final TransparentJPanelView view;

        private final TransparentJPanelModel model;

        public FrameComponentListener(TransparentJPanelView view,
                TransparentJPanelModel model) {
            this.view = view;
            this.model = model;
        }

        @Override
        public void componentResized(ComponentEvent event) {
            view.repaint();
        }

        @Override
        public void componentMoved(ComponentEvent event) {
            view.repaint();
        }

    }

    public class FrameListener extends WindowAdapter {

        private final TransparentJPanelView view;

        private final TransparentJPanelModel model;

        public FrameListener(TransparentJPanelView view,
                TransparentJPanelModel model) {
            this.view = view;
            this.model = model;
        }

        @Override
        public void windowDeiconified(WindowEvent event) {
            model.setBackground();
            view.repaint();
        }

    }

    public class TransparentJPanelModel {

        private BufferedImage background;

        private final Rectangle screenRect;

        private final Robot robot;

        public TransparentJPanelModel() {
            this.robot = createRobot();
            this.screenRect = new Rectangle(
                    Toolkit.getDefaultToolkit().getScreenSize());
            setBackground();
        }

        private Robot createRobot() {
            Robot robot = null;
            try {
                robot = new Robot();
            } catch (AWTException e) {
                e.printStackTrace();
            }
            return robot;
        }

        public void setBackground() {
            this.background = robot.createScreenCapture(screenRect);
        }

        public Image getSubImage(int x, int y, int width, int height) {
            if (x < 0) {
                x = 0;
                width = Math.min(width, screenRect.width);
            }

            if (y < 0) {
                y = 0;
                height = Math.min(height, screenRect.height);
            }

            if (x   width > screenRect.width) {
                width = screenRect.width - x;
            }

            if (y   height > screenRect.height) {
                height = screenRect.height - y;
            }

            return background.getSubimage(x, y, width, height);
        }

    }

}

uj5u.com熱心網友回復：

您可以setVisible(false)對里面的每個元素使用方法JFrame。您在intialize()方法中使用它。一旦您希望顯示它們（例如在單擊某個按鈕后），您將使用相同的方法setVisible(true)。
