例子： discord/js 和圓弧角函式

嘗試掌握 Arc，而我正撞到墻試圖找出結束角度。我需要一些簡單的東西，所以可以給它一個百分比，它會形成一個圓的百分比的弧。

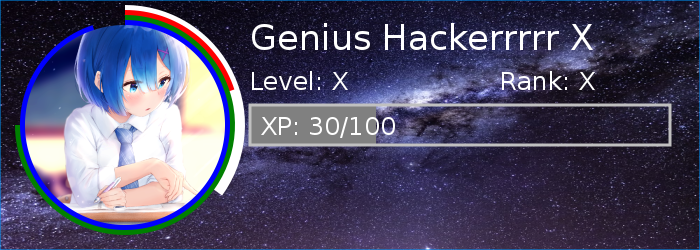

我得到了從頂部開始的弧，我知道 math.pi*2 會讓我一路走來，但是當我嘗試用舊的 *0.p 轉換百分比技巧來修改它時，我得到了這個。

白色是 0.1/10% 紅色是 0.95/95% 綠色是 0.5/50% 藍色是 0.7/70%

但沒有一個看起來像那樣，我就是無法弄清楚它是如何計算弧線的。

    var radius = 250 / 2 - 5;
    var centerx = 250 / 2;
    var centery = 250 / 2;
    const startagle = Math.PI * 1.5;
    var endagle = (Math.PI * 2)*0.1;
    context.beginPath();
    context.fillStyle = 'white';
    context.arc(centerx, centery, radius, startagle, endagle, false);
    context.lineTo(centerx, centery);
    context.fill();
    context.closePath();

    var endagle = (Math.PI * 2)*0.95;
    context.beginPath();
    context.fillStyle = 'red';
    context.arc(centerx, centery, radius-5, startagle, endagle, false);
    context.lineTo(centerx, centery);
    context.fill();
    context.closePath();

    var endagle = (Math.PI * 2)*0.5;
    context.beginPath();
    context.fillStyle = 'green';
    context.arc(centerx, centery, radius-10, startagle, endagle, false);
    context.lineTo(centerx, centery);
    context.fill();
    context.closePath();

    var endagle = (Math.PI * 2)*0.7;
    context.beginPath();
    context.fillStyle = 'blue';
    context.arc(centerx, centery, radius-15, startagle, endagle, false);
    context.lineTo(centerx, centery);
    context.fill();
    context.closePath();

    context.beginPath();
    context.arc(centerx, centery, radius-20, 0, 360, false);
    context.closePath();
    context.clip();
    const avatar = await Canvas.loadImage('https://i.imgur.com/lleYAsg.png');
    context.drawImage(avatar, 10, 10, 250, 250);

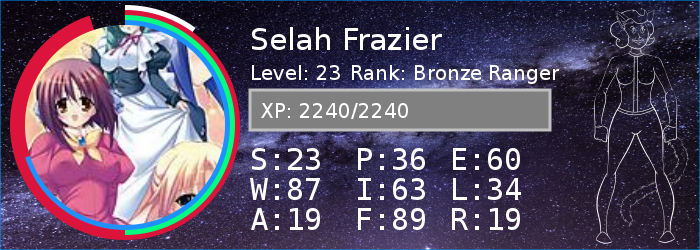

最終/固定代碼

discord/js 和圓弧角函式

const Canvas = require('canvas');
      var canvas = Canvas.createCanvas(700, 250);
      var context = canvas.getContext('2d');

      const background = await Canvas.loadImage('./images/photo-1538370965046-79c0d6907d47.jpg');
      context.drawImage(background, 0, 0, canvas.width, canvas.height);

      context.strokeStyle = '#0099ff';
      context.strokeRect(0, 0, canvas.width, canvas.height);

        var answers = [
          "Red Ranger",
          "Blue Ranger",
          "Yellow Ranger",
          "Pink Ranger",
          "Green Ranger",
          "Black Ranger",
          "Orange Ranger",
          "Violet Ranger",
          "White Ranger",
          "Silver Ranger",
          "Gold Ranger",
          "Bronze Ranger",
          "Brown Ranger",
          "Extra Hero",
          "Meta Hero",
          "Rider",
          "Ultra",
          "Kaiju"
        ];
        var stats = [
          Math.floor(Math.random() * 99),
          Math.floor(Math.random() * 99),
          Math.floor(Math.random() * 99),
          Math.floor(Math.random() * 99),
          Math.floor(Math.random() * 99),
          Math.floor(Math.random() * 99),
          Math.floor(Math.random() * 99),
          Math.floor(Math.random() * 99),
          Math.floor(Math.random() * 99)
        ];
        var toonnamelist = [
          "Evelyn Leon",
          "Salvador Knight",
          "Alyson Hensley",
          "Tobias Harvey",
          "Selah Frazier",
          "Morgan Ward",
          "Ronald Shepherd",
          "Miriam Moody",
          "Maren Gallagher",
          "Alexia Crawford",
          "Aliya Weiss",
          "Jan Garrison"
        ];
        var toonavatars = [
          "https://i.imgur.com/lleYAsg.png",
          "https://i.imgur.com/0x008b.png",
          "https://i.imgur.com/ESPP3b.png",
          "https://i.imgur.com/qv7cvb.png",
          "https://i.imgur.com/VuYRAb.png",
          "https://i.imgur.com/RB6lSb.png",
          "https://i.imgur.com/hMlrIb.png",
          "https://i.imgur.com/mLuRIb.png",
          "https://i.imgur.com/QVQ7mb.png",
          "https://i.imgur.com/IXEuqb.png",
          "https://i.imgur.com/CgMlpb.png",
          "https://i.imgur.com/vO008b.png"
        ];
        var randomrank = answers[Math.floor(Math.random() * answers.length)];
        var randomavy = toonavatars[Math.floor(Math.random() * toonavatars.length)];
        var toonname = `${msg.member.displayName}`;
            toonname = toonnamelist[Math.floor(Math.random() * toonnamelist.length)];;
        var toonlevel = Math.floor(Math.random() * 99);
        var toonrank = randomrank;
        var curentexp = Math.floor(Math.random() * 9999);
        var maxexp = Math.floor(Math.random() * 9999);
        if (curentexp > maxexp){curentexp = maxexp;}

        const cFont = context.font;
        var fontArgs = context.font.split(' ');
        var newSize = '30px';
        context.font = newSize   ' '   fontArgs[fontArgs.length - 1];
        context.fillText(toonname, 250, 50);

        fontArgs = context.font.split(' ');
        newSize = '20px';
        context.font = newSize   ' '   fontArgs[fontArgs.length - 1];
        context.fillText(`Level: ` toonlevel, 250, 80);
        context.fillText(`Rank: ` toonrank, 350, 80);

        context.font = '30px monospace';
        context.fillText(`S:` stats[0], 250, 170);
        context.fillText(`P:` stats[1], 355, 170);
        context.fillText(`E:` stats[2], 450, 170);
        context.fillText(`W:` stats[3], 250, 200);
        context.fillText(`I:` stats[4], 355, 200);
        context.fillText(`L:` stats[5], 450, 200);
        context.fillText(`A:` stats[6], 250, 230);
        context.fillText(`F:` stats[7], 355, 230);
        context.fillText(`R:` stats[8], 450, 230);

        var recx = 250;
        var recy = 90;
        var recw = 300;
        var rech = 40;
        context.fillStyle = 'grey';
        context.strokeStyle = 'silver';
        context.lineWidth = '3';
        context.beginPath();
        context.fillRect(recx, recy, recw*(curentexp/maxexp), rech);
        context.strokeRect(recx, recy, recw, rech);
        context.fillStyle = 'white';
        context.font = '20px sans-serif';
        context.fillText('XP: ' curentexp '/' maxexp, 260, recy 28);
        context.closePath();

        let strokeWidth = 5;
        var radius = 250 / 2 - strokeWidth;
        let center = {
          x: 250 / 2,
          y: 250 / 2,
        };
        //var centerX = 250 / 2;
        //var centerY = 250 / 2;
        //const fullCircle = Math.PI * 2;
        //const startAngle = Math.PI * 1.5;
        //let endAngle;
        let sectors = [
          { color: 'white', size: 0.1 },
          { color: 'crimson', size: 0.95 },
          { color: 'springgreen', size: 0.5 },
          { color: 'dodgerblue', size: 0.7 },
        ];

        function drawSector({ context, color, center, radius, size }) {
          let startAngle = Math.PI * 1.5;
          let endAngle = startAngle   Math.PI * 2 * size;

          context.beginPath();
          context.fillStyle = color;
          context.arc(center.x, center.y, radius, startAngle, endAngle);
          context.lineTo(center.x, center.y);
          context.fill();
          context.closePath();
        }

        sectors.forEach(({ color, size }, i) => drawSector({
          context, color, center, radius: radius - i * strokeWidth, size
        }));

        const conditionx = 575;
        const conditiony = 5;
        const conditionw = 125;
        const conditionh = 250;
        var conditionpic1 = await Canvas.loadImage('https://maskedriders.info/Mee6RP/PaperDoll/White_Base/NekollxComm_BaseV2ArmS1_White.png');
        var conditionpic2 = await Canvas.loadImage('https://maskedriders.info/Mee6RP/PaperDoll/White_Base/NekollxComm_BaseV2ArmS2_White.png');
        var conditionpic3 = await Canvas.loadImage('https://maskedriders.info/Mee6RP/PaperDoll/White_Base/NekollxComm_BaseV2Head_White.png');
        var conditionpic4 = await Canvas.loadImage('https://maskedriders.info/Mee6RP/PaperDoll/White_Base/NekollxComm_BaseV2Torso_White.png');
        var conditionpic5 = await Canvas.loadImage('https://maskedriders.info/Mee6RP/PaperDoll/White_Base/NekollxComm_BaseV2LegS1_White.png');
        var conditionpic6 = await Canvas.loadImage('https://maskedriders.info/Mee6RP/PaperDoll/White_Base/NekollxComm_BaseV2LegS2_White.png');

        var conditionpic3 = await Canvas.loadImage('https://maskedriders.info/Mee6RP/PaperDoll/White_Adjustments/CatPeople/NekollxComm2_CatHead_F_White.png');
        var conditionpic7 = await Canvas.loadImage('https://maskedriders.info/Mee6RP/PaperDoll/White_Adjustments/CatPeople/NekollxComm2_CatTail_F_White.png');
        context.drawImage(conditionpic1, conditionx, conditiony, conditionw, conditionh);
        context.drawImage(conditionpic2, conditionx, conditiony, conditionw, conditionh);
        context.drawImage(conditionpic3, conditionx, conditiony, conditionw, conditionh);
        context.drawImage(conditionpic4, conditionx, conditiony, conditionw, conditionh);
        context.drawImage(conditionpic5, conditionx, conditiony, conditionw, conditionh);
        context.drawImage(conditionpic6, conditionx, conditiony, conditionw, conditionh);
        context.drawImage(conditionpic7, conditionx, conditiony, conditionw, conditionh);

        context.beginPath();
        context.arc(center.x, center.y, radius - sectors.length * strokeWidth, 0, 360, false);
        context.closePath();
        context.clip();
        const avatar = await Canvas.loadImage(randomavy);
        context.drawImage(avatar, 10, 10, 250, 250);

uj5u.com熱心網友回復：

那是因為你忘記了你改變了起始角度。您需要使圓弧結束的角度相對于起始角度。因此，如果您將值增加起始值，它將按預期作業：

// ** For this demo only ** //
const canvas = document.querySelector('canvas');
const context = canvas.getContext('2d');

canvas.height = 250;
canvas.width = 250;
context.fillStyle = 'dimgray';
context.fillRect(0, 0, canvas.width, canvas.height);
// ** End ** //

const radius = canvas.width / 2 - 5;
const centerX = canvas.width / 2;
const centerY = canvas.height / 2;
const fullCircle = Math.PI * 2;
const startAngle = Math.PI * 1.5;
let endAngle;

endAngle = startAngle   fullCircle * 0.1;
context.beginPath();
context.fillStyle = 'white';
context.arc(centerX, centerY, radius, startAngle, endAngle, false);
context.lineTo(centerX, centerY);
context.fill();
context.closePath();

endAngle = startAngle   fullCircle * 0.95;
context.beginPath();
context.fillStyle = 'crimson';
context.arc(centerX, centerY, radius - 5, startAngle, endAngle, false);
context.lineTo(centerX, centerY);
context.fill();
context.closePath();

endAngle = startAngle   fullCircle * 0.5;
context.beginPath();
context.fillStyle = 'springgreen';
context.arc(centerX, centerY, radius - 10, startAngle, endAngle, false);
context.lineTo(centerX, centerY);
context.fill();
context.closePath();

endAngle = startAngle   fullCircle * 0.7;
context.beginPath();
context.fillStyle = 'dodgerblue';
context.arc(centerX, centerY, radius - 15, startAngle, endAngle, false);
context.lineTo(centerX, centerY);
context.fill();
context.closePath();

context.beginPath();
context.arc(centerX, centerY, radius - 20, 0, 360, false);
context.closePath();
context.clip();

// ** For this demo only ** //
let url = 'https://i.imgur.com/lleYAsg.png';
let img = new Image();
new Promise((resolve) => (img.onload = resolve), (img.src = url)).then(() =>
  context.drawImage(img, 10, 10, 250, 250),
);

body {
  align-items: center;
  background-color: dimgray;
  display: flex;
  justify-content: center;
  margin: 0;
  min-height: 100vh;
}

<canvas></canvas>

它按預期作業；但是，您也可以簡化創建扇區的方式。我會撰寫一個函式來繪制這些 ( drawSector) 并將顏色和大小存盤在一個陣列 ( sectors) 中。

// ** For this demo only ** //
let canvas = document.querySelector('canvas');
let context = canvas.getContext('2d');

canvas.height = 250;
canvas.width = 250;
context.fillStyle = '#232425';
context.fillRect(0, 0, canvas.width, canvas.height);
// ** End ** //

let center = {
  x: canvas.width / 2,
  y: canvas.height / 2,
};
let strokeWidth = 5;
let radius = canvas.width / 2 - strokeWidth;
let sectors = [
  { color: 'white', size: 0.1 },
  { color: 'crimson', size: 0.95 },
  { color: 'springgreen', size: 0.5 },
  { color: 'dodgerblue', size: 0.7 },
];

function drawSector({ context, color, center, radius, size }) {
  let startAngle = Math.PI * 1.5;
  let endAngle = startAngle   Math.PI * 2 * size;

  context.beginPath();
  context.fillStyle = color;
  context.arc(center.x, center.y, radius, startAngle, endAngle);
  context.lineTo(center.x, center.y);
  context.fill();
  context.closePath();
}

sectors.forEach(({ color, size }, i) => drawSector({
  context, color, center, radius: radius - i * strokeWidth, size
}));

context.beginPath();
context.arc(center.x, center.y, radius - sectors.length * strokeWidth, 0, 360);
context.closePath();
context.clip();

// ** For this demo only ** //
let url = 'https://i.imgur.com/lleYAsg.png';
let img = new Image();
new Promise((resolve) => (img.onload = resolve), (img.src = url)).then(() =>
  context.drawImage(img, 10, 10, 250, 250),
);

body {
  align-items: center;
  background-color: #232425;
  display: flex;
  justify-content: center;
  margin: 0;
  min-height: 100vh;
}

<canvas></canvas>
