性能測驗結論：使用
new {}的方式性能最佳，其次是Mapster，最后是AutoMapper
最近在對一個業務介面做代碼重構時，發現在使用 AutoMapper 做物件轉換時，介面回應速度極慢，100多條資料，請求時長都超過了8秒，為了找出原因所在，我嘗試將 EF Core 的相關查詢和 物體轉換拆分開來做分析，最終發現是由于使用 AutoMapper 時，性能出現了瓶頸，于是我嘗試使用 select new {} 的 Linq 方式來硬編碼轉換，發現效率提升了幾倍，基本 2秒內就能完成，出于好奇，我嘗試對 AutoMapper 做一下性能對比測驗，
測驗步驟
測驗環境
- OS：Windows 10.0.19042.1348 (20H2/October2020Update)
- CPU：Intel Core i5-7500 CPU 3.40GHz (Kaby Lake), 1 CPU, 4 logical and 4 physical cores
- SDK：NET SDK=6.0.100
- 壓測工具：BenchmarkDotNet=v0.13.1
創建專案
dotnet new console -o ConsoleApp1
安裝依賴包
dotnet add package BenchmarkDotNet --version 0.13.1
dotnet add package AutoMapper --version 10.1.1
dotnet add package Mapster --version 7.2.0
定義用于測驗 Entity 和 DTO
public enum MyEnum
{
[Description("進行中")]
Doing,
[Description("完成")]
Done
}
public class Entity
{
public int Id { get; set; }
public Guid Oid { get; set; }
public string? NickName { get; set; }
public bool Created { get; set; }
public MyEnum State { get; set; }
}
public class EntityDto
{
public int Id { get; set; }
public Guid Oid { get; set; }
public string? NickName { get; set; }
public bool Created { get; set; }
public MyEnum Enum { get; set; }
public string? EnumString { get; set; }
}
配置 Entity 和 DTO 之間的轉換關系
AutoMapper 配置
public class AutoMapperProfile : Profile
{
public AutoMapperProfile()
{
CreateMap<Entity, EntityDto>()
.ForMember(dest => dest.Id, opt => opt.MapFrom(src =https://www.cnblogs.com/hippieZhou/p/> src.Id))
.ForMember(dest => dest.Oid, opt => opt.MapFrom(src => src.Oid))
.ForMember(dest => dest.NickName, opt => opt.MapFrom(src => src.NickName))
.ForMember(dest => dest.Created, opt => opt.MapFrom(src => src.Created))
.ForMember(dest => dest.Enum, opt => opt.MapFrom(src => src.State))
.ForMember(dest => dest.EnumString, opt => opt.MapFrom(src => src.State.GetDescription()));
}
}
Mapster 配置
public class MapsterProfile : TypeAdapterConfig
{
public MapsterProfile()
{
ForType<Entity, EntityDto>()
.Map(dest => dest.Id, src =https://www.cnblogs.com/hippieZhou/p/> src.Id)
.Map(dest => dest.Oid, src => src.Oid)
.Map(dest => dest.NickName, src => src.NickName)
.Map(dest => dest.Created, src => src.Created)
.Map(dest => dest.Enum, src => src.State)
.Map(dest => dest.EnumString, src => src.State.GetDescription());
}
}
創建性能測驗類
public class PerformanceTest
{
private IReadOnlyList<entity> _entities;
private readonly AutoMapper.IMapper _autoMapper;
private readonly Mapper _mapsterMapper;
public PerformanceTest()
{
var mocker = new AutoMocker();
_entities = Enumerable.Range(0, 1000000).Select(x => mocker.CreateInstance<entity>()).ToList();
var configuration = new AutoMapper.MapperConfiguration(cfg => cfg.AddProfile<AutoMapperProfile>());
_autoMapper = configuration.CreateMapper();
_mapsterMapper = new MapsterMapper.Mapper(new MapsterProfile());
}
[Benchmark]
public void Constructor()
{
var dtos = _entities.Select(x => new EntityDto
{
Id = x.Id,
Oid = x.Oid,
NickName = x.NickName,
Created = x.Created,
Enum = x.State,
EnumString = x.State.GetDescription(),
});
}
[Benchmark]
public void AutoMapper()
{
var dtos = _autoMapper.Map<ienumerable<entitydto>>(_entities);
}
[Benchmark]
public void Mapster()
{
var dtos = _mapsterMapper.Map<ienumerable<entitydto>>(_entities);
}
}
執行性能測驗
var summary = BenchmarkRunner.Run<PerformanceTest>();
dotnet run --project .\ConsoleApp1.csproj -c Release
結果對比

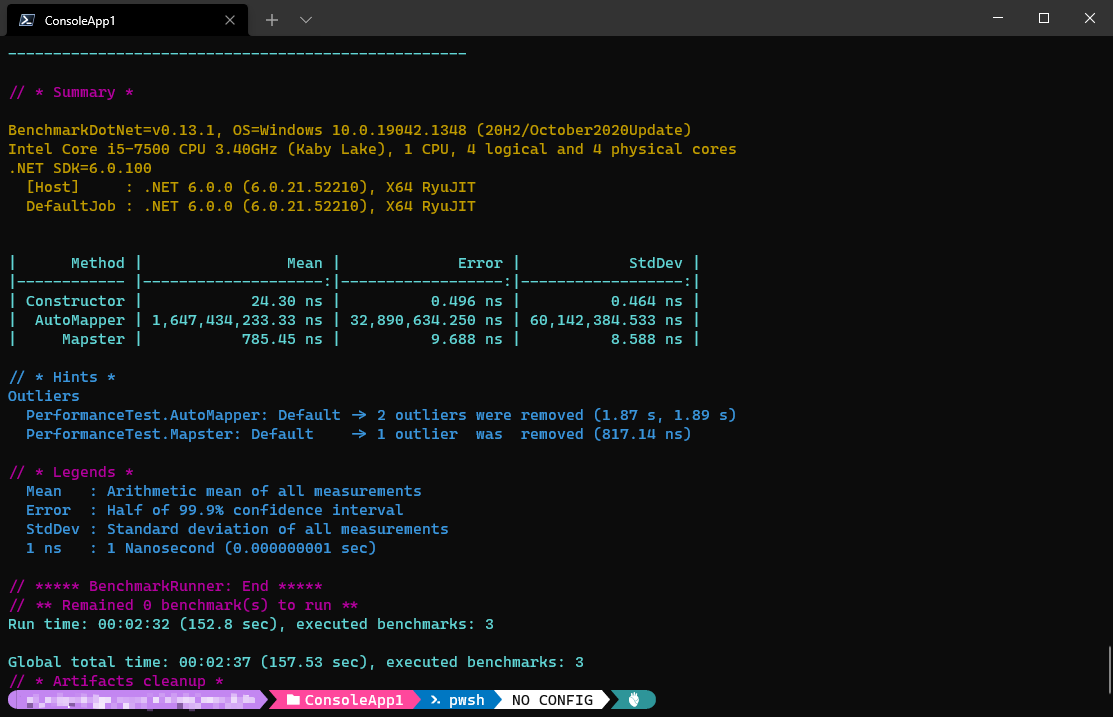

通過使用 BenchmarkDotNet 來進行壓測對比，從上圖我們可以看出，使用 Constructor(直接創建物件) 的方式性能是最高的，然后就是 Mapster，最后才是 AutoMapper，
使用 ReadableExpressions.Visualizers 查看 Execution Plan
在專案中一直在使用 AutoMapper 來做物件轉換，看 Github 活躍度，按理說不應該出現這么明顯的性能問題，好奇心驅使我項研究一下，通過和作者溝通后了解到，'AutoMapper' 本身會有一個所謂的執行計劃 execution plan，可以通過安裝插件 ReadableExpressions.Visualizers 來查看，
在 AutoMapper 的配置地方添加如下代碼：
var executionPlan = configuration.BuildExecutionPlan(typeof(Entity), typeof(EntityDto));
var executionPlanStr = executionPlan.ToReadableString();
查看 executionPlanStr 值，如下所示：
(src, dest, ctxt) =>
{
EntityDto typeMapDestination;
return (src =https://www.cnblogs.com/hippieZhou/p/= null)
? null
: {
typeMapDestination = dest ?? new EntityDto();
try
{
var resolvedValue =
{
try
{
Entity src;
return (((src = src) == null) || false) ? default(int) : src.Id;
}
catch (NullReferenceException)
{
return default(int);
}
catch (ArgumentNullException)
{
return default(int);
}
};
typeMapDestination.Id = resolvedValue;
}
catch (Exception ex)
{
return throw new AutoMapperMappingException("Error mapping types.",
ex,
AutoMapper.TypePair,
TypeMap,
PropertyMap);
}
try
{
var resolvedValue =
https://www.cnblogs.com/hippieZhou/p/{
try
{
Entity src;
return (((src = src) == null) || false) ? default(Guid) : src.Oid;
}
catch (NullReferenceException)
{
return default(Guid);
}
catch (ArgumentNullException)
{
return default(Guid);
}
};
typeMapDestination.Oid = resolvedValue;
}
catch (Exception ex)
{
return throw new AutoMapperMappingException("Error mapping types.",
ex,
AutoMapper.TypePair,
TypeMap,
PropertyMap);
}
try
{
var resolvedValue =
https://www.cnblogs.com/hippieZhou/p/{
try
{
Entity src;
return (((src = src) == null) || false) ? null : src.NickName;
}
catch (NullReferenceException)
{
return null;
}
catch (ArgumentNullException)
{
return null;
}
};
var propertyValue = (resolvedValue == null) ? null : resolvedValue;
typeMapDestination.NickName = propertyValue;
}
catch (Exception ex)
{
return throw new AutoMapperMappingException("Error mapping types.",
ex,
AutoMapper.TypePair,
TypeMap,
PropertyMap);
}
try
{
var resolvedValue =
https://www.cnblogs.com/hippieZhou/p/{
try
{
Entity src;
return (((src = src) == null) || false) ? default(bool) : src.Created;
}
catch (NullReferenceException)
{
return default(bool);
}
catch (ArgumentNullException)
{
return default(bool);
}
};
typeMapDestination.Created = resolvedValue;
}
catch (Exception ex)
{
return throw new AutoMapperMappingException("Error mapping types.",
ex,
AutoMapper.TypePair,
TypeMap,
PropertyMap);
}
try
{
var resolvedValue =
https://www.cnblogs.com/hippieZhou/p/{
try
{
Entity src;
return (((src = src) == null) || false) ? default(MyEnum) : src.State;
}
catch (NullReferenceException)
{
return default(MyEnum);
}
catch (ArgumentNullException)
{
return default(MyEnum);
}
};
typeMapDestination.Enum = resolvedValue;
}
catch (Exception ex)
{
return throw new AutoMapperMappingException("Error mapping types.",
ex,
AutoMapper.TypePair,
TypeMap,
PropertyMap);
}
try
{
var resolvedValue =
https://www.cnblogs.com/hippieZhou/p/{
try
{
return ((Enum)src.State).GetDescription();
}
catch (NullReferenceException)
{
return null;
}
catch (ArgumentNullException)
{
return null;
}
};
var propertyValue = (resolvedValue == null) ? null : resolvedValue;
typeMapDestination.EnumString = propertyValue;
}
catch (Exception ex)
{
return throw new AutoMapperMappingException("Error mapping types.",
ex,
AutoMapper.TypePair,
TypeMap,
PropertyMap);
}
return typeMapDestination;
};
}
使用 dotTrace 進行性能跟蹤

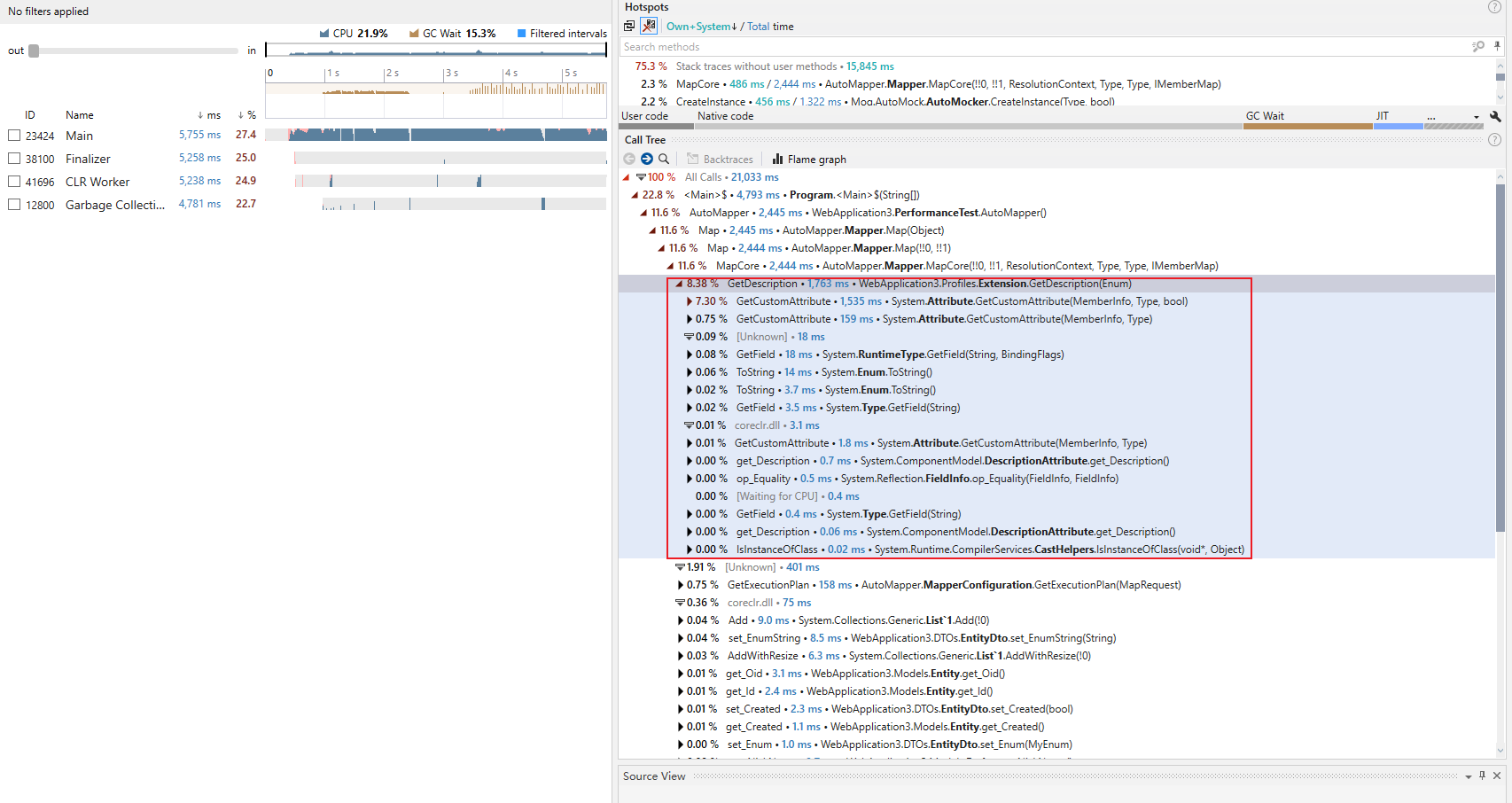

通過使用 JetBrains dotTrace 來查看程式執行情況，如下圖所示：
從圖中我們可以看到，GetDescription 方法性能占用高達 8.38%，我嘗試將這個列舉轉字串的擴展方法每次都回傳固定值，如下所示：
public static class Extension
{
public static string GetDescription(this Enum value)
{
return "aaa";
//var field = value.GetType().GetField(value.ToString());
//if (field == null) return "";
//return Attribute.GetCustomAttribute(field,
// typeof(DescriptionAttribute)) is not DescriptionAttribute attribute
// ? value.ToString()
// : attribute.Description;
}
}

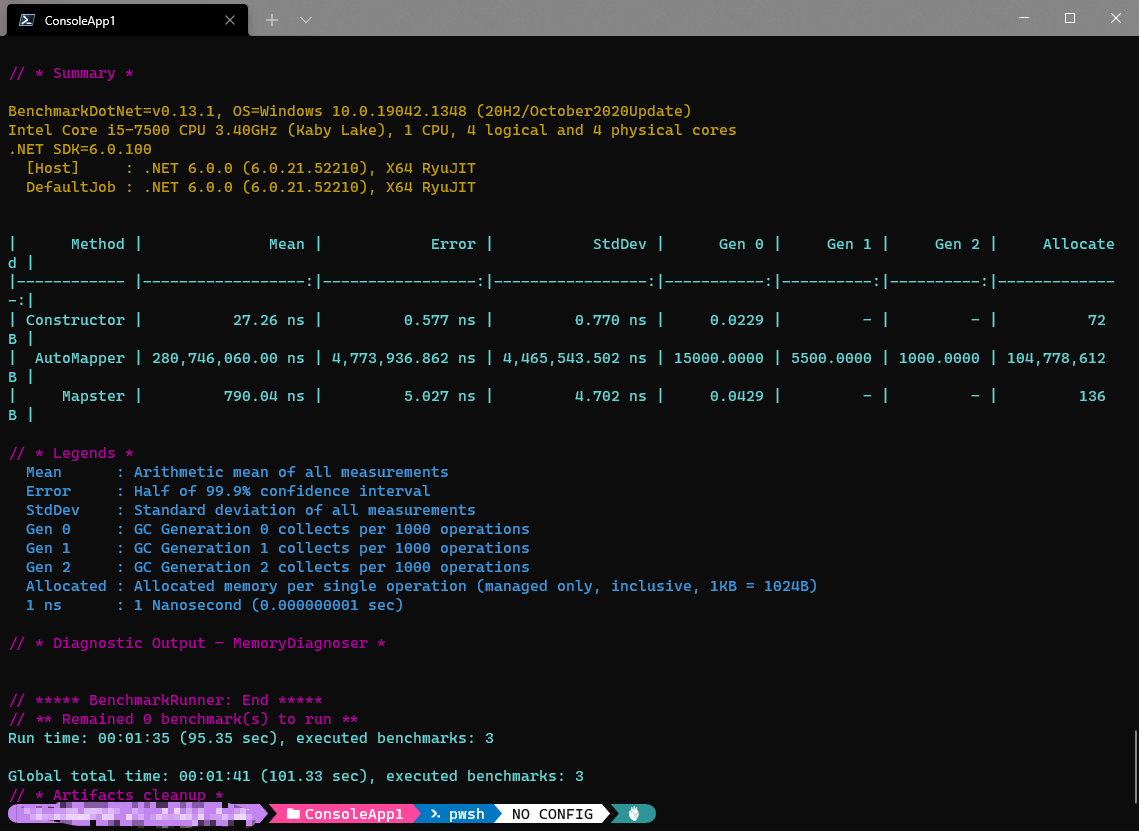

再次進行性能測驗，發現 AutoMapper 的性能提升了不少，
但是，由于本身性能基數比較大，所有依然存在性能問題
相關參考
- Performance test for AutoMapper
- Understanding Your Mappings
- 使用 dotTrace 對 .NET 應用進行性能分析與優化
