Matplotlib在imshow和plot之間共享x軸

我正在嘗試在彼此上方繪制兩個 imshow 和一個圖，共享它們的 x 軸。圖形布局是使用 gridspec 設定的。這是一個MWE：

    import matplotlib as mpl
    from matplotlib import pyplot as plt
    import numpy as np
    fig = plt.figure(figsize=(10,8))
    gs = fig.add_gridspec(3,2,width_ratios=(1,2),height_ratios=(1,2,2), left=0.1,right=0.9,bottom=0.1,top=0.99, wspace=0.1, hspace=0.1)
    ax=fig.add_subplot(gs[2,1])
    ax2=fig.add_subplot(gs[2,0], sharey=ax)
    ax3=fig.add_subplot(gs[1,0])
    ax4=fig.add_subplot(gs[1,1], sharex=ax, sharey=ax3)
    ax5=fig.add_subplot(gs[0,1], sharex=ax)

    dates = pd.date_range("2020-01-01","2020-01-10 23:00", freq="H")
    xs = mpl.dates.date2num(dates)
    ys = np.random.random(xs.size)
    N = 10
    arr = np.random.random((N, N))
    arr2 = np.random.random((N, N))

    norm=mpl.colors.Normalize(0, arr.max()) # change the min to stretch the color spectrum
    pcm = ax.imshow(arr, extent=[xs[0],xs[-1],10,0],norm=norm,aspect='auto')
    cax = fig.colorbar(pcm, ax=ax, extend='max') # , location='left'
    ax.set_xlabel('date')
    cax.set_label('fraction [-]')
    # ax.xaxis_date()
    myFmt = mpl.dates.DateFormatter('%d.%m')
    ax.xaxis.set_major_formatter(myFmt)

    norm=mpl.colors.Normalize(0, arr2.max()) # change the min to stretch the color spectrum
    pcm = ax4.imshow(arr2, extent=[xs[0],xs[-1],1,0],norm=norm,aspect='auto')
    cax4 = fig.colorbar(pcm, ax=ax4, extend='max')
    cax4.set_label('fraction [-]')

    ax5.plot(xs,ys)

    con1 = ConnectionPatch(xyA=(ax2.get_xlim()[0],1), xyB=(ax2.get_xlim()[0],1),
                       coordsA="data", coordsB="data", connectionstyle=mpl.patches.ConnectionStyle("Bar", fraction=-0.05),
                       axesA=ax2, axesB=ax3, arrowstyle="-", color='r')

    con2 = ConnectionPatch(xyA=(ax2.get_xlim()[0],0), xyB=(ax2.get_xlim()[0],0),
                       coordsA="data", coordsB="data", connectionstyle=mpl.patches.ConnectionStyle("Bar", fraction=-0.02),
                       axesA=ax2, axesB=ax3, arrowstyle="-", color='r')

    fig.add_artist(con1)
    fig.add_artist(con2)

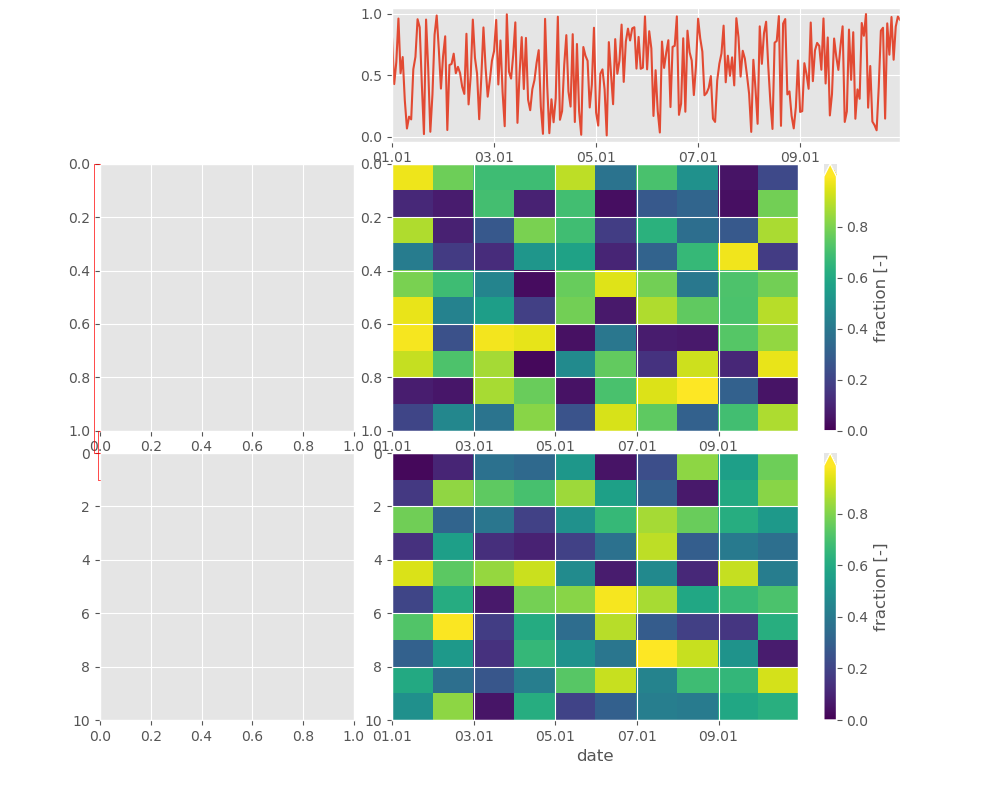

劇情最終是這樣的：

雖然軸似乎是鏈接的（日期格式適用于所有軸），但它們的范圍不同。

注意：兩個左軸不得共享同一個 x 軸。

編輯：添加了在使用 constrained_layout 時會中斷的 ConnectionPatch 連接。

uj5u.com熱心網友回復：

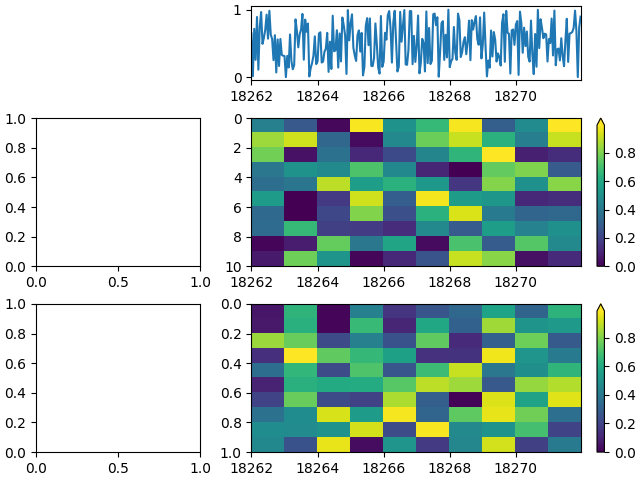

Constrained_layout 是專門為這種情況而設計的。它將與您上面的 gridspec 解決方案一起使用，但更慣用：

import datetime as dt
import matplotlib as mpl
from matplotlib import pyplot as plt
import numpy as np
import pandas as pd

fig, axs = plt.subplot_mosaic([['.', 'plot'], ['empty1', 'imtop'],
                               ['empty2', 'imbottom']],
                              constrained_layout=True,
                              gridspec_kw={'width_ratios':(1,2),'height_ratios':(1,2,2)})

axs['imtop'].sharex(axs['imbottom'])
axs['plot'].sharex(axs['imtop'])

dates = pd.date_range("2020-01-01","2020-01-10 23:00", freq="H")
xs = mpl.dates.date2num(dates)
ys = np.random.random(xs.size)
N = 10
arr = np.random.random((N, N))
arr2 = np.random.random((N, N))

norm=mpl.colors.Normalize(0, arr.max()) # change the min to stretch the color spectrum
pcm = axs['imtop'].imshow(arr, extent=[xs[0],xs[-1],10,0],norm=norm,aspect='auto')
cax = fig.colorbar(pcm, ax=axs['imtop'], extend='max')

norm=mpl.colors.Normalize(0, arr2.max()) # change the min to stretch the color spectrum
pcm = axs['imbottom'].imshow(arr2, extent=[xs[0],xs[-1],1,0],norm=norm,aspect='auto')
cax4 = fig.colorbar(pcm, ax=axs['imbottom'], extend='max')

axs['plot'].plot(xs,ys)
