C# 設定或驗證 PDF中的文本域格式

概述

PDF中的文本域可以通過設定不同格式，用于顯示數字、貨幣、日期、時間、郵政編碼、電話號碼和社保號等等，Adobe Acrobat提供了許多固定的JavaScripts用來設定和驗證文本域的格式，如：AFNumber_Format(2, 0, 0, 0, "$", true)和AFNumber_Keystroke(2, 0, 0, 0, "$", true)，Format后綴的script是用來設定文本域顯示的格式，而Keystroke后綴的script是用來驗證輸入內容，

Spire.PDF for .NET提供了相應的方法來設定和驗證文本域格式，下面的表格羅列了常用的格式和Spire.PDF中對應的方法，可參考使用：

引入dll

1.通過NuGet安裝dll（2種方法）

  1.1 可以在Visual Studio中打開“解決方案資源管理器”，滑鼠右鍵點擊“參考”，“管理NuGet包”，然后搜索“Spire.PDF”，點擊“安裝”，

  1.2 將以下內容復制到PM控制臺安裝，

Install-Package Spire.PDF -Version 7.12.1

2.手動添加dll參考

可通過手動下載包，然后解壓，找到BIN檔案夾下的Spire.Pdf.dll，在Visual Studio中打開“解決方案資源管理器”，滑鼠右鍵點擊“參考”，“添加參考”將本地路徑BIN檔案夾下的dll檔案添加參考至程式，

代碼（C#/VB.NET）

C#

using Spire.Pdf;
using Spire.Pdf.Actions;
using Spire.Pdf.Fields;
using System.Drawing;

namespace SetTextFormatInTextboxField
{
    class Program
    {
        static void Main(string[] args)
        {
            //新建PDF檔案,并添加空白頁
            PdfDocument pdf = new PdfDocument();
            PdfPageBase page = pdf.Pages.Add();

            //定義坐標變數
            float X = 10;
            float Y = 10;
            float width = 100;
            float height = 20;

            //實體化一個文本域物件，并設定它的位置和邊框樣式
            PdfTextBoxField textbox = new PdfTextBoxField(page, "Number-TextBox");
            textbox.Bounds = new RectangleF(X, Y, width, height);
            textbox.BorderWidth = 0.75f;
            textbox.BorderStyle = PdfBorderStyle.Solid;

            //給文本域的鍵盤擊鍵事件設定一個JavaScript動作用于驗證輸入內容是否符合要求
            string js = PdfJavaScript.GetNumberKeystrokeString(2, 0, 0, 0, "$", true);
            PdfJavaScriptAction jsAction = new PdfJavaScriptAction(js);
            textbox.Actions.KeyPressed = jsAction;

            //設定文本域內容顯示為數字貨幣
            js = PdfJavaScript.GetNumberFormatString(2, 0, 0, 0, "$", true);
            jsAction = new PdfJavaScriptAction(js);
            textbox.Actions.Format = jsAction;

            //添加文本域到PDF中,并保存檔案
            pdf.Form.Fields.Add(textbox);



            //添加文本框，設定文本內容顯示為日期格式
            PdfTextBoxField textbox1 = new PdfTextBoxField(page, "DateFormat-TextBox");
            textbox1.Bounds = new RectangleF(X+200, Y, width, height);
            textbox1.BorderWidth = 0.75f;
            textbox1.BorderStyle = PdfBorderStyle.Solid;
            string js1 = PdfJavaScript.GetDateKeystrokeString("mm/dd/yyyy");
            PdfJavaScriptAction jsAction1 = new PdfJavaScriptAction(js1);
            textbox1.Actions.KeyPressed = jsAction1;
            js1 = PdfJavaScript.GetDateFormatString("mm/dd/yyyy");
            jsAction1 = new PdfJavaScriptAction(js1);
            textbox1.Actions.Format = jsAction1;
            pdf.Form.Fields.Add(textbox1);


            //添加文本框，設定文本內容顯示為郵政編碼格式
            PdfTextBoxField textbox2 = new PdfTextBoxField(page, "SpecialFormat0-1-TextBox");
            textbox2.Bounds = new RectangleF(X + 400, Y, width, height);
            textbox2.BorderWidth = 0.75f;
            textbox2.BorderStyle = PdfBorderStyle.Solid;
            //string js2 = PdfJavaScript.GetSpecialKeystrokeString(0);
            string js2 = PdfJavaScript.GetSpecialKeystrokeString(1);

            PdfJavaScriptAction jsAction2 = new PdfJavaScriptAction(js2);
            textbox2.Actions.KeyPressed = jsAction2;
            //js2 = PdfJavaScript.GetSpecialFormatString(0);
            js2 = PdfJavaScript.GetSpecialFormatString(1);
            jsAction2 = new PdfJavaScriptAction(js2);
            textbox2.Actions.Format = jsAction2;
            pdf.Form.Fields.Add(textbox2);


            //添加文本框，設定文本內容顯示為百分數
            PdfTextBoxField textbox3 = new PdfTextBoxField(page, "SpecialFormat2-TextBox");
            textbox3.Bounds = new RectangleF(X, Y+50, width, height);
            textbox3.BorderWidth = 0.75f;
            textbox3.BorderStyle = PdfBorderStyle.Solid;
            string js3 = PdfJavaScript.GetPercentKeystrokeString(1,0);
            PdfJavaScriptAction jsAction3 = new PdfJavaScriptAction(js3);
            textbox3.Actions.KeyPressed = jsAction3;
            js3 = PdfJavaScript.GetPercentFormatString(1, 0);
            jsAction3 = new PdfJavaScriptAction(js3);
            textbox3.Actions.Format = jsAction3;
            pdf.Form.Fields.Add(textbox3);

            //添加文本框，設定資料驗證
            PdfTextBoxField textbox4 = new PdfTextBoxField(page, "RangeValidate-TextBox");
            textbox4.Bounds = new RectangleF(X+200, Y + 50, width, height);
            textbox4.BorderWidth = 0.75f;
            textbox4.BorderStyle = PdfBorderStyle.Solid;
            string js4 = PdfJavaScript.GetRangeValidateString(true, -18, true, 18);
            PdfJavaScriptAction jsAction4 = new PdfJavaScriptAction(js4);
            textbox4.Actions.Format = jsAction4;
            pdf.Form.Fields.Add(textbox4);

            //保存檔案
            pdf.SaveToFile("FormatField.pdf", FileFormat.PDF);
        }
    }
}

VB.NET

Imports Spire.Pdf
Imports Spire.Pdf.Actions
Imports Spire.Pdf.Fields
Imports System.Drawing

Namespace SetTextFormatInTextboxField
    Class Program
        Private Shared Sub Main(args As String())
            '新建PDF檔案,并添加空白頁
            Dim pdf As New PdfDocument()
            Dim page As PdfPageBase = pdf.Pages.Add()

            '定義坐標變數
            Dim X As Single = 10
            Dim Y As Single = 10
            Dim width As Single = 100
            Dim height As Single = 20

            '實體化一個文本域物件，并設定它的位置和邊框樣式
            Dim textbox As New PdfTextBoxField(page, "Number-TextBox")
            textbox.Bounds = New RectangleF(X, Y, width, height)
            textbox.BorderWidth = 0.75F
            textbox.BorderStyle = PdfBorderStyle.Solid

            '給文本域的鍵盤擊鍵事件設定一個JavaScript動作用于驗證輸入內容是否符合要求
            Dim js As String = PdfJavaScript.GetNumberKeystrokeString(2, 0, 0, 0, "$", True)
            Dim jsAction As New PdfJavaScriptAction(js)
            textbox.Actions.KeyPressed = jsAction

            '設定文本域內容顯示為數字貨幣
            js = PdfJavaScript.GetNumberFormatString(2, 0, 0, 0, "$", True)
            jsAction = New PdfJavaScriptAction(js)
            textbox.Actions.Format = jsAction

            '添加文本域到PDF中,并保存檔案
            pdf.Form.Fields.Add(textbox)


            '添加文本框，設定文本內容顯示為日期格式
            Dim textbox1 As New PdfTextBoxField(page, "DateFormat-TextBox")
            textbox1.Bounds = New RectangleF(X + 200, Y, width, height)
            textbox1.BorderWidth = 0.75F
            textbox1.BorderStyle = PdfBorderStyle.Solid
            Dim js1 As String = PdfJavaScript.GetDateKeystrokeString("mm/dd/yyyy")
            Dim jsAction1 As New PdfJavaScriptAction(js1)
            textbox1.Actions.KeyPressed = jsAction1
            js1 = PdfJavaScript.GetDateFormatString("mm/dd/yyyy")
            jsAction1 = New PdfJavaScriptAction(js1)
            textbox1.Actions.Format = jsAction1
            pdf.Form.Fields.Add(textbox1)


            '添加文本框，設定文本內容顯示為郵政編碼格式
            Dim textbox2 As New PdfTextBoxField(page, "SpecialFormat0-1-TextBox")
            textbox2.Bounds = New RectangleF(X + 400, Y, width, height)
            textbox2.BorderWidth = 0.75F
            textbox2.BorderStyle = PdfBorderStyle.Solid
            'string js2 = PdfJavaScript.GetSpecialKeystrokeString(0);
            Dim js2 As String = PdfJavaScript.GetSpecialKeystrokeString(1)

            Dim jsAction2 As New PdfJavaScriptAction(js2)
            textbox2.Actions.KeyPressed = jsAction2
            'js2 = PdfJavaScript.GetSpecialFormatString(0);
            js2 = PdfJavaScript.GetSpecialFormatString(1)
            jsAction2 = New PdfJavaScriptAction(js2)
            textbox2.Actions.Format = jsAction2
            pdf.Form.Fields.Add(textbox2)


            '添加文本框，設定文本內容顯示為百分數
            Dim textbox3 As New PdfTextBoxField(page, "SpecialFormat2-TextBox")
            textbox3.Bounds = New RectangleF(X, Y + 50, width, height)
            textbox3.BorderWidth = 0.75F
            textbox3.BorderStyle = PdfBorderStyle.Solid
            Dim js3 As String = PdfJavaScript.GetPercentKeystrokeString(1, 0)
            Dim jsAction3 As New PdfJavaScriptAction(js3)
            textbox3.Actions.KeyPressed = jsAction3
            js3 = PdfJavaScript.GetPercentFormatString(1, 0)
            jsAction3 = New PdfJavaScriptAction(js3)
            textbox3.Actions.Format = jsAction3
            pdf.Form.Fields.Add(textbox3)

            '添加文本框，設定資料驗證
            Dim textbox4 As New PdfTextBoxField(page, "RangeValidate-TextBox")
            textbox4.Bounds = New RectangleF(X + 200, Y + 50, width, height)
            textbox4.BorderWidth = 0.75F
            textbox4.BorderStyle = PdfBorderStyle.Solid
            Dim js4 As String = PdfJavaScript.GetRangeValidateString(True, -18, True, 18)
            Dim jsAction4 As New PdfJavaScriptAction(js4)
            textbox4.Actions.Format = jsAction4
            pdf.Form.Fields.Add(textbox4)

            '保存檔案
            pdf.SaveToFile("FormatField.pdf", FileFormat.PDF)
        End Sub
    End Class
End Namespace

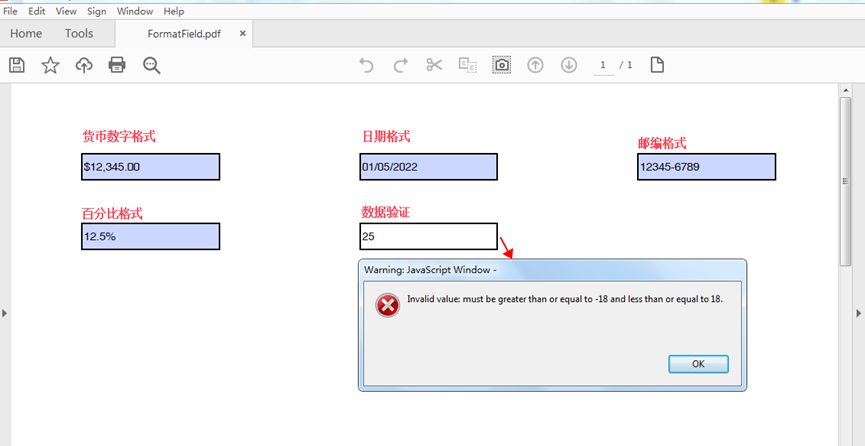

設定后的文本框域填寫效果如圖：

—End—
