原始碼
https://gitee.com/s0611163/AsyncAwaitDemo
為什么會研究這個？
我們專案的客戶端和服務端通信用的是WCF，我就想，能不能用異步的方式呼叫WCF服務呢？或者說能不能用async await的方式呼叫WCF服務呢？
然后我發現WCF是通過BeginXXX和EndXXX這種回呼的方式實作異步的，似乎不支持async await語法糖，那只能通過狀態機的方式實作了，不然多個請求就會寫成回呼地獄，
如果用Task.Run包起來，里面再寫個Wait，這就是假異步，還不如不用異步，按原來非異步的方式寫，
研究了回呼和狀態機之后，又看了相關的博客，就像一篇博客里說的，呼叫WCF不難，異步呼叫WCF不難，異步呼叫WCF并保證呼叫順序也不難，難的是實作了這些之后，代碼的可讀性和可維護性，
所以我的結論是，呼叫WCF，如果沒有特殊需求，還是不要異步的好，寫起來復雜，
C# 同步 異步 回呼 狀態機 async await Demo
主要演示了不使用async、await語法糖，通過回呼函式和狀態機實作異步
為什么要寫這個Demo？
為了幫助理解異步，async、await經過編譯生成的狀態機代碼，有點復雜，這個Demo里寫了一個相對簡單的狀態機代碼，便于理解
代碼說明
代碼中主要寫了三種下載檔案的示例
- 同步方式下載檔案，為了防止下載較大檔案時卡住界面，代碼在執行緒中執行，檔案下載完成之前，始終占用一個執行緒
- 異步方式下載檔案，使用了async、await語法糖，下載檔案時，可以看到，workerThreads(可用執行緒數)和completionPortThreads(可用異步執行緒數)會發生變化，但是不會長時間占用一個執行緒
- 異步方式下載檔案，不使用async、await語法糖，通過回呼函式和狀態機實作，workerThreads(可用執行緒數)和completionPortThreads(可用異步執行緒數)會發生變化，但是不會長時間占用一個執行緒
結論
- 相比同步方式，使用異步方式下載檔案時，忽略掉誤差，下載速度并沒有更快，異步的主要優點是不會長時間占用一個執行緒
- 在沒有async、await語法糖時，使用回呼函式和狀態機也可以實作異步，但代碼寫的不夠優雅，心智負擔重，所以async、await的另一個優點是使代碼簡單
- 異步的本質就是回呼，C#異步底層是通過系統級回呼和狀態機實作的，async、await會被編譯成狀態機代碼，相關于用代碼生成器生成了代碼，但這個代碼自己寫的話，心智負擔重
- 不使用async、await語法糖的前提下，使用狀態機可以避免回呼地獄
- 即使不使用async、await語法糖，依然感受到了異步的侵入性，沒辦法在底層完全封裝起來，代碼一直侵入到控制元件的事件里，使用async、await也是，你從代碼的底層，寫async一直寫到控制元件的事件層

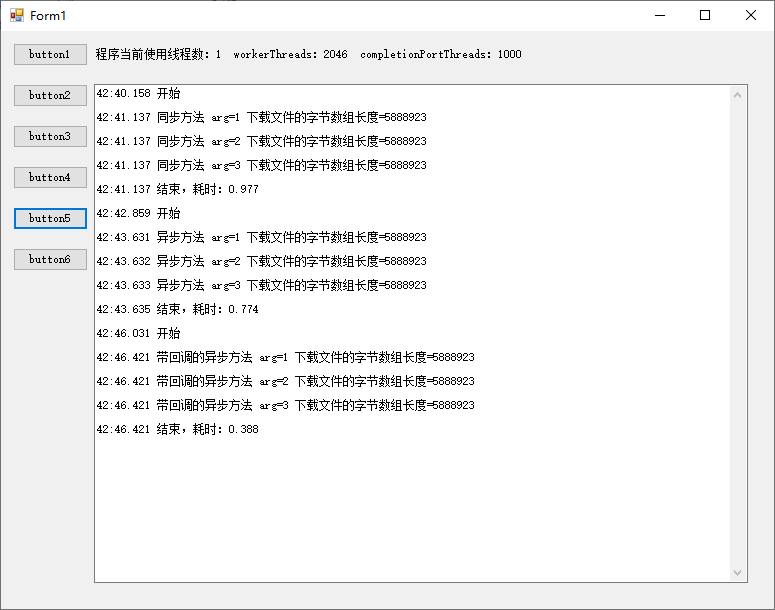

Demo截圖
測驗代碼Form1.cs
using Models;
using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.IO;
using System.Linq;
using System.Text;
using System.Threading;
using System.Threading.Tasks;
using System.Windows.Forms;
using Utils;
namespace AsyncAwaitDemo
{
public partial class Form1 : Form
{
private DateTime _dt1;
private System.Timers.Timer _timer;
private string _testFileDownloadUrl = "http://desk-fd.zol-img.com.cn/t_s1920x1080c5/g6/M00/06/00/ChMkKWHXqV-IJFpUAEJatCdq_LUAAXW8AA1PvwAQlrM029.jpg?downfile=1642227460763.jpg"; //檔案下載測驗URL
//private string _testFileDownloadUrl = "https://down21.xiazaidb.com/app/xiaomanghe.apk"; //檔案下載測驗URL
//private string _testFileDownloadUrl = "https://codeload.github.com/0611163/DBHelper/zip/refs/heads/master"; //檔案下載測驗URL
//private string _testFileDownloadUrl = "http://down-ww5.537a.com/soft/3/ce/com.yhong.muchun_51982ada.apk"; //檔案下載測驗URL
//private string _testFileDownloadUrl = "https://dl.360safe.com/netunion/20140425/360se+191727+n3f07b78190.exe"; //檔案下載測驗URL 大一點的檔案
public Form1()
{
InitializeComponent();
}
private void Form1_Load(object sender, EventArgs e)
{
//定時器會使用執行緒池中的一個執行緒
_timer = new System.Timers.Timer();
_timer.Interval = 100;
_timer.Elapsed += _timer_Elapsed;
_timer.Start();
}
#region Log
private void Log(string log)
{
if (!this.IsDisposed)
{
string msg = DateTime.Now.ToString("mm:ss.fff") + " " + log + "\r\n\r\n";
if (this.InvokeRequired)
{
this.BeginInvoke(new Action(() =>
{
textBox1.AppendText(msg);
}));
}
else
{
textBox1.AppendText(msg);
}
}
}
#endregion
#region _timer_Elapsed
private void _timer_Elapsed(object sender, System.Timers.ElapsedEventArgs e)
{
int workerThreads;
int completionPortThreads;
int maxWorkerThreads;
int maxCompletionPortThreads;
ThreadPool.GetAvailableThreads(out workerThreads, out completionPortThreads);
ThreadPool.GetMaxThreads(out maxWorkerThreads, out maxCompletionPortThreads);
this.BeginInvoke(new Action(() =>
{
label1.Text = "程式當前使用執行緒數：" + (maxWorkerThreads - workerThreads) + " workerThreads：" + workerThreads.ToString() + " completionPortThreads：" + completionPortThreads;
}));
}
#endregion
#region button1_Click 測驗同步方法
private void button1_Click(object sender, EventArgs e)
{
Task.Run(() => //下載檔案是耗時操作，需要在執行緒中執行，否則界面卡住
{
Log("開始");
DateTime dt = DateTime.Now;
//輸入引數
string arg1 = "1";
string arg2 = "2";
string arg3 = "3";
//方法呼叫
string result1 = SyncFunction(arg1);
string result2 = SyncFunction(arg2);
string result3 = SyncFunction(arg3);
//輸出結果
Log(result1);
Log(result2);
Log(result3);
Log("結束，耗時：" + DateTime.Now.Subtract(dt).TotalSeconds.ToString("0.000"));
});
}
#endregion
#region button2_Click 測驗異步方法(三個異步方法并行，按順序輸出)
private async void button2_Click(object sender, EventArgs e)
{
Log("開始");
DateTime dt = DateTime.Now;
//輸入引數
string arg1 = "1";
string arg2 = "2";
string arg3 = "3";
//方法呼叫
var t1 = AsyncFunction(arg1);
var t2 = AsyncFunction(arg2);
var t3 = AsyncFunction(arg3);
string result1 = await t1;
string result2 = await t2;
string result3 = await t3;
//輸出結果
Log(result1);
Log(result2);
Log(result3);
Log("結束，耗時：" + DateTime.Now.Subtract(dt).TotalSeconds.ToString("0.000"));
}
#endregion
#region button3_Click 測驗異步方法(三個異步方法順序執行，按順序輸出)
private async void button3_Click(object sender, EventArgs e)
{
Log("開始");
DateTime dt = DateTime.Now;
//輸入引數
string arg1 = "1";
string arg2 = "2";
string arg3 = "3";
//方法呼叫
string result1 = await AsyncFunction(arg1);
string result2 = await AsyncFunction(arg2);
string result3 = await AsyncFunction(arg3);
//輸出結果
Log(result1);
Log(result2);
Log(result3);
Log("結束，耗時：" + DateTime.Now.Subtract(dt).TotalSeconds.ToString("0.000"));
}
#endregion
#region button4_Click 測驗狀態機(三個異步方法順序執行，按順序輸出)(等價于button3_Click)
private void button4_Click(object sender, EventArgs e)
{
List<object> resultList = new List<object>();
//回呼、狀態機，不使用async await語法糖
Action<int, object> awaitAction = null;
awaitAction = (state, result) =>
{
//輸入引數
string arg1 = "1";
string arg2 = "2";
string arg3 = "3";
//方法呼叫
if (state == 0)
{
Log("開始");
_dt1 = DateTime.Now;
AsyncFunctionWithCallback(arg1, r => awaitAction(1, r));
return;
}
if (state == 1)
{
resultList.Add(result);
AsyncFunctionWithCallback(arg2, r => awaitAction(2, r));
return;
}
if (state == 2)
{
resultList.Add(result);
AsyncFunctionWithCallback(arg3, r => awaitAction(3, r));
return;
}
//輸出結果
if (state == 3)
{
resultList.Add(result);
foreach (object item in resultList)
{
Log(item != null ? item.ToString() : "null");
}
Log("結束，耗時：" + DateTime.Now.Subtract(_dt1).TotalSeconds.ToString("0.000"));
return;
}
};
awaitAction(0, null);
}
#endregion
#region button5_Click 測驗狀態機(三個異步方法并行，按順序輸出)(等價于button2_Click)
private void button5_Click(object sender, EventArgs e)
{
object[] resultArray = new object[3];
//是否已呼叫回呼函式
bool _completedCalled = false;
//鎖
object _lock = new object();
//輸出結果
Action<object[]> output = arr =>
{
if (arr.Count(a => a != null) == 3)
{
lock (_lock)
{
if (!_completedCalled)
{
_completedCalled = true;
foreach (object item in arr)
{
Log(item != null ? item.ToString() : "null");
}
Log("結束，耗時：" + DateTime.Now.Subtract(_dt1).TotalSeconds.ToString("0.000"));
}
}
}
};
//回呼、狀態機，不使用async await語法糖
Action<int, object> awaitAction = null;
awaitAction = (state, result) =>
{
//輸入引數
string arg1 = "1";
string arg2 = "2";
string arg3 = "3";
//方法呼叫
if (state == 0)
{
Log("開始");
_dt1 = DateTime.Now;
AsyncFunctionWithCallback(arg1, r => awaitAction(1, r));
AsyncFunctionWithCallback(arg2, r => awaitAction(2, r));
AsyncFunctionWithCallback(arg3, r => awaitAction(3, r));
return;
}
//輸出結果
if (state == 1)
{
resultArray[0] = result;
output(resultArray);
return;
}
if (state == 2)
{
resultArray[1] = result;
output(resultArray);
return;
}
if (state == 3)
{
resultArray[2] = result;
output(resultArray);
return;
}
};
awaitAction(0, null);
}
#endregion
#region button6_Click 測驗狀態機(三個異步方法并行，按順序輸出)(等價于button2_Click)(相對于button5_Click更優雅的實作)
private void button6_Click(object sender, EventArgs e)
{
Log("開始");
DateTime dt = DateTime.Now;
//輸入引數
string arg1 = "1";
string arg2 = "2";
string arg3 = "3";
//操作結果
object result1 = null;
object result2 = null;
object result3 = null;
//方法呼叫
Await await = new Await();
await.Add(() => AsyncFunctionWithCallback(arg1, r => await.Collect(r, out result1)))
.Add(() => AsyncFunctionWithCallback(arg2, r => await.Collect(r, out result2)))
.Add(() => AsyncFunctionWithCallback(arg3, r => await.Collect(r, out result3)))
.Completed(resultList => //輸出結果
{
Log(result1 != null ? result1.ToString() : "null");
Log(result2 != null ? result2.ToString() : "null");
Log(result3 != null ? result3.ToString() : "null");
Log("結束，耗時：" + DateTime.Now.Subtract(dt).TotalSeconds.ToString("0.000"));
})
.Start();
}
#endregion
#region button7_Click 不使用狀態機，執行帶回呼的異步方法(基本等價于button1_Click)
private void button7_Click(object sender, EventArgs e)
{
Task.Run(() =>
{
Log("開始");
DateTime dt = DateTime.Now;
//輸入引數
string arg1 = "1";
string arg2 = "2";
string arg3 = "3";
//操作結果
object result1 = null;
object result2 = null;
object result3 = null;
//方法呼叫
AsyncFunctionWithCallback(arg1, r => result1 = r);
AsyncFunctionWithCallback(arg2, r => result2 = r);
AsyncFunctionWithCallback(arg3, r => result3 = r);
//等待三個操作結果全部回傳，三個操作結果回傳之前，始終占用一個執行緒
while (result1 == null || result2 == null || result3 == null)
{
Thread.Sleep(1);
}
//輸出結果
Log(result1 != null ? result1.ToString() : "null");
Log(result2 != null ? result2.ToString() : "null");
Log(result3 != null ? result3.ToString() : "null");
Log("結束，耗時：" + DateTime.Now.Subtract(dt).TotalSeconds.ToString("0.000"));
});
}
#endregion
#region 同步方法
/// <summary>
/// 同步方法
/// </summary>
private string SyncFunction(string arg)
{
MemoryStream ms = HttpUtil.HttpDownloadFile(_testFileDownloadUrl);
return "同步方法 arg=" + arg + " 下載檔案的位元組陣列長度=" + ms.Length;
}
#endregion
#region 異步方法
/// <summary>
/// 異步方法
/// </summary>
private async Task<string> AsyncFunction(string arg)
{
MemoryStream ms = await HttpUtil.HttpDownloadFileAsync(_testFileDownloadUrl);
return "異步方法 arg=" + arg + " 下載檔案的位元組陣列長度=" + ms.Length;
}
#endregion
#region 帶回呼的異步方法
/// <summary>
/// 帶回呼的異步方法
/// </summary>
/// <param name="arg">傳入引數</param>
/// <param name="callback">回呼</param>
/// <param name="nextState">下一個狀態</param>
private void AsyncFunctionWithCallback(string arg, Action<object> callback)
{
HttpUtil.HttpDownloadFileAsyncWithCallback(_testFileDownloadUrl, new HttpUtilAsyncState() { State = 0 }, obj =>
{
if (obj is Exception)
{
Exception ex = obj as Exception;
Log("錯誤：" + ex.Message);
}
else
{
MemoryStream ms = obj as MemoryStream;
string result = "帶回呼的異步方法 arg=" + arg + " 下載檔案的位元組陣列長度=" + ms.Length;
callback(result);
}
});
}
#endregion
#region 用Task模擬的異步方法
/*
#region 異步方法
/// <summary>
/// 異步方法
/// </summary>
private Task<string> AsyncFunction(string arg)
{
return Task.Run<string>(() =>
{
Thread.Sleep(2000);
return "異步方法 arg=" + arg;
});
}
#endregion
#region 帶回呼的異步方法
/// <summary>
/// 帶回呼的異步方法
/// </summary>
/// <param name="arg">傳入引數</param>
/// <param name="callback">回呼</param>
/// <param name="nextState">下一個狀態</param>
private void AsyncFunctionWithCallback(string arg, Action<object> callback)
{
Task.Run(() =>
{
if (arg == "1")
{
Thread.Sleep(2000);
}
else
{
Thread.Sleep(2000);
}
string result = "帶回呼的異步方法 arg=" + arg;
callback(result);
});
}
#endregion
*/
#endregion
}
}
異步工具類Await.cs
using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
namespace Utils
{
/// <summary>
/// 異步工具類
/// 代替async await語法糖
/// </summary>
public class Await
{
/// <summary>
/// 狀態
/// </summary>
private int _state { get; set; }
/// <summary>
/// 異步操作集合
/// </summary>
private List<Action> _actionList = new List<Action>();
/// <summary>
/// 操作結果集合
/// </summary>
private List<object> _resultList = new List<object>();
/// <summary>
/// 完成后的回呼
/// </summary>
private Action<List<object>> _completedCallback;
/// <summary>
/// 是否已呼叫回呼函式
/// </summary>
private bool _completedCalled = false;
/// <summary>
/// 鎖
/// </summary>
private object _lock = new object();
/// <summary>
/// 異步工具類 建構式
/// </summary>
public Await()
{
_state = 0;
}
/// <summary>
/// 添加一個異步操作
/// </summary>
public Await Add(Action action)
{
_actionList.Add(action);
return this;
}
/// <summary>
/// 開始執行
/// </summary>
public Await Start()
{
foreach (Action action in _actionList)
{
action();
}
return this;
}
/// <summary>
/// 收集結果
/// </summary>
public Await Collect(object result, out object outResult)
{
outResult = result;
_resultList.Add(result);
lock (_lock)
{
_state++;
if (_state == _actionList.Count && _completedCallback != null && !_completedCalled)
{
_completedCalled = true;
_completedCallback(_resultList);
}
}
return this;
}
/// <summary>
/// 注冊完成后的回呼函式
/// </summary>
public Await Completed(Action<List<object>> completedCallback)
{
this._completedCallback = completedCallback;
return this;
}
}
}
檔案下載工具類HttpUtil.cs
下面的代碼使用了三種方式實作檔案下載
- 同步方式實作檔案下載
- 異步方式實作檔案下載
- 通過回呼和狀態機實作的異步下載
using Models;
using System;
using System.Collections.Generic;
using System.Collections.Specialized;
using System.IO;
using System.Linq;
using System.Net;
using System.Text;
using System.Threading;
using System.Threading.Tasks;
namespace Utils
{
/// <summary>
/// Http上傳下載檔案
/// </summary>
public class HttpUtil
{
#region HttpDownloadFile 下載檔案
/// <summary>
/// 下載檔案
/// </summary>
/// <param name="url">下載檔案url路徑</param>
/// <param name="cookie">cookie</param>
public static MemoryStream HttpDownloadFile(string url, CookieContainer cookie = null, WebHeaderCollection headers = null)
{
try
{
// 設定引數
HttpWebRequest request = WebRequest.Create(url) as HttpWebRequest;
request.Method = "GET";
request.CookieContainer = cookie;
if (headers != null)
{
foreach (string key in headers.Keys)
{
request.Headers.Add(key, headers[key]);
}
}
//發送請求并獲取相應回應資料
HttpWebResponse response = request.GetResponse() as HttpWebResponse;
//直到request.GetResponse()程式才開始向目標網頁發送Post請求
Stream responseStream = response.GetResponseStream();
//創建寫入流
MemoryStream stream = new MemoryStream();
byte[] bArr = new byte[10240];
int size = responseStream.Read(bArr, 0, (int)bArr.Length);
while (size > 0)
{
stream.Write(bArr, 0, size);
size = responseStream.Read(bArr, 0, (int)bArr.Length);
}
stream.Seek(0, SeekOrigin.Begin);
responseStream.Close();
return stream;
}
catch (Exception ex)
{
throw ex;
}
}
#endregion
#region HttpDownloadFile 下載檔案(異步)
/// <summary>
/// 下載檔案
/// </summary>
/// <param name="url">下載檔案url路徑</param>
/// <param name="cookie">cookie</param>
public static async Task<MemoryStream> HttpDownloadFileAsync(string url, CookieContainer cookie = null, WebHeaderCollection headers = null)
{
try
{
// 設定引數
HttpWebRequest request = WebRequest.Create(url) as HttpWebRequest;
request.Method = "GET";
request.CookieContainer = cookie;
if (headers != null)
{
foreach (string key in headers.Keys)
{
request.Headers.Add(key, headers[key]);
}
}
//發送請求并獲取相應回應資料
HttpWebResponse response = await request.GetResponseAsync() as HttpWebResponse;
//直到request.GetResponse()程式才開始向目標網頁發送Post請求
Stream responseStream = response.GetResponseStream();
//創建寫入流
MemoryStream stream = new MemoryStream();
byte[] bArr = new byte[10240];
int size = await responseStream.ReadAsync(bArr, 0, (int)bArr.Length);
while (size > 0)
{
stream.Write(bArr, 0, size);
size = await responseStream.ReadAsync(bArr, 0, (int)bArr.Length);
}
stream.Seek(0, SeekOrigin.Begin);
responseStream.Close();
return stream;
}
catch (Exception ex)
{
throw ex;
}
}
#endregion
#region HttpDownloadFile 下載檔案(基于回呼的異步)
/// <summary>
/// 下載檔案
/// </summary>
/// <param name="url">下載檔案url路徑</param>
/// <param name="cookie">cookie</param>
public static void HttpDownloadFileAsyncWithCallback(string url, HttpUtilAsyncState state = null, Action<object> callback = null, CookieContainer cookie = null, WebHeaderCollection headers = null)
{
try
{
if (state.State == 0)
{
// 設定引數
HttpWebRequest request = WebRequest.Create(url) as HttpWebRequest;
request.Method = "GET";
request.CookieContainer = cookie;
if (headers != null)
{
foreach (string key in headers.Keys)
{
request.Headers.Add(key, headers[key]);
}
}
//發送請求并獲取相應回應資料
request.BeginGetResponse(asyncResult =>
{
HttpUtilAsyncState asyncState = asyncResult.AsyncState as HttpUtilAsyncState;
try
{
HttpWebResponse response = request.EndGetResponse(asyncResult) as HttpWebResponse;
asyncState.ResponseStream = response.GetResponseStream();
HttpDownloadFileAsyncWithCallback(null, asyncState, callback);
}
catch (Exception ex)
{
asyncState.Exception = ex;
asyncState.State = 2;
HttpDownloadFileAsyncWithCallback(null, asyncState, callback);
}
}, new HttpUtilAsyncState { Request = request, State = 1 });
return;
}
if (state.State == 1)
{
byte[] bArr = new byte[10240];
state.ResponseStream.BeginRead(bArr, 0, (int)bArr.Length, asyncResult =>
{
HttpUtilAsyncState asyncState = asyncResult.AsyncState as HttpUtilAsyncState;
try
{
int size = state.ResponseStream.EndRead(asyncResult);
if (size > 0)
{
state.Stream.Write(bArr, 0, size);
HttpDownloadFileAsyncWithCallback(null, asyncState, callback);
}
else
{
asyncState.State = 2;
HttpDownloadFileAsyncWithCallback(null, asyncState, callback);
}
}
catch (Exception ex)
{
asyncState.Exception = ex;
asyncState.State = 2;
HttpDownloadFileAsyncWithCallback(null, asyncState, callback);
}
}, state);
return;
}
if (state.State == 2)
{
if (state.Exception != null)
{
callback(state.Exception);
return;
}
else
{
state.Stream.Seek(0, SeekOrigin.Begin);
state.ResponseStream.Close();
callback(state.Stream);
return;
}
}
}
catch (Exception ex)
{
throw ex;
}
}
#endregion
}
}
轉載請註明出處，本文鏈接：https://www.uj5u.com/net/412760.html
標籤：.NET技术
