01
—
概述

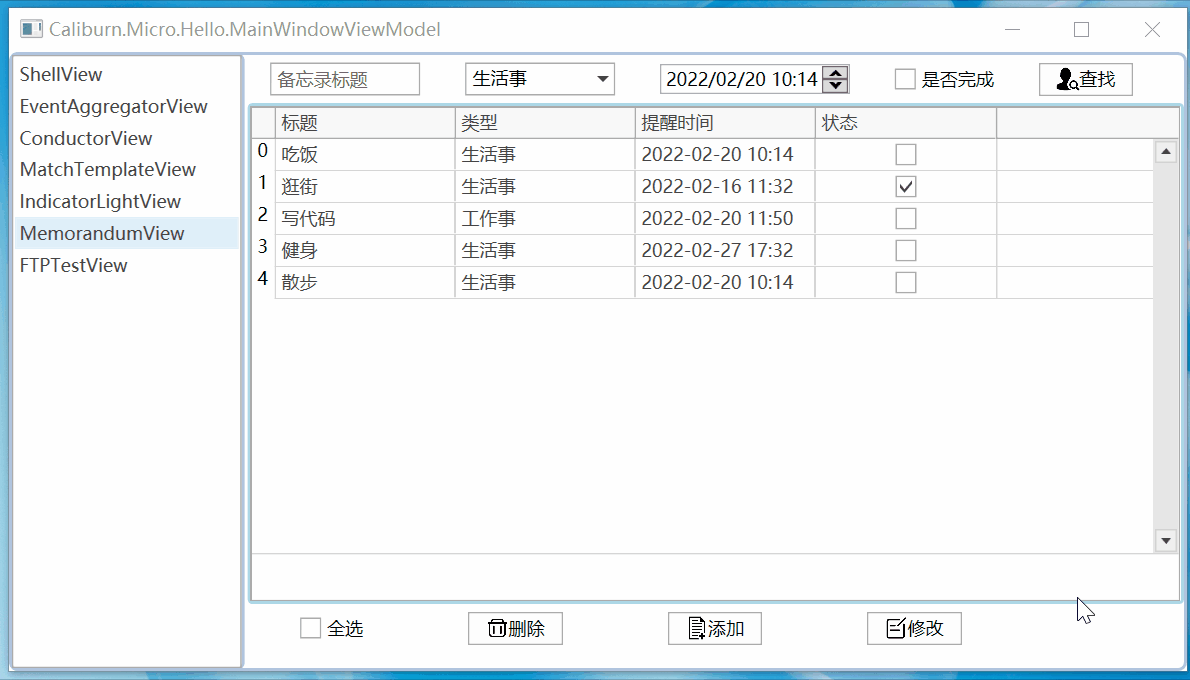

前幾天群里有人問如何制作備忘錄，感覺這樣一個小實體挺適合新手們入門學習使用，所以就抽空做了出來，界面如下圖
這個備忘錄主要包括了如下功能：
① 備忘錄資訊的增、刪、改、查；
② 備忘錄時間到了以后進行語音播報，
功能很簡單，但是要實作這么一個功能，也涉及眾多的知識點，接下來詳細進行分解，
02
—
內容詳述
①界面button的圖示

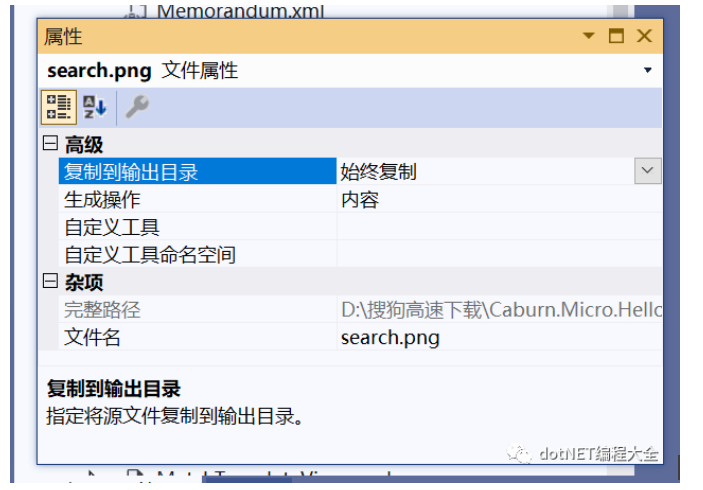

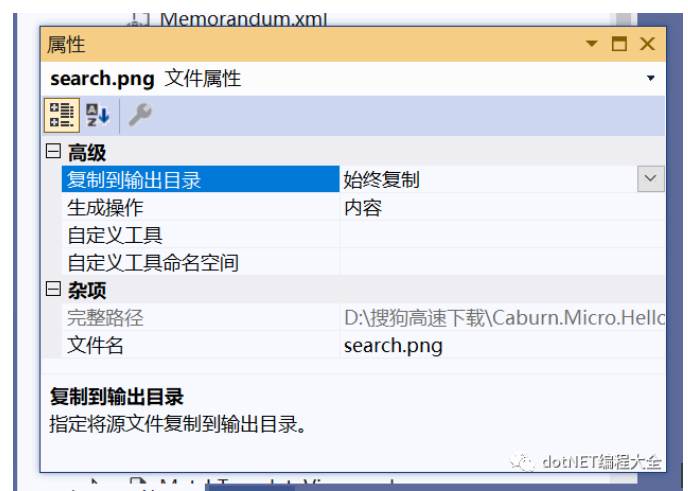

圖示圖片可以上網上下載，下載好以后放到專案目錄中，然后在專案中找到你的圖片——>右鍵包括在專案中——>再右鍵，點擊屬性：
復制到輸出目錄，更改為始終復制，
生成操作，更改為內容，
前臺XMAL操作：
<Button Margin="15,5" Min cal:Message.Attach="[Event Click] = [Action SearchClick]" >
<WrapPanel >
<Image Source="/Images/search.png" Height="15" />
<TextBlock Text="查找" VerticalAlignment="Center" />
</WrapPanel>
</Button>
② 資料源：這里我采用從xml讀取并系結到界面，界面如果有修改，在頁面退出時進行資料保存，當然你也可以使用資料庫去操作

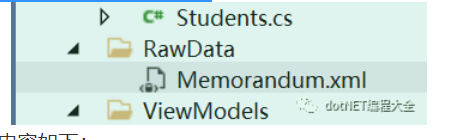

XML檔案位置：根目錄的RawData

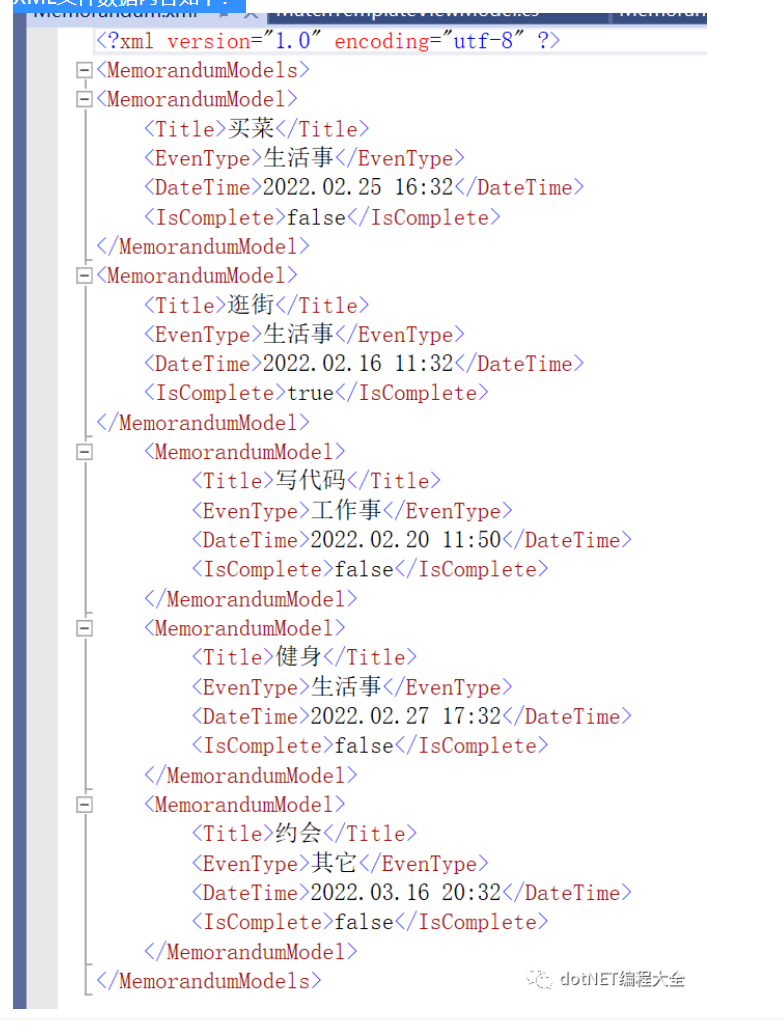

XML檔案資料內容如下：
MemorandumModel資料模型定義：
public class MemorandumModel
{
public string Title { get; set; }
public EvenType EvenType { get; set; }
public DateTime DateTime { get; set; }
public bool IsComplete { get; set; }
}
③XML檔案的讀取和保存：MemorandumRealList是我們所有資料的集合，為了方便界面查詢，界面系結了MemorandumShowList 這個集合
xml讀取：
public void XmlDocReader()
{
//XmlDocument讀取xml檔案
XmlDocument xmlDoc = new XmlDocument();
xmlDoc.Load(XmlDocPath);
//獲取xml根節點
XmlNode xmlRoot = xmlDoc.DocumentElement;
if (xmlRoot == null)
return;
//讀取所有的節點
foreach (XmlNode node in xmlRoot.SelectNodes("MemorandumModel"))
{
MemorandumRealList.Add(new MemorandumModel()
{
Title = node.SelectSingleNode("Title").InnerText,
EvenType = (EvenType)Enum.Parse(typeof(EvenType), node.SelectSingleNode("EvenType").InnerText),
DateTime = Convert.ToDateTime(node.SelectSingleNode("DateTime").InnerText),
IsComplete = Convert.ToBoolean(node.SelectSingleNode("IsComplete").InnerText)
});
}
MemorandumShowList = new ObservableCollection<MemorandumModel>(MemorandumRealList);
}
xml檔案保存：
public void SaveXmlDoc()
{
//獲取根節點物件
XDocument document = new XDocument();
XElement xmlRoot = new XElement("MemorandumModels");
?
XElement memorandumModel;
foreach (var memorandumReal in MemorandumRealList)
{
memorandumModel = new XElement($"MemorandumModel");
memorandumModel.SetElementValue("Title", memorandumReal.Title);
memorandumModel.SetElementValue("EvenType", memorandumReal.EvenType);
memorandumModel.SetElementValue("DateTime", memorandumReal.DateTime);
memorandumModel.SetElementValue("IsComplete", memorandumReal.IsComplete);
xmlRoot.Add(memorandumModel);
}
xmlRoot.Save(XmlDocPath);
}
④查詢：如果全選選中，則顯示全部內容，未勾選，則采用link去匹配選中資訊去篩選，我這里是所有資訊去匹配的，你也可以自己修改下，去只匹配某一項或幾項內容
public void SearchClick()
{
SaveXmlDoc();
if (SelectAll)
{
MemorandumShowList = new ObservableCollection<MemorandumModel>(MemorandumRealList);
return;
}
MemorandumShowList = new ObservableCollection<MemorandumModel>(
MemorandumRealList.Where(
t => t.EvenType == EvenTypeList[SelectedIndex]
).Where(s => s.IsComplete == IsCompleteStatus
).Where(p => p.Title == TitleText
).Where(x => x.DateTime == DateTime.Parse(DataTimeContext)
) .ToList() );
}
⑤標題欄未輸入內容時顯示灰色提示字體，有輸入時輸入內容顯示黑色字體：
這里采用事件處理：獲取到游標時
public void LostFocus()
{
if (string.IsNullOrEmpty(TitleText))
{
TitleText = "備忘錄標題";
TitleColor = Color.DimGray;
}
}
游標離開時：
public void GotFocus()
{
TitleText = "";
TitleColor = Color.Black;
}
⑥選中行洗掉：
public void DeleteClick()
{
MemorandumRealList.Remove(SelectedItem);
MemorandumShowList.Remove(SelectedItem);
}
⑦行號獲取：在行選擇改變事件中去做
public void GridControl_SelectedItemChanged(object sender, SelectedItemChangedEventArgs e)
{
GridControl gd = sender as GridControl;
SelectRow = gd.GetSelectedRowHandles()[0];//選中行的行號
}
⑧添加資訊：
public void Add()
{
MemorandumRealList.Add(new MemorandumModel()
{
Title = titleText,
DateTime =DateTime.Parse(DataTimeContext),
EvenType = EvenTypeList[SelectedIndex],
IsComplete = IsCompleteStatus
});
MemorandumShowList.Add(new MemorandumModel()
{
Title = titleText,
DateTime = DateTime.Parse(DataTimeContext),
EvenType = EvenTypeList[SelectedIndex],
IsComplete = IsCompleteStatus
});
}
⑨修改資訊：
public void Modify()
{
MemorandumRealList[SelectRow] = new MemorandumModel()
{
Title = titleText,
DateTime = DateTime.Parse(DataTimeContext),
EvenType = EvenTypeList[SelectedIndex],
IsComplete = IsCompleteStatus
};
MemorandumShowList[SelectRow] = new MemorandumModel()
{
Title = titleText,
DateTime = DateTime.Parse(DataTimeContext),
EvenType = EvenTypeList[SelectedIndex],
IsComplete = IsCompleteStatus
};
}
⑩定時器查詢：采用using System.Threading.Tasks;下的單執行緒定時器DispatcherTimer，
定義和初始化：
private DispatcherTimer timer;
timer = new DispatcherTimer();
timer.Interval = TimeSpan.FromMinutes(1);
timer.Tick += timer1_Tick;
timer.Start();
定時器事件：我這里每隔一分鐘查詢一次，查詢到當前事件到了提醒時間就進行一次語音播報：
private void timer1_Tick(object sender, EventArgs e)
{
foreach (var memorandum in MemorandumRealList)
{
if(DateTime.Now >= memorandum.DateTime)
{
SpeakAsync(memorandum.Title);
}
}
}
⑩①：語音播報：這里開了task執行緒執行
/// <summary>
/// 微軟語音識別
/// </summary>
/// <param name="content">提示內容</param>
public static void SpeakAsync(string content)
{
try
{
Task.Run(() =>
{
SpVoice voice = new SpVoice();
voice.Rate = 1;//速率[-10,10]
voice.Volume = 10;//音量[0,100]
voice.Voice = voice.GetVoices().Item(0);//語音庫
voice.Speak(content);
});
?
}
catch (Exception ex)
{
throw ex;
}
}
⑩② 界面時間處理：
-
界面的表格采用的dev控制元件gridcontrol，默認情況下，時間只顯示年月日，如果需要顯示時分，需要設定：EditSettings如下
-
<dxg:GridColumn Header="提醒時間" FieldName="DateTime" Min > <dxg:GridColumn.EditSettings> <!--<xctk:DateEditSettings DisplayFormat="dd-MM-yyyy HH:mm:ss.fff"/>--> <xctk:DateEditSettings DisplayFormat="yyyy-MM-dd HH:mm"/> </dxg:GridColumn.EditSettings> </dxg:GridColumn>如果使用的是wpf 自帶的表格控制元件datagrid，相對好處理
-
<DataGridTextColumn Header="提醒時間" Binding="{Binding Path=DateTime,StringFormat='yyyy年MM月dd日 HH:mm:ss'}" Min />界面頂端的時間控制元件采用：toolkit下的xctk1:DateTimeUpDown這個控制元件
她系結的是一個字串型別的資料，所以添加時候，需要將他轉換為datetime型別， DateTime.Parse(DataTimeContext)，或者
DateTime = Convert.ToDateTime(DataTimeContext)
-
<xctk1:DateTimeUpDown x:Name="_minimum" Format="Custom" FormatString="yyyy/MM/dd HH:mm" Text="{Binding DataTimeContext}" HorizontalAlignment="Left" VerticalAlignment="Center" Value="https://www.cnblogs.com/zls366/archive/2022/02/20/2016/01/01T12:00" Margin="15,5"/>⑩③combobox列舉內容系結：
-
public ObservableCollection<EvenType> EvenTypeList { get; set; } = new ObservableCollection<EvenType>();? -
foreach (EvenType evenType in Enum.GetValues(typeof(EvenType))) { EvenTypeList.Add(evenType); }⑩④關于gridcontrol TableView 的常用屬性介紹
-
TableView 的常用屬性： ? AllowPerPixelScrolling //逐像素滾動； AllowScrollAnimation //滾動影片，當下拉滾動條時有影片效果 NavigationStyle //選中方式是一行還是單元格 ShowIndicator //是否在每一行之前顯示小方塊 UseEvenRowBackground //隔行其背景顏色會有所區分 AllowScrollToFocusedRow //允許滾動到選中行 AllowResizing //允許調整尺寸 AllowSorting //允許排序 AutoWidth //允許自動調整列寬 AllowMoveColumnToDropArea //允許將一列拖到空白處進行分組 AllowGrouping //允許分組 AllowFilterEditor //允許顯示過濾盤 AllowEditing //允許編輯 ShowGroupPanel//顯示分組panel ShowHorizontalLines ShowVerticalLines //顯示表格中每行每列垂直和水平線 IsColumnMenuEnabled //是否關閉右鍵列選單
03
—
前臺代碼
直接上代碼，比較簡單，不展開講解了：
-
<UserControl xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation" xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml" xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006" xmlns:d="http://schemas.microsoft.com/expression/blend/2008" xmlns:local="clr-namespace:Caliburn.Micro.Hello" xmlns:cal="http://www.caliburnproject.org" xmlns:sys="clr-namespace:System;assembly=mscorlib" xmlns:dxg="http://schemas.devexpress.com/winfx/2008/xaml/grid" xmlns:xctk="http://schemas.devexpress.com/winfx/2008/xaml/editors" xmlns:xctk1="http://schemas.xceed.com/wpf/xaml/toolkit" x: mc:Ignorable="d" d:DesignHeight="450" d:Design > <UserControl.Resources> <local:FontColorConverter x:Key="FontColorConverter" /> <Style TargetType="{x:Type TextBox}"> <Setter Property="HorizontalContentAlignment" Value="https://www.cnblogs.com/zls366/archive/2022/02/20/Left"/> <Setter Property="VerticalContentAlignment" Value="https://www.cnblogs.com/zls366/archive/2022/02/20/Center"/> <Setter Property="Width" Value="https://www.cnblogs.com/zls366/archive/2022/02/20/100"/> </Style> <Style TargetType="{x:Type CheckBox}"> <Setter Property="HorizontalAlignment" Value="https://www.cnblogs.com/zls366/archive/2022/02/20/Center"/> <Setter Property="VerticalAlignment" Value="https://www.cnblogs.com/zls366/archive/2022/02/20/Center"/> <Setter Property="Foreground" Value="https://www.cnblogs.com/zls366/archive/2022/02/20/Black"/> </Style> <Style TargetType="Button"> <Setter Property="Foreground" Value="https://www.cnblogs.com/zls366/archive/2022/02/20/Black"/> </Style> <DataTemplate x:Key="rowIndicatorContentTemplate"> <StackPanel VerticalAlignment="Stretch" HorizontalAlignment="Stretch"> <TextBlock Text="{Binding RowHandle.Value}" TextAlignment="Center" Foreground="Black"/> </StackPanel> </DataTemplate> </UserControl.Resources> <StackPanel Orientation="Vertical"> <StackPanel Orientation="Horizontal"> <TextBox Text="{Binding TitleText}" Margin="15,5" cal:Message.Attach="[Event GotFocus] = [Action GotFocus];[Event LostFocus] = [Action LostFocus]" Foreground="{Binding TitleColor, Converter={StaticResource FontColorConverter}}"/> <ComboBox ItemsSource="{Binding EvenTypeList}" Margin="15,5" SelectedIndex="{Binding SelectedIndex}" Min Foreground="Black"/> <!--<DatePicker Text="{Binding DataTimeContext,Mode=TwoWay,UpdateSourceTrigger=PropertyChanged}" SelectedDate="{x:Static sys:DateTime.Now}" HorizontalAlignment="Left" VerticalAlignment="Center" Margin="15,5" />--> <xctk1:DateTimeUpDown x:Name="_minimum" Format="Custom" FormatString="yyyy/MM/dd HH:mm" Text="{Binding DataTimeContext}" HorizontalAlignment="Left" VerticalAlignment="Center" Value="https://www.cnblogs.com/zls366/archive/2022/02/20/2016/01/01T12:00" Margin="15,5"/> ? <CheckBox IsChecked="{Binding IsCompleteStatus}" Margin="15,5" Content="是否完成" Foreground="Black"/> <Button Margin="15,5" Min cal:Message.Attach="[Event Click] = [Action SearchClick]" > <WrapPanel > <Image Source="/Images/search.png" Height="15" /> <TextBlock Text="查找" VerticalAlignment="Center" /> </WrapPanel> </Button> </StackPanel> <Border BorderBrush="LightBlue" CornerRadius="2" BorderThickness="2" > <dxg:GridControl AutoGenerateColumns="AddNew" EnableSmartColumnsGeneration="True" AllowLiveDataShaping="True" cal:Message.Attach="[Event SelectedItemChanged] = [Action GridControl_SelectedItemChanged($source,$event)];" ItemsSource="{Binding MemorandumShowList}" SelectedItem="{Binding SelectedItem}" Height="330" Foreground="Black"> <dxg:GridControl.View> <dxg:TableView ShowTotalSummary="True" AllowMoveColumnToDropArea="False" AllowGrouping="False" AutoExpandOnDrag="False" ShowDragDropHint="False" ShowGroupPanel="False" AllowColumnMoving="False" AllowResizing="False" Foreground="Black" RowIndicatorContentTemplate="{StaticResource rowIndicatorContentTemplate}" /> </dxg:GridControl.View> <dxg:GridColumn Header="標題" FieldName="Title" Min/> <dxg:GridColumn Header="型別" FieldName="EvenType" Min/> <dxg:GridColumn Header="提醒時間" FieldName="DateTime" Min > <dxg:GridColumn.EditSettings> <!--<xctk:DateEditSettings DisplayFormat="dd-MM-yyyy HH:mm:ss.fff"/>--> <xctk:DateEditSettings DisplayFormat="yyyy-MM-dd HH:mm"/> </dxg:GridColumn.EditSettings> </dxg:GridColumn> <dxg:GridColumn Header="狀態" FieldName="IsComplete" Min/> </dxg:GridControl> </Border> <StackPanel Orientation="Horizontal"> <CheckBox IsChecked="{Binding SelectAll}" Margin="35,5" Content="全選"/> <Button Margin="35,5" Min cal:Message.Attach="[Event Click] = [Action DeleteClick]" > <WrapPanel > <Image Source="/Images/delete.png" Height="15" /> <TextBlock Text="洗掉" VerticalAlignment="Center" /> </WrapPanel> </Button> <Button Margin="35,5" Min Name="Add"> <WrapPanel > <Image Source="/Images/add.png" Height="15" /> <TextBlock Text="添加" VerticalAlignment="Center" /> </WrapPanel> </Button> <Button Margin="35,5" Min Name="Modify"> <WrapPanel > <Image Source="/Images/modify.png" Height="15"/> <TextBlock Text="修改" VerticalAlignment="Center" /> </WrapPanel> </Button> </StackPanel> </StackPanel> </UserControl>04
—
效果演示
05
—
原始碼
原始碼下載
鏈接：https://pan.baidu.com/s/1yExT_zXFfd6TiAJYoD8kIw
提取碼：添加小編微信：mm1552923 獲取，
-
技術群：添加小編微信并備注進群小編微信：mm1552923 公眾號：dotNet編程大全
01
—
概述
前幾天群里有人問如何制作備忘錄，感覺這樣一個小實體挺適合新手們入門學習使用，所以就抽空做了出來，界面如下圖：
這個備忘錄主要包括了如下功能：
① 備忘錄資訊的增、刪、改、查；
② 備忘錄時間到了以后進行語音播報，
功能很簡單，但是要實作這么一個功能，也涉及眾多的知識點，接下來詳細進行分解，
C#編程.net core開發，winform桌面開發，wpf開發，c sharp編程大全，CSharp程式開發，C#開發實體（附源代碼），編程程序遇到的各種坑詳解！公眾號
02
—
內容詳述
①界面button的圖示：
圖示圖片可以上網上下載，下載好以后放到專案目錄中，然后在專案中找到你的圖片——>右鍵包括在專案中——>再右鍵，點擊屬性：
復制到輸出目錄，更改為始終復制，
生成操作，更改為內容，
前臺XMAL操作：
<Button Margin="15,5" MinWidth="60" cal:Message.Attach="[Event Click] = [Action SearchClick]" ><WrapPanel ><Image Source="/Images/search.png" Width="15" Height="15" /><TextBlock Text="查找" VerticalAlignment="Center" /></WrapPanel></Button>
② 資料源：這里我采用從xml讀取并系結到界面，界面如果有修改，在頁面退出時進行資料保存，當然你也可以使用資料庫去操作
XML檔案位置：根目錄的RawData下
XML檔案資料內容如下：
MemorandumModel資料模型定義：
public class MemorandumModel{public string Title { get; set; }public EvenType EvenType { get; set; }public DateTime DateTime { get; set; }public bool IsComplete { get; set; }}
③XML檔案的讀取和保存：MemorandumRealList是我們所有資料的集合，為了方便界面查詢，界面系結了MemorandumShowList 這個集合
xml讀取：
public void XmlDocReader(){//XmlDocument讀取xml檔案XmlDocument xmlDoc = new XmlDocument();xmlDoc.Load(XmlDocPath);//獲取xml根節點XmlNode xmlRoot = xmlDoc.DocumentElement;if (xmlRoot == null)return;//讀取所有的節點foreach (XmlNode node in xmlRoot.SelectNodes("MemorandumModel")){MemorandumRealList.Add(new MemorandumModel(){Title = node.SelectSingleNode("Title").InnerText,EvenType = (EvenType)Enum.Parse(typeof(EvenType), node.SelectSingleNode("EvenType").InnerText),DateTime = Convert.ToDateTime(node.SelectSingleNode("DateTime").InnerText),IsComplete = Convert.ToBoolean(node.SelectSingleNode("IsComplete").InnerText)});}MemorandumShowList = new ObservableCollection<MemorandumModel>(MemorandumRealList);}
xml檔案保存：
public void SaveXmlDoc(){//獲取根節點物件XDocument document = new XDocument();XElement xmlRoot = new XElement("MemorandumModels");?XElement memorandumModel;foreach (var memorandumReal in MemorandumRealList){memorandumModel = new XElement($"MemorandumModel");memorandumModel.SetElementValue("Title", memorandumReal.Title);memorandumModel.SetElementValue("EvenType", memorandumReal.EvenType);memorandumModel.SetElementValue("DateTime", memorandumReal.DateTime);memorandumModel.SetElementValue("IsComplete", memorandumReal.IsComplete);xmlRoot.Add(memorandumModel);}xmlRoot.Save(XmlDocPath);}
dotnet工控上位機編程公眾號
④查詢：如果全選選中，則顯示全部內容，未勾選，則采用link去匹配選中資訊去篩選，我這里是所有資訊去匹配的，你也可以自己修改下，去只匹配某一項或幾項內容
public void SearchClick(){SaveXmlDoc();if (SelectAll){MemorandumShowList = new ObservableCollection<MemorandumModel>(MemorandumRealList);return;}MemorandumShowList = new ObservableCollection<MemorandumModel>(MemorandumRealList.Where(t => t.EvenType == EvenTypeList[SelectedIndex]).Where(s => s.IsComplete == IsCompleteStatus).Where(p => p.Title == TitleText).Where(x => x.DateTime == DateTime.Parse(DataTimeContext)) .ToList() );}
⑤標題欄未輸入內容時顯示灰色提示字體，有輸入時輸入內容顯示黑色字體：
這里采用事件處理：獲取到游標時
public void LostFocus(){if (string.IsNullOrEmpty(TitleText)){TitleText = "備忘錄標題";TitleColor = Color.DimGray;}}
游標離開時：
public void GotFocus(){TitleText = "";TitleColor = Color.Black;}
⑥選中行洗掉：
public void DeleteClick(){MemorandumRealList.Remove(SelectedItem);MemorandumShowList.Remove(SelectedItem);}
⑦行號獲取：在行選擇改變事件中去做
public void GridControl_SelectedItemChanged(object sender, SelectedItemChangedEventArgs e){GridControl gd = sender as GridControl;SelectRow = gd.GetSelectedRowHandles()[0];//選中行的行號}
⑧添加資訊：
public void Add(){MemorandumRealList.Add(new MemorandumModel(){Title = titleText,DateTime =DateTime.Parse(DataTimeContext),EvenType = EvenTypeList[SelectedIndex],IsComplete = IsCompleteStatus});MemorandumShowList.Add(new MemorandumModel(){Title = titleText,DateTime = DateTime.Parse(DataTimeContext),EvenType = EvenTypeList[SelectedIndex],IsComplete = IsCompleteStatus});}
⑨修改資訊：
public void Modify(){MemorandumRealList[SelectRow] = new MemorandumModel(){Title = titleText,DateTime = DateTime.Parse(DataTimeContext),EvenType = EvenTypeList[SelectedIndex],IsComplete = IsCompleteStatus};MemorandumShowList[SelectRow] = new MemorandumModel(){Title = titleText,DateTime = DateTime.Parse(DataTimeContext),EvenType = EvenTypeList[SelectedIndex],IsComplete = IsCompleteStatus};}
⑩定時器查詢：采用using System.Threading.Tasks;下的單執行緒定時器DispatcherTimer，
定義和初始化：
private DispatcherTimer timer;timer = new DispatcherTimer();timer.Interval = TimeSpan.FromMinutes(1);timer.Tick += timer1_Tick;timer.Start();
定時器事件：我這里每隔一分鐘查詢一次，查詢到當前事件到了提醒時間就進行一次語音播報：
private void timer1_Tick(object sender, EventArgs e){foreach (var memorandum in MemorandumRealList){if(DateTime.Now >= memorandum.DateTime){SpeakAsync(memorandum.Title);}}}
⑩①：語音播報：這里開了task執行緒執行
/// <summary>/// 微軟語音識別/// </summary>/// <param name="content">提示內容</param>public static void SpeakAsync(string content){try{Task.Run(() =>{SpVoice voice = new SpVoice();voice.Rate = 1;//速率[-10,10]voice.Volume = 10;//音量[0,100]voice.Voice = voice.GetVoices().Item(0);//語音庫voice.Speak(content);});?}catch (Exception ex){throw ex;}}
⑩② 界面時間處理：
-
界面的表格采用的dev控制元件gridcontrol，默認情況下，時間只顯示年月日，如果需要顯示時分，需要設定：EditSettings如下
<dxg:GridColumn Header="提醒時間" FieldName="DateTime" MinWidth="120" ><dxg:GridColumn.EditSettings><!--<xctk:DateEditSettings DisplayFormat="dd-MM-yyyy HH:mm:ss.fff"/>--><xctk:DateEditSettings DisplayFormat="yyyy-MM-dd HH:mm"/></dxg:GridColumn.EditSettings></dxg:GridColumn>
如果使用的是wpf 自帶的表格控制元件datagrid，相對好處理
<DataGridTextColumn Header="提醒時間" Binding="{Binding Path=DateTime,StringFormat='yyyy年MM月dd日 HH:mm:ss'}" MinWidth="300" />-
界面頂端的時間控制元件采用：toolkit下的xctk1:DateTimeUpDown這個控制元件
她系結的是一個字串型別的資料，所以添加時候，需要將他轉換為datetime型別， DateTime.Parse(DataTimeContext)，或者
DateTime = Convert.ToDateTime(DataTimeContext)
<xctk1:DateTimeUpDown x:Name="_minimum" Format="Custom" FormatString="yyyy/MM/dd HH:mm"Text="{Binding DataTimeContext}"HorizontalAlignment="Left" VerticalAlignment="Center"Value="2016/01/01T12:00" Margin="15,5"/>
⑩③combobox列舉內容系結：
public ObservableCollection<EvenType> EvenTypeList { get; set; } = new ObservableCollection<EvenType>();?foreach (EvenType evenType in Enum.GetValues(typeof(EvenType))){EvenTypeList.Add(evenType);}
⑩④關于gridcontrol TableView 的常用屬性介紹
TableView 的常用屬性：?AllowPerPixelScrolling //逐像素滾動；AllowScrollAnimation //滾動影片，當下拉滾動條時有影片效果NavigationStyle //選中方式是一行還是單元格ShowIndicator //是否在每一行之前顯示小方塊UseEvenRowBackground //隔行其背景顏色會有所區分AllowScrollToFocusedRow //允許滾動到選中行AllowResizing //允許調整尺寸AllowSorting //允許排序AutoWidth //允許自動調整列寬AllowMoveColumnToDropArea //允許將一列拖到空白處進行分組AllowGrouping //允許分組AllowFilterEditor //允許顯示過濾盤AllowEditing //允許編輯ShowGroupPanel//顯示分組panelShowHorizontalLines ShowVerticalLines //顯示表格中每行每列垂直和水平線IsColumnMenuEnabled //是否關閉右鍵列選單
03
—
前臺代碼
直接上代碼，比較簡單，不展開講解了：
<UserControlxmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"xmlns:d="http://schemas.microsoft.com/expression/blend/2008"xmlns:local="clr-namespace:Caliburn.Micro.Hello"xmlns:cal="http://www.caliburnproject.org"xmlns:sys="clr-namespace:System;assembly=mscorlib"xmlns:dxg="http://schemas.devexpress.com/winfx/2008/xaml/grid" xmlns:xctk="http://schemas.devexpress.com/winfx/2008/xaml/editors" xmlns:xctk1="http://schemas.xceed.com/wpf/xaml/toolkit" x:Class="Caliburn.Micro.Hello.MemorandumView"mc:Ignorable="d"d:DesignHeight="450" d:DesignWidth="800" ><UserControl.Resources><local:FontColorConverter x:Key="FontColorConverter" /><Style TargetType="{x:Type TextBox}"><Setter Property="HorizontalContentAlignment" Value="Left"/><Setter Property="VerticalContentAlignment" Value="Center"/><Setter Property="Width" Value="100"/></Style><Style TargetType="{x:Type CheckBox}"><Setter Property="HorizontalAlignment" Value="Center"/><Setter Property="VerticalAlignment" Value="Center"/><Setter Property="Foreground" Value="Black"/></Style><Style TargetType="Button"><Setter Property="Foreground" Value="Black"/></Style><DataTemplate x:Key="rowIndicatorContentTemplate"><StackPanel VerticalAlignment="Stretch"HorizontalAlignment="Stretch"><TextBlock Text="{Binding RowHandle.Value}"TextAlignment="Center"Foreground="Black"/></StackPanel></DataTemplate></UserControl.Resources><StackPanel Orientation="Vertical"><StackPanel Orientation="Horizontal"><TextBox Text="{Binding TitleText}" Margin="15,5"cal:Message.Attach="[Event GotFocus] = [Action GotFocus];[Event LostFocus] = [Action LostFocus]"Foreground="{Binding TitleColor, Converter={StaticResource FontColorConverter}}"/><ComboBox ItemsSource="{Binding EvenTypeList}" Margin="15,5" SelectedIndex="{Binding SelectedIndex}" MinWidth="100" Foreground="Black"/><!--<DatePicker Text="{Binding DataTimeContext,Mode=TwoWay,UpdateSourceTrigger=PropertyChanged}"SelectedDate="{x:Static sys:DateTime.Now}"HorizontalAlignment="Left" VerticalAlignment="Center" Margin="15,5" />--><xctk1:DateTimeUpDown x:Name="_minimum" Format="Custom" FormatString="yyyy/MM/dd HH:mm"Text="{Binding DataTimeContext}"HorizontalAlignment="Left" VerticalAlignment="Center"Value="2016/01/01T12:00" Margin="15,5"/>?<CheckBox IsChecked="{Binding IsCompleteStatus}" Margin="15,5" Content="是否完成" Foreground="Black"/><Button Margin="15,5" MinWidth="60" cal:Message.Attach="[Event Click] = [Action SearchClick]" ><WrapPanel ><Image Source="/Images/search.png" Width="15" Height="15" /><TextBlock Text="查找" VerticalAlignment="Center" /></WrapPanel></Button></StackPanel><Border BorderBrush="LightBlue" CornerRadius="2" BorderThickness="2" ><dxg:GridControl AutoGenerateColumns="AddNew" EnableSmartColumnsGeneration="True" AllowLiveDataShaping="True"cal:Message.Attach="[Event SelectedItemChanged] = [Action GridControl_SelectedItemChanged($source,$event)];"ItemsSource="{Binding MemorandumShowList}" SelectedItem="{Binding SelectedItem}"Height="330" Foreground="Black"><dxg:GridControl.View><dxg:TableView ShowTotalSummary="True" AllowMoveColumnToDropArea="False"AllowGrouping="False" AutoExpandOnDrag="False"ShowDragDropHint="False" ShowGroupPanel="False"AllowColumnMoving="False" AllowResizing="False" Foreground="Black"RowIndicatorContentTemplate="{StaticResource rowIndicatorContentTemplate}" /></dxg:GridControl.View><dxg:GridColumn Header="標題" FieldName="Title" MinWidth="100"/><dxg:GridColumn Header="型別" FieldName="EvenType" MinWidth="100"/><dxg:GridColumn Header="提醒時間" FieldName="DateTime" MinWidth="120" ><dxg:GridColumn.EditSettings><!--<xctk:DateEditSettings DisplayFormat="dd-MM-yyyy HH:mm:ss.fff"/>--><xctk:DateEditSettings DisplayFormat="yyyy-MM-dd HH:mm"/></dxg:GridColumn.EditSettings></dxg:GridColumn><dxg:GridColumn Header="狀態" FieldName="IsComplete" MinWidth="100"/></dxg:GridControl></Border><StackPanel Orientation="Horizontal"><CheckBox IsChecked="{Binding SelectAll}" Margin="35,5" Content="全選"/><Button Margin="35,5" MinWidth="60" cal:Message.Attach="[Event Click] = [Action DeleteClick]" ><WrapPanel ><Image Source="/Images/delete.png" Width="15" Height="15" /><TextBlock Text="洗掉" VerticalAlignment="Center" /></WrapPanel></Button><Button Margin="35,5" MinWidth="60" Name="Add"><WrapPanel ><Image Source="/Images/add.png" Width="15" Height="15" /><TextBlock Text="添加" VerticalAlignment="Center" /></WrapPanel></Button><Button Margin="35,5" MinWidth="60" Name="Modify"><WrapPanel ><Image Source="/Images/modify.png" Width="15" Height="15"/><TextBlock Text="修改" VerticalAlignment="Center" /></WrapPanel></Button></StackPanel></StackPanel></UserControl>?
04
—
效果演示
05
—
原始碼
原始碼下載
鏈接：https://pan.baidu.com/s/1yExT_zXFfd6TiAJYoD8kIw
提取碼：在下面這個公眾號對話框發送【備忘錄】
分享Python技術文章，實用案例，熱點資訊， 你想了解的Python的那些事都在這里...... 當你的才華還撐不起你的野心的時候，那就安靜下來學習吧！公眾號
或者直接添加小編微信：mm1552923 獲取，
技術群：添加小編微信并備注進群小編微信：mm1552923 公眾號：dotNet編程大全
