一、前言
專案中涉及到了心率檢測，而且資料量達到了百萬級別，通過WPF實作大資料曲線圖時，嘗試過最基礎的Canvas來實作，但是性能堪憂，而且全部畫出來也不實際，同時也嘗試過找第三方的開源庫，但是因為曲線圖涉及到很多細節功能，第三方的肯定也沒法滿足，沒辦法，只能自己實作，上網查找后發現DrawingVisual這個玩意可以實作高性能畫圖，同時再搭配區域顯示，這樣就能實作自己想要的效果，話不多說，今天把大致的實作思路寫一下，就不直接把專案的原始碼貼出來，寫個簡單的Demo就好了，
二、正文
1、首先新建個專案，然后創建個自定義控制元件，命名為CurveChartDrawingVisual，然后讓它繼承FrameworkElement，因為要使用DrawingVisual物件的話，需要為它創建一個主機容器，關于其他相關DrawingVisual的細節這里不做過多闡述，不明白的可以去微軟官網看，
2、實作的具體代碼如下，相關細節有備注標注了，這里記得要重寫一下VisualChildrenCount屬性和重寫GetVisualChild()方法，不然圖畫不出來
public class CruveChartDrawingVisual : FrameworkElement { private List<Visual> visuals = new List<Visual>(); private DrawingVisual Layer; private double offset_x = 0;//滑動條偏移值 private double y_scale;//y軸放心縮放比例 private List<int> list_points;//曲線資料 private static int Top_Val_Max = 100;//y軸最大值 private static int Top_Val_Min = 0;//y軸最小值 private static int X_Sex = 20;//x軸分度值 private static int Y_Sex = 20;//x軸分度值 private static int Bottom = 30;//底部x軸坐標顯示高度 Pen pen = new Pen(Brushes.Green, 2); Pen primarygrid_pen = new Pen(Brushes.Black, 1); Pen secondgrid_pen = new Pen(Brushes.Gray, 1); public CruveChartDrawingVisual() { pen.Freeze();//凍結筆，提高性能關鍵所在 primarygrid_pen.Freeze(); secondgrid_pen.Freeze(); Layer = new DrawingVisual(); visuals.Add(Layer); } public void SetupData(List<int> points) { list_points = points; offset_x = 0; DrawContent(); } public void OffsetX(double offset) { offset_x = offset; DrawContent(); InvalidateVisual(); } private void DrawContent() { var dc = Layer.RenderOpen(); y_scale = (RenderSize.Height - Bottom) / (Top_Val_Max - Top_Val_Min); var mat = new Matrix(); mat.ScaleAt(1, -1, 0, RenderSize.Height / 2); mat.OffsetX = -offset_x; dc.PushTransform(new MatrixTransform(mat)); //橫線 for (int y = 0; y <= Top_Val_Max - Top_Val_Min; y += 10) { Point point1 = new Point(offset_x, y * y_scale + Bottom); Point point2 = new Point(offset_x + RenderSize.Width, y * y_scale + Bottom); if (y % Y_Sex == 0) { dc.DrawLine(primarygrid_pen, point1, point2); continue; } dc.DrawLine(secondgrid_pen, point1, point2); } //豎線與文字 for (int i = 0; i <= (offset_x + RenderSize.Width); i += X_Sex * 2) { if (i < offset_x) { continue; } var point1 = new Point(i, Bottom); var point2 = new Point(i, (Top_Val_Max - Top_Val_Min) * y_scale + Bottom); //y軸文字 if (i % 100 == 0) { var text1 = new FormattedText(i + "", CultureInfo.CurrentCulture, FlowDirection.LeftToRight, new Typeface("Verdana"), 16, Brushes.Black); var mat3 = new Matrix(); mat3.ScaleAt(1, -1, i - text1.Width / 2, 8 + text1.Height / 2); dc.PushTransform(new MatrixTransform(mat3)); dc.DrawText(text1, new Point(i - text1.Width / 2, 8)); dc.Pop(); } //表格刻度文字 if (i % 100 == 0) { for (int y = Top_Val_Min; y <= Top_Val_Max; y += 10) { if (y % Y_Sex == 0) { var text1 = new FormattedText(y + "", CultureInfo.CurrentCulture, FlowDirection.LeftToRight, new Typeface("Verdana"), 12, Brushes.Black); var mat3 = new Matrix(); mat3.ScaleAt(1, -1, i + 1, (y - Top_Val_Min) * y_scale + Bottom + text1.Height / 2); dc.PushTransform(new MatrixTransform(mat3)); dc.DrawText(text1, new Point(i + 1, (y - Top_Val_Min) * y_scale + Bottom)); dc.Pop(); } } //深色豎線 dc.DrawLine(primarygrid_pen, point1, point2); continue; } //淺色豎線 dc.DrawLine(secondgrid_pen, point1, point2); } if (list_points != null) { for (int i = (int)offset_x; i < list_points.Count - 1; i++) { if (i > offset_x + RenderSize.Width) { break; } dc.DrawLine(pen, new Point(i, list_points[i] * y_scale + Bottom), new Point(i + 1, list_points[i + 1] * y_scale + Bottom)); } } dc.Pop(); dc.Close(); } protected override int VisualChildrenCount => visuals.Count; protected override Visual GetVisualChild(int index) { return visuals[index]; } protected override void OnRenderSizeChanged(SizeChangedInfo sizeInfo) { DrawContent(); base.OnRenderSizeChanged(sizeInfo); } protected override void OnRender(DrawingContext drawingContext) { drawingContext.DrawRectangle(Brushes.White, null, new Rect(0, 0, RenderSize.Width, RenderSize.Height)); base.OnRender(drawingContext); } }
3、接著測驗一下，打開MainWindow，添加我們的自定義控制元件，這里區域顯示需要搭配一個ScrollViewer來實作，代碼如下
<Grid>
<local:CruveChartDrawingVisual x:Name="curve" Margin="0,15,0,20" />
<ScrollViewer
Name="scroll"
HorizontalScrollBarVisibility="Auto"
ScrollChanged="ScrollViewer_ScrollChanged"
VerticalScrollBarVisibility="Disabled">
<Canvas x:Name="canvas" Height="1" />
</ScrollViewer>
</Grid>
4、接著就是后臺代碼，比較簡單，就是自動生成一個List，然后傳給自定義控制元件，Canvas的寬度直接設定為List的長度，因為這里是水平方向一個像素點畫一個點，然后滑動潭訓動時再將對應的偏移值傳遞到控制元件，再通過偏移值更新視圖
public partial class MainWindow : Window { private bool isAdd = true; public MainWindow() { InitializeComponent(); } private void Window_Loaded(object sender, RoutedEventArgs e) { List<int> lists = new List<int>(); int temp = 20; for (int i = 0; i < 60 * 60; i++) { if (isAdd) { lists.Add(temp); temp ++; } else { lists.Add(temp); temp --; } if (temp == 90) isAdd = false; if (temp == 10) isAdd = true; } canvas.Width = lists.Count; curve.SetupData(lists); } private void ScrollViewer_ScrollChanged(object sender, ScrollChangedEventArgs e) { curve.OffsetX(scroll.HorizontalOffset); } }

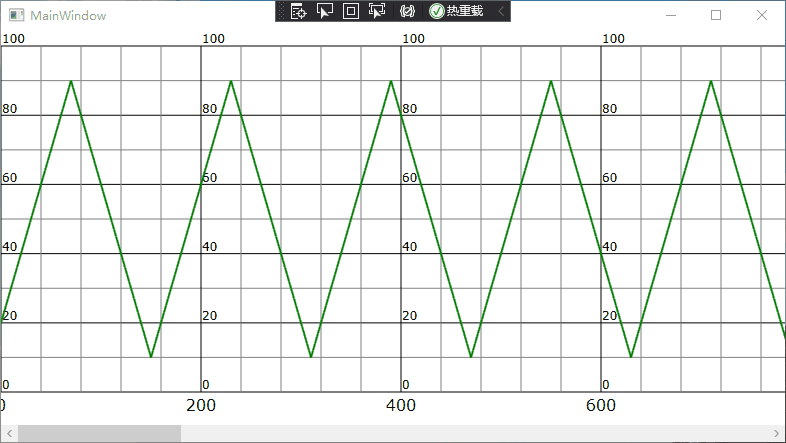

5、運行效果如下，滑動條拖到哪里就顯示哪里，這樣就算資料量再大也沒問題
