我在 C# WPF 中制作了一個簡單的應用程式，它從影像中顯示 ascii 藝術，代碼似乎可以作業，但問題是每當我將文本塊的文本設定為 ascii 藝術時，它似乎都有奇怪的換行符，無關用我的代碼

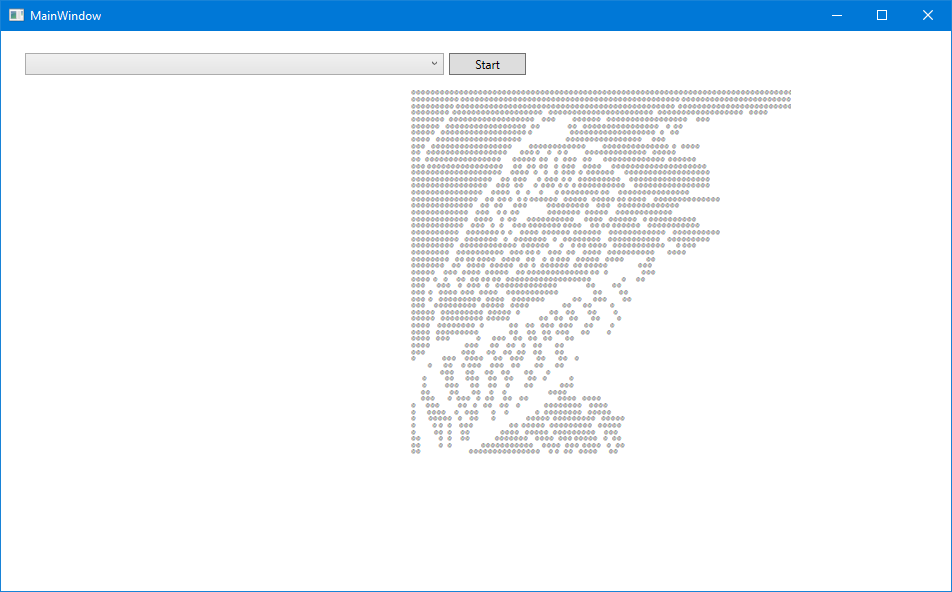

文本塊中的 ASCII

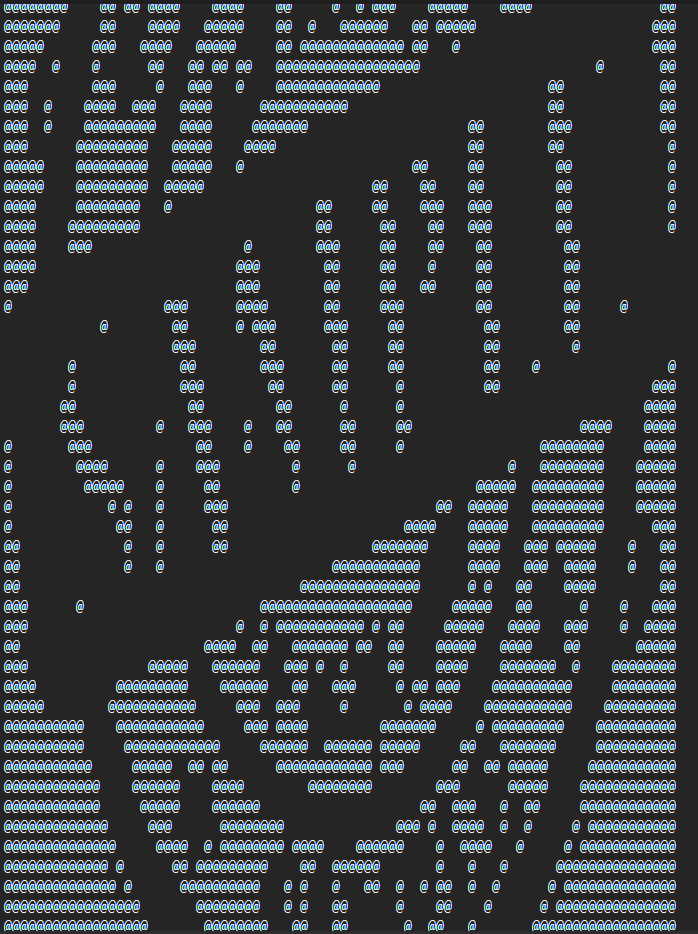

輸出日志中的 ASCII

在這里您可以看到輸出日志正確顯示了藝術作品，而文本塊有換行符，我也嘗試了 TextBox 和 RichTextBox，它們給了我相同的結果

影像到 Ascii 藝術代碼

void TurnImageToAscii(Bitmap image)
    {
        StringBuilder sb = new StringBuilder();
        for (int j = 0; j < image.Height; j  )
        {
            for (int i = 0; i < image.Width; i  )
            {

                Color pixelColor = image.GetPixel(i,j);
                int brightness = (pixelColor.R   pixelColor.G   pixelColor.B) / 3;
                int charIndex = brightness.Remap(0, 255, 0, chars.Length - 1);
                string c = chars[charIndex].ToString();
                sb.Append(c);

            }
            sb.Append("\n");
        }

        asciiTextBlock.Text = sb.ToString();

    }

我該如何解決這個問題？

編輯： 重映射功能

public static class ExtensionMethods
{

    public static int Remap(this int value, int from1, int to1, int from2, int to2)
    {
        return (value - from1) / (to1 - from1) * (to2 - from2)   from2;
    }

}

字符字串：

string chars = "    .:-^$@";

這是宣告 chars 陣列的地方，并且它只在TurnImageToAscii我在上面的問題中發布的函式中被參考過一次

XAML

<Window x:Class="AsciiImageWPF.MainWindow"
    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
    xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
    xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
    xmlns:local="clr-namespace:AsciiImageWPF"
    mc:Ignorable="d"
    Title="MainWindow" Height="450" Width="800">
<Grid Loaded="Grid_Loaded">
    <ComboBox x:Name="videoDevicesList" HorizontalAlignment="Left" Margin="24,22,0,0" VerticalAlignment="Top" Width="419"/>
    <Button x:Name="start_btn" Content="Start" HorizontalAlignment="Left" Margin="448,22,0,0" VerticalAlignment="Top" Height="22" Width="77" Click="btn_start_Click"/>
    <Image x:Name="videoImage" HorizontalAlignment="Left" Height="362" Margin="10,58,0,0" VerticalAlignment="Top" Width="388" Stretch="Fill"/>
    <TextBlock x:Name="asciiTextBlock" HorizontalAlignment="Left" Margin="410,58,0,0" VerticalAlignment="Top" Height="366" Width="380" FontSize="3"/>

</Grid>

使用的影像

uj5u.com熱心網友回復：

問題 1： ASCII 藝術未在 WPF 中正確顯示TextBlock：

• ASCII-Art 需要使用固定寬度（又名等寬）字體呈現。
• 您發布的 XAML 顯示您沒有FontFamily在TextBlock. 使用<TextBlock>的默認值FontFamily，這將是 Segoe UI。
  • Segoe UI不是等寬字體。
• 問題不在于添加了額外的換行符，而是渲染的線條在視覺上被壓縮了。
• 將您的 XAML 更改為此，它將按預期作業：
  • 我還將字體大小從3增加到10.

<TextBlock
    x:Name= "asciiTextBlock "
    HorizontalAlignment= "Left "
    Margin= "410,58,0,0 "
    VerticalAlignment= "Top "
    Height= "366 "
    Width= "380 "
    FontSize= "10 "
    FontFamily= "Courier New "
/>

截圖證明：

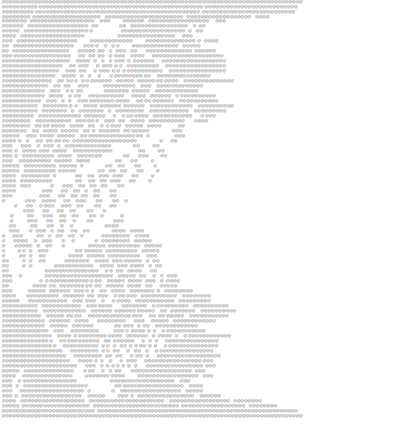

使用默認字體：

與Courier New：

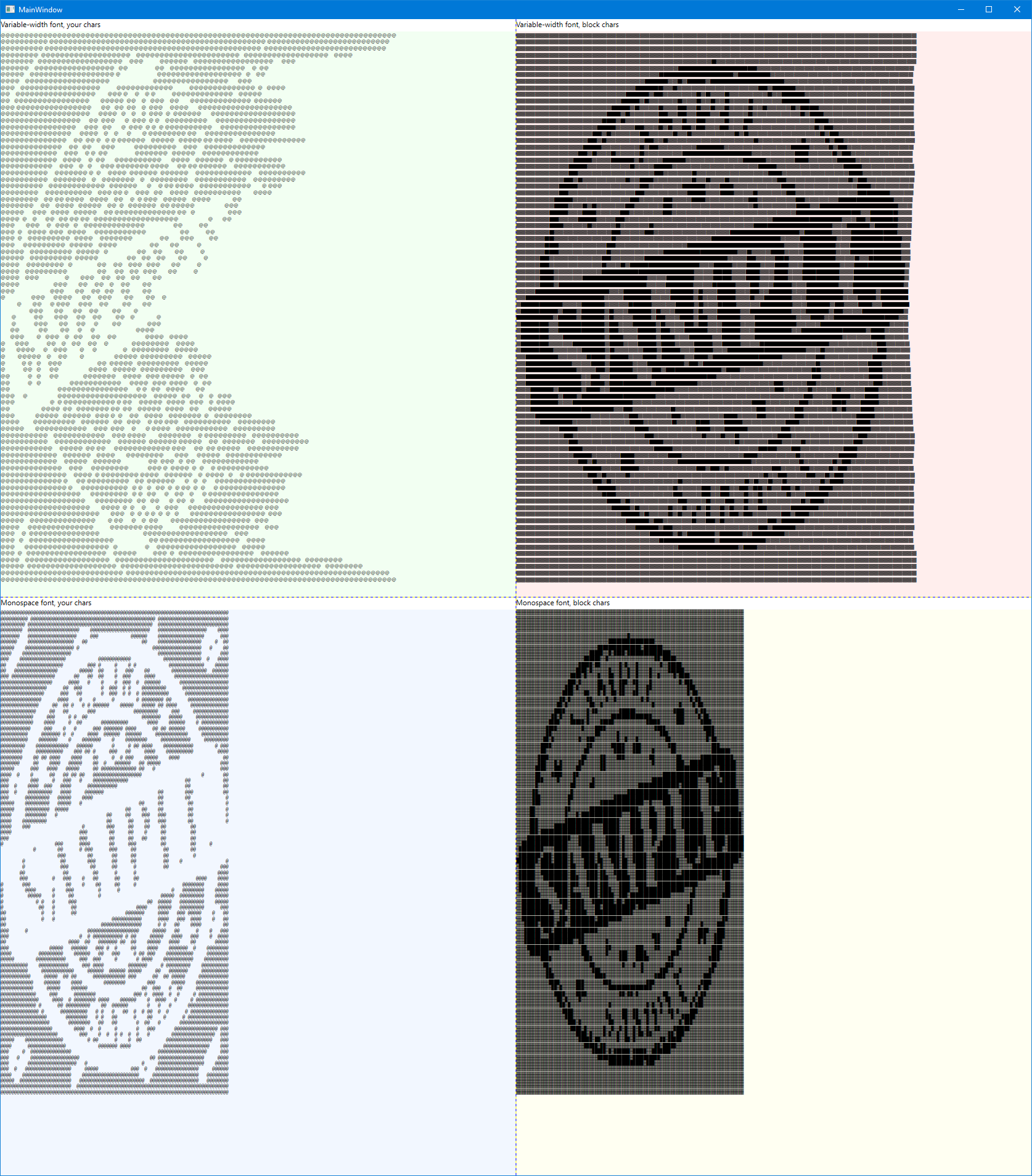

我還制作了一個使用 Unicode 塊字符的版本，只是為了確保我正確解碼了影像：

static readonly Char[] _chars = new[] { ' ', '?', '?', '▓', '█' };

問題 2：性能

使用Bitmap.Lockbits：

• 您可以通過使用Bitmap.Lockbits而不是迭代來顯著提高性能.GetPixel()。
  • GetPixel()真的很慢：https ://www.codeproject.com/Articles/406045/Why-the-use-of-GetPixel-and-SetPixel-is-so-ineffic

像這樣的東西：

unsafe static String RenderPixelsAsAscii_LockBits( FileInfo imageFile )
{
    using( Bitmap bitmap = (Bitmap)System.Drawing.Image.FromFile( imageFile.FullName ) )
    {
        Rectangle r = new Rectangle( x: 0, y: 0, width: bitmap.Width, height: bitmap.Height );
        BitmapData bitmapData = bitmap.LockBits( rect: r, flags: ImageLockMode.ReadOnly, bitmap.PixelFormat );
        try
        {
            StringBuilder sb = new StringBuilder( capacity: bitmapData.Width * bitmapData.Height );

            Int32 bytesPerPixel = System.Drawing.Image.GetPixelFormatSize( bitmapData.PixelFormat ) / 8;
            Byte* scan0 = (Byte*)bitmapData.Scan0;
            for( Int32 y = 0; y < bitmapData.Height; y   )
            {
                Byte* linePtr = scan0   ( y * bitmapData.Stride );
                for( Int32 x = 0; x < bitmapData.Width; x   )
                {
                    Byte*   pixelPtr = linePtr   ( x * bytesPerPixel );
                    UInt32  pixel    = *pixelPtr;
                    sb.AppendPixel( pixel, bitmapData.PixelFormat );
                }
                sb.Append( '\n' );
            }

            return sb.ToString();
        }
        finally
        {
            bitmap.UnlockBits( bitmapData );
        }
    }
}

public static void AppendPixel( this StringBuilder sb, UInt32 pixel, PixelFormat fmt )
{
    Byte a;
    Byte r;
    Byte g;
    Byte b;

    switch( fmt )
    {
    case PixelFormat.Format24bppRgb:
        {
            r = (Byte)( ( pixel & 0xFF_00_00_00 ) >> 32 );
            g = (Byte)( ( pixel & 0x00_FF_00_00 ) >> 24 );
            b = (Byte)( ( pixel & 0x00_00_FF_00 ) >> 16 );
        }
        break;

    case PixelFormat.Format32bppArgb:
        {
            a = (Byte)( ( pixel & 0xFF_00_00_00 ) >> 24 );
            r = (Byte)( ( pixel & 0x00_FF_00_00 ) >> 16 );
            g = (Byte)( ( pixel & 0x00_00_FF_00 ) >>  8 );
            b = (Byte)( ( pixel & 0x00_00_00_FF ) >>  0 );
        }
        break;
    case PixelFormat.etc...:
        // TODO if needed.
    default:
        throw new NotSupportedException( "meh" );
    }

    Single avgBrightness = ( (Single)r   (Single)g   (Single)b ) / 3f;
    if     ( avgBrightness <  51 ) sb.Append( '█' );
    else if( avgBrightness < 102 ) sb.Append( '▓' );
    else if( avgBrightness < 153 ) sb.Append( '?' );
    else if( avgBrightness < 204 ) sb.Append( '?' );
    else                           sb.Append( ' ' );
}

• Your code can also be modified to be more efficient with StringBuilder:
  • Append char values directly instead of converting a Char to a String with .ToString(): that's just silly.
    • Using StringBuilder.Append(Char) is very fast because it just copies the scalar char value directly into StringBuilder's internal char buffer.
    • String objects exist on the heap which requires allocation and copying, so they're relatively expensive compared to using char values, which don't need to use the heap at all until/unless boxed.
  • Additionally, preallocating the StringBuilder by setting capacity: width * height means that the StringBuilder won't need to reallocate and copy its internal buffer every time it overflows.
    • The default capacity of a StringBuilder is only 16 chars, so if you can precompute an upperbound for the final length of a StringBuilder for its constructor's capacity: you should do that.

Here's the runtime performance figures I get:

• .NET 6 numbers from running in Linqpad 7 (.NET 6) x64 on a PC with a i7-10700K CPU running Windows 10 20H2 x64.
• .NET 4.8 numbers from running in Linqpad 5's AnyCPU build.
• I benchmarked both a DEBUG and a RELEASE build for some reason.
• I used Stopwatch to measure the time taken to convert the already-loaded Bitmap to a String - so it doesn't include the time to load the image from disk, nor the time for WPF to render the text, as that's unrelated to my suggested improvements).
• The numbers shown are the best of 3 runs after an initial warmup run.

• The 0.04ms figure is not a typo. It really is that fast.
• The improved StringBuilder usage does help, but I'll agree that the sub-millisecond times shaved off really isn't significant.
• I appreciate that for this project on modern hardware, even the worst-case of 2.90ms isn't bad for the GetPixel approach but I was really surprised at how fast the "slow" approach is now....
  • ...compared to about 17 years ago when I was first learning .NET and wanting to use System.Drawing to create a dynamic image-macro¹ generator for my website and attempting to read even a 500x500px Bitmap on my then single-core Pentium 4 1.9Ghz (not even Hyper-Threading) took at least a few seconds, which led me to seek-out a faster way, after all, even my old Pentium 166 could process 640x480-sized bitmap images from ancient video file formats in real-time, so I assumed I was doing something wrong.

Here's my code, you should be able to copy paste this into Linqpad or a new blank C# project:

const String XAML_TEXT = @"
<Window
    xmlns        =""http://schemas.microsoft.com/winfx/2006/xaml/presentation""
    xmlns:x      =""http://schemas.microsoft.com/winfx/2006/xaml""
    xmlns:mc     =""http://schemas.openxmlformats.org/markup-compatibility/2006""
    xmlns:local  =""clr-namespace:AsciiImageWPF""
    Title=""MainWindow""

    Width  = ""1024""
    Height = ""1024""
>

<Grid ShowGridLines=""True"">
        <Grid.ColumnDefinitions>
            <ColumnDefinition></ColumnDefinition>
            <ColumnDefinition></ColumnDefinition>
        </Grid.ColumnDefinitions>
        <Grid.RowDefinitions>
            <RowDefinition></RowDefinition>
            <RowDefinition></RowDefinition>
        </Grid.RowDefinitions>

        <TextBlock
            Grid.Row=""0""
            Grid.Column=""0""
            Text=""Variable-width font, your chars""
        />

        <TextBlock
            Grid.Row=""0""
            Grid.Column=""1""
            Text=""Variable-width font, block chars""
        />

        <TextBlock
            Grid.Row=""1""
            Grid.Column=""0""
            Text=""Monospace font, your chars""
        />

        <TextBlock
            Grid.Row=""1""
            Grid.Column=""1""
            Text=""Monospace font, block chars""
        />

        <!-- ############################# -->

        <TextBlock
            x:Name=""asciiTextBlockVariableSlow""
            Grid.Row=""0""
            Grid.Column=""0""
            Margin=""0,20,0,0""

            FontSize=""8""
            Background=""#f2fff2""
        />

        <TextBlock
            x:Name=""asciiTextBlockVariableFast""
            Grid.Row=""0""
            Grid.Column=""1""
            Margin=""0,20,0,0""

            FontSize=""8""
            Background=""#ffeeed""
        />

        <TextBlock
            x:Name=""asciiTextBlockMonospaceSlow""
            Grid.Row=""1""
            Grid.Column=""0""
            Margin=""0,20,0,0""

            FontSize=""8""
            Background=""#f2f7ff""
            FontFamily=""Consolas""
        />

        <TextBlock
            x:Name=""asciiTextBlockMonospaceFast""
            Grid.Row=""1""
            Grid.Column=""1""
            Margin=""0,20,0,0""

            FontSize=""8""
            Background=""#fffff2""
            FontFamily=""Consolas""
        />

</Grid>

</Window>
";

const String IMAGE_PATH = @"C:\Users\YOU\Downloads\2022-03\xfqJC.png";

async Task Main()
{
    StringReader stringReader = new StringReader( XAML_TEXT );
    XmlReader    xmlReader    = XmlReader.Create( stringReader );
    Window       window       = (Window)XamlReader.Load( xmlReader );
    window.Show();

    ///////

    FileInfo imageFile = new FileInfo( IMAGE_PATH );

    String orig = RenderPixelsAsAscii_Orig( imageFile );

    String orig2 = RenderPixelsAsAscii_Orig_better_StringBuilder( imageFile );

    String mine = RenderPixelsAsAscii_LockBits( imageFile );

    //

    TextBlock asciiTextBlockVariableSlow  = (TextBlock)window.FindName( name: "asciiTextBlockVariableSlow" );
    TextBlock asciiTextBlockVariableFast  = (TextBlock)window.FindName( name: "asciiTextBlockVariableFast" );
    TextBlock asciiTextBlockMonospaceSlow = (TextBlock)window.FindName( name: "asciiTextBlockMonospaceSlow" );
    TextBlock asciiTextBlockMonospaceFast = (TextBlock)window.FindName( name: "asciiTextBlockMonospaceFast" );

    window.Dispatcher.Invoke( () => {

        asciiTextBlockVariableSlow.Text = orig;
        asciiTextBlockVariableFast.Text = mine;

        asciiTextBlockMonospaceSlow.Text = orig;
        asciiTextBlockMonospaceFast.Text = mine;

    } );
}

static string chars = "    .:-^$@";

static String RenderPixelsAsAscii_Orig( FileInfo imageFile )
{
    Stopwatch sw = Stopwatch.StartNew();

    using( Bitmap image = (Bitmap)System.Drawing.Image.FromFile( imageFile.FullName ) )
    {
//      sw.Elapsed.TotalMilliseconds.Dump( "RenderPixelsAsAscii_Orig: Time to load image from disk." );

        sw.Restart();

        StringBuilder sb = new StringBuilder();

        for (int j = 0; j < image.Height; j  )
        {
            for (int i = 0; i < image.Width; i  )
            {
                Color pixelColor = image.GetPixel(i,j);
                int brightness = (pixelColor.R   pixelColor.G   pixelColor.B) / 3;
                int charIndex = brightness.Remap(0, 255, 0, chars.Length - 1);
                string c = chars[charIndex].ToString();
                sb.Append(c);

            }
            sb.Append("\n");
        }

        sw.Elapsed.TotalMilliseconds.Dump( "RenderPixelsAsAscii_Orig: Time to render bitmap as ASCII." );

        //asciiTextBlock.Text = sb.ToString();
        return sb.ToString();
    }
}

static String RenderPixelsAsAscii_Orig_better_StringBuilder( FileInfo imageFile )
{
    Stopwatch sw = Stopwatch.StartNew();

    using( Bitmap image = (Bitmap)System.Drawing.Image.FromFile( imageFile.FullName ) )
    {
//      sw.Elapsed.TotalMilliseconds.Dump( "RenderPixelsAsAscii_Orig_better_StringBuilder: Time to load image from disk." );

        sw.Restart();

        StringBuilder sb = new StringBuilder( capacity: image.Width * image.Height );

        for (int j = 0; j < image.Height; j  )
        {
            for (int i = 0; i < image.Width; i  )
            {
                Color pixelColor = image.GetPixel(i,j);
                int brightness = (pixelColor.R   pixelColor.G   pixelColor.B) / 3;
                int charIndex = brightness.Remap(0, 255, 0, chars.Length - 1);
                sb.Append(chars[charIndex]);

            }
            sb.Append('\n');
        }

        sw.Elapsed.TotalMilliseconds.Dump( "RenderPixelsAsAscii_Orig_better_StringBuilder: Time to render bitmap as ASCII." );

        //asciiTextBlock.Text = sb.ToString();
        return sb.ToString();
    }
}

unsafe static String RenderPixelsAsAscii_LockBits( FileInfo imageFile )
{
    Stopwatch sw = Stopwatch.StartNew();

    using( Bitmap bitmap = (Bitmap)System.Drawing.Image.FromFile( imageFile.FullName ) )
    {
//      sw.Elapsed.TotalMilliseconds.Dump( "RenderPixelsAsAscii_LockBits: Time to load image from disk." );

        sw.Restart();

        Rectangle r = new Rectangle( x: 0, y: 0, width: bitmap.Width, height: bitmap.Height );
        BitmapData bitmapData = bitmap.LockBits( rect: r, flags: ImageLockMode.ReadOnly, bitmap.PixelFormat );
        try
        {
            StringBuilder sb = new StringBuilder( capacity: bitmapData.Width * bitmapData.Height );

            RenderPixelsAsAsciiInner( bitmapData, sb );

            sw.Elapsed.TotalMilliseconds.Dump( "RenderPixelsAsAscii_LockBits: Time to render bitmap as ASCII." );

            return sb.ToString();
        }
        finally
        {
            bitmap.UnlockBits( bitmapData );
        }
    }
}

unsafe static void RenderPixelsAsAsciiInner( BitmapData bitmapData, StringBuilder sb )
{
    // bpp == Length of each pixel in bytes. e.g. 24-bit RGB is 3, and 32-bit ARGB is 4.
    Int32 bitsPerPixel  = System.Drawing.Image.GetPixelFormatSize( bitmapData.PixelFormat );
    if( ( bitsPerPixel % 8 ) != 0 ) throw new NotSupportedException( "Image uses a non-integral-pixel-byte-width format: "   bitmapData.PixelFormat );

    Int32 bytesPerPixel = bitsPerPixel / 8;

    Byte* scan0 = (Byte*)bitmapData.Scan0;

    for( Int32 y = 0; y < bitmapData.Height; y   )
    {
        Byte* linePtr = scan0   ( y * bitmapData.Stride );

        for( Int32 x = 0; x < bitmapData.Width; x   )
        {
            Byte*   pixelPtr = linePtr   ( x * bytesPerPixel );
            UInt32  pixel    = *pixelPtr;

            sb.AppendPixel( pixel, bitmapData.PixelFormat );
        }

        sb.Append( '\n' );
    }
}

static class MyExtensions
{
    static readonly Char[] _chars = new[] { ' ', '?', '?', '▓', '█' }; // "    .:-^$@";

    public static void AppendPixel( this StringBuilder sb, UInt32 pixel, PixelFormat fmt )
    {
        Byte a;
        Byte r;
        Byte g;
        Byte b;

        switch( fmt )
        {
        case PixelFormat.Format24bppRgb:
            {
                r = (Byte)( ( pixel & 0xFF_00_00_00 ) >> 24 );
                g = (Byte)( ( pixel & 0x00_FF_00_00 ) >> 16 );
                b = (Byte)( ( pixel & 0x00_00_FF_00 ) >>  8 );
            }
            break;

        case PixelFormat.Format32bppArgb:
            {
                a = (Byte)( ( pixel & 0xFF_00_00_00 ) >> 24 );
                r = (Byte)( ( pixel & 0x00_FF_00_00 ) >> 16 );
                g = (Byte)( ( pixel & 0x00_00_FF_00 ) >>  8 );
                b = (Byte)( ( pixel & 0x00_00_00_FF ) >>  0 );
            }
            break;

        default:
            throw new NotSupportedException( "meh" );
        }

        Single avgBrightness = ( (Single)r   (Single)g   (Single)b ) / 3f;
        if     ( avgBrightness <  51 ) sb.Append( '█' );
        else if( avgBrightness < 102 ) sb.Append( '▓' );
        else if( avgBrightness < 153 ) sb.Append( '?' );
        else if( avgBrightness < 204 ) sb.Append( '?' );
        else                           sb.Append( ' ' );
    }

    public static int Remap( this int value, int from1, int to1, int from2, int to2)
    {
        return (value - from1) / (to1 - from1) * (to2 - from2)   from2;
    }
}

1 Now they're just called memes. This was before Facebook, before the time when the Internet went mainstream, now it's just lame yaknow?

Screenshot proof:

標籤：C＃ wpf ASCII

上一篇：如何系結到集合內的集合？

下一篇：WPFListViewItem-切換可聚焦和IsMouseOver背景值
