我嘗試使用 matplotlib 繪制一個球體來表示一個量子位
import numpy as np
import matplotlib.pyplot as plt
theta = [0, np.pi]
phi = [0, 2* np.pi]
N=100
theta_array = np.linspace(theta[0], theta[1], N)
phi_array = np.linspace(phi[0], phi[1], N)
theta_grid, phi_grid = np.meshgrid(theta_array,phi_array)
x = np.sin(theta_grid) * np.cos(phi_grid)
y = np.sin(theta_grid) * np.sin(phi_grid)
z = np.cos(theta_grid)
fig = plt.figure(figsize=(6,6))
ax = fig.gca(projection='3d')
ax.plot_surface(x, y, z, rstride=1, cstride=1, shade=False,linewidth=0)
plt.show()

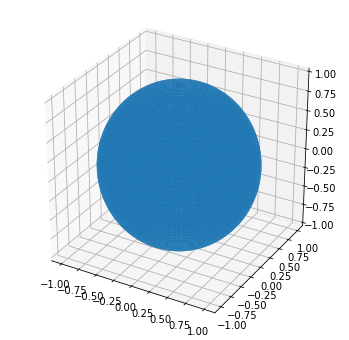

我想在球體上添加方向與 xyz 軸平行的管狀箭頭，如下所示：
我不是 matplotlib 專家，所以對我來說似乎很難。誰能幫我？提前致謝！
uj5u.com熱心網友回復：
您可以根據需要使用該quiver功能。請參見下面的代碼：
import numpy as np
import matplotlib.pyplot as plt
theta = [0, np.pi]
phi = [0, 2* np.pi]
N=100
theta_array = np.linspace(theta[0], theta[1], N)
phi_array = np.linspace(phi[0], phi[1], N)
theta_grid, phi_grid = np.meshgrid(theta_array,phi_array)
x = np.sin(theta_grid) * np.cos(phi_grid)
y = np.sin(theta_grid) * np.sin(phi_grid)
z = np.cos(theta_grid)
fig = plt.figure(figsize=(6,6))
ax = fig.gca(projection='3d')
ax.view_init(azim=60)
ax.plot_surface(x, y, z, rstride=1, cstride=1, shade=False,linewidth=0)
#Set up arrows
ax.quiver(1,0,0,1,0,0,color = 'k', alpha = .8, lw = 3) #x arrow
ax.text(2.4,0,0,'Sx',fontsize=20)
ax.quiver(0,1,0,0,1,0,color = 'k', alpha = .8, lw = 3)#y arrow
ax.text(0,2.4,0,'Sy',fontsize=20)
ax.quiver(0,0,1,0,0,1,color = 'k', alpha = .8, lw = 3)#z arrow
ax.text(-0.3,0,1.8,'Sz',fontsize=20)
plt.show()

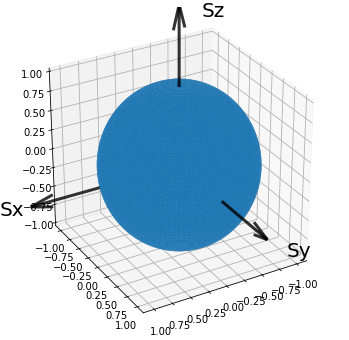

輸出給出：
