我有兩組資料，一組用于上游，一組用于下游。上游和下游都有相同的 John 主節點。

上游資料

var upstreamData = [
  { name: "John", parent: "" },
  { name: "Ann", parent: "John" },
  { name: "Adam", parent: "John" },
  { name: "Chris", parent: "John" },
  { name: "Tina", parent: "Ann" },
  { name: "Sam", parent: "Ann" },
  { name: "Rock", parent: "Chris" },
  { name: "will", parent: "Chris" },
  { name: "Nathan", parent: "Adam" },
  { name: "Roger", parent: "Tina" },
  { name: "Dena", parent: "Tina" },
  { name: "Jim", parent: "Dena" },
  { name: "Liza", parent: "Nathan" }
];

下游資料

var downstreamData = [
  { name: "John", parent: "" },
  { name: "Kat", parent: "John" },
  { name: "Amily", parent: "John" },
  { name: "Summer", parent: "John" },
  { name: "Loki", parent: "Kat" },
  { name: "Liam", parent: "Kat" },
  { name: "Tom", parent: "Amily" }
];

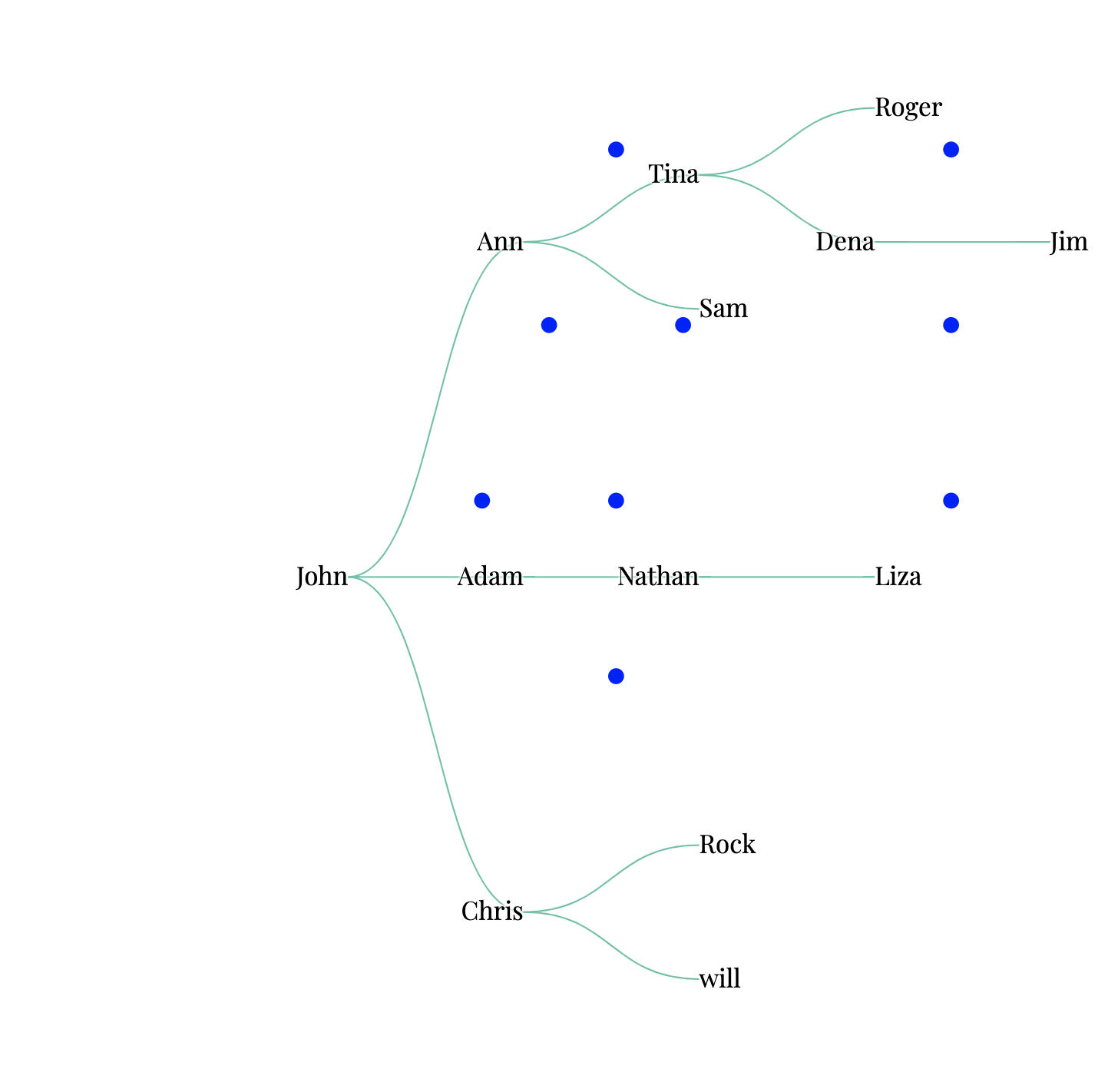

我能夠使用 d3 層次結構和 d3 樹將上游資料表示到主節點的右側，下圖是

將 d3-hierarchy (d3-tree) 圖反轉到左側以顯示下游

如何將下游資料表示到主節點 John 的左側，以便我可以在同一張圖中同時看到 john 的上游和下游資料？

以下是我的代碼框的鏈接

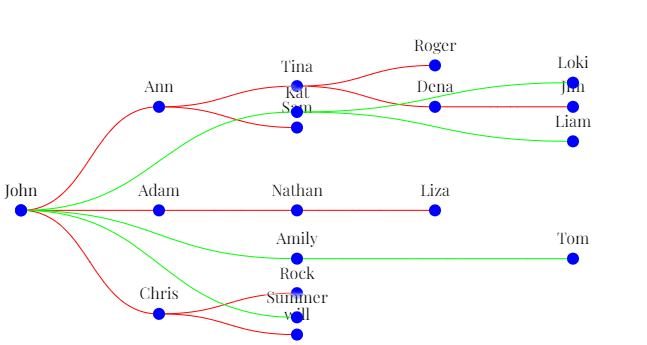

將 d3-hierarchy (d3-tree) 圖反轉到左側以顯示下游

因此，將其翻轉，使下游樹在左側，上游樹在右側（并且根居中）：

我們需要將上游節點的y坐標（即它的x）減半，并將innerWidth. 對于根，它放在中心，但對于后代，它按比例將它們放在右側：

Array.from(nodesUpstream).forEach(n => n.y = (n.y * 0.5)   innerWidth / 2);

然后，對下游節點y坐標（實際上是x......）進行相同的減半，但*-1它會“鏡像”它們，然后再添加innerWidth / 2回來。根仍將位于中心，但現在后代按比例位于左側并鏡像

Array.from(nodesDownstream).forEach(n => n.y = ((n.y * 0.5) * -1)   innerWidth / 2);

請參閱下面的作業片段以及您的 OP 資料：

顯示代碼片段

const nodeRadius = 6;
const width = 600;
const height = 400;
const margin = { top: 24, right: 24, bottom: 24, left: 24 };
const innerWidth = width - margin.left - margin.right;
const innerHeight = height - margin.top - margin.bottom;
const svg = d3.select("body")
  .append("svg")
  .attr("width", width)
  .attr("height", height)
  .append("g")
  .attr("transform", `translate(${margin.left},${margin.top})`);

const rootName = "John";

const treeLayout = d3.tree().size([innerHeight, innerWidth]);

const stratified = d3.stratify()
  .id(function (d) { return d.name; })
  .parentId(function (d) { return d.parent; });

const linkPathGenerator = d3.linkHorizontal()
  .x((d) => d.y)
  .y((d) => d.x);

// create 2x trees
const nodesUpstream = treeLayout(d3.hierarchy(stratified(upstreamData)).data);
const nodesDownstream = treeLayout(d3.hierarchy(stratified(downstreamData)).data);

// align the root node x and y
const nodesUpRoot = Array.from(nodesUpstream).find(n => n.data.name == rootName);
const nodesDownRoot = Array.from(nodesDownstream).find(n => n.data.name == rootName);
nodesDownRoot.x = nodesUpRoot.x;
nodesDownRoot.y = nodesUpRoot.y;

// NOTE - COMMENT OUT THIS STEP TO SEE THE INTEMEDIARY STEP
// for horizontal layout, flip x and y...
// right hand side (upstream): halve and add width / 2 to all y's (which are for x)
Array.from(nodesUpstream).forEach(n => n.y = (n.y / 2)   innerWidth / 2);
// left hand side (downstream): halve and negate all y's (which are for x) and add width / 2
Array.from(nodesDownstream).forEach(n => n.y = ((n.y / 2) * -1)   innerWidth / 2);

// render both trees
// index allows left hand and right hand side to separately selected and styled
[nodesUpstream, nodesDownstream].forEach(function(nodes, index) {

  // adds the links between the nodes
  // need to select links based on index to prevent bad rendering
  svg.selectAll(`links-${index}`)
    .data(nodes.links())
    .enter()
    .append("path")
    .attr("class", `link links-${index}`)
    .attr("d", linkPathGenerator);

  // adds each node as a group
  // need to select nodes based on index to prevent bad rendering
  var nodes = svg.selectAll(`.nodes-${index}`)
    .data(nodes.descendants())
    .enter()
    .append("g")
    .attr("class", `node nodes-${index}`)
    .attr("transform", function(d) {
      // x and y flipped here to achieve horizontal placement
      return `translate(${d.y},${d.x})`;
    });

  // adds the circle to the node
  nodes.append("circle")
    .attr("r", nodeRadius);

  // adds the text to the node
  nodes.append("text")
    .attr("dy", ".35em")
    .attr("y", -20)
    .style("text-anchor", "middle")
    .text(function(d) { return d.data.name; });

});

body {
  position: fixed;
  left: 0;
  right: 0;
  top: 0;
  bottom: 0;
  margin: 0;
  overflow: hidden;
}

/* upstream */
path.links-0 {
  fill: none;
  stroke: #ff0000;
}

/* downstream */
path.links-1 {
  fill: none;
  stroke: #00ff00;
}

text {
  text-shadow: -1px -1px 3px white, -1px 1px 3px white, 1px -1px 3px white,
    1px 1px 3px white;
  pointer-events: none;
  font-family: "Playfair Display", serif;
}

circle {
  fill: blue;
}

<link href="https://fonts.googleapis.com/css?family=Playfair Display" rel="stylesheet"/>
<script src="https://cdnjs.cloudflare.com/ajax/libs/d3/7.3.0/d3.min.js"></script>
<script>
// Upstream data
var upstreamData = [
  { name: "John", parent: "" },
  { name: "Ann", parent: "John" },
  { name: "Adam", parent: "John" },
  { name: "Chris", parent: "John" },
  { name: "Tina", parent: "Ann" },
  { name: "Sam", parent: "Ann" },
  { name: "Rock", parent: "Chris" },
  { name: "will", parent: "Chris" },
  { name: "Nathan", parent: "Adam" },
  { name: "Roger", parent: "Tina" },
  { name: "Dena", parent: "Tina" },
  { name: "Jim", parent: "Dena" },
  { name: "Liza", parent: "Nathan" }
];
// Downstream data

var downstreamData = [
  { name: "John", parent: "" },
  { name: "Kat", parent: "John" },
  { name: "Amily", parent: "John" },
  { name: "Summer", parent: "John" },
  { name: "Loki", parent: "Kat" },
  { name: "Liam", parent: "Kat" },
  { name: "Tom", parent: "Amily" }
];
</script>

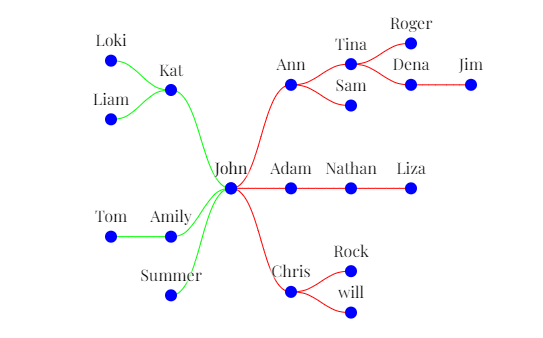

結果是：將 d3-hierarchy (d3-tree) 圖反轉到左側以顯示下游

y有兩個限制：根被繪制了兩次（我猜你可以跳過其中一個的標簽 John），更重要的是，重新布置坐標時不考慮樹的深度。如果你有一個更深的上游樹，你會看到這一點，因為它仍然會布置在右手邊，并且更加“皺縮”。

編輯

要修復節點寬度（根據深度），您可以使用以下命令：

const depthFactor = 60;
Array.from(nodesUpstream).forEach(n => n.y = (n.depth * depthFactor)   innerWidth / 2);
Array.from(nodesDownstream).forEach(n => n.y = (innerWidth / 2) - (n.depth * depthFactor));

例子：

顯示代碼片段

const nodeRadius = 6;
const width = 600;
const height = 400;
const margin = { top: 24, right: 24, bottom: 24, left: 24 };
const innerWidth = width - margin.left - margin.right;
const innerHeight = height - margin.top - margin.bottom;
const svg = d3.select("body")
  .append("svg")
  .attr("width", width)
  .attr("height", height)
  .append("g")
  .attr("transform", `translate(${margin.left},${margin.top})`);

const rootName = "John";

const treeLayout = d3.tree().size([innerHeight, innerWidth]);

const stratified = d3.stratify()
  .id(function (d) { return d.name; })
  .parentId(function (d) { return d.parent; });

const linkPathGenerator = d3.linkHorizontal()
  .x((d) => d.y)
  .y((d) => d.x);

// create 2x trees
const nodesUpstream = treeLayout(d3.hierarchy(stratified(upstreamData)).data);
const nodesDownstream = treeLayout(d3.hierarchy(stratified(downstreamData)).data);

// align the root node x and y
const nodesUpRoot = Array.from(nodesUpstream).find(n => n.data.name == rootName);
const nodesDownRoot = Array.from(nodesDownstream).find(n => n.data.name == rootName);
nodesDownRoot.x = nodesUpRoot.x;
nodesDownRoot.y = nodesUpRoot.y;

// for horizontal layout, flip x and y...
const depthFactor = 60;
Array.from(nodesUpstream).forEach(n => n.y = (n.depth * depthFactor)   innerWidth / 2);
Array.from(nodesDownstream).forEach(n => n.y = (innerWidth / 2) - (n.depth * depthFactor));

// render both trees
// index allows left hand and right hand side to separately selected and styled
[nodesUpstream, nodesDownstream].forEach(function(nodes, index) {

  // adds the links between the nodes
  // need to select links based on index to prevent bad rendering
  svg.selectAll(`links-${index}`)
    .data(nodes.links())
    .enter()
    .append("path")
    .attr("class", `link links-${index}`)
    .attr("d", linkPathGenerator);

  // adds each node as a group
  // need to select nodes based on index to prevent bad rendering
  var nodes = svg.selectAll(`.nodes-${index}`)
    .data(nodes.descendants())
    .enter()
    .append("g")
    .attr("class", `node nodes-${index}`)
    .attr("transform", function(d) {
      // x and y flipped here to achieve horizontal placement
      return `translate(${d.y},${d.x})`;
    });

  // adds the circle to the node
  nodes.append("circle")
    .attr("r", nodeRadius);

  // adds the text to the node
  nodes.append("text")
    .attr("dy", ".35em")
    .attr("y", -20)
    .style("text-anchor", "middle")
    .text(function(d) { return d.data.name; });

});

body {
  position: fixed;
  left: 0;
  right: 0;
  top: 0;
  bottom: 0;
  margin: 0;
  overflow: hidden;
}

/* upstream */
path.links-0 {
  fill: none;
  stroke: #ff0000;
}

/* downstream */
path.links-1 {
  fill: none;
  stroke: #00ff00;
}

text {
  text-shadow: -1px -1px 3px white, -1px 1px 3px white, 1px -1px 3px white,
    1px 1px 3px white;
  pointer-events: none;
  font-family: "Playfair Display", serif;
}

circle {
  fill: blue;
}

<link href="https://fonts.googleapis.com/css?family=Playfair Display" rel="stylesheet"/>
<script src="https://cdnjs.cloudflare.com/ajax/libs/d3/7.3.0/d3.min.js"></script>
<script>
// Upstream data
var upstreamData = [
  { name: "John", parent: "" },
  { name: "Ann", parent: "John" },
  { name: "Adam", parent: "John" },
  { name: "Chris", parent: "John" },
  { name: "Tina", parent: "Ann" },
  { name: "Sam", parent: "Ann" },
  { name: "Rock", parent: "Chris" },
  { name: "will", parent: "Chris" },
  { name: "Nathan", parent: "Adam" },
  { name: "Roger", parent: "Tina" },
  { name: "Dena", parent: "Tina" },
  { name: "Jim", parent: "Dena" },
  { name: "Liza", parent: "Nathan" }
];
// Downstream data

var downstreamData = [
  { name: "John", parent: "" },
  { name: "Kat", parent: "John" },
  { name: "Amily", parent: "John" },
  { name: "Summer", parent: "John" },
  { name: "Loki", parent: "Kat" },
  { name: "Liam", parent: "Kat" },
  { name: "Tom", parent: "Amily" }
];
</script>

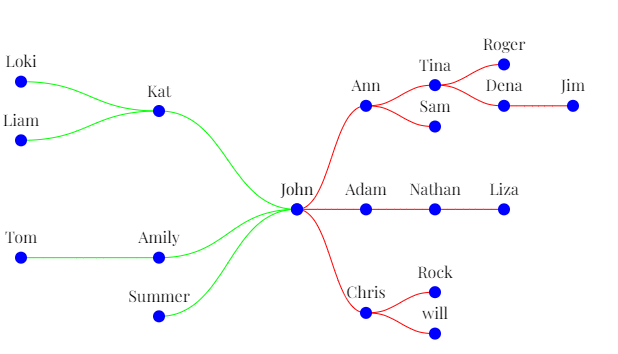

這使：

將 d3-hierarchy (d3-tree) 圖反轉到左側以顯示下游
