1. 效果展示

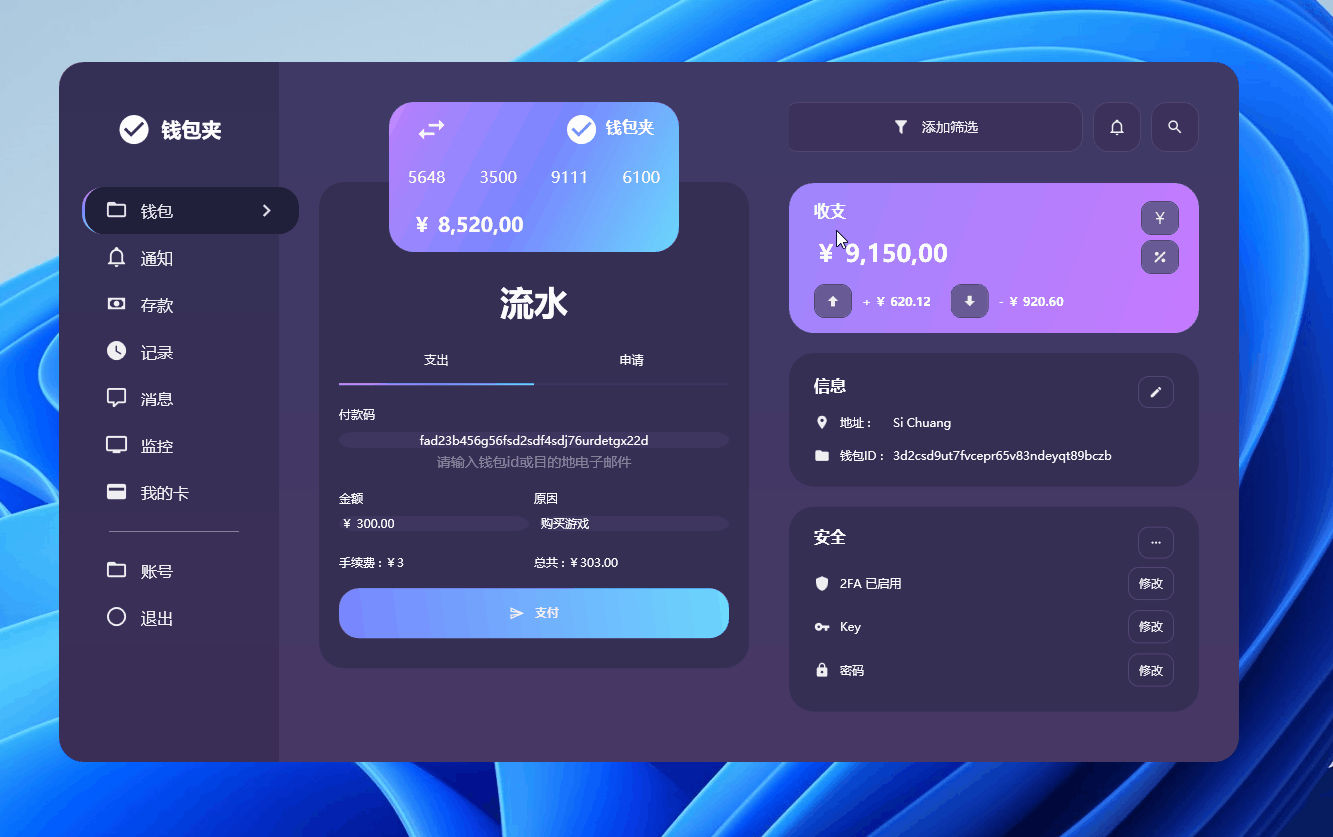

欣賞效果：
2. 準備
創建一個WPF工程，比如站長使用 .NET 7 創建名為 WalletPayment 的WPF專案，
這次我們不添加任何圖片，只添加了一個Nuget包 MaterialDesignThemes：
<PackageReference Include="MaterialDesignThemes" Version="4.6.0-ci176" />
原文作者使用的
FontAwesome.WPF做為圖示庫，但該庫自17年起就沒升級了，對.NET 5\6\7編譯有不兼容提示
已使用“.NETFramework,Version=v4.6.1, .NETFramework,Version=v4.6.2, .NETFramework,Version=v4.7, .NETFramework,Version=v4.7.1, .NETFramework,Version=v4.7.2, .NETFramework,Version=v4.8”而不是專案目標框架“net7.0-windows7.0”還原包“FontAwesome.WPF 4.7.0.9”，此包可能與專案不完全兼容，
對于上文 《WPF|如何在 WPF 中設計漂亮的社交媒體資訊儀表板》 使用到的該圖示庫站長也做了修改(倉庫鏈接)，
3. 簡單說明 + 原始碼
該儀表盤整體配色和布局非常優秀，給出幾張站長覺得不錯的部分截圖：

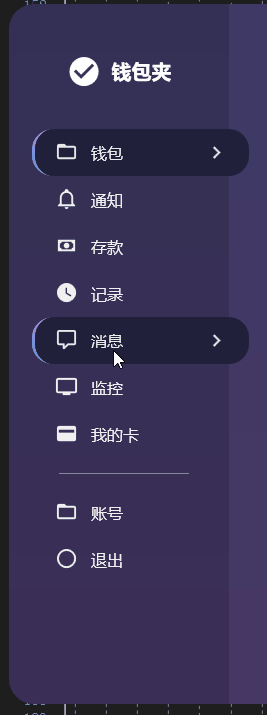

左側選單

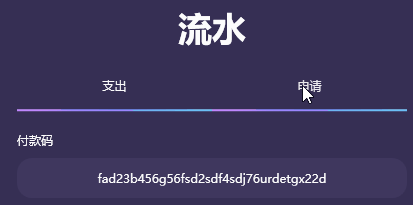

按鈕切換
MainWindow.xaml
界面的整體布局都在這個檔案內：
<Window x:
xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
xmlns:materialDesign="http://materialdesigninxaml.net/winfx/xaml/themes"
mc:Ignorable="d"
WindowStartupLocation="CenterScreen"
WindowStyle="None"
AllowsTransparency="True"
Background="Transparent"
Height="700"
>
<Window.Resources>
<ResourceDictionary>
<ResourceDictionary.MergedDictionaries>
<ResourceDictionary Source="pack://application:,,,/WalletPayment;component/WalletPaymentRes.xaml" />
</ResourceDictionary.MergedDictionaries>
</ResourceDictionary>
</Window.Resources>
<Grid>
<!--Grid Background-->
<Grid>
<Grid.ColumnDefinitions>
<ColumnDefinition />
<ColumnDefinition />
</Grid.ColumnDefinitions>
<Border CornerRadius="25 0 0 25" >
<Border.Background>
<LinearGradientBrush StartPoint="0,0" EndPoint="0,1">
<GradientStop Color="#343155" Offset="0" />
<GradientStop Color="#3B2E58" Offset="1" />
</LinearGradientBrush>
</Border.Background>
</Border>
<Border CornerRadius="0 25 25 0" MouseDown="Border_MouseDown" Grid.Column="1">
<Border.Background>
<LinearGradientBrush StartPoint="0,0" EndPoint="0,1">
<GradientStop Color="#3E3A65" Offset="0" />
<GradientStop Color="#473765" Offset="1" />
</LinearGradientBrush>
</Border.Background>
</Border>
</Grid>
<!--Grid Controls-->
<Grid>
<Grid.ColumnDefinitions>
<ColumnDefinition />
<ColumnDefinition />
<ColumnDefinition />
</Grid.ColumnDefinitions>
<!--Main Menu-->
<StackPanel >
<StackPanel Orientation="Horizontal" Margin="0 50 20 40" HorizontalAlignment="Center">
<materialDesign:PackIcon Kind="CheckCircle" Foreground="White" Height="35" />
<TextBlock Text="錢包夾" FontWeight="Bold" FontSize="20" VerticalAlignment="Center" Margin="10 0 0 0"
Foreground="#FFFFFF" />
</StackPanel>
<Button Style="{StaticResource activeMenuButton}">
<Grid>
<StackPanel Orientation="Horizontal" HorizontalAlignment="Left">
<materialDesign:PackIcon Kind="FolderOutline" Style="{StaticResource buttonIcon}" />
<TextBlock Text="錢包" Style="{StaticResource buttonText}" />
</StackPanel>
<materialDesign:PackIcon Kind="ChevronRight" Visibility="Visible"
Style="{StaticResource buttonIconExpand}" />
</Grid>
</Button>
<Button Style="{StaticResource menuButton}">
<Grid>
<StackPanel Orientation="Horizontal" HorizontalAlignment="Left">
<materialDesign:PackIcon Kind="BellOutline" Style="{StaticResource buttonIcon}" />
<TextBlock Text="通知" Style="{StaticResource buttonText}" />
</StackPanel>
<materialDesign:PackIcon Name="sal" Kind="ChevronRight"
Style="{StaticResource buttonIconExpand}" />
</Grid>
</Button>
<Button Style="{StaticResource menuButton}">
<Grid>
<StackPanel Orientation="Horizontal" HorizontalAlignment="Left">
<materialDesign:PackIcon Kind="Money" Style="{StaticResource buttonIcon}" />
<TextBlock Text="存款" Style="{StaticResource buttonText}" />
</StackPanel>
<materialDesign:PackIcon Kind="ChevronRight" Style="{StaticResource buttonIconExpand}" />
</Grid>
</Button>
<Button Style="{StaticResource menuButton}">
<Grid>
<StackPanel Orientation="Horizontal" HorizontalAlignment="Left">
<materialDesign:PackIcon Kind="Clock" Style="{StaticResource buttonIcon}" />
<TextBlock Text="記錄" Style="{StaticResource buttonText}" />
</StackPanel>
<materialDesign:PackIcon Kind="ChevronRight" Style="{StaticResource buttonIconExpand}" />
</Grid>
</Button>
<Button Style="{StaticResource menuButton}">
<Grid>
<StackPanel Orientation="Horizontal" HorizontalAlignment="Left">
<materialDesign:PackIcon Kind="CommentOutline" Style="{StaticResource buttonIcon}" />
<TextBlock Text="訊息" Style="{StaticResource buttonText}" />
</StackPanel>
<materialDesign:PackIcon Kind="ChevronRight" Style="{StaticResource buttonIconExpand}" />
</Grid>
</Button>
<Button Style="{StaticResource menuButton}">
<Grid>
<StackPanel Orientation="Horizontal" HorizontalAlignment="Left">
<materialDesign:PackIcon Kind="Television" Style="{StaticResource buttonIcon}" />
<TextBlock Text="監控" Style="{StaticResource buttonText}" />
</StackPanel>
<materialDesign:PackIcon Kind="ChevronRight" Style="{StaticResource buttonIconExpand}" />
</Grid>
</Button>
<Button Style="{StaticResource menuButton}">
<Grid>
<StackPanel Orientation="Horizontal" HorizontalAlignment="Left">
<materialDesign:PackIcon Kind="CreditCard" Style="{StaticResource buttonIcon}" />
<TextBlock Text="我的卡" Style="{StaticResource buttonText}" />
</StackPanel>
<materialDesign:PackIcon Kind="ChevronRight" Style="{StaticResource buttonIconExpand}" />
</Grid>
</Button>
<Separator Background="#e0e0e0" Opacity="0.5" Margin="50 15 60 15" />
<Button Style="{StaticResource menuButton}">
<Grid>
<StackPanel Orientation="Horizontal" HorizontalAlignment="Left">
<materialDesign:PackIcon Kind="FolderOutline" Style="{StaticResource buttonIcon}" />
<TextBlock Text="賬號" Style="{StaticResource buttonText}" />
</StackPanel>
<materialDesign:PackIcon Kind="ChevronRight" Style="{StaticResource buttonIconExpand}" />
</Grid>
</Button>
<Button Style="{StaticResource menuButton}">
<Grid>
<StackPanel Orientation="Horizontal" HorizontalAlignment="Left">
<materialDesign:PackIcon Kind="CircleOutline" Style="{StaticResource buttonIcon}" />
<TextBlock Text="退出" Style="{StaticResource buttonText}" />
</StackPanel>
<materialDesign:PackIcon Kind="ChevronRight" Style="{StaticResource buttonIconExpand}" />
</Grid>
</Button>
</StackPanel>
<!--Transaction Panel-->
<Grid Grid.Column="1">
<!--Transfer Panel-->
<Border Style="{StaticResource border}" Margin="20 120 20 20">
<StackPanel Margin="10 88 10 20">
<TextBlock Text="流水" Foreground="#fcfcfc" TextAlignment="Center" FontSize="34"
FontWeight="SemiBold" />
<Grid Margin="0 12 0 22">
<Grid.ColumnDefinitions>
<ColumnDefinition />
<ColumnDefinition />
</Grid.ColumnDefinitions>
<Button Style="{StaticResource activeTabButton}" Content="支出" />
<Button Style="{StaticResource tabButton}" Content="申請" Grid.Column="1" />
</Grid>
<TextBlock Text="付款碼" Style="{StaticResource textLabel}" />
<TextBox Margin="0 10 0 5" Text="fad23b456g56fsd2sdf4sdj76urdetgx22d" TextAlignment="Center" />
<TextBlock Text="請輸入錢包id或目的地電子郵件" FontSize="14" Foreground="#e0e0e0" TextAlignment="Center"
Opacity="0.5" Margin="0 0 0 20" />
<Grid>
<Grid.ColumnDefinitions>
<ColumnDefinition />
<ColumnDefinition />
</Grid.ColumnDefinitions>
<Grid.RowDefinitions>
<RowDefinition Height="auto" />
<RowDefinition Height="*" />
<RowDefinition Height="*" />
</Grid.RowDefinitions>
<TextBlock Text="金額" Style="{StaticResource textLabel}" />
<TextBox Grid.Row="1" Margin="0 10 5 20" Text="￥ 300.00" />
<TextBlock Text="原因" Style="{StaticResource textLabel}" Grid.Column="1" />
<TextBox Grid.Row="1" Grid.Column="1" Margin="5 10 0 20" Text="購買游戲" />
<TextBlock Text="手續費 : ￥3" Style="{StaticResource textLabel}" Grid.Row="2" Margin="0 4 0 3" />
<TextBlock Text="總共 : ￥303.00" Style="{StaticResource textLabel}" Grid.Row="2"
Grid.Column="1" Margin="0 4 0 3" />
</Grid>
<Button Style="{StaticResource sendButton}">
<StackPanel Orientation="Horizontal">
<materialDesign:PackIcon Kind="SendOutline" Style="{StaticResource whiteIcon}"
VerticalAlignment="Center" />
<TextBlock Text="支付" Margin="10 0 0 0" FontWeight="SemiBold" />
</StackPanel>
</Button>
</StackPanel>
</Border>
<!--Bank Card-->
<Border Style="{StaticResource cardBorder}" Margin="90 40 90 0">
<Border.Background>
<LinearGradientBrush StartPoint="0,0" EndPoint="1,1">
<GradientStop Color="#D489FF" Offset="-0.2" />
<GradientStop Color="#7985FF" Offset="0.5" />
<GradientStop Color="#6AD8FD" Offset="1" />
</LinearGradientBrush>
</Border.Background>
<Grid>
<materialDesign:PackIcon Kind="Exchange" HorizontalAlignment="Left" VerticalAlignment="Top"
Foreground="White" Opacity="0.9" Height="35"
Margin="15 0 0 0" />
<materialDesign:PackIcon Kind="CheckCircle" HorizontalAlignment="Right" VerticalAlignment="Top"
Foreground="White" Height="35" Margin="0 0 70 0" />
<TextBlock Text="錢包夾" FontWeight="Bold" Foreground="#FFFFFF" FontSize="16"
HorizontalAlignment="Right" VerticalAlignment="Top" Margin="0 5 15 0" />
<StackPanel Orientation="Horizontal" VerticalAlignment="Center" HorizontalAlignment="Center">
<TextBlock Text="5648" Style="{StaticResource bankCardNumber}" />
<TextBlock Text="3500" Style="{StaticResource bankCardNumber}" />
<TextBlock Text="9111" Style="{StaticResource bankCardNumber}" />
<TextBlock Text="6100" Style="{StaticResource bankCardNumber}" />
</StackPanel>
<TextBlock Text="￥ 8,520,00" Style="{StaticResource textLabel}" FontSize="20"
FontWeight="SemiBold" VerticalAlignment="Bottom" Margin="13 0 0 5" />
</Grid>
</Border>
</Grid>
<!--Info Panel-->
<StackPanel Grid.Column="2" Margin="0 0 20 0">
<!--Top Menu-->
<StackPanel Orientation="Horizontal" Margin="20 40 20 0" HorizontalAlignment="Right">
<Button Style="{StaticResource topMenuButton}" Margin="10 0 0 0" Height="50">
<StackPanel Orientation="Horizontal">
<materialDesign:PackIcon Kind="Filter" Style="{StaticResource topMenuIcon}" />
<TextBlock Text="添加篩選" VerticalAlignment="Center" FontSize="14" Margin="8 0 0 0" />
</StackPanel>
</Button>
<Button Style="{StaticResource topMenuButton}" Margin="10 0 0 0">
<materialDesign:PackIcon Kind="BellOutline" Style="{StaticResource topMenuIcon}" />
</Button>
<Button Style="{StaticResource topMenuButton}" Margin="10 0 0 0">
<materialDesign:PackIcon Kind="Search" Style="{StaticResource topMenuIcon}" />
</Button>
</StackPanel>
<!--Info Card-->
<Border Style="{StaticResource cardBorder}" Margin="20 31 20 0">
<Border.Background>
<LinearGradientBrush StartPoint="0,0" EndPoint="1,1">
<GradientStop Color="#9D85FA" Offset="0" />
<GradientStop Color="#C77AFF" Offset="1" />
</LinearGradientBrush>
</Border.Background>
<Grid>
<TextBlock Text="收支" Style="{StaticResource textLabel}" VerticalAlignment="Top"
Margin="15 8 0 0" FontSize="16" FontWeight="SemiBold" />
<TextBlock Text="￥ 9,150,00" Style="{StaticResource textLabel}" FontSize="24"
FontWeight="SemiBold" VerticalAlignment="Center" Margin="15 0 0 10" />
<StackPanel VerticalAlignment="Top" HorizontalAlignment="Right" Margin="0 8 10 0">
<Button Style="{StaticResource fillButton}">
<materialDesign:PackIcon Kind="Renminbi" Style="{StaticResource whiteIcon}" />
</Button>
<Button Style="{StaticResource fillButton}" Margin="0 5 0 0">
<materialDesign:PackIcon Kind="Percent" Style="{StaticResource whiteIcon}" />
</Button>
</StackPanel>
<StackPanel Orientation="Horizontal" VerticalAlignment="Bottom" Margin="15 0 0 5">
<Button Style="{StaticResource fillButton}">
<materialDesign:PackIcon Kind="ArrowUpBold" Style="{StaticResource whiteIcon}" />
</Button>
<TextBlock Text="+ ￥ 620.12" Style="{StaticResource textLabel}" Margin="10 0 20 0"
FontWeight="SemiBold" VerticalAlignment="Center" />
<Button Style="{StaticResource fillButton}">
<materialDesign:PackIcon Kind="ArrowDownBold" Style="{StaticResource whiteIcon}" />
</Button>
<TextBlock Text="- ￥ 920.60" Style="{StaticResource textLabel}" Margin="10 0 0 0"
FontWeight="SemiBold" VerticalAlignment="Center" />
</StackPanel>
</Grid>
</Border>
<!--Information Card-->
<Border Style="{StaticResource border}" Margin="20">
<Grid Margin="15 13">
<Grid.ColumnDefinitions>
<ColumnDefinition />
<ColumnDefinition />
<ColumnDefinition />
</Grid.ColumnDefinitions>
<Grid.RowDefinitions>
<RowDefinition Height="*" />
<RowDefinition Height="*" />
<RowDefinition Height="*" />
</Grid.RowDefinitions>
<TextBlock Text="資訊" Foreground="#fcfcfc" FontSize="16" FontWeight="SemiBold"
Grid.ColumnSpan="3" Margin="0 0 0 18" />
<Button Style="{StaticResource button}" HorizontalAlignment="Right" VerticalAlignment="Top"
Grid.ColumnSpan="3">
<materialDesign:PackIcon Kind="Edit" Style="{StaticResource whiteIcon}"
Height="14" />
</Button>
<materialDesign:PackIcon Kind="MapMarker" Style="{StaticResource whiteIcon}" Grid.Row="1"
VerticalAlignment="Top" />
<materialDesign:PackIcon Kind="Folder" Style="{StaticResource whiteIcon}" Grid.Row="2"
VerticalAlignment="Top" />
<TextBlock Text="地址 :" Style="{StaticResource textLabel}" Grid.Column="1" Grid.Row="1"
Margin="10 0 10 18" />
<TextBlock Text="錢包ID :" Style="{StaticResource textLabel}" Grid.Column="1" Grid.Row="2"
Margin="10 0 10 0" />
<TextBlock Text="Si Chuang" Style="{StaticResource textLabel}" Grid.Column="2" Grid.Row="1" />
<TextBlock Text="3d2csd9ut7fvcepr65v83ndeyqt89bczb" Style="{StaticResource textLabel}"
Grid.Column="2" Grid.Row="2" />
</Grid>
</Border>
<!--Security Card-->
<Border Style="{StaticResource border}" Margin="20 0 20 0">
<Grid Margin="15 10">
<Grid.ColumnDefinitions>
<ColumnDefinition />
<ColumnDefinition />
<ColumnDefinition />
</Grid.ColumnDefinitions>
<Grid.RowDefinitions>
<RowDefinition Height="*" />
<RowDefinition Height="*" />
<RowDefinition Height="*" />
<RowDefinition Height="*" />
</Grid.RowDefinitions>
<TextBlock Text="安全" Foreground="#fcfcfc" FontWeight="SemiBold" FontSize="16"
Grid.ColumnSpan="3" Margin="0 0 0 15" />
<Button Style="{StaticResource button}" HorizontalAlignment="Right" VerticalAlignment="Top"
Grid.ColumnSpan="3">
<materialDesign:PackIcon Kind="MoreHoriz" Style="{StaticResource whiteIcon}"
Height="14" />
</Button>
<materialDesign:PackIcon Kind="Shield" Style="{StaticResource whiteIcon}" Grid.Row="1"
VerticalAlignment="Center" />
<materialDesign:PackIcon Kind="Key" Style="{StaticResource whiteIcon}" Grid.Row="2"
VerticalAlignment="Center" />
<materialDesign:PackIcon Kind="Lock" Style="{StaticResource whiteIcon}" Grid.Row="3"
VerticalAlignment="Center" />
<TextBlock Text="2FA 已啟用" Style="{StaticResource textLabel}" Grid.Column="1" Grid.Row="1"
Margin="10 0 0 0" VerticalAlignment="Center" />
<TextBlock Text="Key" Style="{StaticResource textLabel}" Grid.Column="1" Grid.Row="2"
Margin="10 0 0 0" VerticalAlignment="Center" />
<TextBlock Text="密碼" Style="{StaticResource textLabel}" Grid.Column="1" Grid.Row="3"
Margin="10 0 0 0" VerticalAlignment="Center" />
<Button Style="{StaticResource button}" HorizontalAlignment="Right" VerticalAlignment="Center"
Grid.Column="2" Grid.Row="1" Content="修改" Margin="0 5 0 5" />
<Button Style="{StaticResource button}" HorizontalAlignment="Right" VerticalAlignment="Center"
Grid.Column="2" Grid.Row="2" Content="修改" Margin="0 5 0 5" />
<Button Style="{StaticResource button}" HorizontalAlignment="Right" VerticalAlignment="Center"
Grid.Column="2" Grid.Row="3" Content="修改" Margin="0 5 0 5" />
</Grid>
</Border>
</StackPanel>
</Grid>
</Grid>
</Window>
MainWindow.xaml.cs
就一個表單拖動方式：
using System.Windows;
using System.Windows.Input;
namespace WalletPayment;
public partial class MainWindow : Window
{
public MainWindow()
{
InitializeComponent();
}
private void Border_MouseDown(object sender, MouseButtonEventArgs e)
{
if (e.ChangedButton == MouseButton.Left)
DragMove();
}
}
WalletPaymentRes.xaml
資源檔案，界面的所有按鈕、圖示、文本等的樣式全在這個檔案：
<ResourceDictionary xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
xmlns:materialDesign="http://materialdesigninxaml.net/winfx/xaml/themes">
<Style x:Key="menuButton" TargetType="Button">
<Setter Property="Height" Value="https://www.cnblogs.com/Dotnet9-com/archive/2022/05/14/47" />
<Setter Property="Width" Value="https://www.cnblogs.com/Dotnet9-com/archive/2022/05/14/217" />
<Setter Property="Background" Value="https://www.cnblogs.com/Dotnet9-com/archive/2022/05/14/Transparent" />
<Setter Property="Foreground" Value="https://www.cnblogs.com/Dotnet9-com/archive/2022/05/14/#f0f0f0" />
<Setter Property="Margin" Value="https://www.cnblogs.com/Dotnet9-com/archive/2022/05/14/0 0 0 0" />
<Setter Property="FocusVisualStyle" Value="https://www.cnblogs.com/Dotnet9-com/archive/2022/05/14/{x:Null}" />
<Setter Property="HorizontalAlignment" Value="https://www.cnblogs.com/Dotnet9-com/archive/2022/05/14/Right" />
<Setter Property="Template">
<Setter.Value>
<ControlTemplate TargetType="{x:Type Button}">
<Border Background="{TemplateBinding Background}" CornerRadius="20" Padding="20 0 20 0"
BorderThickness="3 0 0 0" BorderBrush="Transparent">
<ContentPresenter HorizontalAlignment="Stretch" VerticalAlignment="Center" />
</Border>
</ControlTemplate>
</Setter.Value>
</Setter>
<Style.Triggers>
<Trigger Property="IsMouseOver" Value="https://www.cnblogs.com/Dotnet9-com/archive/2022/05/14/True">
<Setter Property="Background" Value="https://www.cnblogs.com/Dotnet9-com/archive/2022/05/14/#21203b" />
<Setter Property="Foreground" Value="https://www.cnblogs.com/Dotnet9-com/archive/2022/05/14/#e9e9e9" />
<Setter Property="Template">
<Setter.Value>
<ControlTemplate TargetType="{x:Type Button}">
<Border Background="{TemplateBinding Background}" CornerRadius="20" Padding="20 0 20 0"
BorderThickness="3 0 0 0">
<Border.BorderBrush>
<LinearGradientBrush StartPoint="0.5,0" EndPoint="0.5,1">
<GradientStop Color="#D489FF" Offset="0" />
<GradientStop Color="#7985FF" Offset="0.5" />
<GradientStop Color="#6AD8FD" Offset="1" />
</LinearGradientBrush>
</Border.BorderBrush>
<ContentPresenter HorizontalAlignment="Stretch" VerticalAlignment="Center" />
</Border>
</ControlTemplate>
</Setter.Value>
</Setter>
</Trigger>
<Trigger Property="IsMouseCaptured" Value="https://www.cnblogs.com/Dotnet9-com/archive/2022/05/14/True">
<Setter Property="Background" Value="https://www.cnblogs.com/Dotnet9-com/archive/2022/05/14/#1a192e" />
<Setter Property="Foreground" Value="https://www.cnblogs.com/Dotnet9-com/archive/2022/05/14/White" />
</Trigger>
</Style.Triggers>
</Style>
<Style x:Key="activeMenuButton" TargetType="Button" BasedOn="{StaticResource menuButton}">
<Setter Property="Background" Value="https://www.cnblogs.com/Dotnet9-com/archive/2022/05/14/#21203b" />
<Setter Property="Foreground" Value="https://www.cnblogs.com/Dotnet9-com/archive/2022/05/14/#e9e9e9" />
<Setter Property="Template">
<Setter.Value>
<ControlTemplate TargetType="{x:Type Button}">
<Border Background="{TemplateBinding Background}" CornerRadius="20" Padding="20 0 20 0"
BorderThickness="3 0 0 0">
<Border.BorderBrush>
<LinearGradientBrush StartPoint="0.5,0" EndPoint="0.5,1">
<GradientStop Color="#D489FF" Offset="0" />
<GradientStop Color="#7985FF" Offset="0.5" />
<GradientStop Color="#6AD8FD" Offset="1" />
</LinearGradientBrush>
</Border.BorderBrush>
<ContentPresenter HorizontalAlignment="Stretch" VerticalAlignment="Center" />
</Border>
</ControlTemplate>
</Setter.Value>
</Setter>
</Style>
<Style x:Key="buttonIcon" TargetType="materialDesign:PackIcon">
<Setter Property="Foreground"
Value="https://www.cnblogs.com/Dotnet9-com/archive/2022/05/14/{Binding Path=Foreground, RelativeSource={RelativeSource FindAncestor, AncestorType={x:Type Button}}}" />
<Setter Property="Width" Value="https://www.cnblogs.com/Dotnet9-com/archive/2022/05/14/23" />
<Setter Property="Height" Value="https://www.cnblogs.com/Dotnet9-com/archive/2022/05/14/23" />
</Style>
<Style x:Key="buttonText" TargetType="TextBlock">
<Setter Property="Margin" Value="https://www.cnblogs.com/Dotnet9-com/archive/2022/05/14/13 0 0 0" />
<Setter Property="FontSize" Value="https://www.cnblogs.com/Dotnet9-com/archive/2022/05/14/16" />
<Setter Property="VerticalAlignment" Value="https://www.cnblogs.com/Dotnet9-com/archive/2022/05/14/Center" />
</Style>
<Style x:Key="buttonIconExpand" TargetType="materialDesign:PackIcon">
<Setter Property="Foreground"
Value="https://www.cnblogs.com/Dotnet9-com/archive/2022/05/14/{Binding Path=Foreground, RelativeSource={RelativeSource FindAncestor, AncestorType={x:Type Button}}}" />
<Setter Property="Width" Value="https://www.cnblogs.com/Dotnet9-com/archive/2022/05/14/25" />
<Setter Property="Height" Value="https://www.cnblogs.com/Dotnet9-com/archive/2022/05/14/25" />
<Setter Property="HorizontalAlignment" Value="https://www.cnblogs.com/Dotnet9-com/archive/2022/05/14/Right" />
<Setter Property="Visibility" Value="https://www.cnblogs.com/Dotnet9-com/archive/2022/05/14/Hidden" />
<Style.Triggers>
<DataTrigger
Binding="{Binding Path=IsMouseOver, RelativeSource={RelativeSource Mode=FindAncestor, AncestorType=Button}}"
Value="https://www.cnblogs.com/Dotnet9-com/archive/2022/05/14/True">
<Setter Property="Visibility" Value="https://www.cnblogs.com/Dotnet9-com/archive/2022/05/14/Visible" />
</DataTrigger>
</Style.Triggers>
</Style>
<Style x:Key="border" TargetType="Border">
<Setter Property="CornerRadius" Value="https://www.cnblogs.com/Dotnet9-com/archive/2022/05/14/25" />
<Setter Property="Padding" Value="https://www.cnblogs.com/Dotnet9-com/archive/2022/05/14/10" />
<Setter Property="Background" Value="https://www.cnblogs.com/Dotnet9-com/archive/2022/05/14/#362F54" />
<Setter Property="VerticalAlignment" Value="https://www.cnblogs.com/Dotnet9-com/archive/2022/05/14/Top" />
</Style>
<Style x:Key="tabButton" TargetType="Button">
<Setter Property="Height" Value="https://www.cnblogs.com/Dotnet9-com/archive/2022/05/14/50" />
<Setter Property="Background" Value="https://www.cnblogs.com/Dotnet9-com/archive/2022/05/14/Transparent" />
<Setter Property="Foreground" Value="https://www.cnblogs.com/Dotnet9-com/archive/2022/05/14/#fcfcfc" />
<Setter Property="FocusVisualStyle" Value="https://www.cnblogs.com/Dotnet9-com/archive/2022/05/14/{x:Null}" />
<Setter Property="Template">
<Setter.Value>
<ControlTemplate TargetType="{x:Type Button}">
<Border Background="{TemplateBinding Background}" Padding="20 10 20 10" BorderThickness="0 0 0 2"
BorderBrush="#3F375F">
<ContentPresenter HorizontalAlignment="Center" VerticalAlignment="Center" />
</Border>
</ControlTemplate>
</Setter.Value>
</Setter>
<Style.Triggers>
<Trigger Property="IsMouseOver" Value="https://www.cnblogs.com/Dotnet9-com/archive/2022/05/14/True">
<Setter Property="Foreground" Value="https://www.cnblogs.com/Dotnet9-com/archive/2022/05/14/#e9e9e9" />
<Setter Property="Template">
<Setter.Value>
<ControlTemplate TargetType="{x:Type Button}">
<Border Background="{TemplateBinding Background}" Padding="20 10 20 10"
BorderThickness="0 0 0 2">
<Border.BorderBrush>
<LinearGradientBrush StartPoint="0,0" EndPoint="1,0">
<GradientStop Color="#D489FF" Offset="0" />
<GradientStop Color="#7985FF" Offset="0.5" />
<GradientStop Color="#6AD8FD" Offset="1" />
</LinearGradientBrush>
</Border.BorderBrush>
<ContentPresenter HorizontalAlignment="Center" VerticalAlignment="Center" />
</Border>
</ControlTemplate>
</Setter.Value>
</Setter>
</Trigger>
<Trigger Property="IsMouseCaptured" Value="https://www.cnblogs.com/Dotnet9-com/archive/2022/05/14/True">
<Setter Property="Foreground" Value="https://www.cnblogs.com/Dotnet9-com/archive/2022/05/14/White" />
</Trigger>
</Style.Triggers>
</Style>
<Style x:Key="activeTabButton" TargetType="Button" BasedOn="{StaticResource tabButton}">
<Setter Property="Template">
<Setter.Value>
<ControlTemplate TargetType="{x:Type Button}">
<Border Background="{TemplateBinding Background}" Padding="20 10 20 10" BorderThickness="0 0 0 2">
<Border.BorderBrush>
<LinearGradientBrush StartPoint="0,0" EndPoint="1,0">
<GradientStop Color="#D489FF" Offset="0" />
<GradientStop Color="#7985FF" Offset="0.5" />
<GradientStop Color="#6AD8FD" Offset="1" />
</LinearGradientBrush>
</Border.BorderBrush>
<ContentPresenter HorizontalAlignment="Center" VerticalAlignment="Center" />
</Border>
</ControlTemplate>
</Setter.Value>
</Setter>
</Style>
<Style x:Key="textLabel" TargetType="TextBlock">
<Setter Property="Foreground" Value="https://www.cnblogs.com/Dotnet9-com/archive/2022/05/14/#fcfcfc" />
</Style>
<Style TargetType="TextBox">
<Setter Property="Background" Value="https://www.cnblogs.com/Dotnet9-com/archive/2022/05/14/#3F375F" />
<Setter Property="FocusVisualStyle" Value="https://www.cnblogs.com/Dotnet9-com/archive/2022/05/14/{x:Null}" />
<Setter Property="Padding" Value="https://www.cnblogs.com/Dotnet9-com/archive/2022/05/14/15 12" />
<Setter Property="BorderThickness" Value="https://www.cnblogs.com/Dotnet9-com/archive/2022/05/14/0" />
<Setter Property="FontSize" Value="https://www.cnblogs.com/Dotnet9-com/archive/2022/05/14/12" />
<Setter Property="Foreground" Value="https://www.cnblogs.com/Dotnet9-com/archive/2022/05/14/#fcfcfc" />
<Style.Resources>
<Style TargetType="{x:Type Border}">
<Setter Property="CornerRadius" Value="https://www.cnblogs.com/Dotnet9-com/archive/2022/05/14/15" />
</Style>
</Style.Resources>
</Style>
<Style x:Key="sendButton" TargetType="Button">
<Setter Property="Height" Value="https://www.cnblogs.com/Dotnet9-com/archive/2022/05/14/50" />
<Setter Property="Foreground" Value="https://www.cnblogs.com/Dotnet9-com/archive/2022/05/14/#f0f0f0" />
<Setter Property="Margin" Value="https://www.cnblogs.com/Dotnet9-com/archive/2022/05/14/0 15 0 0" />
<Setter Property="FocusVisualStyle" Value="https://www.cnblogs.com/Dotnet9-com/archive/2022/05/14/{x:Null}" />
<Setter Property="Template">
<Setter.Value>
<ControlTemplate TargetType="{x:Type Button}">
<Border CornerRadius="20" Padding="20 0 20 0" BorderThickness="0">
<Border.Background>
<LinearGradientBrush StartPoint="0,1" EndPoint="1,0">
<GradientStop Color="#7985FF" Offset="0" />
<GradientStop Color="#6AD8FD" Offset="1" />
</LinearGradientBrush>
</Border.Background>
<ContentPresenter HorizontalAlignment="Center" VerticalAlignment="Center" />
</Border>
</ControlTemplate>
</Setter.Value>
</Setter>
<Style.Triggers>
<Trigger Property="IsMouseOver" Value="https://www.cnblogs.com/Dotnet9-com/archive/2022/05/14/True">
<Setter Property="Foreground" Value="https://www.cnblogs.com/Dotnet9-com/archive/2022/05/14/White" />
<Setter Property="FontWeight" Value="https://www.cnblogs.com/Dotnet9-com/archive/2022/05/14/Bold" />
<Setter Property="Template">
<Setter.Value>
<ControlTemplate TargetType="{x:Type Button}">
<Border CornerRadius="20" Padding="20 0 20 0" BorderThickness="0">
<Border.Background>
<LinearGradientBrush StartPoint="0,1" EndPoint="1,0">
<GradientStop Color="#7985FF" Offset="0.5" />
<GradientStop Color="#6AD8FD" Offset="1" />
</LinearGradientBrush>
</Border.Background>
<ContentPresenter HorizontalAlignment="Center" VerticalAlignment="Center" />
</Border>
</ControlTemplate>
</Setter.Value>
</Setter>
</Trigger>
</Style.Triggers>
</Style>
<Style x:Key="bankCardNumber" TargetType="TextBlock">
<Setter Property="Foreground" Value="https://www.cnblogs.com/Dotnet9-com/archive/2022/05/14/#fcfcfc" />
<Setter Property="FontSize" Value="https://www.cnblogs.com/Dotnet9-com/archive/2022/05/14/16" />
<Setter Property="Margin" Value="https://www.cnblogs.com/Dotnet9-com/archive/2022/05/14/17 0" />
</Style>
<Style x:Key="whiteIcon" TargetType="materialDesign:PackIcon">
<Setter Property="Foreground" Value="https://www.cnblogs.com/Dotnet9-com/archive/2022/05/14/#f0f0f0" />
<Setter Property="Width" Value="https://www.cnblogs.com/Dotnet9-com/archive/2022/05/14/16" />
<Setter Property="Height" Value="https://www.cnblogs.com/Dotnet9-com/archive/2022/05/14/16" />
</Style>
<Style x:Key="cardBorder" TargetType="Border">
<Setter Property="Height" Value="https://www.cnblogs.com/Dotnet9-com/archive/2022/05/14/150" />
<Setter Property="CornerRadius" Value="https://www.cnblogs.com/Dotnet9-com/archive/2022/05/14/25" />
<Setter Property="Padding" Value="https://www.cnblogs.com/Dotnet9-com/archive/2022/05/14/10" />
<Setter Property="VerticalAlignment" Value="https://www.cnblogs.com/Dotnet9-com/archive/2022/05/14/Top" />
</Style>
<Style x:Key="topMenuIcon" TargetType="materialDesign:PackIcon">
<Setter Property="Foreground" Value="https://www.cnblogs.com/Dotnet9-com/archive/2022/05/14/#f0f0f0" />
<Setter Property="Width" Value="https://www.cnblogs.com/Dotnet9-com/archive/2022/05/14/18" />
<Setter Property="Height" Value="https://www.cnblogs.com/Dotnet9-com/archive/2022/05/14/18" />
<Setter Property="Margin" Value="https://www.cnblogs.com/Dotnet9-com/archive/2022/05/14/4" />
</Style>
<Style x:Key="button" TargetType="Button">
<Setter Property="Background" Value="https://www.cnblogs.com/Dotnet9-com/archive/2022/05/14/Transparent" />
<Setter Property="Foreground" Value="https://www.cnblogs.com/Dotnet9-com/archive/2022/05/14/#f0f0f0" />
<Setter Property="FocusVisualStyle" Value="https://www.cnblogs.com/Dotnet9-com/archive/2022/05/14/{x:Null}" />
<Setter Property="Template">
<Setter.Value>
<ControlTemplate TargetType="{x:Type Button}">
<Border Background="{TemplateBinding Background}" CornerRadius="10" BorderBrush="#504373"
Padding="10 8 10 8" BorderThickness="1">
<ContentPresenter HorizontalAlignment="Center" VerticalAlignment="Center" />
</Border>
</ControlTemplate>
</Setter.Value>
</Setter>
<Style.Triggers>
<Trigger Property="IsMouseOver" Value="https://www.cnblogs.com/Dotnet9-com/archive/2022/05/14/True">
<Setter Property="Background" Value="https://www.cnblogs.com/Dotnet9-com/archive/2022/05/14/#504373" />
<Setter Property="Foreground" Value="https://www.cnblogs.com/Dotnet9-com/archive/2022/05/14/#f0f0f0" />
</Trigger>
<Trigger Property="IsMouseCaptured" Value="https://www.cnblogs.com/Dotnet9-com/archive/2022/05/14/True">
<Setter Property="Background" Value="https://www.cnblogs.com/Dotnet9-com/archive/2022/05/14/#2f2745" />
<Setter Property="Foreground" Value="https://www.cnblogs.com/Dotnet9-com/archive/2022/05/14/White" />
</Trigger>
</Style.Triggers>
</Style>
<Style x:Key="fillButton" TargetType="Button" BasedOn="{StaticResource ResourceKey=button}">
<Setter Property="Background" Value="https://www.cnblogs.com/Dotnet9-com/archive/2022/05/14/#6b5a96" />
</Style>
<Style x:Key="topMenuButton" TargetType="Button" BasedOn="{StaticResource ResourceKey=button}">
<Setter Property="Background" Value="https://www.cnblogs.com/Dotnet9-com/archive/2022/05/14/#3C315B" />
<Setter Property="Template">
<Setter.Value>
<ControlTemplate TargetType="{x:Type Button}">
<Border Background="{TemplateBinding Background}" CornerRadius="15" BorderBrush="#504373"
Padding="10 8 10 8" BorderThickness="1">
<ContentPresenter HorizontalAlignment="Center" VerticalAlignment="Center" />
</Border>
</ControlTemplate>
</Setter.Value>
</Setter>
</Style>
</ResourceDictionary>
4. 結尾（視頻及原始碼倉庫）
有興趣可以看看原作者視頻（非常推薦），以及下方給出的原始碼倉庫鏈接：
參考：
- 油管視頻作者：C# WPF UI Academy
- 油管視頻：C# WPF UI | How to Design Dark Mode Wallet Payment Dashboard in WPF
- 參考代碼：WPF-Dark-Wallet-Payment
- 本文代碼：WalletPayment
轉載請註明出處，本文鏈接：https://www.uj5u.com/net/474555.html
標籤：.NET技术
上一篇：Web Api原始碼(路由注冊)
