我有一個關于顏色圖管理的問題。
在下圖中，顯示的每個點都與一個值相關聯：2、3、4、5 或 13。
因此，要知道與每個點關聯的值，我使用了 colormap 選項。我生成了 5 種顏色的顏色圖，每個值對應一種顏色。

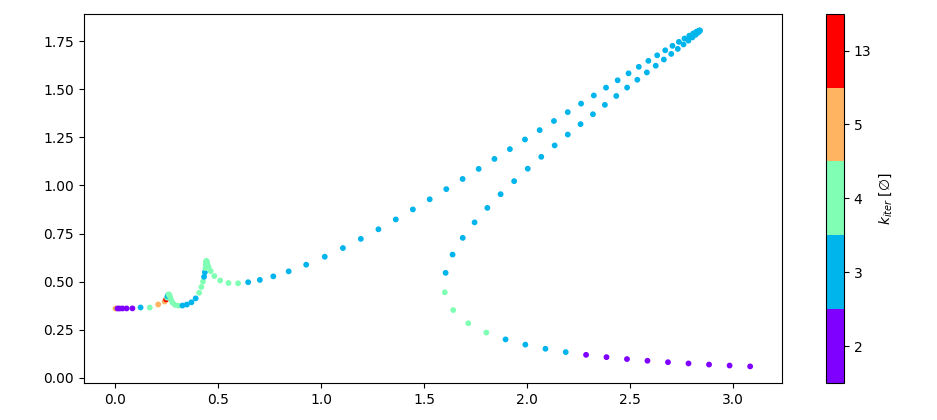

問題是值 2、3 和 4 與紫色相關聯，值 5 與藍色相關聯，值 13 與紅色相關聯。實際上，顏色圖包含 5 種顏色，但右側標簽的比例從 2 到 13。

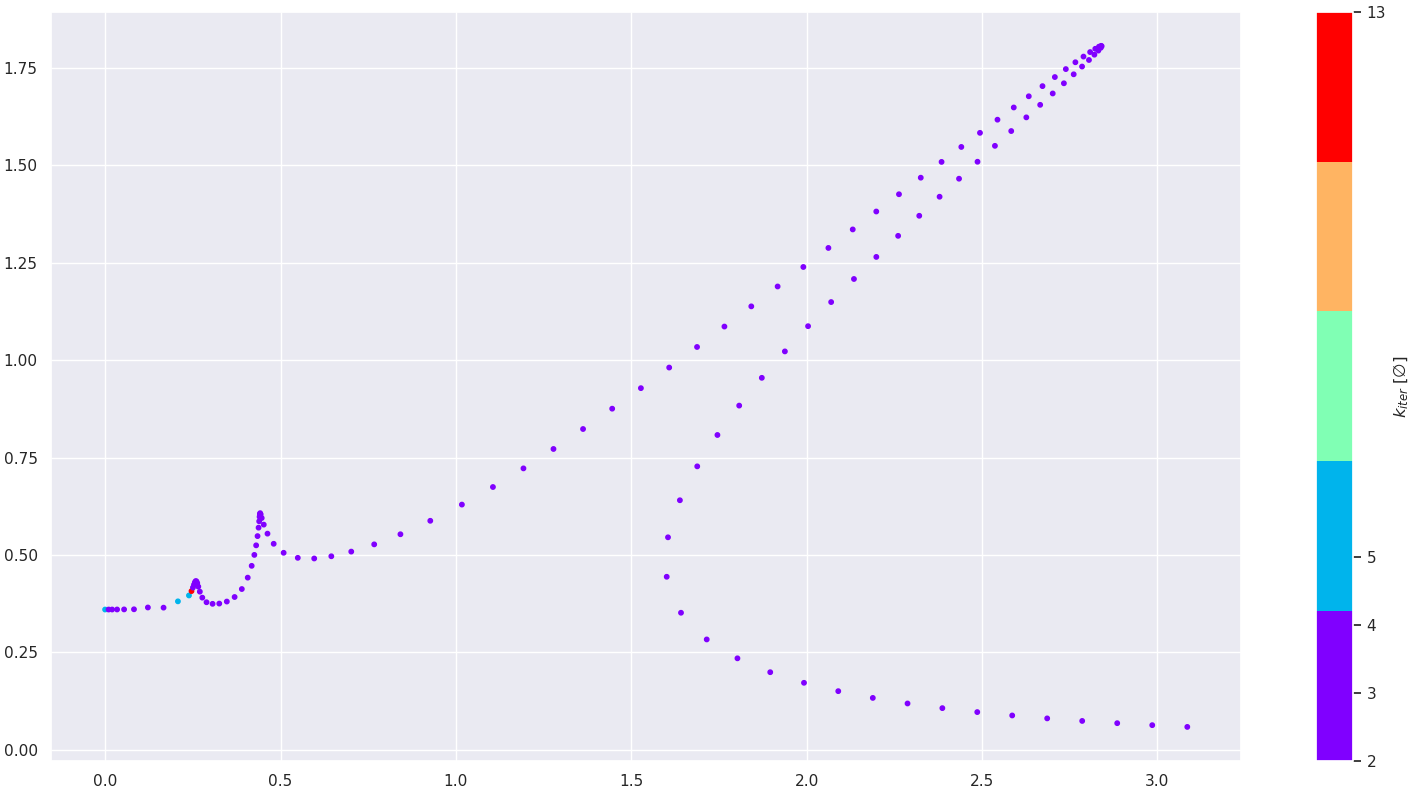

但是，我希望 2 與紫色相關聯，3 與藍色相關聯，4 與綠色相關聯，5 與橙色相關聯，13 與紅色相關聯。
我的代碼：
#!/usr/bin/env python3
# -*- coding: utf-8 -*-
"""
Created on Sat May 14 15:04:21 2022
@author: cldelh
"""
import numpy as np
import matplotlib.pyplot as plt
from matplotlib.pyplot import cm
# Abscisses
W = np.array([0. , 0.01 , 0.01999402, 0.03412597, 0.05410511,
0.08232443, 0.12194226, 0.16661301, 0.20758763, 0.23904194,
0.24626125, 0.25039445, 0.25330903, 0.25582872, 0.25816522,
0.26031379, 0.26266544, 0.26568211, 0.27005595, 0.2770875 ,
0.28909234, 0.30636753, 0.32544111, 0.34694002, 0.36917884,
0.3897257 , 0.40656458, 0.41784063, 0.42541583, 0.43055847,
0.43452519, 0.43742307, 0.43919769, 0.44031273, 0.44112462,
0.44200454, 0.44347889, 0.44643343, 0.45229159, 0.46288266,
0.48056282, 0.50895736, 0.54927625, 0.59608409, 0.64487664,
0.7016973 , 0.76708481, 0.84185322, 0.92696579, 1.01707062,
1.10557259, 1.19256251, 1.27815237, 1.36244217, 1.44550112,
1.52735963, 1.60800828, 1.68740049, 1.76545689, 1.84207015,
1.91710981, 1.99042675, 2.06185747, 2.13122796, 2.1983573 ,
2.263061 , 2.32515405, 2.38445365, 2.44078163, 2.49396659,
2.54384564, 2.5902658 , 2.63308518, 2.67217368, 2.70741361,
2.73869997, 2.76594058, 2.78905614, 2.80798011, 2.82265863,
2.83305046, 2.83912688, 2.84087179, 2.83828174, 2.83136621,
2.82014797, 2.80466344, 2.78496333, 2.76111323, 2.73319431,
2.70130406, 2.665557 , 2.62608541, 2.58303999, 2.53659044,
2.48692603, 2.43425621, 2.3788113 , 2.32084358, 2.26062905,
2.1984705 , 2.13470266, 2.06970116, 2.0038978 , 1.93780705,
1.87207326, 1.80755842, 1.74551542, 1.68795847, 1.63852865,
1.60461127, 1.60094385, 1.64165693, 1.71498642, 1.80255956,
1.89604738, 1.99229146, 2.08996895, 2.18845668, 2.28743203,
2.38671536, 2.48620089, 2.58582339, 2.68554117, 2.78532671,
2.8851614 , 2.98503236, 3.08493046])
# Ordonnées
Xinf = np.array([0.36001558, 0.36002501, 0.36005669, 0.36013731, 0.36031898,
0.36062301, 0.36527713, 0.36485195, 0.38101038, 0.39612248,
0.40736786, 0.41642505, 0.42372367, 0.4296357 , 0.4329689 ,
0.43243038, 0.42777775, 0.41881406, 0.4058955 , 0.39050351,
0.37868412, 0.37464251, 0.3753022 , 0.38049347, 0.39215149,
0.41261855, 0.44186649, 0.47214887, 0.50022204, 0.52476197,
0.54846522, 0.57015033, 0.58647846, 0.59804236, 0.60505114,
0.60736793, 0.60431747, 0.59481333, 0.57794772, 0.55477589,
0.52875494, 0.50564226, 0.49269248, 0.49103505, 0.49670408,
0.50868991, 0.52725566, 0.55320582, 0.58777717, 0.62935965,
0.67447035, 0.72228144, 0.77209809, 0.82333207, 0.87550968,
0.92821221, 0.98109947, 1.03388713, 1.08631077, 1.13814125,
1.18917466, 1.23921078, 1.28807521, 1.33558548, 1.38158777,
1.42589996, 1.46839252, 1.50890861, 1.54730779, 1.58347723,
1.61727155, 1.64859434, 1.67732612, 1.70338193, 1.72667917,
1.74713082, 1.76466827, 1.77924246, 1.79079041, 1.79926455,
1.80462534, 1.80686203, 1.80593978, 1.80183511, 1.79455897,
1.78410278, 1.77046371, 1.75366114, 1.733729 , 1.7106789 ,
1.68454743, 1.65537695, 1.62321454, 1.58811057, 1.55013282,
1.50933504, 1.46577577, 1.41951312, 1.37061227, 1.31911356,
1.2650476 , 1.20840623, 1.14917691, 1.08726763, 1.02253009,
0.95471075, 0.88341169, 0.8079946 , 0.72748982, 0.64047401,
0.54539278, 0.44410944, 0.35174988, 0.28325452, 0.23475268,
0.19915439, 0.17195691, 0.15050578, 0.13316766, 0.11888317,
0.10692915, 0.09679719, 0.08811551, 0.08060803, 0.07406247,
0.06831513, 0.06323702, 0.05872426])
# Variables
variable = np.array([ 5., 2., 2., 2., 2., 2., 3., 4., 5., 5., 13., 4., 3.,
3., 4., 4., 4., 4., 4., 4., 4., 4., 3., 3., 3., 3.,
4., 4., 4., 3., 3., 4., 4., 4., 4., 4., 4., 4., 4.,
4., 4., 4., 4., 4., 3., 3., 3., 3., 3., 3., 3., 3.,
3., 3., 3., 3., 3., 3., 3., 3., 3., 3., 3., 3., 3.,
3., 3., 3., 3., 3., 3., 3., 3., 3., 3., 3., 3., 3.,
3., 3., 3., 3., 3., 3., 3., 3., 3., 3., 3., 3., 3.,
3., 3., 3., 3., 3., 3., 3., 3., 3., 3., 3., 3., 3.,
3., 3., 3., 3., 3., 3., 3., 4., 4., 4., 4., 3., 3.,
3., 3., 2., 2., 2., 2., 2., 2., 2., 2., 2.])
# Valeurs contenues dans variable
variable_delete = np.array([ 5., 2., 3., 4., 13.])
# Points
plt.scatter(W,Xinf,s=10,marker='o', c=variable, cmap=cm.get_cmap('rainbow', len(variable_delete)))
# Colorbar
cb = plt.colorbar(ticks=variable_delete, location='right', label=r'$k_{iter} \; [\emptyset]$')
uj5u.com熱心網友回復：
以下方法首先將 5 個等距點定位到 0 到 1 的范圍內（默認顏色圖范圍）。然后它將 5 個值中的每一個映射variable_delete到其對應的位置。這些映射值用于著色。之后，顏色條位置會被相應地標記。
當數字標簽以隨機順序排列時，該代碼也有效。
（另一種方法可能是使用 a BoundaryNorm，但是要很好地定位標簽會變得更加復雜。）
import numpy as np
import matplotlib.pyplot as plt
# W = ...
# Xinf = ...
# variable = ...
variable_delete = np.array([2., 3., 4., 5., 13.])
cbar_spots = np.linspace(0, 1, 2 * len(variable_delete) 1)[1::2]
cbar_dict = {var: spot for var, spot in zip(variable_delete, cbar_spots)}
var_mapped = np.zeros_like(variable)
for k, v in cbar_dict.items():
var_mapped[variable == k] = v
plt.scatter(W, Xinf, s=10, marker='o', c=var_mapped,
cmap=plt.get_cmap('rainbow', len(variable_delete)), vmin=0, vmax=1)
cb = plt.colorbar(ticks=cbar_spots, location='right', label=r'$k_{iter} \; [\emptyset]$')
cb.set_ticklabels(variable_delete.astype(int).astype(str))
plt.show()
uj5u.com熱心網友回復：

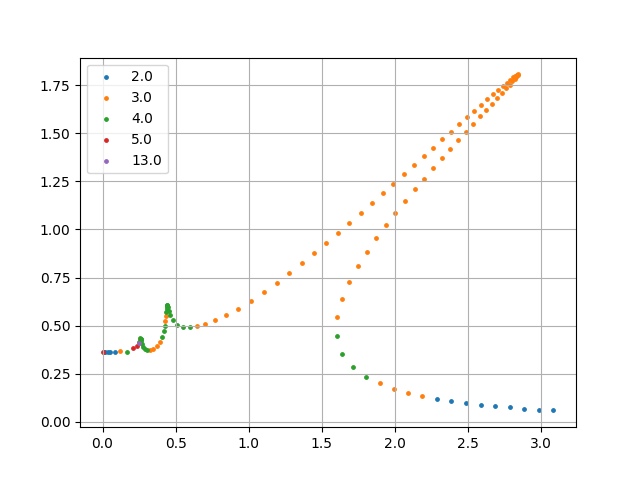

我可以建議使用顏色圖的簡單替代方法嗎？
In [26]: for v in sorted(variable_delete):
...: ix = variable == v
...: plt.scatter(W[ix], Xinf[ix], s=6, marker='o', label='%3.1f'%v)
...: plt.legend()
...: plt.grid()
