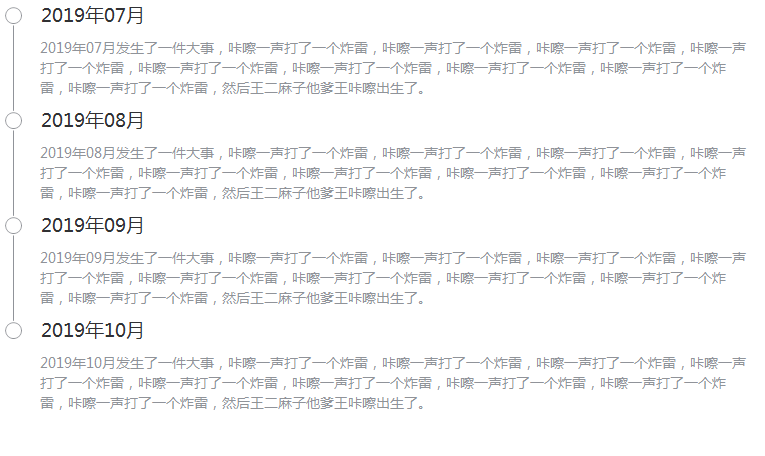

用處及效果
準備作業
沒什么可準備的，直接開干吧，
思路：
2個panel，分別放標題和明細
然后重繪控制元件，在標題旁邊畫圓并且連線
開始
添加一個類來存放節點資訊
1 public class TimeLineItem 2 { 3 /// <summary> 4 /// Gets or sets the title. 5 /// </summary> 6 /// <value>The title.</value> 7 public string Title { get; set; } 8 /// <summary> 9 /// Gets or sets the details.10 /// </summary>11 /// <value>The details.</value>12 public string Details { get; set; }13 }
添加一個用戶控制元件UCTimeLine
添加一些屬性
1 /// <summary> 2 /// The line color 3 /// </summary> 4 private Color lineColor = TextColors.Light; 5 6 /// <summary> 7 /// Gets or sets the color of the line. 8 /// </summary> 9 /// <value>The color of the line.</value> 10 [Description("連接線顏色"), Category("自定義")] 11 public Color LineColor 12 { 13 get { return lineColor; } 14 set 15 { 16 lineColor = value; 17 Invalidate(); 18 } 19 } 20 /// <summary> 21 /// The title font 22 /// </summary> 23 private Font titleFont = new Font("微軟雅黑", 14f); 24 25 /// <summary> 26 /// Gets or sets the title font. 27 /// </summary> 28 /// <value>The title font.</value> 29 [Description("標題字體"), Category("自定義")] 30 public Font TitleFont 31 { 32 get { return titleFont; } 33 set 34 { 35 titleFont = value; 36 ReloadItems(); 37 } 38 } 39 40 /// <summary> 41 /// The title forcolor 42 /// </summary> 43 private Color titleForcolor = TextColors.MoreDark; 44 45 /// <summary> 46 /// Gets or sets the title forcolor. 47 /// </summary> 48 /// <value>The title forcolor.</value> 49 [Description("標題顏色"), Category("自定義")] 50 public Color TitleForcolor 51 { 52 get { return titleForcolor; } 53 set 54 { 55 titleForcolor = value; 56 ReloadItems(); 57 } 58 } 59 60 /// <summary> 61 /// The details font 62 /// </summary> 63 private Font detailsFont = new Font("微軟雅黑", 10); 64 65 /// <summary> 66 /// Gets or sets the details font. 67 /// </summary> 68 /// <value>The details font.</value> 69 [Description("詳情字體"), Category("自定義")] 70 public Font DetailsFont 71 { 72 get { return detailsFont; } 73 set 74 { 75 detailsFont = value; 76 ReloadItems(); 77 } 78 } 79 80 /// <summary> 81 /// The details forcolor 82 /// </summary> 83 private Color detailsForcolor = TextColors.Light; 84 85 /// <summary> 86 /// Gets or sets the details forcolor. 87 /// </summary> 88 /// <value>The details forcolor.</value> 89 [Description("詳情顏色"), Category("自定義")] 90 public Color DetailsForcolor 91 { 92 get { return detailsForcolor; } 93 set 94 { 95 detailsForcolor = value; 96 ReloadItems(); 97 } 98 } 99 100 /// <summary>101 /// The items102 /// </summary>103 TimeLineItem[] items;104 105 /// <summary>106 /// Gets or sets the items.107 /// </summary>108 /// <value>The items.</value>109 [Description("項串列"), Category("自定義")]110 public TimeLineItem[] Items111 {112 get { return items; }113 set114 {115 items = value;116 ReloadItems();117 }118 }
建構式初始化一些東西
1 public UCTimeLine() 2 { 3 this.SetStyle(ControlStyles.AllPaintingInWmPaint, true); 4 this.SetStyle(ControlStyles.DoubleBuffer, true); 5 this.SetStyle(ControlStyles.ResizeRedraw, true); 6 this.SetStyle(ControlStyles.Selectable, true); 7 this.SetStyle(ControlStyles.SupportsTransparentBackColor, true); 8 this.SetStyle(ControlStyles.UserPaint, true); 9 InitializeComponent();10 items = new TimeLineItem[0];11 if (ControlHelper.IsDesignMode())12 {13 items = new TimeLineItem[4];14 for (int i = 0; i < 4; i++)15 {16 items[i] = new TimeLineItem()17 {18 Title = DateTime.Now.AddMonths(-1 * (3 - i)).ToString("yyyy年MM月"),19 Details = DateTime.Now.AddMonths(-1 * (3 - i)).ToString("yyyy年MM月") + "發生了一件大事，咔嚓一聲打了一個炸雷，咔嚓一聲打了一個炸雷，咔嚓一聲打了一個炸雷，咔嚓一聲打了一個炸雷，咔嚓一聲打了一個炸雷，咔嚓一聲打了一個炸雷，咔嚓一聲打了一個炸雷，咔嚓一聲打了一個炸雷，咔嚓一聲打了一個炸雷，然后王二麻子他爹王咔嚓出生了，"20 };21 }22 ReloadItems();23 }24 }
重新加載串列
1 private void ReloadItems() 2 { 3 try 4 { 5 ControlHelper.FreezeControl(this, true); 6 this.Controls.Clear(); 7 if (items != null) 8 { 9 foreach (var item in items)10 {11 FlowLayoutPanel panelTitle = new FlowLayoutPanel();12 panelTitle.Dock = DockStyle.Top;13 panelTitle.AutoScroll = false;14 panelTitle.Padding = new System.Windows.Forms.Padding(5);15 panelTitle.Name = "title_" + Guid.NewGuid().ToString();16 17 Label lblTitle = new Label();18 lblTitle.Dock = DockStyle.Top;19 lblTitle.AutoSize = true;20 lblTitle.Font = titleFont;21 lblTitle.ForeColor = titleForcolor;22 lblTitle.Text = item.Title;23 lblTitle.SizeChanged += item_SizeChanged;24 panelTitle.Controls.Add(lblTitle);25 this.Controls.Add(panelTitle);26 panelTitle.BringToFront();27 28 29 FlowLayoutPanel panelDetails = new FlowLayoutPanel();30 panelDetails.Dock = DockStyle.Top;31 panelDetails.AutoScroll = false;32 panelDetails.Padding = new System.Windows.Forms.Padding(5);33 panelDetails.Name = "details_" + Guid.NewGuid().ToString();34 Label lblDetails = new Label();35 lblDetails.AutoSize = true;36 lblDetails.Dock = DockStyle.Top;37 lblDetails.Font = detailsFont;38 lblDetails.ForeColor = detailsForcolor;39 lblDetails.Text = item.Details;40 lblDetails.SizeChanged += item_SizeChanged;41 panelDetails.Controls.Add(lblDetails);42 this.Controls.Add(panelDetails);43 panelDetails.BringToFront();44 45 }46 }47 }48 finally49 {50 ControlHelper.FreezeControl(this, false);51 }52 }
當文本大小改變時改變面板大小
1 void item_SizeChanged(object sender, EventArgs e)2 {3 Label lbl = (Label)sender;4 lbl.Parent.Height = lbl.Height + 10;5 }
重繪來畫圓和連線
1 protected override void OnPaint(PaintEventArgs e) 2 { 3 base.OnPaint(e); 4 var g = e.Graphics; 5 g.SetGDIHigh(); 6 var lst = this.Controls.ToArray().Where(p => p.Name.StartsWith("title_")).ToList(); 7 for (int i = 0; i < lst.Count; i++) 8 { 9 //畫圓10 g.DrawEllipse(new Pen(new SolidBrush(lineColor)), new Rectangle(7, lst[i].Location.Y + 10, 16, 16));11 //劃線12 if (i != lst.Count - 1)13 {14 g.DrawLine(new Pen(new SolidBrush(lineColor)), new Point(7 + 8, lst[i].Location.Y + 10 - 2), new Point(7 + 8, lst[i + 1].Location.Y + 10 + 16 + 2));15 }16 }17 }
最后的話
