我正在從頭開始開發一個淺層全連接 ANN，它通過帶有動量演算法的梯度下降來學習。這是代碼
import numpy as np
from scipy.special import expit, xlog1py
def softmax(y):
e_y = np.exp(y - np.max(y))
return e_y / e_y.sum()
def cross_entropy(y, t, derivative=False, post_process=True):
if post_process:
if derivative:
return y - t
return -np.sum(np.sum(xlog1py(t, softmax(y)), axis=0))
def sigmoid(a, derivative=False):
f_a = expit(-a)
df_a = np.multiply(f_a, (1 - f_a)) # element-wise
if derivative:
return df_a
return f_a
def identity(a, derivative=False):
f_a = a
df_a = np.ones(np.shape(a))
if derivative:
return df_a
return f_a
def generate_data(n_items, n_features, n_classes):
X = np.asmatrix(np.random.normal(size=(n_items, n_features)))
targets = np.asarray(np.random.randint(n_classes, size=n_items))
targets = one_hot(targets)
return X, targets
def one_hot(targets):
return np.asmatrix(np.eye(np.max(targets) 1)[targets]).T
class NeuralNetwork:
def __init__(self):
self.layers = []
def add_layer(self, layer):
self.layers.append(layer)
def build(self):
for i, layer in enumerate(self.layers):
if i == 0:
layer.type = "input"
else:
layer.type = "output" if i == len(self.layers) - 1 else "hidden"
layer.configure(self.layers[i - 1].neurons)
def fit(self, X, targets):
MAX_EPOCHS = 200
epoch_loss = []
# batch mode
for epoch in range(MAX_EPOCHS):
predictions = self.predict(X)
self.back_prop(targets, cross_entropy)
self.learning_rule(l_rate=0.01, momentum=0.01)
loss = cross_entropy(predictions, targets)
epoch_loss.append(loss)
print("E(%d) on TrS is:" % epoch, loss)
# Columns of predictions
def predict(self, dataset):
z = dataset.T
for layer in self.layers:
z = layer.forward_prop_step(z)
return z
def back_prop(self, target, loss):
for i, layer in enumerate(self.layers[:0:-1]):
next_layer = self.layers[-i]
prev_layer = self.layers[-i - 2]
layer.back_prop_step(next_layer, prev_layer, target, loss)
def learning_rule(self, l_rate, momentum):
# Momentum GD
for layer in [layer for layer in self.layers if layer.type != "input"]:
layer.update_weights(l_rate, momentum)
layer.update_bias(l_rate, momentum)
class Layer:
def __init__(self, neurons, type=None, activation=None):
self.dE_dW = 0
self.dE_db = 0
self.dEn_db = None
self.dEn_dW = None
self.dact_a = None
self.out = None
self.weights = None
self.bias = None
self.w_sum = None
self.neurons = neurons
self.type = type
self.activation = activation
self.deltas = None
def configure(self, prev_layer_neurons):
self.weights = np.asmatrix(np.random.normal(-1, 1, (self.neurons, prev_layer_neurons)))
self.bias = np.asmatrix(np.random.normal(-1, 1, self.neurons)).T # vettore colonna
if self.activation is None:
# th approx universale
if self.type == "hidden":
self.activation = sigmoid
elif self.type == "output":
self.activation = identity
def forward_prop_step(self, z):
if self.type == "input":
self.out = z
else:
self.w_sum = np.dot(self.weights, z) self.bias
self.out = self.activation(self.w_sum)
return self.out
def back_prop_step(self, next_layer, prev_layer, target, local_loss):
if self.type == "output":
self.dact_a = self.activation(self.w_sum, derivative=True)
self.deltas = np.multiply(self.dact_a,
local_loss(self.out, target, derivative=True)) # (c,batch_size)
else:
self.dact_a = self.activation(self.w_sum, derivative=True) # (m,batch_size)
debug = np.dot(next_layer.weights.T, next_layer.deltas) # <<<< problem here
self.deltas = np.multiply(self.dact_a, debug)
self.dEn_dW = self.deltas * prev_layer.out.T
self.dEn_db = self.deltas
self.dE_dW = self.dEn_dW
self.dE_db = self.dEn_db
def update_weights(self, l_rate, momentum):
# Momentum GD
self.weights = self.weights - l_rate * self.dE_dW
self.weights = -l_rate * self.dE_dW momentum * self.weights
def update_bias(self, l_rate, momentum):
# Momentum GD
self.bias = self.bias - l_rate * self.dE_db
self.bias = -l_rate * self.dE_db momentum * self.bias
if __name__ == '__main__':
# Dog: 0 -> 000
# Cat: 1 -> 010
# Mouse: 2 -> 001
net = NeuralNetwork()
d = 4 # (n_features)
c = 3 # classes
n_items = 10 # increasing this gives NaN in EBP formula, in debug variable
for m in (d, 4, c):
layer = Layer(m)
net.add_layer(layer)
net.build()
X, targets = generate_data(n_items=n_items, n_features=d, n_classes=c)
net.fit(X, targets)
如果n_items值較低，例如 10 或 100，則學習正常：
E(0) on TrS is: -0.27547576455869305
E(1) on TrS is: -0.33774479466660445
E(2) on TrS is: -0.3295771015279694
...
E(199) on TrS is: -0.33026951829371987
不幸的是，當n_items變大時，例如 1000，我收到此錯誤：
RuntimeWarning：在乘法中遇到無效值 self.deltas = np.multiply(self.dact_a, debug)
和：
E(0) on TrS is: -0.3337489007828587
E(1) on TrS is: -0.01614463421285259
E(2) on TrS is: -0.33594156066981384
E(3) on TrS is: -0.11378512597000995
E(4) on TrS is: -0.33508867936192843
E(5) on TrS is: -0.33276323614435077
E(6) on TrS is: -0.33310949105565746
E(7) on TrS is: -0.224661060748479
E(8) on TrS is: -0.3321560115270673
E(9) on TrS is: -0.22289014654421438
...
E(138) on TrS is: nan
E(139) on TrS is: nan
E(140) on TrS is: nan
E(141) on TrS is: nan
...
E(199) on TrS is: nan
我認為這是由不斷增長的變數引起的debug，直到達到.sys.float_info.max1.7976931348623157e 308
我怎么解決這個問題？
uj5u.com熱心網友回復：
看起來你有爆炸梯度。也許嘗試一些正則化。

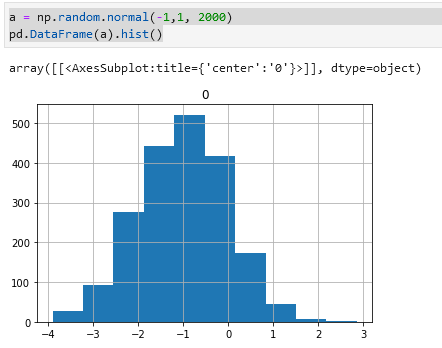

不過，有幾件一般的事情。您的權重初始化將給出非常大的起始值，這可能會導致梯度爆炸。
相反，考慮更多類似的東西：
np.random.normal(-0.1,0.02,...
這個例子不影響權重，但也值得看看你的一些方法的邏輯。例如，sigmoid 總是計算導數，不管它是否被使用。也許改為使用兩種方法（每種方法一項作業）或至少計算 if 內的導數：
def sigmoid(a, derivative=False):
f_a = expit(-a)
if derivative:
df_a = np.multiply(f_a, (1 - f_a)) # element-wise
return df_a
return f_a
有關爆炸梯度和權重初始化的更多資訊，請參閱此https://medium.com/usf-msds/deep-learning-best-practices-1-weight-initialization-14e5c0295b94。
