包shinyscreenshot無法列印顏色plotly條（

目標

圖例中是否有 4 個、5 個或 X 個資料點并不重要。

MWE

library(ggplot2)
library(plotly)

ggplotly(
  ggplot(data=mtcars,
         aes(x=mpg, y=cyl, color=qsec))
    geom_point()
)

uj5u.com熱心網友回復：

Plotly 不會為您創造一個離散的傳奇，但您仍然可以實作它。

首先，我將ggplot和分配給了ggplotly物件。

plt <- ggplotly(
  ggplot(data=mtcars,
         aes(x=mpg, y=cyl, color=qsec))
    geom_point()
)

g <- ggplot(data=mtcars,
            aes(x=mpg, y=cyl, color=qsec))
  geom_point()

接下來，使用物件背后的資料ggplot，結合mtcars，按qsec資料框獲取顏色，這樣您就知道什么顏色對應什么值。

colByVal <- cbind(ggplot_build(g)$data[[1]], mtcars) %>%
  as.data.frame() %>%
  select(colour, qsec) %>% arrange(qsec) %>%
  group_by(colour) %>%
  summarise(qsec = median(qsec)) %>% as.data.frame()

我認為四個或五個值是理想的。我只是用來summary挑選它們。但是，這不是必需的。顯然，您可以選擇任意多個值。這些是我將在圖例中顯示的值。

parts <- summary(colByVal$qsec)
# drop the mean or median (the same color probably)
parts <- parts[-4]

接下來，使用DescTools::Closest查找qsec最接近匯總值的值。

vals <- lapply(parts, function(k) {
  DescTools::Closest(colByVal$qsec, k)[1]
}) %>% unlist(use.names = F)

使用這些qsec值和按顏色顯示值的資料框來獲取與這些值關聯的顏色。

cols <- colByVal %>%
  filter(qsec %in% vals) %>% select(colour) %>%
  unlist(use.names = F)

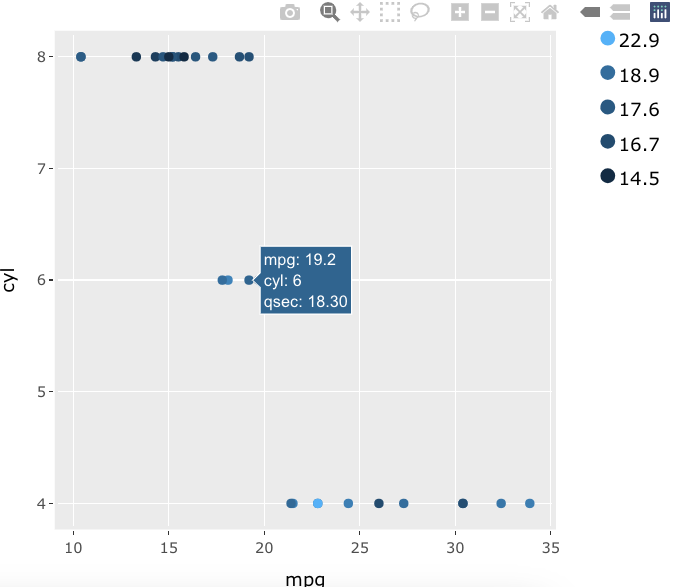

使用顏色和值（圖例標簽），使用形狀和注釋（圓圈和文本）重建圖例。在每個圖例項之間只有一個其他元素需要更改，即圖例條目的 y 位置。

ys <- seq(from = .7, by = .07, length.out = length(cols))

有兩個功能：形狀和注釋。使用lapply，遍歷這些函式的值、顏色和 y 值，以創建形狀和注釋。

# create shapes
shp <- function(y, cr) { # y0, and fillcolor
  list(type = "circle",
       xref = "paper", x0 = 1.1, x1 = 1.125,
       yref = "paper", y0 = y, y1 = y   .025,
       fillcolor = cr, yanchor = "center",
       line = list(color = cr))
}
# create labels
ano <- function(ya, lab) { # y and label
  list(x = 1.13, y = ya   .035, text = lab,
       xref = "paper", yref = "paper",
       xanchor = "left", yanchor = 'top',
       showarrow = F)
}
# the shapes list
shps <- lapply(1:length(cols),
               function(j) {
                 shp(ys[j], cols[j])
               })
# the labels list
labs <- lapply(1:length(cols),
               function(i) {
                 ano(ys[i], as.character(vals[i]))
               })

當您使用ggplotly時，出于某種原因，它以ggplotly物件的空形狀結束。這會干擾呼叫shapesin的能力layout（這是正確的方法）。你必須用形狀來解決問題。此外，圖例欄需要消失。放下圖例欄后，Plotly 將調整繪圖邊距。如果您不添加邊距，使用形狀和注釋創建的圖例將被隱藏。

# ggplot > ggplotly adds an empty shape; this conflicts with calling it in
#   layout(); we'll replace 'shapes' first
plt$x$layout$shapes <- shps
plt %>% hide_colorbar() %>%
  layout(annotations = labs, showlegend = F,
         margin = list(t = 30, r = 100, l = 50, b = 30, pad = 3))

所有這些代碼都在一個塊中：

library(tidyverse)
library(plotly)
# original plot
plt <- ggplotly(
  ggplot(data=mtcars,
         aes(x=mpg, y=cyl, color=qsec))
    geom_point()
)
g <- ggplot(data=mtcars,
            aes(x=mpg, y=cyl, color=qsec))
  geom_point()
# color by qsec values frame
colByVal <- cbind(ggplot_build(g)$data[[1]], mtcars) %>%
  as.data.frame() %>%
  select(colour, qsec) %>% arrange(qsec) %>%
  group_by(colour) %>%
  summarise(qsec = median(qsec)) %>% as.data.frame()

parts <- summary(colByVal$qsec)
# drop the mean or median (the same color probably)
parts <- parts[-4]

vals <- lapply(parts, function(k) {
  DescTools::Closest(colByVal$qsec, k)[1]
}) %>% unlist(use.names = F)

cols <- colByVal %>%
  filter(qsec %in% vals) %>% select(colour) %>%
  unlist(use.names = F)

ys <- seq(from = .7, by = .07, length.out = length(cols))

# create shapes
shp <- function(y, cr) { # y0, and fillcolor
  list(type = "circle",
       xref = "paper", x0 = 1.1, x1 = 1.125,
       yref = "paper", y0 = y, y1 = y   .025,
       fillcolor = cr, yanchor = "center",
       line = list(color = cr))
}
# create labels
ano <- function(ya, lab) { # y and label
  list(x = 1.13, y = ya   .035, text = lab,
       xref = "paper", yref = "paper",
       xanchor = "left", yanchor = 'top',
       showarrow = F)
}
# the shapes list
shps <- lapply(1:length(cols),
               function(j) {
                 shp(ys[j], cols[j])
               })
# the labels list
labs <- lapply(1:length(cols),
               function(i) {
                 ano(ys[i], as.character(vals[i]))
               })
# ggplot > ggplotly adds an empty shape; this conflicts with calling it in
#   layout(); we'll replace 'shapes' first
plt$x$layout$shapes <- shps
plt %>% hide_colorbar() %>%
  layout(annotations = labs, showlegend = F,
         margin = list(t = 30, r = 100, l = 50, b = 30, pad = 3))

uj5u.com熱心網友回復：

這只是部分答案；scale_color_continuous您可以通過使用 和 的組合來更改圖例的形狀和文本，同時保持其漸變guides(color = guide_legend())，但這只會顯示為一個ggplot物件。出于某種原因，當您將情節添加到 時，圖??例消失了ggplotly()，圖例消失了。我懷疑可能需要ggplotly()直接添加特定于圖例的引數。

library(tidyverse)
library(plotly)
data(mtcars)

p <- ggplot(mtcars, aes(x = mpg, y = cyl, color = qsec))
  geom_point()
  scale_color_continuous(breaks = c(15, 17.5, 20, 22.5))
  guides(color = guide_legend(
    reverse = T,
    override.aes = list(shape = 19, size = 8)))
  theme(legend.position = "right")
p

p2 <- ggplotly(p) %>% layout(showlegend = T)
p2
