依賴注入
框架提供了三個依賴注入多載方法，
//注入認證服務
services.AddAuthentication();
//注入認證服務并制定默認架構名
services.AddAuthentication("Cookies");
//注入認證服務并設定配置項
services.AddAuthentication(config =>
{
});
看看注入代碼
public static AuthenticationBuilder AddAuthentication(this IServiceCollection services)
{
if (services == null)
{
throw new ArgumentNullException(nameof(services));
}
services.AddAuthenticationCore();
services.AddDataProtection();
services.AddWebEncoders();
services.TryAddSingleton<ISystemClock, SystemClock>();
return new AuthenticationBuilder(services);
}

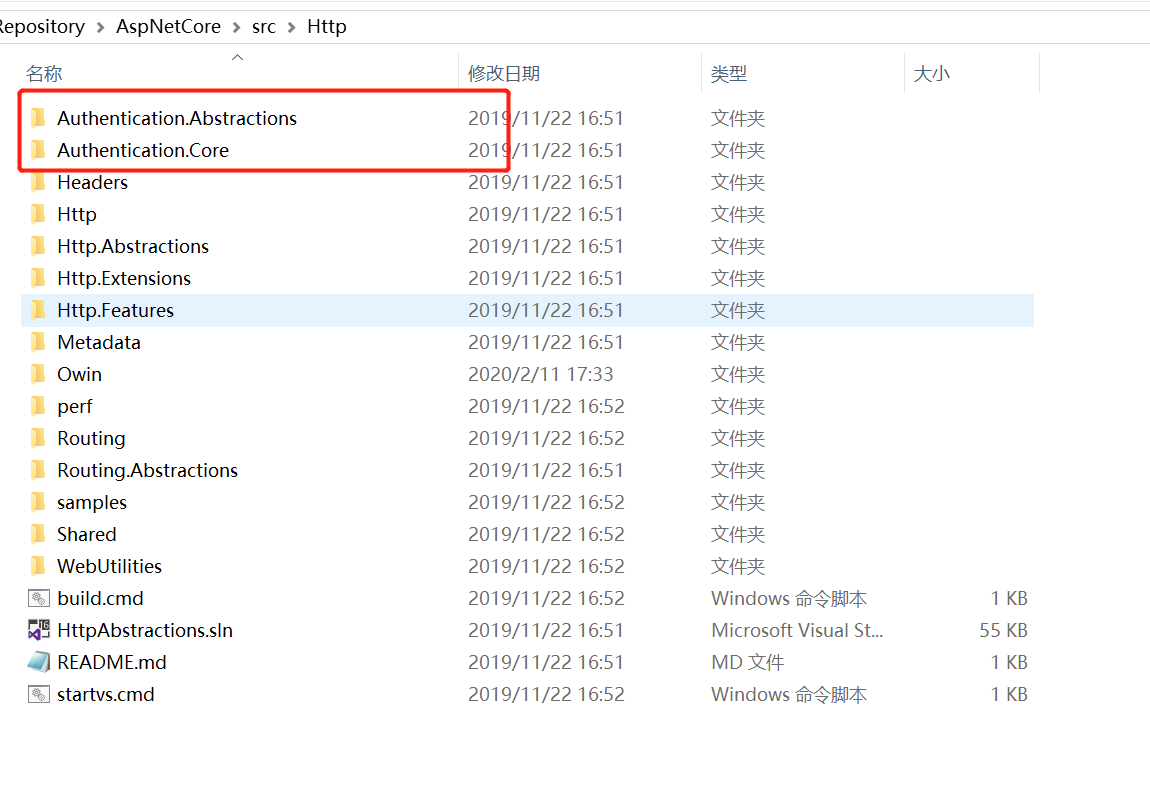

AddAuthenticationCore注入了認證服務的核心物件，這個方法在Authentication.Core專案，這個專案定義了認證服務的核心物件，在Authentication.Abstractions專案中定義了核心介面，
AddAuthenticationCore方法注入了IAuthenticationService，IClaimsTransformation，IAuthenticationHandlerProvider，IAuthenticationSchemeProvider
public static IServiceCollection AddAuthenticationCore(this IServiceCollection services)
{
if (services == null)
{
throw new ArgumentNullException(nameof(services));
}
services.TryAddScoped<IAuthenticationService, AuthenticationService>();
services.TryAddSingleton<IClaimsTransformation, NoopClaimsTransformation>(); // Can be replaced with scoped ones that use DbContext
services.TryAddScoped<IAuthenticationHandlerProvider, AuthenticationHandlerProvider>();
services.TryAddSingleton<IAuthenticationSchemeProvider, AuthenticationSchemeProvider>();
return services;
}
IAuthenticationService
認證服務，定義了五個方法
- AuthenticateAsync: 認證
- ChallengeAsync：挑戰，校驗認證
- ForbidAsync：禁止認證
- SignInAsync：登入
- SignOutAsync：登出
通過AuthenticateAsync方法源代碼可以看到，AuthenticateService只是做了控制器的角色，校驗schema，根據schema獲取handler，主要的認證邏輯是由handler處理，其他的方法基本也是這樣的邏輯，
public virtual async Task<AuthenticateResult> AuthenticateAsync(HttpContext context, string scheme)
{
if (scheme == null)
{
var defaultScheme = await Schemes.GetDefaultAuthenticateSchemeAsync();
scheme = defaultScheme?.Name;
if (scheme == null)
{
throw new InvalidOperationException($"No authenticationScheme was specified, and there was no DefaultAuthenticateScheme found. The default schemes can be set using either AddAuthentication(string defaultScheme) or AddAuthentication(Action<AuthenticationOptions> configureOptions).");
}
}
var handler = await Handlers.GetHandlerAsync(context, scheme);
if (handler == null)
{
throw await CreateMissingHandlerException(scheme);
}
var result = await handler.AuthenticateAsync();
if (result != null && result.Succeeded)
{
var transformed = await Transform.TransformAsync(result.Principal);
return AuthenticateResult.Success(new AuthenticationTicket(transformed, result.Properties, result.Ticket.AuthenticationScheme));
}
return result;
}
IClaimsTransformation
classDiagram class IClaimsTransformation{ +TransformAsync(ClaimsPrincipal principal) }該介面只有一個方法，用于轉換Claims，默認注入的NoopClaimsTransformation，不會做任何操作，如果需要對Claims做一些處理，實作IClaimsTransformation并覆寫注入就可以了，
public class NoopClaimsTransformation : IClaimsTransformation
{
/// <summary>
/// Returns the principal unchanged.
/// </summary>
/// <param name="principal">The user.</param>
/// <returns>The principal unchanged.</returns>
public virtual Task<ClaimsPrincipal> TransformAsync(ClaimsPrincipal principal)
{
return Task.FromResult(principal);
}
}
IAuthenticationHandlerProvider
classDiagram class IAuthenticationHandlerProvider{ +GetHandlerAsync(HttpContext context, string authenticationScheme) }上面提到過handler處理了主要的認證業務邏輯，這個介面可以根據schema獲取handler，
IAuthenticationSchemeProvider
classDiagram class IAuthenticationSchemeProvider{ +GetAllSchemesAsync() +GetSchemeAsync(string name) +GetDefaultAuthenticateSchemeAsync() +GetDefaultChallengeSchemeAsync() +GetDefaultForbidSchemeAsync() +GetDefaultSignInSchemeAsync() +GetDefaultSignOutSchemeAsync() +AddScheme(AuthenticationScheme scheme) +RemoveScheme(string name) +GetRequestHandlerSchemesAsync() }該介面主要定義了一些schema的操作方法，
AuthenticationScheme主要有三個屬性，通過HandlerType與handler建立了關聯，
classDiagram class AuthenticationScheme{ Name DisplayName HandlerType }認證流程
graph TD A(AuthenticationOptions定義五個認證動作的Schema) A --> B1(Authenticate) A --> B2(Challenge) A --> B3(Forbid) A --> B4(SignIn) A --> B5(SingOut) C(IAuthenticationSchemeProvider獲取Schema) B1 --> C B2 --> C B3 --> C B4 --> C B5 --> C C --> D(IAuthenticationHandlerProvider獲取Schema對應的Handler) D --> E(處理請求)其他
除了核心物件，還注入了用于資料保護和解碼的輔助物件
services.AddDataProtection();
services.AddWebEncoders();
Authentication中間件
中間件會優先在容器中找IAuthenticationRequestHandler的實作，如果handler不為空的話，則執行handler的HandleRequestAsync方法，IAuthenticationRequestHandler通常在遠程認證（如：OAuth, OIDC等）中使用，
如果沒有IAuthenticationRequestHandler的實作，則會找默認schema，執行默認schema對應handler的AuthenticationAsync方法，認證成功后，給HttpContext的User物件賦值，
public async Task Invoke(HttpContext context)
{
context.Features.Set<IAuthenticationFeature>(new AuthenticationFeature
{
OriginalPath = context.Request.Path,
OriginalPathBase = context.Request.PathBase
});
// Give any IAuthenticationRequestHandler schemes a chance to handle the request
var handlers = context.RequestServices.GetRequiredService<IAuthenticationHandlerProvider>();
foreach (var scheme in await Schemes.GetRequestHandlerSchemesAsync())
{
var handler = await handlers.GetHandlerAsync(context, scheme.Name) as IAuthenticationRequestHandler;
if (handler != null && await handler.HandleRequestAsync())
{
return;
}
}
var defaultAuthenticate = await Schemes.GetDefaultAuthenticateSchemeAsync();
if (defaultAuthenticate != null)
{
var result = await context.AuthenticateAsync(defaultAuthenticate.Name);
if (result?.Principal != null)
{
context.User = result.Principal;
}
}
await _next(context);
}
