WPF中使用第三方控制元件來直接進行錄像的控制元件沒有找到（aforgenet好像不維護了？WPFMediaKit好像只能實作攝像頭拍照，收費的控制元件沒有使用，不做評論，）

通過百度（感謝：https://www.cnblogs.com/giserlong88/p/11244779.html），確定了可以通過FFmpeg+Nginx+Vlc.DotNet.Wpf可以實作攝像頭的錄像保存、錄像預覽（有延時），實作方案是，通過FFmpeg來實作錄像并推送到Nginx搭建的rtmp流媒體服務器，然后WPF通過Vlc.DotNet.Wpf來拉取rtmp流服務器的內容來實作視頻預覽，

具體代碼如下：

首先去下載FFmpeg（http://ffmpeg.org/download.html），Nginx（http://nginx.org/en/download.html），Nuget上參考Vlc.DotNet.Wpf，下載其所需要的libvlc播放器

nginx-win-rtmp.conf組態檔內容如下：

#user  nobody;
# multiple workers works !
worker_processes  2;

#error_log  logs/error.log;
#error_log  logs/error.log  notice;
#error_log  logs/error.log  info;

#pid        logs/nginx.pid;
#worker_rlimit_nofile 100000;   #更改worker行程的最大打開檔案數限制
                                               #如果沒設定的話, 這個值為作業系統的限制.
                                               #設定后你的作業系統和Nginx可以處理比“ulimit -a”更多的檔案
                                               #所以把這個值設高, 這樣nginx就不會有“too many open files”問題了


events {
    worker_connections  8192;#設定可由一個worker行程同時打開的最大連接數
                              #如果設定了上面提到的worker_rlimit_nofile, 我們可以將這個值設得很高
    # max value 32768, nginx recycling connections+registry optimization =
    #   this.value * 20 = max concurrent connections currently tested with one worker
    #   C1000K should be possible depending there is enough ram/cpu power
    # multi_accept on;
}

rtmp {
    server {
        listen 1935;#監聽埠,若被占用,可以更改
        chunk_size 4000;#上傳flv檔案塊兒的大小
        application live { #創建一個叫live的應用
             live on;#開啟live的應用
             allow publish 127.0.0.1;#
             allow play all;
        }
    }
}

http {
    #include      /nginx/conf/naxsi_core.rules;
    include       mime.types;
    default_type  application/octet-stream;

    #log_format  main  '$remote_addr:$remote_port - $remote_user [$time_local] "$request" '
    #                  '$status $body_bytes_sent "$http_referer" '
    #                  '"$http_user_agent" "$http_x_forwarded_for"';

    #access_log  logs/access.log  main;

#     # loadbalancing PHP
#     upstream myLoadBalancer {
#         server 127.0.0.1:9001 weight=1 fail_timeout=5;
#         server 127.0.0.1:9002 weight=1 fail_timeout=5;
#         server 127.0.0.1:9003 weight=1 fail_timeout=5;
#         server 127.0.0.1:9004 weight=1 fail_timeout=5;
#         server 127.0.0.1:9005 weight=1 fail_timeout=5;
#         server 127.0.0.1:9006 weight=1 fail_timeout=5;
#         server 127.0.0.1:9007 weight=1 fail_timeout=5;
#         server 127.0.0.1:9008 weight=1 fail_timeout=5;
#         server 127.0.0.1:9009 weight=1 fail_timeout=5;
#         server 127.0.0.1:9010 weight=1 fail_timeout=5;
#         least_conn;
#     }

    sendfile        off;
    #tcp_nopush     on;

    server_names_hash_bucket_size 128;

## Start: Timeouts ##
    client_body_timeout   10;
    client_header_timeout 10;
    keepalive_timeout     30;
    send_timeout          10;
    keepalive_requests    10;
## End: Timeouts ##

    #gzip  on;

    server {
        listen       8088;
        server_name  localhost;

        #charset koi8-r;

        #access_log  logs/host.access.log  main;

        ## Caching Static Files, put before first location
        #location ~* \.(jpg|jpeg|png|gif|ico|css|js)$ {
        #    expires 14d;
        #    add_header Vary Accept-Encoding;
        #}

# For Naxsi remove the single # line for learn mode, or the ## lines for full WAF mode
        location / {
            #include    /nginx/conf/mysite.rules; # see also http block naxsi include line
            ##SecRulesEnabled;
              ##DeniedUrl "/RequestDenied";
              ##CheckRule "$SQL >= 8" BLOCK;
              ##CheckRule "$RFI >= 8" BLOCK;
              ##CheckRule "$TRAVERSAL >= 4" BLOCK;
              ##CheckRule "$XSS >= 8" BLOCK;
            root   html;
            index  index.html index.htm;
        }

# For Naxsi remove the ## lines for full WAF mode, redirect location block used by naxsi
        ##location /RequestDenied {
        ##    return 412;
        ##}

## Lua examples !
#         location /robots.txt {
#           rewrite_by_lua '
#             if ngx.var.http_host ~= "localhost" then
#               return ngx.exec("/robots_disallow.txt");
#             end
#           ';
#         }

        #error_page  404              /404.html;

        # redirect server error pages to the static page /50x.html
        #
        error_page   500 502 503 504  /50x.html;
        location = /50x.html {
            root   html;
        }

        # proxy the PHP scripts to Apache listening on 127.0.0.1:80
        #
        #location ~ \.php$ {
        #    proxy_pass   http://127.0.0.1;
        #}

        # pass the PHP scripts to FastCGI server listening on 127.0.0.1:9000
        #
        #location ~ \.php$ {
        #    root           html;
        #    fastcgi_pass   127.0.0.1:9000; # single backend process
        #    fastcgi_pass   myLoadBalancer; # or multiple, see example above
        #    fastcgi_index  index.php;
        #    fastcgi_param  SCRIPT_FILENAME  $document_root$fastcgi_script_name;
        #    include        fastcgi_params;
        #}

        # deny access to .htaccess files, if Apache's document root
        # concurs with nginx's one
        #
        #location ~ /\.ht {
        #    deny  all;
        #}
    }


    # another virtual host using mix of IP-, name-, and port-based configuration
    #
    #server {
    #    listen       8000;
    #    listen       somename:8080;
    #    server_name  somename  alias  another.alias;

    #    location / {
    #        root   html;
    #        index  index.html index.htm;
    #    }
    #}


    # HTTPS server
    #
    #server {
    #    listen       443 ssl spdy;
    #    server_name  localhost;

    #    ssl                  on;
    #    ssl_certificate      cert.pem;
    #    ssl_certificate_key  cert.key;

    #    ssl_session_timeout  5m;

    #    ssl_prefer_server_ciphers On;
    #    ssl_protocols TLSv1 TLSv1.1 TLSv1.2;
    #    ssl_ciphers ECDH+AESGCM:ECDH+AES256:ECDH+AES128:ECDH+3DES:RSA+AESGCM:RSA+AES:RSA+3DES:!aNULL:!eNULL:!MD5:!DSS:!EXP:!ADH:!LOW:!MEDIUM;

    #    location / {
    #        root   html;
    #        index  index.html index.htm;
    #    }
    #}

}

把下載的FFmpeg、Nginx和libvlc放到Debug目錄下，

目錄結構如下

Debug

FFmpeg

ffmpeg.exe

……

Nginx

nginx.exe

……

libvlc

win-x64

……

win-x86

……

新建一個WPF專案，在MainWindow.xaml主要處理啟動Nginx和進行推送

<Window x:
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        mc:Ignorable="d"
        Title="MainWindow" Height="450" Width="800" Loaded="MainWindow_OnLoaded">
    <Grid>
        <Grid.RowDefinitions>
            <RowDefinition Height="20"></RowDefinition>
            <RowDefinition Height="*"></RowDefinition>
        </Grid.RowDefinitions>
        <WrapPanel>
            <TextBox Name="SavePath" Text="D:\test.mp4" Width="94" HorizontalAlignment="Left"></TextBox>
            <TextBox Name="VideoName" Text="羅技高清網路攝像機 C930c" Width="94" HorizontalAlignment="Left"></TextBox>
            <TextBox Name="AudioName" Text="麥克風 (羅技高清網路攝像機 C930c)" Width="94" HorizontalAlignment="Left"></TextBox>
            <Button Content="1、啟動視頻監控" HorizontalAlignment="Left"  VerticalAlignment="Top" Width="107" Click="ButtonStart_OnClick"/>
            <Button Content="2、開始錄制" HorizontalAlignment="Left" VerticalAlignment="Top" Width="75" Click="ButtonSase_OnClick"/>
            <TextBlock Text="開始錄制后大概5秒主界面就可以看到監控視頻"></TextBlock>
        </WrapPanel>
        <Border Grid.Row="1">
            <Image x:Name="img"></Image>
        </Border>

    </Grid>
</Window>

文本框中的攝像頭和麥克風，是使用下發的Load中的命令檢測到的，

后臺代碼：

using System;
using System.Diagnostics;
using System.IO;
using System.Reflection;
using System.Threading.Tasks;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Data;
using Vlc.DotNet.Core;
using Vlc.DotNet.Wpf;


namespace VideTest
{
    /// <summary>
    /// MainWindow.xaml 的互動邏輯
    /// </summary>
    public partial class MainWindow : Window
    {
        private readonly string ffmpegPath = $"{AppDomain.CurrentDomain.BaseDirectory}FFmpeg/ffmpeg.exe";
        private readonly string nginxPath = @"nginx.exe -c conf\nginx-win-rtmp.conf";
        private VlcVideoSourceProvider sourceProvider;
        public MainWindow()
        {
            InitializeComponent();
        }
        private void MediaPlayer_Log(object sender, VlcMediaPlayerLogEventArgs e)
        {
            var message = "libVlc : " + e.Level + e.Message + e.Module;
            Debug.WriteLine(message);
        }

        private void MainWindow_OnLoaded(object sender, RoutedEventArgs e)
        {

            //var ffmpegPath = $"{AppDomain.CurrentDomain.BaseDirectory}FFmpeg/ffmpeg.exe";
            //// 顯示可用的音效設備
            //var ffmpegArgument = " -list_devices true -f dshow -i dummy";

            //var process = new System.Diagnostics.Process();
            //var startInfo = new System.Diagnostics.ProcessStartInfo();
            //startInfo.FileName = ffmpegPath;
            //startInfo.Arguments = ffmpegArgument;
            //startInfo.UseShellExecute = false;
            //startInfo.RedirectStandardOutput = true;
            //startInfo.RedirectStandardError = true;

            // 將 StandardErrorEncoding 改為 UTF-8后FFmpeg輸出不會中文亂碼
            //startInfo.StandardErrorEncoding = System.Text.Encoding.UTF8;

            //process.EnableRaisingEvents = true;
            //process.StartInfo = startInfo;
            //process.Start();

            // 顯示FFMpeg輸出的內容，從中取出視頻和音頻設備名稱
            //string output = process.StandardError.ReadToEnd();
            //Debug.WriteLine(output);
            //process.WaitForExit();

        }

        private void ButtonSase_OnClick(object sender, RoutedEventArgs e)
        {
            var file=new FileInfo(SavePath.Text);
            if(file.Exists) file.Delete();
            var ffmpegArgument = $" -f dshow -i video=\"{VideoName.Text}\" -f dshow -i audio=\"{AudioName.Text}\" -vcodec libx264 -acodec aac -strict -2 \"{SavePath.Text}\" -f flv rtmp://127.0.0.1:1935/live/home";
            Task.Run(() =>
            {
                var process = new Process();
                var startInfo = new ProcessStartInfo
                {
                    FileName = ffmpegPath,
                    Arguments = ffmpegArgument,
                    UseShellExecute = true,
                    RedirectStandardOutput = false

                };
                process.StartInfo = startInfo;
                process.Start();
                process.WaitForExit();
            });
        }

        private void ButtonStart_OnClick(object sender, RoutedEventArgs e)
        {
            Task.Run(() =>
            {
                var process = new Process();
                var startInfo = new ProcessStartInfo("cmd.exe")
                {
                    WorkingDirectory= $@"{AppDomain.CurrentDomain.BaseDirectory}nginx",
                    UseShellExecute = false,
                    RedirectStandardInput = true
                };
                process.StartInfo = startInfo;

                process.Start();
                process.StandardInput.WriteLine(nginxPath);
                process.StandardInput.AutoFlush = true;
                process.WaitForExit();
            });
            Dispatcher?.Invoke(() =>
            {
                var currentAssembly = Assembly.GetEntryAssembly();
                var currentDirectory = new FileInfo(currentAssembly.Location).DirectoryName;

                var libDirectory = new DirectoryInfo(System.IO.Path.Combine(currentDirectory, "libvlc",
                    IntPtr.Size == 4 ? "win-x86" : "win-x64"));

                sourceProvider = new VlcVideoSourceProvider(Dispatcher);
                sourceProvider.CreatePlayer(libDirectory);
                sourceProvider.MediaPlayer.Play("rtmp://127.0.0.1:1935/live/home");
                sourceProvider.MediaPlayer.Log += MediaPlayer_Log;
                sourceProvider.MediaPlayer.Manager.SetFullScreen(sourceProvider.MediaPlayer.Manager.CreateMediaPlayer(),
                    true);
                var bing = new Binding {Source = sourceProvider, Path = new PropertyPath("VideoSource")};
                img.SetBinding(Image.SourceProperty, bing);
            });
            MessageBox.Show("啟動成功，請點擊開始錄制，");
        }
    }
}

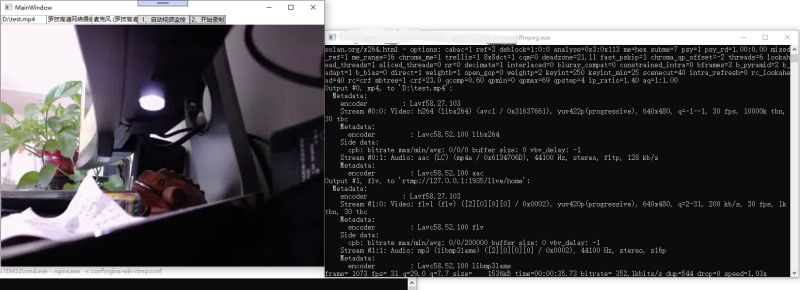

這樣按順序點擊1和2的按鈕后，即可實作WPF的視頻錄制和預覽錄制的視頻內容，

同時我們在APP.cs中重寫退出事件，來在程式退出的時候結束Nginx進行，

 public partial class App : Application
    {
        protected override void OnExit(ExitEventArgs e)
        {
            var process = new Process();
            var startInfo = new ProcessStartInfo()
            {
                FileName = "taskkill",
                Arguments = " /f /im nginx.exe",
                UseShellExecute = false,
                RedirectStandardInput = true
            };
            process.StartInfo = startInfo;

            process.Start();
            process.WaitForExit();
        }
    }

　　至此，我們就變現實作了WPF進行視頻錄制和預覽錄制的視頻內容的功能，
