最近經歷了原公司的變動，回老家呆了兩個月，回到深圳要開始一段新的作業旅程了，最近找作業的時候發現不少.Net的作業是關于WPF客戶端的，就又重新買了本劉鐵錳大神的WPF的書，之所以說重新，因為從原公司離開的時候把兩本WPF的書送給同事了，
但是學了一部分以后發現WPF真的還是很不錯的一項技術，暫且不討論.NET的生態(生態跟技術的優劣不能完全劃等號)，微軟算是比較早提出MVVM思想的框架，
今天就暫且把自己看過的內容的一部分做個記錄，為自己做一個階段的總結吧，現在的作業中可能用不到WPF，以后也可能用不到，
以下描述僅限于個人最近來自B站劉鐵猛的視頻資料和關于他的WPF書籍的一些整理，歡迎指正，如后續有其它心得就隨時整理，
我們先從一個簡單的demo談起.
當我們創建一個WPF程式后，會有一個檔案MainWindow.xaml和它對應的代碼后置檔案.我們先從這兩個檔案說起.

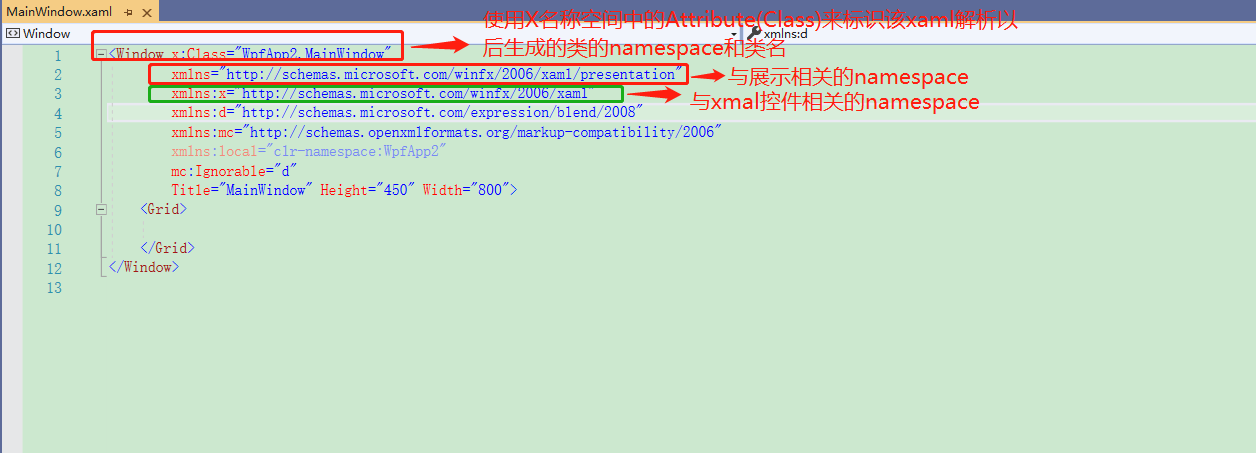

Mainwindow.xaml:當程式啟動時依托于App.xaml來加載Mainwindow.xaml來執行，

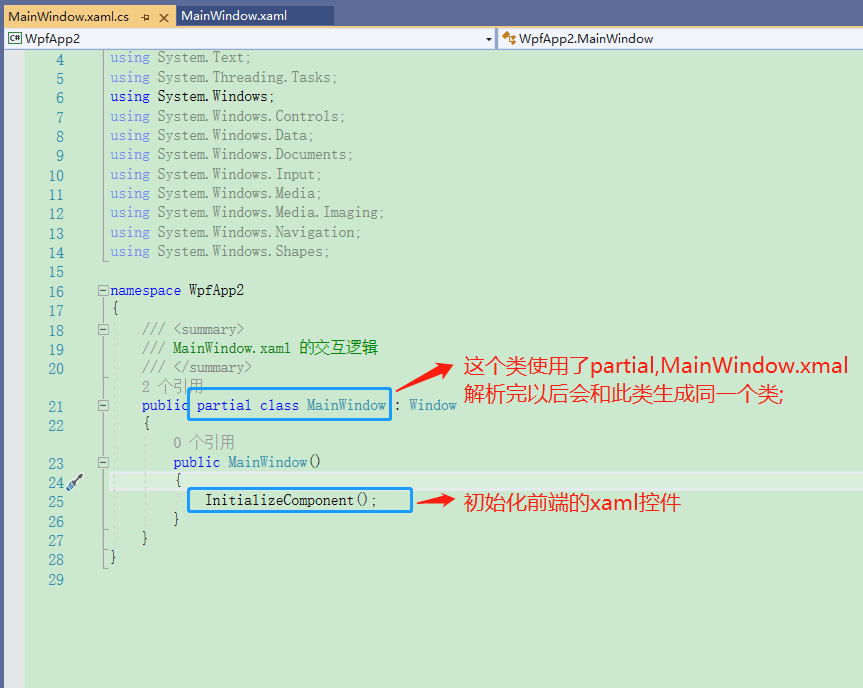

對應的后端代碼類MainWindow.xaml.cs

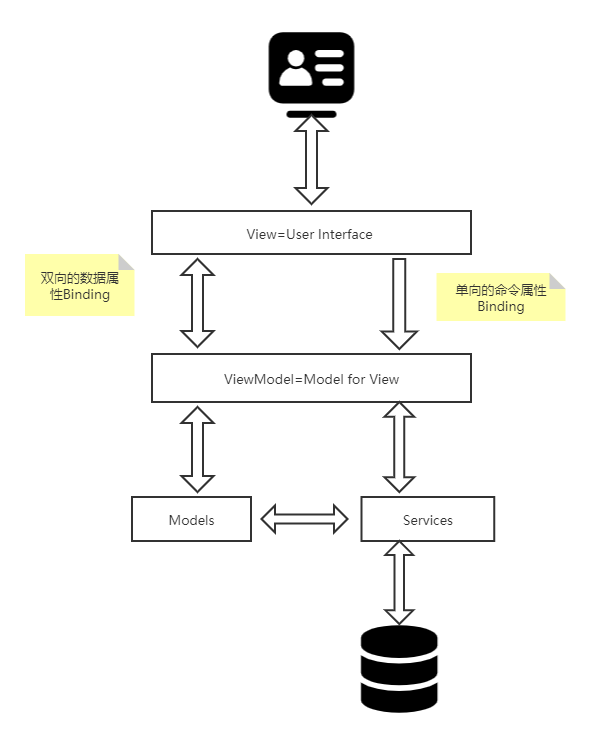

WPF中的MVVM
我們主要通過一個簡單地demo去體驗一下WPF的MVVM.
通過MVVM我們可以實作前端和后端的解耦.也可以更方便的切換前端的UI而不需要更改后臺代碼，
首先放上代碼的demo,如果感興趣可以任意下載.
鏈接：https://pan.baidu.com/s/1RIX6gcUCVCNGqi7vdX5SIg
提取碼：1314

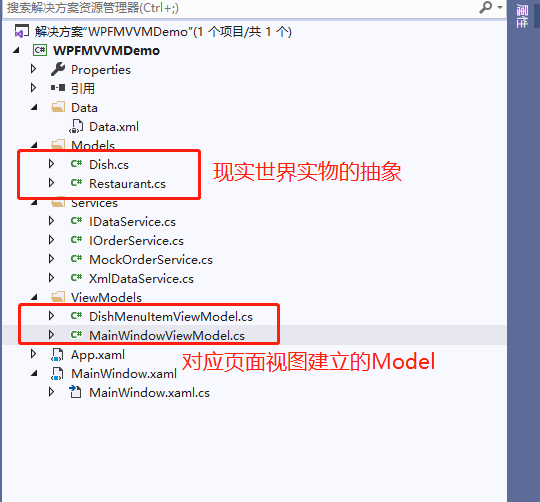

目錄結構如下,因為我們這個例子只是一個demo,Model和View檔案夾并沒有內容,我們只是為了簡單說明MVVM.

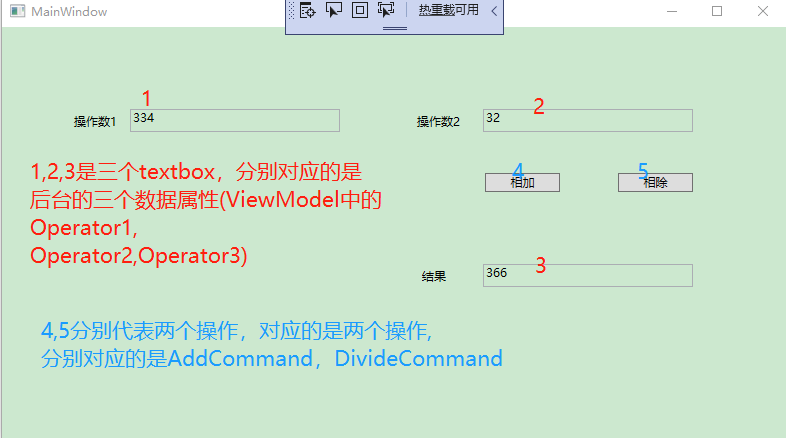

程式運行結果呈現是這樣的:
其中AddCommand和DivideCommand是屬于我們自定義的一個型別DelegateCommand，這個型別最主要是我們繼承了一個ICommand介面并實作Execute方法.以便實作按鈕的點擊事件.

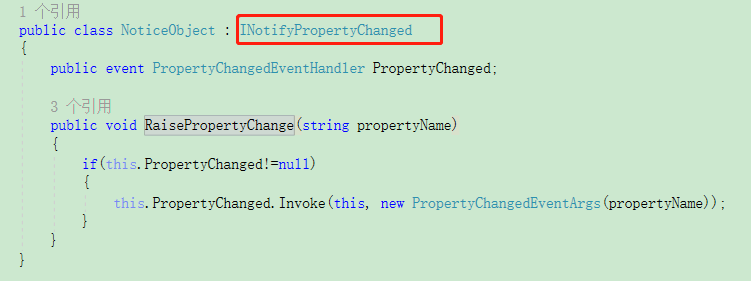

三個資料屬性在頁面值發生變化時會觸發RaisePropertyChange方法，該方法在我們的自定義類NoticeObject中，該類繼承自介面INotifyPropertyChange,并含有一個事件屬性PropertyChanged,實作資料的雙向系結實際上就是通過此事件來通知Binding實作.

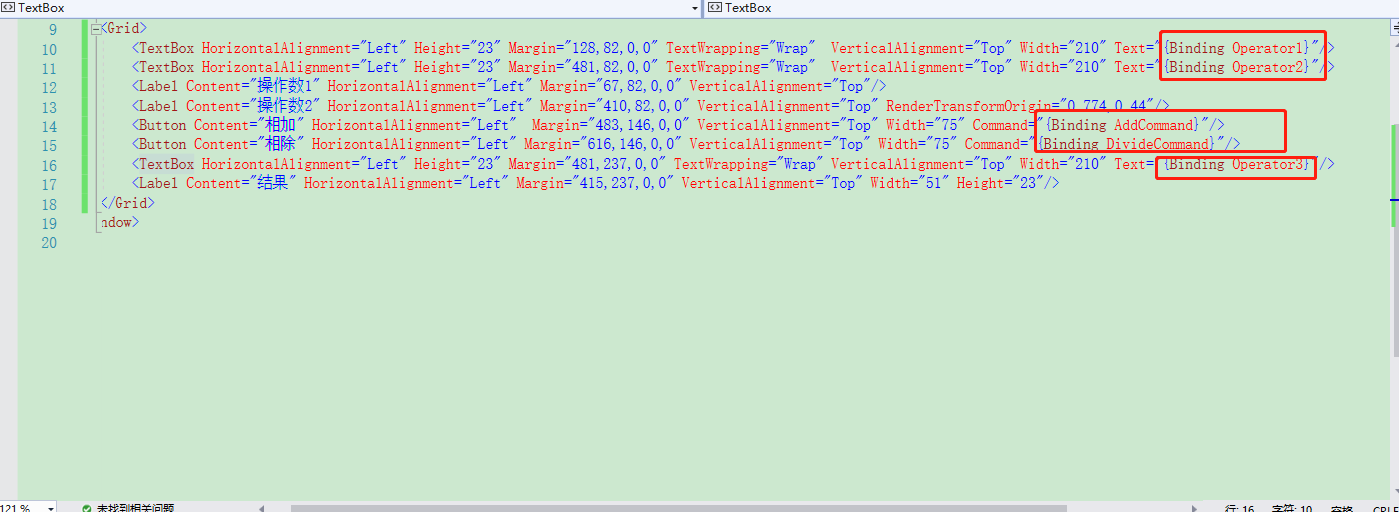

最后我們就可以在利用組件的屬性設定資料的雙向系結，和回應的觸發操作.

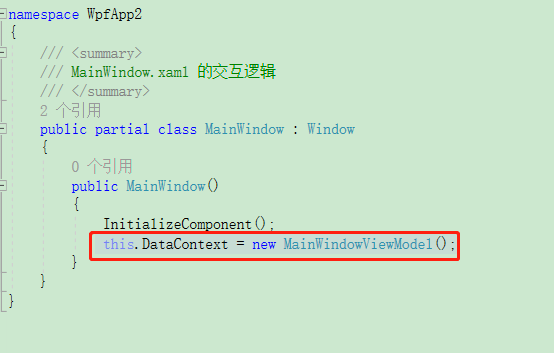

然后如果想讓前后端屬性關聯起來，我們必須制定一個背景關系，即這些屬性和操作去匹配的位置.
夜已深,疫情也導致了上半年的養肥增膘.需要開啟鍛煉計劃了,后續會再整理之前看過的另一個更復雜的WPF的例子以及一些其它資料.
索性就在這里把第二個復雜點的例子粘上來，
也是來自于WPF大神劉鐵猛的示例.
我簡單的描述下.
鏈接：https://pan.baidu.com/s/1nbOLFF_TE7gnT8dV9b5CVw
提取碼：1314
代碼最終運行效果如下:
其實這個demo思想還是跟第一個例子一樣，最主要不同的有幾個地方:
(1)完善了Model類:
(2)在上一個demo中的自定義類DelegateCommand換成了命名空間Microsoft.Practices.Prism.Commands下的類DelegateCommand
上一個demo中的NotificationObject換成了命名空間Microsoft.Practices.Prism.ViewModel中的NotificationObject.
關于WPF我覺著比較重要的點就是怎么根據業務場景去定義Model和ViewModel（MVVM以資料驅動開發),Model更多的與物件直接相關,是現實世界實物的抽象;而ViewModel更多的是與程式運行界面相關,是界面屬性與功能的抽象.
后續:到今天是9.21號,抽空看了書中的系統學習XAML語法/深入淺出話Binding/深入淺出話屬性幾節,打算不再看下去了,實在提不起興趣學.NET Framework的閉源框架了,一直在學術而學不得道，就此告別吧，
