一、Maven工程拆分與聚合
1、工程的拆分
一個完整的早期開發好的crm專案,現在要使用maven工程對它進行分析,這個時候就可以將dao拆解出來,形成獨立的工程,同樣service,action也都進行這樣從拆分

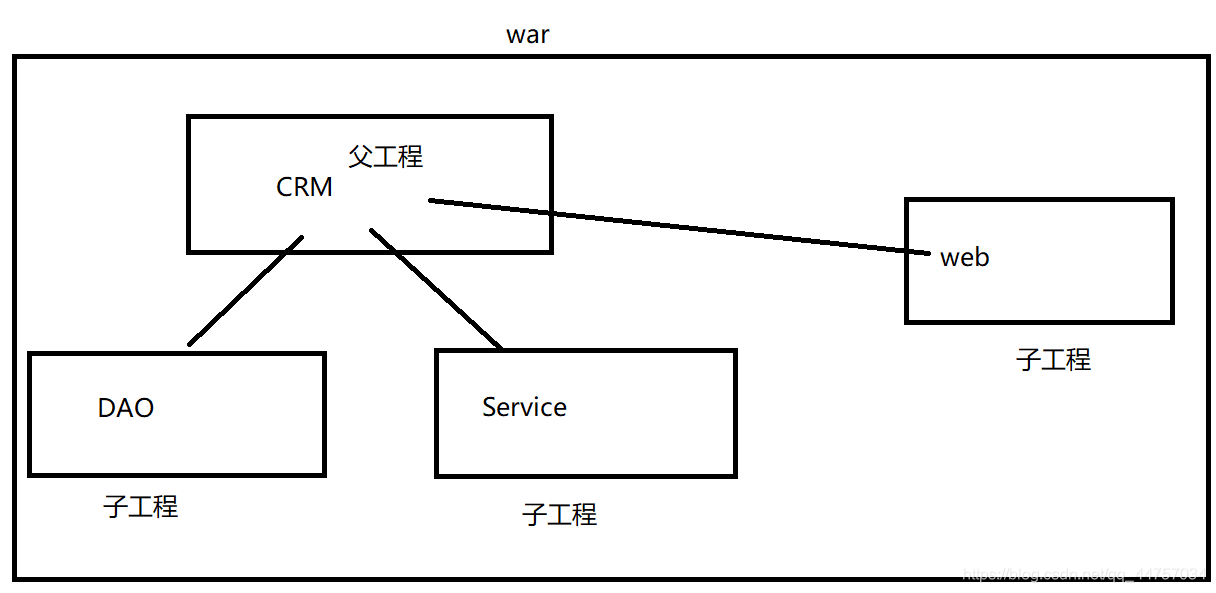

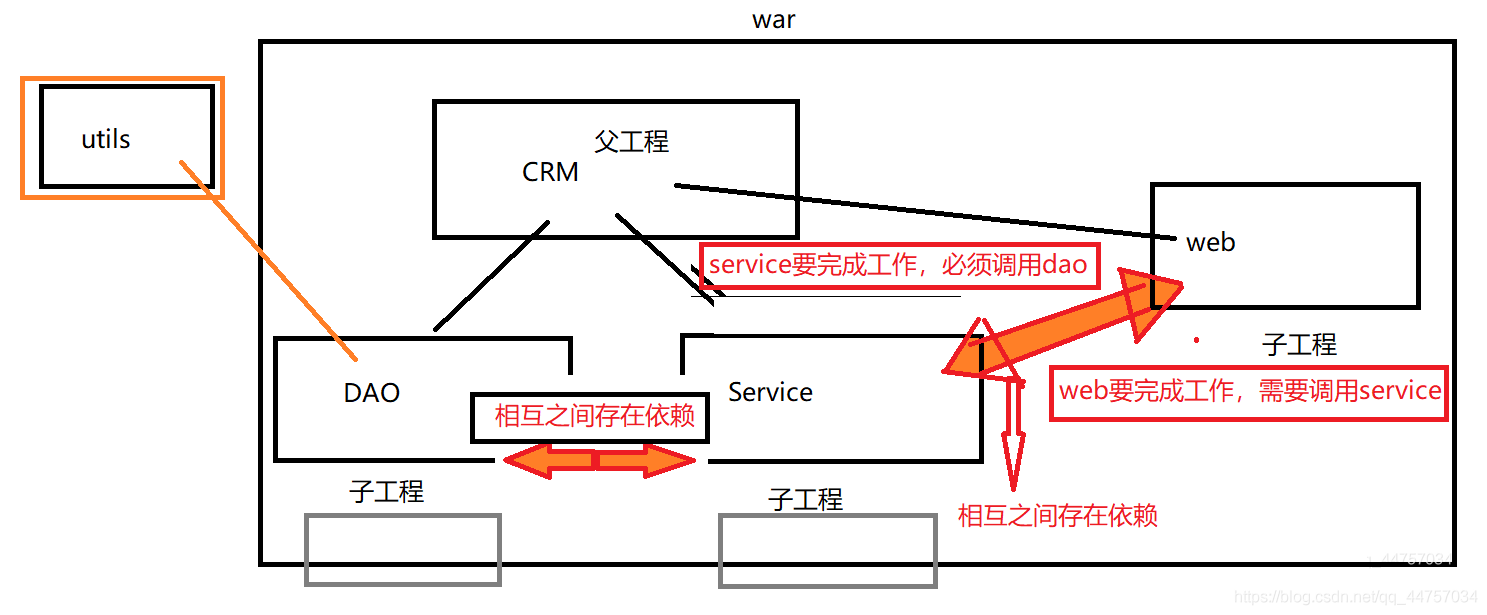

2、工程的聚合

拆分后的工程之間相互存在依賴

3、繼承的理解
類似java當中的類,都是為了消除重復,子類繼承父類,父類里面有的方法和屬性在子類當中就不需要再定義和實作了,使用的時候直接呼叫父類就可以,我們把crm拆分后,有一個父工程,子工程(crm06_dao,crm06_service,crm06_web)要用到的依賴都可以在父工程(crm06)的pox.xml當中先定義好,將來的子工程在開發的時候就不需要再引入坐標了,
4、開發步驟(詳細步驟)

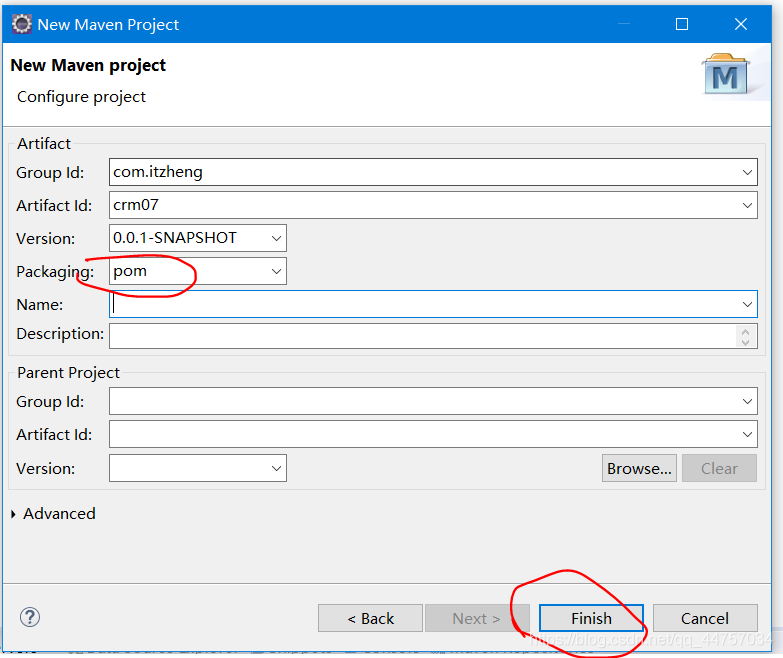

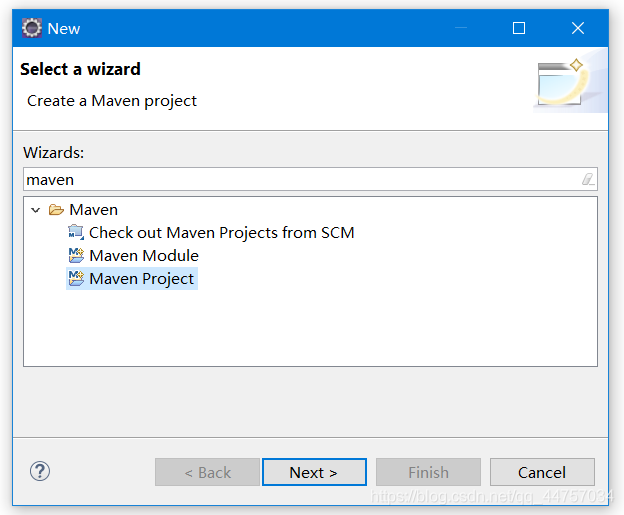

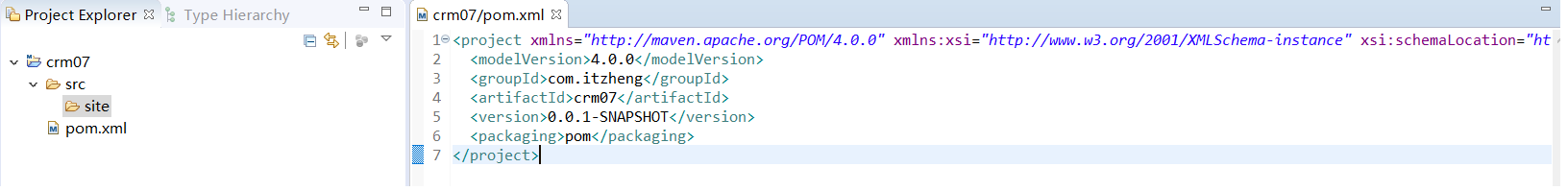

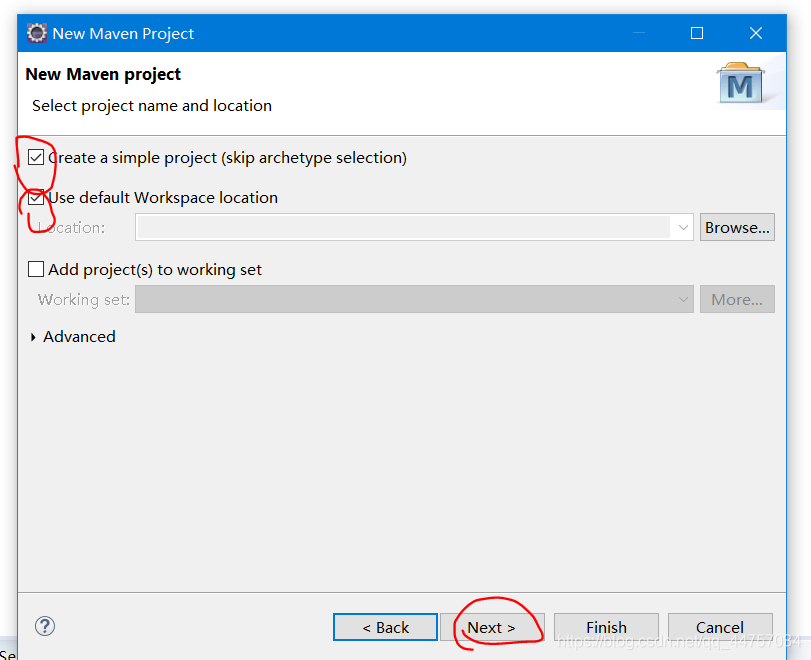

(1)創建maven父工程crm06,打包方式為pom

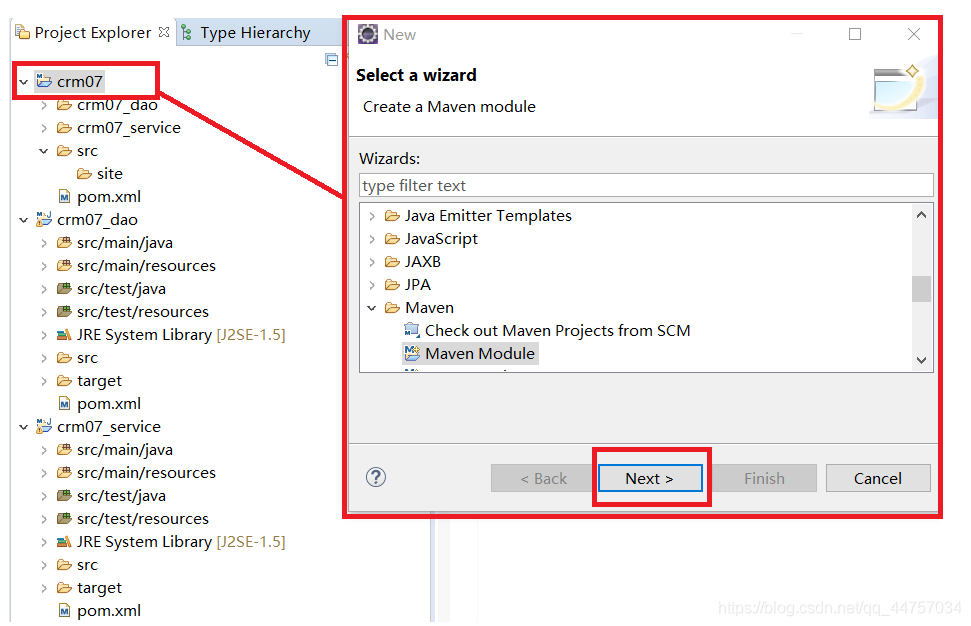

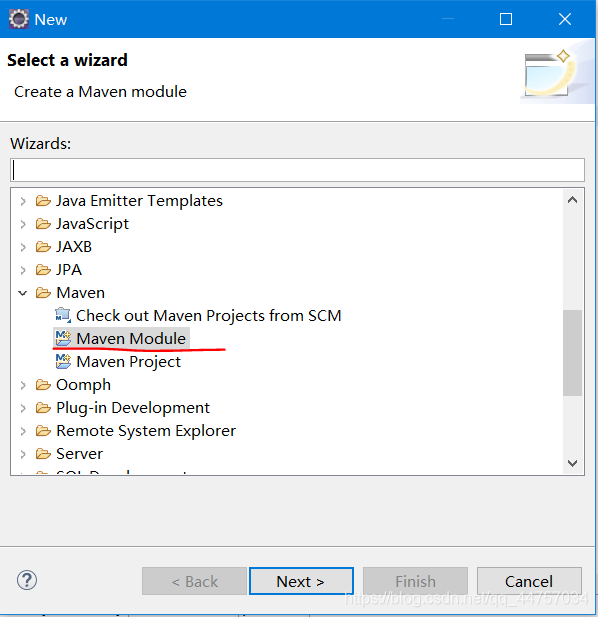

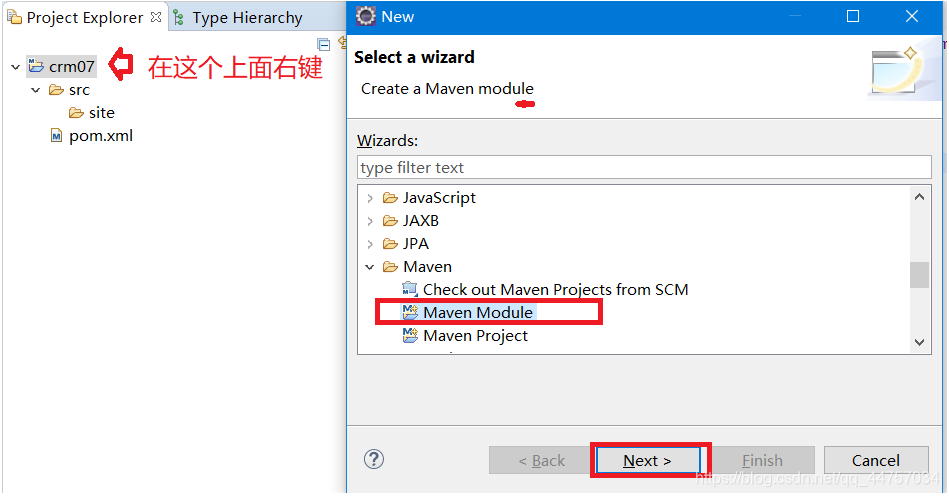

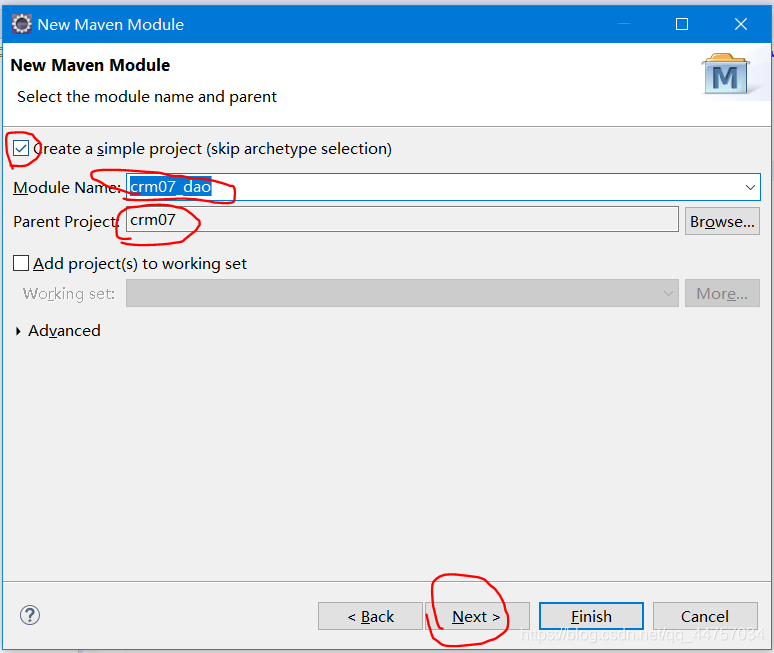

(2)在父工程的基礎上建立子工程(dao層)

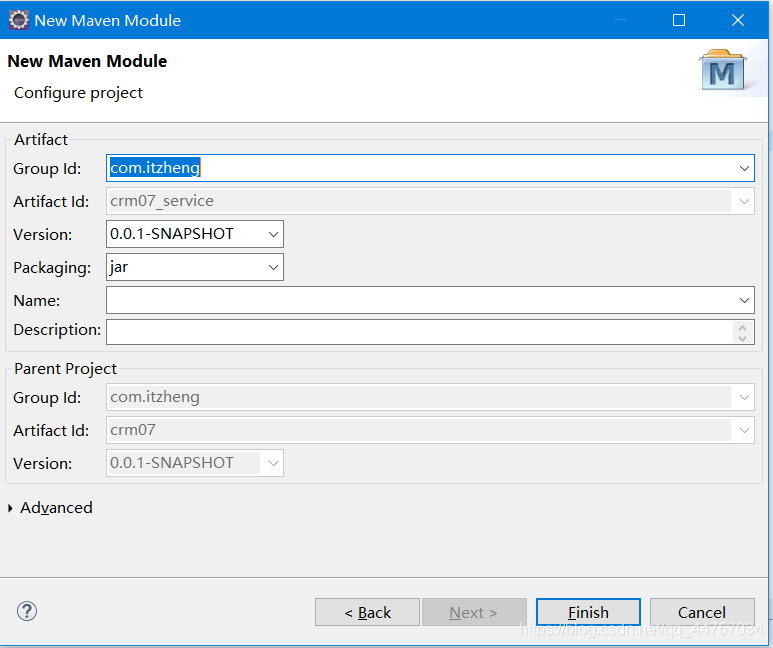

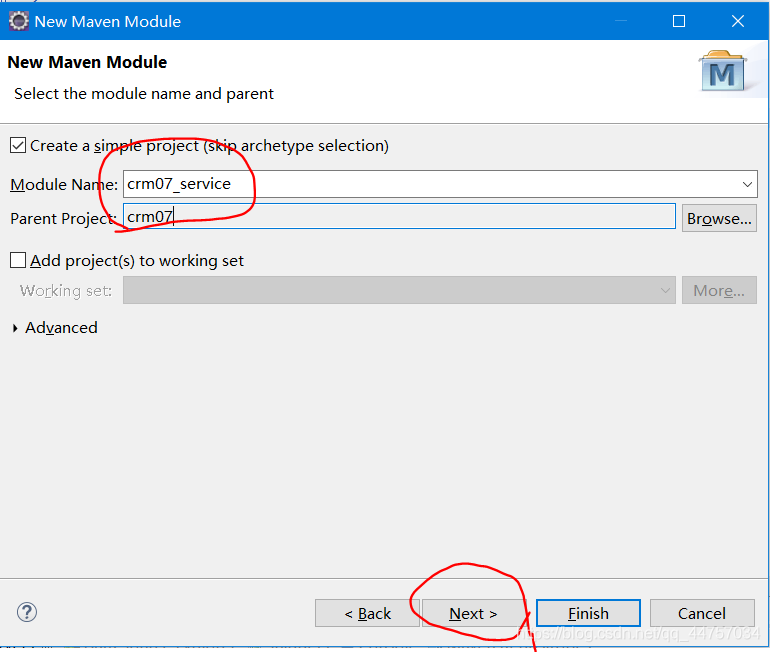

(3)在父工程的基礎上建立子工程(service層)



點擊Finish

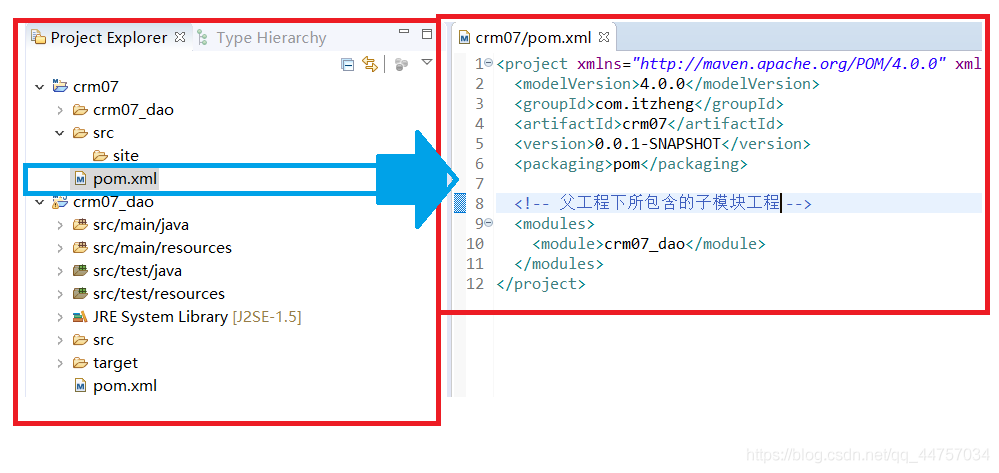

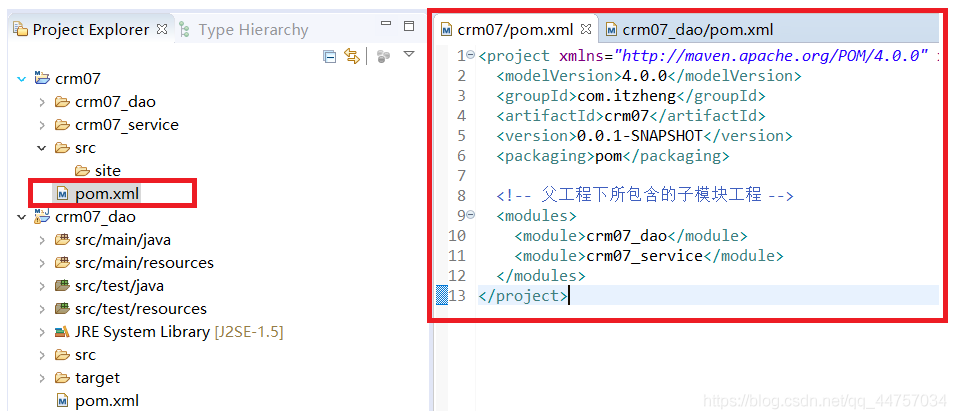

可以在crm07的目錄下的pom.xml當中看到父工程下所包含的子工程多了一個

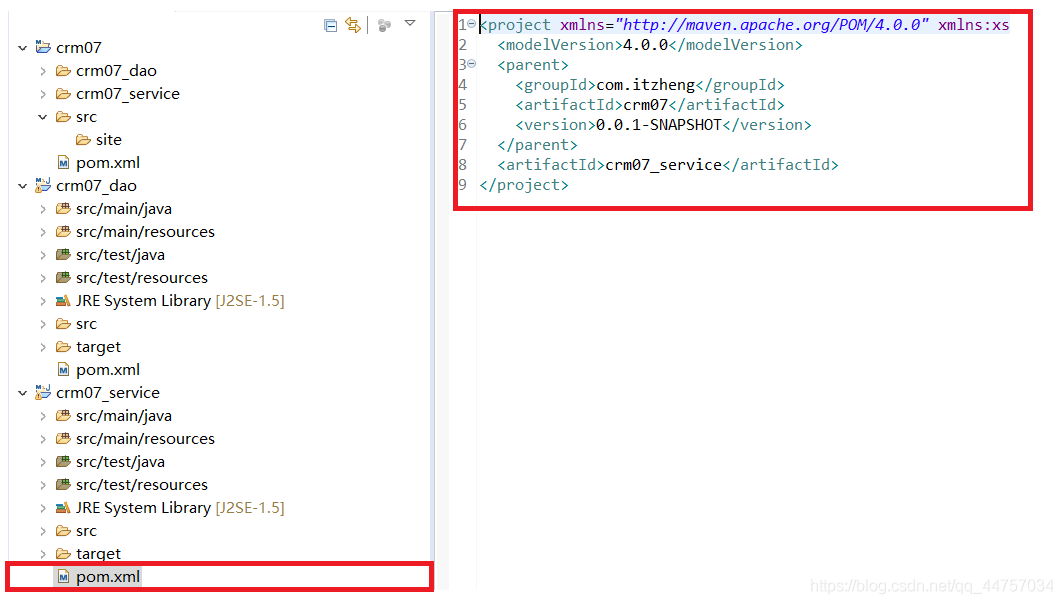

在service當中可以看到指向了父工程目錄

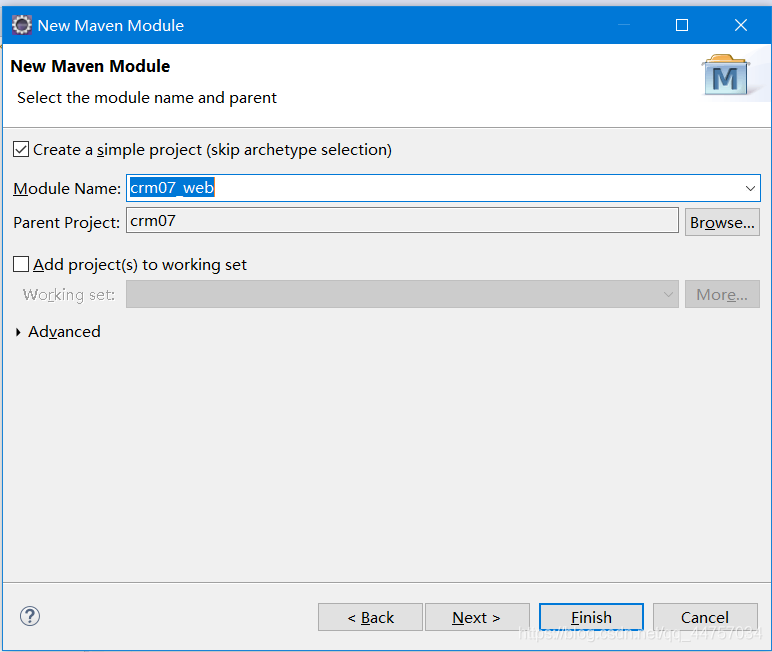

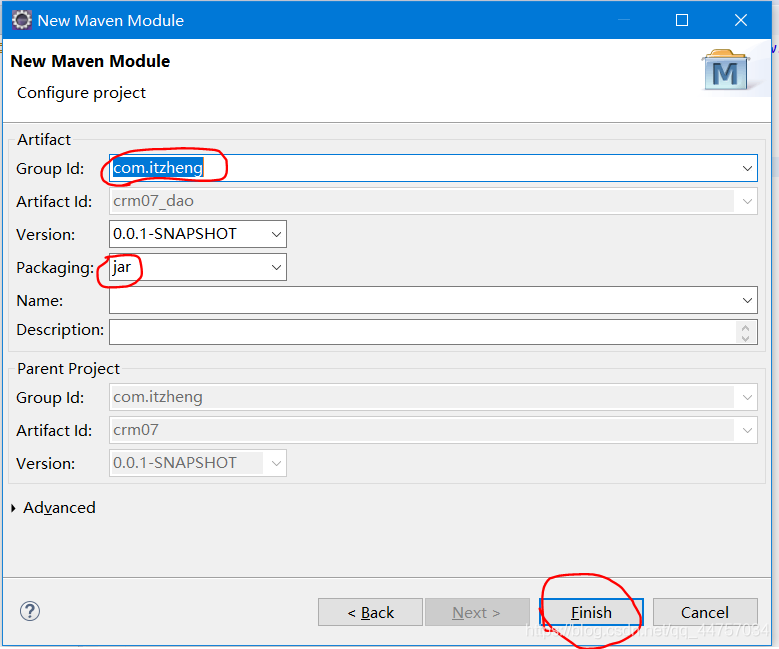

(4)在父工程的基礎上建立子工程(dao層)


點擊Finish

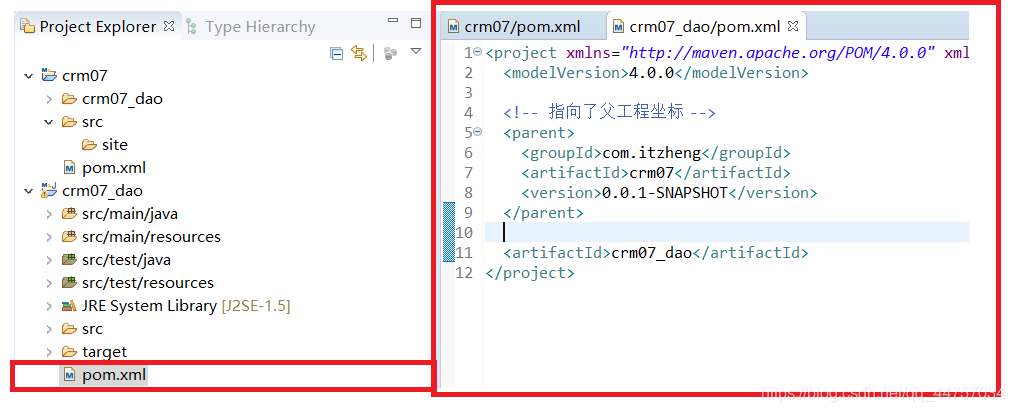

指向對應的父工程

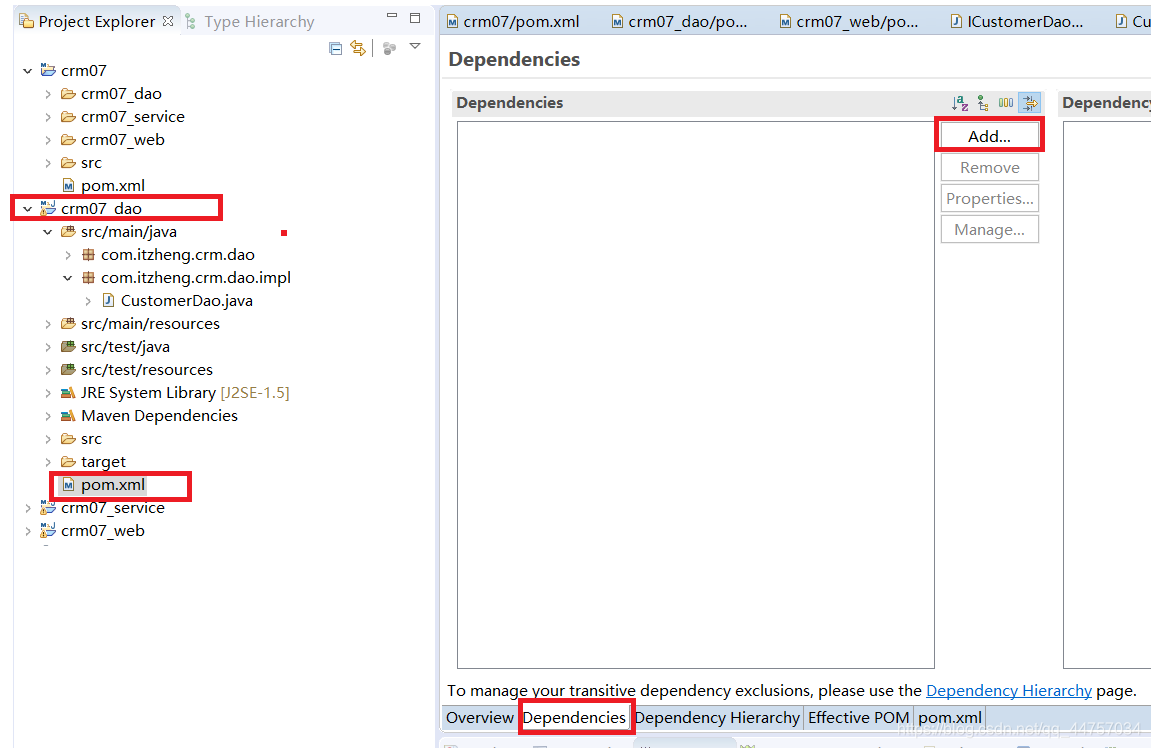

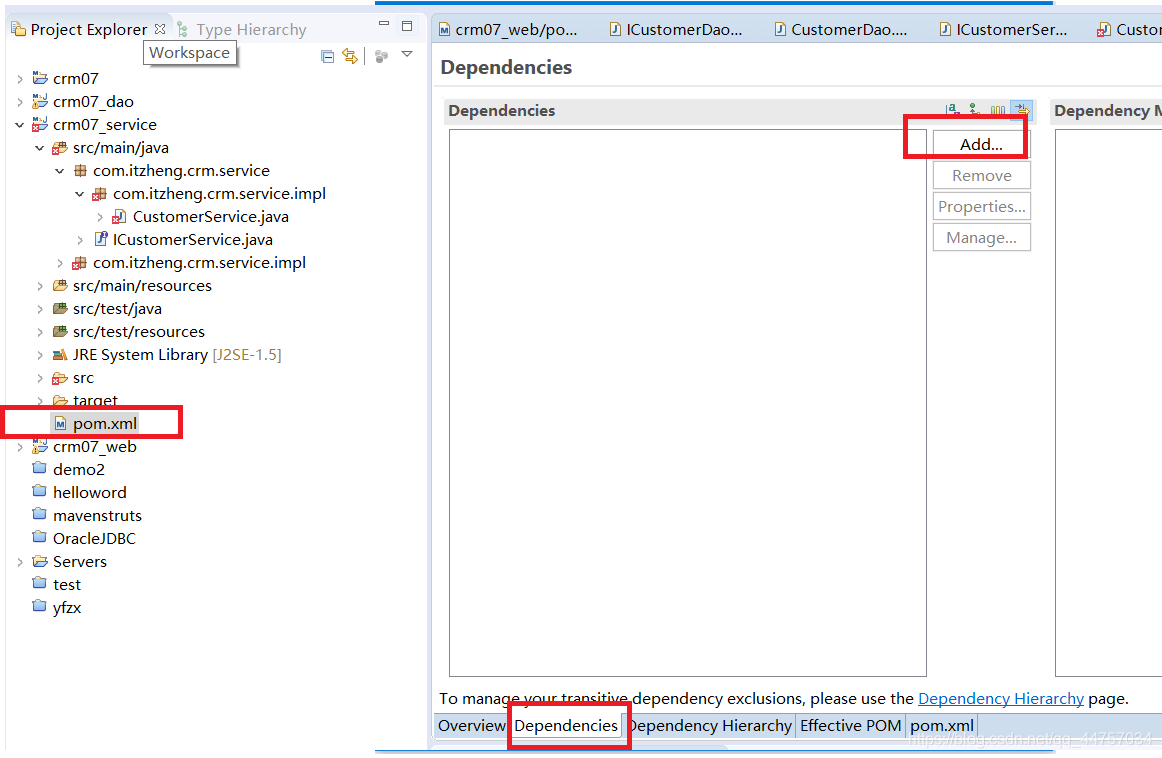

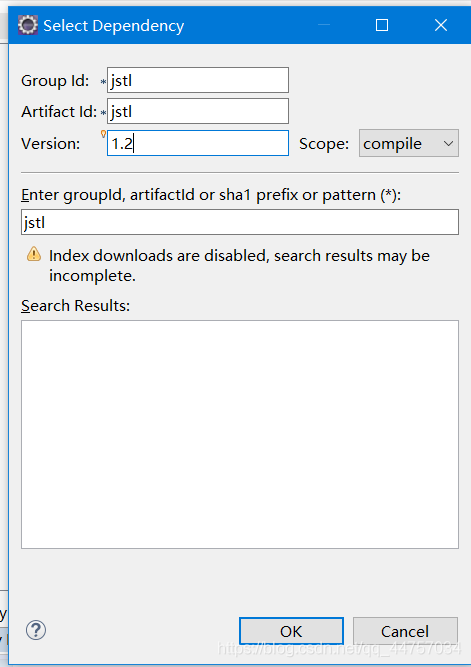

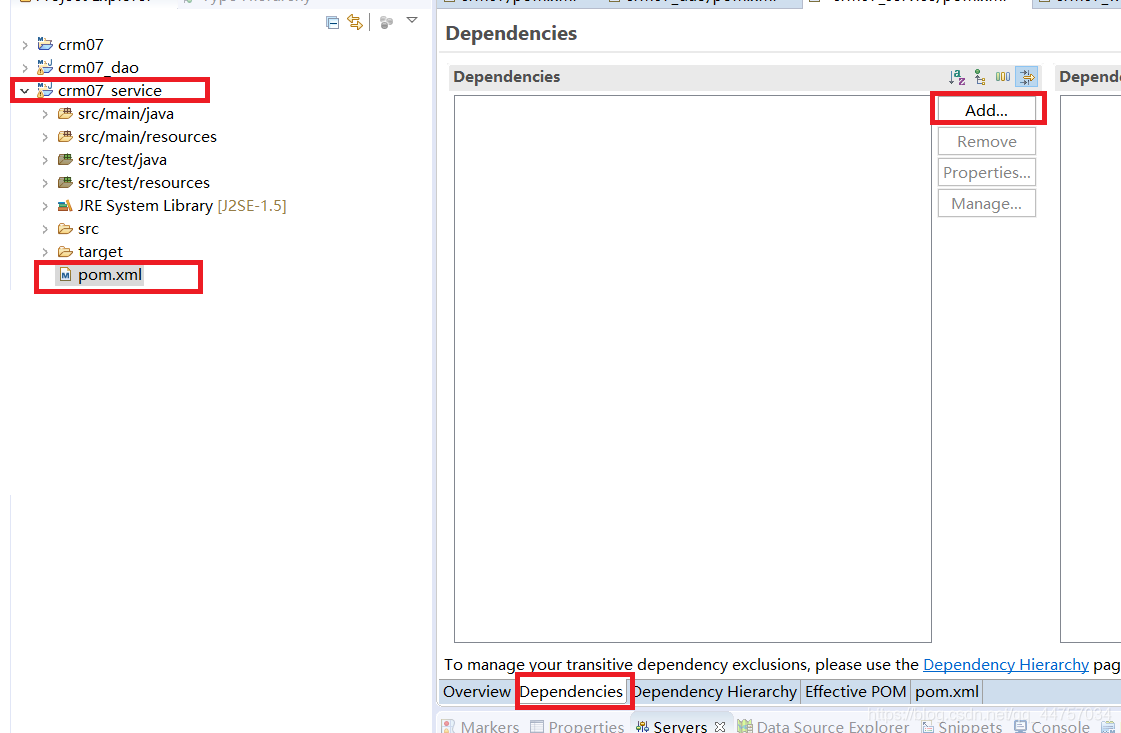

(5)在service 層添加依賴

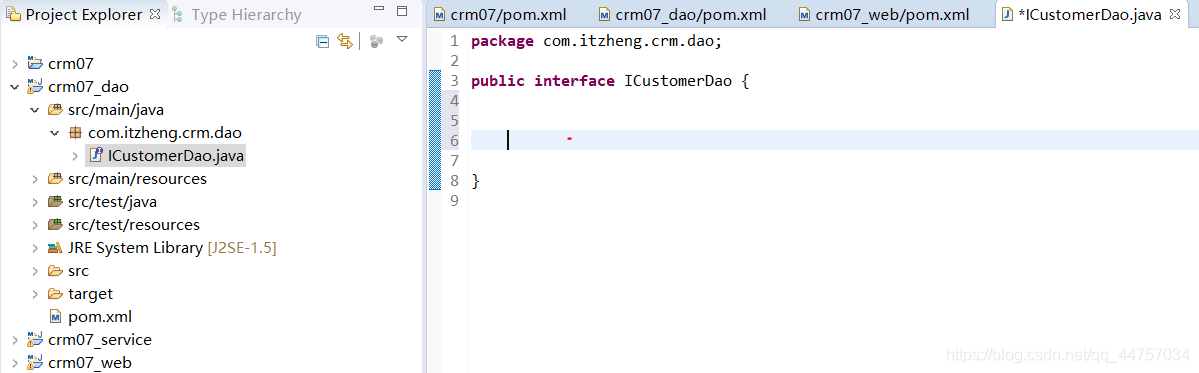

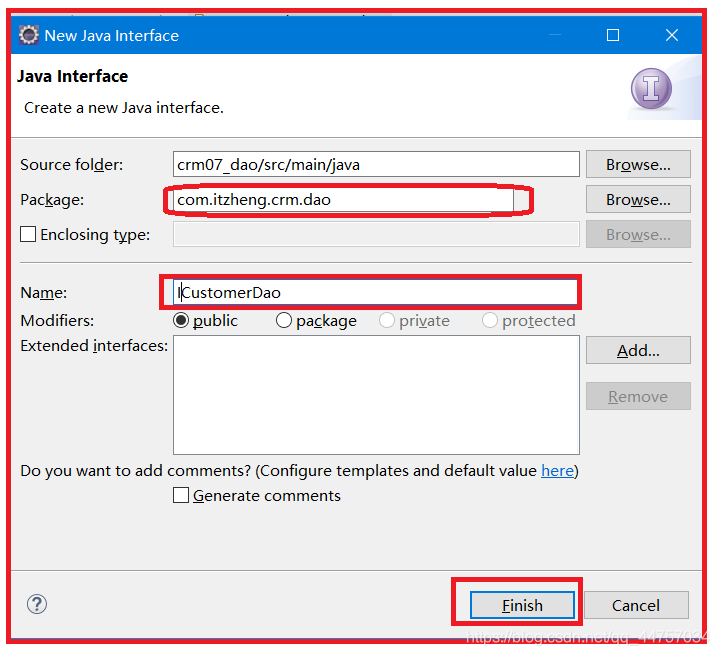

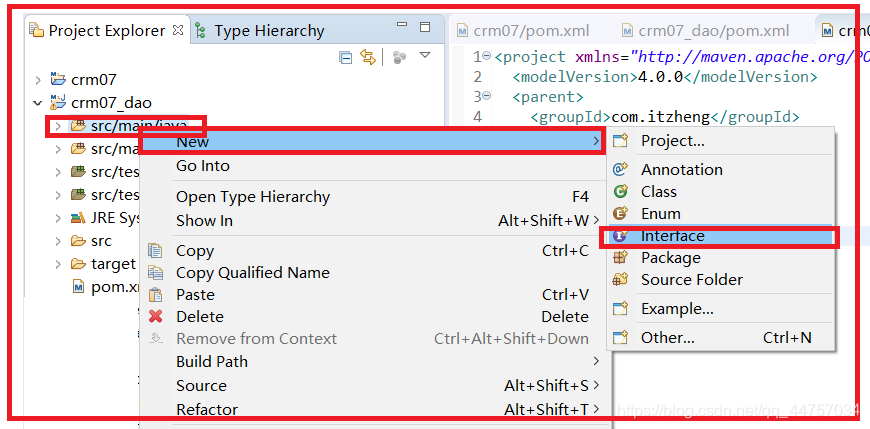

(6)在dao下創建介面


介面創建成功

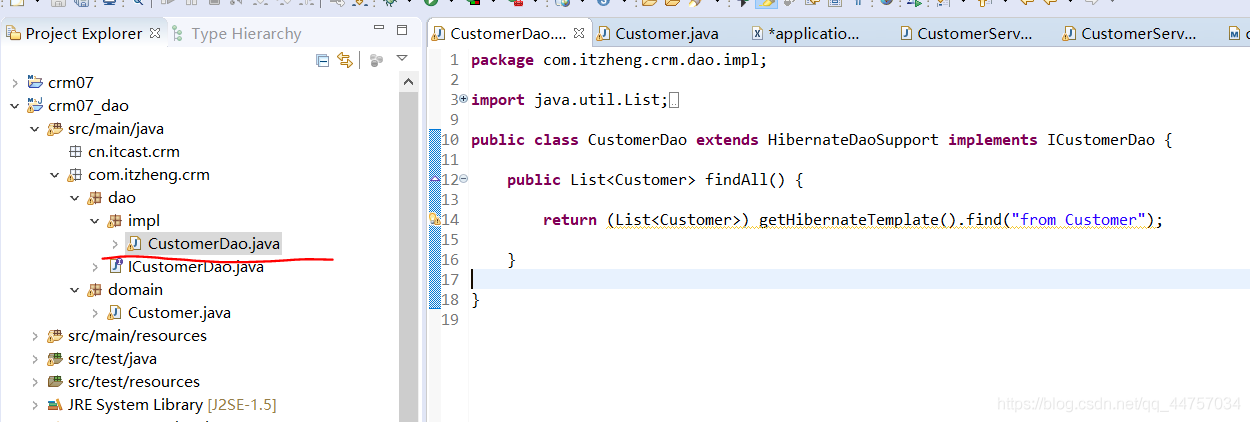

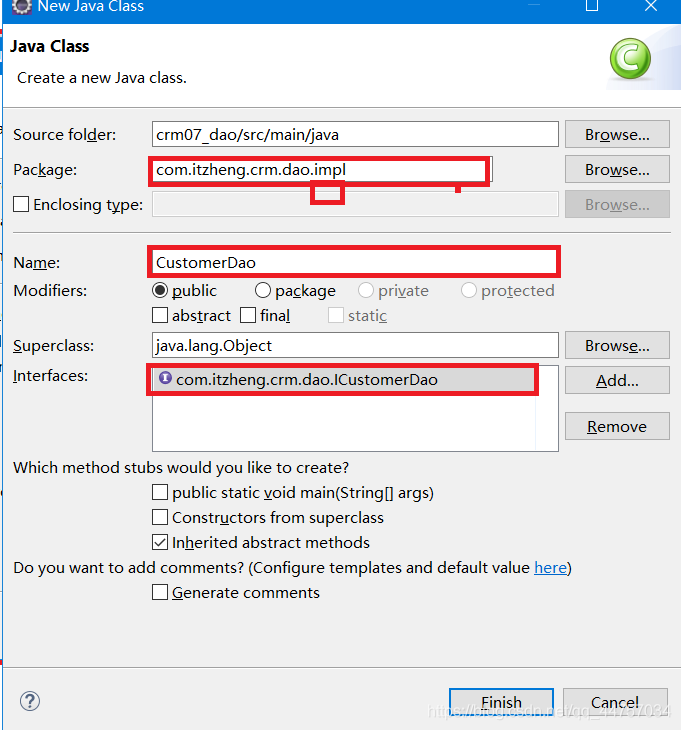

(7)實作dao的介面

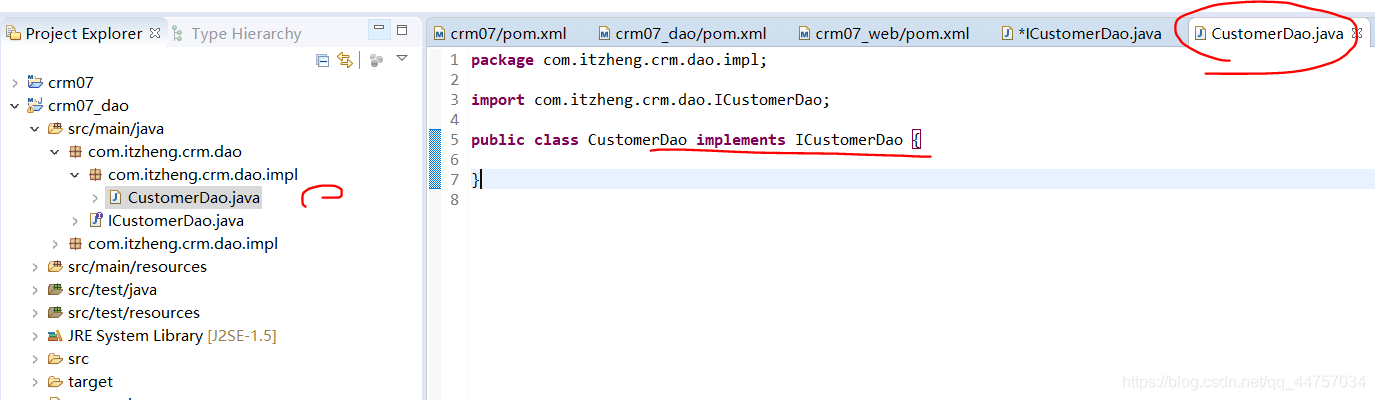

實作成功

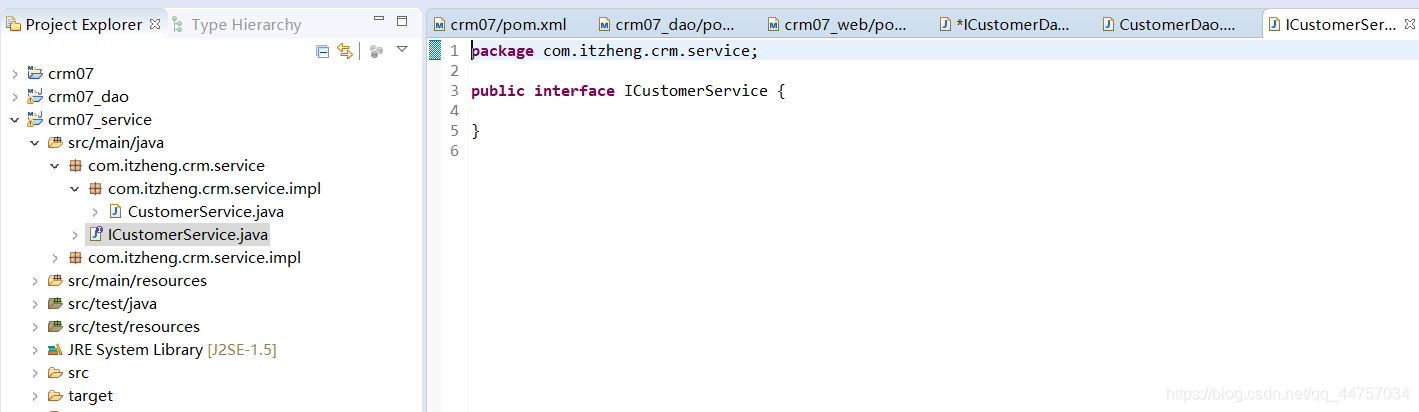

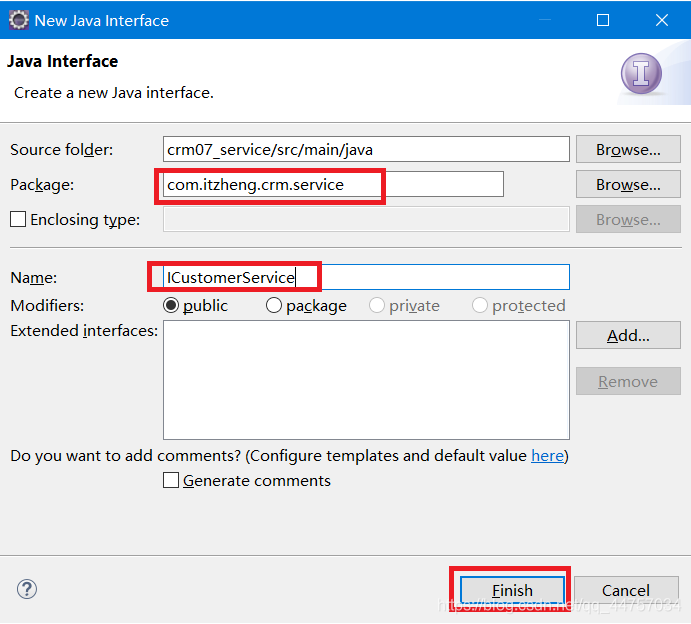

(8)在service下創建介面

(9)實作service的介面

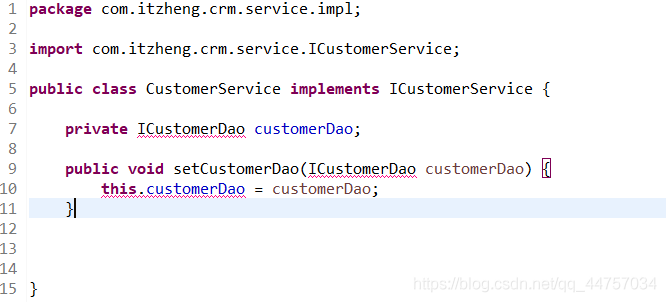

(10)在實作類當中寫入如下代碼,會發現報錯

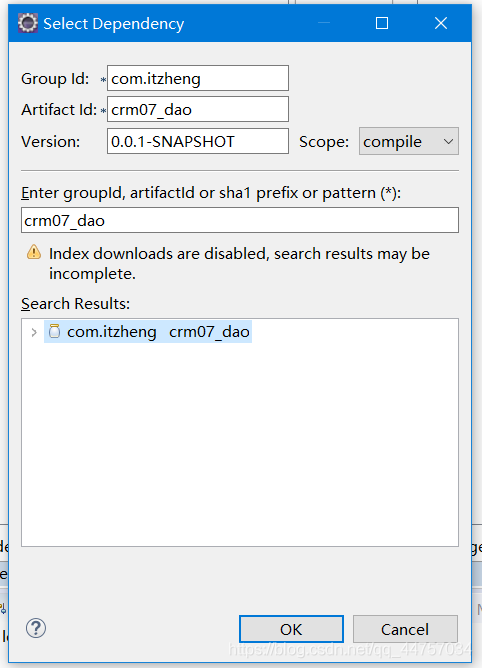

(11)需要在service當中添加對dao的依賴


引入地址后,并導包專案將不會報錯
package com.itzheng.crm.service.impl;
import com.itzheng.crm.dao.ICustomerDao;
import com.itzheng.crm.service.ICustomerService;
public class CustomerService implements ICustomerService {
private ICustomerDao customerDao;
public void setCustomerDao(ICustomerDao customerDao) {
this.customerDao = customerDao;
}
}

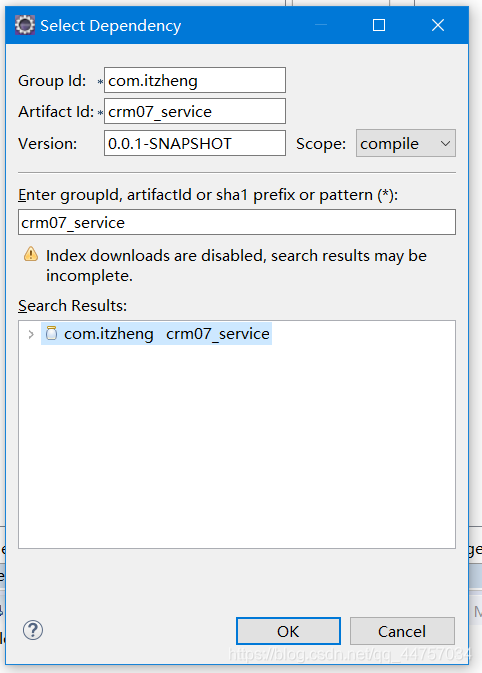

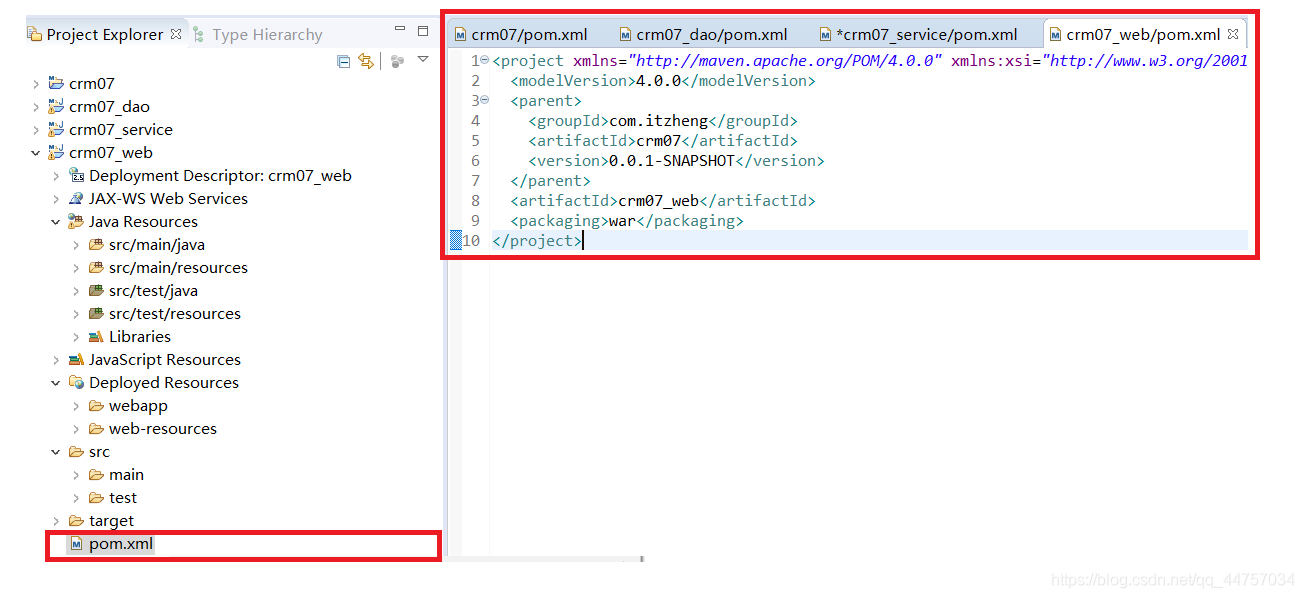

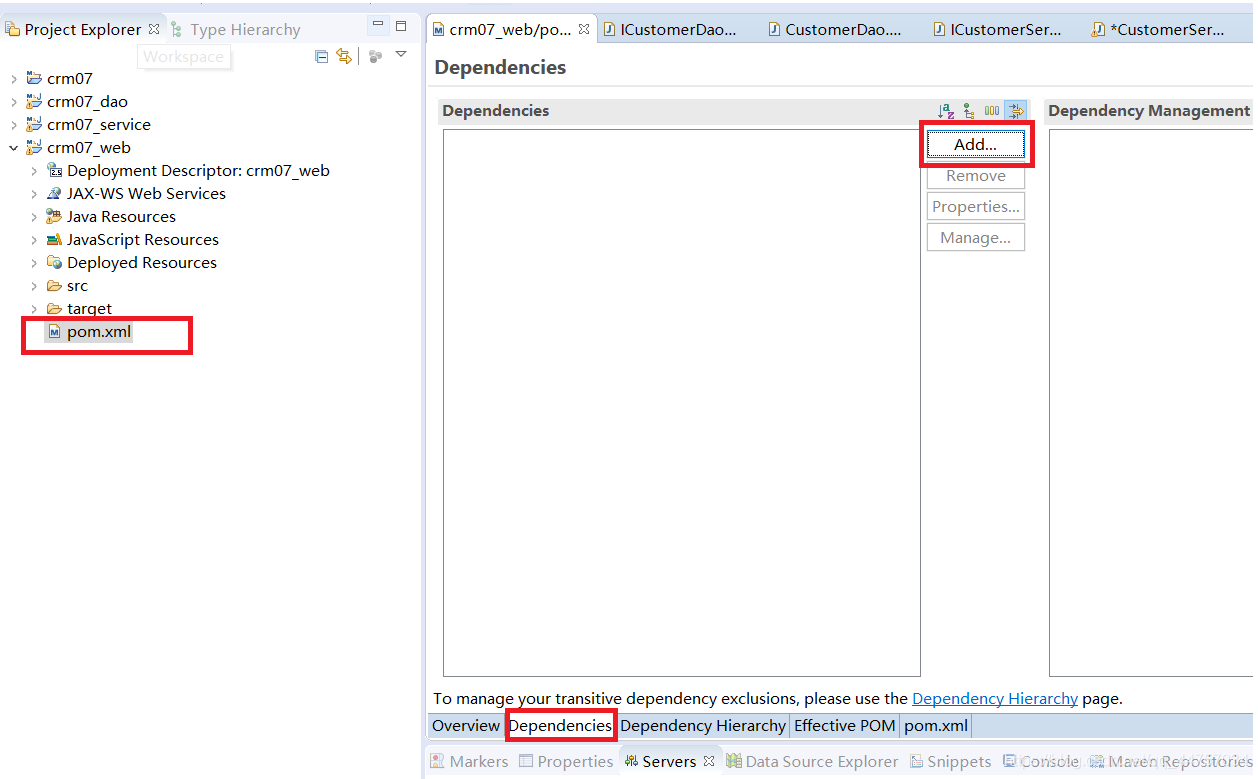

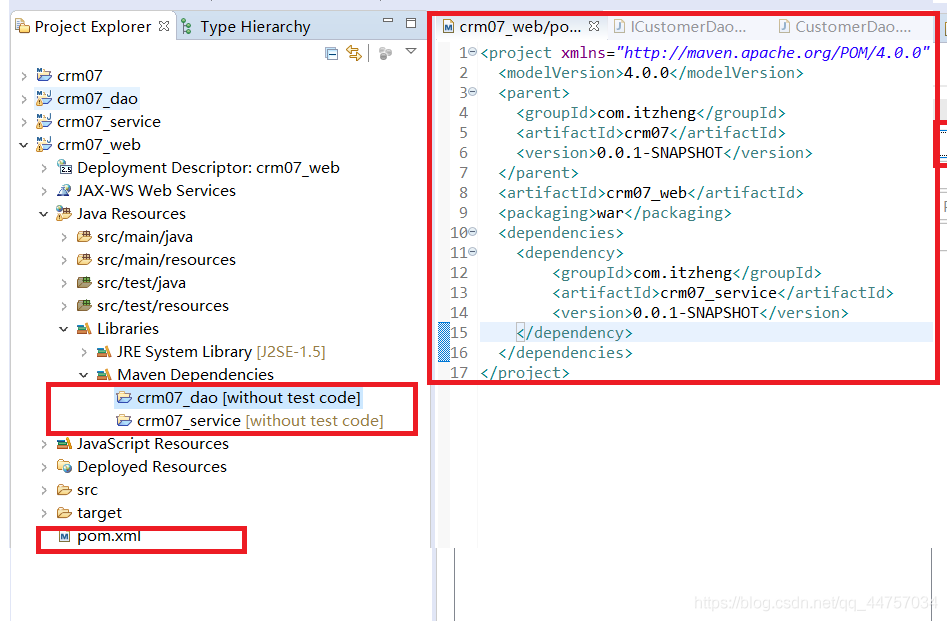

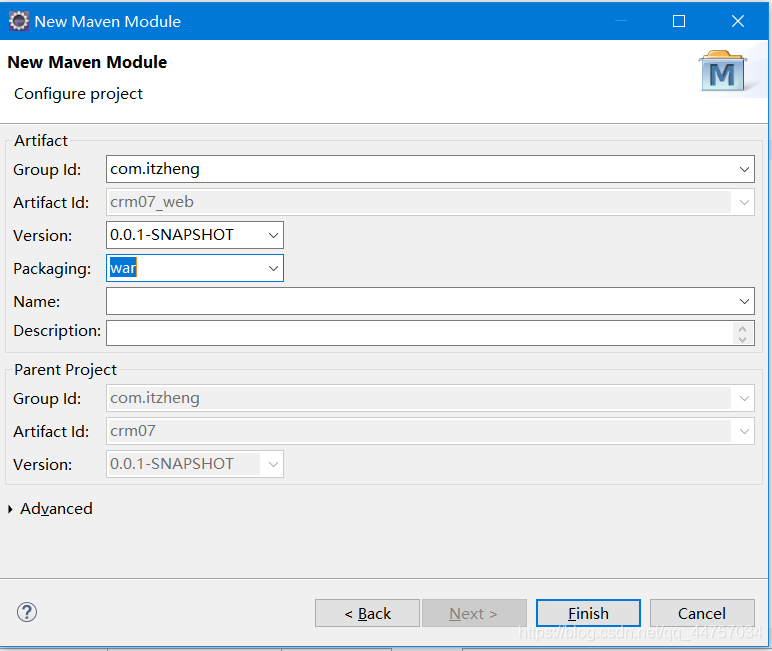

(12)web層呼叫service層,在crm07_web當中的pom.xml當中


同時引入了crm07_dao和crm07_service,在上面配置引入的時候只引入了service因為service依賴于dao所以dao也被引入了進來

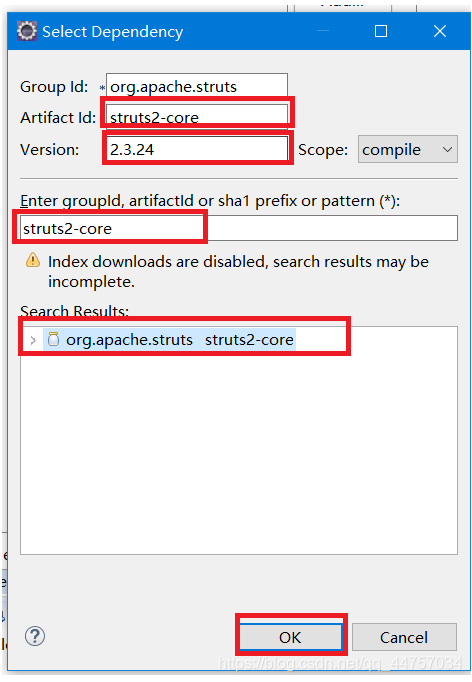

5、添加struts2的核心jar

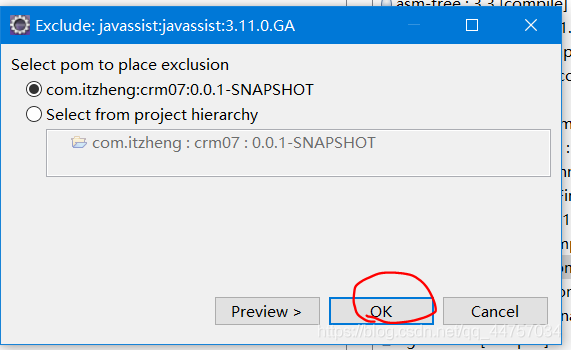

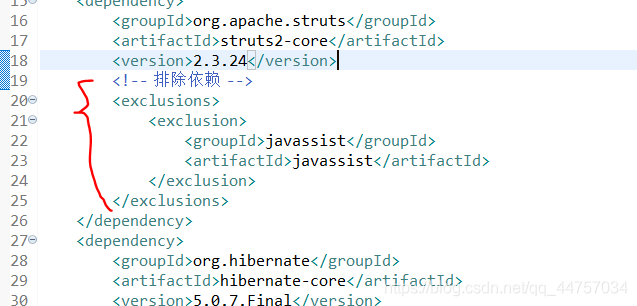

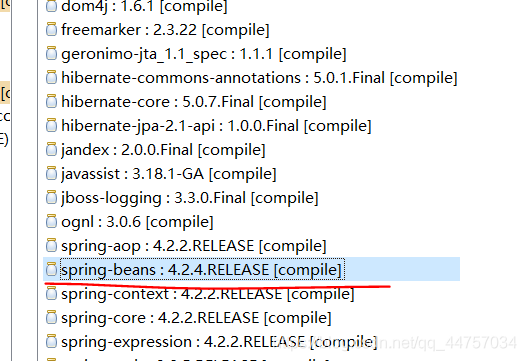

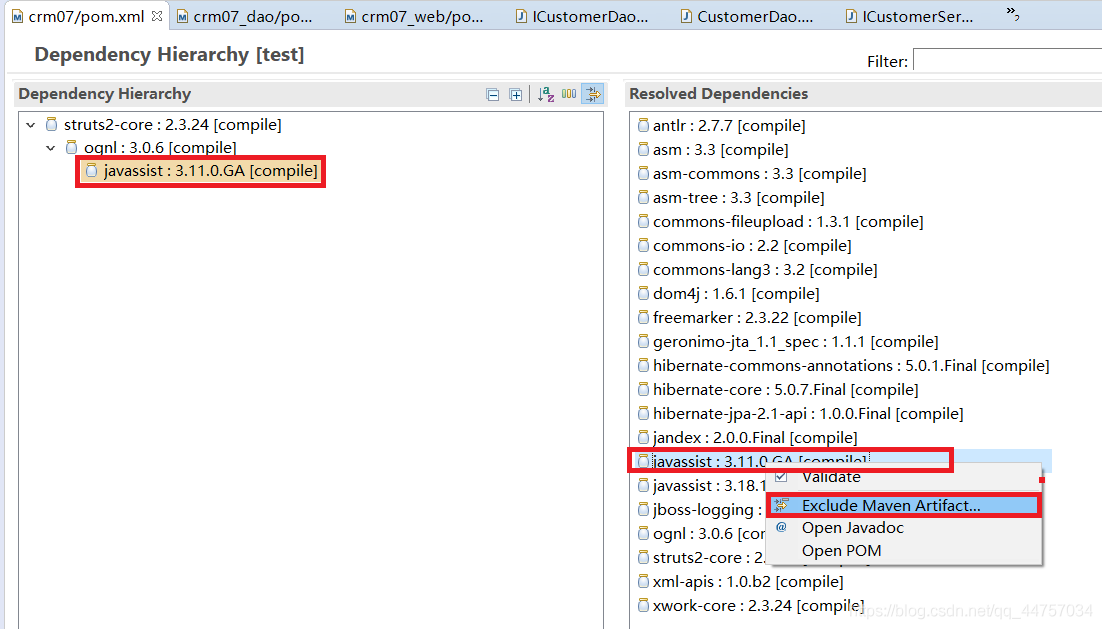

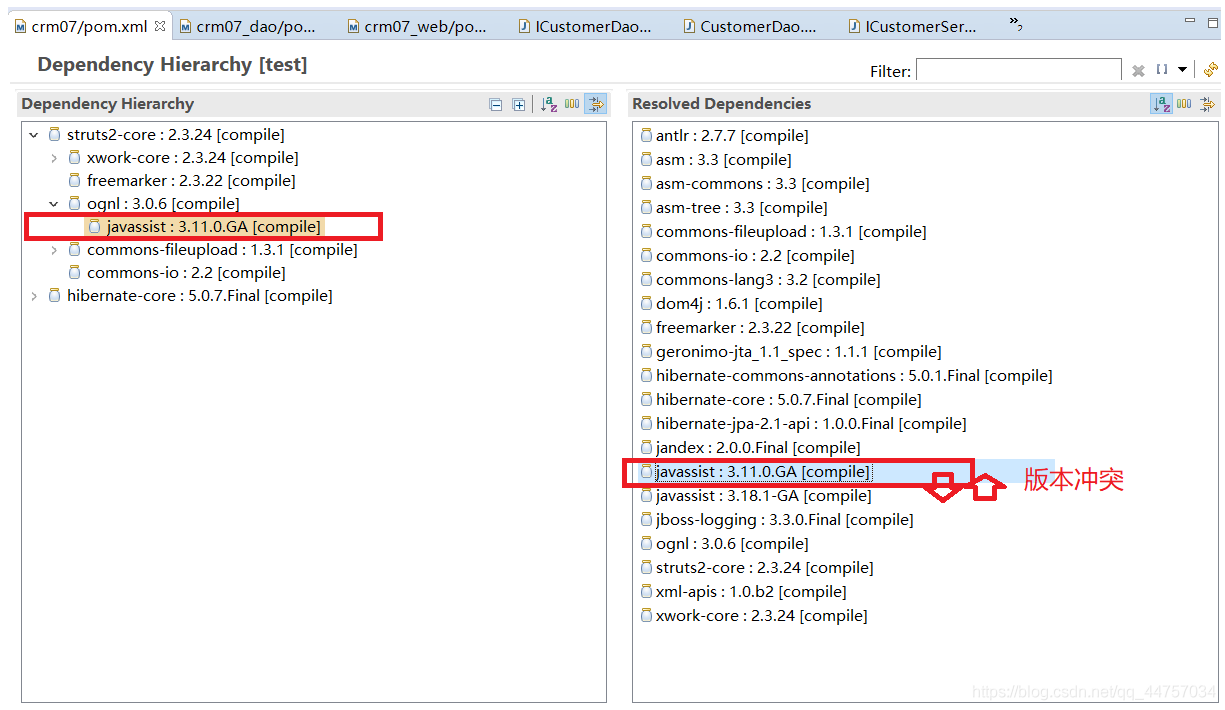

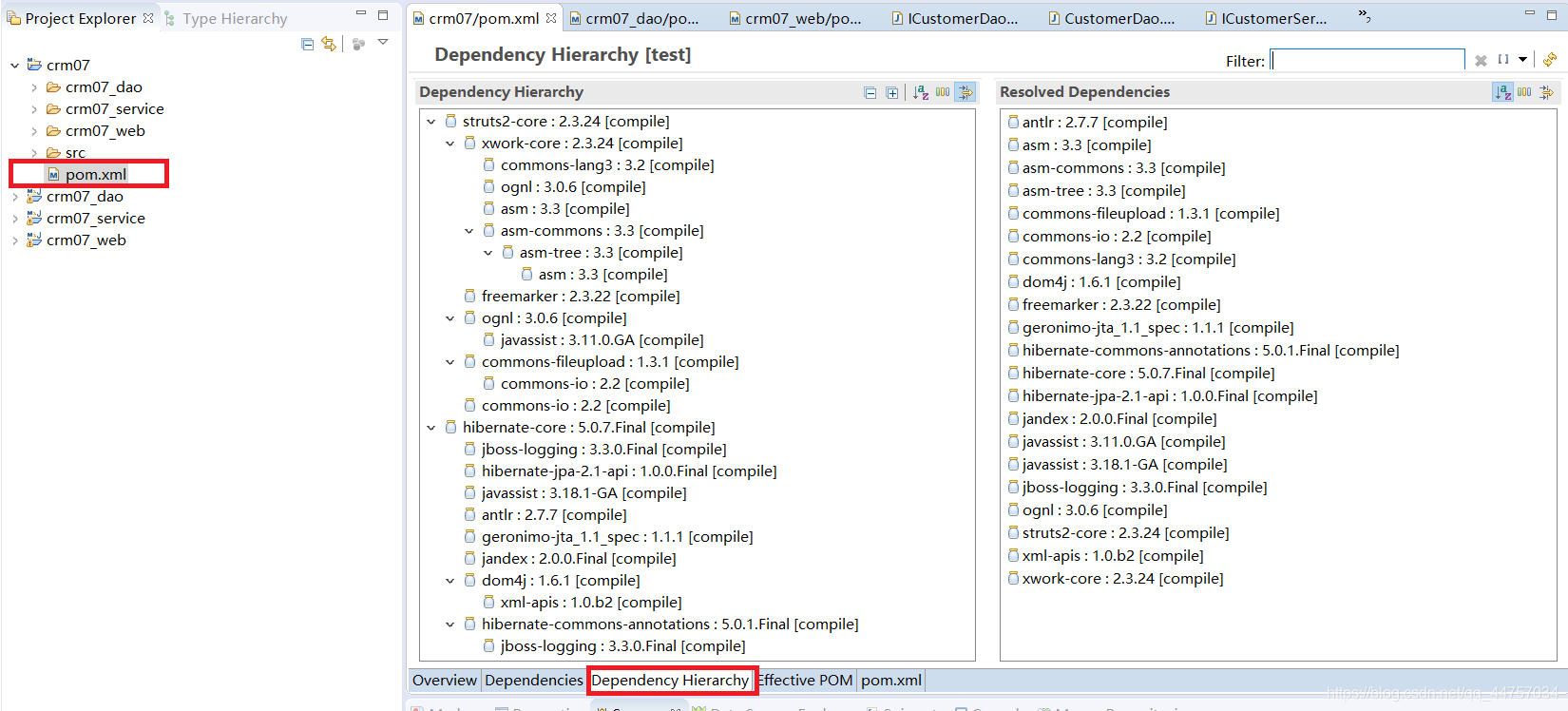

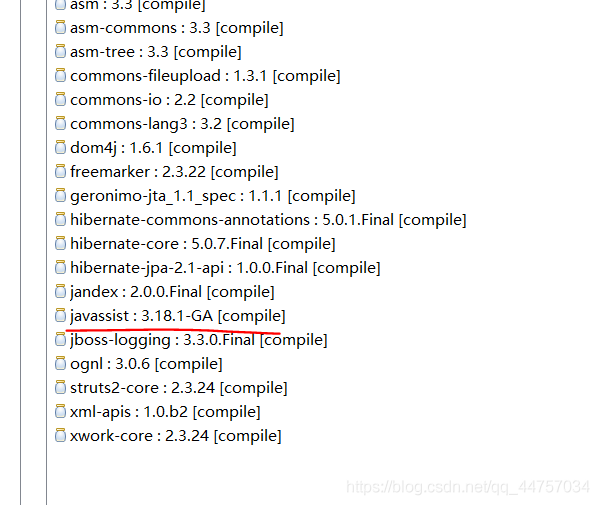

6、查看pom.xml的依賴關系(通過Exclude排除jar包沖突依賴)




只剩下了最高版本

pom.xml當中的struct2的配置多了一個配置

7、依賴傳遞范圍
子模塊crm06_dao中添加junit的依賴,scope為test,但是在crm06_service中并不能使用junit

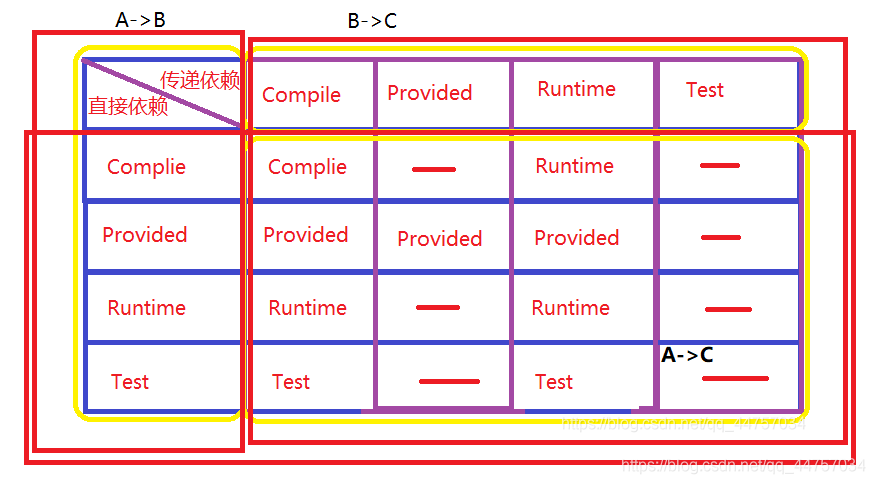

1、縱坐標:直接依賴 A依賴B,B是A的直接依賴, 在A的pom.xml中添加B的坐標
2、橫坐標:傳遞依賴 B依賴C,C是A的傳遞依賴
3、中間部分:傳遞依賴的范圍,A依賴C的范圍,
(1)撰寫測驗用例在dao當中,在pom.xml當中

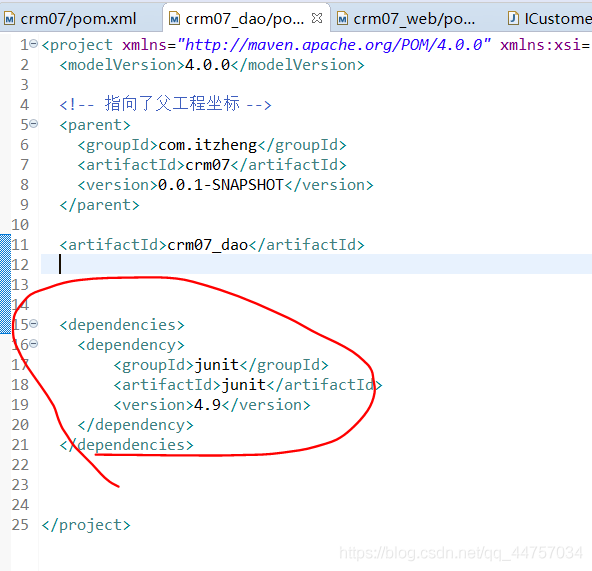

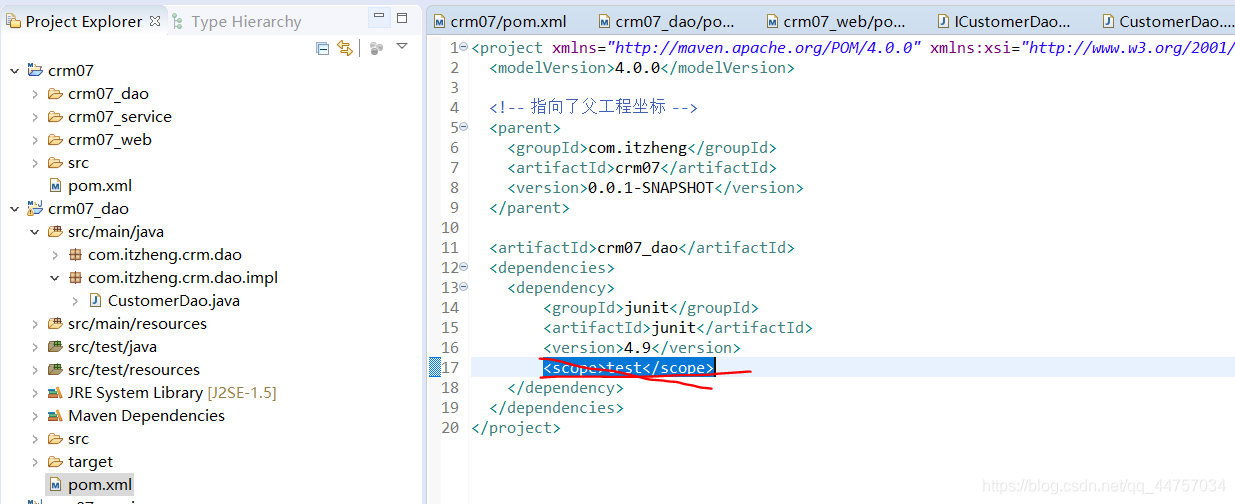

在crm07_dao下的pom.xml當中


(2)service依賴dao但是,在dao引入junit測驗后色service當中沒有,如果想讓junit在業務層也可以呼叫
在crm07_dao當中的pom.xml當中洗掉下面這一句

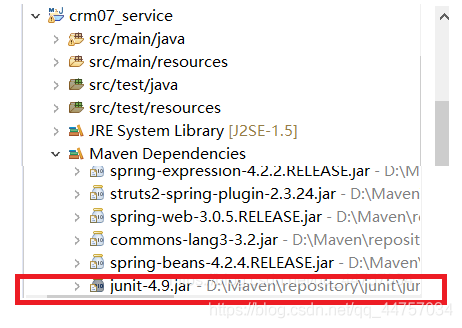

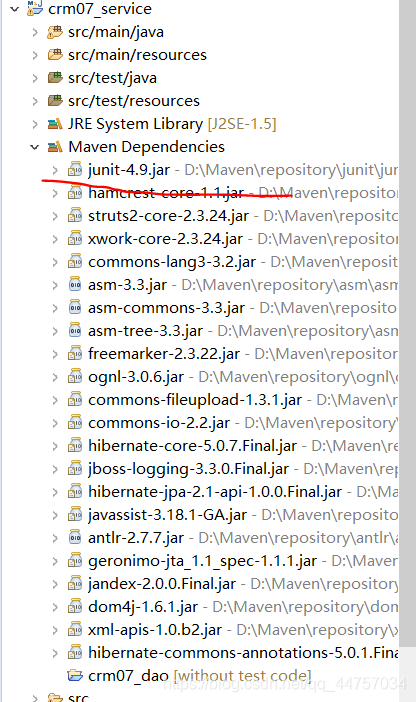

洗掉之后可以在service當中看到junit的jar

解決辦法: 如果在依賴傳遞的程序當中,導致jar包的丟失,我們的做法很簡單,就是再匯入一次坐標

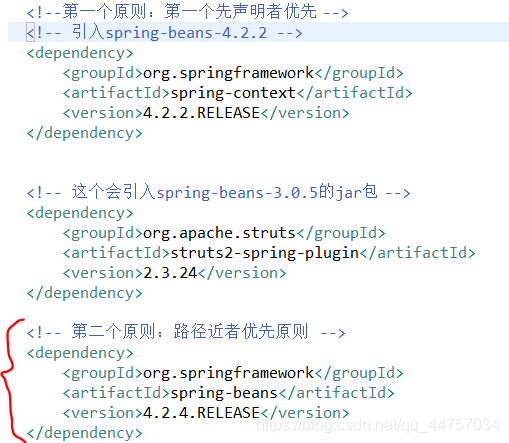

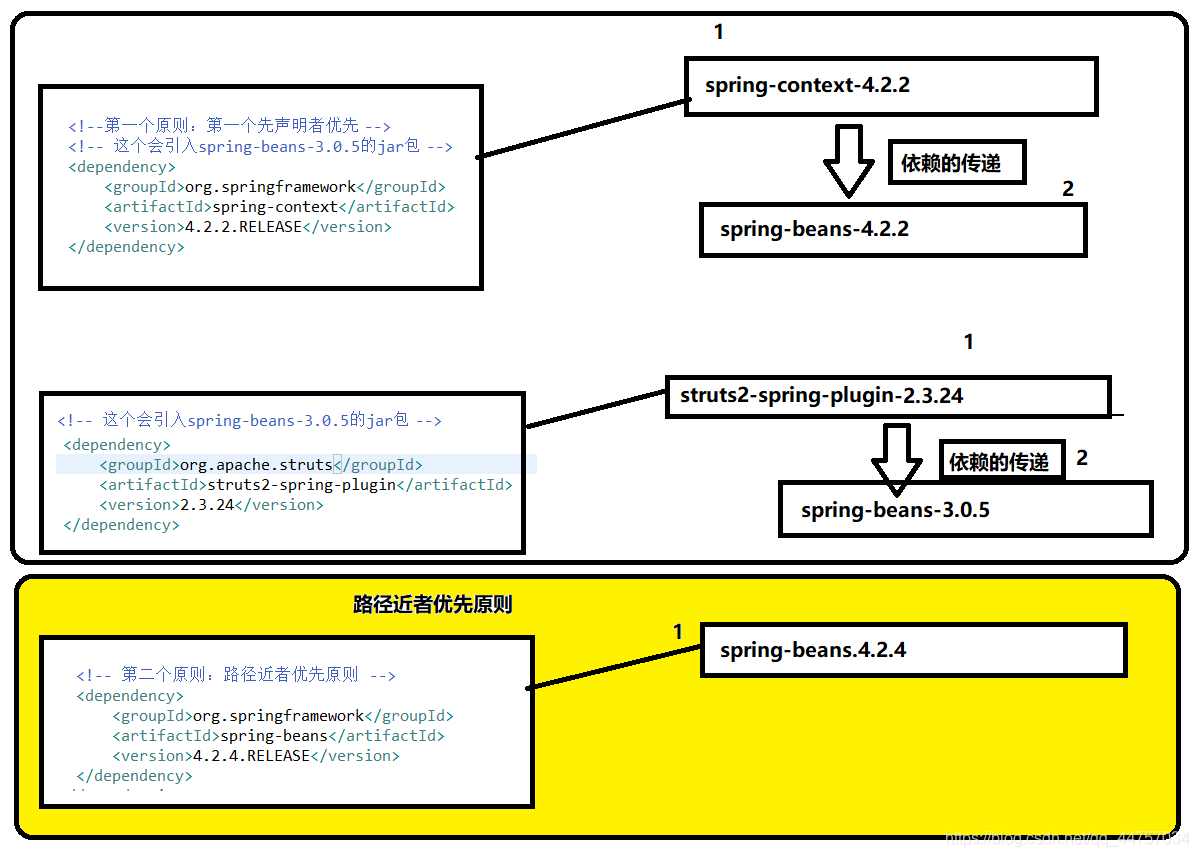

8、依賴的兩個原則

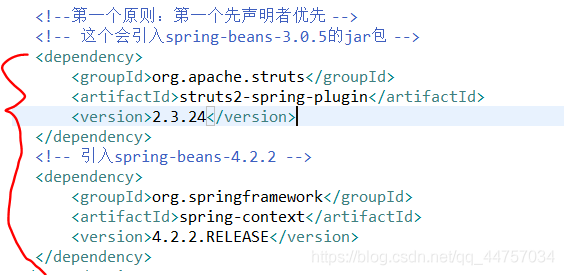

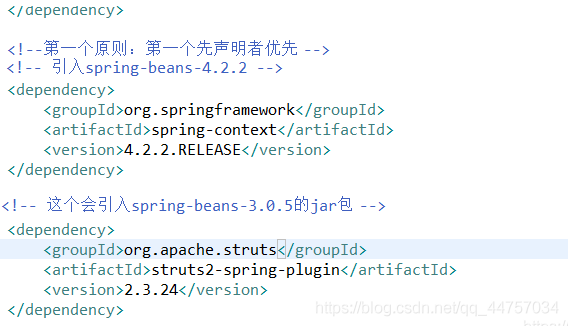

(一)第一個原則:第一個先宣告者優先

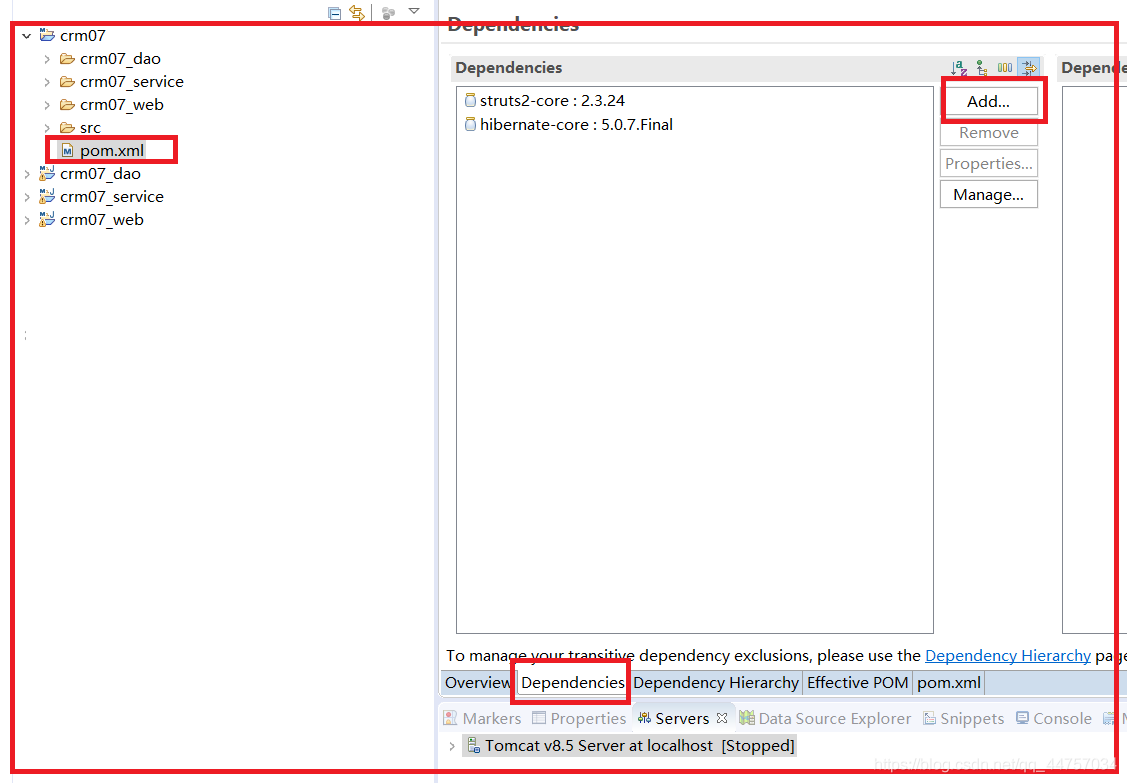

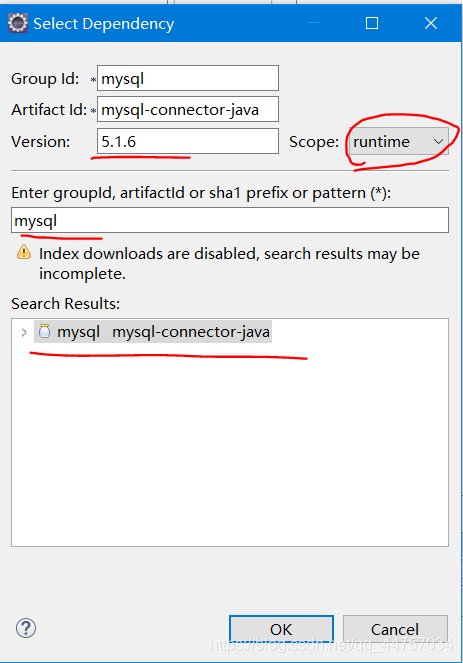

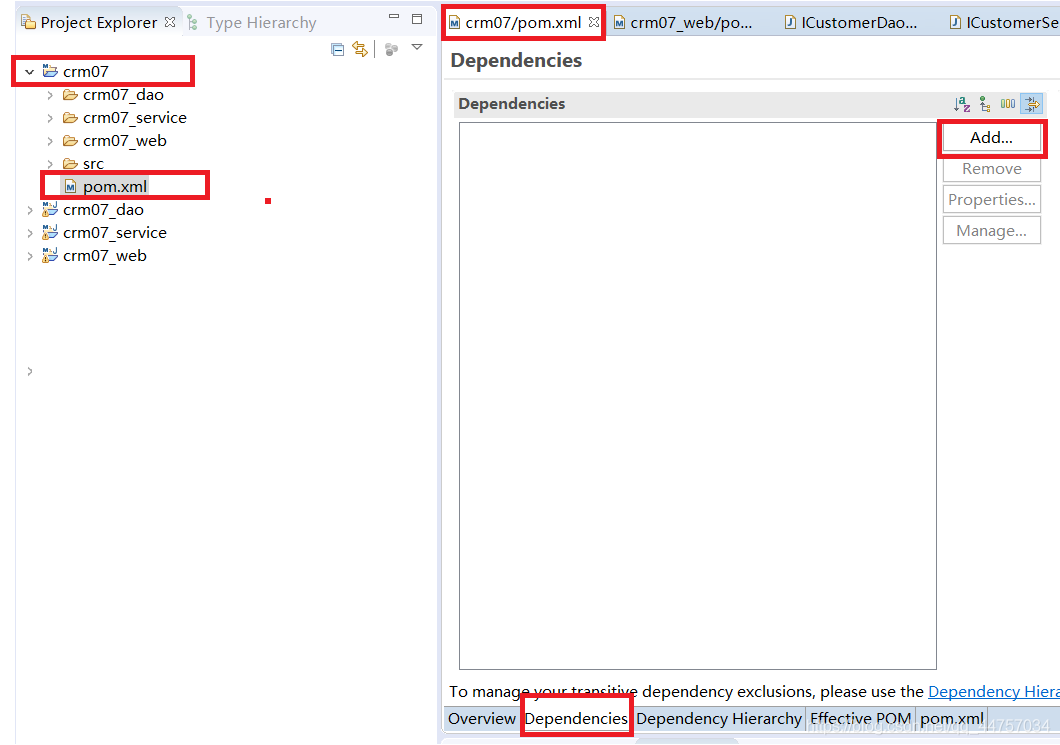

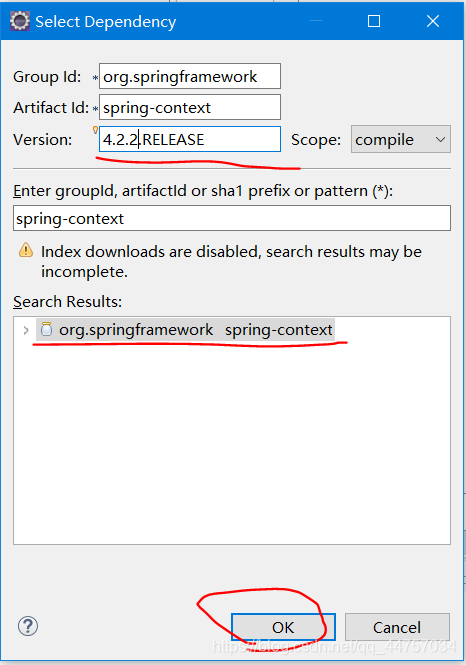

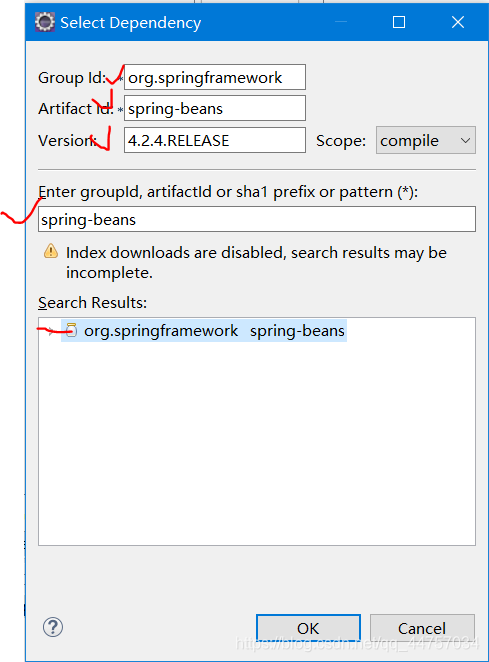

(1)在父工程當中添加依賴



(2)在crm07/pom.xml當中

(3)在pom.xml當中更改一下對應的,兩個spring的順序

優先順序會改變

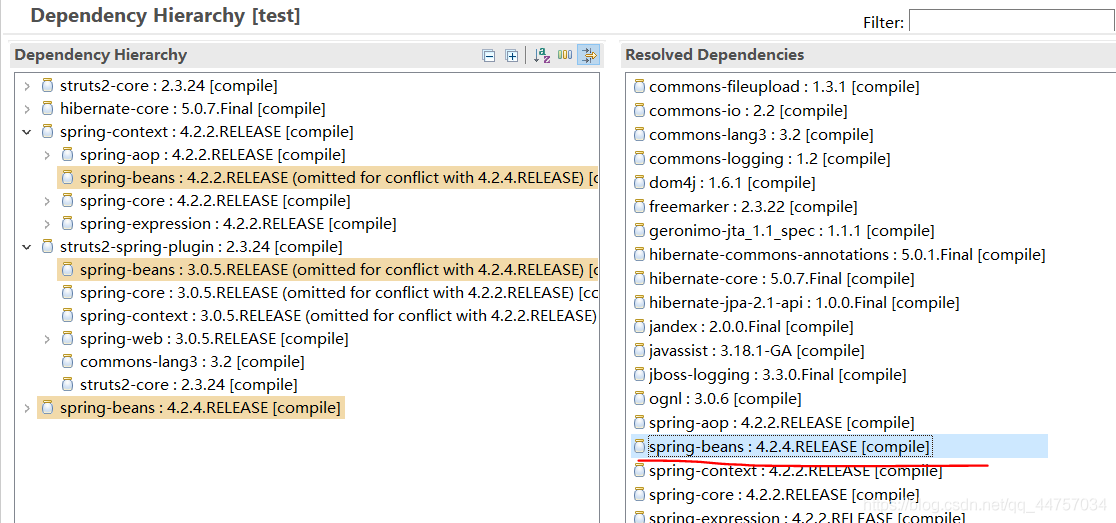

(二)第二個原則:路徑近者優先原則

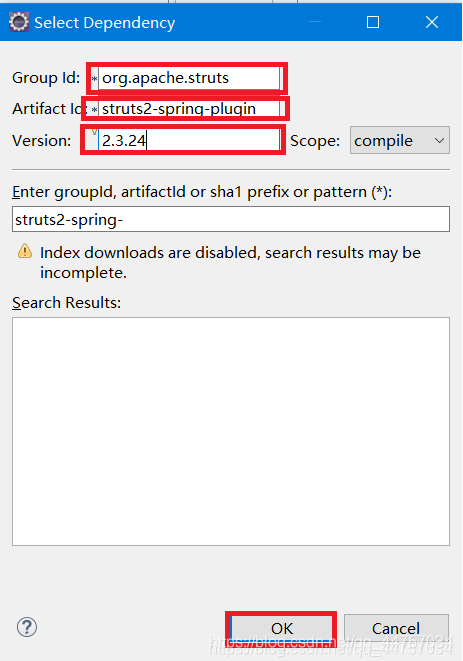

(1)實驗如果上面引入的不是自己合適的,再次引入一個新的

生效版本變為后添加的版本



9、版本的鎖定
(1)洗掉dao層當中的junit依賴

(2)在父工程當中添加對應的junit


(3)在子工程下面會自動引入和父工程一樣的junit的jar


(4)這個時候在上面的會有三個專案有三個junit,

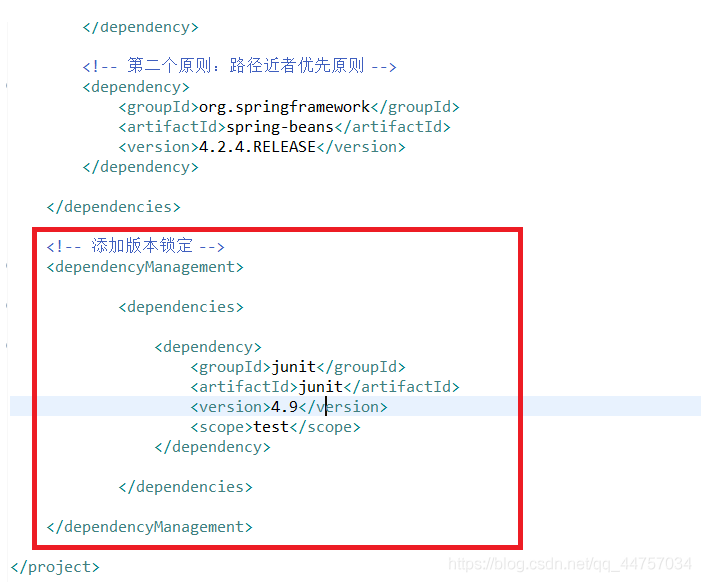

(一)這個時候需要通過版本的鎖定來解決這個問題
在父工程的pom.xml當中、

<!-- 添加版本鎖定 -->
<dependencyManagement>
<dependencies>
<dependency>
<groupId>junit</groupId>
<artifactId>junit</artifactId>
<version>4.9</version>
<scope>test</scope>
</dependency>
</dependencies>
</dependencyManagement>
(二)添加版本鎖定以后
子工程當中的junit的jar會消失

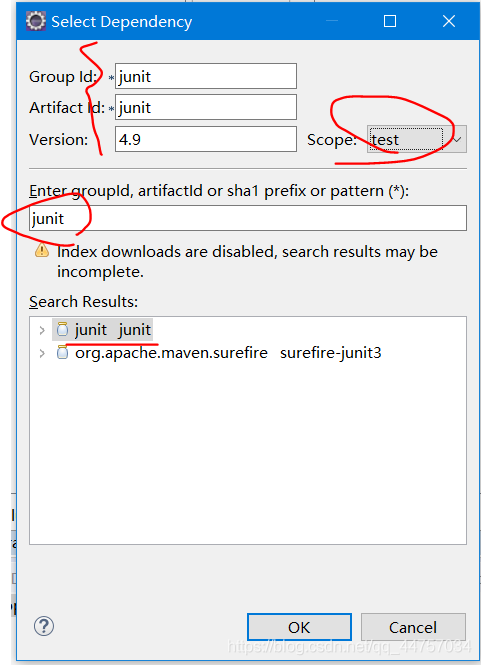

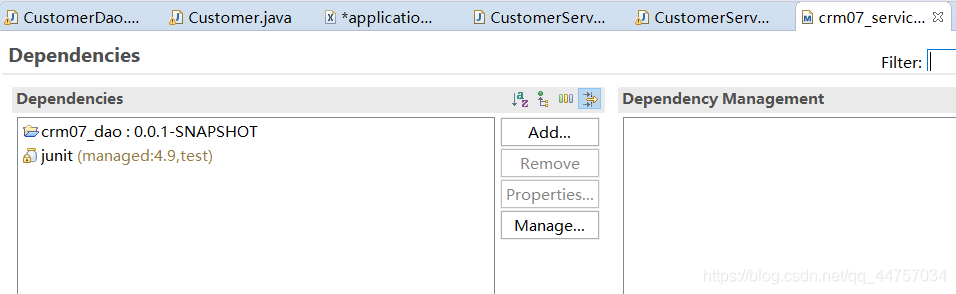

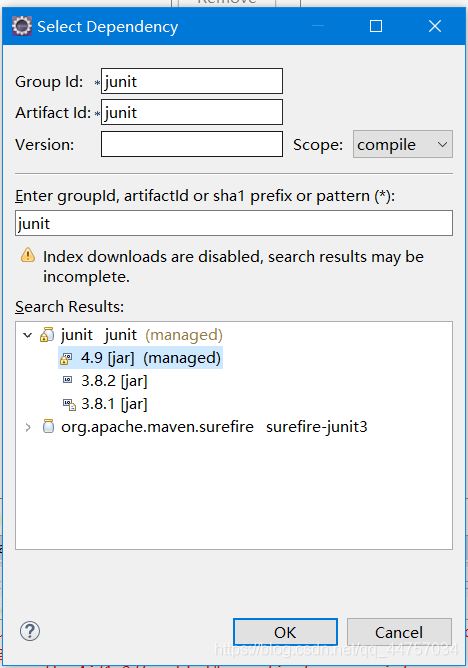

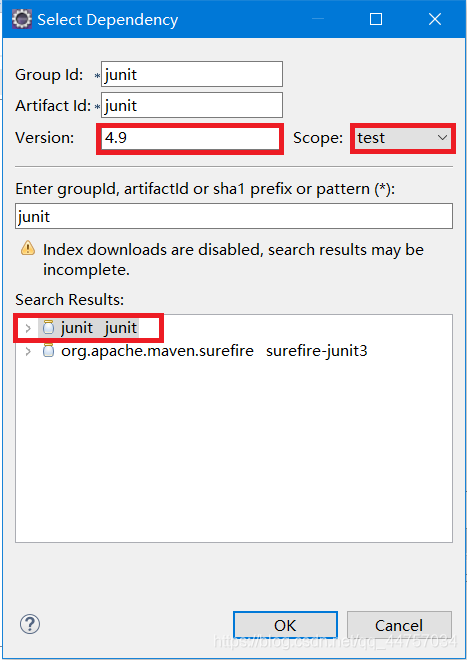

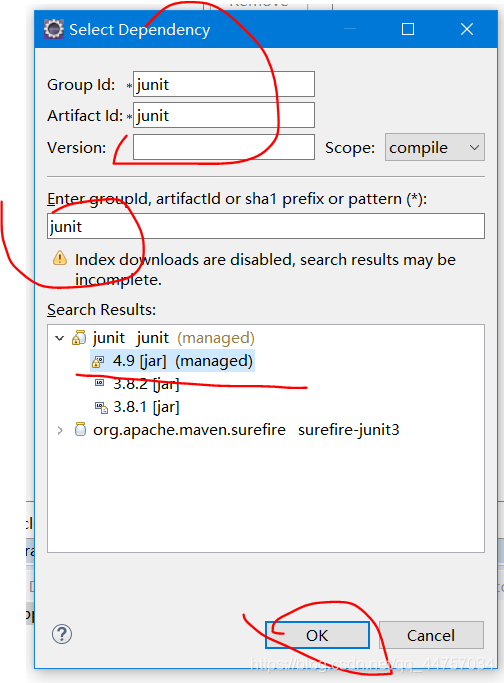

(三)在子工程當中添加junit,選擇對應鎖定版本的junit

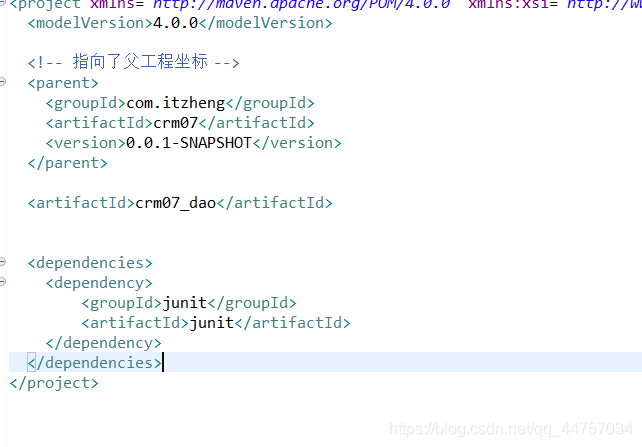

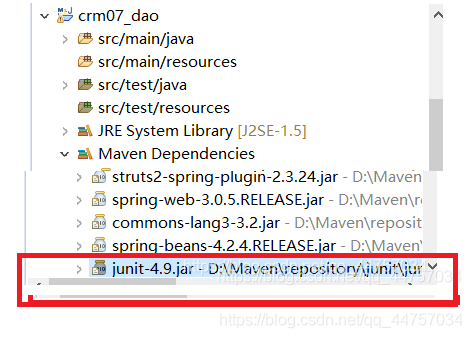

在dao當中添加對應的junit

在子工程的pom.xml當中

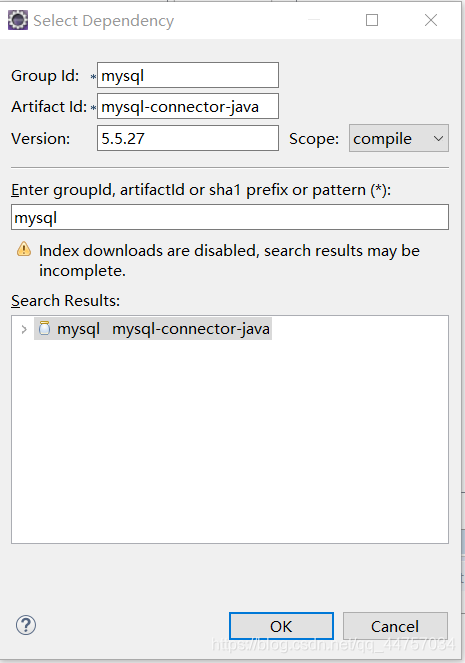

10、整合SSH其他jar包

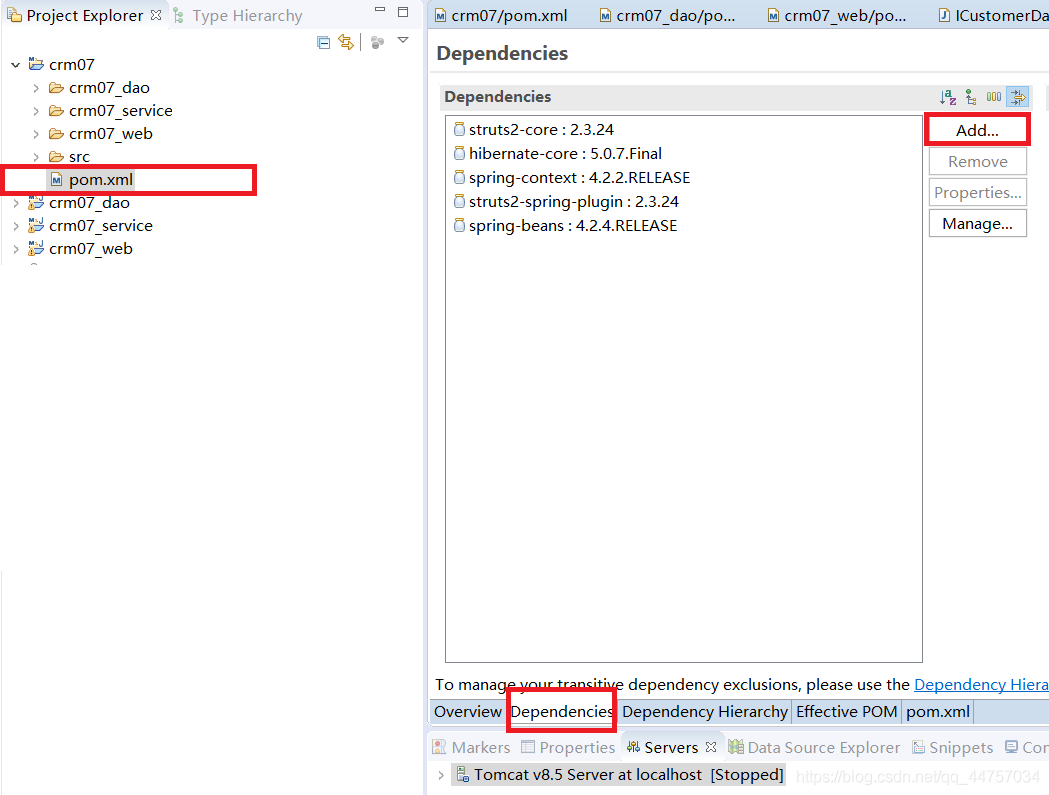

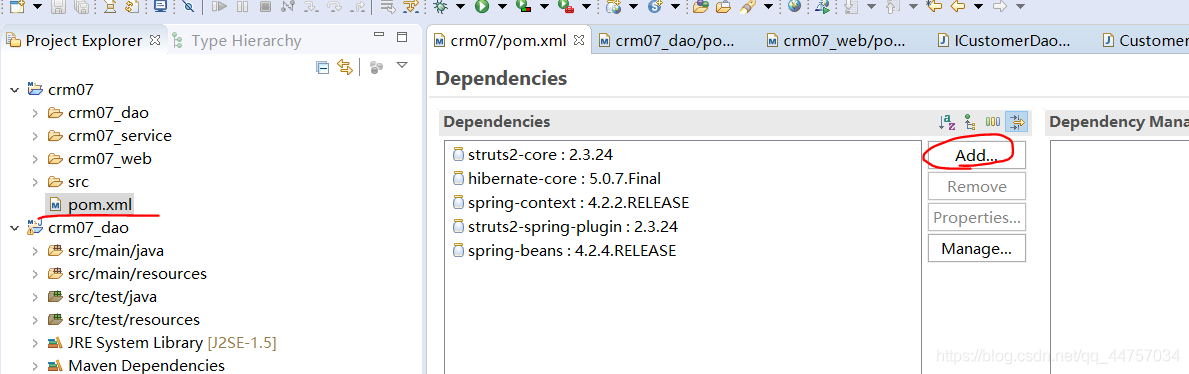

(1)在crm07/pom.xml當中

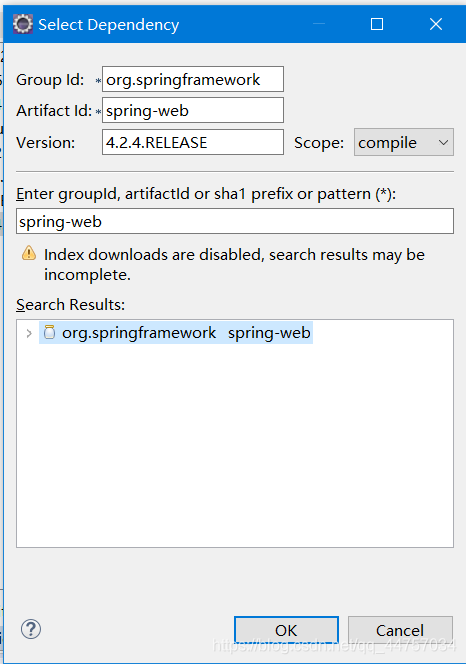

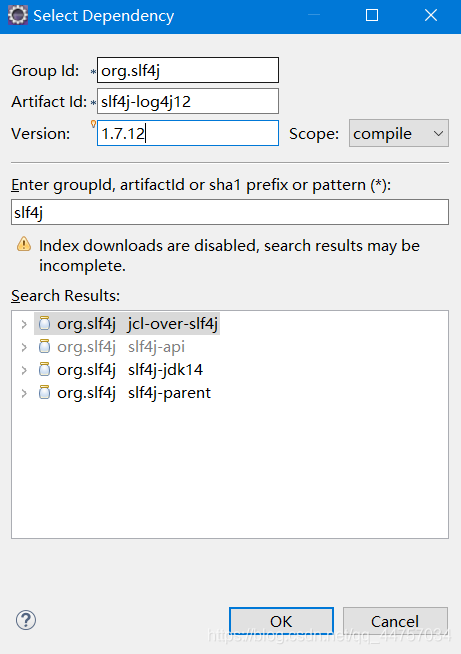

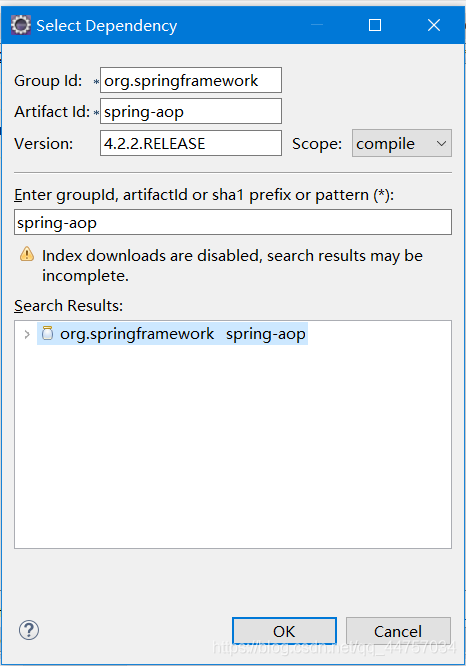

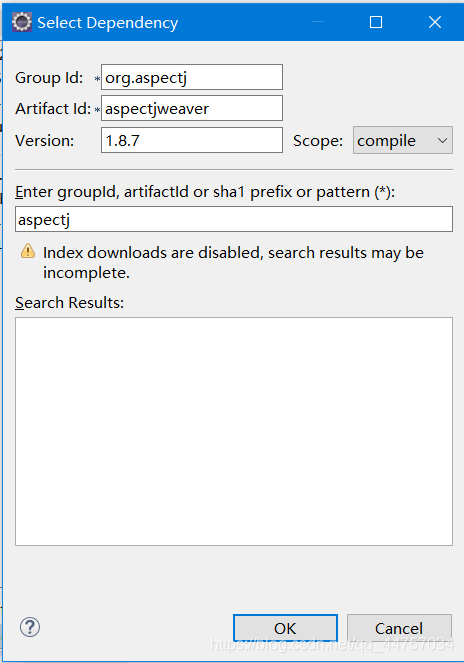

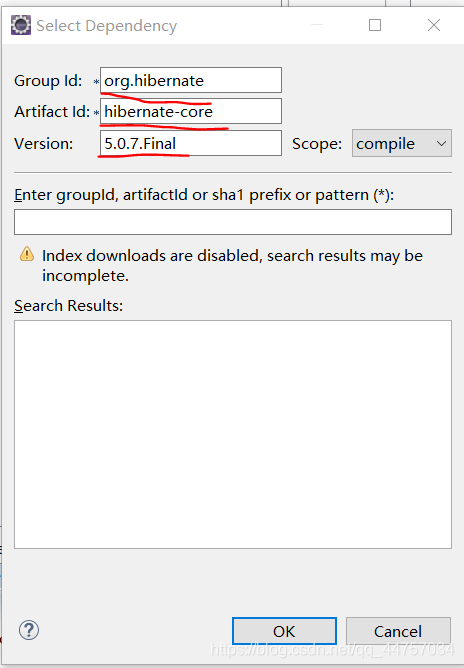

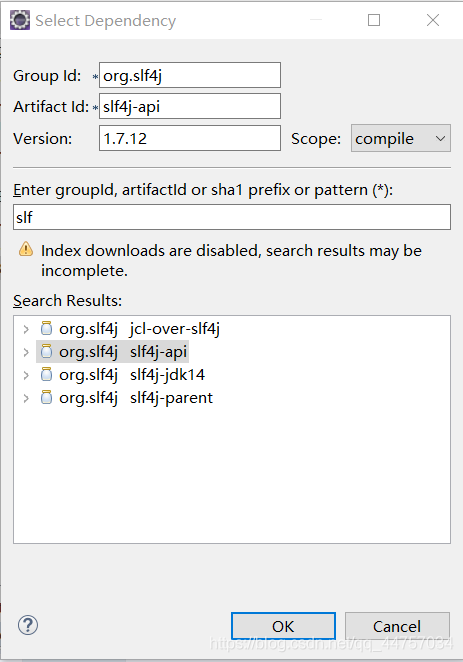

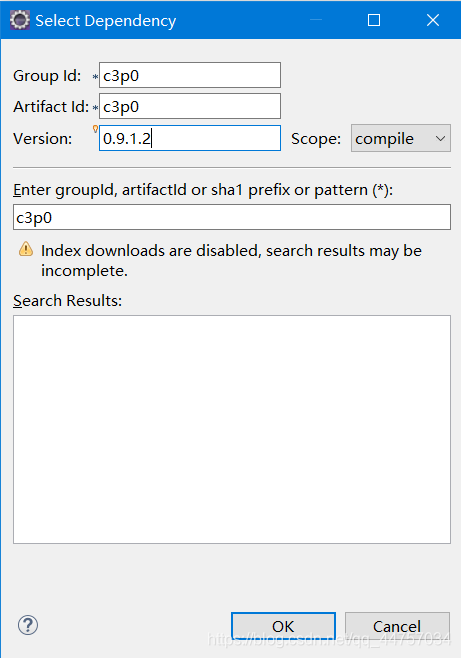

(2)添加其他SSH相關jar

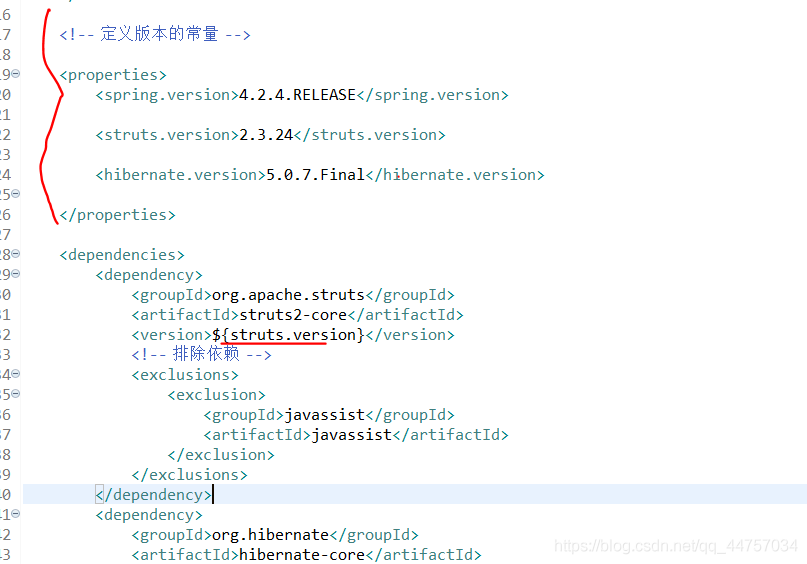

11、在crm/pom.xml當中定義版本常量
(1)設定對應的值

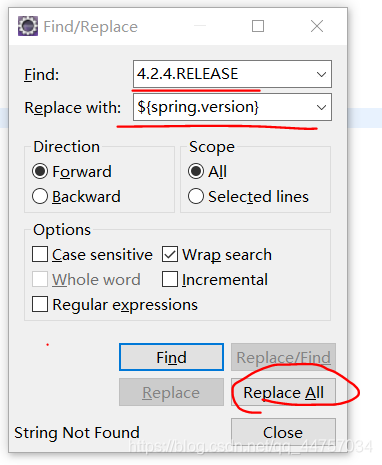

(2)替換對應的變數Ctrl + F

通過定義版本編號常量的方式可以定義替換pom.xml當中的內容

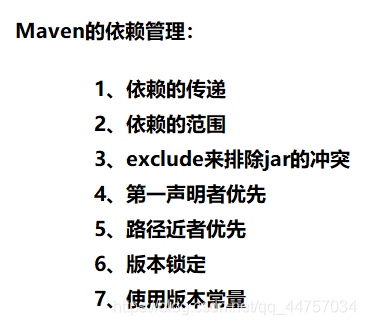

12、依賴管理總結

13、dao層的開發

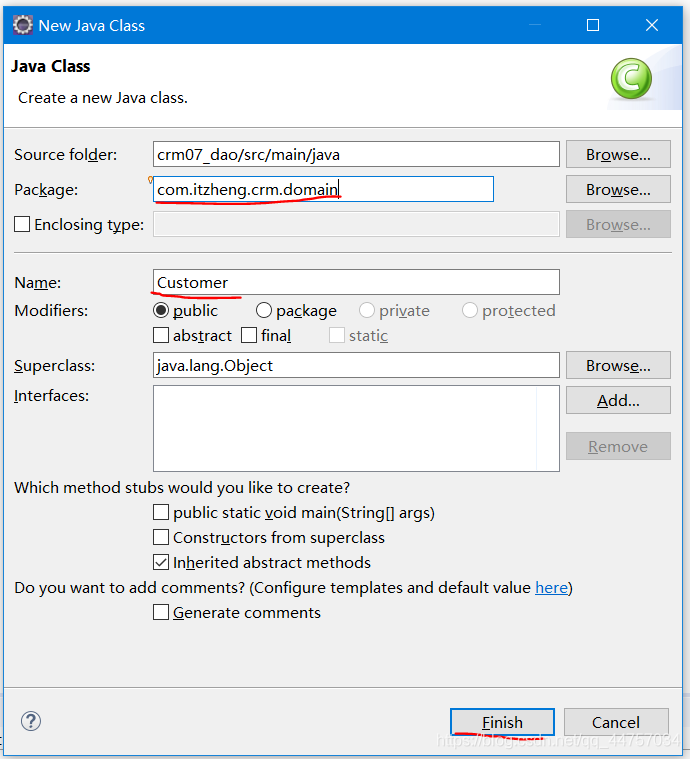

(1)crm07_dao

package com.itzheng.crm.domain;
import java.io.Serializable;
/**
* PO(Persistence Object)持久化類
* 7個規范
* 1. 公有類
* 2. 公有無參構造
* 3. 私有屬性
* 4. 公有的getter與setter
* 5. 實作java.io.Serializable介面
* 6. 不能用final修飾
* 7. 如果是基礎型別,要使用它的包裝類
* @author Administrator
*/
package com.itzheng.crm.domain;
import java.io.Serializable;
/**
* PO(Persistence Object)持久化類 7個規范 1. 公有類 2. 公有無參構造 3. 私有屬性 4. 公有的getter與setter
* 5. 實作java.io.Serializable介面 6. 不能用final修飾 7. 如果是基礎型別,要使用它的包裝類
*
* @author Administrator
*
*/
public class Customer implements Serializable {
private Long cust_id;
private String cust_name;
/*
* private String cust_source; private String cust_industry; private String
* cust_level;
*/
private String cust_phone;
private String cust_mobile;
private String cust_image;// 客戶資質的圖片
public Long getCust_id() {
return cust_id;
}
public void setCust_id(Long cust_id) {
this.cust_id = cust_id;
}
public String getCust_name() {
return cust_name;
}
public void setCust_name(String cust_name) {
this.cust_name = cust_name;
}
public String getCust_phone() {
return cust_phone;
}
public void setCust_phone(String cust_phone) {
this.cust_phone = cust_phone;
}
public String getCust_mobile() {
return cust_mobile;
}
public void setCust_mobile(String cust_mobile) {
this.cust_mobile = cust_mobile;
}
public String getCust_image() {
return cust_image;
}
public void setCust_image(String cust_image) {
this.cust_image = cust_image;
}
@Override
public String toString() {
return "Customer [cust_id=" + cust_id + ", cust_name=" + cust_name + ", cust_phone=" + cust_phone
+ ", cust_mobile=" + cust_mobile + ", cust_image=" + cust_image + "]";
}
}

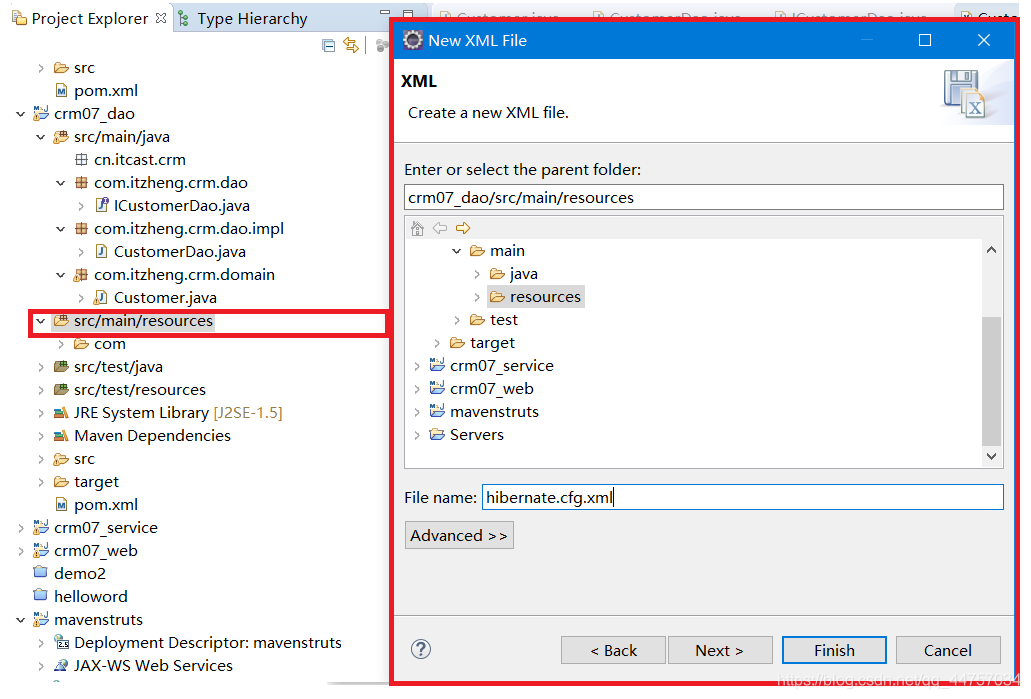

(2)組態檔(在src/main/resources下創建xml檔案)
a、先創建和dao層一模一樣的包

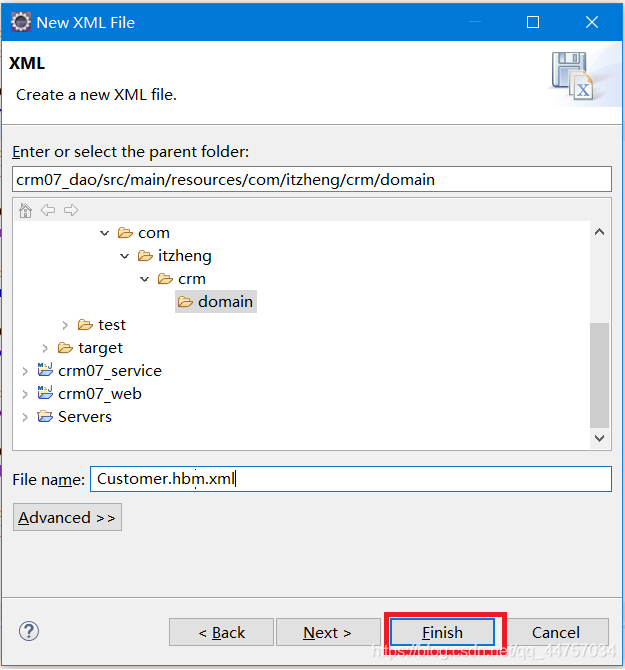

b、在創建好的包當中創建xml檔案

撰寫映射檔案
c、創建Hibernate的映射檔案
<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE hibernate-mapping PUBLIC
"-//Hibernate/Hibernate Mapping DTD 3.0//EN"
"http://www.hibernate.org/dtd/hibernate-mapping-3.0.dtd" >
<hibernate-mapping>
<class name="com.itzheng.crm.domain.Customer" table="cst_customer">
<!-- 建立類中的屬性與表中的主鍵對應 -->
<id name="cust_id" column="cust_id">
<!-- 主鍵生成策略 -->
<generator class="native" />
</id>
<!-- 建立類中的普通的屬性和表的欄位的對應映射 -->
<property name="cust_name" column="cust_name" />
<property name="cust_phone" column="cust_phone" />
<property name="cust_mobile" column="cust_mobile" />
<property name="cust_image" column="cust_image" />
</class>
</hibernate-mapping>

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE hibernate-configuration PUBLIC "-//Hibernate/Hibernate Configuration DTD 3.0//EN" "http://www.hibernate.org/dtd/hibernate-configuration-3.0.dtd" >
<hibernate-configuration>
<session-factory>
<!-- 方言 -->
<property name="dialert">org.hibernate.dialect.Oracle11gDialect</property>
<property name="show_sql">true</property>
<property name="format_sql">false</property>
<property name="hbm2ddl.auto">none</property>
<!-- 懶加載 -->
<property name="hibernate.enable_lazy_load_no_trans">true</property>
<!-- 物體類的驗證 -->
<property name="javax.persistence.validation.mode">none</property>
</session-factory>
</hibernate-configuration>

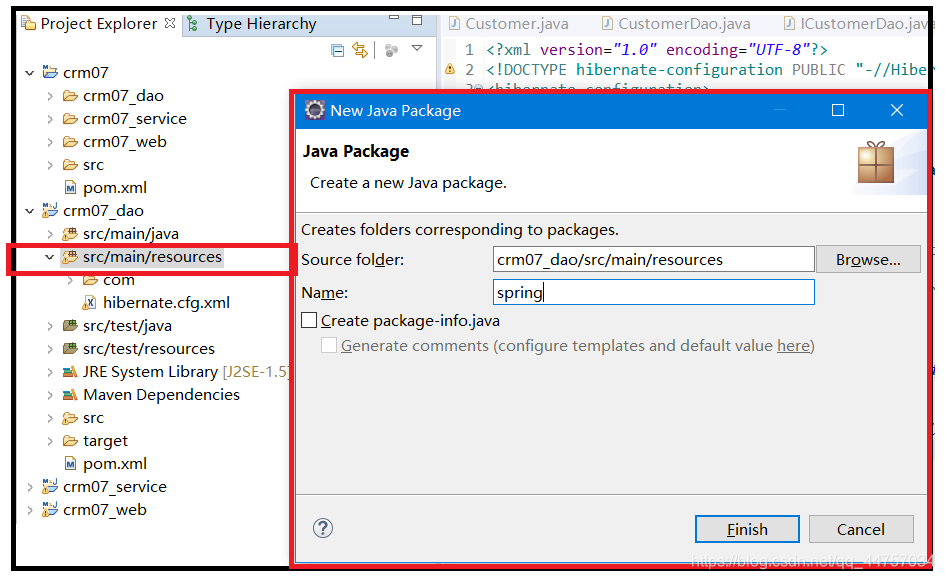

d、創建spring的檔案

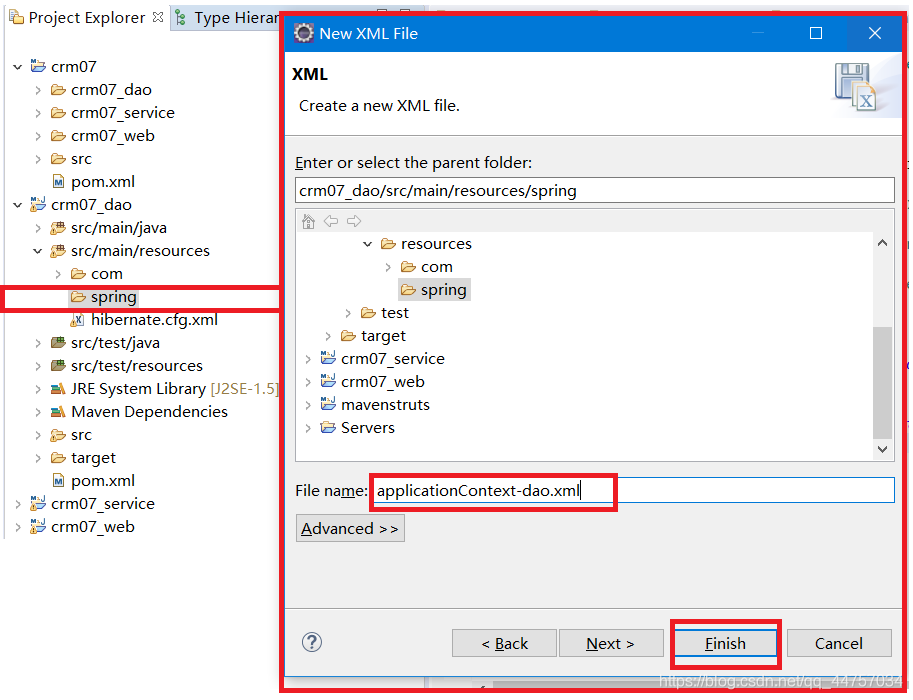

e、在spring下創建spring的xml映射檔案

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:context="http://www.springframework.org/schema/context"
xmlns:aop="http://www.springframework.org/schema/aop"
xmlns:tx="http://www.springframework.org/schema/tx"
xsi:schemaLocation="
http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsd
http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop.xsd
http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx.xsd ">
<!-- 資料源 -->
<bean id="dataSource" class="com.mchange.v2.c3p0.ComboPooledDataSource">
<property name="driverClass" value="com.mysql.jdbc.Driver"></property>
<property name="jdbcUrl" value="jdbc:mysql://localhost:3306/crm?characterEncoding=utf-8"></property>
<property name="user" value="root" ></property>
<property name="password" value="root" ></property>
</bean>
<!-- sessionFactory;SessionFactory介面負責初始化Hibernate,它充當資料存盤源的代理,并負責創建Session物件, -->
<bean id="sessionFactory" class="org.springframework.orm.hibernate5.LocalSessionFactoryBean">
<property name="dataSource" ref="dataSource"></property>
<property name="configLocation" value="classpath:hibernate.cfg.xml" ></property>
<property name="mappingLocations" value="classpath:com/itzheng/crm/domain/*.hbm.xml" ></property>
</bean>
<!-- 資料訪問層 -->
<bean id="customerDao" class="com.itzheng.crm.dao.impl.CustomerDao">
<property name="sessionFactory" ref="sessionFactory" ></property>
</bean>
</beans>
d、完善CustomerDao類
package com.itzheng.crm.dao.impl;
import java.util.List;
import org.springframework.orm.hibernate5.support.HibernateDaoSupport;
import com.itzheng.crm.dao.ICustomerDao;
import com.itzheng.crm.domain.Customer;
public class CustomerDao extends HibernateDaoSupport implements ICustomerDao {
public List<Customer> findAll() {
return (List<Customer>) getHibernateTemplate().find("from Customer");
}
}

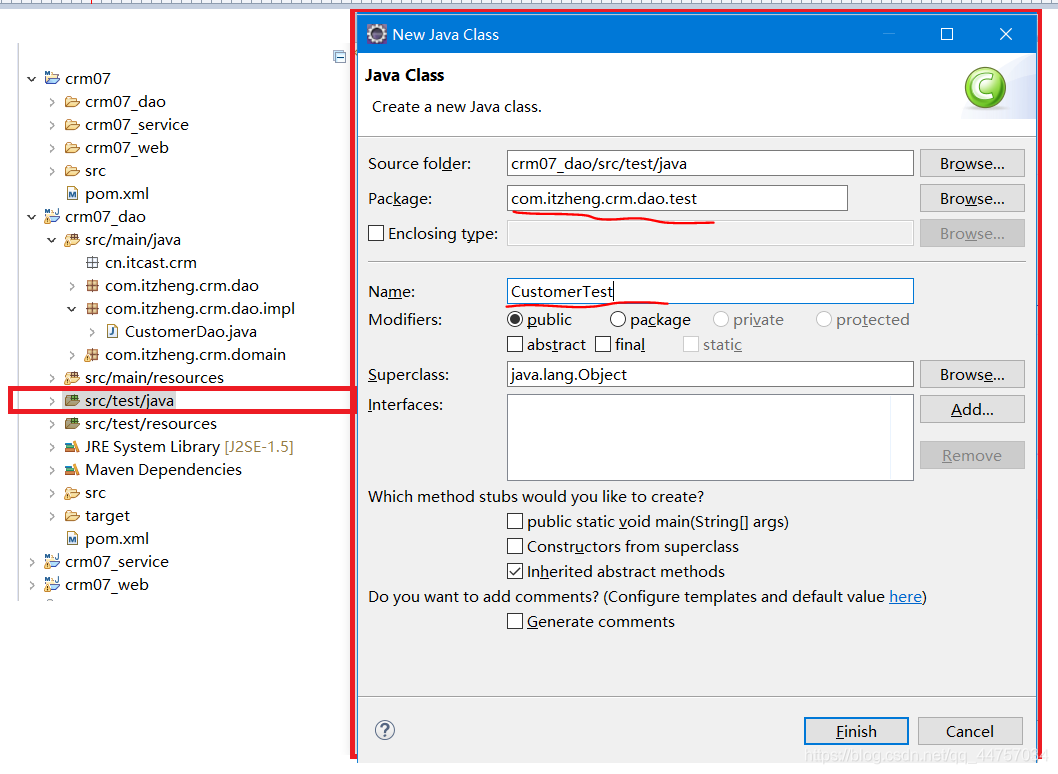

e、創建好測驗類

package com.itzheng.crm.dao.test;
import org.junit.Test;
import org.springframework.context.ApplicationContext;
import org.springframework.context.support.ClassPathXmlApplicationContext;
import com.itzheng.crm.dao.impl.CustomerDao;

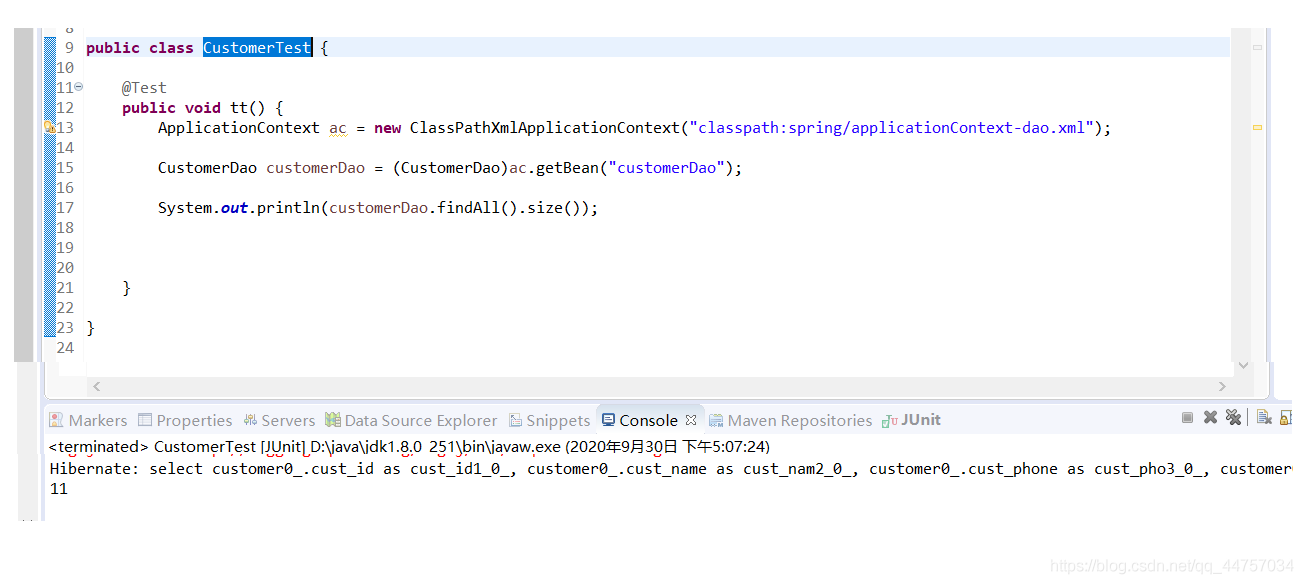

public class CustomerTest {
@Test
public void tt() {
ApplicationContext ac = new ClassPathXmlApplicationContext("classpath:spring/applicationContext-dao.xml");
CustomerDao customerDao = (CustomerDao)ac.getBean("customerDao");
System.out.println(customerDao.findAll().size());
}
}

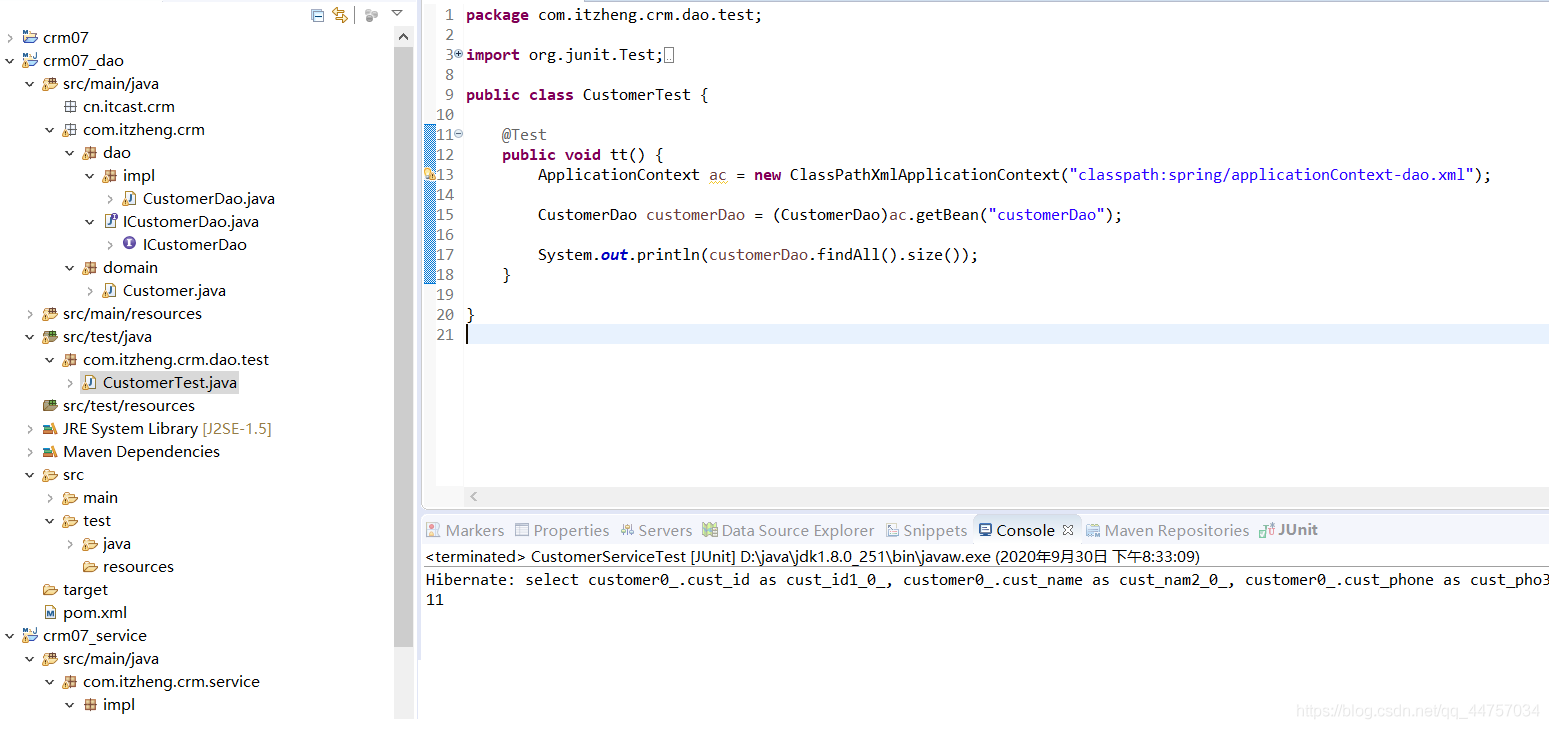

查詢成功

14、service層的開發

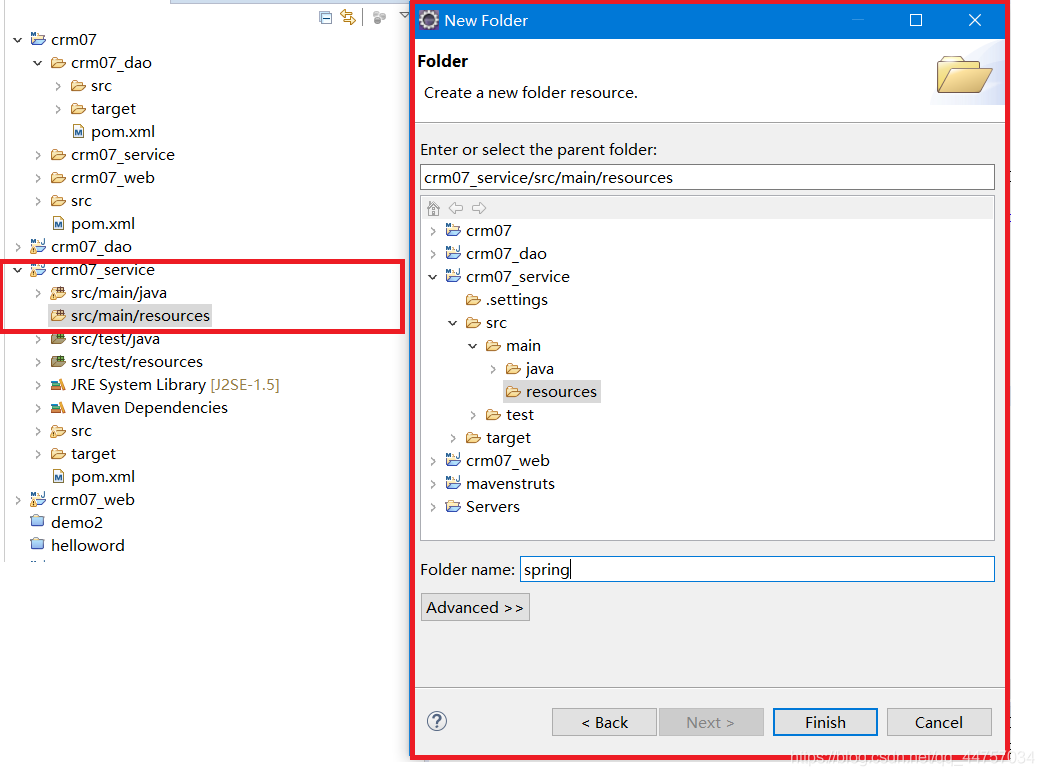

(1)創建spring檔案


<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:context="http://www.springframework.org/schema/context"
xmlns:aop="http://www.springframework.org/schema/aop"
xmlns:tx="http://www.springframework.org/schema/tx"
xsi:schemaLocation="
http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsd
http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop.xsd
http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx.xsd ">
<bean id="transactionManager" class="org.springframework.orm.hibernate5.HibernateTransactionManager">
<property name="sessionFactory" ref="sessionFactory"></property>
</bean>
<!-- 通知 -->
<tx:advice id="advice" transaction-manager="transactionManager" >
<tx:attributes>
<tx:method name="add*" propagation="REQUIRED" />
<tx:method name="save*" propagation="REQUIRED" />
<tx:method name="update*" propagation="REQUIRED" />
<tx:method name="delete*" propagation="REQUIRED" />
<tx:method name="*" read-only="true" />
</tx:attributes>
</tx:advice>
<!-- 切面 -->
<aop:config>
<aop:pointcut expression="execution(* com.itzheng.crm.service.impl.*.*(..))" id="myPointCut"/>
<aop:advisor advice-ref="advice" pointcut-ref="myPointCut" />
</aop:config>
<!-- 業務 -->
<bean id="customerService" class="com.itzheng.crm.service.impl.CustomerService">
<property name="customerDao" ref="customerDao" ></property>
</bean>
</beans>
(2)創建測驗類
a、在service/pom.xml當中添加junit的配置

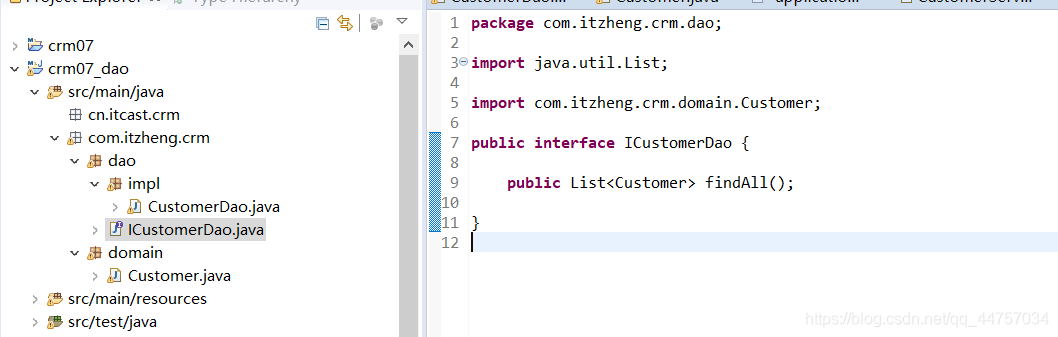

b、完善dao層的內容
package com.itzheng.crm.dao;
import java.util.List;
import com.itzheng.crm.domain.Customer;
public interface ICustomerDao {
public List<Customer> findAll();
}

package com.itzheng.crm.dao.impl;
import java.util.List;
import org.springframework.orm.hibernate5.support.HibernateDaoSupport;
import com.itzheng.crm.dao.ICustomerDao;
import com.itzheng.crm.domain.Customer;
public class CustomerDao extends HibernateDaoSupport implements ICustomerDao {
public List<Customer> findAll() {
return (List<Customer>) getHibernateTemplate().find("from Customer");
}
}

c、完善業務層的內容
package com.itzheng.crm.service.impl;
import java.util.List;
import com.itzheng.crm.dao.ICustomerDao;
import com.itzheng.crm.domain.Customer;
import com.itzheng.crm.service.ICustomerService;
public class CustomerService implements ICustomerService {
private ICustomerDao customerDao;
public void setCustomerDao(ICustomerDao customerDao) {
this.customerDao = customerDao;
}
public List<Customer> findAll() {
return customerDao.findAll();
}
}

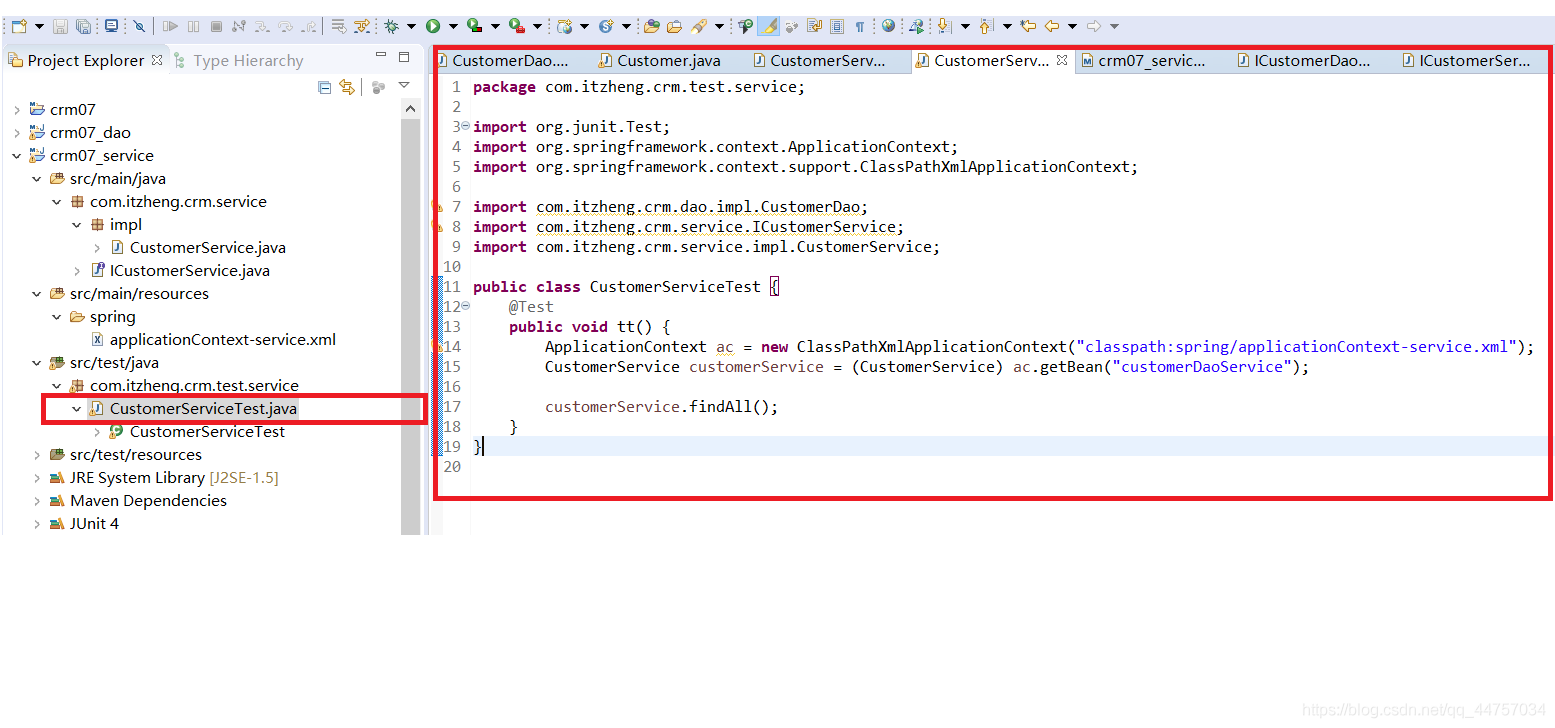

d、創建測驗類

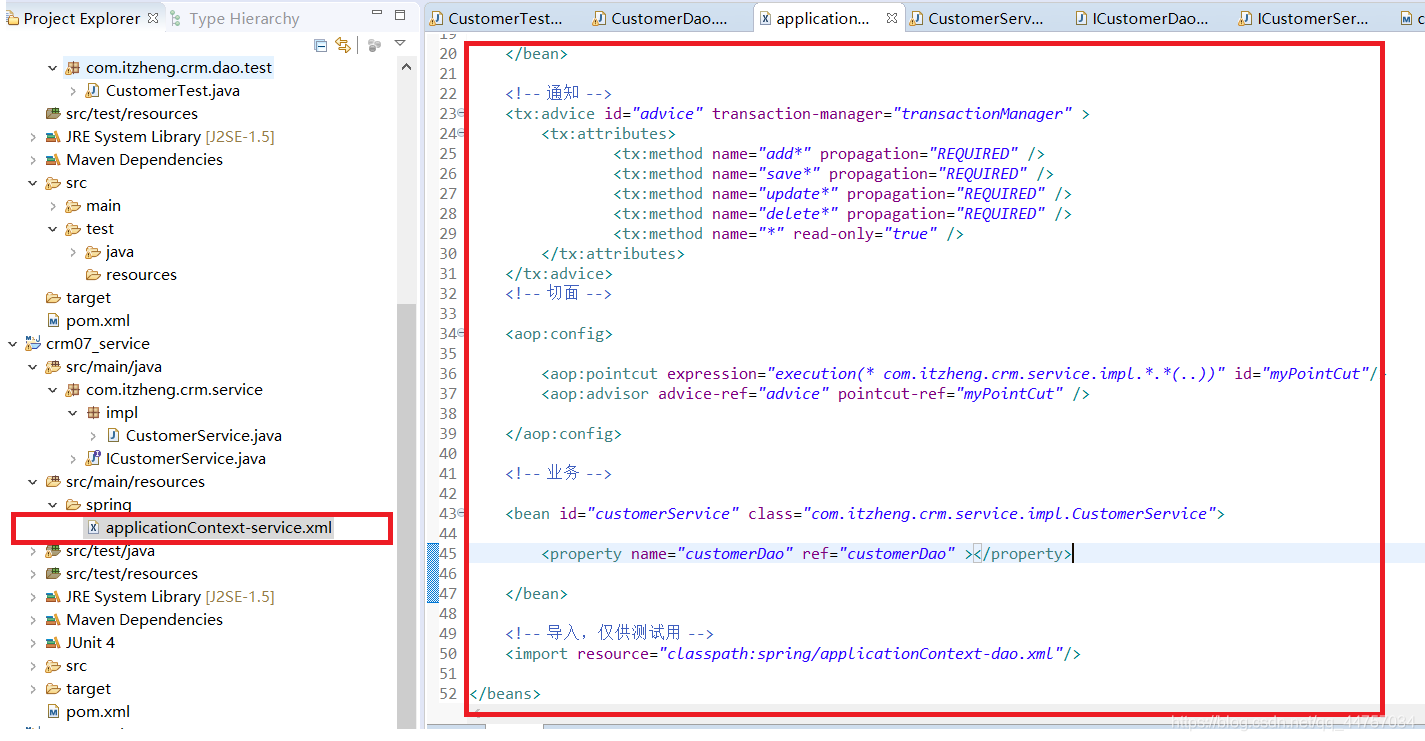

(3)在applicationContext-service.xml當中匯入dao層的applicationContext-dao.xml
<!-- 匯入,僅供測驗用 -->
<import resource="classpath:spring/applicationContext-dao.xml"/>

(4)運行測驗類
package com.itzheng.crm.dao.test;
import org.junit.Test;
import org.springframework.context.ApplicationContext;
import org.springframework.context.support.ClassPathXmlApplicationContext;
import com.itzheng.crm.dao.impl.CustomerDao;
public class CustomerTest {
@Test
public void tt() {
ApplicationContext ac = new ClassPathXmlApplicationContext("classpath:spring/applicationContext-dao.xml");
CustomerDao customerDao = (CustomerDao)ac.getBean("customerDao");
System.out.println(customerDao.findAll().size());
}
}

15、web層的開發
(1)在src/main/java下創建CustomerAction

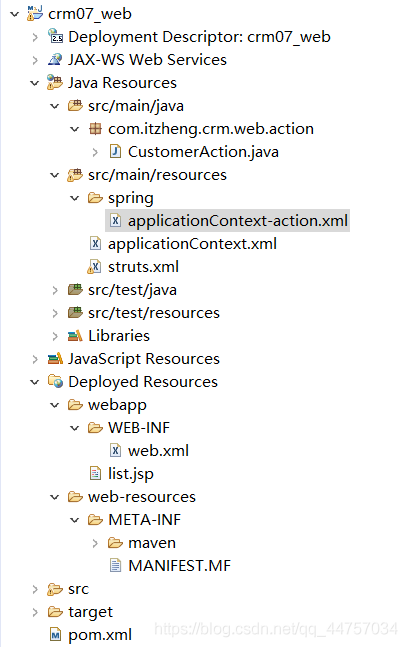

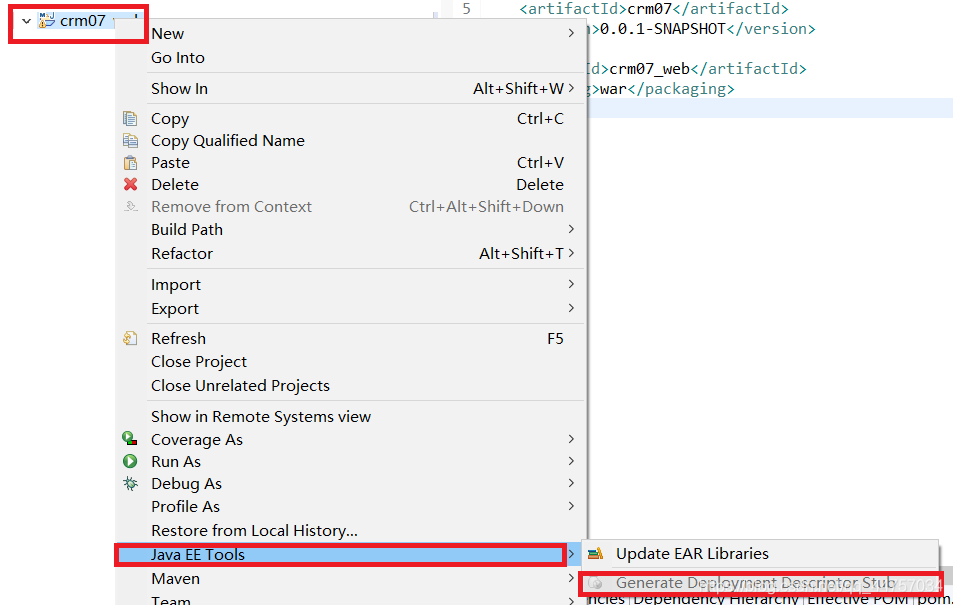

(2)創建整個目錄結構

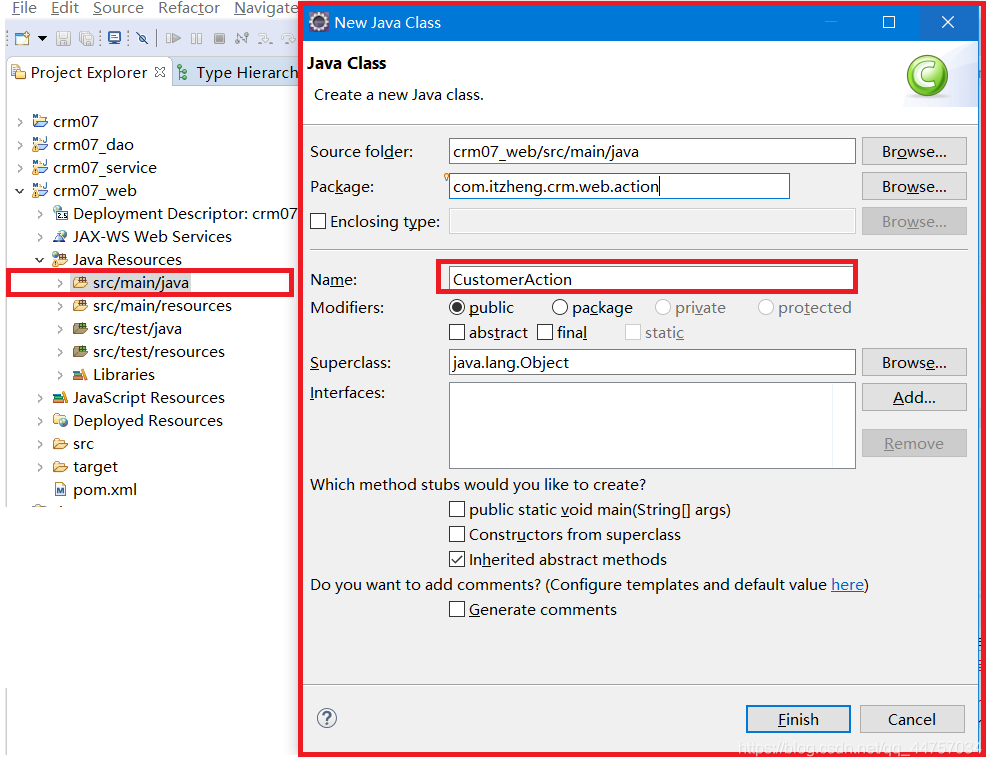

(3)創建CustomerAction
package com.itzheng.crm.web.action;
import java.util.List;
import com.itzheng.crm.domain.Customer;
import com.itzheng.crm.service.impl.CustomerService;
import com.opensymphony.xwork2.ActionContext;
public class CustomerAction {
private CustomerService customerService;
public void setCustomerService(CustomerService customerService) {
this.customerService = customerService;
}
public String list() {
//查詢所有
List<Customer> customerList = customerService.findAll();
//所有的客戶資訊都放入到值堆疊當中
ActionContext.getContext().put("list", customerList);
//回傳list.jsp頁面
return "list";
}
}
(4)創建list.jsp頁面
<%@ page language="java" contentType="text/html; charset=UTF-8"
pageEncoding="UTF-8"%>
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>Insert title here</title>
</head>
<body>
<c:forEach items="${list }" var="customer" >
${ customer.cust_id } --> ${ customer.cust_name } <br>
</c:forEach>
</body>
</html>
(5) 創建applicationContext-action.xml
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:context="http://www.springframework.org/schema/context"
xmlns:aop="http://www.springframework.org/schema/aop"
xmlns:tx="http://www.springframework.org/schema/tx"
xsi:schemaLocation="
http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsd
http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop.xsd
http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx.xsd ">
<bean id="customerAction" class="com.itzheng.crm.web.action.CustomerAction">
<property name="customerService" ref="customerService" ></property>
</bean>
</beans>
(6) 創建applicationContext.xml, 加載所有的spring背景關系
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:context="http://www.springframework.org/schema/context"
xmlns:aop="http://www.springframework.org/schema/aop"
xmlns:tx="http://www.springframework.org/schema/tx"
xsi:schemaLocation="
http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsd
http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop.xsd
http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx.xsd ">
<import resource="classpath:spring/applicationContext-dao.xml" />
<import resource="classpath:spring/applicationContext-service.xml" />
<import resource="classpath:spring/applicationContext-action.xml" />
</beans>
(7) 創建struts.xml
<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE struts PUBLIC
"-//Apache Software Foundation//DTD Struts Configuration 2.3//EN"
"http: // struts.apache.org/dtds/struts-2.3.dtd" >
<struts>
<package name="default" namespace="/" extends="struts-default">
<action name="customer_*" class="customerAction" method="{1}">
<result name="list">/list.jsp</result>
</action>
</package>
</struts>
(8) 配置web.xml
<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns="http://java.sun.com/xml/ns/javaee"
xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd"
version="2.5">
<!-- spring背景關系組態檔路徑 -->
<context-param>
<param-name>contextConfigLocation</param-name>
<param-value>classpath:applicationContext.xml</param-value>
</context-param>
<!-- 加載spring背景關系 -->
<listener>
<listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
</listener>
<!-- Hibernate lazy load -->
<filter>
<filter-name>openSessionInView</filter-name>
<filter-class>org.springframework.orm.hibernate5.support.OpenSessionInViewFilter</filter-class>
</filter>
<filter-mapping>
<filter-name>openSessionInView</filter-name>
<url-pattern>/*</url-pattern>
</filter-mapping>
<!-- struts2 -->
<filter>
<filter-name>struts</filter-name>
<filter-class>org.apache.struts2.dispatcher.ng.filter.StrutsPrepareAndExecuteFilter</filter-class>
</filter>
<filter-mapping>
<filter-name>struts</filter-name>
<url-pattern>/*</url-pattern>
</filter-mapping>
</web-app>

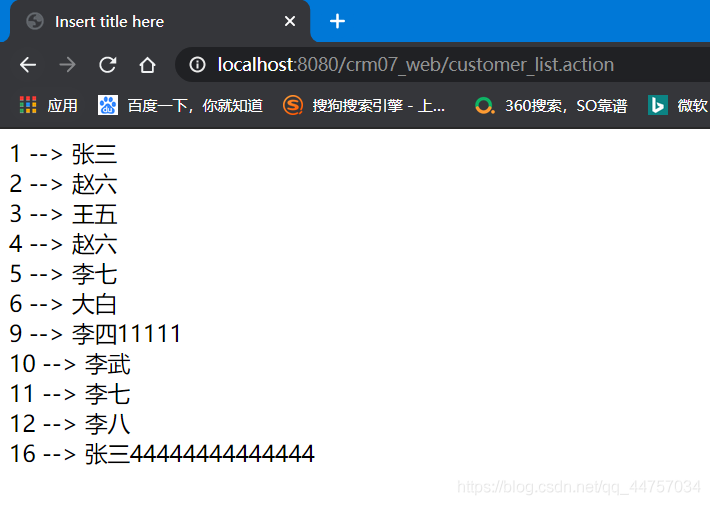

16、運行專案
訪問成功

轉載請註明出處,本文鏈接:https://www.uj5u.com/qianduan/148941.html
標籤:其他
