OPENCV：實施Frankot-Chellappa演算法時遇到問題（正常深度）

我正在嘗試使用 frankot/chellappa 演算法從法線重建表面/深度圖。rows 和 cols 是我試圖重建深度的 img 的大小。

我得到這樣的法線向量：

rows, cols = imglist[0].shape
def find_NormAlbedo(sources, imglist, rows, cols):
    '''
    :param sources: a list of light source coordinates as [x,y,z] coordinates per light source
                    (shape (20,3) for 20 sources)
    :param imglist: a list of all images for one object
    :param rows: shape[0] of every image
    :param cols: shape[1] of every image
    :return: returns normals and albedo's for an object
    '''
    normal = np.zeros_like(imglist[0], dtype=np.ndarray)
    albedo = np.zeros_like(imglist[0])

    # for every pixel
    for x in range(rows):
        for y in range(cols):
            I = []  # intensity matrix of pixel x,y per image
            S = []  # lightsources
            for i in range(len(imglist)):
                img = imglist[i]
                I.append([img[x][y]])
                S.append(sources[i])

            # Least squares solution if S is invertible
            # pseudoinverse
            pseudoS = np.linalg.pinv(S)

            ntilde = pseudoS @ I
            p = np.linalg.norm(ntilde, ord=2)
            if p != 0.:
                n = ntilde / p
                n = n.flatten()
                # print(n)
                # print(n.shape)
            else:
                n = np.zeros_like(ntilde.flatten())

            normal[x][y] = n
            albedo[x][y] = p

    return normal, albedo

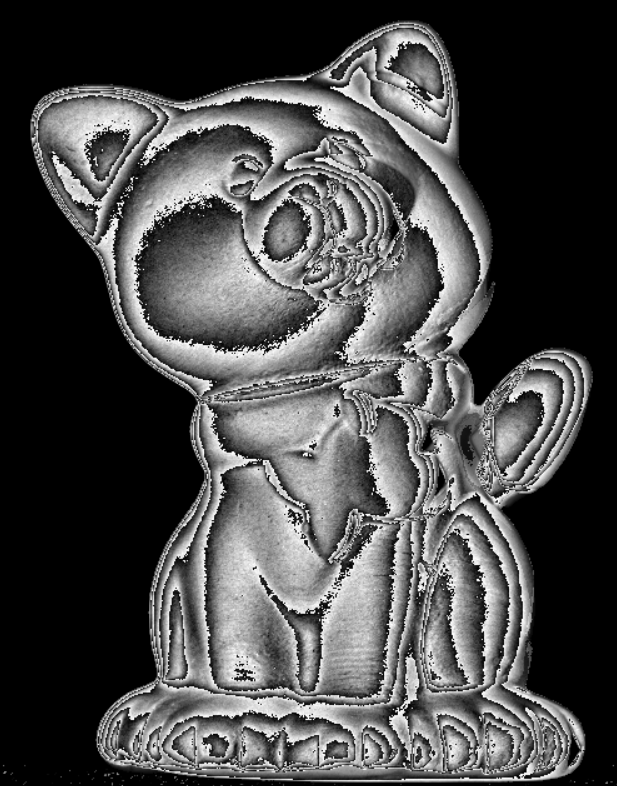

但懷疑這是錯誤的，因為我的反照率看起來與我在示例中看到的完全不同，但不知道我的錯誤在哪里......

然后我嘗試使用wavepy函式surface_to_grad從中獲取表面：

def depthfromgradient(normalmap):
    '''
    :param normalmap: Previously obtained normals per pixel
    :return: Surface/Depth map from normalmap
    '''
    surfacep = np.zeros_like(normalmap)
    surfaceq = np.zeros_like(normalmap)
    for row in range(rows):
        for x in range(cols):
            #print(x)
            a, b, c = normalmap[row][x]
            #print(a, b, c)
            if c !=0:
                p = -a / c  # p=dZ/dx
                q = -b / c  # q=dZ/dy
                surfacep[row][x] = p
                surfaceq[row][x] = q
    return surface_from_grad.frankotchellappa(surfacep, surfaceq, reflec_pad=True)

我的目標是使用 cv.imshow() 可視化深度圖和法線圖，但我不確定我哪里出錯了。這些是我對哪里出錯的問題/想法：

- 反照率圖是否合理？如果不是，我想我誤解了這個演算法的一部分。

- 我的深度圖有復數，這正常嗎？這些從何而來？

-I looked at the shape of the normal map, the albedo map and the depth map, they all have shape (640, 500), yet I can only visualise the albedomap, the others give me the following error, what is the problem here?:

cv2.imshow('DepthMap', surface)
TypeError: Expected cv::UMat for argument 'mat'

Any help in narrowing down this problem would be welcome.

Note:I have tried converting everything to np arrays before using imshow().

uj5u.com熱心網友回復：

問題與我在第一條評論中描述的完全一樣。您獲得的值p（成為您的albedo影像）范圍從 0 到 1998.34。當您將其存盤在一個位元組中時，您只會得到低位 8 位，它們會環繞。

如果你改變這個：

            albedo[x][y] = p

對此：

            albedo[x,y] = p/8

您會看到生成的影像看起來很棒。

順便說一句，您可以進行一些優化。如果你有xxx[x][y]一個 numpy 陣列，請xxx[x,y]改用。當你構建你的光源時，而不是

            I = []  # intensity matrix of pixel x,y per image
            S = []  # lightsources
            for i in range(len(imglist)):
                img = imglist[i]
                I.append([img[x][y]])
                S.append(sources[i])

做

            I = [img[x,y] for img in imglist]
            S = sources[:len(imglist),:]

并且您的obtainData函式可以通過執行以下操作變得更具可讀性：

    # Read all images
    paths = (
     fr".\PSData\PSData\{things[i]}\Objects\Image_01.png",
     fr".\PSData\PSData\{things[i]}\Objects\Image_02.png",
     fr".\PSData\PSData\{things[i]}\Objects\Image_03.png",
     fr".\PSData\PSData\{things[i]}\Objects\Image_04.png",
     fr".\PSData\PSData\{things[i]}\Objects\Image_05.png"
    )

    imgs = [cv2.imread(p,0) for p in paths]
...
    # Apply masks to images: cv2.bitwise
    imglist = [cv2.bitwise_or(img, img, mask=mask(img, threshold)) for img in imgs]

uj5u.com熱心網友回復：

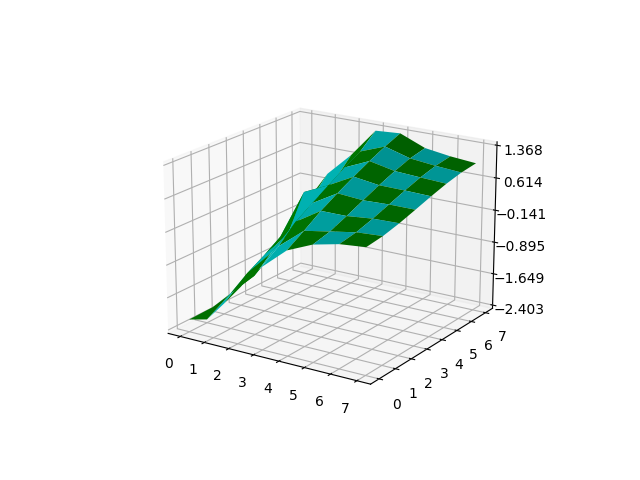

基于檔案wavepy.surface_from_grad.frankotchellappa()的復雜部分可以忽略。基于此，它們可以用 matplotlib 顯示以獲得這樣的影像：

import matplotlib.pyplot as plt
from matplotlib.ticker import LinearLocator
import numpy as np


ax = plt.figure().add_subplot(projection='3d')
surface = [[-2.19312825e 00-1.62679906e-02j,-1.76625653e 00-1.62093005e-02j ,-1.21359325e 00-1.63381200e-02j,-5.91501045e-01-1.45226036e-02j ,-9.24685295e-02-1.73373776e-03j, 1.59549135e-01 8.17785543e-05j , 2.90806910e-01-4.70409288e-05j, 3.47604091e-01 1.16492161e-05j],[-2.40280993e 00 1.62679906e-02j,-1.66061279e 00 1.62093005e-02j ,-1.11510109e 00 1.63381200e-02j,-3.08374007e-01 1.45226036e-02j , 1.57978453e-01 1.73373776e-03j, 2.59650686e-01-8.17785543e-05j , 3.63995725e-01 4.70409288e-05j, 4.01138015e-01-1.16492161e-05j],[-2.23283386e 00-1.62679906e-02j,-1.37689420e 00-1.62093005e-02j ,-7.79238609e-01-1.63381200e-02j, 6.13042608e-02-1.45226036e-02j , 4.21894421e-01-1.73373776e-03j, 4.22562434e-01 8.17785543e-05j , 4.81126228e-01-4.70409288e-05j, 4.97191034e-01 1.16492161e-05j],[-2.03380248e 00 1.62679906e-02j,-1.15214942e 00 1.62093005e-02j ,-5.31293338e-01 1.63381200e-02j, 3.06448040e-01 1.45226036e-02j ,6.43854839e-01 1.73373776e-03j, 5.97558594e-01-8.17785543e-05j ,6.18487416e-01 4.70409288e-05j, 6.16102854e-01-1.16492161e-05j],[-1.78298688e 00-1.62679906e-02j,-8.95377575e-01-1.62093005e-02j ,2.76063262e-01-1.63381200e-02j, 5.45799539e-01-1.45226036e-02j ,8.50153479e-01-1.73373776e-03j, 7.66200038e-01 8.17785543e-05j ,7.57462265e-01-4.70409288e-05j, 7.39255327e-01 1.16492161e-05j],[-1.48865585e 00 1.62679906e-02j,-6.06732343e-01 1.62093005e-02j ,2.25981613e-03 1.63381200e-02j, 7.88696843e-01 1.45226036e-02j ,1.04351159e 00 1.73373776e-03j, 9.19975122e-01-8.17785543e-05j ,8.83235485e-01 4.70409288e-05j, 8.50665864e-01-1.16492161e-05j],[-1.20317686e 00-1.62679906e-02j,-3.29863821e-01-1.62093005e-02j ,2.50911348e-01-1.63381200e-02j, 9.99471222e-01-1.45226036e-02j ,1.21789476e 00-1.73373776e-03j, 1.04762150e 00 8.17785543e-05j ,9.81522674e-01-4.70409288e-05j, 9.36002572e-01 1.16492161e-05j],[-7.74950625e-01 1.62679906e-02j, 9.04024675e-02 1.62093005e-02j
  ,6.51399438e-01 1.63381200e-02j, 1.32951041e 00 1.45226036e-02j
  ,1.36765625e 00 1.73373776e-03j, 1.12552107e 00-8.17785543e-05j
  ,1.03744750e 00 4.70409288e-05j, 9.82554438e-01-1.16492161e-05j]]

surface=np.array(surface)
X = np.arange(0,8)
Y = np.arange(0,8)
Z = [surface[x,y].real for x in X for y in Y]
xx, yy = np.meshgrid(X, Y)
Z= np.array(Z)
Z= np.reshape(Z, xx.shape)
colortuple = ('g', 'cyan')
colors = np.empty(xx.shape, dtype=str)
for y in range(len(Y)):
    for x in range(len(Y)):
        colors[y, x] = colortuple[(x   y) % len(colortuple)]

surf = ax.plot_surface(xx, yy, Z, facecolors=colors, linewidth=0)
ax.zaxis.set_major_locator(LinearLocator(6))

plt.show()
