遇到一個題目，verilog檢測32位信號下降沿，這是原題目：
For each bit in a 32-bit vector, capture when the input signal changes from 1 in one clock cycle to 0 the next. "Capture" means that the output will remain 1 until the register is reset (synchronous reset).
Each output bit behaves like a SR flip-flop: The output bit should be set (to 1) the cycle after a 1 to 0 transition occurs. The output bit should be reset (to 0) at the positive clock edge when reset is high. If both of the above events occur at the same time, reset has precedence. In the last 4 cycles of the example waveform below, the 'reset' event occurs one cycle earlier than the 'set' event, so there is no conflict here.

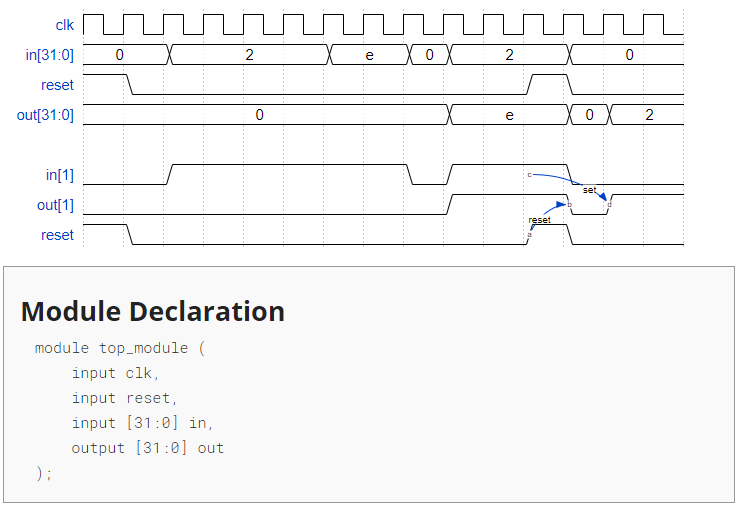

In the example waveform below, reset, in[1] and out[1] are shown again separately for clarity.
下面是我寫的答案
module top_module (
input clk,
input reset,
input [31:0] in,
output reg [31:0] out
);
reg [31:0] in_reg;
always @ (posedge clk )
if(reset) out <= 32'b0 ;
else
begin
for (int i=0; i<32; ++i)
begin
if ((in_reg[i]==1)&&(in==0))
out[i] <= 1;
end
end
always @ (posedge clk )
begin
in_reg <= in;
end
endmodule

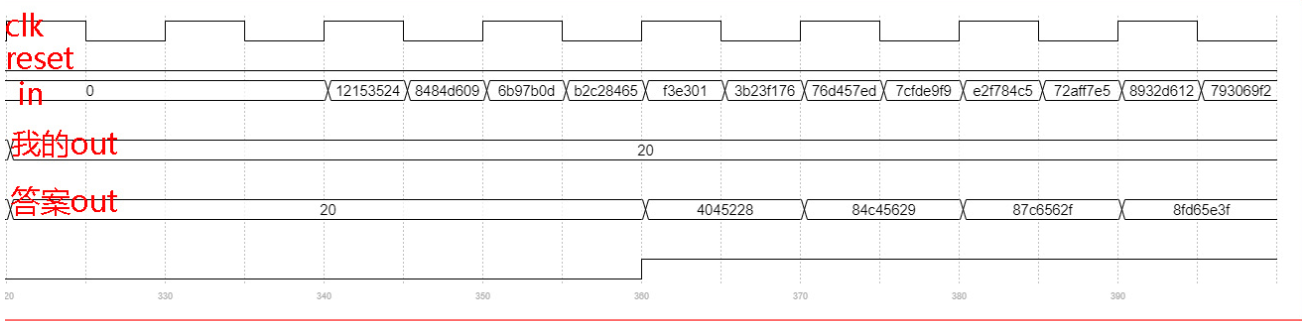

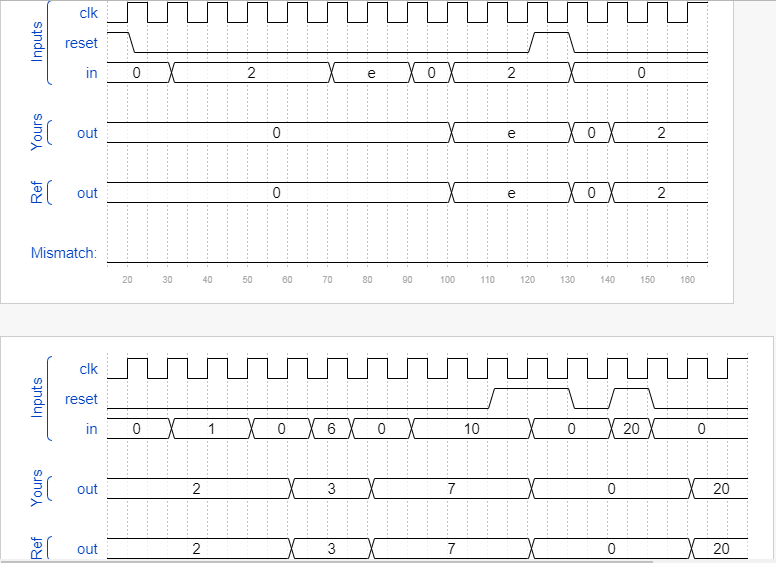

仿真結果：YOURS表示我的仿真結果，REF是標準答案仿真結果，Mismatch是匹配結果，前面都是匹配的，到第360個clk附近我的結果就不對是為什么
uj5u.com熱心網友回復：
if ((in_reg[i]==1)&&(in==0)) 這個要是in[i]吧轉載請註明出處，本文鏈接：https://www.uj5u.com/qita/105516.html
