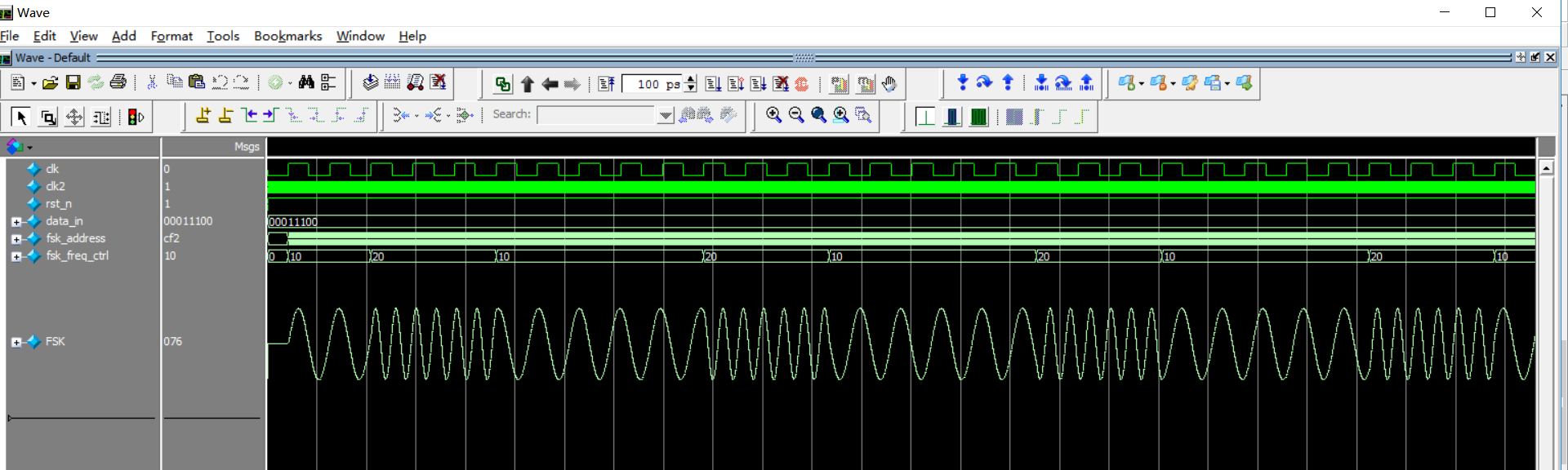

仿真結果如下
全部代碼和具體操作步驟見可以參考下面公眾號：
部分代碼如下：
module fsk_freq_ctrl(clk,data_in,freq_ctrl,rst);
input clk;
input [7:0] data_in;
input rst;
output [11:0] freq_ctrl;
//reg [4:0] q;
//parameter i;
reg [4:0] i;
wire [4:0] q;
reg [11:0] freq_ctrl;
reg [7:0] a;
always @(posedge clk or negedge rst)
if(rst==1'b0)
begin
a <= data_in;
freq_ctrl <=12'b000000000000;
end
else if(a[i]!=0)
begin
freq_ctrl <= 12'd20;
end
else if(a[i]==0)
freq_ctrl <= 12'd10;
always @(posedge clk or negedge rst)
if(!rst)
i=5'b0;
else if(i==5'd7)
begin
i <= 5'b0; end
else i <= i+1;
endmodule
//for(i=0;i<8;i=i+1)
// if(data_in[i]==0)
// freq_ctrl=12'd10;
// else
// freq_ctrl=12'd20;
