Fabric開發(二) Ubuntu20.04.1快速搭建Fabric1.0.0 (排雷版)

2020-09-25 18:25:34 其他

一、安裝Fabric前準備：

1、安裝ubuntu，建議virtualBox+ubuntu鏡像，

我所使用的版本：

1、virtualBox 5.2.20
#ubuntu桌面版，方便某些操作，例如修改源，（建議安裝英文版）
2、ubuntu-20.04.1-desktop-amd64.iso

virtual版本
安裝注意點：

1、記憶體： 2048M
2、CPU： 2
3、磁盤： 位置放在D盤，大小50G， fabric 安裝完需要10G
4、網路模式： 橋接

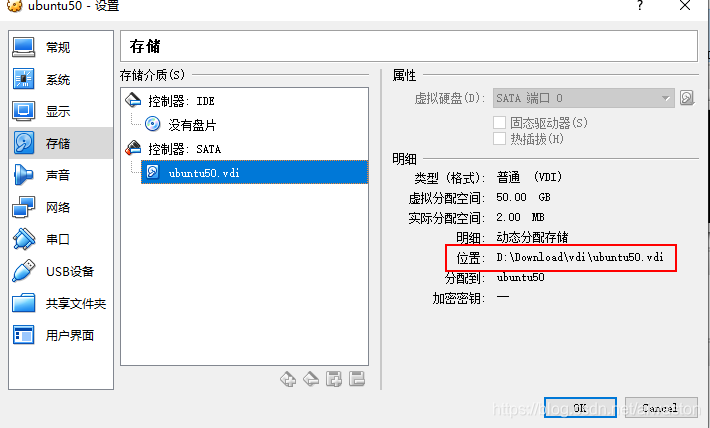

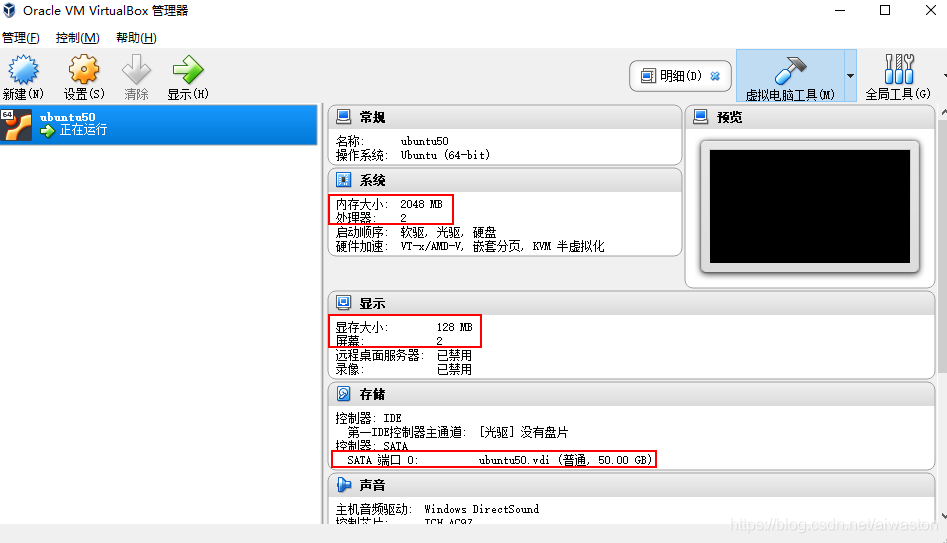

1、記憶體 顯存 存盤修改
在這里插入圖片描述
在這里插入圖片描述

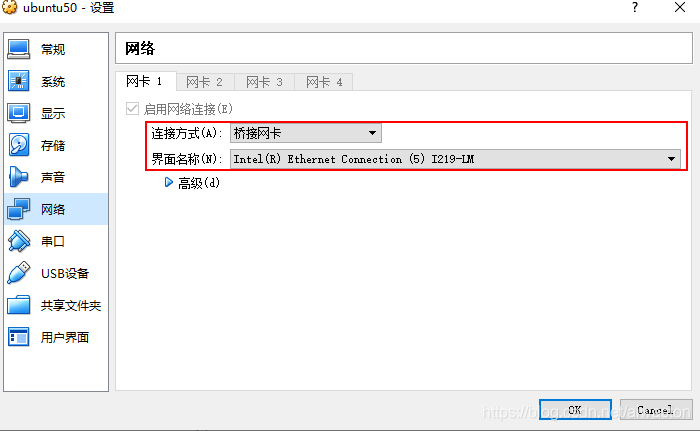

2、網路修改
在這里插入圖片描述

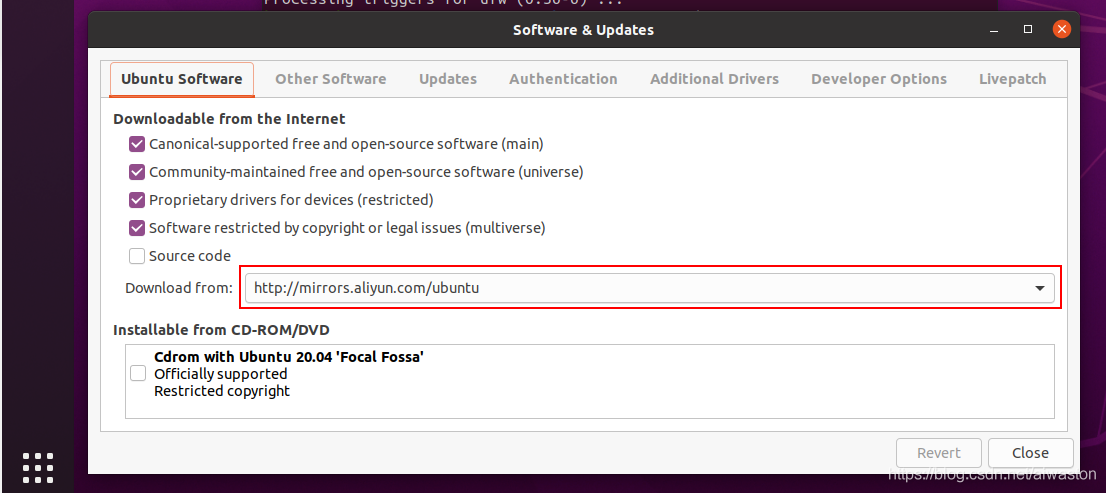

3、安裝完成后，九宮格找到Software&Update，修改源，
在這里插入圖片描述

2、xshell6 連接 可以網站直接申請學校版本

1.采用xshell 進行操作，方便復制

sudo apt-get install openssh-server
ps -e|grep ssh

2.查看ip

sudo apt install net-tools
ifconfig

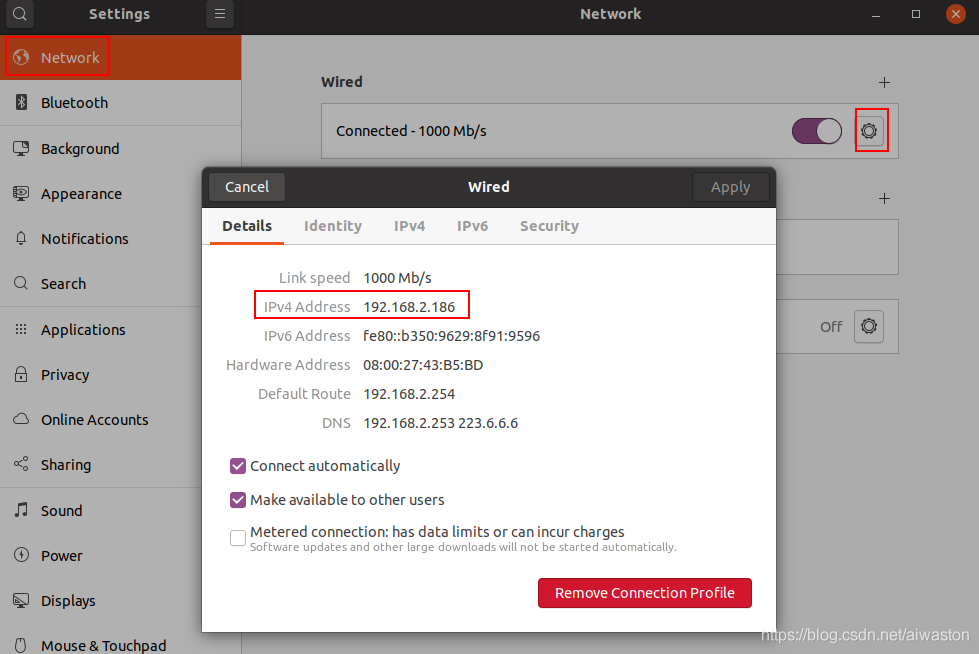

查看ip也可以直接點擊 九宮格找到Setting ->Network
在這里插入圖片描述
3.進行xshell連接

3、安裝 vim、git、curl、pip、npm

此處注意：python-pip安裝會報找不到，所以改為python3-pip

sudo apt-get update
sudo apt-get install vim
sudo apt-get install git
sudo apt-get install curl
sudo apt-get install python3-pip
pip3 install --upgrade pip
sudo apt-get install npm

4、安裝go

安裝版本：1.14.4

wget https://storage.googleapis.com/golang/go1.14.4.linux-amd64.tar.gz
sudo tar -C /usr/local -xzf go1.14.4.linux-amd64.tar.gz

家目錄創建go檔案夾

cd ~
mkdir go

編輯當前用戶的環境變數.(:x可以直接回傳保存，)

vim ~/.profile

末尾追加：

export PATH=$PATH:/usr/local/go/bin
export GOROOT=/usr/local/go
export GOPATH=$HOME/go
export PATH=$PATH:$HOME/go/bin

環境變數立即生效

source ~/.profile

檢驗go是否安裝成功（成功顯示go version go1.14.4 linux/amd64）

go version

5、安裝Docker

1.卸載舊版本docker

sudo apt-get remove docker docker-engine docker.io

2.更新系統軟體

sudo apt-get update

3.安裝依賴包

sudo apt-get install \
    apt-transport-https \
    ca-certificates \
    curl \
    software-properties-common

4.添加官方密鑰

執行該命令時，如遇到長時間沒有回應說明網路連接不到docker網站，需要使用代-理進行，
顯示OK,表示添加成功.

curl -fsSL https://download.docker.com/linux/ubuntu/gpg | sudo apt-key add -

5.添加倉庫

sudo add-apt-repository \
   "deb [arch=amd64] https://download.docker.com/linux/ubuntu \
   $(lsb_release -cs) \
   stable"

6.修改倉庫源（如果要設定專屬阿里云，自己先百度下哈）

sudo vim /etc/docker/daemon.json

填寫以下內容

{
    "registry-mirrors": ["http://hub-mirror.c.163.com"]
}

重置docker服務

systemctl restart docker.service

7.再次更新軟體

sudo apt-get update

8.安裝docker

如果想指定安裝某一版本，可使用 sudo apt-get install docker-ce= 命令，把替換為具體版本即可，
以下命令沒有指定版本，默認就會安裝最新版

sudo apt-get install docker-ce

9.查看docker版本

docker -v

10.安裝完成后需要修改當前用戶（我使用的用戶叫halfape）權限：

sudo gpasswd -a halfape docker #正在將用戶“halfape”加入到“docker”組中
newgrp docker #更新用戶組

6、安裝docker-compose

1.下載docker-compose

sudo curl -L https://github.com/docker/compose/releases/download/1.17.0/docker-compose-`uname -s`-`uname -m` -o /usr/local/bin/docker-compose

2.授權

sudo chmod +x /usr/local/bin/docker-compose

3.查看版本資訊

docker-compose --version

二、安裝Fabric

1、下載 Fabric原始碼

我們可以使用Git命令下載原始碼，首先需要建立對應的目錄，然后進入該目錄，Git下載原始碼：

mkdir -p ~/go/src/github.com/hyperledger
cd ~/go/src/github.com/hyperledger
git clone https://github.com/hyperledger/fabric.git

由于Fabric一直在更新，所有我們并不需要最新最新的原始碼，需要切換到v1.0.0版本的原始碼即可：（這個下載程序比較慢，目前看到一種從gitee下載的方法 我沒有試）

cd ~/go/src/github.com/hyperledger/fabric
git checkout v1.0.0

2、Fabric Docker鏡像的下載

因為我們已經設定了Docker Hub鏡像地址，所以下載也會很快，官方檔案也提供了批量下載的腳本，我們直接運行：

cd ~/go/src/github.com/hyperledger/fabric/examples/e2e_cli/
source download-dockerimages.sh -c x86_64-1.0.0 -f x86_64-1.0.0

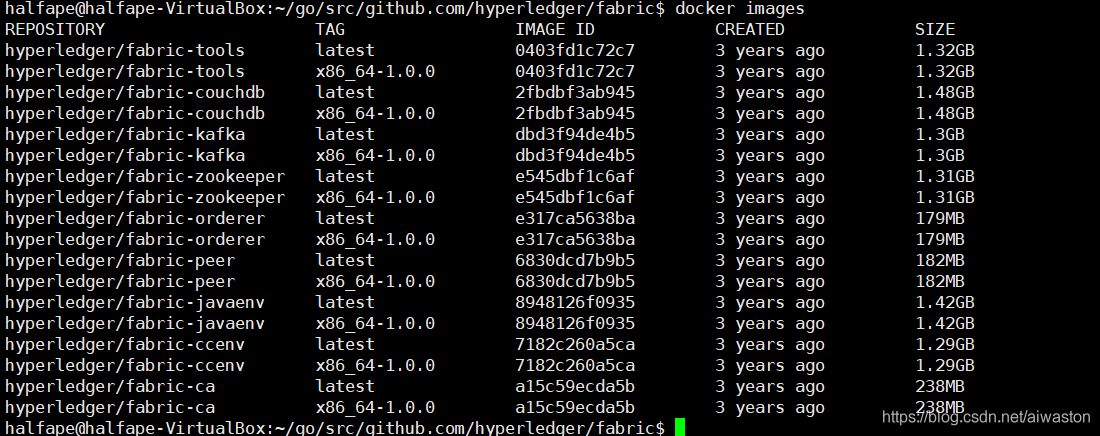

檢查Fabric Docker鏡像串列

docker images

![在這里插入圖片描述](https://img-blog.csdnimg.cn/20200924135347468.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2Fpd2FzdG9u,size_16,color_FFFFFF,t_70#pic_center
可以看出，檔案還是蠻大的，
至此，下載 fabric 原始碼、fabric 鏡像的作業已經完成，

三、Fabric簡單除錯

1、啟動Fabric網路并完成ChainCode的測驗

我們仍然停留在e2e_cli檔案夾，這里提供了啟動、關閉Fabric網路的自動化腳本，我們要啟動Fabric網路，并自動運行Example02 ChainCode的測驗，執行一個命令：

./network_setup.sh up

1.1編譯生成Fabric公私鑰、證書的程式，程式在目錄：fabric/release/linux-amd64/bin
1.2基于configtx.yaml生成創世區塊和通道相關資訊，并保存在channel-artifacts檔案夾，
1.3基于crypto-config.yaml生成公私鑰和證書資訊，并保存在crypto-config檔案夾中，
1.4基于docker-compose-cli.yaml啟動1Orderer+4Peer+1CLI的Fabric容器，
1.5在CLI啟動的時候，會運行scripts/script.sh檔案，這個腳本檔案包含了創建Channel，加入Channel，安裝Example02，運行Example02等功能，

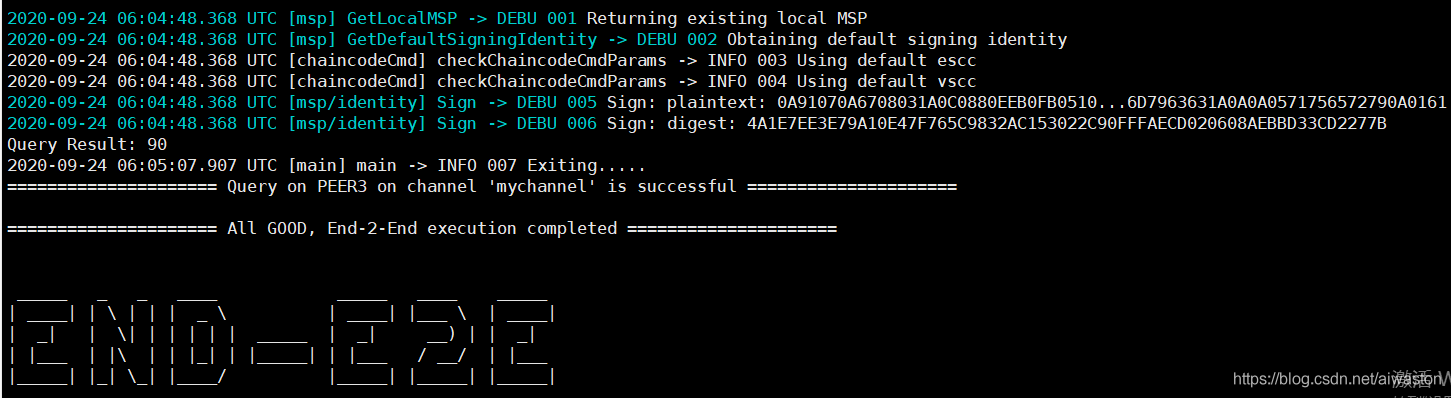

最后運行完畢，我們可以看到這樣的界面：
在這里插入圖片描述
看到這里 恭喜你，說明我們整個Fabric網路已經OK了，

記錄下具體程序，以便于后續研究，

halfape@halfape-VirtualBox:~/go/src/github.com/hyperledger/fabric/examples/e2e_cli$ ./network_setup.sh up
setting to default channel 'mychannel'
mychannel

Building cryptogen
make: Entering directory '/home/halfape/go/src/github.com/hyperledger/fabric'
Building release/linux-amd64/bin/configtxgen for linux-amd64
mkdir -p release/linux-amd64/bin
CGO_CFLAGS=" " GOOS=linux GOARCH=amd64 go build -o /home/halfape/go/src/github.com/hyperledger/fabric/release/linux-amd64/bin/configtxgen -tags "nopkcs11" -ldflags "-X github.com/hyperledger/fabric/common/configtx/tool/configtxgen/metadata.Version=1.0.0" github.com/hyperledger/fabric/common/configtx/tool/configtxgen
Building release/linux-amd64/bin/cryptogen for linux-amd64
mkdir -p release/linux-amd64/bin
CGO_CFLAGS=" " GOOS=linux GOARCH=amd64 go build -o /home/halfape/go/src/github.com/hyperledger/fabric/release/linux-amd64/bin/cryptogen -tags "nopkcs11" -ldflags "-X github.com/hyperledger/fabric/common/tools/cryptogen/metadata.Version=1.0.0" github.com/hyperledger/fabric/common/tools/cryptogen
Building release/linux-amd64/bin/configtxlator for linux-amd64
mkdir -p release/linux-amd64/bin
CGO_CFLAGS=" " GOOS=linux GOARCH=amd64 go build -o /home/halfape/go/src/github.com/hyperledger/fabric/release/linux-amd64/bin/configtxlator -tags "nopkcs11" -ldflags "-X github.com/hyperledger/fabric/common/tools/configtxlator/metadata.Version=1.0.0" github.com/hyperledger/fabric/common/tools/configtxlator
Building release/linux-amd64/bin/peer for linux-amd64
mkdir -p release/linux-amd64/bin
CGO_CFLAGS=" " GOOS=linux GOARCH=amd64 go build -o /home/halfape/go/src/github.com/hyperledger/fabric/release/linux-amd64/bin/peer -tags "nopkcs11" -ldflags "-X github.com/hyperledger/fabric/common/metadata.Version=1.0.0 -X github.com/hyperledger/fabric/common/metadata.BaseVersion=0.3.1 -X github.com/hyperledger/fabric/common/metadata.BaseDockerLabel=org.hyperledger.fabric -X github.com/hyperledger/fabric/common/metadata.DockerNamespace=hyperledger -X github.com/hyperledger/fabric/common/metadata.BaseDockerNamespace=hyperledger" github.com/hyperledger/fabric/peer
Building release/linux-amd64/bin/orderer for linux-amd64
mkdir -p release/linux-amd64/bin
CGO_CFLAGS=" " GOOS=linux GOARCH=amd64 go build -o /home/halfape/go/src/github.com/hyperledger/fabric/release/linux-amd64/bin/orderer -tags "nopkcs11" -ldflags "-X github.com/hyperledger/fabric/orderer/metadata.Version=1.0.0" github.com/hyperledger/fabric/orderer
mkdir -p release/linux-amd64/bin
make: Leaving directory '/home/halfape/go/src/github.com/hyperledger/fabric'

##########################################################
##### Generate certificates using cryptogen tool #########
##########################################################
org1.example.com
org2.example.com

Using configtxgen -> /home/halfape/go/src/github.com/hyperledger/fabric/examples/e2e_cli/../../release/linux-amd64/bin/configtxgen
##########################################################
#########  Generating Orderer Genesis block ##############
##########################################################
2020-09-24 14:03:21.695 CST [common/configtx/tool] main -> INFO 001 Loading configuration
2020-09-24 14:03:21.712 CST [common/configtx/tool] doOutputBlock -> INFO 002 Generating genesis block
2020-09-24 14:03:21.714 CST [common/configtx/tool] doOutputBlock -> INFO 003 Writing genesis block

#################################################################
### Generating channel configuration transaction 'channel.tx' ###
#################################################################
2020-09-24 14:03:21.756 CST [common/configtx/tool] main -> INFO 001 Loading configuration
2020-09-24 14:03:21.760 CST [common/configtx/tool] doOutputChannelCreateTx -> INFO 002 Generating new channel configtx
2020-09-24 14:03:21.761 CST [common/configtx/tool] doOutputChannelCreateTx -> INFO 003 Writing new channel tx

#################################################################
#######    Generating anchor peer update for Org1MSP   ##########
#################################################################
2020-09-24 14:03:21.793 CST [common/configtx/tool] main -> INFO 001 Loading configuration
2020-09-24 14:03:21.798 CST [common/configtx/tool] doOutputAnchorPeersUpdate -> INFO 002 Generating anchor peer update
2020-09-24 14:03:21.798 CST [common/configtx/tool] doOutputAnchorPeersUpdate -> INFO 003 Writing anchor peer update

#################################################################
#######    Generating anchor peer update for Org2MSP   ##########
#################################################################
2020-09-24 14:03:21.835 CST [common/configtx/tool] main -> INFO 001 Loading configuration
2020-09-24 14:03:21.839 CST [common/configtx/tool] doOutputAnchorPeersUpdate -> INFO 002 Generating anchor peer update
2020-09-24 14:03:21.840 CST [common/configtx/tool] doOutputAnchorPeersUpdate -> INFO 003 Writing anchor peer update

Creating network "e2ecli_default" with the default driver
Creating peer0.org1.example.com ...
Creating peer1.org1.example.com ...
Creating peer1.org2.example.com ...
Creating orderer.example.com ...
Creating peer0.org1.example.com
Creating peer0.org2.example.com ...
Creating peer1.org1.example.com
Creating orderer.example.com
Creating peer0.org2.example.com
Creating orderer.example.com ... done
Creating cli ...
Creating cli ... done

 ____    _____      _      ____    _____           _____   ____    _____
/ ___|  |_   _|    / \    |  _ \  |_   _|         | ____| |___ \  | ____|
\___ \    | |     / _ \   | |_) |   | |    _____  |  _|     __) | |  _|
 ___) |   | |    / ___ \  |  _ <    | |   |_____| | |___   / __/  | |___
|____/    |_|   /_/   \_\ |_| \_\   |_|           |_____| |_____| |_____|

Channel name : mychannel
Creating channel...
CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/ca.crt
CORE_PEER_TLS_KEY_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/server.key
CORE_PEER_LOCALMSPID=Org1MSP
CORE_VM_ENDPOINT=unix:///host/var/run/docker.sock
CORE_PEER_TLS_CERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/server.crt
CORE_PEER_TLS_ENABLED=true
CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/users/Admin@org1.example.com/msp
CORE_PEER_ID=cli
CORE_LOGGING_LEVEL=DEBUG
CORE_PEER_ADDRESS=peer0.org1.example.com:7051
2020-09-24 06:03:35.240 UTC [msp] GetLocalMSP -> DEBU 001 Returning existing local MSP
2020-09-24 06:03:35.240 UTC [msp] GetDefaultSigningIdentity -> DEBU 002 Obtaining default signing identity
2020-09-24 06:03:35.244 UTC [channelCmd] InitCmdFactory -> INFO 003 Endorser and orderer connections initialized
2020-09-24 06:03:35.244 UTC [msp] GetLocalMSP -> DEBU 004 Returning existing local MSP
2020-09-24 06:03:35.244 UTC [msp] GetDefaultSigningIdentity -> DEBU 005 Obtaining default signing identity
2020-09-24 06:03:35.244 UTC [msp] GetLocalMSP -> DEBU 006 Returning existing local MSP
2020-09-24 06:03:35.244 UTC [msp] GetDefaultSigningIdentity -> DEBU 007 Obtaining default signing identity
2020-09-24 06:03:35.244 UTC [msp/identity] Sign -> DEBU 008 Sign: plaintext: 0A88060A074F7267314D535012FC052D...53616D706C65436F6E736F727469756D
2020-09-24 06:03:35.244 UTC [msp/identity] Sign -> DEBU 009 Sign: digest: 13F31E852E3702746BDF69BB4E8101889C7FF20CCB0A369CB048D4F2366435B0
2020-09-24 06:03:35.244 UTC [msp] GetLocalMSP -> DEBU 00a Returning existing local MSP
2020-09-24 06:03:35.244 UTC [msp] GetDefaultSigningIdentity -> DEBU 00b Obtaining default signing identity
2020-09-24 06:03:35.244 UTC [msp] GetLocalMSP -> DEBU 00c Returning existing local MSP
2020-09-24 06:03:35.244 UTC [msp] GetDefaultSigningIdentity -> DEBU 00d Obtaining default signing identity
2020-09-24 06:03:35.244 UTC [msp/identity] Sign -> DEBU 00e Sign: plaintext: 0ABF060A1508021A0608B7EDB0FB0522...959D6EC845FCE532A9A3ADDAD6C1AD31
2020-09-24 06:03:35.244 UTC [msp/identity] Sign -> DEBU 00f Sign: digest: AE949BCE386EAABE88210C5FB64D2C525F9E74B8D8CF1554F4B806FA576574C1
2020-09-24 06:03:35.493 UTC [msp] GetLocalMSP -> DEBU 010 Returning existing local MSP
2020-09-24 06:03:35.493 UTC [msp] GetDefaultSigningIdentity -> DEBU 011 Obtaining default signing identity
2020-09-24 06:03:35.493 UTC [msp] GetLocalMSP -> DEBU 012 Returning existing local MSP
2020-09-24 06:03:35.493 UTC [msp] GetDefaultSigningIdentity -> DEBU 013 Obtaining default signing identity
2020-09-24 06:03:35.493 UTC [msp/identity] Sign -> DEBU 014 Sign: plaintext: 0ABF060A1508021A0608B7EDB0FB0522...825BD6FDF69112080A021A0012021A00
2020-09-24 06:03:35.493 UTC [msp/identity] Sign -> DEBU 015 Sign: digest: 8378ACEDEF10F25823178B4C1ECB0EA5C0157422A9EE3B2241623F02FC25C523
2020-09-24 06:03:35.494 UTC [channelCmd] readBlock -> DEBU 016 Got status:*orderer.DeliverResponse_Status
2020-09-24 06:03:35.494 UTC [msp] GetLocalMSP -> DEBU 017 Returning existing local MSP
2020-09-24 06:03:35.494 UTC [msp] GetDefaultSigningIdentity -> DEBU 018 Obtaining default signing identity
2020-09-24 06:03:35.496 UTC [channelCmd] InitCmdFactory -> INFO 019 Endorser and orderer connections initialized
2020-09-24 06:03:35.698 UTC [msp] GetLocalMSP -> DEBU 01a Returning existing local MSP
2020-09-24 06:03:35.698 UTC [msp] GetDefaultSigningIdentity -> DEBU 01b Obtaining default signing identity
2020-09-24 06:03:35.702 UTC [msp] GetLocalMSP -> DEBU 01c Returning existing local MSP
2020-09-24 06:03:35.702 UTC [msp] GetDefaultSigningIdentity -> DEBU 01d Obtaining default signing identity
2020-09-24 06:03:35.703 UTC [msp/identity] Sign -> DEBU 01e Sign: plaintext: 0ABF060A1508021A0608B7EDB0FB0522...E5E08F74893C12080A021A0012021A00
2020-09-24 06:03:35.703 UTC [msp/identity] Sign -> DEBU 01f Sign: digest: 56339A77350C1A804A8058ACEF0550D108CCB7E266A5734533F7A286133E4D9C
2020-09-24 06:03:35.732 UTC [channelCmd] readBlock -> DEBU 020 Received block:0
2020-09-24 06:03:35.733 UTC [main] main -> INFO 021 Exiting.....
===================== Channel "mychannel" is created successfully =====================

Having all peers join the channel...
CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/ca.crt
CORE_PEER_TLS_KEY_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/server.key
CORE_PEER_LOCALMSPID=Org1MSP
CORE_VM_ENDPOINT=unix:///host/var/run/docker.sock
CORE_PEER_TLS_CERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/server.crt
CORE_PEER_TLS_ENABLED=true
CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/users/Admin@org1.example.com/msp
CORE_PEER_ID=cli
CORE_LOGGING_LEVEL=DEBUG
CORE_PEER_ADDRESS=peer0.org1.example.com:7051
2020-09-24 06:03:35.822 UTC [msp] GetLocalMSP -> DEBU 001 Returning existing local MSP
2020-09-24 06:03:35.822 UTC [msp] GetDefaultSigningIdentity -> DEBU 002 Obtaining default signing identity
2020-09-24 06:03:35.826 UTC [channelCmd] InitCmdFactory -> INFO 003 Endorser and orderer connections initialized
2020-09-24 06:03:35.827 UTC [msp/identity] Sign -> DEBU 004 Sign: plaintext: 0A86070A5C08011A0C08B7EDB0FB0510...5F92D770B8D41A080A000A000A000A00
2020-09-24 06:03:35.827 UTC [msp/identity] Sign -> DEBU 005 Sign: digest: 1FC95717CF159E5BF071FA4D741025AB9BC17E307B1E7F11364BE1976D03F700
2020-09-24 06:03:35.895 UTC [channelCmd] executeJoin -> INFO 006 Peer joined the channel!
2020-09-24 06:03:35.896 UTC [main] main -> INFO 007 Exiting.....
===================== PEER0 joined on the channel "mychannel" =====================

CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/ca.crt
CORE_PEER_TLS_KEY_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/server.key
CORE_PEER_LOCALMSPID=Org1MSP
CORE_VM_ENDPOINT=unix:///host/var/run/docker.sock
CORE_PEER_TLS_CERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/server.crt
CORE_PEER_TLS_ENABLED=true
CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/users/Admin@org1.example.com/msp
CORE_PEER_ID=cli
CORE_LOGGING_LEVEL=DEBUG
CORE_PEER_ADDRESS=peer1.org1.example.com:7051
2020-09-24 06:03:38.001 UTC [msp] GetLocalMSP -> DEBU 001 Returning existing local MSP
2020-09-24 06:03:38.001 UTC [msp] GetDefaultSigningIdentity -> DEBU 002 Obtaining default signing identity
2020-09-24 06:03:38.004 UTC [channelCmd] InitCmdFactory -> INFO 003 Endorser and orderer connections initialized
2020-09-24 06:03:38.004 UTC [msp/identity] Sign -> DEBU 004 Sign: plaintext: 0A85070A5B08011A0B08BAEDB0FB0510...5F92D770B8D41A080A000A000A000A00
2020-09-24 06:03:38.004 UTC [msp/identity] Sign -> DEBU 005 Sign: digest: EF0E34FD2143F9EFFFB91C7593AABBCFC309C952E3AAB70DD675E67EBDBE0840
2020-09-24 06:03:38.077 UTC [channelCmd] executeJoin -> INFO 006 Peer joined the channel!
2020-09-24 06:03:38.077 UTC [main] main -> INFO 007 Exiting.....
===================== PEER1 joined on the channel "mychannel" =====================

CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/tls/ca.crt
CORE_PEER_TLS_KEY_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/server.key
CORE_PEER_LOCALMSPID=Org2MSP
CORE_VM_ENDPOINT=unix:///host/var/run/docker.sock
CORE_PEER_TLS_CERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/server.crt
CORE_PEER_TLS_ENABLED=true
CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/users/Admin@org2.example.com/msp
CORE_PEER_ID=cli
CORE_LOGGING_LEVEL=DEBUG
CORE_PEER_ADDRESS=peer0.org2.example.com:7051
2020-09-24 06:03:40.144 UTC [msp] GetLocalMSP -> DEBU 001 Returning existing local MSP
2020-09-24 06:03:40.144 UTC [msp] GetDefaultSigningIdentity -> DEBU 002 Obtaining default signing identity
2020-09-24 06:03:40.148 UTC [channelCmd] InitCmdFactory -> INFO 003 Endorser and orderer connections initialized
2020-09-24 06:03:40.148 UTC [msp/identity] Sign -> DEBU 004 Sign: plaintext: 0A85070A5B08011A0B08BCEDB0FB0510...5F92D770B8D41A080A000A000A000A00
2020-09-24 06:03:40.148 UTC [msp/identity] Sign -> DEBU 005 Sign: digest: 7E3D9471CB81833879C4AAA68D07B99ED16F344BEBEB88BED2985D49C236C0DC
2020-09-24 06:03:40.197 UTC [channelCmd] executeJoin -> INFO 006 Peer joined the channel!
2020-09-24 06:03:40.197 UTC [main] main -> INFO 007 Exiting.....
===================== PEER2 joined on the channel "mychannel" =====================

CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/tls/ca.crt
CORE_PEER_TLS_KEY_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/server.key
CORE_PEER_LOCALMSPID=Org2MSP
CORE_VM_ENDPOINT=unix:///host/var/run/docker.sock
CORE_PEER_TLS_CERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/server.crt
CORE_PEER_TLS_ENABLED=true
CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/users/Admin@org2.example.com/msp
CORE_PEER_ID=cli
CORE_LOGGING_LEVEL=DEBUG
CORE_PEER_ADDRESS=peer1.org2.example.com:7051
2020-09-24 06:03:42.277 UTC [msp] GetLocalMSP -> DEBU 001 Returning existing local MSP
2020-09-24 06:03:42.277 UTC [msp] GetDefaultSigningIdentity -> DEBU 002 Obtaining default signing identity
2020-09-24 06:03:42.280 UTC [channelCmd] InitCmdFactory -> INFO 003 Endorser and orderer connections initialized
2020-09-24 06:03:42.280 UTC [msp/identity] Sign -> DEBU 004 Sign: plaintext: 0A86070A5C08011A0C08BEEDB0FB0510...5F92D770B8D41A080A000A000A000A00
2020-09-24 06:03:42.280 UTC [msp/identity] Sign -> DEBU 005 Sign: digest: 307429B2F0A712EB734DC605111D796A5FDE454D649BCDF4D1D4CF282A863C55
2020-09-24 06:03:42.317 UTC [channelCmd] executeJoin -> INFO 006 Peer joined the channel!
2020-09-24 06:03:42.317 UTC [main] main -> INFO 007 Exiting.....
===================== PEER3 joined on the channel "mychannel" =====================

Updating anchor peers for org1...
CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/ca.crt
CORE_PEER_TLS_KEY_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/server.key
CORE_PEER_LOCALMSPID=Org1MSP
CORE_VM_ENDPOINT=unix:///host/var/run/docker.sock
CORE_PEER_TLS_CERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/server.crt
CORE_PEER_TLS_ENABLED=true
CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/users/Admin@org1.example.com/msp
CORE_PEER_ID=cli
CORE_LOGGING_LEVEL=DEBUG
CORE_PEER_ADDRESS=peer0.org1.example.com:7051
2020-09-24 06:03:44.389 UTC [msp] GetLocalMSP -> DEBU 001 Returning existing local MSP
2020-09-24 06:03:44.389 UTC [msp] GetDefaultSigningIdentity -> DEBU 002 Obtaining default signing identity
2020-09-24 06:03:44.392 UTC [channelCmd] InitCmdFactory -> INFO 003 Endorser and orderer connections initialized
2020-09-24 06:03:44.392 UTC [msp] GetLocalMSP -> DEBU 004 Returning existing local MSP
2020-09-24 06:03:44.392 UTC [msp] GetDefaultSigningIdentity -> DEBU 005 Obtaining default signing identity
2020-09-24 06:03:44.392 UTC [msp] GetLocalMSP -> DEBU 006 Returning existing local MSP
2020-09-24 06:03:44.392 UTC [msp] GetDefaultSigningIdentity -> DEBU 007 Obtaining default signing identity
2020-09-24 06:03:44.392 UTC [msp/identity] Sign -> DEBU 008 Sign: plaintext: 0A88060A074F7267314D535012FC052D...72731200220A0A0641646D696E731200
2020-09-24 06:03:44.392 UTC [msp/identity] Sign -> DEBU 009 Sign: digest: CE0BBEE6477F6F778EE453DD7F6172D57C855AD11FC332755829725A2E195930
2020-09-24 06:03:44.392 UTC [msp] GetLocalMSP -> DEBU 00a Returning existing local MSP
2020-09-24 06:03:44.392 UTC [msp] GetDefaultSigningIdentity -> DEBU 00b Obtaining default signing identity
2020-09-24 06:03:44.392 UTC [msp] GetLocalMSP -> DEBU 00c Returning existing local MSP
2020-09-24 06:03:44.393 UTC [msp] GetDefaultSigningIdentity -> DEBU 00d Obtaining default signing identity
2020-09-24 06:03:44.393 UTC [msp/identity] Sign -> DEBU 00e Sign: plaintext: 0ABF060A1508021A0608C0EDB0FB0522...71DB89122D78577A76A4201071ABD7A8
2020-09-24 06:03:44.393 UTC [msp/identity] Sign -> DEBU 00f Sign: digest: 88B311AC32A7BEEF909651FEB7B79E909386ED503F0221447D0CEEAC27453BF1
2020-09-24 06:03:44.456 UTC [main] main -> INFO 010 Exiting.....
===================== Anchor peers for org "Org1MSP" on "mychannel" is updated successfully =====================

Updating anchor peers for org2...
CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/tls/ca.crt
CORE_PEER_TLS_KEY_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/server.key
CORE_PEER_LOCALMSPID=Org2MSP
CORE_VM_ENDPOINT=unix:///host/var/run/docker.sock
CORE_PEER_TLS_CERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/server.crt
CORE_PEER_TLS_ENABLED=true
CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/users/Admin@org2.example.com/msp
CORE_PEER_ID=cli
CORE_LOGGING_LEVEL=DEBUG
CORE_PEER_ADDRESS=peer0.org2.example.com:7051
2020-09-24 06:03:49.507 UTC [msp] GetLocalMSP -> DEBU 001 Returning existing local MSP
2020-09-24 06:03:49.507 UTC [msp] GetDefaultSigningIdentity -> DEBU 002 Obtaining default signing identity
2020-09-24 06:03:49.514 UTC [channelCmd] InitCmdFactory -> INFO 003 Endorser and orderer connections initialized
2020-09-24 06:03:49.514 UTC [msp] GetLocalMSP -> DEBU 004 Returning existing local MSP
2020-09-24 06:03:49.514 UTC [msp] GetDefaultSigningIdentity -> DEBU 005 Obtaining default signing identity
2020-09-24 06:03:49.514 UTC [msp] GetLocalMSP -> DEBU 006 Returning existing local MSP
2020-09-24 06:03:49.514 UTC [msp] GetDefaultSigningIdentity -> DEBU 007 Obtaining default signing identity
2020-09-24 06:03:49.514 UTC [msp/identity] Sign -> DEBU 008 Sign: plaintext: 0A88060A074F7267324D535012FC052D...72731200220A0A0641646D696E731200
2020-09-24 06:03:49.514 UTC [msp/identity] Sign -> DEBU 009 Sign: digest: A8F3368AF8D87033B10CB75AC0171242483FBDDDF710623AEF2D1ECB6D246921
2020-09-24 06:03:49.515 UTC [msp] GetLocalMSP -> DEBU 00a Returning existing local MSP
2020-09-24 06:03:49.515 UTC [msp] GetDefaultSigningIdentity -> DEBU 00b Obtaining default signing identity
2020-09-24 06:03:49.515 UTC [msp] GetLocalMSP -> DEBU 00c Returning existing local MSP
2020-09-24 06:03:49.515 UTC [msp] GetDefaultSigningIdentity -> DEBU 00d Obtaining default signing identity
2020-09-24 06:03:49.515 UTC [msp/identity] Sign -> DEBU 00e Sign: plaintext: 0ABF060A1508021A0608C5EDB0FB0522...55111F568CFB353B048DB7829B697A59
2020-09-24 06:03:49.515 UTC [msp/identity] Sign -> DEBU 00f Sign: digest: DF93F35003104A57C7C8A59332669DEC2695B0EDAC5CA0A7E02256EF8B7AA20E
2020-09-24 06:03:49.559 UTC [main] main -> INFO 010 Exiting.....
===================== Anchor peers for org "Org2MSP" on "mychannel" is updated successfully =====================

Installing chaincode on org1/peer0...
CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/ca.crt
CORE_PEER_TLS_KEY_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/server.key
CORE_PEER_LOCALMSPID=Org1MSP
CORE_VM_ENDPOINT=unix:///host/var/run/docker.sock
CORE_PEER_TLS_CERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/server.crt
CORE_PEER_TLS_ENABLED=true
CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/users/Admin@org1.example.com/msp
CORE_PEER_ID=cli
CORE_LOGGING_LEVEL=DEBUG
CORE_PEER_ADDRESS=peer0.org1.example.com:7051
2020-09-24 06:03:54.637 UTC [msp] GetLocalMSP -> DEBU 001 Returning existing local MSP
2020-09-24 06:03:54.638 UTC [msp] GetDefaultSigningIdentity -> DEBU 002 Obtaining default signing identity
2020-09-24 06:03:54.638 UTC [chaincodeCmd] checkChaincodeCmdParams -> INFO 003 Using default escc
2020-09-24 06:03:54.638 UTC [chaincodeCmd] checkChaincodeCmdParams -> INFO 004 Using default vscc
2020-09-24 06:03:55.266 UTC [golang-platform] getCodeFromFS -> DEBU 005 getCodeFromFS github.com/hyperledger/fabric/examples/chaincode/go/chaincode_example02
2020-09-24 06:03:55.822 UTC [golang-platform] func1 -> DEBU 006 Discarding GOROOT package fmt
2020-09-24 06:03:55.822 UTC [golang-platform] func1 -> DEBU 007 Discarding provided package github.com/hyperledger/fabric/core/chaincode/shim
2020-09-24 06:03:55.822 UTC [golang-platform] func1 -> DEBU 008 Discarding provided package github.com/hyperledger/fabric/protos/peer
2020-09-24 06:03:55.822 UTC [golang-platform] func1 -> DEBU 009 Discarding GOROOT package strconv
2020-09-24 06:03:55.822 UTC [golang-platform] GetDeploymentPayload -> DEBU 00a done
2020-09-24 06:03:55.824 UTC [msp/identity] Sign -> DEBU 00b Sign: plaintext: 0A86070A5C08031A0C08CBEDB0FB0510...8BAEFF040000FFFF84DB3255002C0000
2020-09-24 06:03:55.824 UTC [msp/identity] Sign -> DEBU 00c Sign: digest: 96E6D9272AB1D988DE69DF975A28FB8F8A142EA54D938D198973C019BBBEF948
2020-09-24 06:03:55.828 UTC [chaincodeCmd] install -> DEBU 00d Installed remotely response:<status:200 payload:"OK" >
2020-09-24 06:03:55.828 UTC [main] main -> INFO 00e Exiting.....
===================== Chaincode is installed on remote peer PEER0 =====================

Install chaincode on org2/peer2...
CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/tls/ca.crt
CORE_PEER_TLS_KEY_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/server.key
CORE_PEER_LOCALMSPID=Org2MSP
CORE_VM_ENDPOINT=unix:///host/var/run/docker.sock
CORE_PEER_TLS_CERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/server.crt
CORE_PEER_TLS_ENABLED=true
CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/users/Admin@org2.example.com/msp
CORE_PEER_ID=cli
CORE_LOGGING_LEVEL=DEBUG
CORE_PEER_ADDRESS=peer0.org2.example.com:7051
2020-09-24 06:03:55.939 UTC [msp] GetLocalMSP -> DEBU 001 Returning existing local MSP
2020-09-24 06:03:55.940 UTC [msp] GetDefaultSigningIdentity -> DEBU 002 Obtaining default signing identity
2020-09-24 06:03:55.940 UTC [chaincodeCmd] checkChaincodeCmdParams -> INFO 003 Using default escc
2020-09-24 06:03:55.940 UTC [chaincodeCmd] checkChaincodeCmdParams -> INFO 004 Using default vscc
2020-09-24 06:03:56.002 UTC [golang-platform] getCodeFromFS -> DEBU 005 getCodeFromFS github.com/hyperledger/fabric/examples/chaincode/go/chaincode_example02
2020-09-24 06:03:56.175 UTC [golang-platform] func1 -> DEBU 006 Discarding GOROOT package fmt
2020-09-24 06:03:56.175 UTC [golang-platform] func1 -> DEBU 007 Discarding provided package github.com/hyperledger/fabric/core/chaincode/shim
2020-09-24 06:03:56.175 UTC [golang-platform] func1 -> DEBU 008 Discarding provided package github.com/hyperledger/fabric/protos/peer
2020-09-24 06:03:56.175 UTC [golang-platform] func1 -> DEBU 009 Discarding GOROOT package strconv
2020-09-24 06:03:56.175 UTC [golang-platform] GetDeploymentPayload -> DEBU 00a done
2020-09-24 06:03:56.179 UTC [msp/identity] Sign -> DEBU 00b Sign: plaintext: 0A85070A5B08031A0B08CCEDB0FB0510...8BAEFF040000FFFF84DB3255002C0000
2020-09-24 06:03:56.179 UTC [msp/identity] Sign -> DEBU 00c Sign: digest: 2A11FA33DEFC09AF44B6DBD74145C6268B7B7F5D2D07DD79833515BBC4EB302B
2020-09-24 06:03:56.186 UTC [chaincodeCmd] install -> DEBU 00d Installed remotely response:<status:200 payload:"OK" >
2020-09-24 06:03:56.186 UTC [main] main -> INFO 00e Exiting.....
===================== Chaincode is installed on remote peer PEER2 =====================

Instantiating chaincode on org2/peer2...
CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/tls/ca.crt
CORE_PEER_TLS_KEY_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/server.key
CORE_PEER_LOCALMSPID=Org2MSP
CORE_VM_ENDPOINT=unix:///host/var/run/docker.sock
CORE_PEER_TLS_CERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/server.crt
CORE_PEER_TLS_ENABLED=true
CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/users/Admin@org2.example.com/msp
CORE_PEER_ID=cli
CORE_LOGGING_LEVEL=DEBUG
CORE_PEER_ADDRESS=peer0.org2.example.com:7051
2020-09-24 06:03:56.239 UTC [msp] GetLocalMSP -> DEBU 001 Returning existing local MSP
2020-09-24 06:03:56.239 UTC [msp] GetDefaultSigningIdentity -> DEBU 002 Obtaining default signing identity
2020-09-24 06:03:56.242 UTC [chaincodeCmd] checkChaincodeCmdParams -> INFO 003 Using default escc
2020-09-24 06:03:56.242 UTC [chaincodeCmd] checkChaincodeCmdParams -> INFO 004 Using default vscc
2020-09-24 06:03:56.242 UTC [msp/identity] Sign -> DEBU 005 Sign: plaintext: 0A90070A6608031A0B08CCEDB0FB0510...324D53500A04657363630A0476736363
2020-09-24 06:03:56.242 UTC [msp/identity] Sign -> DEBU 006 Sign: digest: 135B4574B3AB6306330828AD313204BBC9C2EF3E5D33572E7333F02F4C312733
2020-09-24 06:04:20.617 UTC [msp/identity] Sign -> DEBU 007 Sign: plaintext: 0A90070A6608031A0B08CCEDB0FB0510...1AA6B5B27683580A87310BC79AC46E3E
2020-09-24 06:04:20.617 UTC [msp/identity] Sign -> DEBU 008 Sign: digest: 77FD9776C5844429F4A45B4F98499A9F45AD33998FE8DF510DF62A781F339F22
2020-09-24 06:04:20.621 UTC [main] main -> INFO 009 Exiting.....
===================== Chaincode Instantiation on PEER2 on channel 'mychannel' is successful =====================

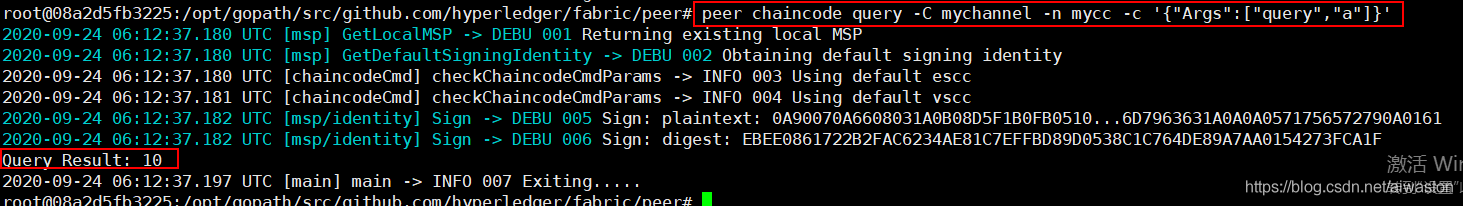

Querying chaincode on org1/peer0...
===================== Querying on PEER0 on channel 'mychannel'... =====================
CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/ca.crt
CORE_PEER_TLS_KEY_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/server.key
CORE_PEER_LOCALMSPID=Org1MSP
CORE_VM_ENDPOINT=unix:///host/var/run/docker.sock
CORE_PEER_TLS_CERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/server.crt
CORE_PEER_TLS_ENABLED=true
CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/users/Admin@org1.example.com/msp
CORE_PEER_ID=cli
CORE_LOGGING_LEVEL=DEBUG
CORE_PEER_ADDRESS=peer0.org1.example.com:7051
Attempting to Query PEER0 ...3 secs

2020-09-24 06:04:23.794 UTC [msp] GetLocalMSP -> DEBU 001 Returning existing local MSP
2020-09-24 06:04:23.795 UTC [msp] GetDefaultSigningIdentity -> DEBU 002 Obtaining default signing identity
2020-09-24 06:04:23.795 UTC [chaincodeCmd] checkChaincodeCmdParams -> INFO 003 Using default escc
2020-09-24 06:04:23.795 UTC [chaincodeCmd] checkChaincodeCmdParams -> INFO 004 Using default vscc
2020-09-24 06:04:23.798 UTC [msp/identity] Sign -> DEBU 005 Sign: plaintext: 0A91070A6708031A0C08E7EDB0FB0510...6D7963631A0A0A0571756572790A0161
2020-09-24 06:04:23.798 UTC [msp/identity] Sign -> DEBU 006 Sign: digest: 21B941E99A3C8C6AD6FB5661499F8DE8045AE9FE6E403C7B59ADEE113F4C59D9
Query Result: 100
2020-09-24 06:04:44.543 UTC [main] main -> INFO 007 Exiting.....
===================== Query on PEER0 on channel 'mychannel' is successful =====================
Sending invoke transaction on org1/peer0...
CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/ca.crt
CORE_PEER_TLS_KEY_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/server.key
CORE_PEER_LOCALMSPID=Org1MSP
CORE_VM_ENDPOINT=unix:///host/var/run/docker.sock
CORE_PEER_TLS_CERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/server.crt
CORE_PEER_TLS_ENABLED=true
CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/users/Admin@org1.example.com/msp
CORE_PEER_ID=cli
CORE_LOGGING_LEVEL=DEBUG
CORE_PEER_ADDRESS=peer0.org1.example.com:7051
2020-09-24 06:04:44.700 UTC [msp] GetLocalMSP -> DEBU 001 Returning existing local MSP
2020-09-24 06:04:44.700 UTC [msp] GetDefaultSigningIdentity -> DEBU 002 Obtaining default signing identity
2020-09-24 06:04:44.702 UTC [chaincodeCmd] checkChaincodeCmdParams -> INFO 003 Using default escc
2020-09-24 06:04:44.702 UTC [chaincodeCmd] checkChaincodeCmdParams -> INFO 004 Using default vscc
2020-09-24 06:04:44.702 UTC [msp/identity] Sign -> DEBU 005 Sign: plaintext: 0A91070A6708031A0C08FCEDB0FB0510...696E766F6B650A01610A01620A023130
2020-09-24 06:04:44.702 UTC [msp/identity] Sign -> DEBU 006 Sign: digest: 0638FE536E7005EBCEA47F0CF3D65C8D441E7776CF800D3A4C3F2306CF3F681B
2020-09-24 06:04:44.719 UTC [msp/identity] Sign -> DEBU 007 Sign: plaintext: 0A91070A6708031A0C08FCEDB0FB0510...060BE069770A9E6C00A400AF6CB2E539
2020-09-24 06:04:44.719 UTC [msp/identity] Sign -> DEBU 008 Sign: digest: F039995E54AECAE7B91FCF2FA22CED099637CF87F6077BB49D662DA6AD4B933F
2020-09-24 06:04:44.725 UTC [chaincodeCmd] chaincodeInvokeOrQuery -> DEBU 009 ESCC invoke result: version:1 response:<status:200 message:"OK" > payload:"\n \rS-\342\361Y\335?*\201\351N\005\230o\277X\230i\272a\334^\344\210\234\033\316\200J_<\022Y\nE\022\024\n\004lscc\022\014\n\n\n\004mycc\022\002\010\003\022-\n\004mycc\022%\n\007\n\001a\022\002\010\003\n\007\n\001b\022\002\010\003\032\007\n\001a\032\00290\032\010\n\001b\032\003210\032\003\010\310\001\"\013\022\004mycc\032\0031.0" endorsement:<endorser:"\n\007Org1MSP\022\200\006-----BEGIN -----\nMIICGTCCAb+gAwIBAgIQIZPhuFKON7Dh0xFNWEO7AzAKBggqhkjOPQQDAjBzMQsw\nCQYDVQQGEwJVUzETMBEGA1UECBMKQ2FsaWZvcm5pYTEWMBQGA1UEBxMNU2FuIEZy\nYW5jaXNjbzEZMBcGA1UEChMQb3JnMS5leGFtcGxlLmNvbTEcMBoGA1UEAxMTY2Eu\nb3JnMS5leGFtcGxlLmNvbTAeFw0yMDA5MjQwNjAzMjFaFw0zMDA5MjIwNjAzMjFa\nMFsxCzAJBgNVBAYTAlVTMRMwEQYDVQQIEwpDYWxpZm9ybmlhMRYwFAYDVQQHEw1T\nYW4gRnJhbmNpc2NvMR8wHQYDVQQDExZwZWVyMC5vcmcxLmV4YW1wbGUuY29tMFkw\nEwYHKoZIzj0CAQYIKoZIzj0DAQcDQgAEXbaYHsF2xGrK5cBDcmglRok/AMWCcK9n\npkZXPTp0IG0ton3ymR3MPkQmdaM2r/SgB6mLdeqvGbOR++A0d5ordKNNMEswDgYD\nVR0PAQH/BAQDAgeAMAwGA1UdEwEB/wQCMAAwKwYDVR0jBCQwIoAgv4/KeWE5IHBe\naPsMw/1zyM5IiduLeFOiwQtdspNmj7IwCgYIKoZIzj0EAwIDSAAwRQIhAJIKngNQ\nSg6LYwF3IKNPlzQV4smJYVHhiJ2duJYelbCnAiAaZgQkPDJ/noDgaEaYSr1OQDJ0\nTNAFAC2ewt9H5qoObw==\n-----END -----\n" signature:"0D\002 n\357HA\236\3571o\336\215\334\362\341\354}?W\301\027\246=bn(\034J\246\213g\224KT\002 )\303\236\313\347c\003_C8\306\315<\367j\316\006\013\340iw\n\236l\000\244\000\257l\262\3459" >
2020-09-24 06:04:44.726 UTC [chaincodeCmd] chaincodeInvokeOrQuery -> INFO 00a Chaincode invoke successful. result: status:200
2020-09-24 06:04:44.726 UTC [main] main -> INFO 00b Exiting.....
===================== Invoke transaction on PEER0 on channel 'mychannel' is successful =====================

Installing chaincode on org2/peer3...
CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/tls/ca.crt
CORE_PEER_TLS_KEY_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/server.key
CORE_PEER_LOCALMSPID=Org2MSP
CORE_VM_ENDPOINT=unix:///host/var/run/docker.sock
CORE_PEER_TLS_CERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/server.crt
CORE_PEER_TLS_ENABLED=true
CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/users/Admin@org2.example.com/msp
CORE_PEER_ID=cli
CORE_LOGGING_LEVEL=DEBUG
CORE_PEER_ADDRESS=peer1.org2.example.com:7051
2020-09-24 06:04:44.821 UTC [msp] GetLocalMSP -> DEBU 001 Returning existing local MSP
2020-09-24 06:04:44.821 UTC [msp] GetDefaultSigningIdentity -> DEBU 002 Obtaining default signing identity
2020-09-24 06:04:44.821 UTC [chaincodeCmd] checkChaincodeCmdParams -> INFO 003 Using default escc
2020-09-24 06:04:44.821 UTC [chaincodeCmd] checkChaincodeCmdParams -> INFO 004 Using default vscc
2020-09-24 06:04:45.003 UTC [golang-platform] getCodeFromFS -> DEBU 005 getCodeFromFS github.com/hyperledger/fabric/examples/chaincode/go/chaincode_example02
2020-09-24 06:04:45.239 UTC [golang-platform] func1 -> DEBU 006 Discarding GOROOT package fmt
2020-09-24 06:04:45.239 UTC [golang-platform] func1 -> DEBU 007 Discarding provided package github.com/hyperledger/fabric/core/chaincode/shim
2020-09-24 06:04:45.239 UTC [golang-platform] func1 -> DEBU 008 Discarding provided package github.com/hyperledger/fabric/protos/peer
2020-09-24 06:04:45.239 UTC [golang-platform] func1 -> DEBU 009 Discarding GOROOT package strconv
2020-09-24 06:04:45.239 UTC [golang-platform] GetDeploymentPayload -> DEBU 00a done
2020-09-24 06:04:45.260 UTC [msp/identity] Sign -> DEBU 00b Sign: plaintext: 0A85070A5B08031A0B08FDEDB0FB0510...8BAEFF040000FFFF84DB3255002C0000
2020-09-24 06:04:45.260 UTC [msp/identity] Sign -> DEBU 00c Sign: digest: A67215B0359AC06B8937C654F6AC7CA853C6DBCBA9D4ACA38758FACAFD448734
2020-09-24 06:04:45.280 UTC [chaincodeCmd] install -> DEBU 00d Installed remotely response:<status:200 payload:"OK" >
2020-09-24 06:04:45.280 UTC [main] main -> INFO 00e Exiting.....
===================== Chaincode is installed on remote peer PEER3 =====================

Querying chaincode on org2/peer3...
===================== Querying on PEER3 on channel 'mychannel'... =====================
CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/tls/ca.crt
CORE_PEER_TLS_KEY_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/server.key
CORE_PEER_LOCALMSPID=Org2MSP
CORE_VM_ENDPOINT=unix:///host/var/run/docker.sock
CORE_PEER_TLS_CERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/server.crt
CORE_PEER_TLS_ENABLED=true
CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/users/Admin@org2.example.com/msp
CORE_PEER_ID=cli
CORE_LOGGING_LEVEL=DEBUG
CORE_PEER_ADDRESS=peer1.org2.example.com:7051
Attempting to Query PEER3 ...3 secs

2020-09-24 06:04:48.368 UTC [msp] GetLocalMSP -> DEBU 001 Returning existing local MSP
2020-09-24 06:04:48.368 UTC [msp] GetDefaultSigningIdentity -> DEBU 002 Obtaining default signing identity
2020-09-24 06:04:48.368 UTC [chaincodeCmd] checkChaincodeCmdParams -> INFO 003 Using default escc
2020-09-24 06:04:48.368 UTC [chaincodeCmd] checkChaincodeCmdParams -> INFO 004 Using default vscc
2020-09-24 06:04:48.368 UTC [msp/identity] Sign -> DEBU 005 Sign: plaintext: 0A91070A6708031A0C0880EEB0FB0510...6D7963631A0A0A0571756572790A0161
2020-09-24 06:04:48.368 UTC [msp/identity] Sign -> DEBU 006 Sign: digest: 4A1E7EE3E79A10E47F765C9832AC153022C90FFFAECD020608AEBBD33CD2277B
Query Result: 90
2020-09-24 06:05:07.907 UTC [main] main -> INFO 007 Exiting.....
===================== Query on PEER3 on channel 'mychannel' is successful =====================

===================== All GOOD, End-2-End execution completed =====================


 _____   _   _   ____            _____   ____    _____
| ____| | \ | | |  _ \          | ____| |___ \  | ____|
|  _|   |  \| | | | | |  _____  |  _|     __) | |  _|
| |___  | |\  | | |_| | |_____| | |___   / __/  | |___
|_____| |_| \_| |____/          |_____| |_____| |_____|

2、手動測驗一下Fabric網路

我們仍然是以現在安裝好的Example02為例，在官方例子中，channel名字是mychannel，鏈碼的名字是mycc，我們首先進入CLI，我們重新打開一個命令列視窗，輸入：

docker exec -it cli bash

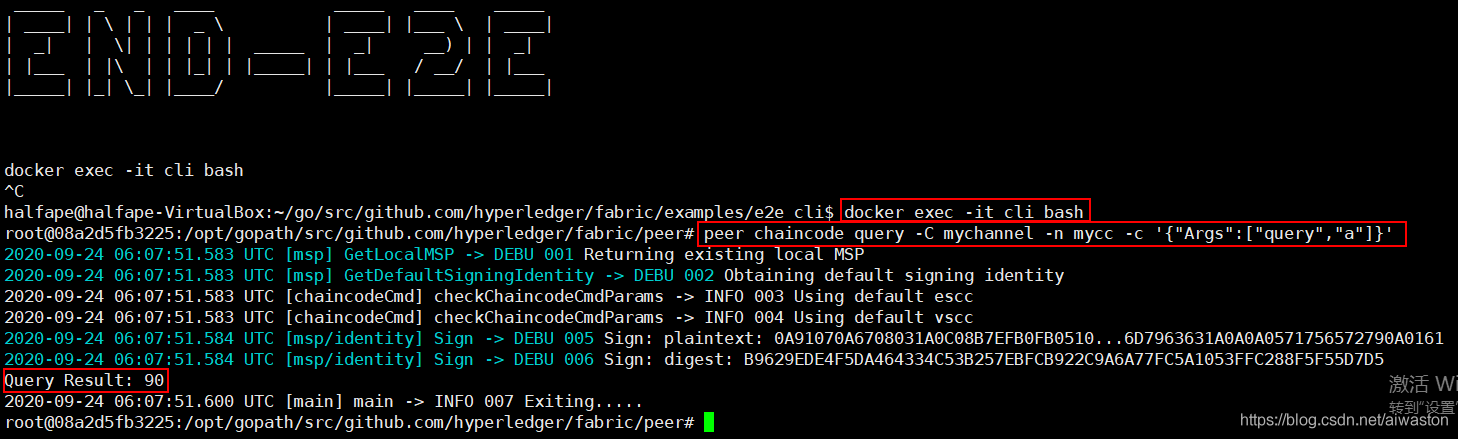

運行以下命令可以查詢a賬戶的余額：

peer chaincode query -C mychannel -n mycc -c '{"Args":["query","a"]}'

在這里插入圖片描述

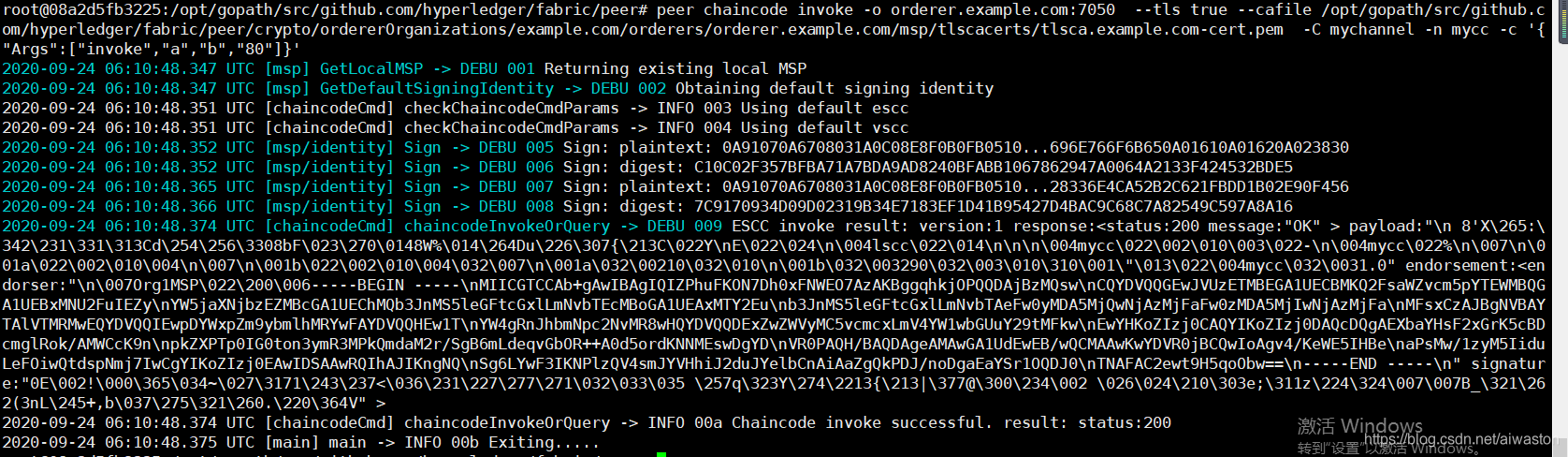

然后，我們試一試把a賬戶的余額再轉80元給b賬戶，運行命令：

peer chaincode invoke -o orderer.example.com:7050  --tls true --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/example.com/orderers/orderer.example.com/msp/tlscacerts/tlsca.example.com-cert.pem  -C mychannel -n mycc -c '{"Args":["invoke","a","b","80"]}'

運行結果如下圖：
在這里插入圖片描述
現在轉賬完畢， 我們試一試再查詢一下a賬戶的余額，沒問題的話，應該是只剩下10塊大洋了，我們看看實際情況：
在這里插入圖片描述
bingo，正如我們所愿，

3、關閉Fabric網路

最后我們要關閉Fabric網路，首先需要運行exit命令退出cli容器，關閉Fabric的命令與啟動類似，命令為：

cd ~/go/src/github.com/hyperledger/fabric/examples/e2e_cli
./network_setup.sh down

程序如下:

halfape@halfape-VirtualBox:~/go/src/github.com/hyperledger/fabric/examples/e2e_cli$ ./network_setup.sh down
setting to default channel 'mychannel'
WARNING: The CHANNEL_NAME variable is not set. Defaulting to a blank string.
WARNING: The TIMEOUT variable is not set. Defaulting to a blank string.
Stopping cli                    ... done
Stopping peer0.org1.example.com ... done
Stopping peer0.org2.example.com ... done
Stopping orderer.example.com    ... done
Stopping peer1.org2.example.com ... done
Stopping peer1.org1.example.com ... done
Removing cli                    ... done
Removing peer0.org1.example.com ... done
Removing peer0.org2.example.com ... done
Removing orderer.example.com    ... done
Removing peer1.org2.example.com ... done
Removing peer1.org1.example.com ... done
Removing network e2ecli_default
49c35a7144ed
1757636a5f53
425fba1bd2d7
Untagged: dev-peer1.org2.example.com-mycc-1.0:latest
Deleted: sha256:9e7b2495f4433d5b0f5eb3a876f74a246cb37af919e5b47d567505ae77f83df4
Deleted: sha256:fd93b79a499dc6e372009449bfe7a913a8695941052467c1f63eb6b86a001786
Deleted: sha256:66d9b3022ef4fc06246be09a9dfe1afe493d6cecff955f77fa8ad583b1ecbbbf
Deleted: sha256:64ec50d0ff3b4c6f1eb678ddc8ec8c0866cf98f300a925175e964fa45090c930
Deleted: sha256:cb08a8077c6f7451b589da007ea0877f1bf7393fcf3f773e4907e7e0985890ef
Deleted: sha256:f53aee1e74e529c3af7bb8d5acb750bf00f85e27af7b49f47ff8095ff5c8d575
Deleted: sha256:fe91dc1cbc204858760cc561b545038d9d8b5965ffca853ece60a59deb7eba92
Untagged: dev-peer0.org1.example.com-mycc-1.0:latest
Deleted: sha256:107d6723dd0cd2633ecf004dc6612fca57709d2dba90a657d9072534a6477c9b
Deleted: sha256:bfc9fc6475aac3b7f446171b677a6554227a3e8a0c066d28c2af679c060a6e1d
Deleted: sha256:2a5d86ab68ff3d8b4fe320754f844daef9ad76e5b8a14ec1bd09f87570cd6165
Deleted: sha256:917f297dddfd0bb4fa50928e9a43a3eea526b3b985bcccda01bafdd3f4a1b90f
Deleted: sha256:f423d7575cb773000a2fbe0dca51aa215d00bd91d8fbb37c4c26378af8134813
Deleted: sha256:fa96f0e5805e6b00d2e95b6e798dfa7470fb7431855eed4399a22bc2fc270c0c
Deleted: sha256:6586cb10d4d95034a464d7dba9f2fe509bf80413e6c30ac3119330d92f20cb40
Untagged: dev-peer0.org2.example.com-mycc-1.0:latest
Deleted: sha256:8370b1cd876644e610eb2ff362f29c96538370f7d4f513e010801cfce3a63ace
Deleted: sha256:f2190cdc9c8235ab0d9f37975a71923c7fd498fa517533e527d87bbaddbbf4ea
Deleted: sha256:e5d2ead105e3246c0cdcc1be6c8ac78fb11d959564839a2b41c147962e37cbb4
Deleted: sha256:a592dd4f7d4346b5921d6dc7fd48652bfa70907e40e04942382cdd16329be9ef
Deleted: sha256:92bae31265fc9a8bbcf394328f7855a64ef8c13b1885e21015b5accc7b9e487c
Deleted: sha256:5b34425a5f4db01b75d04a1b4f9acd367a9378a5834f77b99c441df323d1e52b
Deleted: sha256:4298b29759ca67c745a5fca6da441dd2e74d1a4802159afd1fd001a354b33d73
halfape@halfape-VirtualBox:~/go/src/github.com/hyperledger/fabric/examples/e2e_cli$

參考文章：

https://blog.csdn.net/jambeau/article/details/103712408
https://www.cnblogs.com/studyzy/p/7437157.html

寫在最后

感謝上面兩位大佬的貢獻，我個人在此基礎上進行了整合，自己也是排了很多雷，終于成功了，如果你覺得這篇文章對你有所幫助，關注微信公眾號半路猿，拉你進我們的學習交流群，一起學習，一同成長，

轉載請註明出處，本文鏈接：https://www.uj5u.com/qita/127375.html

標籤：其他

上一篇：銀行與BitcoinSV：位元幣誠實的原始設計將帶來全新的商業機會

下一篇：【求助】運行代碼報錯TypeError: a bytes-like object is required, not 'str'

標籤雲
其他(157675) Python(38076) JavaScript(25376) Java(17977) C(15215) 區塊鏈(8255) C＃(7972) AI(7469) 爪哇(7425) MySQL(7132) html(6777) 基礎類(6313) sql(6102) 熊猫(6058) PHP(5869) 数组(5741) R(5409) Linux(5327) 反应(5209) 腳本語言(PerlPython)(5129) 非技術區(4971) Android(4554) 数据框(4311) css(4259) 节点.js(4032) C語言(3288) json(3245) 列表(3129) 扑(3119) C++語言(3117) 安卓(2998) 打字稿(2995) VBA(2789) Java相關(2746) 疑難問題(2699) 细绳(2522) 單片機工控(2479) iOS(2429) ASP.NET(2402) MongoDB(2323) 麻木的(2285) 正则表达式(2254) 字典(2211) 循环(2198) 迅速(2185) 擅长(2169) 镖(2155) 功能(1967) .NET技术(1958) Web開發(1951) python-3.x(1918) HtmlCss(1915) 弹簧靴(1913) C++(1909) xml(1889) PostgreSQL(1872) .NETCore(1853) 谷歌表格(1846) Unity3D(1843) for循环(1842)

熱門瀏覽
  • 網閘典型架構簡述

    網閘架構一般分為兩種：三主機的三系統架構網閘和雙主機的2+1架構網閘。 三主機架構分別為內端機、外端機和仲裁機。三機無論從軟體和硬體上均各自獨立。首先從硬體上來看，三機都用各自獨立的主板、記憶體及存盤設備。從軟體上來看，三機有各自獨立的作業系統。這樣能達到完全的三機獨立。對于“2+1”系統，“2”分為 ......

    uj5u.com 2020-09-10 02:00:44 more
  • 如何從xshell上傳檔案到centos linux虛擬機里

    如何從xshell上傳檔案到centos linux虛擬機里及：虛擬機CentOs下執行 yum -y install lrzsz命令，出現錯誤：鏡像無法找到軟體包 前言 一、安裝lrzsz步驟 二、上傳檔案 三、遇到的問題及解決方案 總結 前言 提示：其實很簡單，往虛擬機上安裝一個上傳檔案的工具 ......

    uj5u.com 2020-09-10 02:00:47 more
  • 一、SQLMAP入門

    一、SQLMAP入門 1、判斷是否存在注入 sqlmap.py -u 網址/id=1 id=1不可缺少。當注入點后面的引數大于兩個時。需要加雙引號， sqlmap.py -u "網址/id=1&uid=1" 2、判斷文本中的請求是否存在注入 從文本中加載http請求，SQLMAP可以從一個文本檔案中 ......

    uj5u.com 2020-09-10 02:00:50 more
  • Metasploit 簡單使用教程

    metasploit 簡單使用教程 浩先生， 2020-08-28 16:18:25 分類專欄： kail 網路安全 linux 文章標簽： linux資訊安全 編輯 著作權 metasploit 使用教程 前言 一、Metasploit是什么？ 二、準備作業 三、具體步驟 前言 Msfconsole ......

    uj5u.com 2020-09-10 02:00:53 more
  • 游戲逆向之驅動層與用戶層通訊

    驅動層代碼： #pragma once #include <ntifs.h> #define add_code CTL_CODE(FILE_DEVICE_UNKNOWN,0x800,METHOD_BUFFERED,FILE_ANY_ACCESS) /* 更多游戲逆向視頻www.yxfzedu.com ......

    uj5u.com 2020-09-10 02:00:56 more
  • 北斗電力時鐘（北斗授時服務器）讓網路資料更精準

    北斗電力時鐘（北斗授時服務器）讓網路資料更精準 北斗電力時鐘（北斗授時服務器）讓網路資料更精準 京準電子科技官微——ahjzsz 近幾年，資訊技術的得了快速發展，互聯網在逐漸普及，其在人們生活和生產中都得到了廣泛應用，并且取得了不錯的應用效果。計算機網路資訊在電力系統中的應用，一方面使電力系統的運行 ......

    uj5u.com 2020-09-10 02:01:03 more
  • 【CTF】CTFHub 技能樹 彩蛋 writeup

    ?碎碎念 CTFHub：https://www.ctfhub.com/ 筆者入門CTF時時剛開始刷的是bugku的舊平臺，后來才有了CTFHub。 感覺不論是網頁UI設計，還是題目質量，賽事跟蹤，工具軟體都做得很不錯。 而且因為獨到的金幣制度的確讓人有一種想去刷題賺金幣的感覺。 個人還是非常喜歡這個 ......

    uj5u.com 2020-09-10 02:04:05 more
  • 02windows基礎操作

    我學到了一下幾點 Windows系統目錄結構與滲透的作用 常見Windows的服務詳解 Windows埠詳解 常用的Windows注冊表詳解 hacker DOS命令詳解（net user / type /md /rd/ dir /cd /net use copy、批處理 等） 利用dos命令制作 ......

    uj5u.com 2020-09-10 02:04:18 more
  • 03.Linux基礎操作

    我學到了以下幾點 01Linux系統介紹02系統安裝，密碼啊破解03Linux常用命令04LAMP 01LINUX windows： win03 8 12 16 19 配置不繁瑣 Linux：redhat,centos(紅帽社區版)，Ubuntu server,suse unix:金融機構，證券，銀 ......

    uj5u.com 2020-09-10 02:04:30 more
  • 05HTML

    01HTML介紹 02頭部標簽講解03基礎標簽講解04表單標簽講解 HTML前段語言 js1.了解代碼2.根據代碼 懂得挖掘漏洞 （POST注入/XSS漏洞上傳）3.黑帽seo 白帽seo 客戶網站被黑帽植入劫持代碼如何處理4.熟悉html表單 <html><head><title>TDK標題，描述 ......

    uj5u.com 2020-09-10 02:04:36 more
最新发布
  • 2023年最新微信小程式抓包教程

    01 開門見山 隔一個月發一篇文章，不過分。 首先回顧一下《微信系結手機號資料庫被脫庫事件》，我也是第一時間得知了這個訊息，然后跟蹤了整件事情的經過。下面是這起事件的相關截圖以及近日流出的一萬條資料樣本： 個人認為這件事也沒什么，還不如關注一下之前45億快遞資料查詢渠道疑似在近日復活的訊息。 訊息是 ......

    uj5u.com 2023-04-20 08:48:24 more
  • web3 產品介紹：metamask 錢包 使用最多的瀏覽器插件錢包

    Metamask錢包是一種基于區塊鏈技術的數字貨幣錢包，它允許用戶在安全、便捷的環境下管理自己的加密資產。Metamask錢包是以太坊生態系統中最流行的錢包之一，它具有易于使用、安全性高和功能強大等優點。 本文將詳細介紹Metamask錢包的功能和使用方法。 一、 Metamask錢包的功能 數字資 ......

    uj5u.com 2023-04-20 08:47:46 more
  • vulnhub_Earth

    前言 靶機地址->>>vulnhub_Earth 攻擊機ip：192.168.20.121 靶機ip：192.168.20.122 參考文章 https://www.cnblogs.com/Jing-X/archive/2022/04/03/16097695.html https://www.cnb ......

    uj5u.com 2023-04-20 07:46:20 more
  • 從4k到42k，軟體測驗工程師的漲薪史，給我看哭了

    清明節一過，盲猜大家已經無心上班，在數著日子準備過五一，但一想到銀行卡里的余額……瞬間心情就不美麗了。最近，2023年高校畢業生就業調查顯示，本科畢業月平均起薪為5825元。調查一出，便有很多同學表示自己又被平均了。看著這一資料，不免讓人想到前不久中國青年報的一項調查：近六成大學生認為畢業10年內會 ......

    uj5u.com 2023-04-20 07:44:00 more
  • 最新版本 Stable Diffusion 開源 AI 繪畫工具之中文自動提詞篇

    🎈 標簽生成器 由于輸入正向提示詞 prompt 和反向提示詞 negative prompt 都是使用英文，所以對學習母語的我們非常不友好 使用網址：https://tinygeeker.github.io/p/ai-prompt-generator 這個網址是為了讓大家在使用 AI 繪畫的時候 ......

    uj5u.com 2023-04-20 07:43:36 more
  • 漫談前端自動化測驗演進之路及測驗工具分析

    隨著前端技術的不斷發展和應用程式的日益復雜，前端自動化測驗也在不斷演進。隨著 Web 應用程式變得越來越復雜，自動化測驗的需求也越來越高。如今，自動化測驗已經成為 Web 應用程式開發程序中不可或缺的一部分，它們可以幫助開發人員更快地發現和修復錯誤，提高應用程式的性能和可靠性。 ......

    uj5u.com 2023-04-20 07:43:16 more
  • CANN開發實踐：4個DVPP記憶體問題的典型案例解讀

    摘要：由于DVPP媒體資料處理功能對存放輸入、輸出資料的記憶體有更高的要求（例如，記憶體首地址128位元組對齊），因此需呼叫專用的記憶體申請介面，那么本期就分享幾個關于DVPP記憶體問題的典型案例，并給出原因分析及解決方法。 本文分享自華為云社區《FAQ_DVPP記憶體問題案例》，作者：昇騰CANN。 DVPP ......

    uj5u.com 2023-04-20 07:43:03 more
  • msf學習

    msf學習 以kali自帶的msf為例 一、msf核心模塊與功能 msf模塊都放在/usr/share/metasploit-framework/modules目錄下 1、auxiliary 輔助模塊，輔助滲透（埠掃描、登錄密碼爆破、漏洞驗證等） 2、encoders 編碼器模塊，主要包含各種編碼 ......

    uj5u.com 2023-04-20 07:42:59 more
  • Halcon軟體安裝與界面簡介

    1. 下載Halcon17版本到到本地 2. 雙擊安裝包后 3. 步驟如下 1.2 Halcon軟體安裝 界面分為四大塊 1. Halcon的五個助手 1) 影像采集助手：與相機連接，設定相機引數，采集影像 2) 標定助手：九點標定或是其它的標定，生成標定檔案及內參外參，可以將像素單位轉換為長度單位 ......

    uj5u.com 2023-04-20 07:42:17 more
  • 在MacOS下使用Unity3D開發游戲

    第一次發博客，先發一下我的游戲開發環境吧。 去年2月份買了一臺MacBookPro2021 M1pro(以下簡稱mbp)，這一年來一直在用mbp開發游戲。我大致分享一下我的開發工具以及使用體驗。 1、Unity 官網鏈接： https://unity.cn/releases 我一般使用的Apple ......

    uj5u.com 2023-04-20 07:40:19 more

Copyright © 2010-2020 有解無憂
