hdc1080中，0x02配置為0x0000
按照資料手冊
2. Trigger the measurement by executing a pointer write transaction. Refer to Figure 12
– Set the address pointer to 0x00 for a temperature measurement.
– Set the address pointer to 0x01 for a humidity measurement.
3. Wait for the measurement to complete, based on the conversion time (refer to Electrical Characteristics(1) for
the conversion time).
4. Read the output data:
Retrieve the completed measurement result from register address 0x00 or 0x01, as appropriate, as shown in
Figure 11. A read operation will return a NACK if the measurement result is not yet available, as shown in
Figure 13.

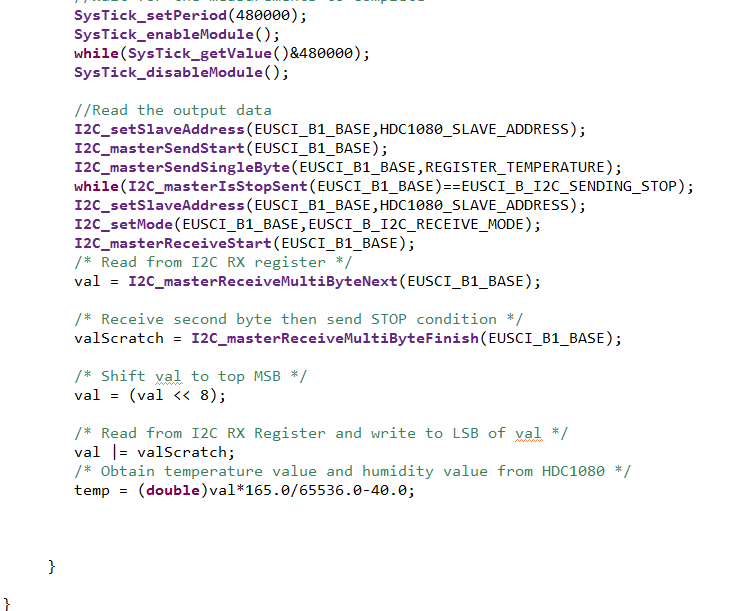

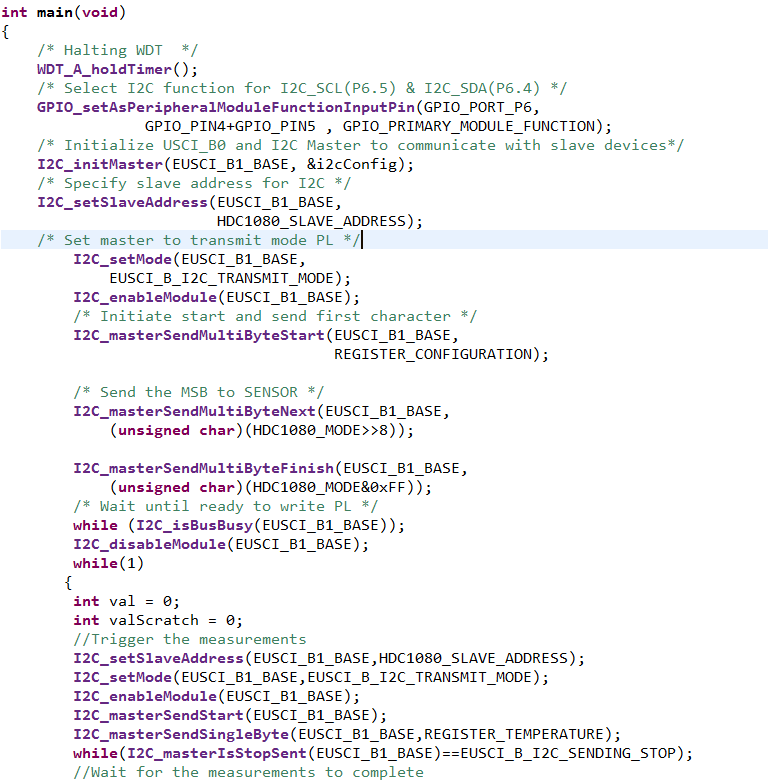

我先發0x00，然后延時，再發0x00然后收，這樣運行沒結果；我先發0x00，然后延時，然后接收，得到的值是負的，而且只測了一次，后面一直是這個值
