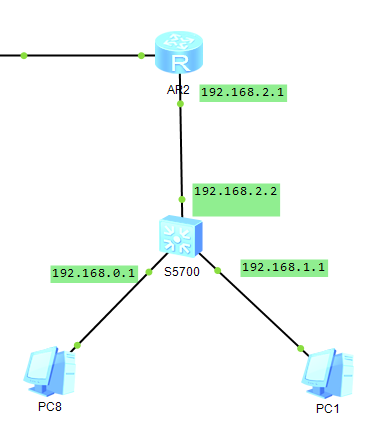

如圖，交換機開啟dhcp，劃分兩個vlan，連接路由器，就這些要求，請問要怎么實作啊。
uj5u.com熱心網友回復：
你現在圖中有三個網段，要劃三個vlanuj5u.com熱心網友回復：
你現在圖中三個網段，要三個vlanuj5u.com熱心網友回復：
嗯，然后怎么配置呢uj5u.com熱心網友回復：
在交換機上設三個vlan，vlan虛介面地址分別為：192.168.0.1、192.168.1.1、192.168.2.2，然后設個默認路由，指向路由器：ip route-static 0.0.0.0 0 192.168.2.1在路由器上設個靜態路由，指向交換機 ip route-static 192.168.0.0 16 192.168.2.2
uj5u.com熱心網友回復：
#vlan batch 10 to 12
#
cluster enable
ntdp enable
ndp enable
#
drop illegal-mac alarm
#
dhcp enable
#
dhcp snooping enable
#
diffserv domain default
#
drop-profile default
#
aaa
authentication-scheme default
authorization-scheme default
accounting-scheme default
domain default
domain default_admin
local-user admin password simple admin
local-user admin service-type telnet terminal ssh http
#
interface Vlanif1
#
interface Vlanif10
ip address 192.168.0.1 255.255.255.0
dhcp select interface
dhcp server lease day 0 hour 8 minute 0
dhcp server dns-list 114.114.114.114
#
interface Vlanif11
ip address 192.168.1.1 255.255.255.0
dhcp select interface
dhcp server lease day 0 hour 8 minute 0
dhcp server dns-list 114.114.114.114
#
interface Vlanif12
ip address 192.168.2.2 255.255.255.0
#
interface MEth0/0/1
#
interface Ethernet0/0/1
port link-type access
port default vlan 10
#
interface Ethernet0/0/2
port link-type access
port default vlan 11
#
#
interface Ethernet0/0/22
port link-type access
port default vlan 12
#
#
ip route-static 0.0.0.0 0.0.0.0 192.168.2.1
#
user-interface con 0
user-interface vty 0 4
authentication-mode aaa
user privilege level 15
protocol inbound all
#
return
[Huawei]
uj5u.com熱心網友回復：
昨天看華為的教程已經學會了，謝謝，對vlan和三層也有所了解了
