EAS報表開發----收付明細

2020-09-10 09:04:34 其他

本文是金蝶EAS專案報表開發的一個案例，可供有興趣者參考，

1.設計UI

1.1篩選界面UI

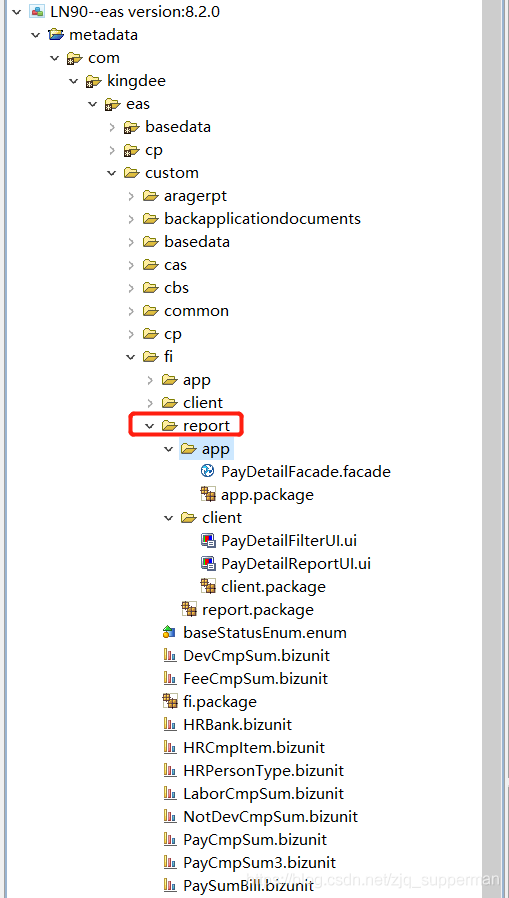

BOS設計工具新建目錄如下
在這里插入圖片描述

新建Web用戶界面，繼承父類com.kingdee.eas.framework.report.client.CommRptBaseConditionUI

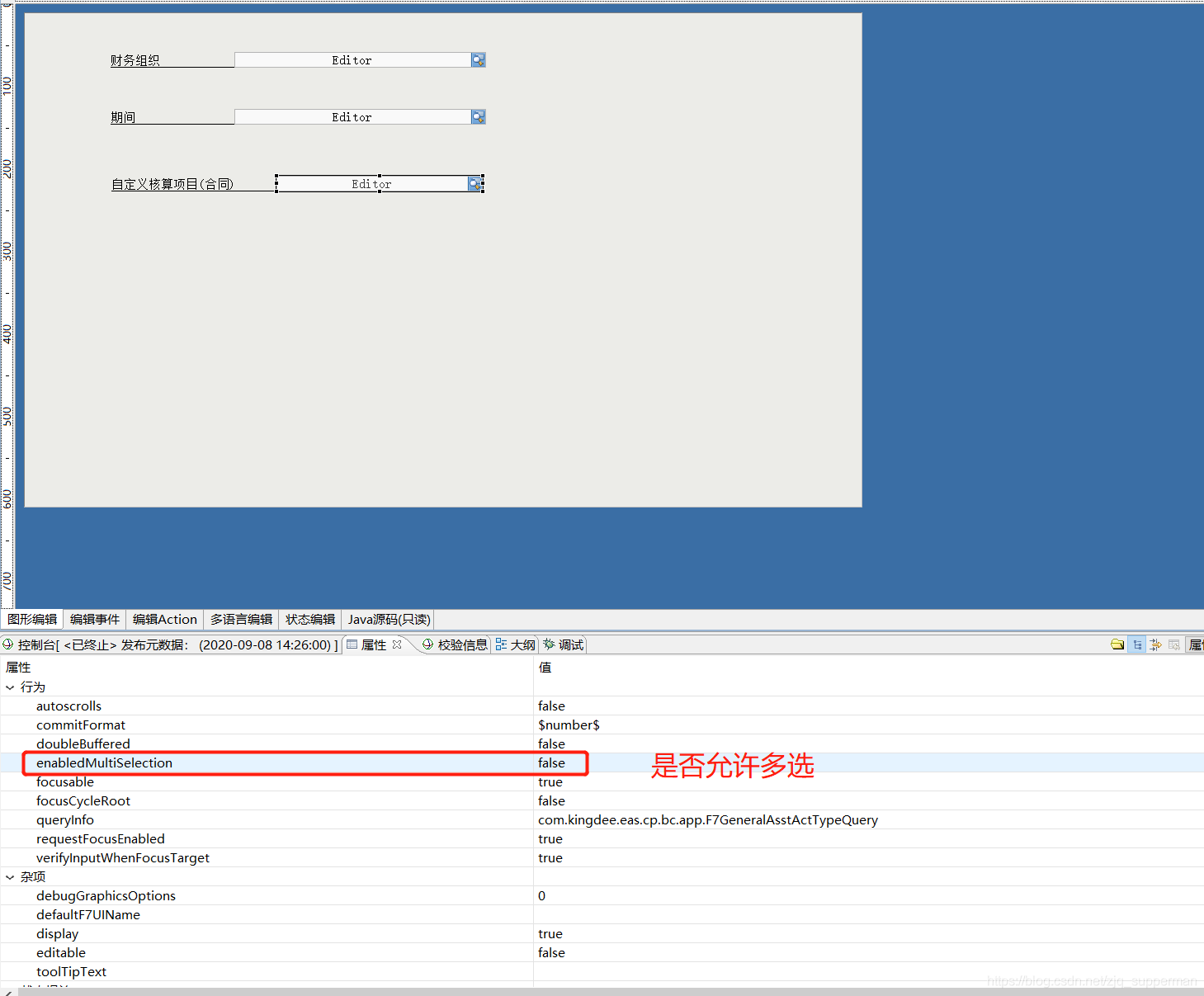

右鍵添加需要的控制元件如下所示
在這里插入圖片描述

1.2報表UI

同樣的新建Web用戶界面，繼承com.kingdee.eas.framework.report.client.CommRptBaseUI

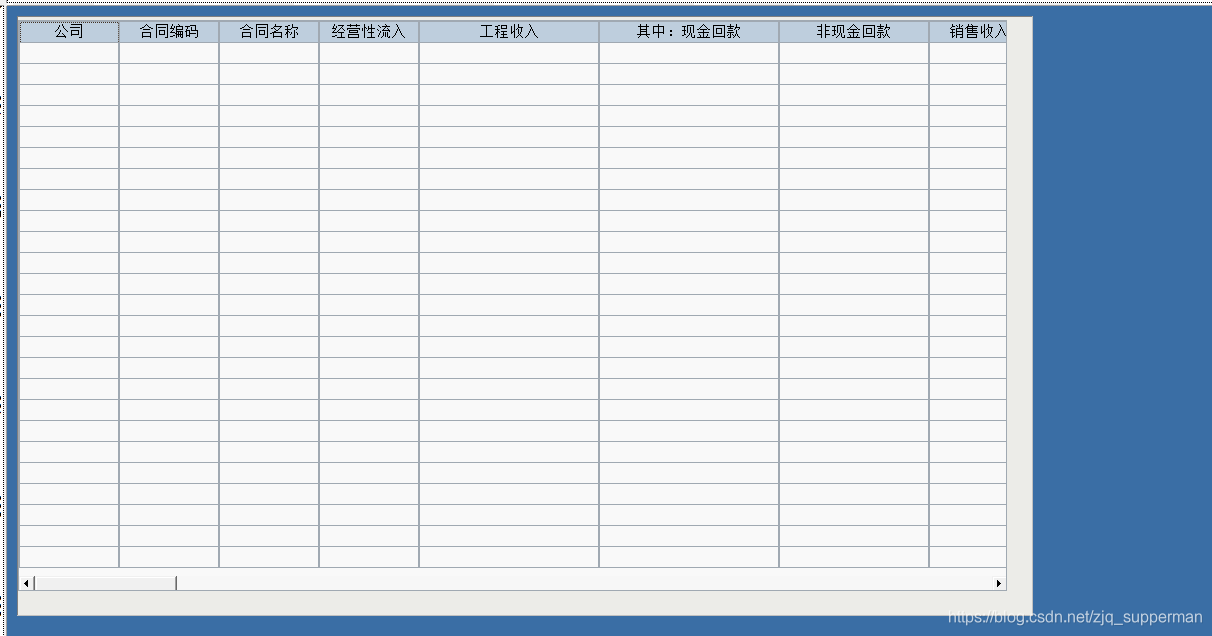

添加表格，并編輯表資訊
在這里插入圖片描述
表列
在這里插入圖片描述

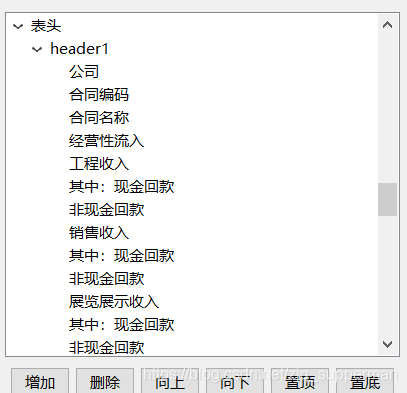

表頭
在這里插入圖片描述

1.3 Facade設計

在report --> app檔案夾下新建查詢
將查詢的父物件設定為com.kingdee.eas.framework.report.app.CommRptBase
在這里插入圖片描述

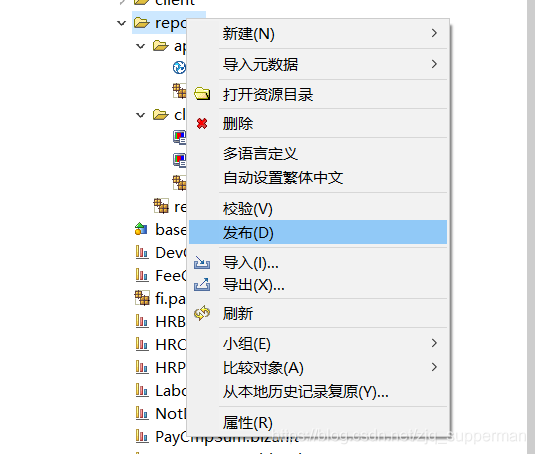

全部設計完畢之后將選中整個檔案夾右鍵發布，以后若對任意UI修改，都要進行發布
在這里插入圖片描述

2.設計查詢

此報表要用到SQL中的行轉列，也就是會用到case when陳述句

2.1會用到的表格

  • T_CAS_PaymentBill 付款單
  • T_CAS_PaymentBillEntry 付款單分錄
  • T_BD_GeneralAsstActType 自定義核算專案 fid
  • T_CAS_AssItemsForCashPay 付款單自定義核算專案中間表 ffromid
  • T_CAS_ReceivingBill 收款單
  • T_CAS_ReceivingBillEntry 收款單分錄
  • T_CAS_FeeType 收付類別
  • CT_CAS_RecDetail 收付明細
  • T_BD_SettlementType 結算方式
  • T_ORG_Company 公司

2.2表格之間的關聯關系

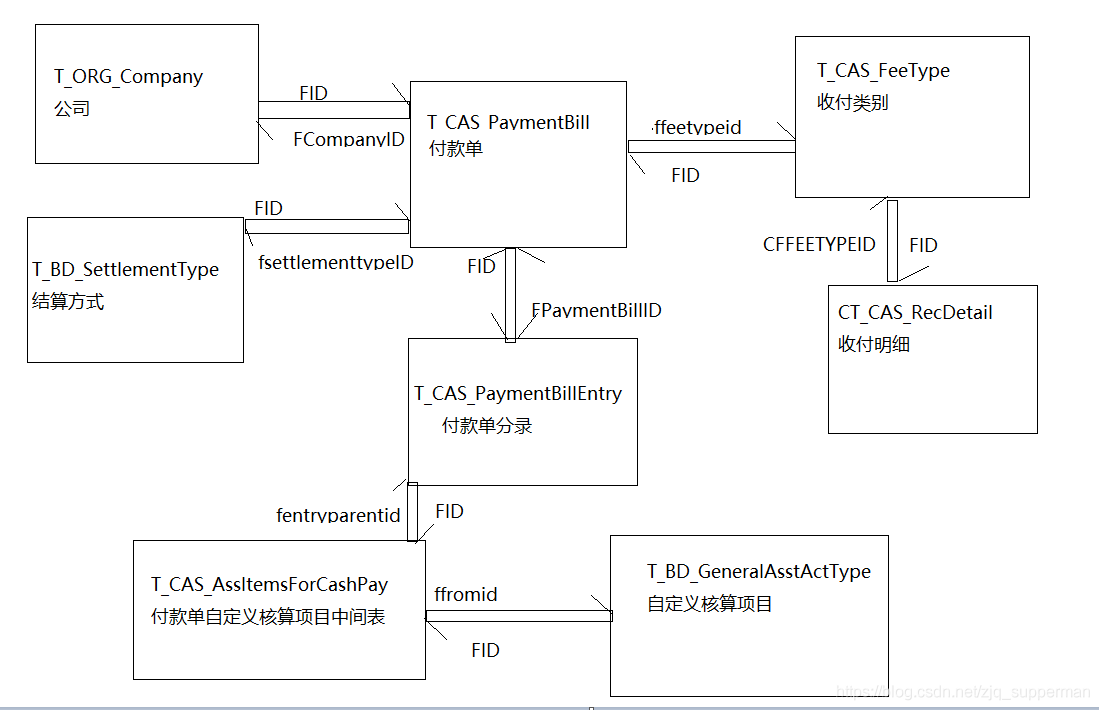

關于付款單的表格關系圖如下
在這里插入圖片描述
關于收款單表關系圖如下
在這里插入圖片描述

2.2 得出SQL陳述句

-- 付款單SQL陳述句
SELECT
company.fname_l2 as company,
general.fnumber as contractNumber,
general.fname_l2 as contractName,
SUM(case  when  recdetail.FNUMBER in('SF-032','SF-031') then entry.FActualLocAmt  else 0 end) as projIncome, --工程收入
SUM(case  when  recdetail.FNUMBER in('SF-032','SF-031') and settle.FNUMBER in ('01','02','03','06','07','08','31')  then entry.FActualLocAmt  else 0 end)  as pCashBack,
SUM(case  when  recdetail.FNUMBER in('SF-032','SF-031') and settle.FNUMBER not in('01','02','03','06','07','08','31') then entry.FActualLocAmt  else 0 end) as pNCashBack,
SUM(case  when  recdetail.FNUMBER in('SF-033') then entry.FActualLocAmt  else 0 end) as saleIncome,
SUM(case  when  recdetail.FNUMBER in('SF-033') and settle.FNUMBER in ('01','02','03','06','07','08','31') then entry.FActualLocAmt  else 0 end) as sCashBack,
SUM(case  when  recdetail.FNUMBER in('SF-033') and settle.FNUMBER not in ('01','02','03','06','07','08','31') then entry.FActualLocAmt  else 0 end) as sNCashBack,
SUM(case  when  recdetail.FNUMBER in('SF-034') then entry.FActualLocAmt  else 0 end) as disIncome,
SUM(case  when  recdetail.FNUMBER in('SF-034') and settle.FNUMBER in ('01','02','03','06','07','08','31') then entry.FActualLocAmt  else 0 end) as dCashBack,
SUM(case  when  recdetail.FNUMBER in('SF-034') and settle.FNUMBER not in ('01','02','03','06','07','08','31') then entry.FActualLocAmt  else 0 end) as dNCashBack,
SUM(case  when  recdetail.FNUMBER in('SF-035', 'SF-036') then entry.FActualLocAmt  else 0 end) as billCashIncome,
SUM(case  when  recdetail.FNUMBER in('SF-037', 'SF-038') then entry.FActualLocAmt  else 0 end) as deposit,
SUM(case  when  recdetail.FNUMBER in('SF-039') then entry.FActualLocAmt  else 0 end) as fiSubIncome,
SUM(case  when  recdetail.FNUMBER in('SF-040','SF-048') then entry.FActualLocAmt  else 0 end) as otherIncome, --其他收款 待收款
SUM(case  when  recdetail.FNUMBER in('SF-041') then entry.FActualLocAmt  else 0 end) as absorbInvest,
SUM(case  when  recdetail.FNUMBER in('SF-042') then entry.FActualLocAmt  else 0 end) as lNewLoan,
SUM(case  when  recdetail.FNUMBER in('SF-043') then entry.FActualLocAmt  else 0 end) as interIncome, --利息收入
SUM(case  when  recdetail.FNUMBER in('SF-044', 'SF-045') then entry.FActualLocAmt  else 0 end) as groupConta, --集團往來收入 groupConta
SUM(case  when  recdetail.FNUMBER in('SF-046') then entry.FActualLocAmt  else 0 end) as investDivid,--investDivid
SUM(case  when  recdetail.FNUMBER in('SF-047') then entry.FActualLocAmt  else 0 end) as assetsCZ, --assetsCZ
SUM(case  when  recdetail.FNUMBER in('SF-001','SF-002') then entry.FActualLocAmt  else 0 end) as projExpend,--projExpend
SUM(case  when  recdetail.FNUMBER in('SF-001','SF-002') and settle.FNUMBER in ('01','02','03','06','07','08','31') then entry.FActualLocAmt  else 0 end) as pCashPay,--pCashPay
SUM(case  when  recdetail.FNUMBER in('SF-001','SF-002') and settle.FNUMBER not in ('01','02','03','06','07','08','31') then entry.FActualLocAmt  else 0 end) as pNCashExpend,   -- pNCashExpend
SUM(case  when  recdetail.FNUMBER in('SF-004','SF-005','SF-006') then entry.FActualLocAmt  else 0 end) as disPay,-- disPay
SUM(case  when  recdetail.FNUMBER in('SF-004','SF-005','SF-006') and settle.FNUMBER in ('01','02','03','06','07','08','31') then entry.FActualLocAmt  else 0 end) as dCashPay,-- dCashPay
SUM(case  when  recdetail.FNUMBER in('SF-004','SF-005','SF-006') and settle.FNUMBER not in ('01','02','03','06','07','08','31') then entry.FActualLocAmt  else 0 end) as dNCashExpend,-- dNCashExpend
SUM(case  when  recdetail.FNUMBER in('SF-007','SF-008','SF-009') then entry.FActualLocAmt  else 0 end) as fiBillExpend,-- fiBillExpend
SUM(case  when  recdetail.FNUMBER in('SF-007') then entry.FActualLocAmt  else 0 end) as fAcceptAmout,-- fAcceptAmout
SUM(case  when  recdetail.FNUMBER in('SF-008','SF-009') then entry.FActualLocAmt  else 0 end) as fInvoicingExpend,  -- fInvoicingExpend
SUM(case  when  recdetail.FNUMBER in('SF-003','SF-010') then entry.FActualLocAmt  else 0 end) as dPeriodCost,     -- dPeriodCost 取收付明細中“費用報銷”+“支付銀行手續費”
SUM(case  when  recdetail.FNUMBER in('SF-049','SF-050','SF-011') then entry.FActualLocAmt  else 0 end) as dReverseExpend,   -- dReverseExpend  取收付明細中“備用金/個人借款”－“收備用金”
SUM(case  when  recdetail.FNUMBER in('SF-012') then entry.FActualLocAmt  else 0 end) as sWage,      -- sWage
SUM(case  when  recdetail.FNUMBER in('SF-013') then entry.FActualLocAmt  else 0 end) as sFive,    -- sFive
SUM(case  when  recdetail.FNUMBER in('SF-014') then entry.FActualLocAmt  else 0 end) as sOther,     -- sOther
SUM(case  when  recdetail.FNUMBER in('SF-015') then entry.FActualLocAmt  else 0 end) as taxExpend,    -- taxExpend
SUM(case  when  recdetail.FNUMBER in('SF-016') then entry.FActualLocAmt  else 0 end) as fineExpend,    -- fineExpend
SUM(case  when  recdetail.FNUMBER in('SF-017') then entry.FActualLocAmt  else 0 end) as depositExpend,    -- depositExpend
SUM(case  when  recdetail.FNUMBER in('SF-018') then entry.FActualLocAmt  else 0 end) as donateExpend,     -- donateExpend
SUM(case  when  recdetail.FNUMBER in('SF-028','SF-029','SF-030') then entry.FActualLocAmt  else 0 end) as otherExpend,     -- otherExpend
SUM(case  when  recdetail.FNUMBER in('SF-019') then entry.FActualLocAmt  else 0 end) as repayLoan,    -- repayLoan 償還貸款支出
SUM(case  when  recdetail.FNUMBER in('SF-020') then entry.FActualLocAmt  else 0 end) as pfLoanInter,     -- pfLoanInter
SUM(case  when  recdetail.FNUMBER in('SF-021') then entry.FActualLocAmt  else 0 end) as pfFinanceFee,     -- pfFinanceFee
SUM(case  when  recdetail.FNUMBER in('SF-022') then entry.FActualLocAmt  else 0 end) as dividedPayout,     -- dividedPayout
SUM(case  when  recdetail.FNUMBER in('SF-023', 'SF-024','SF-025') then entry.FActualLocAmt  else 0 end) as groupContacts,     -- groupContacts
SUM(case  when  recdetail.FNUMBER in('SF-026') then entry.FActualLocAmt  else 0 end) as outInvest,     -- outInvest
SUM(case  when  recdetail.FNUMBER in('SF-027') then entry.FActualLocAmt  else 0 end) as buyAssets     -- buyAssets
FROM T_CAS_PaymentBill as payment
left join T_CAS_PaymentBillEntry as entry
on payment.fid = entry.FPaymentBillID
INNER JOIN T_ORG_Company AS company
ON payment.FCompanyID = COMPANY.FID

left join T_BD_SettlementType as settle
on payment.fsettlementtypeID = settle.FID
left join T_CAS_AssItemsForCashPay payAssItem
on payAssItem.fentryparentid = entry.fid
left join T_BD_GeneralAsstActType as general  -- 自定義核算專案
on payAssItem.ffromid = general.fid

left join T_CAS_FeeType feetype
on payment.ffeetypeid = feetype.fid
left join CT_CAS_RecDetail recdetail
on feetype.FID = recdetail.CFFEETYPEID

WHERE 1=1

group by company.fname_l2, general.fnumber, general.fname_l2

-- 收款單SQL陳述句
SELECT company.fname_l2 as company, general.fnumber as contractNumber, general.fname_l2 as contractName,
SUM(case when recdetail.FNUMBER in('SF-032','SF-031') then entry.FActualLocAmt  else 0 end) as projIncome,
SUM(case when recdetail.FNUMBER in('SF-032','SF-031') and settle.FNUMBER in ('01','02','03','06','07','08','31')  then entry.FActualLocAmt  else 0 end)  as pCashBack,
SUM(case when recdetail.FNUMBER in('SF-032','SF-031') and settle.FNUMBER not in('01','02','03','06','07','08','31') then entry.FActualLocAmt  else 0 end) as pNCashBack,
SUM(case when recdetail.FNUMBER in('SF-033') then entry.FActualLocAmt  else 0 end) as saleIncome,
SUM(case when recdetail.FNUMBER in('SF-033') and settle.FNUMBER in ('01','02','03','06','07','08','31') then entry.FActualLocAmt  else 0 end) as sCashBack,
SUM(case when recdetail.FNUMBER in('SF-033') and settle.FNUMBER not in ('01','02','03','06','07','08','31') then entry.FActualLocAmt  else 0 end) as sNCashBack,
SUM(case when recdetail.FNUMBER in('SF-034') then entry.FActualLocAmt  else 0 end) as disIncome,
SUM(case when recdetail.FNUMBER in('SF-034') and settle.FNUMBER in ('01','02','03','06','07','08','31') then entry.FActualLocAmt  else 0 end) as dCashBack,
SUM(case when recdetail.FNUMBER in('SF-034') and settle.FNUMBER not in ('01','02','03','06','07','08','31') then entry.FActualLocAmt  else 0 end) as dNCashBack,
SUM(case when recdetail.FNUMBER in('SF-035', 'SF-036') then entry.FActualLocAmt  else 0 end) as billCashIncome,
SUM(case when recdetail.FNUMBER in('SF-037', 'SF-038') then entry.FActualLocAmt  else 0 end) as deposit,
SUM(case when recdetail.FNUMBER in('SF-039') then entry.FActualLocAmt  else 0 end) as fiSubIncome,
SUM(case when recdetail.FNUMBER in('SF-040','SF-048') then entry.FActualLocAmt  else 0 end) as otherIncome,
SUM(case when recdetail.FNUMBER in('SF-041') then entry.FActualLocAmt  else 0 end) as absorbInvest,
SUM(case when recdetail.FNUMBER in('SF-042') then entry.FActualLocAmt  else 0 end) as lNewLoan,
SUM(case when recdetail.FNUMBER in('SF-043') then entry.FActualLocAmt  else 0 end) as interIncome,
SUM(case when recdetail.FNUMBER in('SF-044', 'SF-045') then entry.FActualLocAmt  else 0 end) as groupConta,
SUM(case when recdetail.FNUMBER in('SF-046') then entry.FActualLocAmt  else 0 end) as investDivid,
SUM(case when recdetail.FNUMBER in('SF-047') then entry.FActualLocAmt  else 0 end) as assetsCZ,
SUM(case when recdetail.FNUMBER in('SF-001','SF-002') then entry.FActualLocAmt  else 0 end) as projExpend,
SUM(case when recdetail.FNUMBER in('SF-001','SF-002') and settle.FNUMBER in ('01','02','03','06','07','08','31') then entry.FActualLocAmt  else 0 end) as pCashPay,
SUM(case when recdetail.FNUMBER in('SF-001','SF-002') and settle.FNUMBER not in ('01','02','03','06','07','08','31') then entry.FActualLocAmt  else 0 end) as pNCashExpend,
SUM(case when recdetail.FNUMBER in('SF-004','SF-005','SF-006') then entry.FActualLocAmt  else 0 end) as disPay,
SUM(case when recdetail.FNUMBER in('SF-004','SF-005','SF-006') and settle.FNUMBER in ('01','02','03','06','07','08','31') then entry.FActualLocAmt  else 0 end) as dCashPay,
SUM(case when recdetail.FNUMBER in('SF-004','SF-005','SF-006') and settle.FNUMBER not in ('01','02','03','06','07','08','31') then entry.FActualLocAmt  else 0 end) as dNCashExpend,
SUM(case when recdetail.FNUMBER in('SF-007','SF-008','SF-009') then entry.FActualLocAmt  else 0 end) as fiBillExpend,
SUM(case when recdetail.FNUMBER in('SF-007') then entry.FActualLocAmt  else 0 end) as fAcceptAmout,
SUM(case when recdetail.FNUMBER in('SF-008','SF-009') then entry.FActualLocAmt  else 0 end) as fInvoicingExpend,
SUM(case when recdetail.FNUMBER in('SF-003','SF-010') then entry.FActualLocAmt  else 0 end) as dPeriodCost,
SUM(case when recdetail.FNUMBER in('SF-049','SF-050','SF-011') then entry.FActualLocAmt  else 0 end) as dReverseExpend,
SUM(case when recdetail.FNUMBER in('SF-012') then entry.FActualLocAmt  else 0 end) as sWage,
SUM(case when recdetail.FNUMBER in('SF-013') then entry.FActualLocAmt  else 0 end) as sFive,
SUM(case when recdetail.FNUMBER in('SF-014') then entry.FActualLocAmt  else 0 end) as sOther,
SUM(case when recdetail.FNUMBER in('SF-015') then entry.FActualLocAmt  else 0 end) as taxExpend,
SUM(case when recdetail.FNUMBER in('SF-016') then entry.FActualLocAmt  else 0 end) as fineExpend,
SUM(case when recdetail.FNUMBER in('SF-017') then entry.FActualLocAmt  else 0 end) as depositExpend,
SUM(case when recdetail.FNUMBER in('SF-018') then entry.FActualLocAmt  else 0 end) as donateExpend,
SUM(case when recdetail.FNUMBER in('SF-028','SF-029','SF-030') then entry.FActualLocAmt  else 0 end) as otherExpend,
SUM(case when recdetail.FNUMBER in('SF-019') then entry.FActualLocAmt  else 0 end) as repayLoan,
SUM(case when recdetail.FNUMBER in('SF-020') then entry.FActualLocAmt  else 0 end) as pfLoanInter,
SUM(case when recdetail.FNUMBER in('SF-021') then entry.FActualLocAmt  else 0 end) as pfFinanceFee,
SUM(case when recdetail.FNUMBER in('SF-022') then entry.FActualLocAmt  else 0 end) as dividedPayout,
SUM(case when recdetail.FNUMBER in('SF-023', 'SF-024','SF-025') then entry.FActualLocAmt  else 0 end) as groupContacts,
SUM(case when recdetail.FNUMBER in('SF-026') then entry.FActualLocAmt  else 0 end) as outInvest,
SUM(case when recdetail.FNUMBER in('SF-027') then entry.FActualLocAmt  else 0 end) as buyAssets
FROM T_CAS_ReceivingBill as payment
left join T_CAS_ReceivingBillEntry as entry
on payment.fid = entry.FReceivingBillID
INNER JOIN T_ORG_Company AS company
ON payment.FCompanyID = COMPANY.FID
left join T_BD_SettlementType as settle
on payment.fsettlementtypeID = settle.FID
left join T_CAS_AssItemsForCashRec payAssItem
on payAssItem.fentryparentid = entry.fid
left join T_BD_GeneralAsstActType as general
on payAssItem.ffromid = general.fid
left join T_CAS_FeeType feetype
on payment.ffeetypeid = feetype.fid
left join CT_CAS_RecDetail recdetail
on feetype.FID = recdetail.CFFEETYPEID
WHERE 1 = 1
group by company.fname_l2, general.fnumber, general.fname_l2

Java視圖視窗在如下目錄的ControllerBean.java檔案中重寫query方法添加一下代碼進行查詢

    	if (null == params) {
		    throw new EASBizException(new NumericExceptionSubItem("0003","請先設定過濾條件.."));
		}
		String prmtcompany=null;
		if (null!=params.getObject("prmtcompany")) {
		    CompanyOrgUnitInfo object = (CompanyOrgUnitInfo)params.getObject("prmtcompany");
		    prmtcompany=object.toString();
		}
		String prmtperiod=null;
	    if (null!=params.getObject("prmtperiod")) {
	    	prmtperiod = params.getObject("prmtperiod").toString();
	    }
	    String customproject=null;

	    if (null!=params.getObject("customproject")) {
	    	customproject = params.getObject("customproject").toString();
	    }
	    StringBuffer sql = new StringBuffer();
	    SqlParams sp = new SqlParams();

	    sql.append("SELECT company.fname_l2 as company, general.fnumber as contractNumber, general.fname_l2 as contractName,\n\r");
	    sql.append("SUM(case when recdetail.FNUMBER in('SF-032','SF-031') then entry.FActualLocAmt  else 0 end) as projIncome, \n\r");
	    sql.append("SUM(case when recdetail.FNUMBER in('SF-032','SF-031') and settle.FNUMBER in ('01','02','03','06','07','08','31')  then entry.FActualLocAmt  else 0 end)  as pCashBack,\n\r");
	    sql.append("SUM(case when recdetail.FNUMBER in('SF-032','SF-031') and settle.FNUMBER not in('01','02','03','06','07','08','31') then entry.FActualLocAmt  else 0 end) as pNCashBack,\n\r");
	    sql.append("SUM(case when recdetail.FNUMBER in('SF-033') then entry.FActualLocAmt  else 0 end) as saleIncome,\n\r");
	    sql.append("SUM(case when recdetail.FNUMBER in('SF-033') and settle.FNUMBER in ('01','02','03','06','07','08','31') then entry.FActualLocAmt  else 0 end) as sCashBack,\n\r");
	    sql.append("SUM(case when recdetail.FNUMBER in('SF-033') and settle.FNUMBER not in ('01','02','03','06','07','08','31') then entry.FActualLocAmt  else 0 end) as sNCashBack,\n\r");
	    sql.append("SUM(case when recdetail.FNUMBER in('SF-034') then entry.FActualLocAmt  else 0 end) as disIncome,\n\r");
	    sql.append("SUM(case when recdetail.FNUMBER in('SF-034') and settle.FNUMBER in ('01','02','03','06','07','08','31') then entry.FActualLocAmt  else 0 end) as dCashBack,\n\r");
	    sql.append("SUM(case when recdetail.FNUMBER in('SF-034') and settle.FNUMBER not in ('01','02','03','06','07','08','31') then entry.FActualLocAmt  else 0 end) as dNCashBack,\n\r");
	    sql.append("SUM(case when recdetail.FNUMBER in('SF-035', 'SF-036') then entry.FActualLocAmt  else 0 end) as billCashIncome,\n\r");
	    sql.append("SUM(case when recdetail.FNUMBER in('SF-037', 'SF-038') then entry.FActualLocAmt  else 0 end) as deposit,\n\r");
	    sql.append("SUM(case when recdetail.FNUMBER in('SF-039') then entry.FActualLocAmt  else 0 end) as fiSubIncome,\n\r");
	    sql.append("SUM(case when recdetail.FNUMBER in('SF-040','SF-048') then entry.FActualLocAmt  else 0 end) as otherIncome, \n\r");
	    sql.append("SUM(case when recdetail.FNUMBER in('SF-041') then entry.FActualLocAmt  else 0 end) as absorbInvest, \n\r");
	    sql.append("SUM(case when recdetail.FNUMBER in('SF-042') then entry.FActualLocAmt  else 0 end) as lNewLoan, \n\r");
	    sql.append("SUM(case when recdetail.FNUMBER in('SF-043') then entry.FActualLocAmt  else 0 end) as interIncome,\n\r");
	    sql.append("SUM(case when recdetail.FNUMBER in('SF-044', 'SF-045') then entry.FActualLocAmt  else 0 end) as groupConta, \n\r");
	    sql.append("SUM(case when recdetail.FNUMBER in('SF-046') then entry.FActualLocAmt  else 0 end) as investDivid,\n\r");
	    sql.append("SUM(case when recdetail.FNUMBER in('SF-047') then entry.FActualLocAmt  else 0 end) as assetsCZ, \n\r");
	    sql.append("SUM(case when recdetail.FNUMBER in('SF-001','SF-002') then entry.FActualLocAmt  else 0 end) as projExpend,\n\r");
	    sql.append("SUM(case when recdetail.FNUMBER in('SF-001','SF-002') and settle.FNUMBER in ('01','02','03','06','07','08','31') then entry.FActualLocAmt  else 0 end) as pCashPay,\n\r");
	    sql.append("SUM(case when recdetail.FNUMBER in('SF-001','SF-002') and settle.FNUMBER not in ('01','02','03','06','07','08','31') then entry.FActualLocAmt  else 0 end) as pNCashExpend,  \n\r");
	    sql.append("SUM(case when recdetail.FNUMBER in('SF-004','SF-005','SF-006') then entry.FActualLocAmt  else 0 end) as disPay,\n\r");
	    sql.append("SUM(case when recdetail.FNUMBER in('SF-004','SF-005','SF-006') and settle.FNUMBER in ('01','02','03','06','07','08','31') then entry.FActualLocAmt  else 0 end) as dCashPay,\n\r");
	    sql.append("SUM(case when recdetail.FNUMBER in('SF-004','SF-005','SF-006') and settle.FNUMBER not in ('01','02','03','06','07','08','31') then entry.FActualLocAmt  else 0 end) as dNCashExpend,\n\r");
	    sql.append("SUM(case when recdetail.FNUMBER in('SF-007','SF-008','SF-009') then entry.FActualLocAmt  else 0 end) as fiBillExpend, \n\r");
	    sql.append("SUM(case when recdetail.FNUMBER in('SF-007') then entry.FActualLocAmt  else 0 end) as fAcceptAmout,\n\r");
	    sql.append("SUM(case when recdetail.FNUMBER in('SF-008','SF-009') then entry.FActualLocAmt  else 0 end) as fInvoicingExpend,  \n\r");
	    sql.append("SUM(case when recdetail.FNUMBER in('SF-003','SF-010') then entry.FActualLocAmt  else 0 end) as dPeriodCost,     \n\r");
	    sql.append("SUM(case when recdetail.FNUMBER in('SF-049','SF-050','SF-011') then entry.FActualLocAmt  else 0 end) as dReverseExpend,   \n\r");
	    sql.append("SUM(case when recdetail.FNUMBER in('SF-012') then entry.FActualLocAmt  else 0 end) as sWage,     \n\r");
	    sql.append("SUM(case when recdetail.FNUMBER in('SF-013') then entry.FActualLocAmt  else 0 end) as sFive,   \n\r");
	    sql.append("SUM(case when recdetail.FNUMBER in('SF-014') then entry.FActualLocAmt  else 0 end) as sOther,    \n\r");
	    sql.append("SUM(case when recdetail.FNUMBER in('SF-015') then entry.FActualLocAmt  else 0 end) as taxExpend,    \n\r");
	    sql.append("SUM(case when recdetail.FNUMBER in('SF-016') then entry.FActualLocAmt  else 0 end) as fineExpend,   \n\r");
	    sql.append("SUM(case when recdetail.FNUMBER in('SF-017') then entry.FActualLocAmt  else 0 end) as depositExpend,\n\r");
	    sql.append("SUM(case when recdetail.FNUMBER in('SF-018') then entry.FActualLocAmt  else 0 end) as donateExpend, \n\r");
	    sql.append("SUM(case when recdetail.FNUMBER in('SF-028','SF-029','SF-030') then entry.FActualLocAmt  else 0 end) as otherExpend,     \n\r");
	    sql.append("SUM(case when recdetail.FNUMBER in('SF-019') then entry.FActualLocAmt  else 0 end) as repayLoan,   \n\r");
	    sql.append("SUM(case when recdetail.FNUMBER in('SF-020') then entry.FActualLocAmt  else 0 end) as pfLoanInter,     \n\r");
	    sql.append("SUM(case when recdetail.FNUMBER in('SF-021') then entry.FActualLocAmt  else 0 end) as pfFinanceFee,     \n\r");
	    sql.append("SUM(case when recdetail.FNUMBER in('SF-022') then entry.FActualLocAmt  else 0 end) as dividedPayout,     \n\r");
	    sql.append("SUM(case when recdetail.FNUMBER in('SF-023', 'SF-024','SF-025') then entry.FActualLocAmt  else 0 end) as groupContacts,     \n\r");
	    sql.append("SUM(case when recdetail.FNUMBER in('SF-026') then entry.FActualLocAmt  else 0 end) as outInvest,     \n\r");
	    sql.append("SUM(case when recdetail.FNUMBER in('SF-027') then entry.FActualLocAmt  else 0 end) as buyAssets     \n\r");
	    sql.append("FROM T_CAS_PaymentBill as payment \n\r");
	    sql.append("left join T_CAS_PaymentBillEntry as entry \n\r");
	    sql.append("on payment.fid = entry.FPaymentBillID \n\r");
	    sql.append("INNER JOIN T_ORG_Company AS company\n\r");
	    sql.append("ON payment.FCompanyID = COMPANY.FID\n\r");
	    sql.append("left join T_BD_SettlementType as settle \n\r");
	    sql.append("on payment.fsettlementtypeID = settle.FID \n\r");
	    sql.append("left join T_CAS_AssItemsForCashPay payAssItem\n\r");
	    sql.append("on payAssItem.fentryparentid = entry.fid\n\r");
	    sql.append("left join T_BD_GeneralAsstActType as general  \n\r");
	    sql.append("on payAssItem.ffromid = general.fid \n\r");
	    sql.append("left join T_CAS_FeeType feetype \n\r");
	    sql.append("on payment.ffeetypeid = feetype.fid \n\r");
	    sql.append("left join CT_CAS_RecDetail recdetail \n\r");
	    sql.append("on feetype.FID = recdetail.CFFEETYPEID \n\r");
	    sql.append("WHERE 1 = 1 \n\r");


	    if (null != prmtcompany) {
			sql.append("and company.fname_l2=? \r\n");
			sp.addString(prmtcompany);
		}
	    if (null != prmtperiod) {
	    	String syear = prmtperiod.substring(0,4);
	    	int year = Integer.valueOf(syear).intValue();
	    	String smonth = prmtperiod.substring(5, prmtperiod.indexOf("期"));
	    	int month = Integer.valueOf(smonth).intValue();
	    	// 最后一天
	    	Calendar calLast = Calendar.getInstance();
	    	calLast.set(Calendar.YEAR, year);
	    	calLast.set(Calendar.MONTH, month);
	    	int lastDay = calLast.getMinimum(Calendar.DATE);
	    	calLast.set(Calendar.DAY_OF_MONTH, lastDay - 1);
	    	SimpleDateFormat sdf = new SimpleDateFormat("yyyy-MM-dd HH:mm:ss");
	    	String lastDate = sdf.format(calLast.getTime());
	    	// 第一天
	    	Calendar calFirst = Calendar.getInstance();
	    	calFirst.set(Calendar.DAY_OF_MONTH, calFirst.getActualMinimum(Calendar.DAY_OF_MONTH));
	    	String firstDate = sdf.format(calFirst.getTime());
			sql.append("and payment.fpaydate between to_date(?)  and to_date(?) \r\n");
			sp.addString(firstDate);
	    	sp.addString(lastDate);
		}

	    if (null != customproject) {
			sql.append("and general.fname_l2=? \r\n");
			sp.addString(customproject);
		}
	    sql.append("group by company.fname_l2, general.fnumber, general.fname_l2 \r\n");
	    System.out.println(sql);
	    IRowSet rs = DbUtil.executeQuery(ctx, sql.toString(), sp.getParams());

		if(rs.size()>0) {
			params.setObject("rows", rs);
		}

	    // 收款單
		StringBuffer sqlRec = new StringBuffer();
	    SqlParams spRec = new SqlParams();
	    sqlRec.append("SELECT company.fname_l2 as company, general.fnumber as contractNumber, general.fname_l2 as contractName,\r\n");
	    sqlRec.append("SUM(case when recdetail.FNUMBER in('SF-032','SF-031') then entry.FActualLocAmt  else 0 end) as projIncome, \r\n");
	    sqlRec.append("SUM(case when recdetail.FNUMBER in('SF-032','SF-031') and settle.FNUMBER in ('01','02','03','06','07','08','31')  then entry.FActualLocAmt  else 0 end)  as pCashBack,\r\n");
	    sqlRec.append("SUM(case when recdetail.FNUMBER in('SF-032','SF-031') and settle.FNUMBER not in('01','02','03','06','07','08','31') then entry.FActualLocAmt  else 0 end) as pNCashBack,\r\n");
	    sqlRec.append("SUM(case when recdetail.FNUMBER in('SF-033') then entry.FActualLocAmt  else 0 end) as saleIncome,\r\n");
	    sqlRec.append("SUM(case when recdetail.FNUMBER in('SF-033') and settle.FNUMBER in ('01','02','03','06','07','08','31') then entry.FActualLocAmt  else 0 end) as sCashBack,\r\n");
	    sqlRec.append("SUM(case when recdetail.FNUMBER in('SF-033') and settle.FNUMBER not in ('01','02','03','06','07','08','31') then entry.FActualLocAmt  else 0 end) as sNCashBack,\r\n");
	    sqlRec.append("SUM(case when recdetail.FNUMBER in('SF-034') then entry.FActualLocAmt  else 0 end) as disIncome,\r\n");
	    sqlRec.append("SUM(case when recdetail.FNUMBER in('SF-034') and settle.FNUMBER in ('01','02','03','06','07','08','31') then entry.FActualLocAmt  else 0 end) as dCashBack,\r\n");
	    sqlRec.append("SUM(case when recdetail.FNUMBER in('SF-034') and settle.FNUMBER not in ('01','02','03','06','07','08','31') then entry.FActualLocAmt  else 0 end) as dNCashBack,\r\n");
	    sqlRec.append("SUM(case when recdetail.FNUMBER in('SF-035', 'SF-036') then entry.FActualLocAmt  else 0 end) as billCashIncome,\r\n");
	    sqlRec.append("SUM(case when recdetail.FNUMBER in('SF-037', 'SF-038') then entry.FActualLocAmt  else 0 end) as deposit,\r\n");
	    sqlRec.append("SUM(case when recdetail.FNUMBER in('SF-039') then entry.FActualLocAmt  else 0 end) as fiSubIncome,\r\n");
	    sqlRec.append("SUM(case when recdetail.FNUMBER in('SF-040','SF-048') then entry.FActualLocAmt  else 0 end) as otherIncome, \r\n");
	    sqlRec.append("SUM(case when recdetail.FNUMBER in('SF-041') then entry.FActualLocAmt  else 0 end) as absorbInvest, \r\n");
	    sqlRec.append("SUM(case when recdetail.FNUMBER in('SF-042') then entry.FActualLocAmt  else 0 end) as lNewLoan, \r\n");
	    sqlRec.append("SUM(case when recdetail.FNUMBER in('SF-043') then entry.FActualLocAmt  else 0 end) as interIncome,\r\n");
	    sqlRec.append("SUM(case when recdetail.FNUMBER in('SF-044', 'SF-045') then entry.FActualLocAmt  else 0 end) as groupConta, \r\n");
	    sqlRec.append("SUM(case when recdetail.FNUMBER in('SF-046') then entry.FActualLocAmt  else 0 end) as investDivid,\r\n");
	    sqlRec.append("SUM(case when recdetail.FNUMBER in('SF-047') then entry.FActualLocAmt  else 0 end) as assetsCZ, \r\n");
	    sqlRec.append("SUM(case when recdetail.FNUMBER in('SF-001','SF-002') then entry.FActualLocAmt  else 0 end) as projExpend,\r\n");
	    sqlRec.append("SUM(case when recdetail.FNUMBER in('SF-001','SF-002') and settle.FNUMBER in ('01','02','03','06','07','08','31') then entry.FActualLocAmt  else 0 end) as pCashPay,\r\n");
	    sqlRec.append("SUM(case when recdetail.FNUMBER in('SF-001','SF-002') and settle.FNUMBER not in ('01','02','03','06','07','08','31') then entry.FActualLocAmt  else 0 end) as pNCashExpend,  \r\n");
	    sqlRec.append("SUM(case when recdetail.FNUMBER in('SF-004','SF-005','SF-006') then entry.FActualLocAmt  else 0 end) as disPay,\r\n");
	    sqlRec.append("SUM(case when recdetail.FNUMBER in('SF-004','SF-005','SF-006') and settle.FNUMBER in ('01','02','03','06','07','08','31') then entry.FActualLocAmt  else 0 end) as dCashPay,\r\n");
	    sqlRec.append("SUM(case when recdetail.FNUMBER in('SF-004','SF-005','SF-006') and settle.FNUMBER not in ('01','02','03','06','07','08','31') then entry.FActualLocAmt  else 0 end) as dNCashExpend,\r\n");
	    sqlRec.append("SUM(case when recdetail.FNUMBER in('SF-007','SF-008','SF-009') then entry.FActualLocAmt  else 0 end) as fiBillExpend, \r\n");
	    sqlRec.append("SUM(case when recdetail.FNUMBER in('SF-007') then entry.FActualLocAmt  else 0 end) as fAcceptAmout,\r\n");
	    sqlRec.append("SUM(case when recdetail.FNUMBER in('SF-008','SF-009') then entry.FActualLocAmt  else 0 end) as fInvoicingExpend,  \r\n");
	    sqlRec.append("SUM(case when recdetail.FNUMBER in('SF-003','SF-010') then entry.FActualLocAmt  else 0 end) as dPeriodCost,     \r\n");
	    sqlRec.append("SUM(case when recdetail.FNUMBER in('SF-049','SF-050','SF-011') then entry.FActualLocAmt  else 0 end) as dReverseExpend,   \r\n");
	    sqlRec.append("SUM(case when recdetail.FNUMBER in('SF-012') then entry.FActualLocAmt  else 0 end) as sWage,     \r\n");
	    sqlRec.append("SUM(case when recdetail.FNUMBER in('SF-013') then entry.FActualLocAmt  else 0 end) as sFive,   \r\n");
	    sqlRec.append("SUM(case when recdetail.FNUMBER in('SF-014') then entry.FActualLocAmt  else 0 end) as sOther,    \r\n");
	    sqlRec.append("SUM(case when recdetail.FNUMBER in('SF-015') then entry.FActualLocAmt  else 0 end) as taxExpend,    \r\n");
	    sqlRec.append("SUM(case when recdetail.FNUMBER in('SF-016') then entry.FActualLocAmt  else 0 end) as fineExpend,   \r\n");
	    sqlRec.append("SUM(case when recdetail.FNUMBER in('SF-017') then entry.FActualLocAmt  else 0 end) as depositExpend,\r\n");
	    sqlRec.append("SUM(case when recdetail.FNUMBER in('SF-018') then entry.FActualLocAmt  else 0 end) as donateExpend, \r\n");
	    sqlRec.append("SUM(case when recdetail.FNUMBER in('SF-028','SF-029','SF-030') then entry.FActualLocAmt  else 0 end) as otherExpend,     \r\n");
	    sqlRec.append("SUM(case when recdetail.FNUMBER in('SF-019') then entry.FActualLocAmt  else 0 end) as repayLoan,   \r\n");
	    sqlRec.append("SUM(case when recdetail.FNUMBER in('SF-020') then entry.FActualLocAmt  else 0 end) as pfLoanInter,     \r\n");
	    sqlRec.append("SUM(case when recdetail.FNUMBER in('SF-021') then entry.FActualLocAmt  else 0 end) as pfFinanceFee,     \r\n");
	    sqlRec.append("SUM(case when recdetail.FNUMBER in('SF-022') then entry.FActualLocAmt  else 0 end) as dividedPayout,     \r\n");
	    sqlRec.append("SUM(case when recdetail.FNUMBER in('SF-023', 'SF-024','SF-025') then entry.FActualLocAmt  else 0 end) as groupContacts,     \r\n");
	    sqlRec.append("SUM(case when recdetail.FNUMBER in('SF-026') then entry.FActualLocAmt  else 0 end) as outInvest,     \r\n");
	    sqlRec.append("SUM(case when recdetail.FNUMBER in('SF-027') then entry.FActualLocAmt  else 0 end) as buyAssets     \r\n");
	    sqlRec.append("FROM T_CAS_ReceivingBill as payment \n\r");
	    sqlRec.append("left join T_CAS_ReceivingBillEntry as entry  \n\r");
	    sqlRec.append("on payment.fid = entry.FReceivingBillID  \n\r");
	    sqlRec.append("INNER JOIN T_ORG_Company AS company\n\r");
	    sqlRec.append("ON payment.FCompanyID = COMPANY.FID\n\r");
	    sqlRec.append("left join T_BD_SettlementType as settle \n\r");
	    sqlRec.append("on payment.fsettlementtypeID = settle.FID \n\r");
	    sqlRec.append("left join T_CAS_AssItemsForCashRec payAssItem\n\r");
	    sqlRec.append("on payAssItem.fentryparentid = entry.fid\n\r");
	    sqlRec.append("left join T_BD_GeneralAsstActType as general  \n\r");
	    sqlRec.append("on payAssItem.ffromid = general.fid \n\r");
	    sqlRec.append("left join T_CAS_FeeType feetype \n\r");
	    sqlRec.append("on payment.ffeetypeid = feetype.fid \n\r");
	    sqlRec.append("left join CT_CAS_RecDetail recdetail \n\r");
	    sqlRec.append("on feetype.FID = recdetail.CFFEETYPEID \n\r");
	    sqlRec.append("WHERE 1 = 1 \n\r");
	    if (null != prmtcompany) {
	    	sqlRec.append("and company.fname_l2=? \r\n");
			spRec.addString(prmtcompany);
		}
	    if (null != prmtperiod) {
	    	String syear = prmtperiod.substring(0,4);
	    	int year = Integer.valueOf(syear).intValue();
	    	String smonth = prmtperiod.substring(5, prmtperiod.indexOf("期"));
	    	int month = Integer.valueOf(smonth).intValue();
	    	// 最后一天
	    	Calendar calLast = Calendar.getInstance();
	    	calLast.set(Calendar.YEAR, year);
	    	calLast.set(Calendar.MONTH, month);
	    	int lastDay = calLast.getMinimum(Calendar.DATE);
	    	calLast.set(Calendar.DAY_OF_MONTH, lastDay - 1);
	    	SimpleDateFormat sdf = new SimpleDateFormat("yyyy-MM-dd HH:mm:ss");
	    	String lastDate = sdf.format(calLast.getTime());
	    	// 第一天
	    	Calendar calFirst = Calendar.getInstance();
	    	calFirst.set(Calendar.DAY_OF_MONTH, calFirst.getActualMinimum(Calendar.DAY_OF_MONTH));
	    	String firstDate = sdf.format(calFirst.getTime());
	    	sqlRec.append("and payment.frecdate between to_date(?)  and to_date(?) \r\n");
	    	spRec.addString(firstDate);
	    	spRec.addString(lastDate);
		}

	    if (null != customproject) {
			sqlRec.append("and general.fname_l2=? \r\n");
			spRec.addString(customproject);
		}
	    sqlRec.append("group by company.fname_l2, general.fnumber, general.fname_l2 \r\n");
	    System.out.println(sqlRec);
	    IRowSet rsRec = DbUtil.executeQuery(ctx, sqlRec.toString(), spRec.getParams());
		if(rsRec.size()>0) {
			params.setObject("rowsRec", rsRec);
		}

		return params;

這樣就拿到了結果集

2.3 處理結果集并填充表格

Java視圖視窗在ReportUI.java中重寫query方法，參考代碼如下：

	@Override
	protected void query() {
		// 查詢條件設定到界面
		initParamToUI(params);
		kDTable1.checkParsed();
		kDTable1.setEditable(false);
		try {
			//設定游標處于等待狀態
			setCursorOfWair();
			//查詢資料,在Facade查詢方法里回傳值是RptParams，需要把查詢集保存到RptParams里，再通過界面取出即可
			RptParams rps = getRemoteInstance().query(params);
			if(rps!=null){
				 IRowSet conReport =  ((IRowSet)rps.getObject("rows")) ;
				 IRowSet conReportRec =  ((IRowSet)rps.getObject("rowsRec")) ;
				 if(conReport!=null){
					fillTable(conReport);
					kDTable1.getSelectManager().setSelectMode(KDTSelectManager.ROW_SELECT);
				 }
				 if(conReportRec!=null){
					fillTable(conReportRec);
					kDTable1.getSelectManager().setSelectMode(KDTSelectManager.ROW_SELECT);
				 }
			}

		} catch (Exception e) {
            e.printStackTrace();
            this.handUIException(e);
        } finally {
            this.setCursorOfDefault();
        }

	}

填充表格方法可參考：

	private int fillTable(IRowSet rs) throws SQLException {
		// TODO Auto-generated method stub
		DecimalFormat df = new DecimalFormat("0.00");
//		kDTable1.removeRows();
		while (rs.next()) {
			IRow row = kDTable1.addRow();
			row.getCell("company").setValue(rs.getString("company"));
			row.getCell("contractNumber").setValue(rs.getString("contractNumber"));
			row.getCell("contractName").setValue(rs.getString("contractName"));
			row.getCell("manageInflow").setValue(rs.getDouble("projIncome") + rs.getDouble("saleIncome")
										+ rs.getDouble("disIncome") + rs.getDouble("billCashIncome") + rs.getDouble("deposit")
										+ rs.getDouble("fiSubIncome") + rs.getDouble("otherIncome"));

			row.getCell("projIncome").setValue(rs.getDouble("projIncome"));
			row.getCell("pCashBack").setValue(rs.getDouble("pCashBack"));
			row.getCell("pNCashBack").setValue(rs.getDouble("pNCashBack"));
			row.getCell("saleIncome").setValue(rs.getDouble("saleIncome"));
			row.getCell("sCashBack").setValue(rs.getDouble("sCashBack"));
			row.getCell("disIncome").setValue(rs.getDouble("disIncome"));
			row.getCell("dCashBack").setValue(rs.getDouble("dCashBack"));
			row.getCell("dNCashBack").setValue(rs.getDouble("dCashBack"));
			row.getCell("billCashIncome").setValue(rs.getDouble("billCashIncome"));
			row.getCell("deposit").setValue(rs.getDouble("deposit"));
			row.getCell("fiSubIncome").setValue(rs.getDouble("fiSubIncome"));
			row.getCell("otherIncome").setValue(rs.getDouble("otherIncome"));
			row.getCell("raiseInflow").setValue(rs.getDouble("absorbInvest") + rs.getDouble("interIncome") + rs.getDouble("groupConta"));
			row.getCell("absorbInvest").setValue(rs.getDouble("absorbInvest"));
			row.getCell("loanIncome").setValue(rs.getDouble("lNewLoan")); //
			row.getCell("lNewLoan").setValue(rs.getDouble("lNewLoan"));
			row.getCell("lContiLoan").setValue(null); //續貸款無編碼
			row.getCell("interIncome").setValue(rs.getDouble("interIncome"));
			row.getCell("groupConta").setValue(rs.getDouble("groupConta"));
			row.getCell("investInflow").setValue(rs.getDouble("investDivid") + rs.getDouble("assetsCZ"));
			row.getCell("investDivid").setValue(rs.getDouble("investDivid"));
			row.getCell("assetsCZ").setValue(rs.getDouble("assetsCZ"));
			row.getCell("inflowSub").setValue(rs.getDouble("projIncome") + rs.getDouble("saleIncome")
									+ rs.getDouble("disIncome") + rs.getDouble("billCashIncome") + rs.getDouble("deposit")
									+ rs.getDouble("fiSubIncome") + rs.getDouble("otherIncome") + rs.getDouble("absorbInvest")
									+ rs.getDouble("interIncome") + rs.getDouble("groupConta") + rs.getDouble("investDivid")
									+ rs.getDouble("assetsCZ"));
			row.getCell("manageOutflow").setValue(rs.getDouble("pCashPay") + rs.getDouble("dCashPay") + rs.getDouble("fiBillExpend")
									+ rs.getDouble("dPeriodCost") + rs.getDouble("dReverseExpend") + rs.getDouble("sWage")
									+ rs.getDouble("sFive") + rs.getDouble("sOther") + rs.getDouble("taxExpend") + rs.getDouble("fineExpend")
									+ rs.getDouble("depositExpend") + rs.getDouble("donateExpend") + rs.getDouble("otherExpend"));
			row.getCell("projExpend").setValue(rs.getDouble("projExpend"));
			row.getCell("pCashPay").setValue(rs.getDouble("pCashPay"));
			row.getCell("pNCashExpend").setValue(rs.getDouble("pNCashExpend"));
			row.getCell("disPay").setValue(rs.getDouble("disPay"));
			row.getCell("dCashPay").setValue(rs.getDouble("dCashPay"));
			row.getCell("dNCashExpend").setValue(rs.getDouble("dNCashExpend"));
			row.getCell("fiBillExpend").setValue(rs.getDouble("fiBillExpend"));
			row.getCell("fAcceptAmout").setValue(rs.getDouble("fAcceptAmout"));
			row.getCell("fInvoicingExpend").setValue(rs.getDouble("fInvoicingExpend"));
			row.getCell("dailyExpend").setValue(rs.getDouble("dPeriodCost") + rs.getDouble("dReverseExpend"));
			row.getCell("dPeriodCost").setValue(rs.getDouble("dPeriodCost"));
			row.getCell("dReverseExpend").setValue(rs.getDouble("dReverseExpend"));
			row.getCell("staffSalary").setValue(rs.getDouble("sWage") + rs.getDouble("sFive") + rs.getDouble("sOther"));
			row.getCell("sWage").setValue(rs.getDouble("sWage"));
			row.getCell("sFive").setValue(rs.getDouble("sFive"));
			row.getCell("sOther").setValue(rs.getDouble("sOther"));
			row.getCell("taxExpend").setValue(rs.getDouble("taxExpend"));
			row.getCell("fineExpend").setValue(rs.getDouble("fineExpend"));
			row.getCell("depositExpend").setValue(rs.getDouble("depositExpend"));
			row.getCell("donateExpend").setValue(rs.getDouble("donateExpend"));
			row.getCell("otherExpend").setValue(rs.getDouble("otherExpend"));
			row.getCell("fundOutflow").setValue(rs.getDouble("repayLoan") + rs.getDouble("pfLoanInter") + rs.getDouble("pfFinanceFee")
										+ rs.getDouble("dividedPayout") + rs.getDouble("groupContacts"));
			row.getCell("repayLoan").setValue(rs.getDouble("repayLoan"));
			row.getCell("payFinance").setValue(rs.getDouble("pfLoanInter") + rs.getDouble("pfFinanceFee"));
			row.getCell("pfLoanInter").setValue(rs.getDouble("pfLoanInter"));
			row.getCell("pfFinanceFee").setValue(rs.getDouble("pfFinanceFee"));
			row.getCell("dividedPayout").setValue(rs.getDouble("dividedPayout"));
			row.getCell("groupContacts").setValue(rs.getDouble("groupContacts"));
			row.getCell("investOutflow").setValue(rs.getDouble("outInvest") + rs.getDouble("buyAssets"));
			row.getCell("outInvest").setValue(rs.getDouble("outInvest"));
			row.getCell("buyAssets").setValue(rs.getDouble("buyAssets"));
			row.getCell("outflowSub").setValue(rs.getDouble("pCashPay") + rs.getDouble("dCashPay") + rs.getDouble("fiBillExpend")
					+ rs.getDouble("dPeriodCost") + rs.getDouble("dReverseExpend") + rs.getDouble("sWage")
					+ rs.getDouble("sFive") + rs.getDouble("sOther") + rs.getDouble("taxExpend") + rs.getDouble("fineExpend")
					+ rs.getDouble("depositExpend") + rs.getDouble("donateExpend") + rs.getDouble("otherExpend") + rs.getDouble("repayLoan")
					+ rs.getDouble("pfLoanInter") + rs.getDouble("pfFinanceFee") + rs.getDouble("dividedPayout") + rs.getDouble("groupContacts")
					+ rs.getDouble("outInvest") + rs.getDouble("buyAssets"));

		}
		return kDTable1.getRowCount();

	}

2.4 FilterUI

篩選界面的Java檔案只需要重寫getCustomCondition，setCustomCondition，和verify方法即可
代碼參考如下

	@Override
	public RptParams getCustomCondition() {
		// TODO Auto-generated method stub
		RptParams param = new RptParams();

        // 放置本界面的引數
        RptConditionManager rcm = new RptConditionManager();
        // 財務組織
        if (null != this.prmtcompany.getValue()) {
        	rcm.setProperty("prmtcompany", this.prmtcompany.getValue());

        } else {
            rcm.setProperty("prmtcompany", null);
        }
        // 期間
        if (null != this.prmtperiod.getValue()) {
        	rcm.setProperty("prmtperiod", this.prmtperiod.getValue());
        } else {
        	rcm.setProperty("prmtperiod", null);
        }
        // 自定義核算專案
        if (null != this.customproject.getValue()) {
        	rcm.setProperty("customproject", this.customproject.getValue());
        } else {
        	rcm.setProperty("customproject", null);
        }

        Map map = rcm.toMap();
        param.putAll(map);
        return param;
	}
	@Override
	public void setCustomCondition(RptParams params) {
		// TODO Auto-generated method stub
		if (null != params.getObject("prmtcompany")) {
            prmtcompany.setValue(params.getObject("prmtcompany"));
	    } else {
	    	prmtcompany.setValue(null);
	    }

	    if (null != params.getObject("prmtperiod")) {
	    	prmtperiod.setValue(params.getObject("prmtperiod"));
	    } else {
	    	prmtperiod.setValue(null);

	    }

	    if (null != params.getObject("customproject")) {
	    	customproject.setValue(params.getObject("customproject"));
	    } else {
	    	customproject.setValue(null);
	    }
	}

	@Override
	public boolean verify() {
		// TODO Auto-generated method stub
		if(this.prmtcompany.getValue() == null) {
			MsgBox.showError("請選擇公司");
			SysUtil.abort();
		}
		if(this.prmtperiod.getValue() == null) {
			MsgBox.showError("請選擇期間");
			SysUtil.abort();
		}
		return super.verify();
	}

2.5 客戶化選單

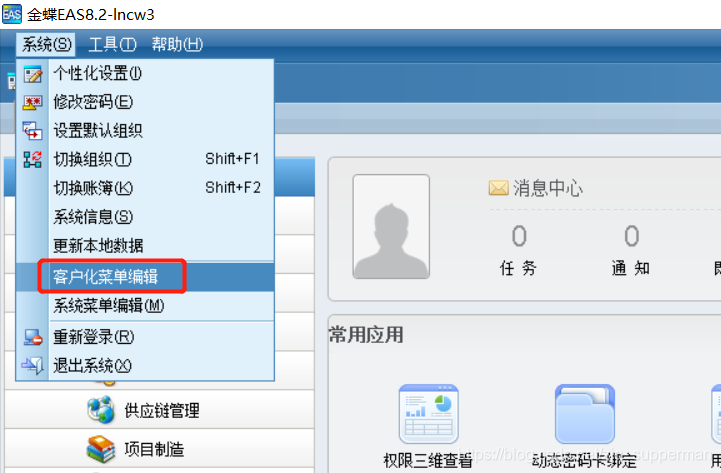

用administrator賬號登錄，選擇系統–>客戶化選單編輯
在這里插入圖片描述

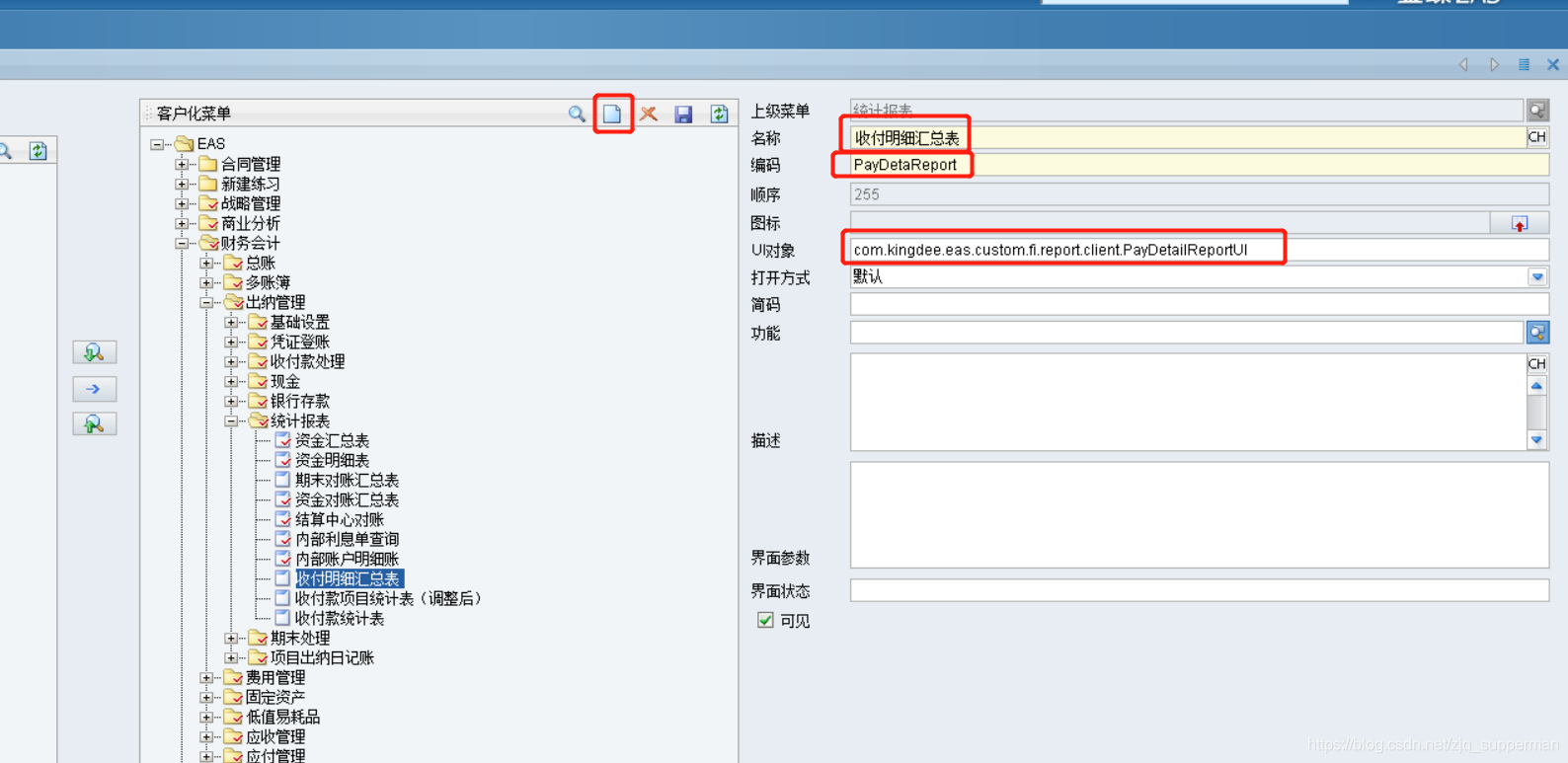

這里的UI物件選擇上述的ReportUI的完整檔案路徑，保存重啟即可
在這里插入圖片描述

3效果

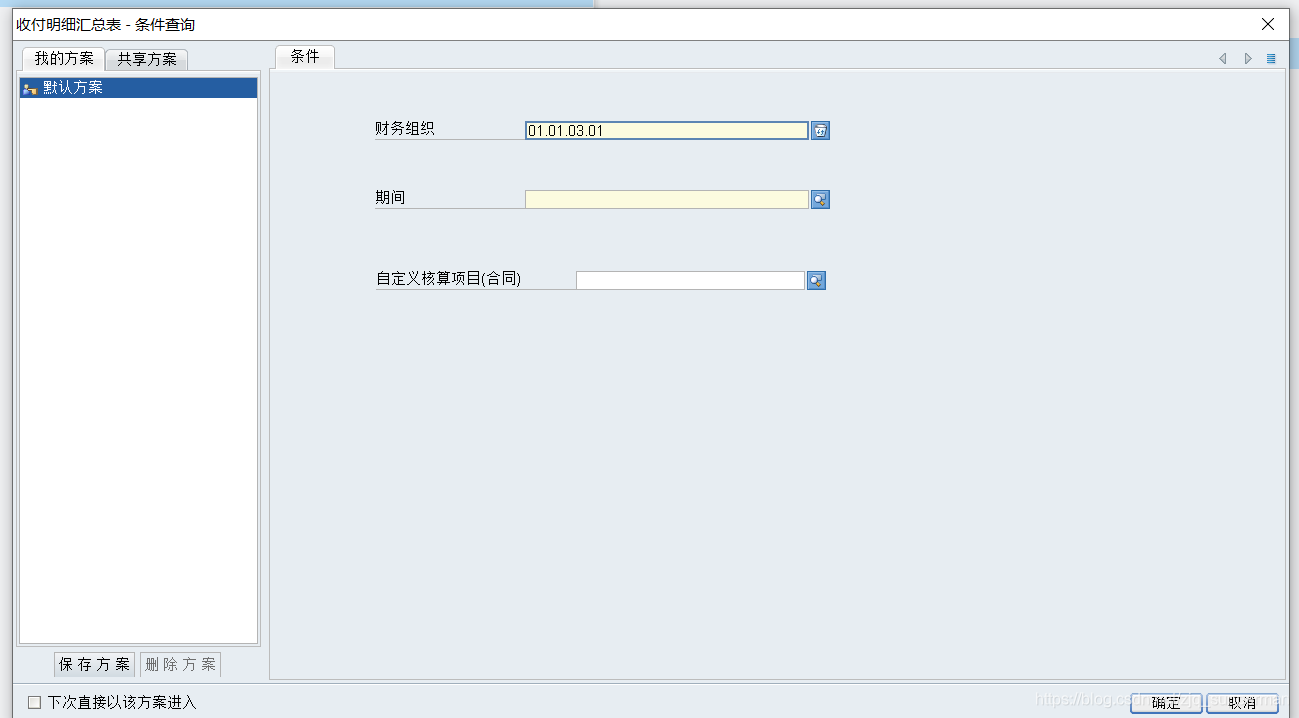

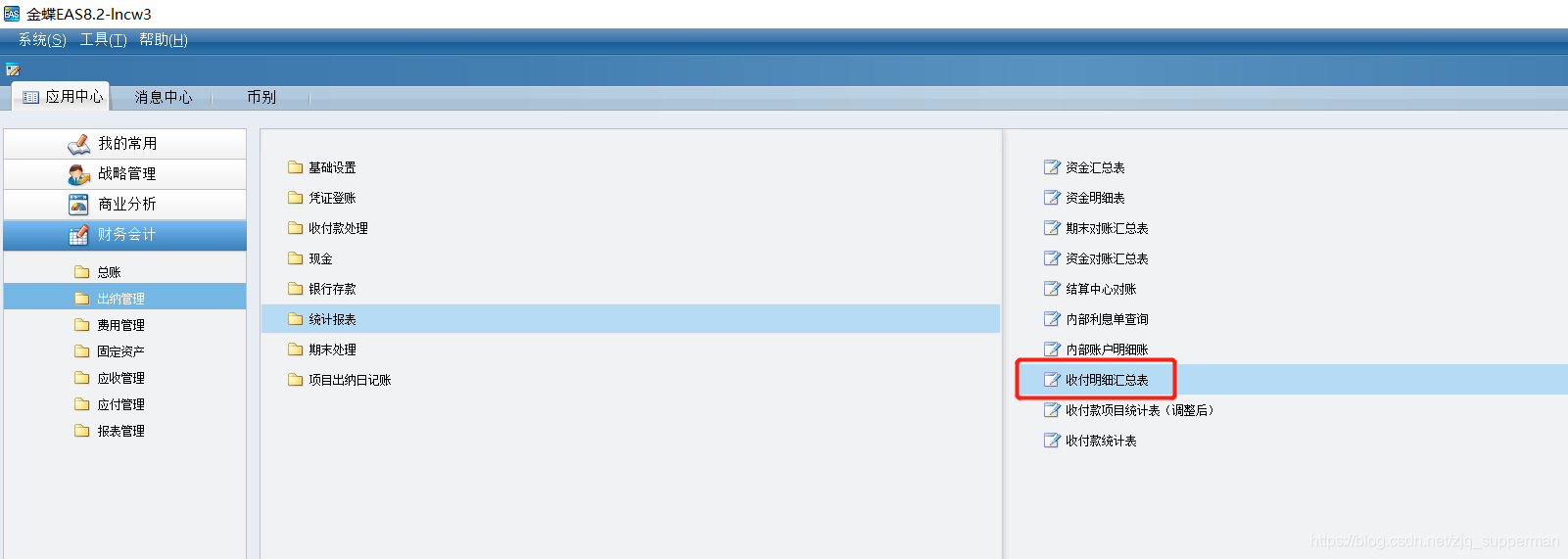

指定路徑下找到選單并雙擊打開在這里插入圖片描述

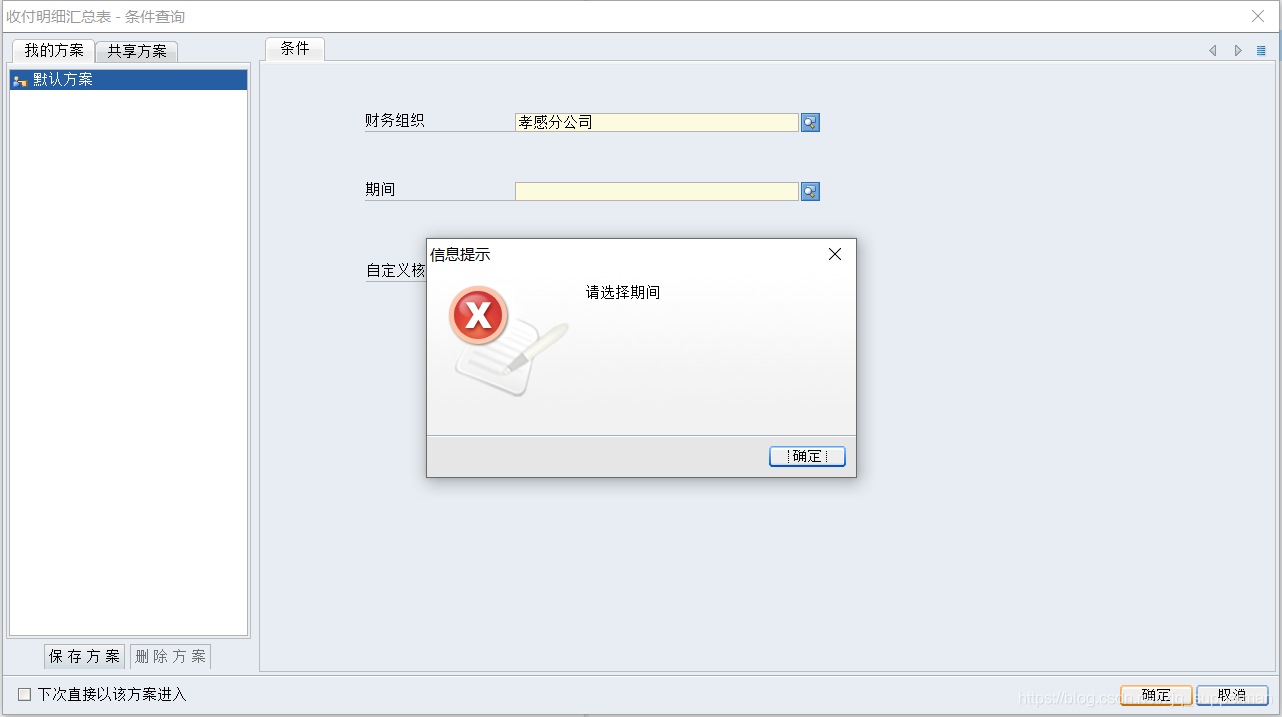

在這里插入圖片描述

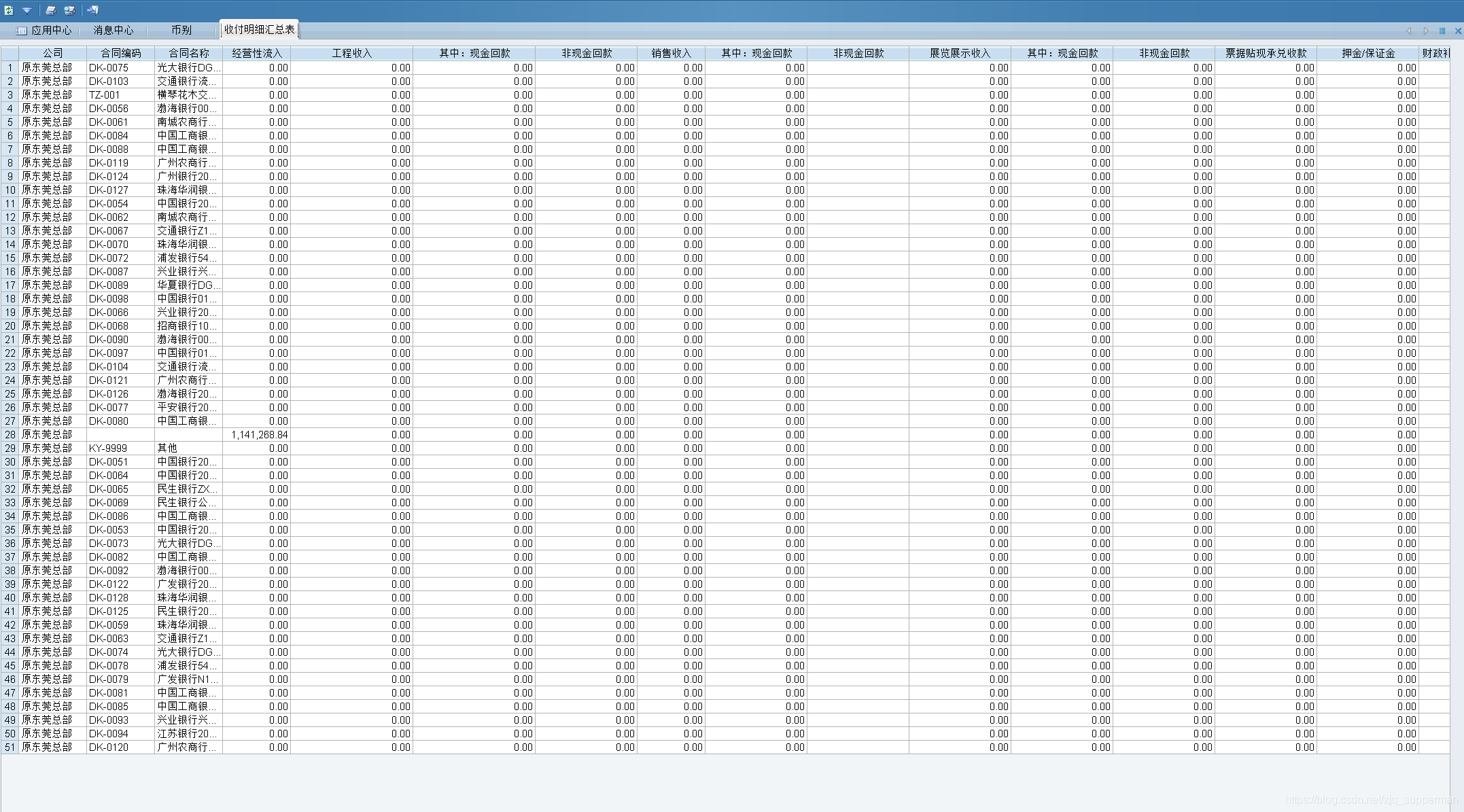

在這里插入圖片描述
在這里插入圖片描述

轉載請註明出處，本文鏈接：https://www.uj5u.com/qita/1563.html

標籤：其他

上一篇：達夢資料庫-備份還原 （聯機備份）

下一篇：Oracle Linux7.8 下離線 一鍵靜默安裝Oracle12c

標籤雲
其他(157675) Python(38076) JavaScript(25376) Java(17977) C(15215) 區塊鏈(8255) C＃(7972) AI(7469) 爪哇(7425) MySQL(7132) html(6777) 基礎類(6313) sql(6102) 熊猫(6058) PHP(5869) 数组(5741) R(5409) Linux(5327) 反应(5209) 腳本語言(PerlPython)(5129) 非技術區(4971) Android(4554) 数据框(4311) css(4259) 节点.js(4032) C語言(3288) json(3245) 列表(3129) 扑(3119) C++語言(3117) 安卓(2998) 打字稿(2995) VBA(2789) Java相關(2746) 疑難問題(2699) 细绳(2522) 單片機工控(2479) iOS(2429) ASP.NET(2402) MongoDB(2323) 麻木的(2285) 正则表达式(2254) 字典(2211) 循环(2198) 迅速(2185) 擅长(2169) 镖(2155) 功能(1967) .NET技术(1958) Web開發(1951) python-3.x(1918) HtmlCss(1915) 弹簧靴(1913) C++(1909) xml(1889) PostgreSQL(1872) .NETCore(1853) 谷歌表格(1846) Unity3D(1843) for循环(1842)

熱門瀏覽
  • 網閘典型架構簡述

    網閘架構一般分為兩種：三主機的三系統架構網閘和雙主機的2+1架構網閘。 三主機架構分別為內端機、外端機和仲裁機。三機無論從軟體和硬體上均各自獨立。首先從硬體上來看，三機都用各自獨立的主板、記憶體及存盤設備。從軟體上來看，三機有各自獨立的作業系統。這樣能達到完全的三機獨立。對于“2+1”系統，“2”分為 ......

    uj5u.com 2020-09-10 02:00:44 more
  • 如何從xshell上傳檔案到centos linux虛擬機里

    如何從xshell上傳檔案到centos linux虛擬機里及：虛擬機CentOs下執行 yum -y install lrzsz命令，出現錯誤：鏡像無法找到軟體包 前言 一、安裝lrzsz步驟 二、上傳檔案 三、遇到的問題及解決方案 總結 前言 提示：其實很簡單，往虛擬機上安裝一個上傳檔案的工具 ......

    uj5u.com 2020-09-10 02:00:47 more
  • 一、SQLMAP入門

    一、SQLMAP入門 1、判斷是否存在注入 sqlmap.py -u 網址/id=1 id=1不可缺少。當注入點后面的引數大于兩個時。需要加雙引號， sqlmap.py -u "網址/id=1&uid=1" 2、判斷文本中的請求是否存在注入 從文本中加載http請求，SQLMAP可以從一個文本檔案中 ......

    uj5u.com 2020-09-10 02:00:50 more
  • Metasploit 簡單使用教程

    metasploit 簡單使用教程 浩先生， 2020-08-28 16:18:25 分類專欄： kail 網路安全 linux 文章標簽： linux資訊安全 編輯 著作權 metasploit 使用教程 前言 一、Metasploit是什么？ 二、準備作業 三、具體步驟 前言 Msfconsole ......

    uj5u.com 2020-09-10 02:00:53 more
  • 游戲逆向之驅動層與用戶層通訊

    驅動層代碼： #pragma once #include <ntifs.h> #define add_code CTL_CODE(FILE_DEVICE_UNKNOWN,0x800,METHOD_BUFFERED,FILE_ANY_ACCESS) /* 更多游戲逆向視頻www.yxfzedu.com ......

    uj5u.com 2020-09-10 02:00:56 more
  • 北斗電力時鐘（北斗授時服務器）讓網路資料更精準

    北斗電力時鐘（北斗授時服務器）讓網路資料更精準 北斗電力時鐘（北斗授時服務器）讓網路資料更精準 京準電子科技官微——ahjzsz 近幾年，資訊技術的得了快速發展，互聯網在逐漸普及，其在人們生活和生產中都得到了廣泛應用，并且取得了不錯的應用效果。計算機網路資訊在電力系統中的應用，一方面使電力系統的運行 ......

    uj5u.com 2020-09-10 02:01:03 more
  • 【CTF】CTFHub 技能樹 彩蛋 writeup

    ?碎碎念 CTFHub：https://www.ctfhub.com/ 筆者入門CTF時時剛開始刷的是bugku的舊平臺，后來才有了CTFHub。 感覺不論是網頁UI設計，還是題目質量，賽事跟蹤，工具軟體都做得很不錯。 而且因為獨到的金幣制度的確讓人有一種想去刷題賺金幣的感覺。 個人還是非常喜歡這個 ......

    uj5u.com 2020-09-10 02:04:05 more
  • 02windows基礎操作

    我學到了一下幾點 Windows系統目錄結構與滲透的作用 常見Windows的服務詳解 Windows埠詳解 常用的Windows注冊表詳解 hacker DOS命令詳解（net user / type /md /rd/ dir /cd /net use copy、批處理 等） 利用dos命令制作 ......

    uj5u.com 2020-09-10 02:04:18 more
  • 03.Linux基礎操作

    我學到了以下幾點 01Linux系統介紹02系統安裝，密碼啊破解03Linux常用命令04LAMP 01LINUX windows： win03 8 12 16 19 配置不繁瑣 Linux：redhat,centos(紅帽社區版)，Ubuntu server,suse unix:金融機構，證券，銀 ......

    uj5u.com 2020-09-10 02:04:30 more
  • 05HTML

    01HTML介紹 02頭部標簽講解03基礎標簽講解04表單標簽講解 HTML前段語言 js1.了解代碼2.根據代碼 懂得挖掘漏洞 （POST注入/XSS漏洞上傳）3.黑帽seo 白帽seo 客戶網站被黑帽植入劫持代碼如何處理4.熟悉html表單 <html><head><title>TDK標題，描述 ......

    uj5u.com 2020-09-10 02:04:36 more
最新发布
  • 2023年最新微信小程式抓包教程

    01 開門見山 隔一個月發一篇文章，不過分。 首先回顧一下《微信系結手機號資料庫被脫庫事件》，我也是第一時間得知了這個訊息，然后跟蹤了整件事情的經過。下面是這起事件的相關截圖以及近日流出的一萬條資料樣本： 個人認為這件事也沒什么，還不如關注一下之前45億快遞資料查詢渠道疑似在近日復活的訊息。 訊息是 ......

    uj5u.com 2023-04-20 08:48:24 more
  • web3 產品介紹：metamask 錢包 使用最多的瀏覽器插件錢包

    Metamask錢包是一種基于區塊鏈技術的數字貨幣錢包，它允許用戶在安全、便捷的環境下管理自己的加密資產。Metamask錢包是以太坊生態系統中最流行的錢包之一，它具有易于使用、安全性高和功能強大等優點。 本文將詳細介紹Metamask錢包的功能和使用方法。 一、 Metamask錢包的功能 數字資 ......

    uj5u.com 2023-04-20 08:47:46 more
  • vulnhub_Earth

    前言 靶機地址->>>vulnhub_Earth 攻擊機ip：192.168.20.121 靶機ip：192.168.20.122 參考文章 https://www.cnblogs.com/Jing-X/archive/2022/04/03/16097695.html https://www.cnb ......

    uj5u.com 2023-04-20 07:46:20 more
  • 從4k到42k，軟體測驗工程師的漲薪史，給我看哭了

    清明節一過，盲猜大家已經無心上班，在數著日子準備過五一，但一想到銀行卡里的余額……瞬間心情就不美麗了。最近，2023年高校畢業生就業調查顯示，本科畢業月平均起薪為5825元。調查一出，便有很多同學表示自己又被平均了。看著這一資料，不免讓人想到前不久中國青年報的一項調查：近六成大學生認為畢業10年內會 ......

    uj5u.com 2023-04-20 07:44:00 more
  • 最新版本 Stable Diffusion 開源 AI 繪畫工具之中文自動提詞篇

    🎈 標簽生成器 由于輸入正向提示詞 prompt 和反向提示詞 negative prompt 都是使用英文，所以對學習母語的我們非常不友好 使用網址：https://tinygeeker.github.io/p/ai-prompt-generator 這個網址是為了讓大家在使用 AI 繪畫的時候 ......

    uj5u.com 2023-04-20 07:43:36 more
  • 漫談前端自動化測驗演進之路及測驗工具分析

    隨著前端技術的不斷發展和應用程式的日益復雜，前端自動化測驗也在不斷演進。隨著 Web 應用程式變得越來越復雜，自動化測驗的需求也越來越高。如今，自動化測驗已經成為 Web 應用程式開發程序中不可或缺的一部分，它們可以幫助開發人員更快地發現和修復錯誤，提高應用程式的性能和可靠性。 ......

    uj5u.com 2023-04-20 07:43:16 more
  • CANN開發實踐：4個DVPP記憶體問題的典型案例解讀

    摘要：由于DVPP媒體資料處理功能對存放輸入、輸出資料的記憶體有更高的要求（例如，記憶體首地址128位元組對齊），因此需呼叫專用的記憶體申請介面，那么本期就分享幾個關于DVPP記憶體問題的典型案例，并給出原因分析及解決方法。 本文分享自華為云社區《FAQ_DVPP記憶體問題案例》，作者：昇騰CANN。 DVPP ......

    uj5u.com 2023-04-20 07:43:03 more
  • msf學習

    msf學習 以kali自帶的msf為例 一、msf核心模塊與功能 msf模塊都放在/usr/share/metasploit-framework/modules目錄下 1、auxiliary 輔助模塊，輔助滲透（埠掃描、登錄密碼爆破、漏洞驗證等） 2、encoders 編碼器模塊，主要包含各種編碼 ......

    uj5u.com 2023-04-20 07:42:59 more
  • Halcon軟體安裝與界面簡介

    1. 下載Halcon17版本到到本地 2. 雙擊安裝包后 3. 步驟如下 1.2 Halcon軟體安裝 界面分為四大塊 1. Halcon的五個助手 1) 影像采集助手：與相機連接，設定相機引數，采集影像 2) 標定助手：九點標定或是其它的標定，生成標定檔案及內參外參，可以將像素單位轉換為長度單位 ......

    uj5u.com 2023-04-20 07:42:17 more
  • 在MacOS下使用Unity3D開發游戲

    第一次發博客，先發一下我的游戲開發環境吧。 去年2月份買了一臺MacBookPro2021 M1pro(以下簡稱mbp)，這一年來一直在用mbp開發游戲。我大致分享一下我的開發工具以及使用體驗。 1、Unity 官網鏈接： https://unity.cn/releases 我一般使用的Apple ......

    uj5u.com 2023-04-20 07:40:19 more

Copyright © 2010-2020 有解無憂
