Openshift中Pod的SpringBoot2健康檢查

2020-10-16 03:48:27 其他

Openshift中Pod的SpringBoot2應用程式健康檢查

1. 準備測驗的SpringBoot工程, 需要Java 8 JDK or greater and Maven 3.3.x or greater.

git clone https://github.com/megadotnet/Openshift-healthcheck-demo.git

假設您已經掌味訓本JAVA應用程式開發，Openshift容器平臺已經部署成功，我們的測驗工程依賴庫Spring Boot Actuator2, 有如新特性

    • 支持 Jersey RESTful Web 服務
    • 支持基于反應式理念的 WebFlux Web App
    • 新的端點映射
    • 簡化用戶自定義端點的創建
    • 增強端點的安全性

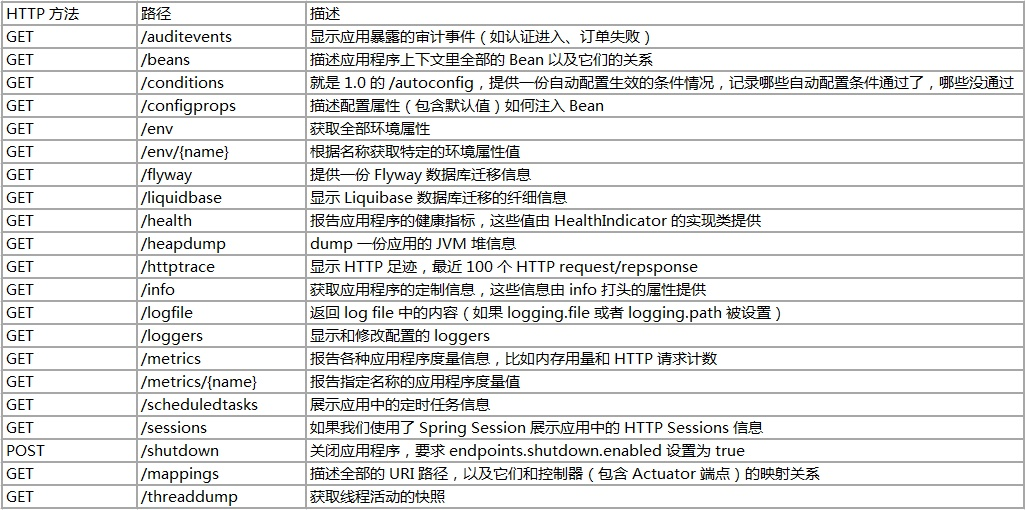

Actuator提供了13個介面，如下:

clipboard

在Spring Boot 2.x中為了安全起見，Actuator只開放了兩個端點/actuator/health和/actuator/info，可以在組態檔中設定開關，

部署編譯jar檔案到Openshift容器平臺

Openshift的部署程序簡述如下(這里采用是二進制部署方式)：

--> Found image dc046fe (16 months old) in image stream "openshift/s2i-java" under tag "latest" for "s2i-java:latest"

Java S2I builder 1.0

--------------------

Platform for building Java (fatjar) applications with maven or gradle

Tags: builder, maven-3, gradle-2.6, java, microservices, fatjar

* A source build using binary input will be created

* The resulting image will be pushed to image stream "health-demo:latest"

* A binary build was created, use 'start-build --from-dir' to trigger a new build

--> Creating resources with label app=health-demo ...

imagestream "health-demo" created

buildconfig "health-demo" created

--> Success

Uploading directory "oc-build" as binary input for the build ...

build "health-demo-1" started

--> Found image fb46616 (5 minutes old) in image stream "hshreport-stage/health-demo" under tag "latest" for "health-demo:latest"

Java S2I builder 1.0

--------------------

Platform for building Java (fatjar) applications with maven or gradle

Tags: builder, maven-3, gradle-2.6, java, microservices, fatjar

* This image will be deployed in deployment config "health-demo"

* Ports 7575/tcp, 8080/tcp will be load balanced by service "health-demo"

* Other containers can access this service through the hostname "health-demo"

--> Creating resources with label app=health-demo ...

deploymentconfig "health-demo" created

service "health-demo" created

--> Success

Run 'oc status' to view your app.

route "health-demo" exposed

以上程序最近暴露Router, 方便我們演示


演示程序：

第一回合

修改剛部署的deploymentConfig的yaml，增加readiness配置，如下：

---
readinessProbe:
   failureThreshold: 3
   httpGet:
     path: /actuator/health
     port: 8080
     scheme: HTTP
   initialDelaySeconds: 10
   periodSeconds: 10
   successThreshold: 1
   timeoutSeconds: 1

對于以幾個引數，我們說明下，大家需要理解

      • initialDelaySeconds：容器啟動后第一次執行探測是需要等待多少秒，
      • periodSeconds：執行探測的頻率，默認是10秒，最小1秒，
      • timeoutSeconds：探測超時時間，默認1秒，最小1秒，
      • successThreshold：探測失敗后，最少連續探測成功多少次才被認定為成功，默認是 1，對于 liveness 必須是 1，最小值是 1，
      • failureThreshold：探測成功后，最少連續探測失敗多少次才被認定為失敗，默認是 3，最小值是 1，

或是采用openshift cli命令列來配置readiness:

oc set probe dc/app-cli \

--readiness \

--get-url=http://:8080/notreal \

--initial-delay-seconds=5


$ oc get pod -w

#剛才修改 deploymentConfig，pod重新部署了

NAME READY                 STATUS   RESTARTS  AGE

health-demo-1-build 0/1 Completed    0        16m

health-demo-2-sqh4z 1/1 Running      0        11m

執行HTTP API 來STOP停止Tomcat，curl http://${value-name-app}-MY_PROJECT_NAME.LOCAL_OPENSHIFT_HOSTNAME/api/stop,   注意此處URL相部署的DNS環境有關系

程式中日志如下:

Stopping Tomcat context.

2020-01-11 22:17:21.004 INFO 1 --- [nio-8080-exec-9] o.apache.catalina.core.StandardWrapper : Waiting for [1] instance(s) to be deallocated for Servlet [dispatcherServlet]

2020-01-11 22:17:22.008 INFO 1 --- [nio-8080-exec-9] o.apache.catalina.core.StandardWrapper : Waiting for [1] instance(s) to be deallocated for Servlet [dispatcherServlet]

2020-01-11 22:17:23.012 INFO 1 --- [nio-8080-exec-9] o.apache.catalina.core.StandardWrapper : Waiting for [1] instance(s) to be deallocated for Servlet [dispatcherServlet]

2020-01-11 22:17:23.114 INFO 1 --- [nio-8080-exec-9] o.a.c.c.C.[Tomcat].[localhost].[/] : Destroying Spring FrameworkServlet 'dispatcherServlet'

#跟蹤pod的動態

$ oc get pod –w

NAME READY STATUS RESTARTS AGE

health-demo-1-build 0/1 Completed 0 16m

health-demo-2-sqh4z 1/1 Running 0 11m

health-demo-2-sqh4z 0/1 Running 0 13m

#我們查閱pod的詳細描述

$ oc describe pod/health-demo-2-sqh4z

Name: health-demo-2-sqh4z

Namespace: hshreport-stage

Security Policy: restricted

Node: openshift-lb-02.hsh.io/10.108.78.145

Start Time: Sat, 11 Jan 2020 22:08:59 +0800

Labels: app=health-demo

deployment=health-demo-2

deploymentconfig=health-demo

Annotations: kubernetes.io/created-by={"kind":"SerializedReference","apiVersion":"v1","reference":{"kind":"ReplicationController","namespace":"hshreport-stage","name":"health-demo-2","uid":"e6436263-347b-11ea-856c...

openshift.io/deployment-config.latest-version=2

openshift.io/deployment-config.name=health-demo

openshift.io/deployment.name=health-demo-2

openshift.io/generated-by=OpenShiftNewApp

openshift.io/scc=restricted

Status: Running

IP: 10.131.5.124

Controllers: ReplicationController/health-demo-2

Containers:

health-demo:

Container ID: docker://25cdf63f55d839610287b4e2a3cc67182377bfe5010990357f83329286c7e64f

Image: docker-registry.default.svc:5000/hshreport-stage/health-demo@sha256:292f09b7d9ca9bc12560febe3f4ba73e50b3c1a5701cbd55689186e844157fb6

Image ID: docker-pullable://docker-registry.default.svc:5000/hshreport-stage/health-demo@sha256:292f09b7d9ca9bc12560febe3f4ba73e50b3c1a5701cbd55689186e844157fb6

Ports: 7575/TCP, 8080/TCP

State: Running

Started: Sat, 11 Jan 2020 22:09:09 +0800

Ready: False

Restart Count: 0

Readiness: http-get http://:8080/actuator/health delay=10s timeout=1s period=10s #success=1 #failure=3

Environment:

APP_OPTIONS: -Xmx512m -Xss512k -Djava.net.preferIPv4Stack=true -Dfile.encoding=utf-8

DEPLOYER: liu.xxxxx (Administrator) (cicd-1.1.24)

REVISION:

SPRING_PROFILES_ACTIVE: stage

TZ: Asia/Shanghai

Mounts:

/var/run/secrets/kubernetes.io/serviceaccount from default-token-n4klp (ro)

Conditions:

Type Status

Initialized True

Ready False

PodScheduled True

Volumes:

default-token-n4klp:

Type: Secret (a volume populated by a Secret)

SecretName: default-token-n4klp

Optional: false

QoS Class: BestEffort

Node-Selectors: region=primary

Tolerations: <none>

Events:

FirstSeen LastSeen Count From SubObjectPath Type Reason Message

--------- -------- ----- ---- ------------- -------- ------ -------

16m 16m 1 default-scheduler Normal Scheduled Successfully assigned health-demo-2-sqh4z to openshift-lb-02.hsh.io

16m 16m 1 kubelet, openshift-lb-02.hsh.io spec.containers{health-demo} Normal Pulling pulling image "docker-registry.default.svc:5000/hshreport-stage/health-demo@sha256:292f09b7d9ca9bc12560febe3f4ba73e50b3c1a5701cbd55689186e844157fb6"

16m 16m 1 kubelet, openshift-lb-02.hsh.io spec.containers{health-demo} Normal Pulled Successfully pulled image "docker-registry.default.svc:5000/hshreport-stage/health-demo@sha256:292f09b7d9ca9bc12560febe3f4ba73e50b3c1a5701cbd55689186e844157fb6"

15m 15m 1 kubelet, openshift-lb-02.hsh.io spec.containers{health-demo} Normal Created Created container

15m 15m 1 kubelet, openshift-lb-02.hsh.io spec.containers{health-demo} Normal Started Started container

15m 15m 1 kubelet, openshift-lb-02.hsh.io spec.containers{health-demo} Warning Unhealthy Readiness probe failed: Get http://10.131.5.124:8080/actuator/health: dial tcp 10.131.5.124:8080: getsockopt: connection refused

7m 5m 16 kubelet, openshift-lb-02.hsh.io spec.containers{health-demo} Warning Unhealthy Readiness probe failed: HTTP probe failed with statuscode: 404

注意上面的WARN事件，我們發現POD沒有被重啟，因為我們只配置了readiness

第二回合

對之前部署后應用，增加health check， /actuator/health 是SpringBoot2.0的示例工程默認的健康檢查的端點

修改deploymentConfig，增加readiness與liveness

---
livenessProbe:
   failureThreshold: 3
   httpGet:
     path: /actuator/health
     port: 8080
     scheme: HTTP
   initialDelaySeconds: 60
   periodSeconds: 10
   successThreshold: 1
   timeoutSeconds: 1
name: health-demo
ports:
   -
     containerPort: 7575
     protocol: TCP
   -
     containerPort: 8080
     protocol: TCP
readinessProbe:
   failureThreshold: 3
   httpGet:
     path: /actuator/health
     port: 8080
     scheme: HTTP
   initialDelaySeconds: 10
   periodSeconds: 10
   successThreshold: 1
   timeoutSeconds: 1

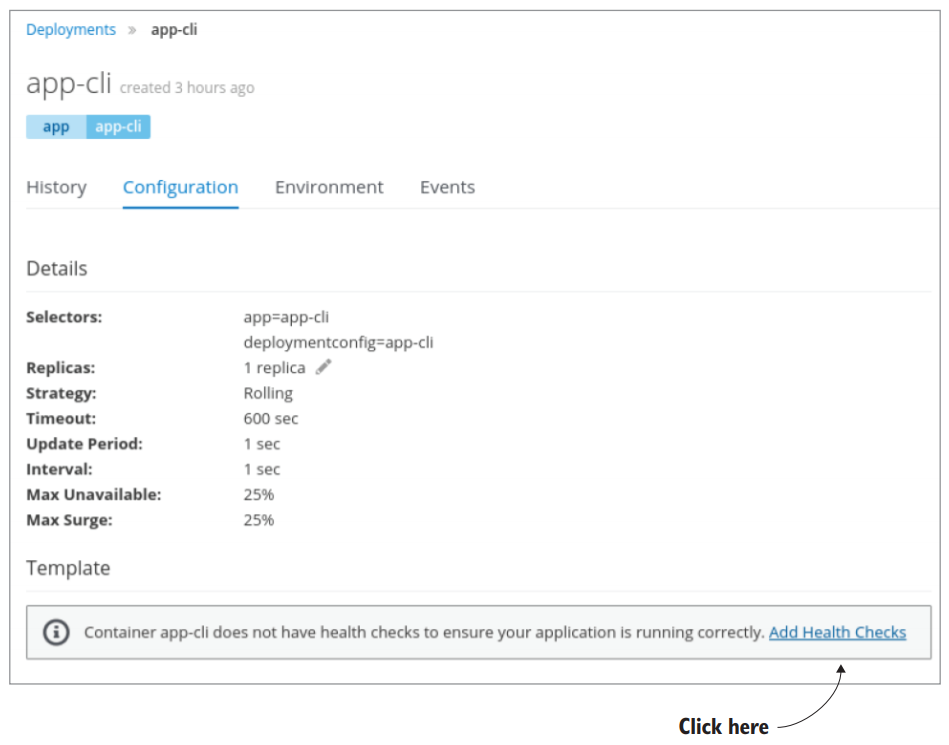

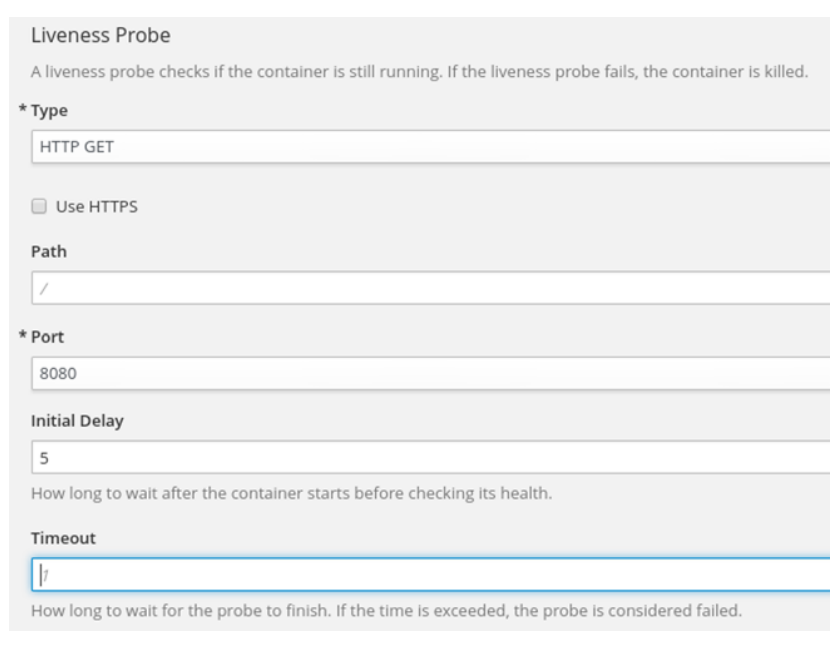

也可以通過Web 控制臺來修改，示例截圖如下：

clipboard

clipboard

我們看到 WEB UI的配置與yaml中引數是一樣的，

oc cli命令列方法 #Configure Liveness/Readiness probes on DCs

oc set probe dc cotd1 --liveness -- echo ok

oc set probe dc/cotd1 --readiness --get-url=http://:8080/index.php --initial-delay-seconds=2

TCP的示例

oc set probe dc/blog --readiness --liveness --open-tcp 8080

移動 probe

$ oc set probe dc/blog --readiness --liveness –remove

執行stop后，此時請求ROUTER已顯示，POD還在運行，瀏覽器回傳

Application is not available

通過URL執行后，STOP tomcat，pod中程式部分日志如下：

Stopping Tomcat context.

2020-01-11 22:17:21.004 INFO 1 --- [nio-8080-exec-9] o.apache.catalina.core.StandardWrapper : Waiting for [1] instance(s) to be deallocated for Servlet [dispatcherServlet]

2020-01-11 22:17:22.008 INFO 1 --- [nio-8080-exec-9] o.apache.catalina.core.StandardWrapper : Waiting for [1] instance(s) to be deallocated for Servlet [dispatcherServlet]

2020-01-11 22:17:23.012 INFO 1 --- [nio-8080-exec-9] o.apache.catalina.core.StandardWrapper : Waiting for [1] instance(s) to be deallocated for Servlet [dispatcherServlet]

2020-01-11 22:17:23.114 INFO 1 --- [nio-8080-exec-9] o.a.c.c.C.[Tomcat].[localhost].[/] : Destroying Spring FrameworkServlet 'dispatcherServlet'

過一會兒，我們監控pod動態

$ oc get pod -w

NAME READY STATUS RESTARTS AGE

health-demo-1-build 0/1 Completed 0 33m

health-demo-3-02v11 1/1 Running 0 5m

health-demo-3-02v11 0/1 Running 0 7m

health-demo-3-02v11 0/1 Running 1 7m

$ oc get pod

NAME READY STATUS RESTARTS AGE

health-demo-1-build 0/1 Completed 0 36m

health-demo-3-02v11 1/1 Running 1 8m


請求 curl http://${value-name-app}-MY_PROJECT_NAME.LOCAL_OPENSHIFT_HOSTNAME/api/greeting?name=s2i

后瀏覽器顯示：

{"content":"Hello, s2i!"} (the recovery took 41.783 seconds)

此時POD已經被重啟，應用程式的日志如下：

2020-01-11 22:35:13.597 INFO 1 --- [ main] s.b.a.e.w.s.WebMvcEndpointHandlerMapping : Mapped "{[/actuator],methods=[GET],produces=[application/vnd.spring-boot.actuator.v2+json || application/json]}" onto protected java.util.Map<java.lang.String, java.util.Map<java.lang.String, org.springframework.boot.actuate.endpoint.web.Link>> org.springframework.boot.actuate.endpoint.web.servlet.WebMvcEndpointHandlerMapping.links(javax.servlet.http.HttpServletRequest,javax.servlet.http.HttpServletResponse)

2020-01-11 22:35:13.750 INFO 1 --- [ main] o.s.j.e.a.AnnotationMBeanExporter : Registering beans for JMX exposure on startup

2020-01-11 22:35:13.873 INFO 1 --- [ main] o.s.b.w.embedded.tomcat.TomcatWebServer : Tomcat started on port(s): 8080 (http) with context path ''

2020-01-11 22:35:13.882 INFO 1 --- [ main] dev.snowdrop.example.ExampleApplication : Started ExampleApplication in 8.061 seconds (JVM running for 9.682)

2020-01-11 22:35:22.445 INFO 1 --- [nio-8080-exec-1] o.a.c.c.C.[Tomcat].[localhost].[/] : Initializing Spring FrameworkServlet 'dispatcherServlet'

2020-01-11 22:35:22.445 INFO 1 --- [nio-8080-exec-1] o.s.web.servlet.DispatcherServlet : FrameworkServlet 'dispatcherServlet': initialization started

2020-01-11 22:35:22.485 INFO 1 --- [nio-8080-exec-1] o.s.web.servlet.DispatcherServlet : FrameworkServlet 'dispatcherServlet': initialization completed in 39 ms

$ oc describe pod/health-demo-3-02v11

Name: health-demo-3-02v11

Namespace: hshreport-stage

Security Policy: restricted

Node: openshift-node-04.hsh.io/10.108.78.139

Start Time: Sat, 11 Jan 2020 22:32:12 +0800

Labels: app=health-demo

deployment=health-demo-3

deploymentconfig=health-demo

Annotations: kubernetes.io/created-by={"kind":"SerializedReference","apiVersion":"v1","reference":{"kind":"ReplicationController","namespace":"hshreport-stage","name":"health-demo-3","uid":"23ad2f21-347f-11ea-856c...

openshift.io/deployment-config.latest-version=3

openshift.io/deployment-config.name=health-demo

openshift.io/deployment.name=health-demo-3

openshift.io/generated-by=OpenShiftNewApp

openshift.io/scc=restricted

Status: Running

IP: 10.129.5.178

Controllers: ReplicationController/health-demo-3

Containers:

health-demo:

Container ID: docker://3e5a6b081022c914d8e118dce829294570e54f441b84394a2b13f6eebb4f5c74

Image: docker-registry.default.svc:5000/hshreport-stage/health-demo@sha256:292f09b7d9ca9bc12560febe3f4ba73e50b3c1a5701cbd55689186e844157fb6

Image ID: docker-pullable://docker-registry.default.svc:5000/hshreport-stage/health-demo@sha256:292f09b7d9ca9bc12560febe3f4ba73e50b3c1a5701cbd55689186e844157fb6

Ports: 7575/TCP, 8080/TCP

State: Running

Started: Sat, 11 Jan 2020 22:35:04 +0800

Last State: Terminated

Reason: Error

Exit Code: 143

Started: Sat, 11 Jan 2020 22:32:15 +0800

Finished: Sat, 11 Jan 2020 22:35:03 +0800

Ready: True

Restart Count: 1

Liveness: http-get http://:8080/actuator/health delay=60s timeout=1s period=10s #success=1 #failure=3

Readiness: http-get http://:8080/actuator/health delay=10s timeout=1s period=10s #success=1 #failure=3

Environment:

APP_OPTIONS: -Xmx512m -Xss512k -Djava.net.preferIPv4Stack=true -Dfile.encoding=utf-8

DEPLOYER: liu.xxxxxx(Administrator) (cicd-1.1.24)

REVISION:

SPRING_PROFILES_ACTIVE: stage

TZ: Asia/Shanghai

Mounts:

/var/run/secrets/kubernetes.io/serviceaccount from default-token-n4klp (ro)

Conditions:

Type Status

Initialized True

Ready True

PodScheduled True

Volumes:

default-token-n4klp:

Type: Secret (a volume populated by a Secret)

SecretName: default-token-n4klp

Optional: false

QoS Class: BestEffort

Node-Selectors: region=primary

Tolerations: <none>

Events:

FirstSeen LastSeen Count From SubObjectPath Type Reason Message

--------- -------- ----- ---- ------------- -------- ------ -------

17m 17m 1 default-scheduler Normal Scheduled Successfully assigned health-demo-3-02v11 to openshift-node-04.hsh.io

15m 14m 3 kubelet, openshift-node-04.hsh.io spec.containers{health-demo} Warning Unhealthy Liveness probe failed: HTTP probe failed with statuscode: 404

15m 14m 3 kubelet, openshift-node-04.hsh.io spec.containers{health-demo} Warning Unhealthy Readiness probe failed: HTTP probe failed with statuscode: 404

17m 14m 2 kubelet, openshift-node-04.hsh.io spec.containers{health-demo} Normal Pulling pulling image "docker-registry.default.svc:5000/hshreport-stage/health-demo@sha256:292f09b7d9ca9bc12560febe3f4ba73e50b3c1a5701cbd55689186e844157fb6"

17m 14m 2 kubelet, openshift-node-04.hsh.io spec.containers{health-demo} Normal Pulled Successfully pulled image "docker-registry.default.svc:5000/hshreport-stage/health-demo@sha256:292f09b7d9ca9bc12560febe3f4ba73e50b3c1a5701cbd55689186e844157fb6"

17m 14m 2 kubelet, openshift-node-04.hsh.io spec.containers{health-demo} Normal Created Created container

14m 14m 1 kubelet, openshift-node-04.hsh.io spec.containers{health-demo} Normal Killing Killing container with id docker://health-demo:pod "health-demo-3-02v11_hshreport-stage(27e5a1da-347f-11ea-856c-0050568d3d78)" container "health-demo" is unhealthy, it will be killed and re-created.

17m 14m 2 kubelet, openshift-node-04.hsh.io spec.containers{health-demo} Normal Started Started container

第二次我們執行 STOP的HTTP  API

$ oc get pod –w

NAME READY STATUS RESTARTS AGE

health-demo-1-build 0/1 Completed 0 47m

health-demo-3-02v11 1/1 Running 1 19m

health-demo-3-02v11 0/1 Running 1 19m

health-demo-3-02v11 0/1 Running 2 20m

health-demo-3-02v11 1/1 Running 2 20m

$ oc get pod

NAME READY STATUS RESTARTS AGE

health-demo-1-build 0/1 Completed 0 49m

health-demo-3-02v11 1/1 Running 2 21

HTTP 請求回傳結果:

{"content":"Hello, s2i!"} (the recovery took 51.984 seconds)

$ oc describe pod/health-demo-3-02v11

Name: health-demo-3-02v11

Namespace: hshreport-stage

Security Policy: restricted

Node: openshift-node-04.hsh.io/10.108.78.139

Start Time: Sat, 11 Jan 2020 22:32:12 +0800

Labels: app=health-demo

deployment=health-demo-3

deploymentconfig=health-demo

Annotations: kubernetes.io/created-by={"kind":"SerializedReference","apiVersion":"v1","reference":{"kind":"ReplicationController","namespace":"hshreport-stage","name":"health-demo-3","uid":"23ad2f21-347f-11ea-856c...

openshift.io/deployment-config.latest-version=3

openshift.io/deployment-config.name=health-demo

openshift.io/deployment.name=health-demo-3

openshift.io/generated-by=OpenShiftNewApp

openshift.io/scc=restricted

Status: Running

IP: 10.129.5.178

Controllers: ReplicationController/health-demo-3

Containers:

health-demo:

Container ID: docker://e12d1975aa26b07643ae1666ae6bce7ceab4f25fb4c6c947427ba526ad6fdf7b

Image: docker-registry.default.svc:5000/hshreport-stage/health-demo@sha256:292f09b7d9ca9bc12560febe3f4ba73e50b3c1a5701cbd55689186e844157fb6

Image ID: docker-pullable://docker-registry.default.svc:5000/hshreport-stage/health-demo@sha256:292f09b7d9ca9bc12560febe3f4ba73e50b3c1a5701cbd55689186e844157fb6

Ports: 7575/TCP, 8080/TCP

State: Running

Started: Sat, 11 Jan 2020 22:47:14 +0800

Last State: Terminated

Reason: Error

Exit Code: 143

Started: Sat, 11 Jan 2020 22:35:04 +0800

Finished: Sat, 11 Jan 2020 22:47:02 +0800

Ready: True

Restart Count: 2

Liveness: http-get http://:8080/actuator/health delay=60s timeout=1s period=10s #success=1 #failure=3

Readiness: http-get http://:8080/actuator/health delay=10s timeout=1s period=10s #success=1 #failure=3

Environment:

APP_OPTIONS: -Xmx512m -Xss512k -Djava.net.preferIPv4Stack=true -Dfile.encoding=utf-8

DEPLOYER: liu.xxxxx (Administrator) (cicd-1.1.24)

REVISION:

SPRING_PROFILES_ACTIVE: stage

TZ: Asia/Shanghai

Mounts:

/var/run/secrets/kubernetes.io/serviceaccount from default-token-n4klp (ro)

Conditions:

Type Status

Initialized True

Ready True

PodScheduled True

Volumes:

default-token-n4klp:

Type: Secret (a volume populated by a Secret)

SecretName: default-token-n4klp

Optional: false

QoS Class: BestEffort

Node-Selectors: region=primary

Tolerations: <none>

Events:

FirstSeen LastSeen Count From SubObjectPath Type Reason Message

--------- -------- ----- ---- ------------- -------- ------ -------

21m 21m 1 default-scheduler Normal Scheduled Successfully assigned health-demo-3-02v11 to openshift-node-04.hsh.io

21m 6m 3 kubelet, openshift-node-04.hsh.io spec.containers{health-demo} Normal Pulling pulling image "docker-registry.default.svc:5000/hshreport-stage/health-demo@sha256:292f09b7d9ca9bc12560febe3f4ba73e50b3c1a5701cbd55689186e844157fb6"

19m 6m 6 kubelet, openshift-node-04.hsh.io spec.containers{health-demo} Warning Unhealthy Liveness probe failed: HTTP probe failed with statuscode: 404

19m 6m 6 kubelet, openshift-node-04.hsh.io spec.containers{health-demo} Warning Unhealthy Readiness probe failed: HTTP probe failed with statuscode: 404

18m 6m 2 kubelet, openshift-node-04.hsh.io spec.containers{health-demo} Normal Killing Killing container with id docker://health-demo:pod "health-demo-3-02v11_hshreport-stage(27e5a1da-347f-11ea-856c-0050568d3d78)" container "health-demo" is unhealthy, it will be killed and re-created.

21m 6m 3 kubelet, openshift-node-04.hsh.io spec.containers{health-demo} Normal Pulled Successfully pulled image "docker-registry.default.svc:5000/hshreport-stage/health-demo@sha256:292f09b7d9ca9bc12560febe3f4ba73e50b3c1a5701cbd55689186e844157fb6"

21m 6m 3 kubelet, openshift-node-04.hsh.io spec.containers{health-demo} Normal Created Created container

21m 6m 3 kubelet, openshift-node-04.hsh.io spec.containers{health-demo} Normal Started Started container

#看下事件

$ oc get ev

LASTSEEN FIRSTSEEN COUNT NAME KIND SUBOBJECT TYPE REASON SOURCE MESSAGE

29m 41m 6 health-demo-3-02v11 Pod spec.containers{health-demo} Warning Unhealthy kubelet, openshift-node-04.hsh.io Liveness probe failed: HTTP probe failed with statuscode: 404

29m 41m 6 health-demo-3-02v11 Pod spec.containers{health-demo} Warning Unhealthy kubelet, openshift-node-04.hsh.io Readiness probe failed: HTTP probe failed with statuscode: 404

29m 41m 2 health-demo-3-02v11 Pod spec.containers{health-demo} Normal Killing kubelet, openshift-node-04.hsh.io Killing container with id docker://health-demo:pod "health-demo-3-02v11_hshreport-stage(27e5a1da-347f-11ea-856c-0050568d3d78)" container "health-demo" is unhealthy, it will be killed and re-created.

19m 19m 1 health-demo-3-02v11 Pod spec.containers{health-demo} Normal Killing kubelet, openshift-node-04.hsh.io Killing container with id docker://health-demo:Need to kill Pod

44m 44m 1 health-demo-3-deploy Pod Normal Scheduled default-scheduler Successfully assigned health-demo-3-deploy to openshift-lb-02.hsh.io

44m 44m 1 health-demo-3-deploy Pod spec.containers{deployment} Normal Pulled kubelet, openshift-lb-02.hsh.io Container image "openshift/origin-deployer:v3.6.1" already present on machine

44m 44m 1 health-demo-3-deploy Pod spec.containers{deployment} Normal Created kubelet, openshift-lb-02.hsh.io Created container

44m 44m 1 health-demo-3-deploy Pod spec.containers{deployment} Normal Started kubelet, openshift-lb-02.hsh.io Started container

44m 44m 1 health-demo-3 ReplicationController Normal SuccessfulCreate replication-controller Created pod: health-demo-3-02v11

19m 19m 1 health-demo-3 ReplicationController Normal SuccessfulDelete

發現，POD的名稱health-demo-3-02v11沒有變，演示到這兒結束

小結

Liveness probes可做三種檢查

HTTP(S) checks—Checks a given URL endpoint served by the container, and evaluates the HTTP response code.

Container execution check—A command, typically a script, that’s run at intervals to verify that the container is behaving as expected. A non-zero exit code from the command results in a liveness check failure.

TCP socket checks—Checks that a TCP connection can be established on a specific TCP port in the application pod.


Readiness和liveness的區別

     readiness 就是意思是否可以訪問，liveness就是是否存活，如果一個readiness 為fail 的后果是把這個pod 的所有service 的endpoint里面的改pod ip 刪掉，意思就這個pod對應的所有service都不會把請求轉到這pod來了，但是如果liveness 檢查結果是fail就會直接kill container，當然如果你的restart policy 是always 會重啟pod，

Readiness探針和Liveness探針都是用來檢測容器行程狀態的，區別在于前者關注的是是否把行程的服務地址加入Service的負載均衡串列；而后者則決定是否去重啟這個行程來排除故障，它們在行程的整個生命周期中都存在而且同時作業，職責分離，

Kubelet 可以選擇是否執行在容器上運行的兩種探針執行和做出反應：

  • livenessProbe：指示容器是否正在運行，如果存活探測失敗，則 kubelet 會殺死容器，并且容器將受到其 重啟策略 的影響，如果容器不提供存活探針，則默認狀態為 Success，
  • readinessProbe：指示容器是否準備好服務請求，如果就緒探測失敗，端點控制器將從與 Pod 匹配的所有 Service 的端點中洗掉該 Pod 的 IP 地址，初始延遲之前的就緒狀態默認為 Failure，如果容器不提供就緒探針，則默認狀態為 Success，


最佳實踐

      一般來講，Readiness的執行間隔要比Liveness設定的較長一點比較好，因為當后端行程負載高的時候，我們可以暫時從轉發串列里面摘除，但是Liveness決定的是行程是否重啟，其實這個時候行程不一定需要重啟，所以Liveness的檢測周期可以稍微長一點，另外失敗的容忍數量也可以多一點，具體根據實際情況判斷吧，


今天先到這兒，希望對云原生，技術領導力， 企業管理，系統架構設計與評估，團隊管理, 專案管理, 產品管管，團隊建設 有參考作用 , 您可能感興趣的文章:
Openshift部署流程介紹
Openshift V3系列各組件版本
領匯入怎樣帶領好團隊
構建創業公司突擊小團隊
國際化環境下系統架構演化
微服務架構設計
視頻直播平臺的系統架構演化
微服務與Docker介紹
Docker與CI持續集成/CD
互聯網電商購物車架構演變案例
互聯網業務場景下訊息佇列架構
互聯網高效研發團隊管理演進之一
訊息系統架構設計演進
互聯網電商搜索架構演化之一
企業資訊化與軟體工程的迷思
企業專案化管理介紹
軟體專案成功之要素
人際溝通風格介紹一
精益IT組織與分享式領導
學習型組織與企業
企業創新文化與等級觀念
組織目標與個人目標
初創公司人才招聘與管理
人才公司環境與企業文化
企業文化、團隊文化與知識共享
高效能的團隊建設
專案管理溝通計劃
構建高效的研發與自動化運維
某大型電商云平臺實踐
互聯網資料庫架構設計思路
IT基礎架構規劃方案一(網路系統規劃)
餐飲行業解決方案之客戶分析流程
餐飲行業解決方案之采購戰略制定與實施流程
餐飲行業解決方案之業務設計流程
供應鏈需求調研CheckList
企業應用之性能實時度量系統演變

如有想了解更多軟體設計與架構, 系統IT,企業資訊化, 團隊管理 資訊，請關注我的微信訂閱號：

MegadotnetMicroMsg_thumb1_thumb1_thu[2]

作者：Petter Liu
出處：http://www.cnblogs.com/wintersun/
本文著作權歸作者和博客園共有，歡迎轉載，但未經作者同意必須保留此段宣告，且在文章頁面明顯位置給出原文連接，否則保留追究法律責任的權利， 該文章也同時發布在我的獨立博客中-Petter Liu Blog，

轉載請註明出處，本文鏈接：https://www.uj5u.com/qita/173532.html

標籤：其他

上一篇：32oled 示波器

下一篇：卷積神經網路 part2

標籤雲
其他(157675) Python(38076) JavaScript(25376) Java(17977) C(15215) 區塊鏈(8255) C＃(7972) AI(7469) 爪哇(7425) MySQL(7132) html(6777) 基礎類(6313) sql(6102) 熊猫(6058) PHP(5869) 数组(5741) R(5409) Linux(5327) 反应(5209) 腳本語言(PerlPython)(5129) 非技術區(4971) Android(4554) 数据框(4311) css(4259) 节点.js(4032) C語言(3288) json(3245) 列表(3129) 扑(3119) C++語言(3117) 安卓(2998) 打字稿(2995) VBA(2789) Java相關(2746) 疑難問題(2699) 细绳(2522) 單片機工控(2479) iOS(2429) ASP.NET(2402) MongoDB(2323) 麻木的(2285) 正则表达式(2254) 字典(2211) 循环(2198) 迅速(2185) 擅长(2169) 镖(2155) 功能(1967) .NET技术(1958) Web開發(1951) python-3.x(1918) HtmlCss(1915) 弹簧靴(1913) C++(1909) xml(1889) PostgreSQL(1872) .NETCore(1853) 谷歌表格(1846) Unity3D(1843) for循环(1842)

熱門瀏覽
  • 網閘典型架構簡述

    網閘架構一般分為兩種：三主機的三系統架構網閘和雙主機的2+1架構網閘。 三主機架構分別為內端機、外端機和仲裁機。三機無論從軟體和硬體上均各自獨立。首先從硬體上來看，三機都用各自獨立的主板、記憶體及存盤設備。從軟體上來看，三機有各自獨立的作業系統。這樣能達到完全的三機獨立。對于“2+1”系統，“2”分為 ......

    uj5u.com 2020-09-10 02:00:44 more
  • 如何從xshell上傳檔案到centos linux虛擬機里

    如何從xshell上傳檔案到centos linux虛擬機里及：虛擬機CentOs下執行 yum -y install lrzsz命令，出現錯誤：鏡像無法找到軟體包 前言 一、安裝lrzsz步驟 二、上傳檔案 三、遇到的問題及解決方案 總結 前言 提示：其實很簡單，往虛擬機上安裝一個上傳檔案的工具 ......

    uj5u.com 2020-09-10 02:00:47 more
  • 一、SQLMAP入門

    一、SQLMAP入門 1、判斷是否存在注入 sqlmap.py -u 網址/id=1 id=1不可缺少。當注入點后面的引數大于兩個時。需要加雙引號， sqlmap.py -u "網址/id=1&uid=1" 2、判斷文本中的請求是否存在注入 從文本中加載http請求，SQLMAP可以從一個文本檔案中 ......

    uj5u.com 2020-09-10 02:00:50 more
  • Metasploit 簡單使用教程

    metasploit 簡單使用教程 浩先生， 2020-08-28 16:18:25 分類專欄： kail 網路安全 linux 文章標簽： linux資訊安全 編輯 著作權 metasploit 使用教程 前言 一、Metasploit是什么？ 二、準備作業 三、具體步驟 前言 Msfconsole ......

    uj5u.com 2020-09-10 02:00:53 more
  • 游戲逆向之驅動層與用戶層通訊

    驅動層代碼： #pragma once #include <ntifs.h> #define add_code CTL_CODE(FILE_DEVICE_UNKNOWN,0x800,METHOD_BUFFERED,FILE_ANY_ACCESS) /* 更多游戲逆向視頻www.yxfzedu.com ......

    uj5u.com 2020-09-10 02:00:56 more
  • 北斗電力時鐘（北斗授時服務器）讓網路資料更精準

    北斗電力時鐘（北斗授時服務器）讓網路資料更精準 北斗電力時鐘（北斗授時服務器）讓網路資料更精準 京準電子科技官微——ahjzsz 近幾年，資訊技術的得了快速發展，互聯網在逐漸普及，其在人們生活和生產中都得到了廣泛應用，并且取得了不錯的應用效果。計算機網路資訊在電力系統中的應用，一方面使電力系統的運行 ......

    uj5u.com 2020-09-10 02:01:03 more
  • 【CTF】CTFHub 技能樹 彩蛋 writeup

    ?碎碎念 CTFHub：https://www.ctfhub.com/ 筆者入門CTF時時剛開始刷的是bugku的舊平臺，后來才有了CTFHub。 感覺不論是網頁UI設計，還是題目質量，賽事跟蹤，工具軟體都做得很不錯。 而且因為獨到的金幣制度的確讓人有一種想去刷題賺金幣的感覺。 個人還是非常喜歡這個 ......

    uj5u.com 2020-09-10 02:04:05 more
  • 02windows基礎操作

    我學到了一下幾點 Windows系統目錄結構與滲透的作用 常見Windows的服務詳解 Windows埠詳解 常用的Windows注冊表詳解 hacker DOS命令詳解（net user / type /md /rd/ dir /cd /net use copy、批處理 等） 利用dos命令制作 ......

    uj5u.com 2020-09-10 02:04:18 more
  • 03.Linux基礎操作

    我學到了以下幾點 01Linux系統介紹02系統安裝，密碼啊破解03Linux常用命令04LAMP 01LINUX windows： win03 8 12 16 19 配置不繁瑣 Linux：redhat,centos(紅帽社區版)，Ubuntu server,suse unix:金融機構，證券，銀 ......

    uj5u.com 2020-09-10 02:04:30 more
  • 05HTML

    01HTML介紹 02頭部標簽講解03基礎標簽講解04表單標簽講解 HTML前段語言 js1.了解代碼2.根據代碼 懂得挖掘漏洞 （POST注入/XSS漏洞上傳）3.黑帽seo 白帽seo 客戶網站被黑帽植入劫持代碼如何處理4.熟悉html表單 <html><head><title>TDK標題，描述 ......

    uj5u.com 2020-09-10 02:04:36 more
最新发布
  • 2023年最新微信小程式抓包教程

    01 開門見山 隔一個月發一篇文章，不過分。 首先回顧一下《微信系結手機號資料庫被脫庫事件》，我也是第一時間得知了這個訊息，然后跟蹤了整件事情的經過。下面是這起事件的相關截圖以及近日流出的一萬條資料樣本： 個人認為這件事也沒什么，還不如關注一下之前45億快遞資料查詢渠道疑似在近日復活的訊息。 訊息是 ......

    uj5u.com 2023-04-20 08:48:24 more
  • web3 產品介紹：metamask 錢包 使用最多的瀏覽器插件錢包

    Metamask錢包是一種基于區塊鏈技術的數字貨幣錢包，它允許用戶在安全、便捷的環境下管理自己的加密資產。Metamask錢包是以太坊生態系統中最流行的錢包之一，它具有易于使用、安全性高和功能強大等優點。 本文將詳細介紹Metamask錢包的功能和使用方法。 一、 Metamask錢包的功能 數字資 ......

    uj5u.com 2023-04-20 08:47:46 more
  • vulnhub_Earth

    前言 靶機地址->>>vulnhub_Earth 攻擊機ip：192.168.20.121 靶機ip：192.168.20.122 參考文章 https://www.cnblogs.com/Jing-X/archive/2022/04/03/16097695.html https://www.cnb ......

    uj5u.com 2023-04-20 07:46:20 more
  • 從4k到42k，軟體測驗工程師的漲薪史，給我看哭了

    清明節一過，盲猜大家已經無心上班，在數著日子準備過五一，但一想到銀行卡里的余額……瞬間心情就不美麗了。最近，2023年高校畢業生就業調查顯示，本科畢業月平均起薪為5825元。調查一出，便有很多同學表示自己又被平均了。看著這一資料，不免讓人想到前不久中國青年報的一項調查：近六成大學生認為畢業10年內會 ......

    uj5u.com 2023-04-20 07:44:00 more
  • 最新版本 Stable Diffusion 開源 AI 繪畫工具之中文自動提詞篇

    🎈 標簽生成器 由于輸入正向提示詞 prompt 和反向提示詞 negative prompt 都是使用英文，所以對學習母語的我們非常不友好 使用網址：https://tinygeeker.github.io/p/ai-prompt-generator 這個網址是為了讓大家在使用 AI 繪畫的時候 ......

    uj5u.com 2023-04-20 07:43:36 more
  • 漫談前端自動化測驗演進之路及測驗工具分析

    隨著前端技術的不斷發展和應用程式的日益復雜，前端自動化測驗也在不斷演進。隨著 Web 應用程式變得越來越復雜，自動化測驗的需求也越來越高。如今，自動化測驗已經成為 Web 應用程式開發程序中不可或缺的一部分，它們可以幫助開發人員更快地發現和修復錯誤，提高應用程式的性能和可靠性。 ......

    uj5u.com 2023-04-20 07:43:16 more
  • CANN開發實踐：4個DVPP記憶體問題的典型案例解讀

    摘要：由于DVPP媒體資料處理功能對存放輸入、輸出資料的記憶體有更高的要求（例如，記憶體首地址128位元組對齊），因此需呼叫專用的記憶體申請介面，那么本期就分享幾個關于DVPP記憶體問題的典型案例，并給出原因分析及解決方法。 本文分享自華為云社區《FAQ_DVPP記憶體問題案例》，作者：昇騰CANN。 DVPP ......

    uj5u.com 2023-04-20 07:43:03 more
  • msf學習

    msf學習 以kali自帶的msf為例 一、msf核心模塊與功能 msf模塊都放在/usr/share/metasploit-framework/modules目錄下 1、auxiliary 輔助模塊，輔助滲透（埠掃描、登錄密碼爆破、漏洞驗證等） 2、encoders 編碼器模塊，主要包含各種編碼 ......

    uj5u.com 2023-04-20 07:42:59 more
  • Halcon軟體安裝與界面簡介

    1. 下載Halcon17版本到到本地 2. 雙擊安裝包后 3. 步驟如下 1.2 Halcon軟體安裝 界面分為四大塊 1. Halcon的五個助手 1) 影像采集助手：與相機連接，設定相機引數，采集影像 2) 標定助手：九點標定或是其它的標定，生成標定檔案及內參外參，可以將像素單位轉換為長度單位 ......

    uj5u.com 2023-04-20 07:42:17 more
  • 在MacOS下使用Unity3D開發游戲

    第一次發博客，先發一下我的游戲開發環境吧。 去年2月份買了一臺MacBookPro2021 M1pro(以下簡稱mbp)，這一年來一直在用mbp開發游戲。我大致分享一下我的開發工具以及使用體驗。 1、Unity 官網鏈接： https://unity.cn/releases 我一般使用的Apple ......

    uj5u.com 2023-04-20 07:40:19 more

Copyright © 2010-2020 有解無憂
