悟空crm-spring開源版本環境搭建

安裝步驟
- 硬體配置
- 基礎軟體
- - mysql安裝
  - Elasticsearch 6.8.6安裝
  - Redis安裝
  - Nacos安裝
  - Seata安裝
  - Sentinel安裝
- 編譯CRM
- 運行CRM

安裝步驟

JDK需要預先安裝，下載后執行install.sh
鏈接: link.

硬體配置

因為只有一臺機器所以安裝在一臺機器上了
|

cpu	記憶體	硬碟	系統
8核	32G	ssd100G	centos7

基礎軟體

mysql安裝

1.卸載mariadb

rpm -qa | grep mariadb
rpm -e --nodeps mariadb-libs-5.5.56-2.el7.x86_64

2.安裝mysql

rpm -ivh mysql-community-common-5.7.29-1.el7.x86_64.rpm
rpm -ivh mysql-community-libs-5.7.29-1.el7.x86_64.rpm
rpm -ivh mysql-community-client-5.7.29-1.el7.x86_64.rpm
rpm -ivh mysql-community-server-5.7.29-1.el7.x86_64.rpm
如果此步出現錯誤：libaio.so.1()(64bit) is needed by MySQL-server 執行命令安裝：yum install libaio

3.啟動mysql

systemctl start mysqld

4.獲取登錄密碼并登錄

grep “password” /var/log/mysqld.log
mysql -uroot -p
輸入上面的密碼

5.修改密碼并授權可遠程登錄

ALTER USER ‘root’@‘localhost’ IDENTIFIED BY ‘123456’;
set global validate_password_policy=0;
set global validate_password_length=1;
GRANT ALL PRIVILEGES ON . TO ‘root’@’%’ IDENTIFIED BY ‘123456’ WITH GRANT OPTION;
FLUSH PRIVILEGES;

6.修改group by報錯

vi /etc/my.cnf
[mysqld]
sql_mode=STRICT_TRANS_TABLES,NO_ZERO_IN_DATE,NO_ZERO_DATE,ERROR_FOR_DIVISION_BY_ZERO,NO_AUTO_CREATE_USER,NO_ENGINE_SUBSTITUTION

7.創建資料庫

- 初始化gateway模塊資料庫：新建資料庫 `nacos` 在`nacos`資料庫中運行` DB/config_info_route.sql`
- 初始化其余模塊資料庫：新建資料庫 `wk_crm_single` 在`wk_crm_single`資料庫中運行 `DB/wk_crm_single.sql`
- 初始化定時任務模塊資料庫：新建資料庫 `xxl_job` 在`xxl_job`資料庫中運行 `DB/xxl_job.sql`
- 初始化seata資料庫：新建資料庫 `seata` 在`seata`資料庫中運行 `DB/seata.sql`

mysql安裝鏈接: link.

Elasticsearch 6.8.6安裝

1.解壓

tar -zxvf Elasticsearch 6.8.6.tar.gz
cd elasticsearch-6.8.6/config
2.修改記憶體
vi jvm.options里-Xms512M 和 -Xmx512M

3.創建ES的用戶與組和權限

groupadd es
useradd esuser -g es -p elasticsearch
chown -R esuser:es （es安裝路徑）
su esuser（切換用戶）

安裝插件

cd (es安裝目標)/plugins
mkdir analysis-icu
cd analysis-icu
wget https://file.72crm.com/project/analysis-icu-6.8.6.zip
unzip analysis-icu-6.8.6.zip

運行

./elasticsearch -d （后臺啟動命令：）

Elasticsearch下載鏈接: link.國內鏡像下載很快

Redis安裝

wget https://download.redis.io/releases/redis-6.0.8.tar.gz
tar -zxcf redis-6.0.8
cd redis-6.0.8
make && install
cd src
nohup ./redis-server &&
./redis-cli
redis 127.0.0.1:6379> requirepass “123456”
OK
redis 127.0.0.1:6379> AUTH 123456

Nacos安裝

1.下載并解壓

wget https://github.com/alibaba/nacos/releases/download/1.3.2/nacos-server-1.3.2.tar.gz
unzip nacos-server-1.3.2.tar.gz

2.初始化資料庫
將 nacos-mysql.sql導到nacos資料庫中(上面mysql安裝第7步)

3.修改nacos組態檔
cd 安裝目標/conf
vi application.properties

spring.datasource.platform=mysql

### Count of DB:
db.num=1

### Connect URL of DB:
db.url.0=jdbc:mysql://127.0.0.1:3306/nacos?characterEncoding=utf8&connectTimeout=1000&socketTimeout=3000&autoReconnect=true&useUnicode=true&useSSL=false&serverTimezone=UTC
db.user=root
db.password=123456

4.啟動nacos

startup.sh -m standalone

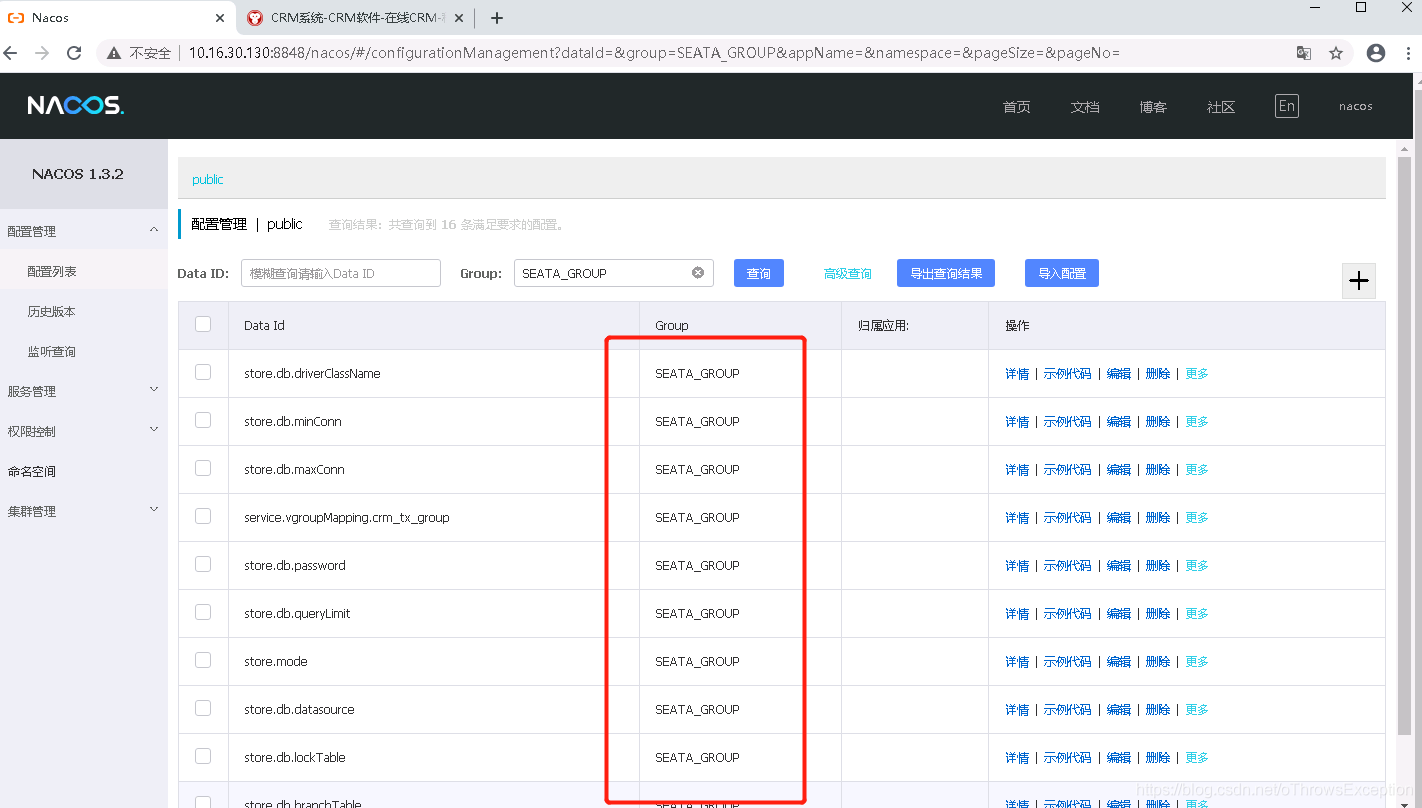

5.訪問web控制臺

在這里插入圖片描述

Seata安裝

1.下載解壓

wget https://github.com/seata/seata/releases/download/v1.3.0/seata-server-1.3.0.zip
unzip seata-server-1.3.0.zip
cd seata/conf

2.修改registry.conf配置為nacos
vi registry.conf

registry {
  # file 、nacos 、eureka、redis、zk、consul、etcd3、sofa
  type = "nacos"

  nacos {
    application = "seata-server"
    serverAddr = "127.0.0.1"
    namespace = ""
    cluster = "default"
    username = ""
    password = ""
  }

config {
  # file、nacos 、apollo、zk、consul、etcd3
  type = "nacos"

  nacos {
    serverAddr = "127.0.0.1"
    namespace = ""
    group = "SEATA_GROUP"
    username = ""
    password = ""
  }

}

3.起動

./bin/seata-server.sh

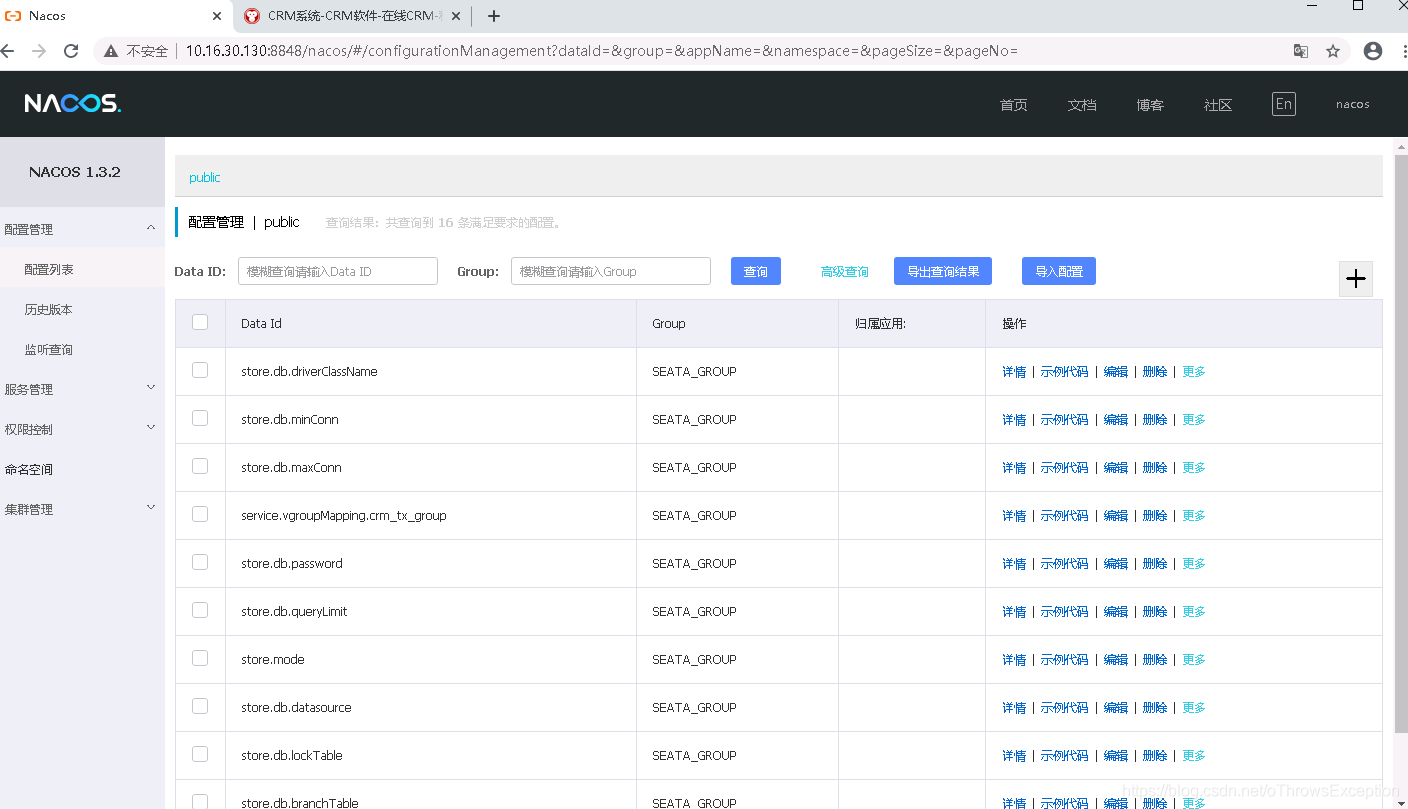

4.查看nacos，如圖說明注冊成功
在這里插入圖片描述

Sentinel安裝

1.下載解壓

wget https://github.com/alibaba/Sentinel/releases/download/v1.8.0/sentinel-dashboard-1.8.0.jar
unzip sentinel-dashboard-1.8.0.jar
cd sentinel
2.啟動

nohup java -Dserver.port=8079 -Dcsp.sentinel.dashboard.server=localhost:8079 -Dproject.name=sentinel-dashboard -jar sentinel-dashboard-1.8.0.jar &

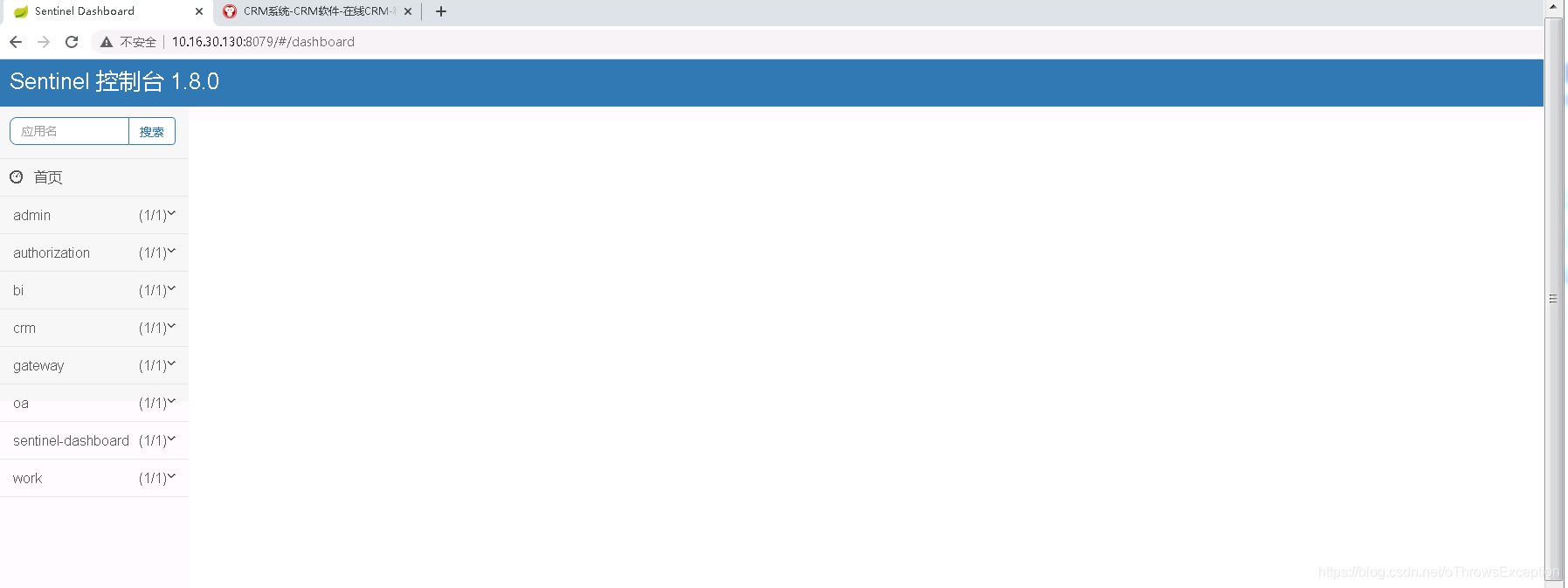

開開瀏覽器:http://10.16.30.130:8079/#/dashboard
在這里插入圖片描述

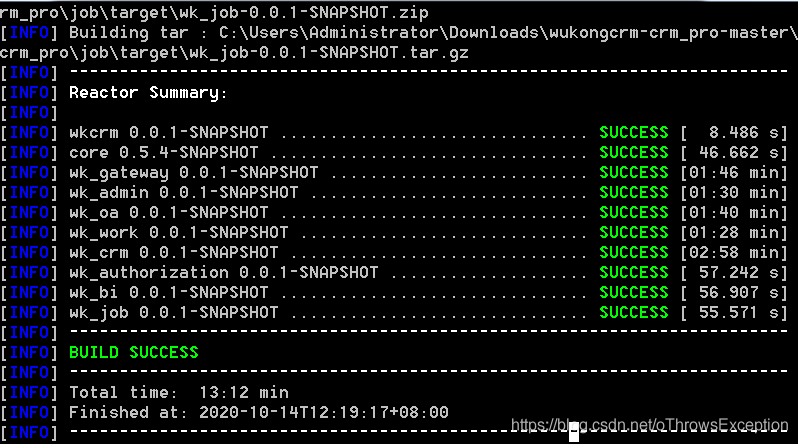

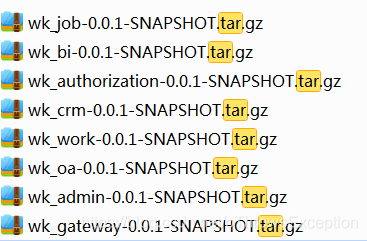

編譯CRM

1.修改maven settting.xml的鏡像mirrorOf為central，不改的話wk_update下載不了

	<mirror>
			 <id>nexus</id>
			<mirrorOf>central</mirrorOf>
			<name>Nexus Mirror</name>
			<url>http://192.168.0.114:8081/nexus/content/groups/public</url>
        </mirror>

2.修改原始碼中的hibernate-validator版本為6.0.8，因為我運行時出現

The Bean Validation API is on the classpath but no implementation could be found
because no Jakarta Bean Validation provider could be found. Add a provider like Hibernate Validator (RI) to your classpath.

1).專案根pm.xml添加

	<properties>
        <hibernate-validator.version>6.0.8.Final</hibernate-validator.version>
    </properties>
	<dependency>
			<groupId>org.hibernate</groupId>
			<artifactId>hibernate-validator</artifactId>
			<version>${hibernate-validator.version}</version>
	</dependency>

2).修改gateway 下pom.xml

<dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-gateway</artifactId>
            <exclusions>
                 <exclusion>
                <artifactId>hibernate-validator</artifactId>
                 <groupId>org.hibernate.validator</groupId>
                </exclusion>
                </exclusions>
        </dependency>

3).修改core下pom.xml

<!--web依賴包-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
            <exclusions>
                <exclusion>
                    <groupId>org.springframework.boot</groupId>
                    <artifactId>spring-boot-starter-tomcat</artifactId>
                </exclusion>

                 <exclusion>
                	<artifactId>hibernate-validator</artifactId>
                 	<groupId>org.hibernate.validator</groupId>
                </exclusion>

            </exclusions>
        </dependency>
